Кровельные сэндвич-панели с утеплителем из пенополиизоцианурата (PIR)

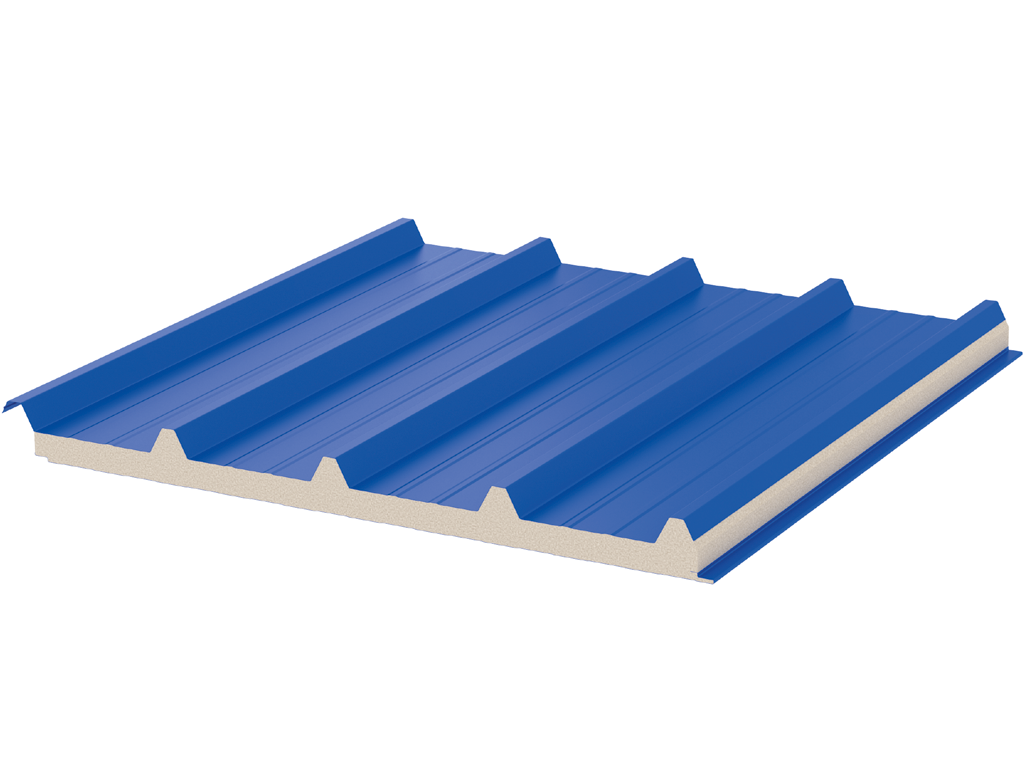

Roof panels with polyisocyanurate foam (PIR) insulation and additional stiffening ridges are used for ceiling and roofing of prefabricated buildings for various purposes, as well as for insulation of existing buildings. The geometry of the panel is designed to take into account the heavy snow loads in the northern regions.

Application:

Industrial and administrative buildings
Food industry enterprises
Warehouse buildings
Buildings for agriculture

Order with installation

Advantages

PIR-filler provides low thermal conductivity of the panels.

Compared to other building materials, PIR-filled sandwich panels have a light weight.

Panel combustibility class - G1 (do not spread flame, do not burn), fire resistance limit - up to EI45.

The service life of panels without loss of thermal insulation properties is about 50 years.

PIR insulation is not subject to self-destruction, mold and decay, and is not suitable as a habitat for rodents, insects and microorganisms.

The panels can be used both to maintain low temperatures in the southern latitudes, and to keep warm in the northern ones.

We offer 26 standard colors for painting panels, as well as any color according to the RAL card on an individual order.

Our own line for painting rolled steel makes it possible to apply various polymeric coatings to the metal and control the quality of materials for the production of sandwich panels at all stages of production.

PIR-filler provides low thermal conductivity of the panels.

Compared to other building materials, PIR-filled sandwich panels have a light weight.

Panel combustibility class - G1 (do not spread flame, do not burn), fire resistance limit - up to EI45.

The service life of panels without loss of thermal insulation properties is about 50 years.

PIR insulation is not subject to self-destruction, mold and decay, and is not suitable as a habitat for rodents, insects and microorganisms.

The panels can be used both to maintain low temperatures in the southern latitudes, and to keep warm in the northern ones.

We offer 26 standard colors for painting panels, as well as any color according to the RAL card on an individual order.

Design

The profile and lock of sandwich panels

The profile and lock of sandwich panels,

SURFACE

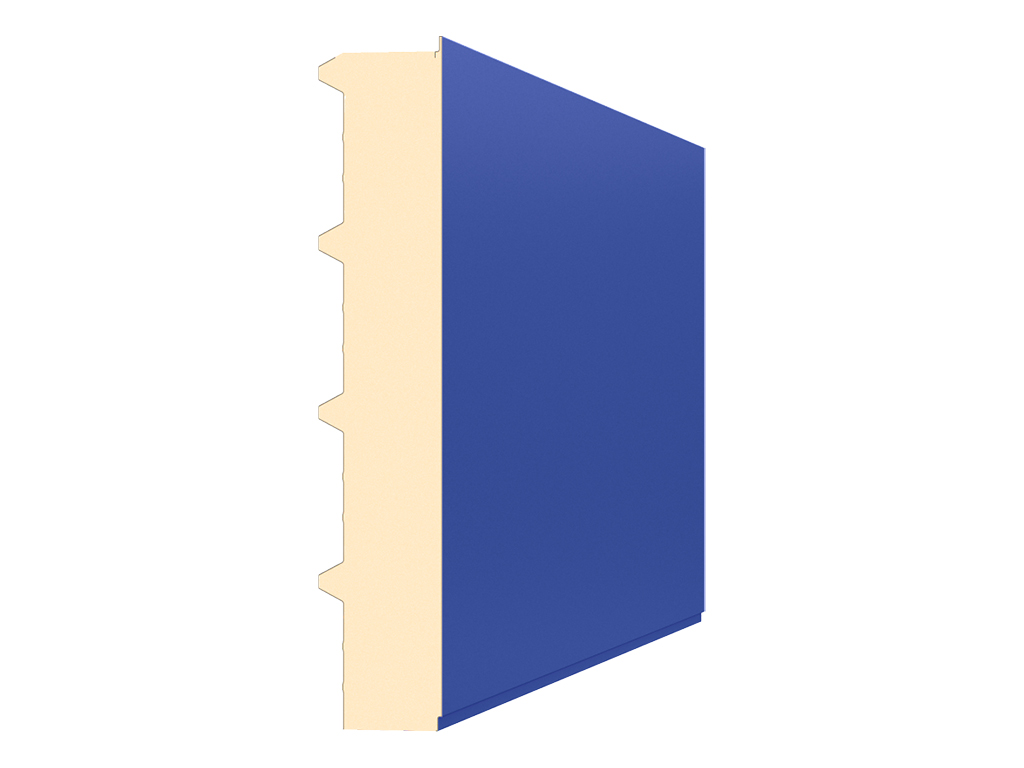

Smooth (G)

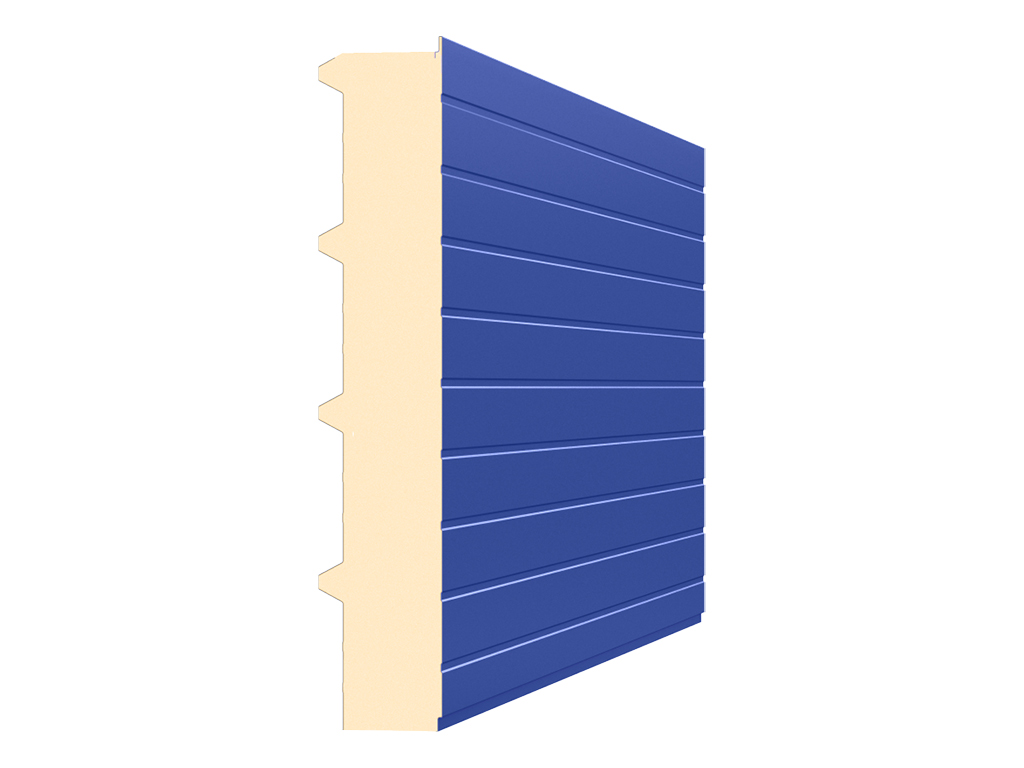

Trapeze (50/11)

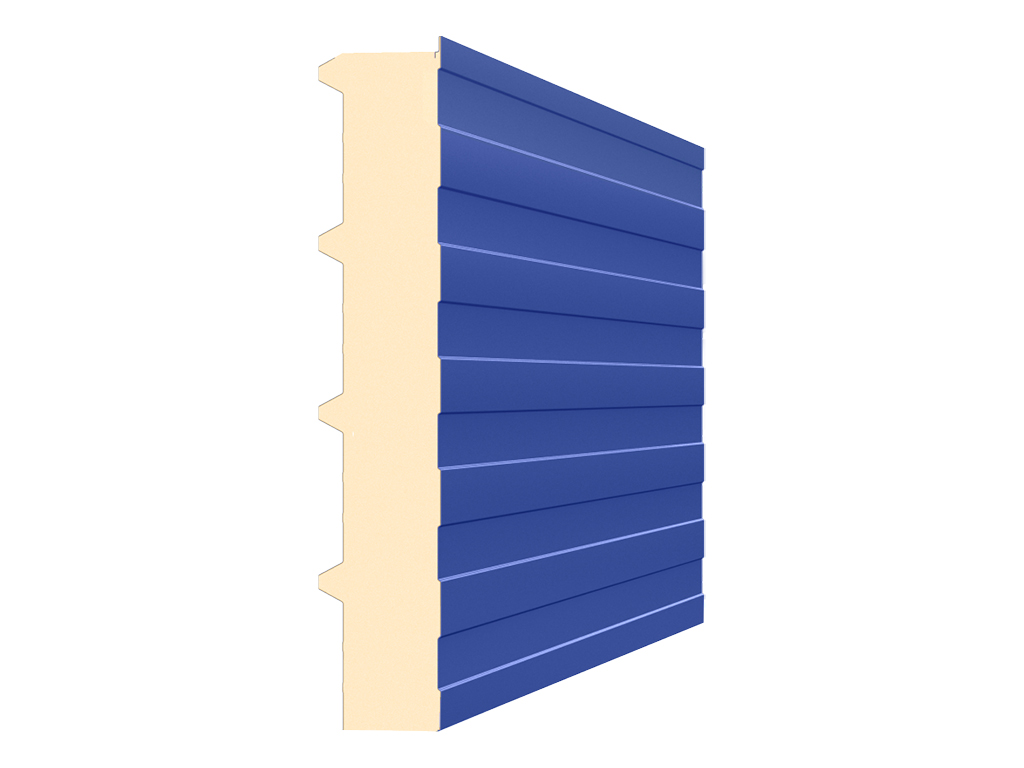

Trapeze (50/50)

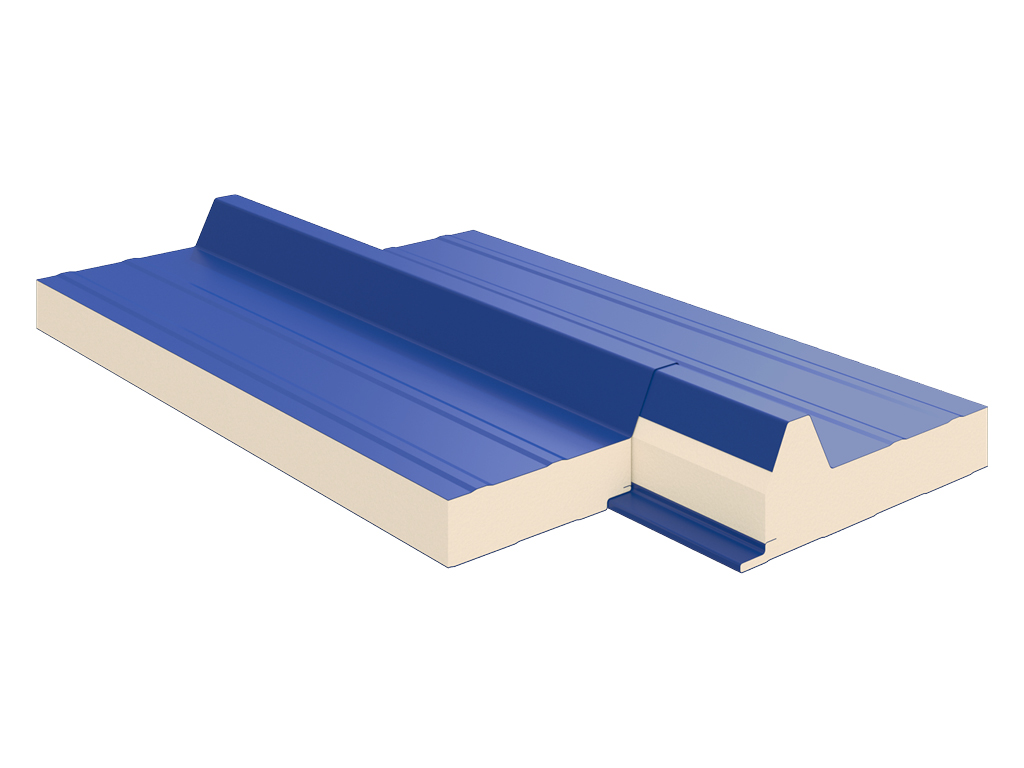

Roof-lock (R3)

Smooth (G)

Trapeze (50/11)

Trapeze (50/50)

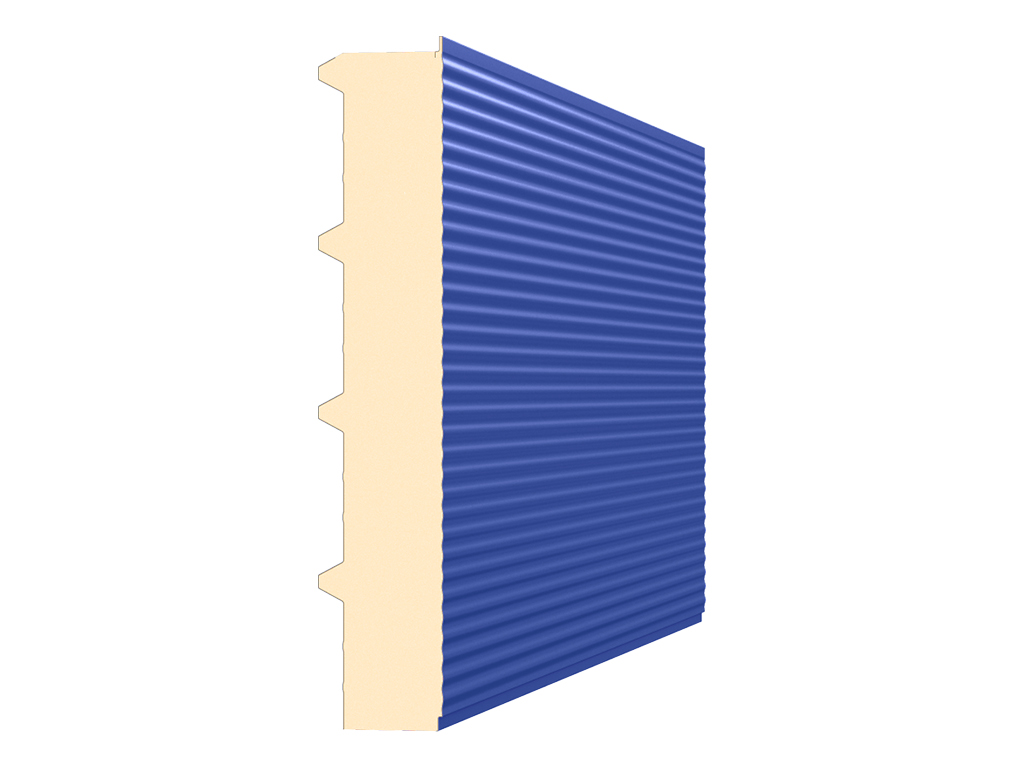

Wave (B25)

Roof-lock (R2)

Wood

Stucco

Technical description

Size Table

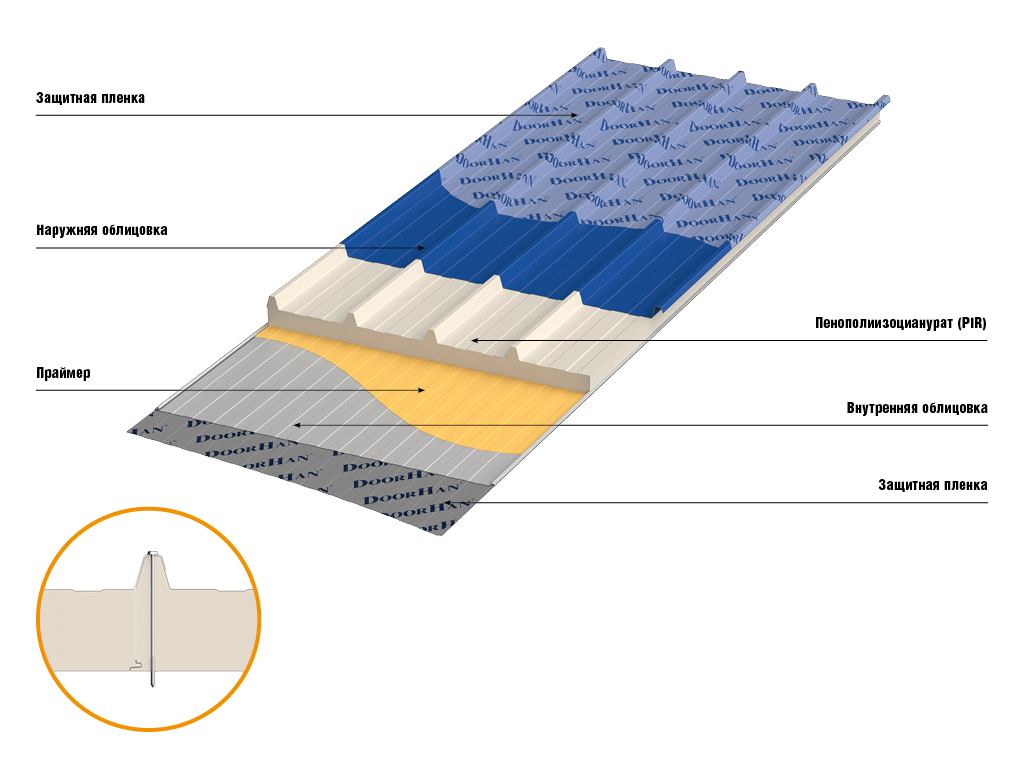

Construction

Standard Construction

Specifications

Packaging

Parameters

Value

Примечание:

Width, mm

1 000

Length, mm

From 2,000 to 13,500 (by request up to 16,000)

Thickness, mm

60; 80; 100; 120; 140

Примечание:

Width, mm

1 000

Length, mm

From 2,000 to 12,700

Thickness, mm

40; 60; 80; 100; 120; 150

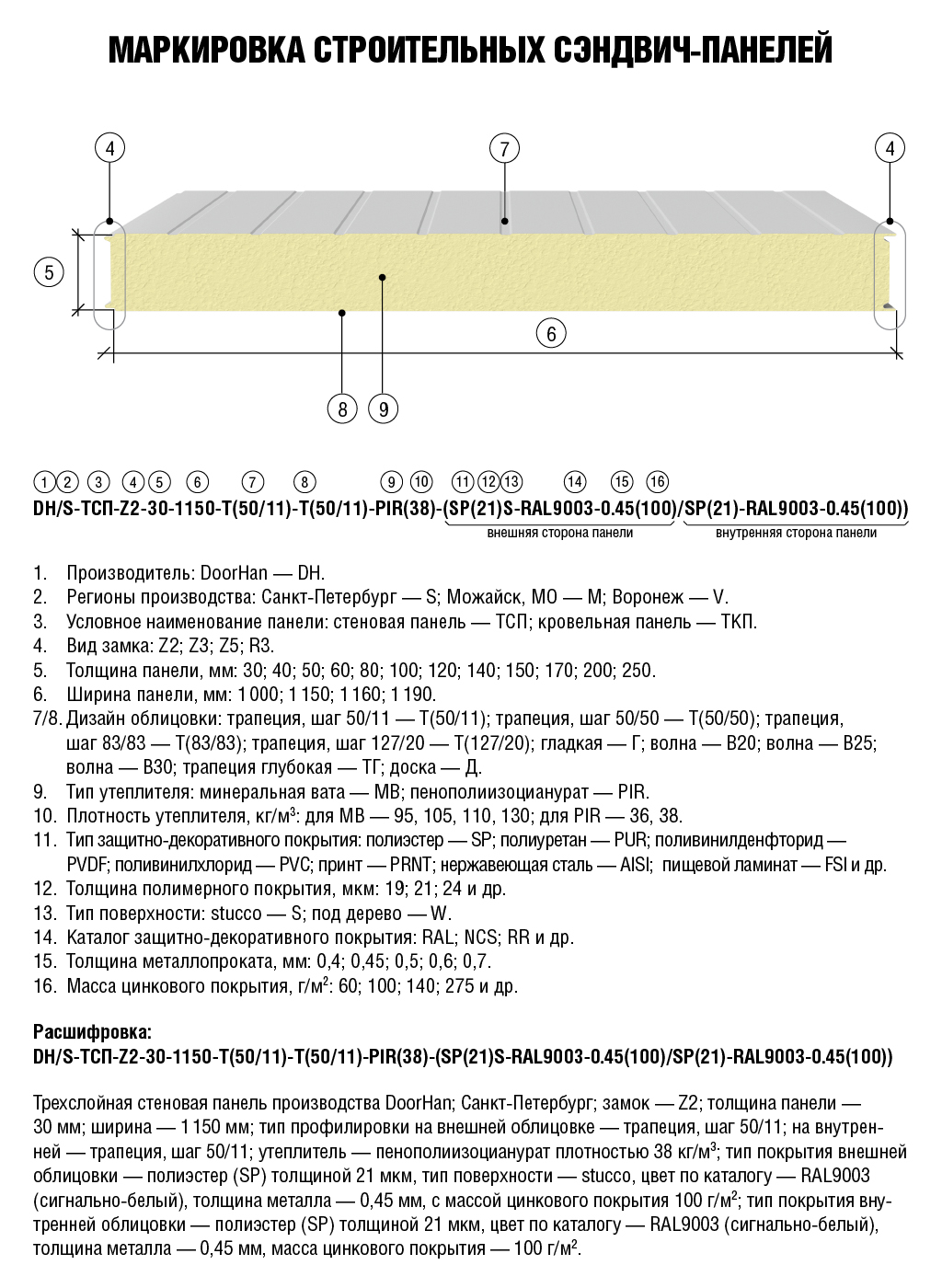

Explanation of the name of sandwich panels

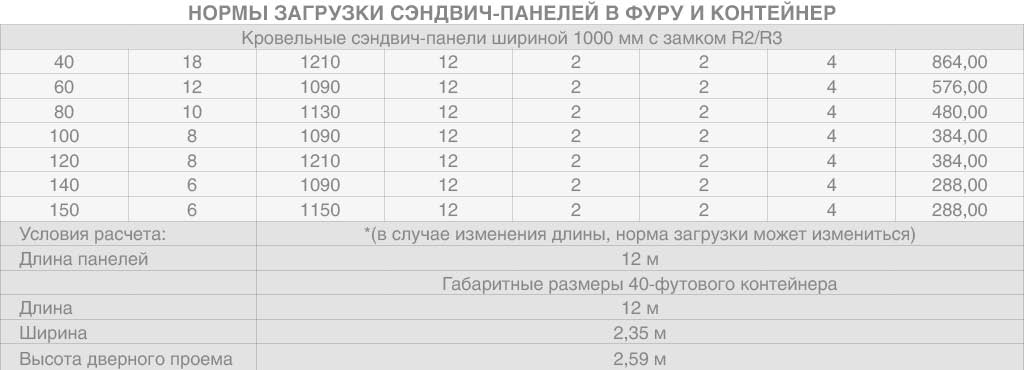

Loading regulations of sandwich panels into trucks and containers

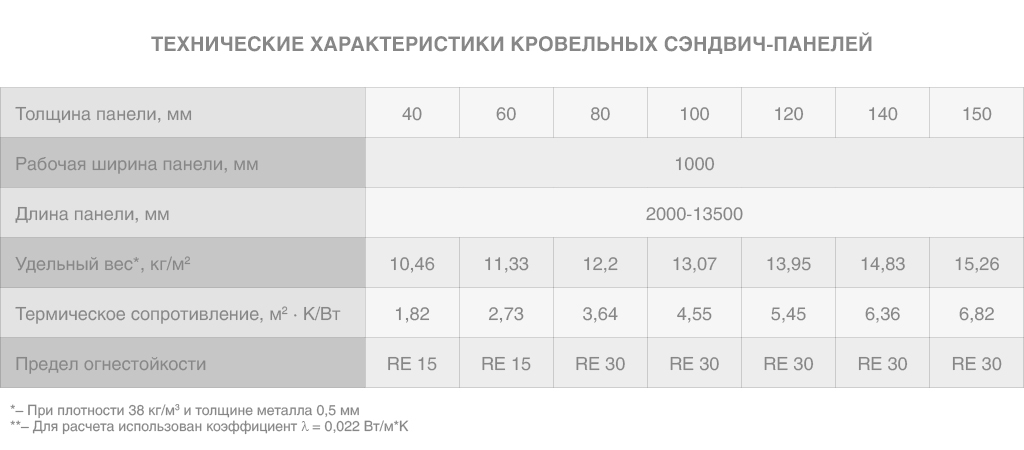

Technical characteristics of roof sandwich panels

Parameter	Value	Notes
Масса цинкового покрытия, г/м²	100	60–275 g/m² on request
Толщина металла облицовок панели, мм	0,45	0.4-0.7 mm - on request
Плотность пенополиизоцианурата, кг/м³	36–42
Коэффициент теплопроводности, Вт/(м·К)	0,022–0,023

Packing in stretch film	Packaging features
Contents	Packing of sandwich panels is carried out in transport packages with stretch film with foam sheets. Look at packaging instructions.
Description	Transportation of packages with sandwich panels is carried out by road, rail or water transport. See packaging instructions for loading.

Documentation

Manuals

Technical Data and Certificates

Drawings

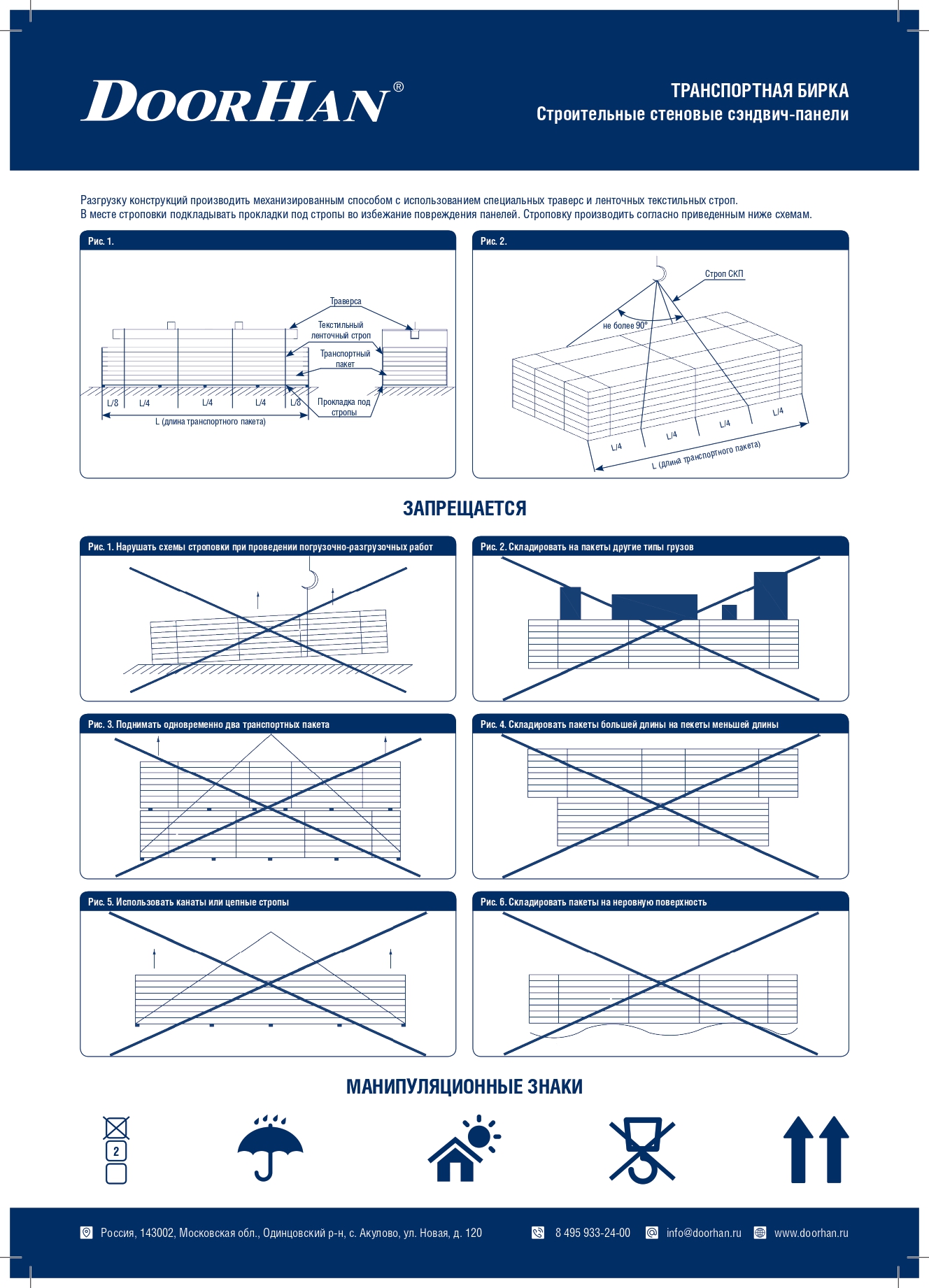

Packing instruction for sandwich panels

PDF

Certificate of conformity with fire resistance limits

PDF

Certificate of conformity with the combustibility of materials

PDF

Certificate of conformity with fire resistance limits

PDF

Certificate of conformity with the combustibility of materials

PDF

SEZ certificate

PDF

Certificate of Conformity TU

PDF

Certificate of Conformity TU

PDF

SEZ certificate

PDF

Profile and lock of PIR R2 sandwich panels

PDF

Profile and lock of PIR R3 sandwich panels

PDF

Warranty print

2. The durability of sandwich panels depends primarily on the corrosiveness of the environment in which they are operated. Accordingly, the durability of sandwich panels for normal industrial environments and standard surface finishes is 10 years.
