System of rollers and guides for cold-rolled beams 71 × 60 × 3.5, L = 6,000 mm

The kit includes everything you need to assemble and install sliding doors. Any kind of shields made by yourself are suitable for this kit.

Order with installation

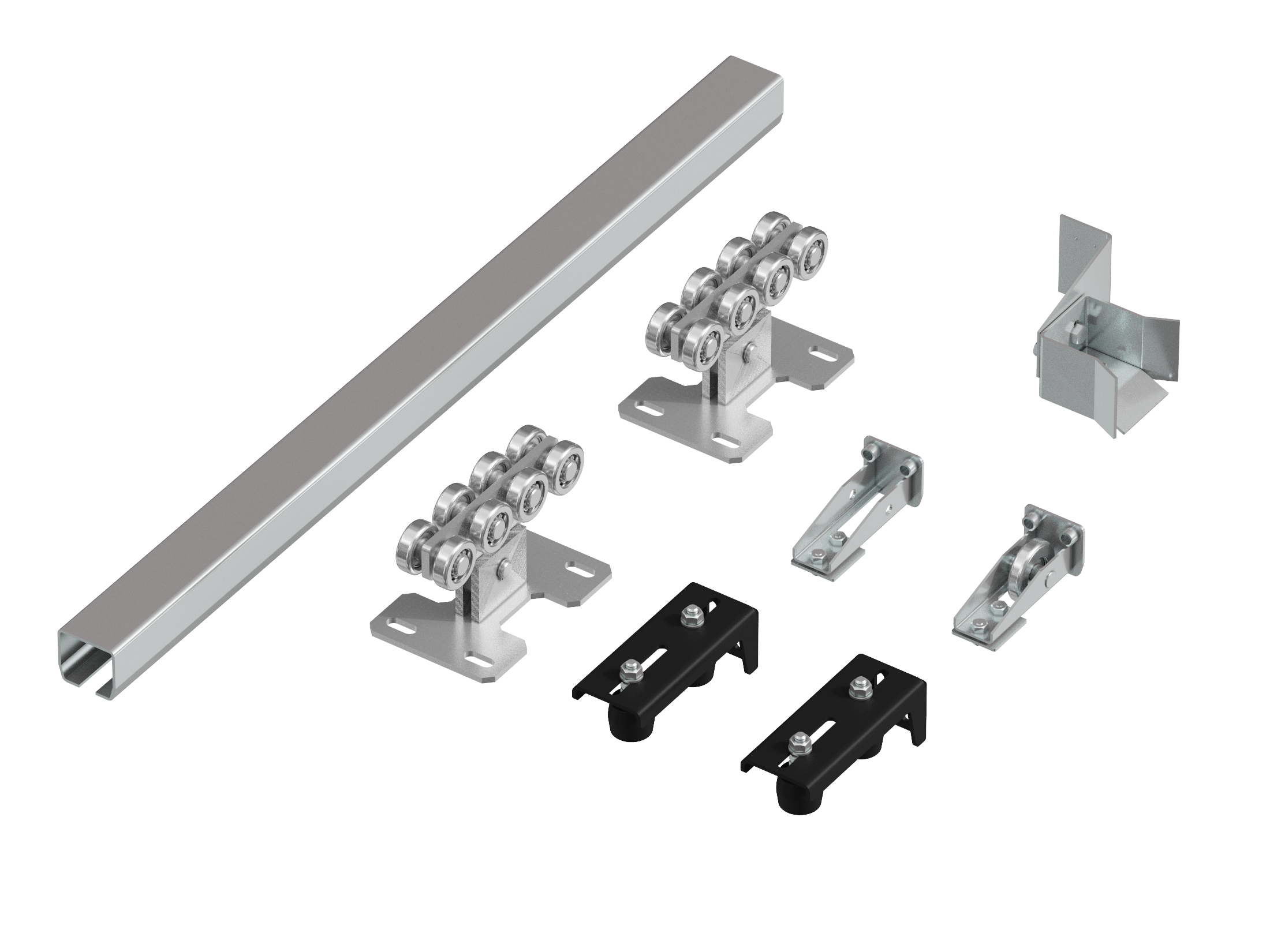

Equipment

Standard

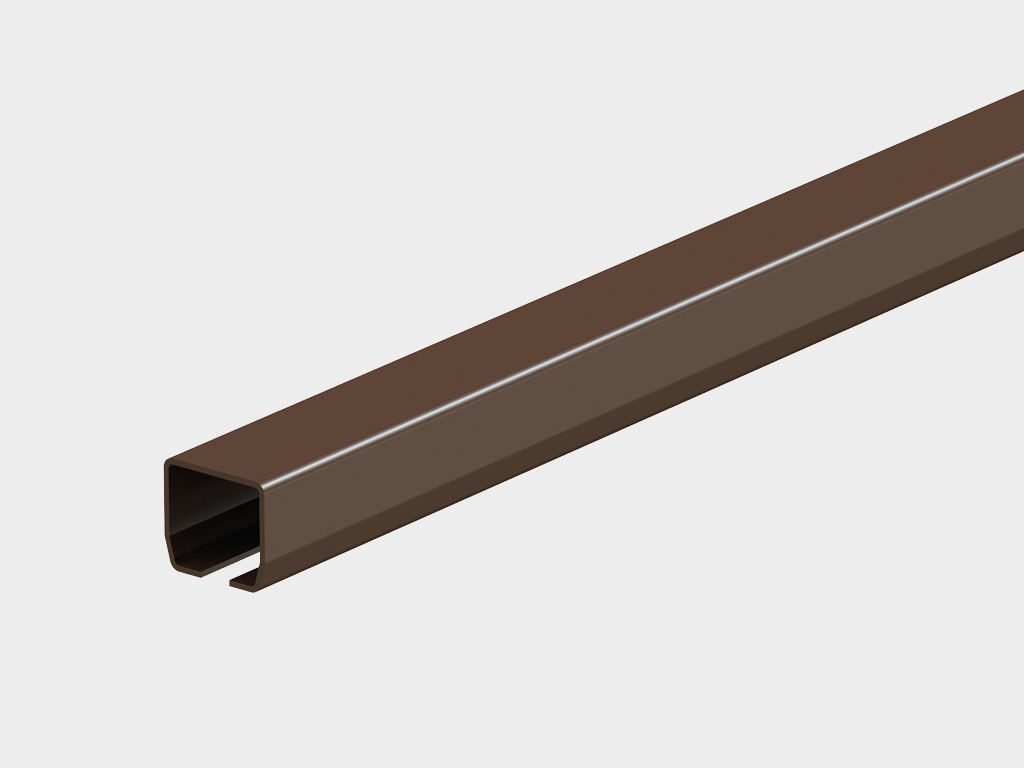

Beam 71 × 60 × 3.5, L = 6,000 mm

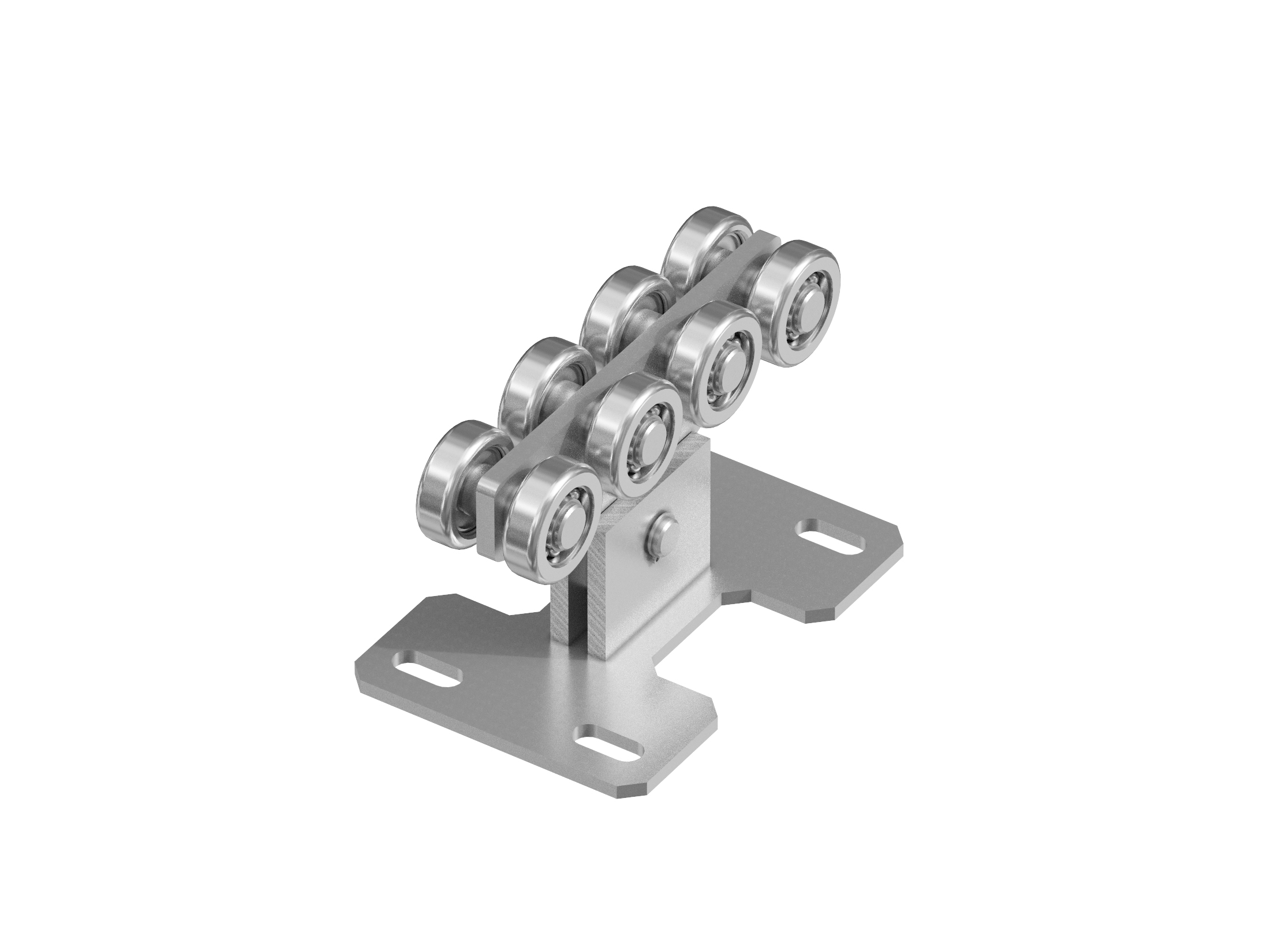

Roller bearings - 2 pcs.

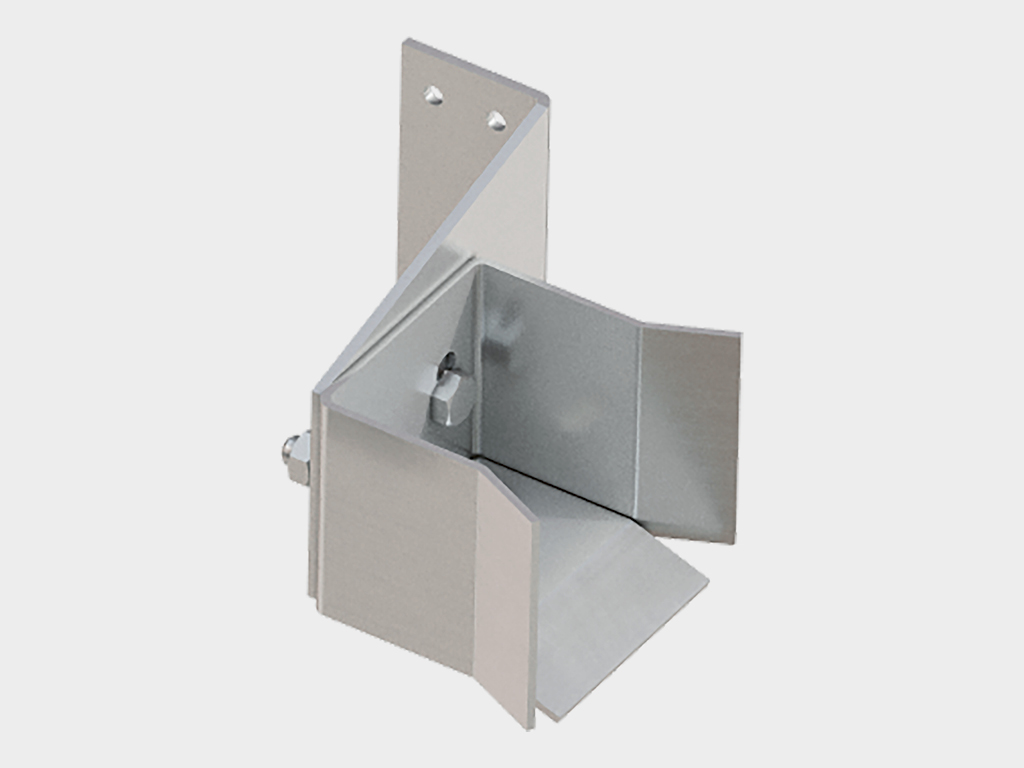

Lower catcher — 1 pc.

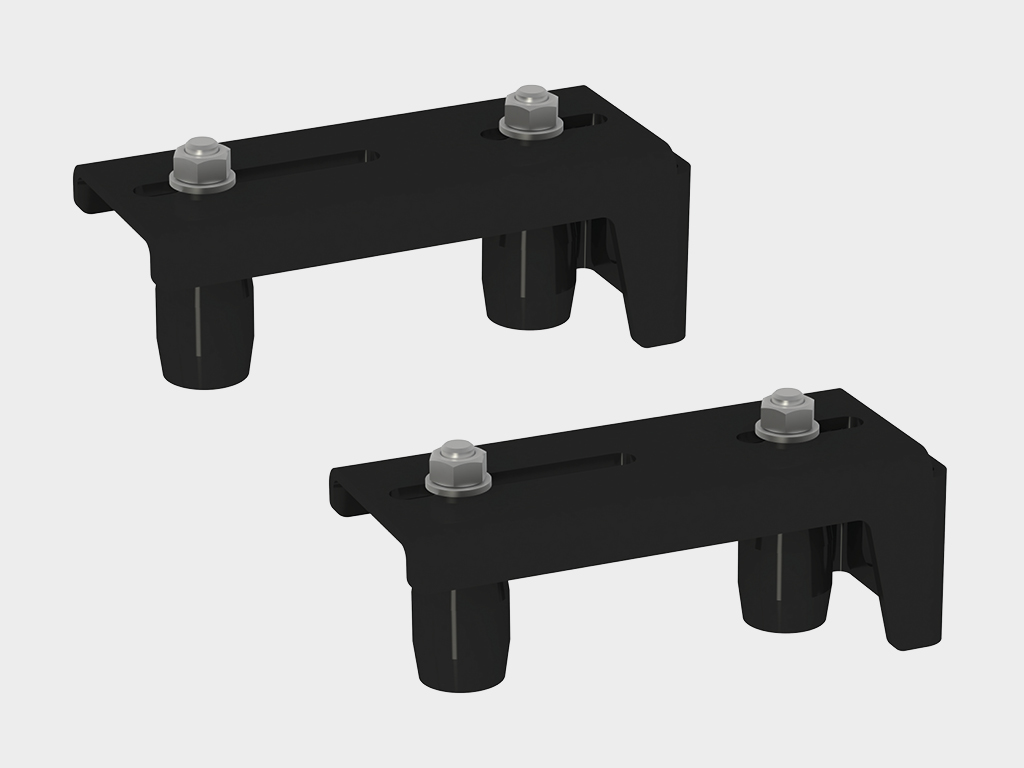

Guide devices - 2 pcs.

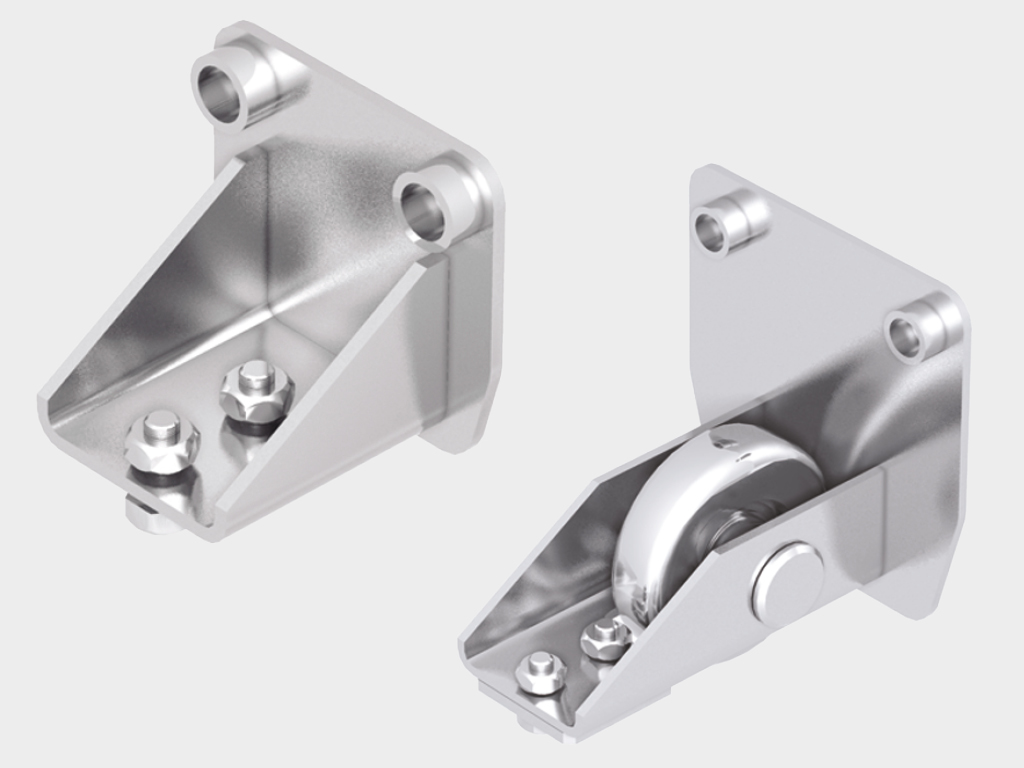

Covers for the beam - 2 pcs.

Technical description

Standard Construction

Specifications

Operating Conditions

Packaging

It is possible to install doors with openings to the left or right side.

Parameter	Value	Notes
Load capacity, kg (kN)	400

1. Proper installation and operation of components ensure reliable and durable operation. During operation it is necessary:

1.1. Carry out an external inspection of the product every 6 months after the installation of the system.

1.2. During external inspection, make sure that the elements are firmly attached to the door leaf, that there are no external mechanical damages, and that there are no places with weak connections.

1.3. Operation of roller and guide systems is permitted at an ambient temperature of -30 to +40°C and a relative humidity of 75%.

2. When operating systems of rollers and guides for a cold-rolled beam 71 × 60 × 3.5, L = 6,000 mm, IT IS FORBIDDEN:

2.1. Hit or damage roller bearings

2.2. During the cleaning of components, use substances that can cause damage to surfaces.

2.3. Installation of equipment not provided by the manufacturer that changes the weight, wind and other loads of the structural elements of the configuration. Any interference with the manufacturer's standard solutions can lead to a loss of strength characteristics of the structure.

Packing in bubble wrap	Packaging features
Description	The packaging is bubble wrap wrapped around a beam with an overlap; the film is fixed with adhesive tape with the company logo
Length, mm	6 000
Width, mm	75
Height, mm	65

Packing in cardboard box	Packaging features
Contents	Roller bearings, guides, catchers, covers for the beam
Length, mm	400
Width, mm	300
Height, mm	200

Documentation

Manuals

Technical Data and Certificates

Drawings

Sliding door instruction manual

PDF

Instructions for assembling steel doors on a rolled beam using the Revolution series sliding doors as an example

PDF

Instructions for assembling a door with a leaf filled with sandwich panels on a rolled beam using the DoorHan sliding door as an example

PDF

Certificate of Compliance for Doors

PDF

DWG

General view of the doors on the example of a shield filled with sandwich panels

PDF

DWG

Warranty print

The buyer is provided with a guarantee of the reliability of operation of the complete set of sliding gates manufactured by DoorHan for a year from the date of purchase.
