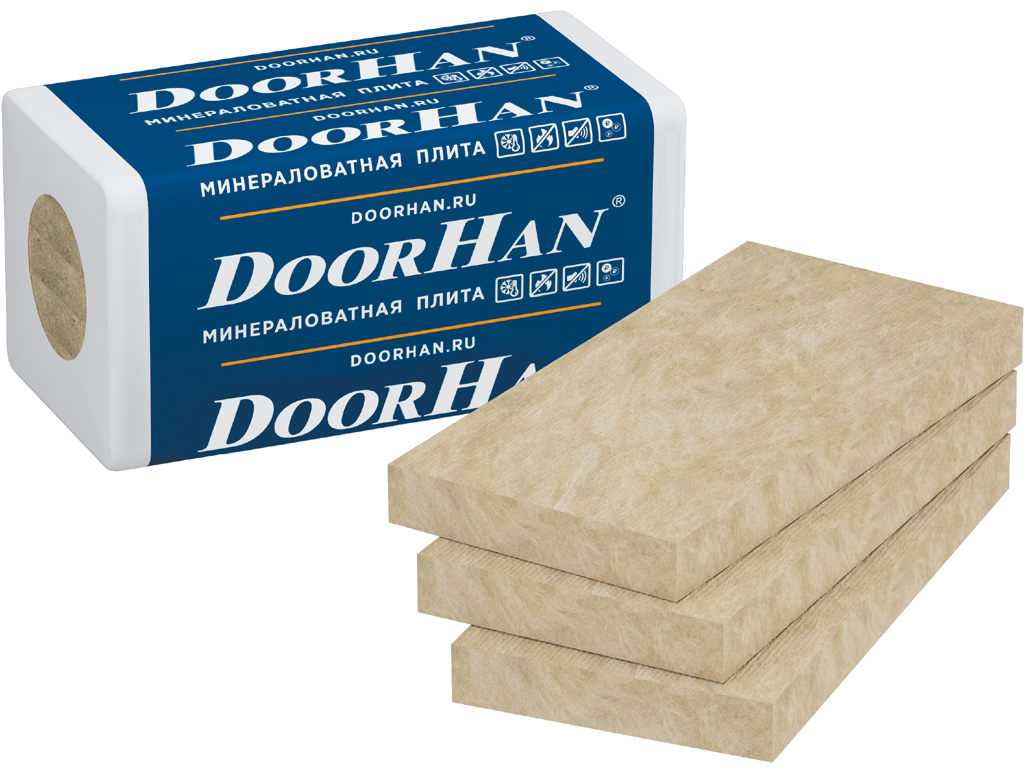

Плита минераловатная DoorHan «Руф В Оптима»

DoorHan mineral wool slabs "RUF V OPTIMA" are used as a heat-insulating layer in multi-layer coatings of flat roofs, including when laying on a surface without a cement screed.

Application:

As top thermal insulation layer in flat roof systems
As top thermal insulation layer in flat roof systems

Order with installation

Advantages

Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.

Optimum vapor permeability of cotton wool eliminates the formation of fungus and mold on the inner walls of the plate.

The raw material for the production of plates is natural stone. The products meet all the requirements for environmental friendliness, which is confirmed by the relevant certificates.

Allows to carry out installation of plates with the most dense prileganiye to each other.

Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.

Optimum vapor permeability of cotton wool eliminates the formation of fungus and mold on the inner walls of the plate.

The raw material for the production of plates is natural stone. The products meet all the requirements for environmental friendliness, which is confirmed by the relevant certificates.

Allows to carry out installation of plates with the most dense prileganiye to each other.

Technical description

Size Table

Specifications

Packaging

Parameters

Value

Length, mm

1 200

Width, mm

600; 1 200

Thickness, mm

from 40 to 150 in 10 mm increments

Packaging volume, m³

from 0.093 to 0.172 (depending on the thickness and width of the plate)

Parameter	Value	Notes
Density, kg/m³	160
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С	λ10 = 0,039	at a temperature of 10 ˚С (283±1)K, no more
Thermal conductivity, W/(m K)	λ25 = 0,040	at a temperature of 25 ˚С (298±1)K, no more
Thermal conductivity, W/(m K)	λА = 0,041	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Thermal conductivity, W/(m K)	λБ = 0,042	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Compressive strength, kPa	60	for compression at 10% relative deformation, not less than
Tensile strength, kPa	15	when stretched perpendicular to the front surfaces, not less than
Concentrated force at a given absolute deformation, N	at least 550	deformation 5 mm
Water absorption, kg/sqm	1,0	with short-term partial immersion, no more
Content of organic substances, %	4,5	by weight, no more
Humidity, %	0,5	by weight, no more
Vapour permeability, mg/m·h·Pa	0,5	no more
Combustibility class according to European Standards	NG

Packing on pallet	Packaging features
Description	The boards are packed in a thermoshrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm	2 400
Width, mm	1 200
Height, mm	2 505

Documentation

Manuals

Technical Data and Certificates

Album of technical solutions

PDF

Fire Safety Certificate

PDF

Declaration of Conformity

PDF

Expert opinion

PDF

Certificate of conformity

PDF

Certificate of conformity

PDF

Warranty print

If the consumer maintains the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.

Technical description

Size Table

Parameters

Value

Length, mm

1 200

Width, mm

600; 1 200

Thickness, mm

from 40 to 150 in 10 mm increments

Packaging volume, m³

from 0.093 to 0.172 (depending on the thickness and width of the plate)

Specifications

Parameter	Value	Notes
Density, kg/m³	160
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С	λ10 = 0,039	at a temperature of 10 ˚С (283±1)K, no more
Thermal conductivity, W/(m K)	λ25 = 0,040	at a temperature of 25 ˚С (298±1)K, no more
Thermal conductivity, W/(m K)	λА = 0,041	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Thermal conductivity, W/(m K)	λБ = 0,042	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Compressive strength, kPa	60	for compression at 10% relative deformation, not less than
Tensile strength, kPa	15	when stretched perpendicular to the front surfaces, not less than
Concentrated force at a given absolute deformation, N	at least 550	deformation 5 mm
Water absorption, kg/sqm	1,0	with short-term partial immersion, no more
Content of organic substances, %	4,5	by weight, no more
Humidity, %	0,5	by weight, no more
Vapour permeability, mg/m·h·Pa	0,5	no more
Combustibility class according to European Standards	NG

Packaging

Packing on pallet	Packaging features
Description	The boards are packed in a thermoshrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm	2 400
Width, mm	1 200
Height, mm	2 505

Warranty

If the consumer maintains the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.
