Плита минераловатная DoorHan «Сэндвич С Проф»

DoorHan mineral wool boards are used as a middle layer (core) in the manufacture of building three-layer sandwich panels.
Application:
  • Three-layer wall sandwich panels
  • Three-layer wall sandwich panels
Advantages
The raw material for the production of plates is natural stone. The products meet all the requirements for environmental friendliness, which is confirmed by the relevant certificates.
Allows to carry out installation of plates with the most dense prileganiye to each other.
The excellent heat-insulating properties of mineral wool significantly reduce heat loss.
Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.
The raw material for the production of plates is natural stone. The products meet all the requirements for environmental friendliness, which is confirmed by the relevant certificates.
Allows to carry out installation of plates with the most dense prileganiye to each other.
The excellent heat-insulating properties of mineral wool significantly reduce heat loss.
Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.
Technical description
Size Table
Specifications
Packaging
Parameters
Value
Length, mm
1200; 2400; custom sizes available upon request
Width, mm
600; 627; 800; 1200; custom sizes available upon request
Thickness, mm
from 40 to 202; custom sizes available upon request
Parameter Value Notes
Density, kg/m³ 110
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С λ10 = 0,042 at a temperature of 10 ˚С (283±1) K, no more
Thermal conductivity, W/(m K) λ25 = 0,044 at a temperature of 25 ˚С (298±1) K, no more
Tensile strength, kPa 80 for compression, not less
Tensile strength, kPa 55 for shear/shear, not less than
Tensile strength, kPa 100 when stretched perpendicular to the front surfaces, not less than
Water absorption, kg/sqm 1,0 with short-term partial immersion, no more
Content of organic substances, % 4,5 by weight, no more
Humidity, % 0,5 by weight, no more
Vapour permeability, mg/m·h·Pa 0,5 no more
Combustibility class according to European Standards NG

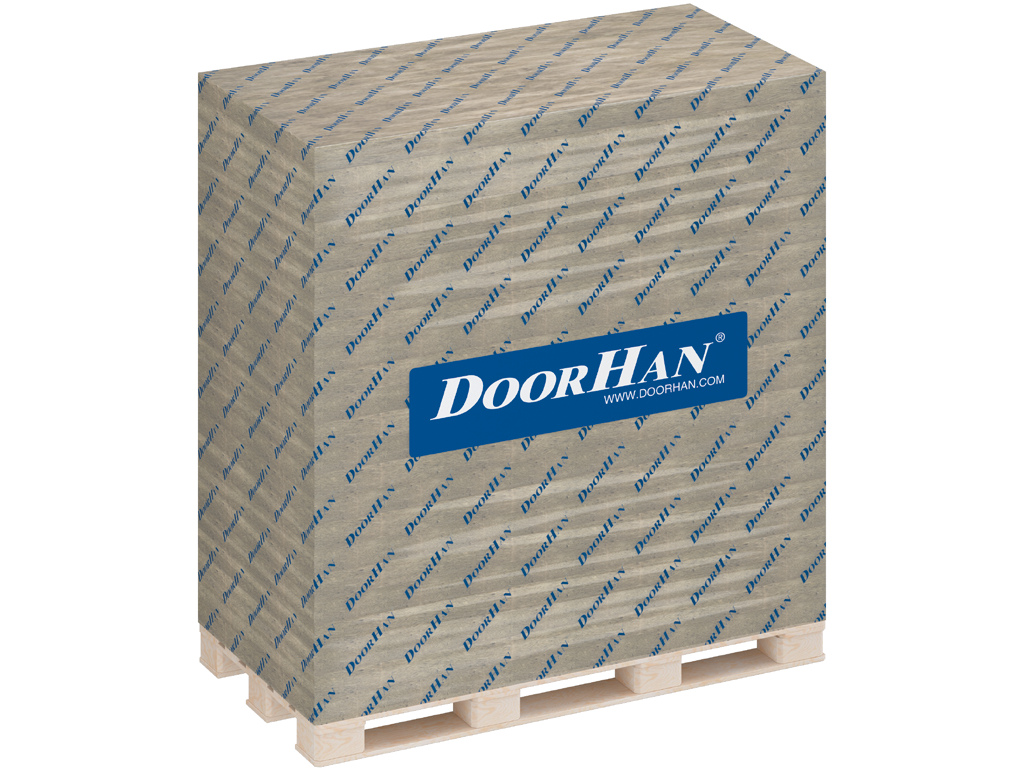

Packing on pallet Packaging features
Description The boards are stacked on a pallet and protected with a plastic bag. Each package is labeled with product information.
Length, mm 2 400
Width, mm 1 200
Height, mm 2 505
Documentation
Manuals
Technical Data and Certificates

Альбом технических решений

Fire Safety Certificate

Declaration of Conformity

Expert opinion

Certificate of conformity

Certificate of conformity

Warranty print

If the consumer maintains the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.

Technical description
Size Table
Parameters
Value
Length, mm
1200; 2400; custom sizes available upon request
Width, mm
600; 627; 800; 1200; custom sizes available upon request
Thickness, mm
from 40 to 202; custom sizes available upon request
Specifications
Parameter Value Notes
Density, kg/m³ 110
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С λ10 = 0,042 at a temperature of 10 ˚С (283±1) K, no more
Thermal conductivity, W/(m K) λ25 = 0,044 at a temperature of 25 ˚С (298±1) K, no more
Tensile strength, kPa 80 for compression, not less
Tensile strength, kPa 55 for shear/shear, not less than
Tensile strength, kPa 100 when stretched perpendicular to the front surfaces, not less than
Water absorption, kg/sqm 1,0 with short-term partial immersion, no more
Content of organic substances, % 4,5 by weight, no more
Humidity, % 0,5 by weight, no more
Vapour permeability, mg/m·h·Pa 0,5 no more
Combustibility class according to European Standards NG
Packaging
Packing on pallet Packaging features
Description The boards are stacked on a pallet and protected with a plastic bag. Each package is labeled with product information.
Length, mm 2 400
Width, mm 1 200
Height, mm 2 505
Warranty

If the consumer maintains the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.
