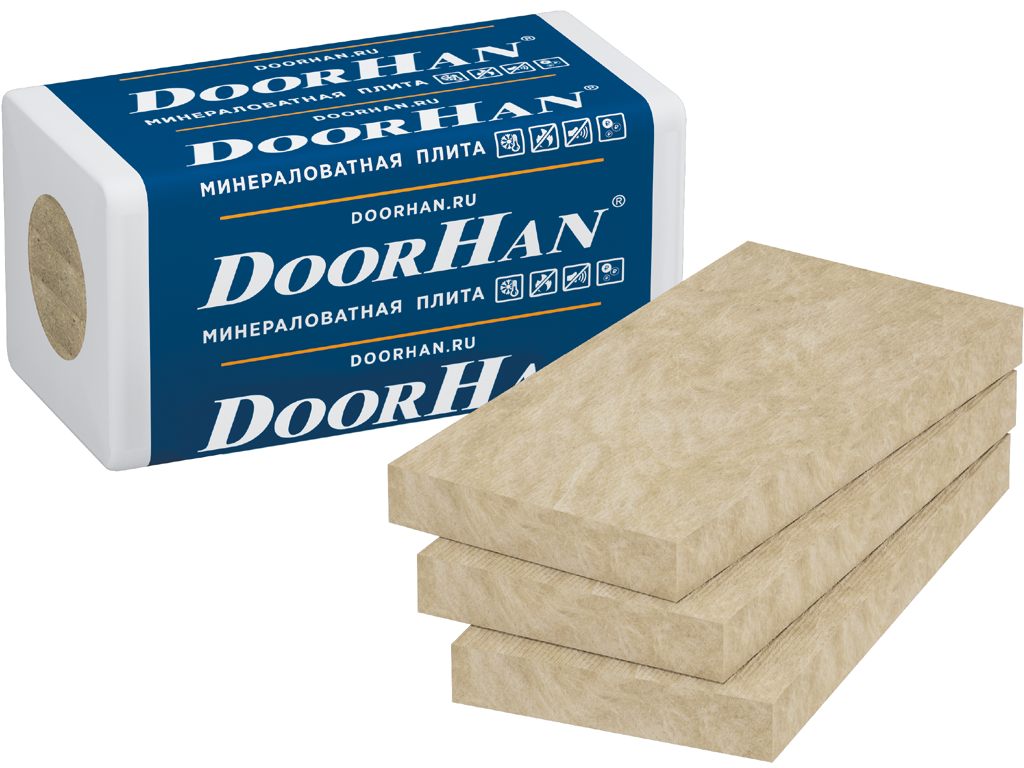

Плита минераловатная DoorHan «Руф»

DoorHan "RUF" mineral wool boards are used as a heat-insulating layer in multi-layer coatings of flat roofs, including when laying on a surface without a cement screed.

Application:

As the bottom thermal insulation layer in flat roof systems
As a thermal insulation layer in flat roof systems

Order with installation

Advantages

Hydrophobic impregnation of cotton wool forms a film on its surface, which prevents the penetration of liquid inside, while not blocking the natural circulation of air.

Allows to carry out installation of plates with the most dense prileganiye to each other.

Allows the use of mineral wool without shrinkage throughout the entire service life.

The excellent heat-insulating properties of mineral wool significantly reduce heat loss.

Hydrophobic impregnation of cotton wool forms a film on its surface, which prevents the penetration of liquid inside, while not blocking the natural circulation of air.

Allows to carry out installation of plates with the most dense prileganiye to each other.

Allows the use of mineral wool without shrinkage throughout the entire service life.

The excellent heat-insulating properties of mineral wool significantly reduce heat loss.

Technical description

Size Table

Specifications

Packaging

Parameters

Value

Length, mm

1 200

Width, mm

600; 1 200

Thickness, mm

from 40 to 150 in 10 mm increments

Packaging volume, m³

from 0.108 to 0.203 (depending on the width and thickness of the slab)

Parameter	Value	Notes
Density, kg/m³	140
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С	λ10 = 0,037	at a temperature of 10 ˚С (283±1)K, no more
Thermal conductivity, W/(m K)	λ25 = 0,040	at a temperature of 25 ˚С (298±1)K, no more
Thermal conductivity, W/(m K)	λА = 0,041	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Thermal conductivity, W/(m K)	λБ = 0,042	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Compressive strength, kPa	50	for compression at 10% relative deformation, not less than
Tensile strength, kPa	10	when stretched perpendicular to the front surfaces, not less than
Concentrated force at a given absolute deformation, N	не менее 500	deformation 5 mm
Water absorption, kg/sqm	1,0	at short-term partial immersion, not less than
Content of organic substances, %	4,5	by weight, no more
Humidity, %	0,5	by weight, no more
Vapour permeability, mg/m·h·Pa	0,5	no more
Combustibility class according to European Standards	NG

Packing on pallet	Packaging features
Description	The boards are packed in a thermo shrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm	2 400
Width, mm	1 200
Height, mm	2 505

Documentation

Manuals

Technical Data and Certificates

Album of technical solutions

PDF

Fire Safety Certificate

PDF

Declaration of Conformity

PDF

Expert opinion

PDF

Certificate of Conformity

PDF

Certificate of Conformity

PDF

Warranty print

If the consumer maintenance the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.

Technical description

Size Table

Parameters

Value

Length, mm

1 200

Width, mm

600; 1 200

Thickness, mm

from 40 to 150 in 10 mm increments

Packaging volume, m³

from 0.108 to 0.203 (depending on the width and thickness of the slab)

Specifications

Parameter	Value	Notes
Density, kg/m³	140
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С	λ10 = 0,037	at a temperature of 10 ˚С (283±1)K, no more
Thermal conductivity, W/(m K)	λ25 = 0,040	at a temperature of 25 ˚С (298±1)K, no more
Thermal conductivity, W/(m K)	λА = 0,041	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Thermal conductivity, W/(m K)	λБ = 0,042	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Compressive strength, kPa	50	for compression at 10% relative deformation, not less than
Tensile strength, kPa	10	when stretched perpendicular to the front surfaces, not less than
Concentrated force at a given absolute deformation, N	не менее 500	deformation 5 mm
Water absorption, kg/sqm	1,0	at short-term partial immersion, not less than
Content of organic substances, %	4,5	by weight, no more
Humidity, %	0,5	by weight, no more
Vapour permeability, mg/m·h·Pa	0,5	no more
Combustibility class according to European Standards	NG

Packaging

Packing on pallet	Packaging features
Description	The boards are packed in a thermo shrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm	2 400
Width, mm	1 200
Height, mm	2 505

Warranty

If the consumer maintenance the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.
