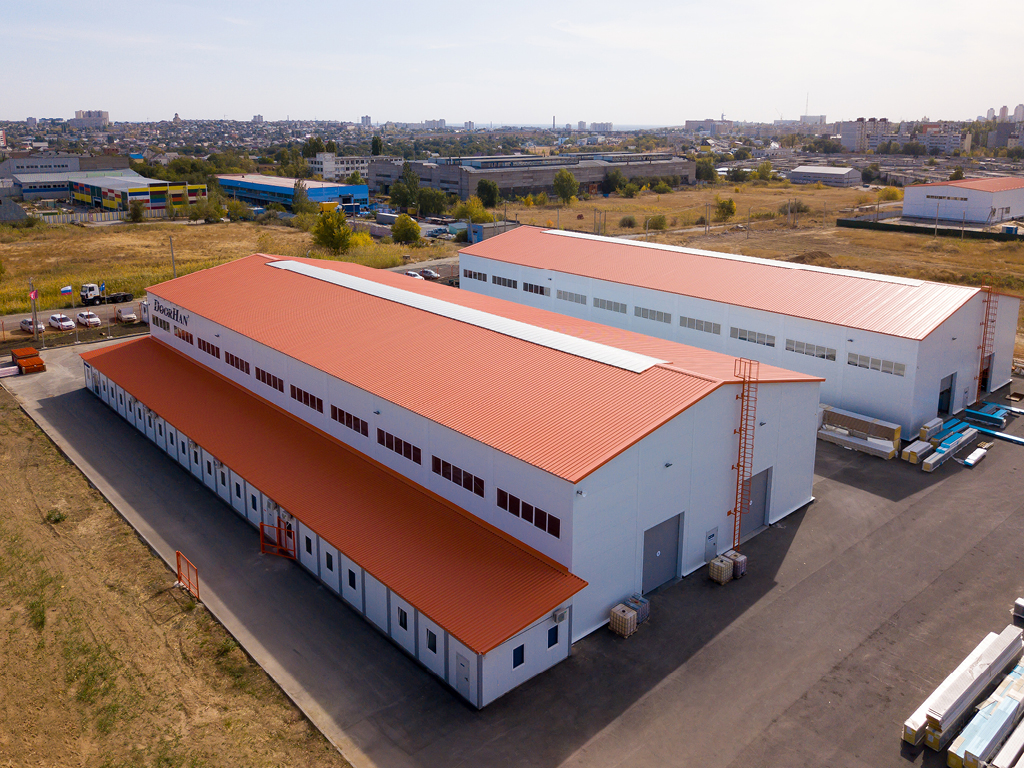

Кровельные сэндвич-панели с утеплителем из минеральной ваты

Three-layer roofing sandwich panels with mineral wool insulation produced by DoorHan are highly efficient building materials that combine the functionality of fencing and insulation for all types of buildings A-B.

Application:

Industrial buildings
Warehouse buildings
Buildings for logistics
Buildings for agriculture
Sports buildings
Trade pavilions

Order with installation

Advantages

Due to mineral wool insulation, roof and wall sandwich panels are light. The load on the supporting structures is reduced and it becomes possible to erect buildings on a lightweight foundation, which significantly reduces the cost of its manufacture.

The connection of the sandwich panels is carried out in the lock. The special configuration of the "Roof-lock" lock provides a high fit and facilitates quick and accurate docking of panels, which greatly speeds up and simplifies installation. Structures from such sandwich panels, unlike concrete and brick structures, can be easily dismantled, transported and assembled elsewhere.

DoorHan's high-tech production and premium quality raw materials guarantee high compressive, tensile, shear / shear strength; resistance to deformation and compressibility.

The production of materials for wall and roof sandwich panels is carried out entirely at the enterprises of the DoorHan. Own lines for painting rolled steel and producing mineral wool allow us to produce products in the shortest possible time.

The small thickness of the panels with high thermal insulation performance can significantly increase the internal usable area of the building.

The most modern laboratory and production equipment, own enterprises for the production of materials for sandwich panels, as well as highly qualified employees allow us to control product quality at all stages of production.

With a thickness of 120 mm or more, the fire resistance of the panels is EI 150, which allows them to be used as fireproof partitions.

DoorHan sandwich panels comply with the unified sanitary-epidemiological and hygienic requirements. Can be used for the construction of medical institutions and buildings for any purpose type A-B.

The period of effective operation of building sandwich panels with mineral wool insulation for 50 years has been confirmed.

Thanks to a wide range of products, we can complete any construction site with all the necessary equipment (doors, technical and refrigeration doors, handling equipment, stained-glass structures, etc.).

DoorHan's high-tech production and premium quality raw materials guarantee high compressive, tensile, shear / shear strength; resistance to deformation and compressibility.

The small thickness of the panels with high thermal insulation performance can significantly increase the internal usable area of the building.

With a thickness of 120 mm or more, the fire resistance of the panels is EI 150, which allows them to be used as fireproof partitions.

DoorHan sandwich panels comply with the unified sanitary-epidemiological and hygienic requirements. Can be used for the construction of medical institutions and buildings for any purpose type A-B.

The period of effective operation of building sandwich panels with mineral wool insulation for 50 years has been confirmed.

Design

View of the profile and lock of sandwich panels

View of the profile and sandwich panels lock

Coating type

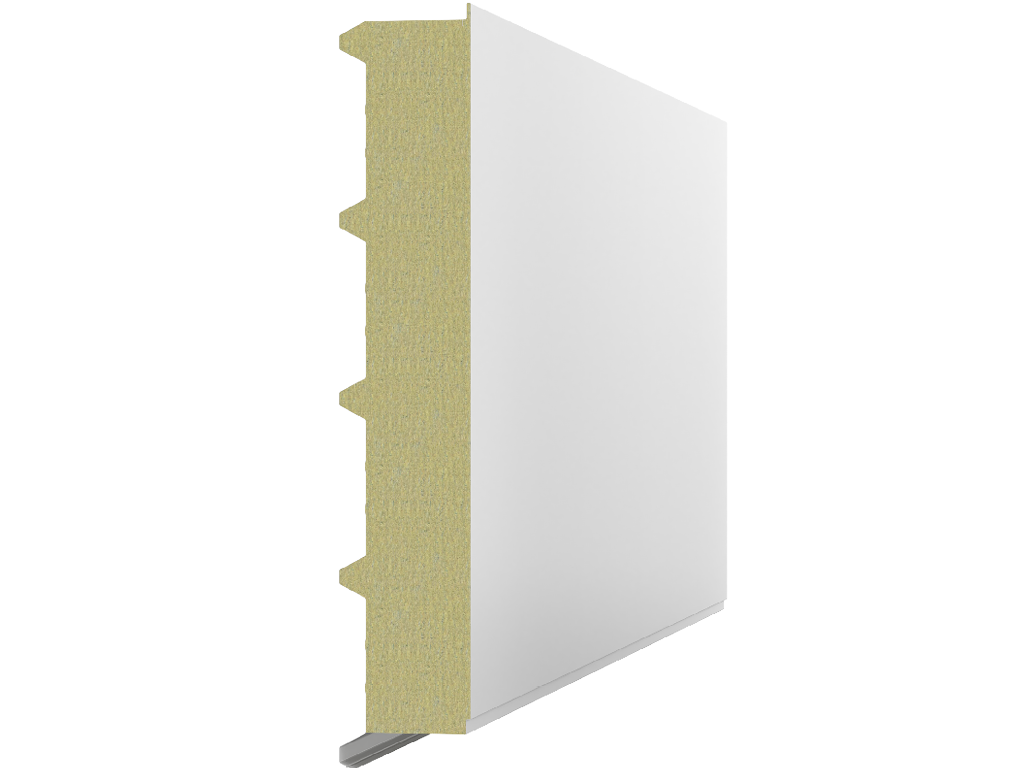

Smooth (G)

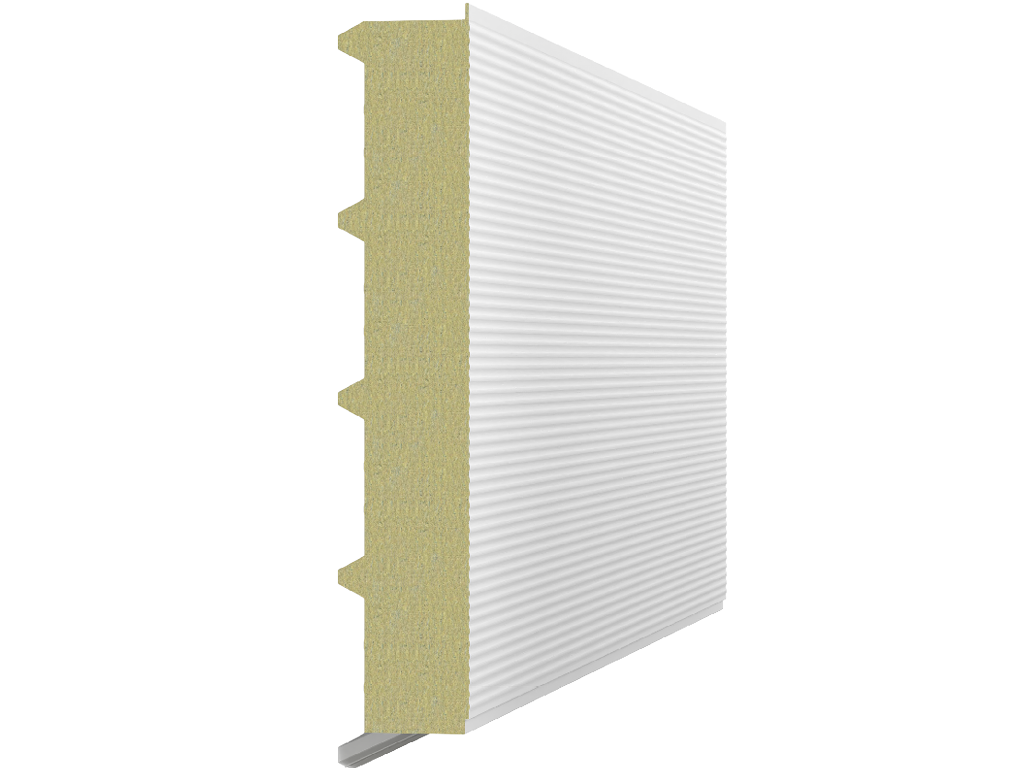

Wave (B20)

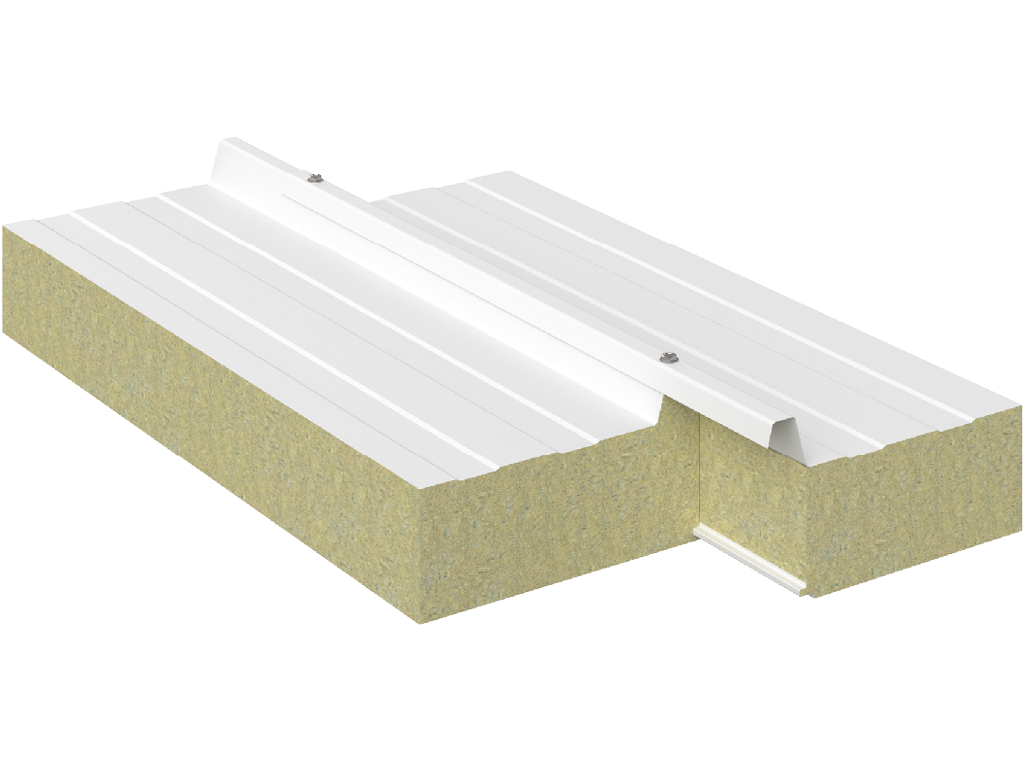

Roof-lock (R6)

Smooth (G)

Wave (B30)

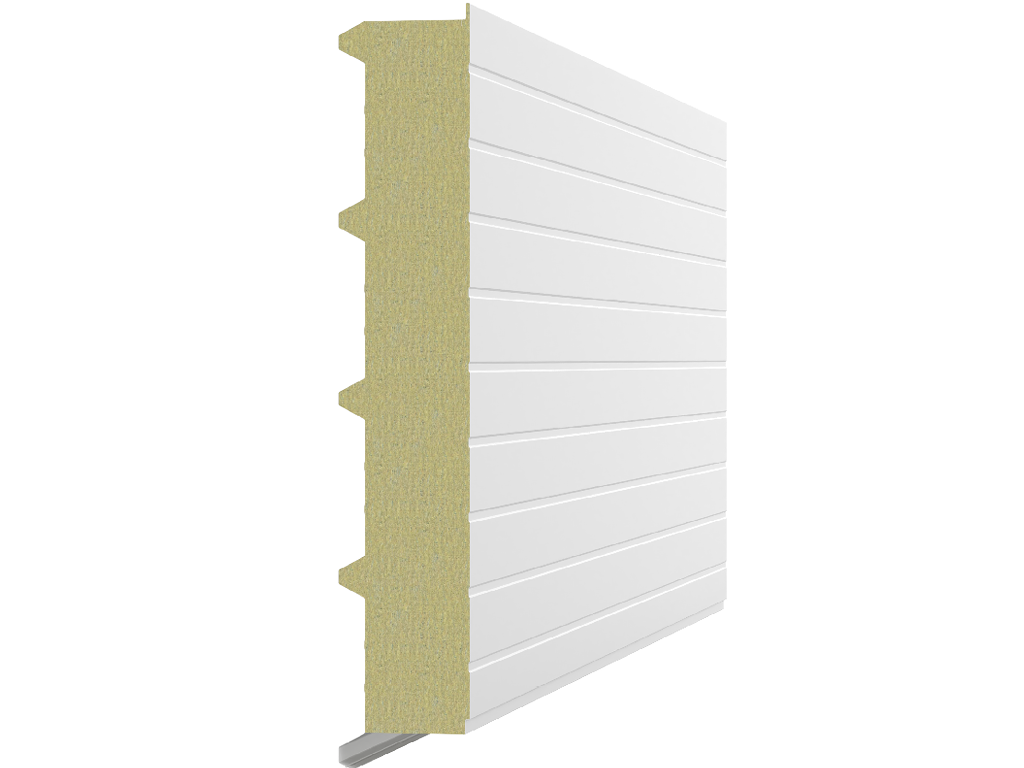

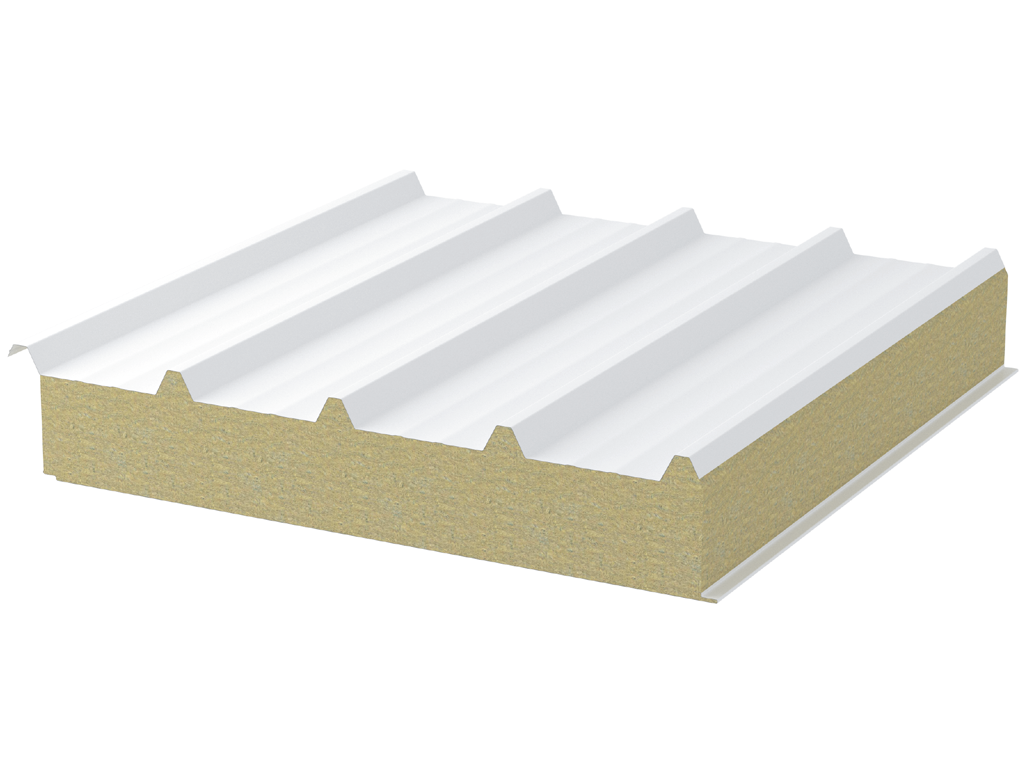

Trapeze (127/12)

Roof-lock (R4)

Polyester, PURAL, PVDF, Printech

Equipment

Standard

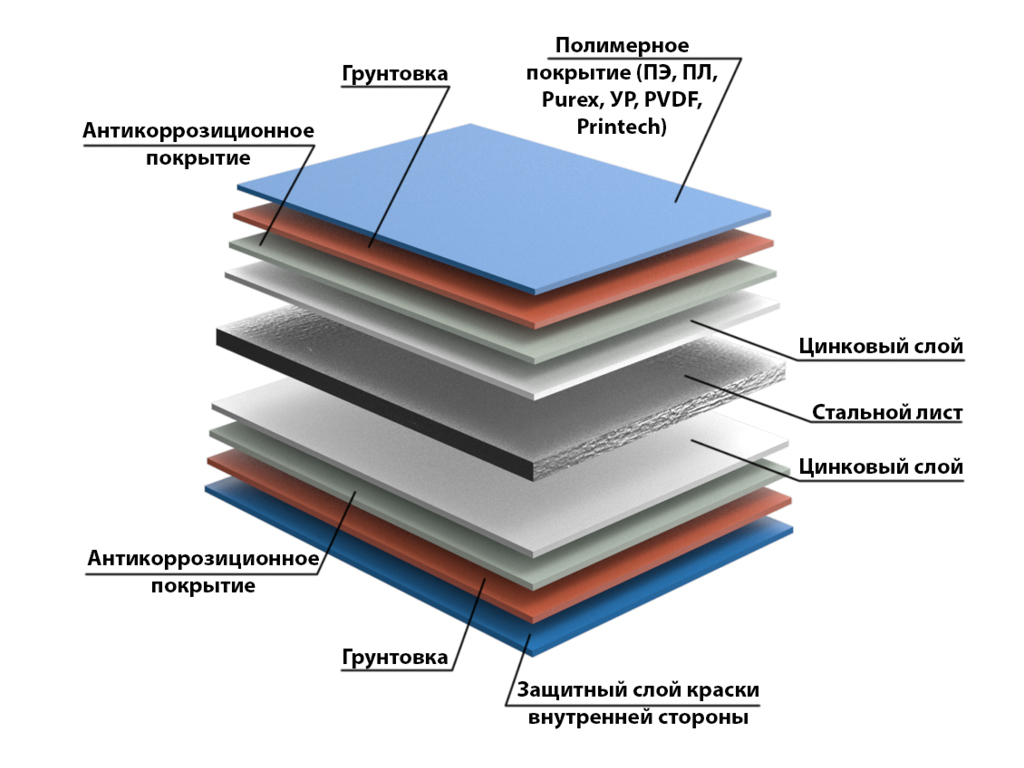

Cold-rolled hot-dipped galvanized sheet steel is used as a raw material for the manufacture of sandwich panels. For the production of building sandwich panels, steel with a thickness of 0.45–0.7 mm is used with various types of polymer coatings.

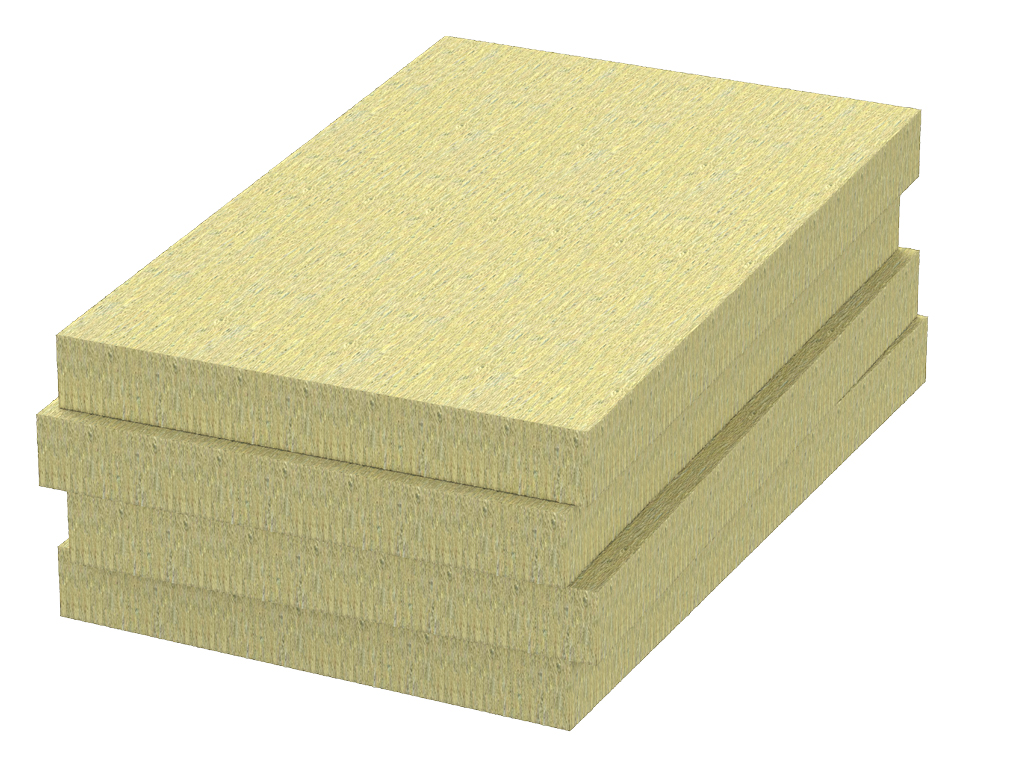

As a heater in the manufacture of three-layer sandwich panels, mineral wool slabs of our own production based on rocks of the basalt group are used.

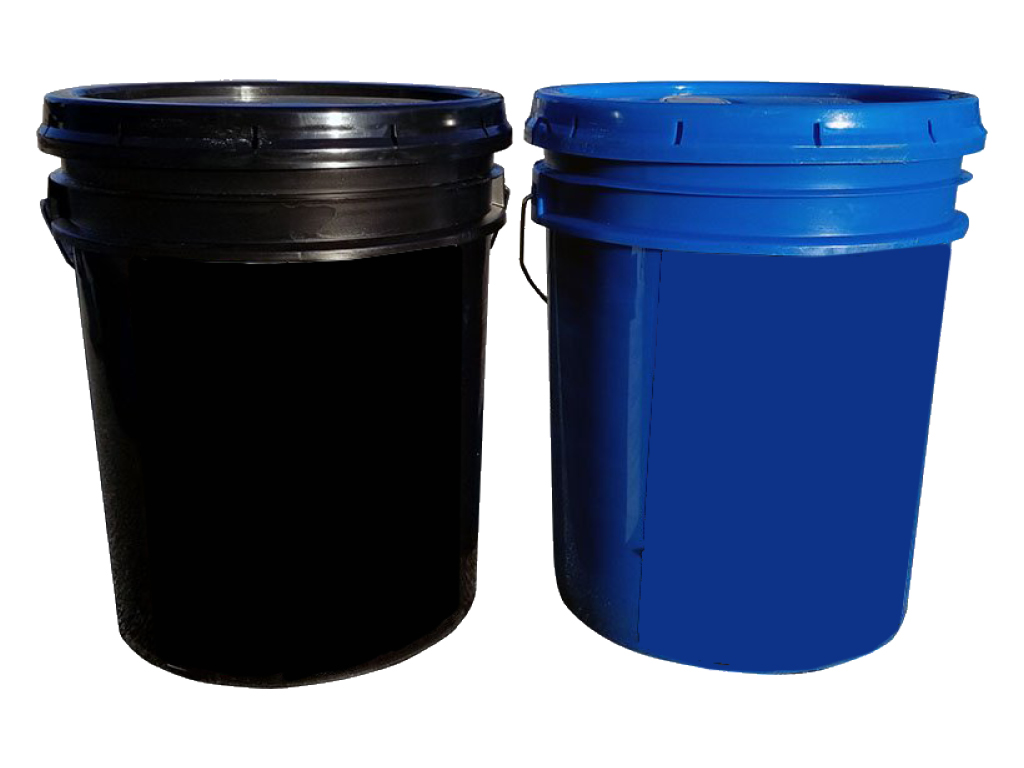

A two-component composition of polyol and isocyanate is used as a link between the insulation and the metal of the lining of building sandwich panels.

Technical description

Size Table

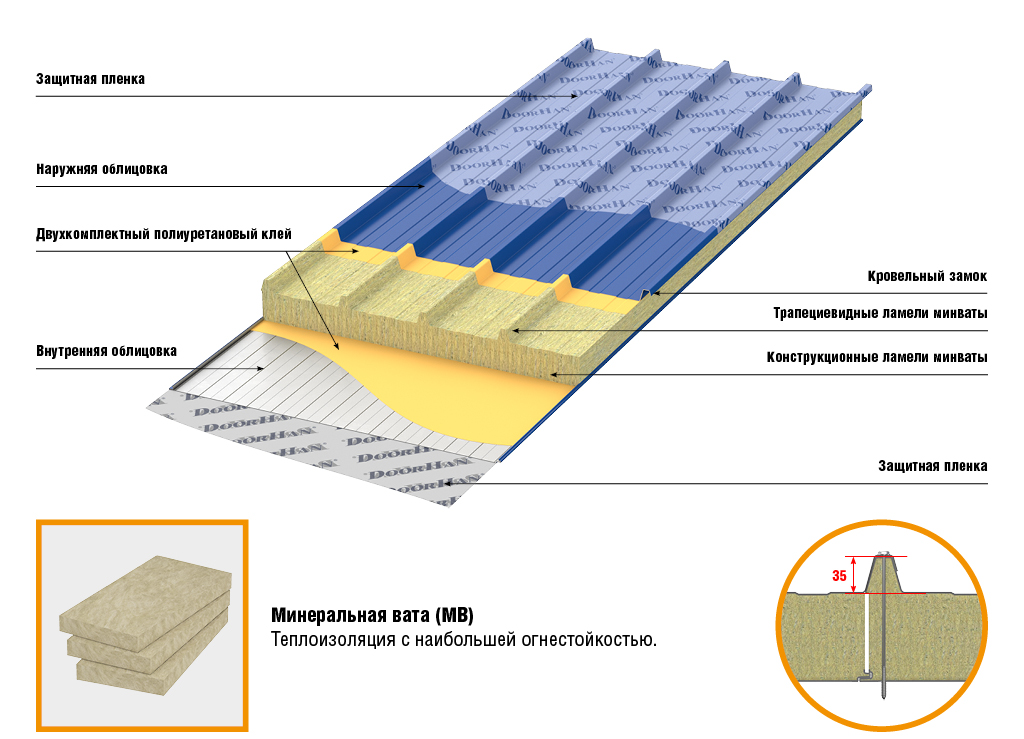

Construction

Standard Construction

Specifications

Packaging

Parameters

Value

Примечание:

Width, mm

1 000

Length, mm

from 1 500 to 13 500 (on request up to 16 000)

Thickness, mm

60, 80, 100, 120, 150, 180, 200, 250

Примечание:

Width, mm

1 000

Length, mm

from 1,500 to 13,000 (on request up to 16,000)

Thickness, mm

60, 80, 100, 120, 150, 170, 200, 250

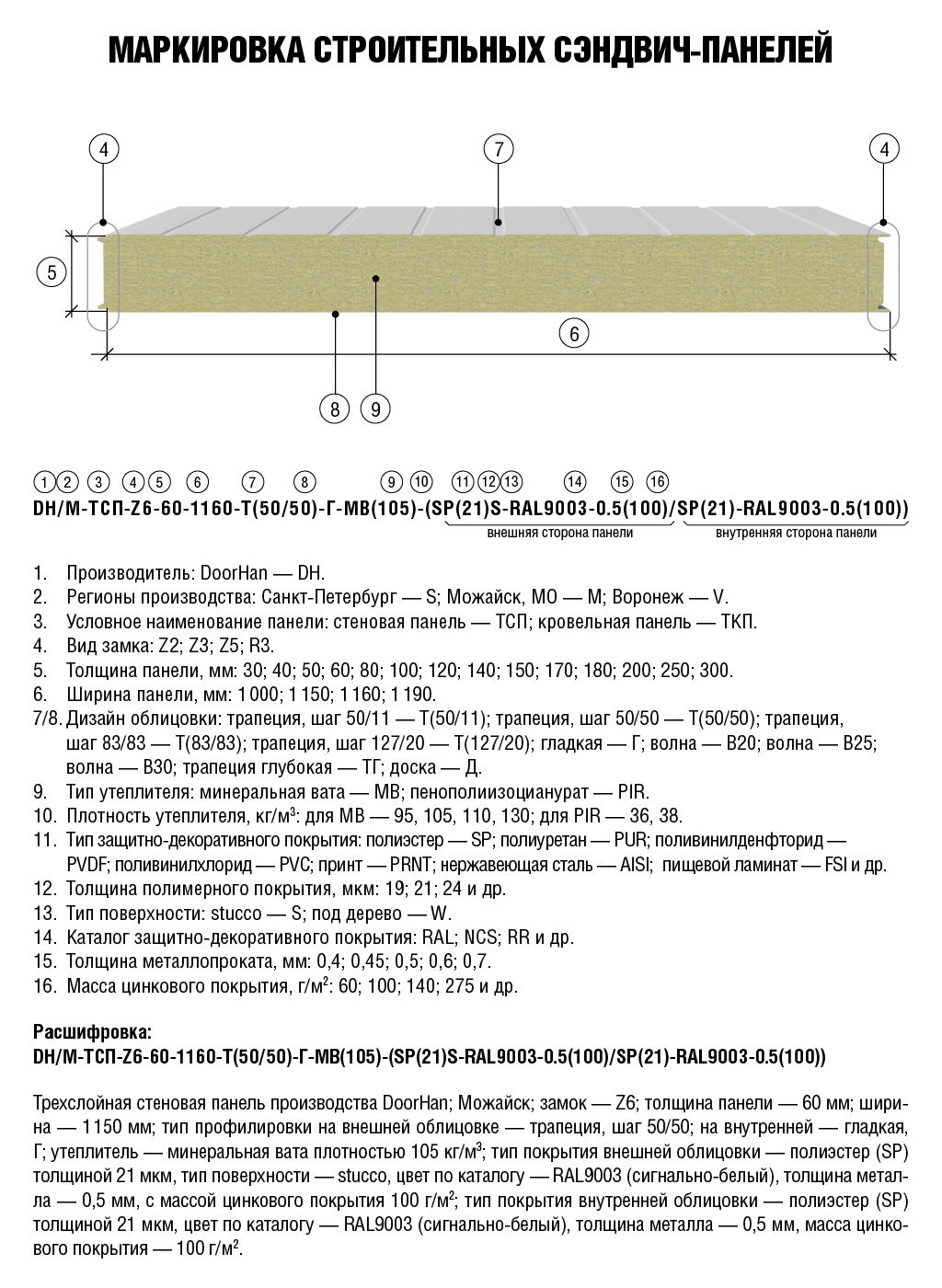

Explanation of the name of building sandwich panels

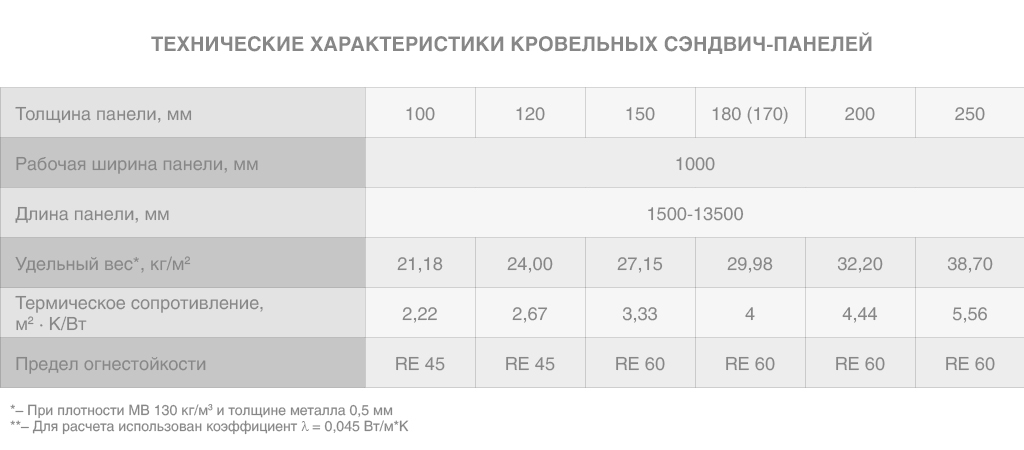

Technical characteristics of roof sandwich panels

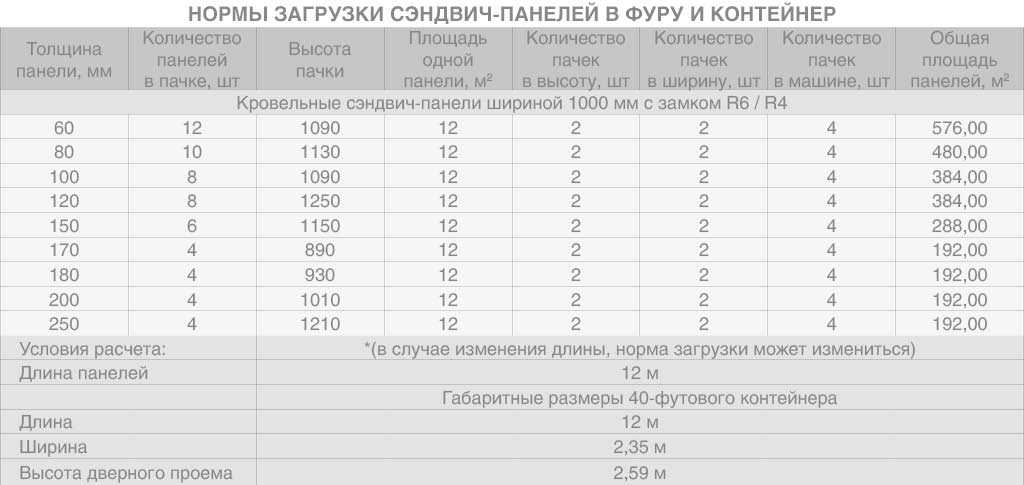

Нормы загрузки сэндвич-панелей в фуру и контейнер

Parameter	Value	Notes
Масса цинкового покрытия, г/м²	100	60–275 g/m² on request
Толщина металла облицовок панели, мм	0,5	0.45-0.7 mm - on request
Плотность минеральной ваты, кг/м³	130	110 kg/m³ - on request
Коэффициент теплопроводности, Вт/(м·К)	0,042-0,043

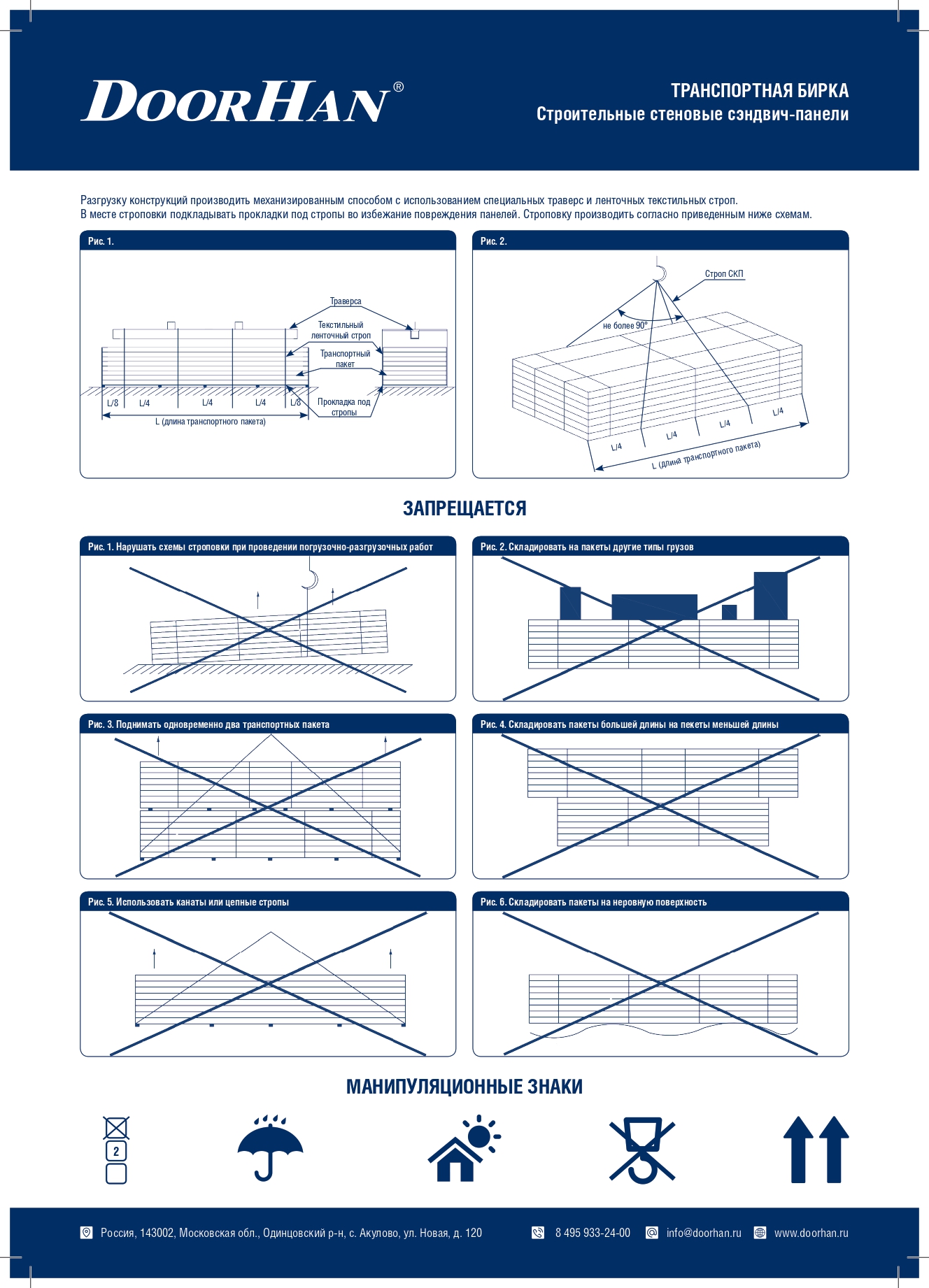

Packing in stretch film	Packaging features
Contents	Packing of sandwich panels is carried out in transport packages packed with stretch film with foam sheets. See packing instructions
Description	Transportation of transport packages with sandwich panels is carried out by road, rail or water transport. See packaging instructions for loading examples.

Installation

Mounting Options

General requirements for the installation of sandwich panels
1. The gripping of the panel is carried out in such a way that the panel is in balance. The mounted panel should be lifted smoothly, without jerks, rocking and rotation, using braces attached to the ends of the panel, while it is necessary to fasten a safety (safety) belt around the panel before lifting it.
2. Installation work using various devices must be carried out in compliance with current safety standards and regulations.
3. Slinging of panels to be mounted should be carried out in the places specified in the project for the production of works, and ensure their lifting and supply to the installation site in a position close to the design one.
4. The panels should be lifted in two stages: first, lift the panel to a height of no more than 20-30 cm from the level of the site on which the fixtures were installed, and after checking the reliability of the slinging, to the design mark. Immediately before installing the panel in the design position, it is necessary to remove the safety straps and mount the panel held by the fixtures.
5. To prevent accidental fall of the panel during lifting, it is necessary to install safety straps around the panel. To do this, it is recommended to use textile slings of the appropriate length and load capacity, equipped with mounting carabiners.
6. When moving, tilting, feeding panels for installation, it is necessary to exclude significant deflections and deformations of the locks, which leads to loose adjoining of the panels to each other.
7. For assembly cutting of panels, hand-held electric circular saws or jigsaws with a fine tooth profile are used. Do not use angle grinders to cut panels. In the case of a small amount of cutting, a hand saw can be used, proceeding as follows: both surfaces of the metal sheathing are sawn separately, and the mineral wool remaining in the gap is cut with a knife or saw.

Documentation

Manuals

Technical Data and Certificates

Drawings

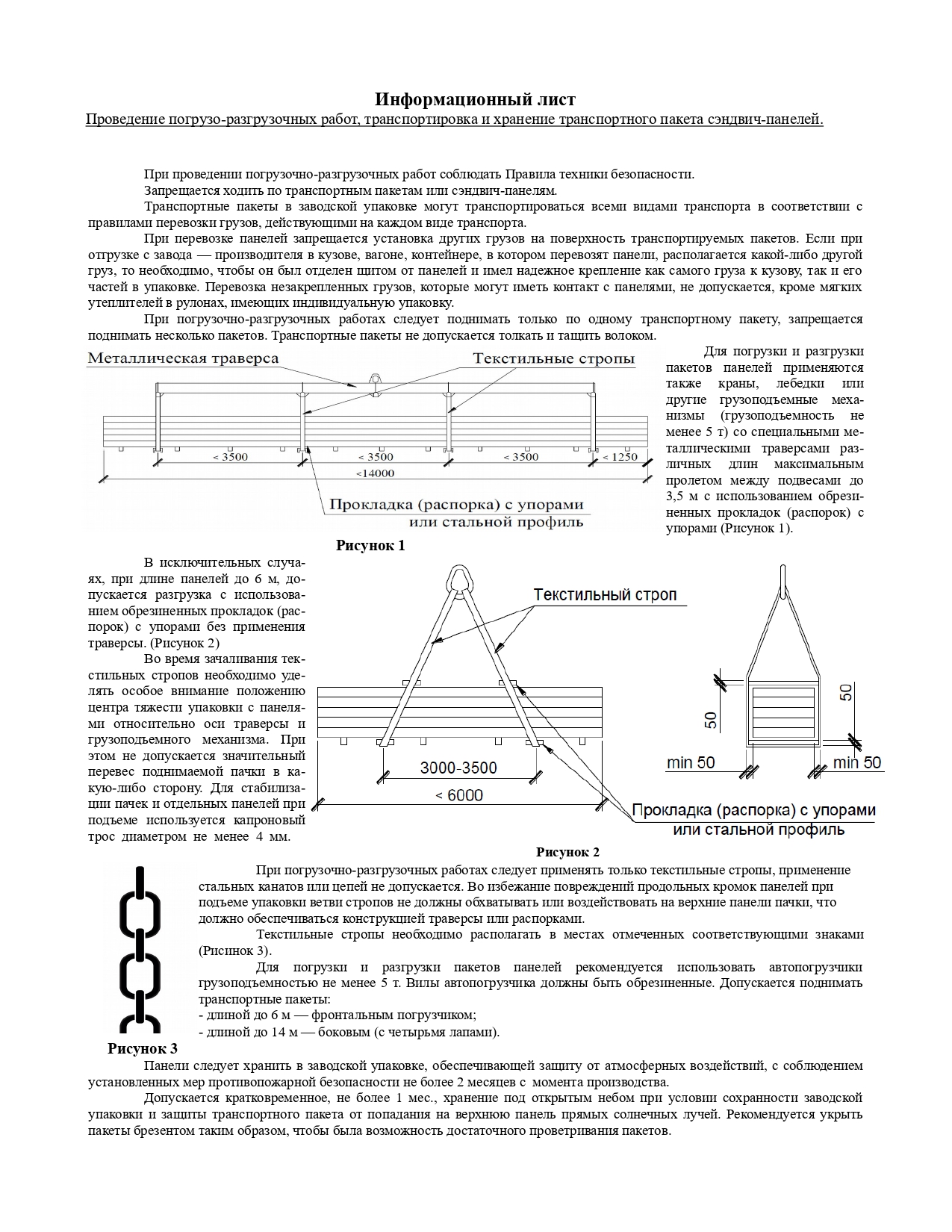

Packing instructions for sandwich panels

PDF

Installation instructions for roof panels

PDF

Certificate of conformity

PDF

Fire certificate

PDF

Hygienic certificate

PDF

Seismic resistance certificate

PDF

Complete set catalog for sandwich panels

PDF

DWG

Sandwich panel lock MV

PDF

Sandwich panel lock MV

PDF

Warranty print

2. The durability of sandwich panels depends primarily on the corrosiveness of the environment in which they are operated. In this regard, the durability of sandwich panels with standard surface finishes, operated in a normal industrial environment, is 10 years.

Design

View of the profile and lock of sandwich panels

Smooth (G)

Wave (B20)

Roof-lock (R6)

View of the profile and sandwich panels lock

Smooth (G)

Wave (B30)

Trapeze (127/12)

Roof-lock (R4)

Coating type

Polyester, PURAL, PVDF, Printech

Equipment

Standard

As a heater in the manufacture of three-layer sandwich panels, mineral wool slabs of our own production based on rocks of the basalt group are used.

A two-component composition of polyol and isocyanate is used as a link between the insulation and the metal of the lining of building sandwich panels.

Technical description

Size Table

Parameters

Value

Примечание:

Width, mm

1 000

Length, mm

from 1 500 to 13 500 (on request up to 16 000)

Thickness, mm

60, 80, 100, 120, 150, 180, 200, 250

Примечание:

Width, mm

1 000

Length, mm

from 1,500 to 13,000 (on request up to 16,000)

Thickness, mm

60, 80, 100, 120, 150, 170, 200, 250

Construction

Standard Construction

Explanation of the name of building sandwich panels

Technical characteristics of roof sandwich panels

Нормы загрузки сэндвич-панелей в фуру и контейнер

Specifications

Parameter	Value	Notes
Масса цинкового покрытия, г/м²	100	60–275 g/m² on request
Толщина металла облицовок панели, мм	0,5	0.45-0.7 mm - on request
Плотность минеральной ваты, кг/м³	130	110 kg/m³ - on request
Коэффициент теплопроводности, Вт/(м·К)	0,042-0,043

Packaging

Packing in stretch film	Packaging features
Contents	Packing of sandwich panels is carried out in transport packages packed with stretch film with foam sheets. See packing instructions
Description	Transportation of transport packages with sandwich panels is carried out by road, rail or water transport. See packaging instructions for loading examples.

Installation

Mounting Options

Warranty

Documentation

Manuals

Packing instructions for sandwich panels

PDF

Installation instructions for roof panels

PDF

Technical Data and Certificates

Certificate of conformity

PDF

Fire certificate

PDF

Hygienic certificate

PDF

Seismic resistance certificate

PDF

Drawings

Complete set catalog for sandwich panels

PDF

DWG

Sandwich panel lock MV

PDF

Sandwich panel lock MV

PDF
