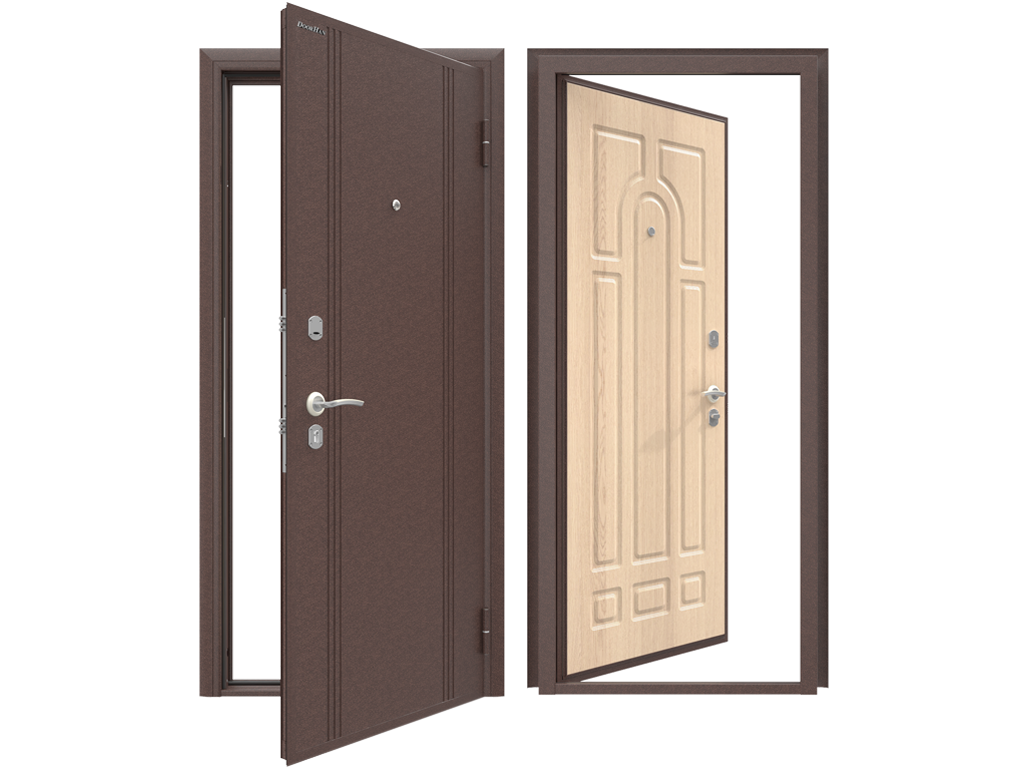

Household doors "OPTIM"

Used as inexpensive apartment doors. A distinctive feature of this model is that the surface of the canvas is made of galvanized steel, which is not subject to corrosion. Two contours of thermoplastic elastomer seal protect the room from the penetration of cold and noise through the doorway. This model is designed for long-term use — more than 20 years of active use. It is used in residential, public and commercial buildings.
Design
Outside canvas design
Milled MDF panel from the inside
Anti-vandal powder coating

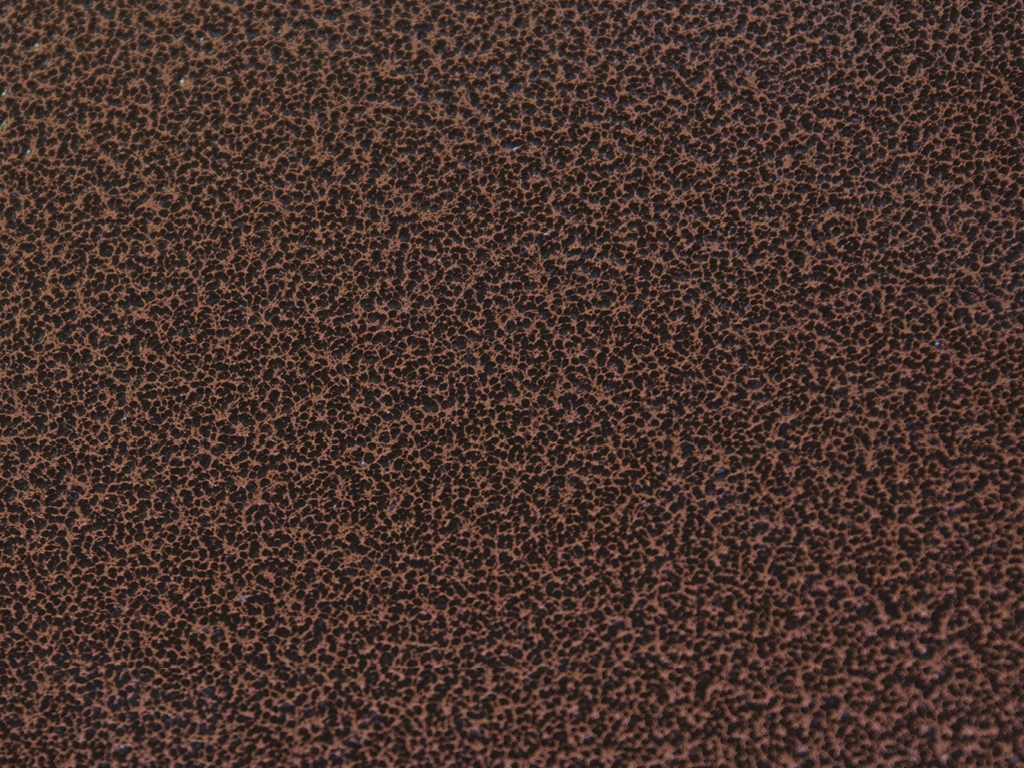

Anti-vandal powder coating "antique copper"
Decorative print “symmetry”
Decorative print “symmetry”

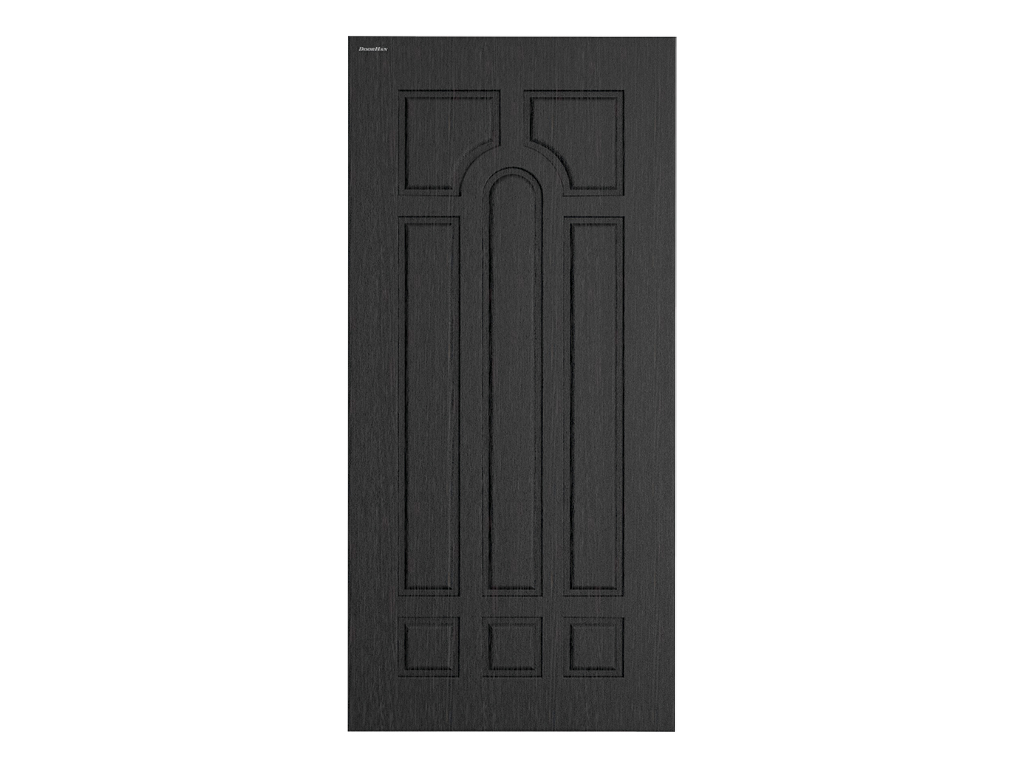

Wenge color,  Apollo milling
Wenge color, Apollo milling

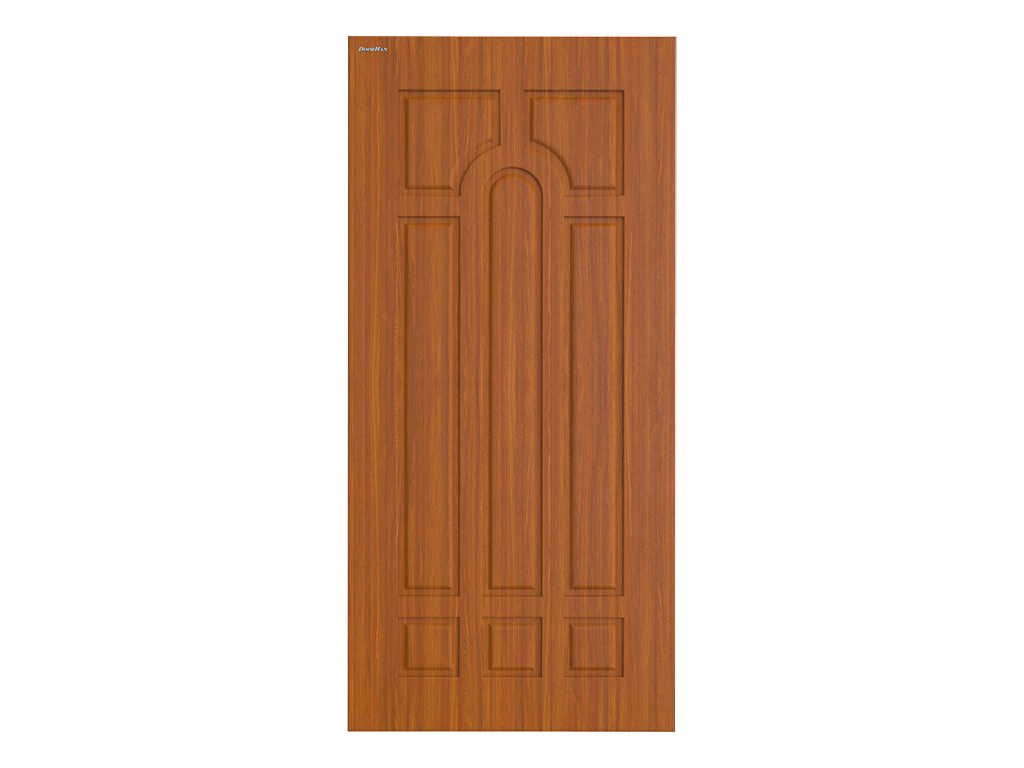

Italian walnut color,  Apollo milling
Italian walnut color, Apollo milling

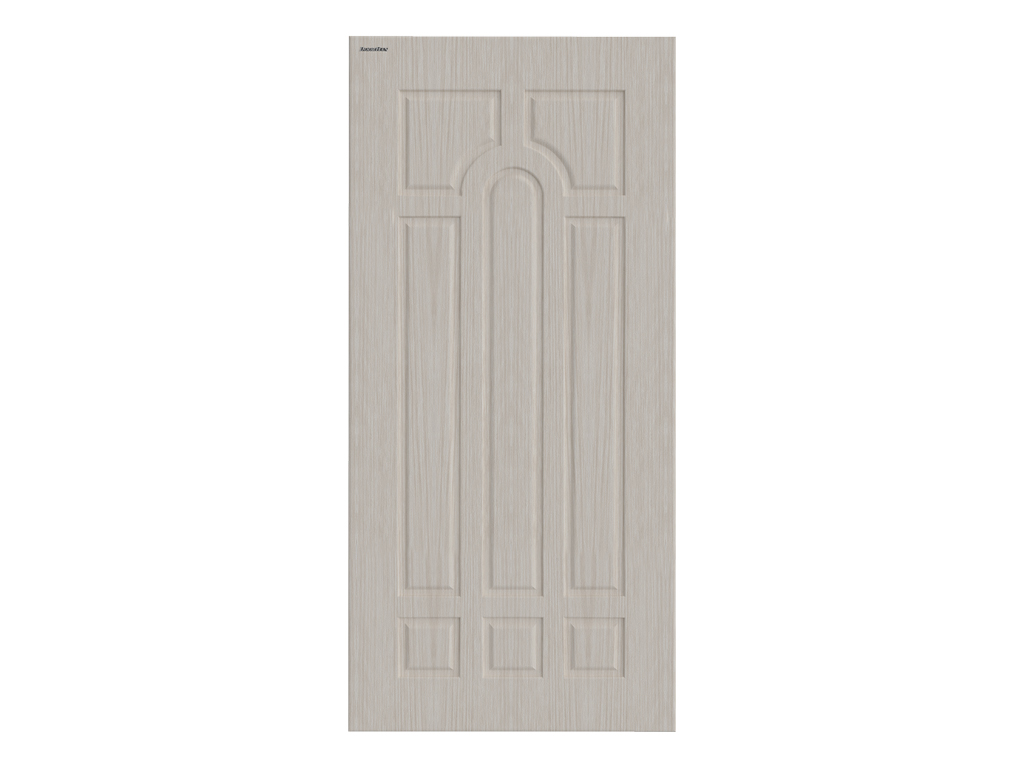

Bleached oak color,  Apollo milling
Bleached oak color, Apollo milling

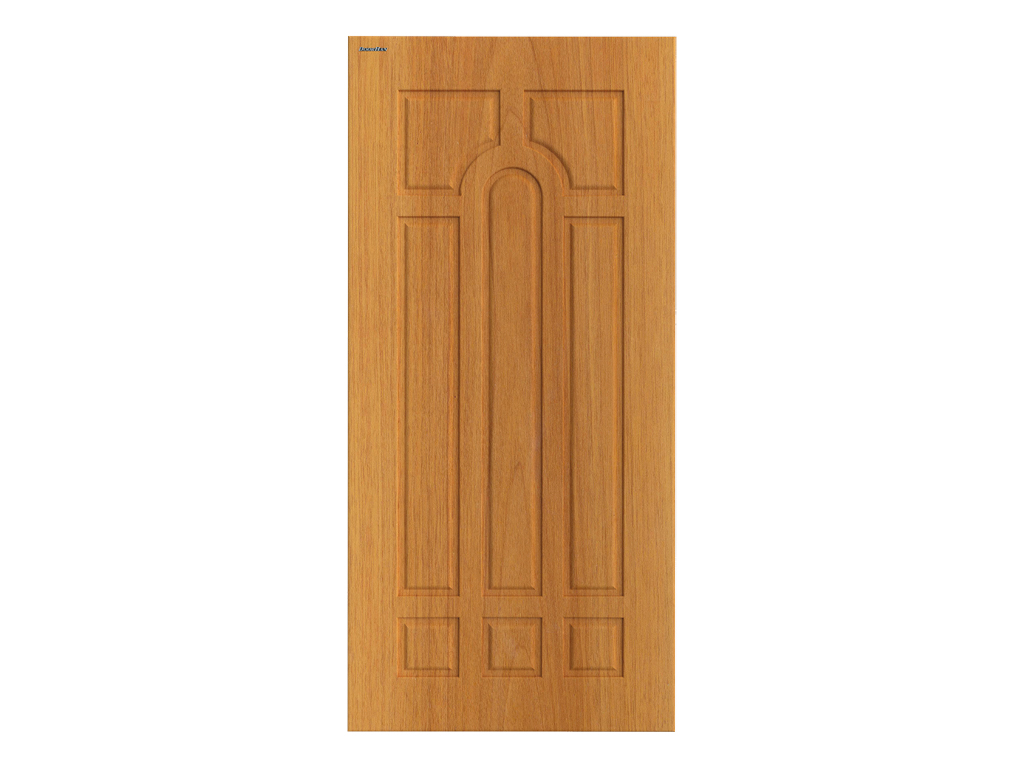

Milanese walnut color,  Apollo milling
Milanese walnut color, Apollo milling
Equipment
Standard
Optional

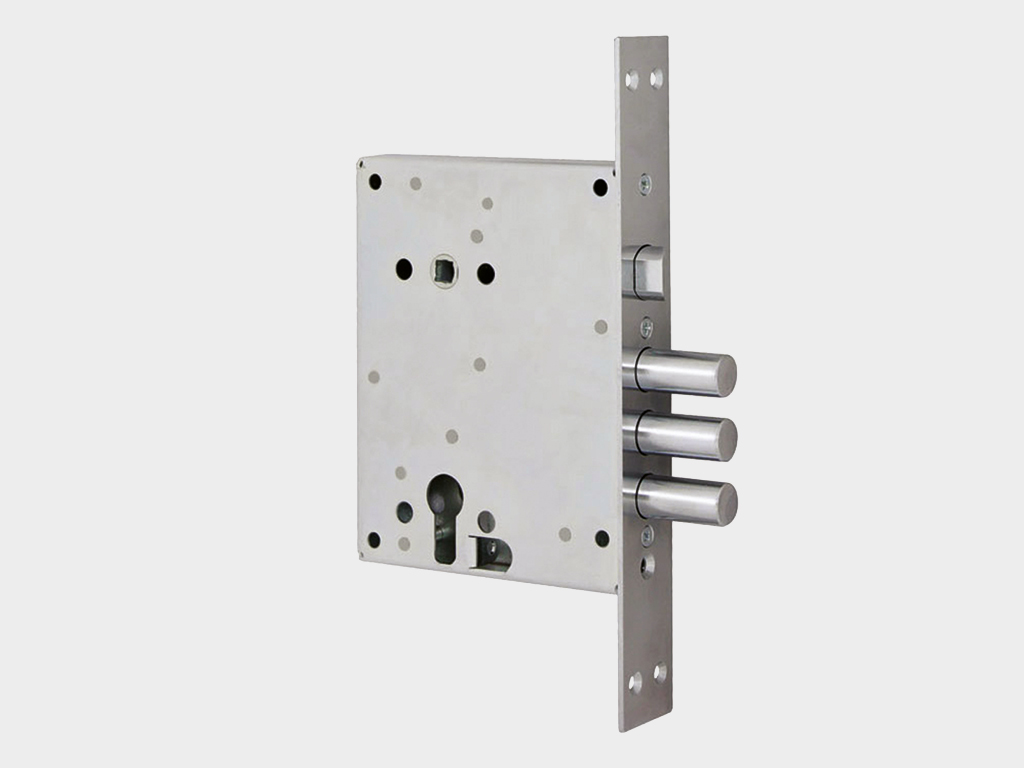

Lock set for cylinder BORDER 3В4-3/85Г.У2

Lock set for cylinder BORDER 3В4-3/85Г.У2

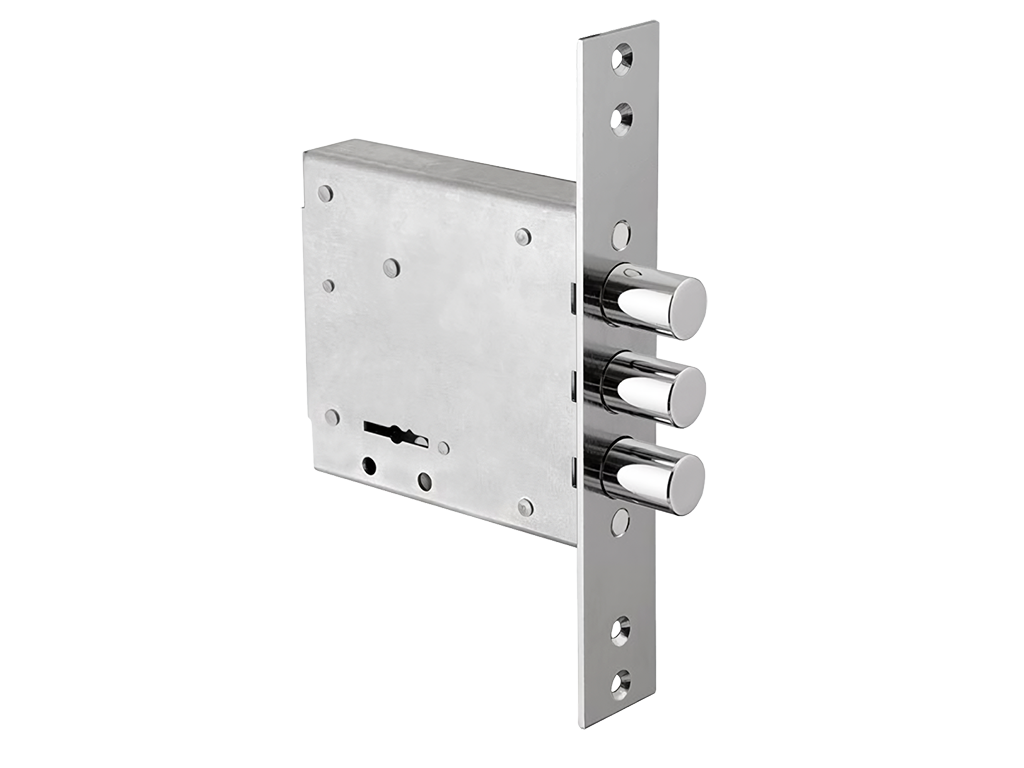

Level lock BORDER 3В8-8Г/15 with 5 keys included

Level lock BORDER 3В8-8Г/15 with 5 keys included

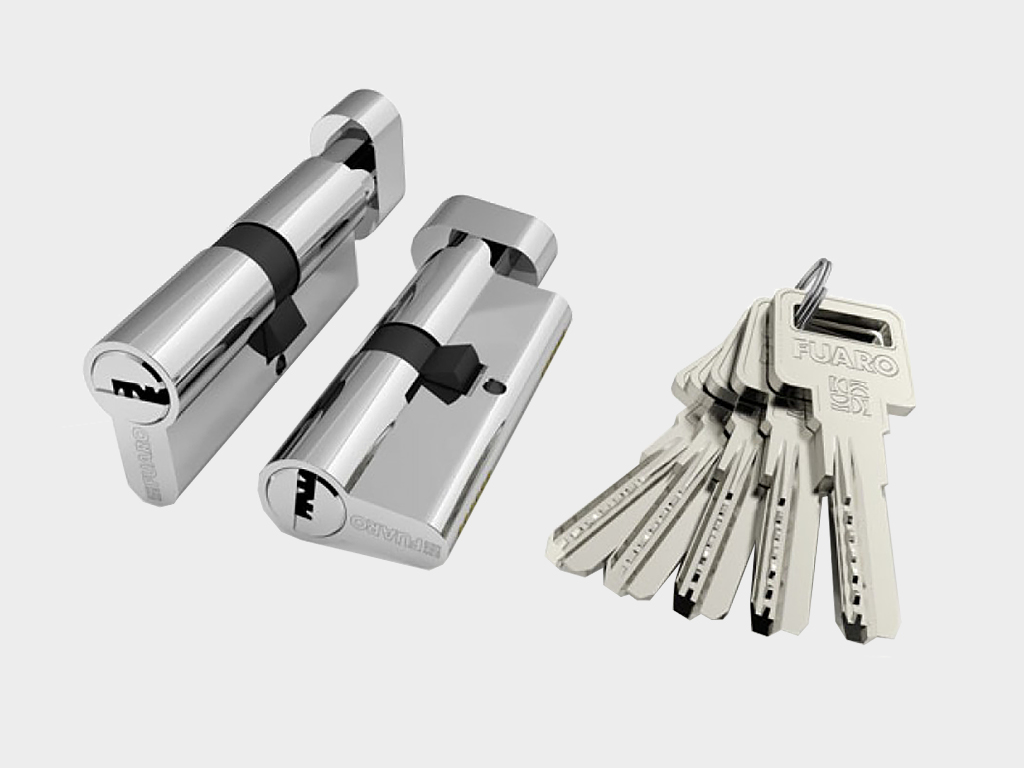

Cylinder “key-turn” mechanism with 5 keys included

Cylinder “key-turn” mechanism with 5 keys included

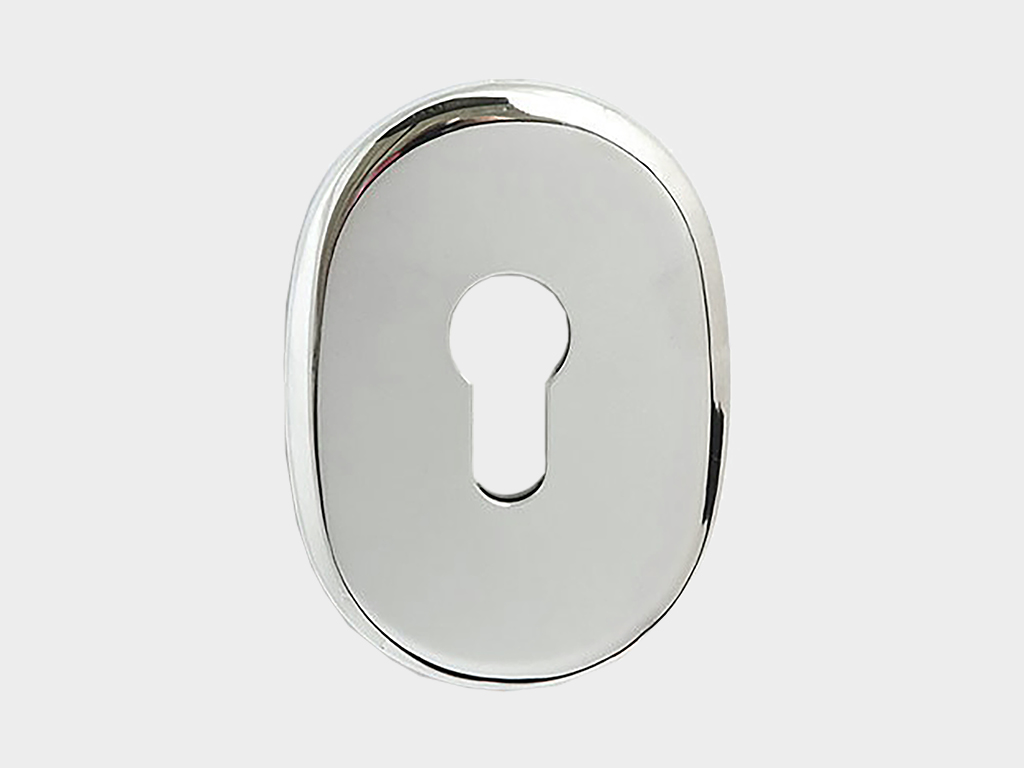

Decorative cover for cylinder lock with hidden fastening

Decorative cover for cylinder lock with hidden fastening

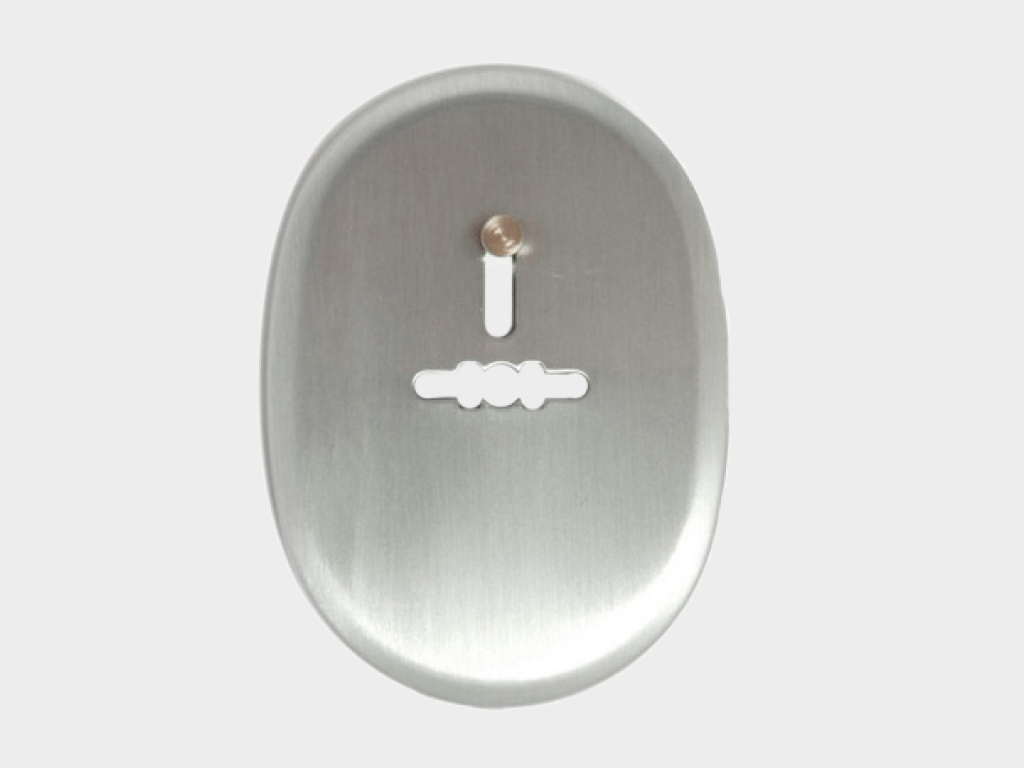

Decorative overlay with curtain

Decorative overlay with curtain

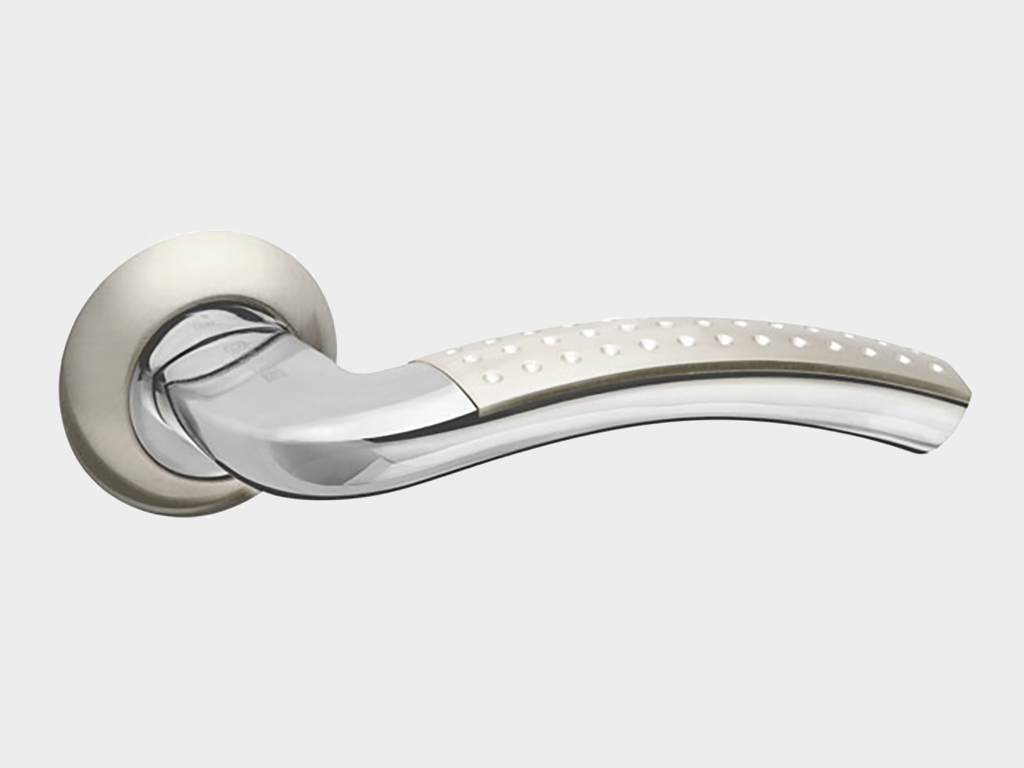

Handle on a split bar

Handle on a split bar

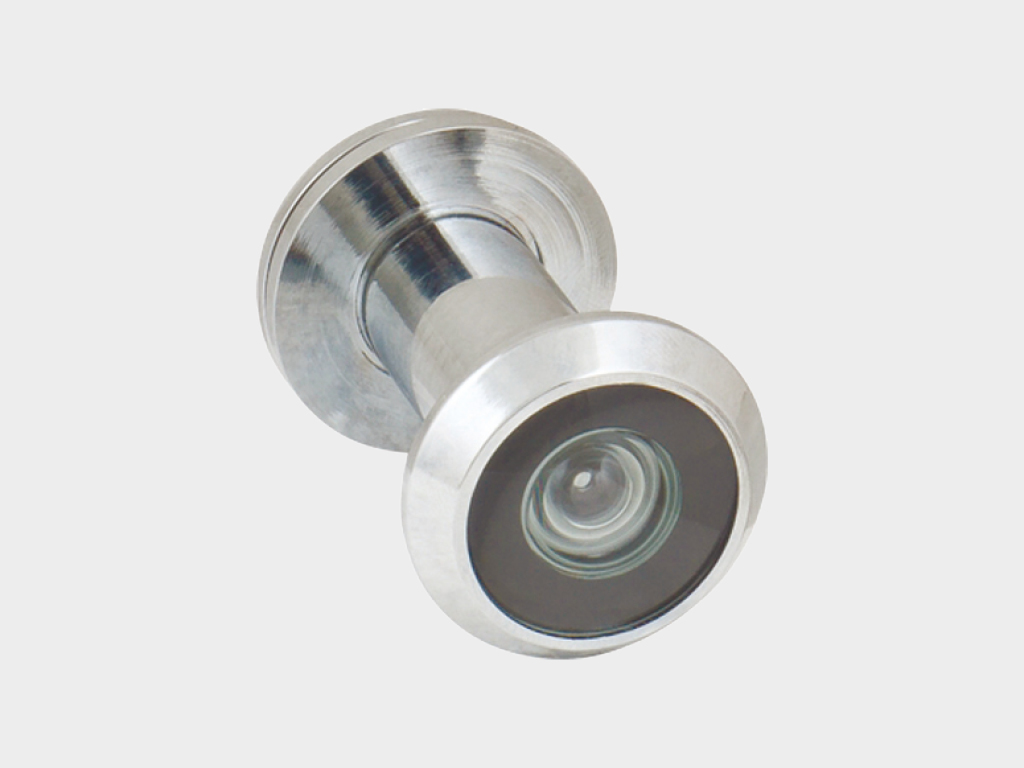

TsAM peephole with 180° viewing

TsAM peephole with 180° viewing

Комплект замка под цилиндр BORDER 3В4-3/85Г.У2

Комплект замка под цилиндр BORDER 3В4-3/85Г.У2

Сувальдный замок BORDER 3В8-8Г/15 с 5 ключами в комплекте

Сувальдный замок BORDER 3В8-8Г/15 с 5 ключами в комплекте

Цилиндровый механизм «ключ-вертушка» с 5 ключами в комплекте

Цилиндровый механизм «ключ-вертушка» с 5 ключами в комплекте

Декоративная накладка цилиндрового замка со скрытым креплением

Декоративная накладка цилиндрового замка со скрытым креплением

Декоративная накладка со шторкой

Декоративная накладка со шторкой

Ручка на раздельной планке

Ручка на раздельной планке

Technical description
Size Table
Construction
Standard Construction
Specifications
Operating Conditions
Packaging
Parameters
Value
Width, mm
900; 1 000
Opening height, mm
2 070

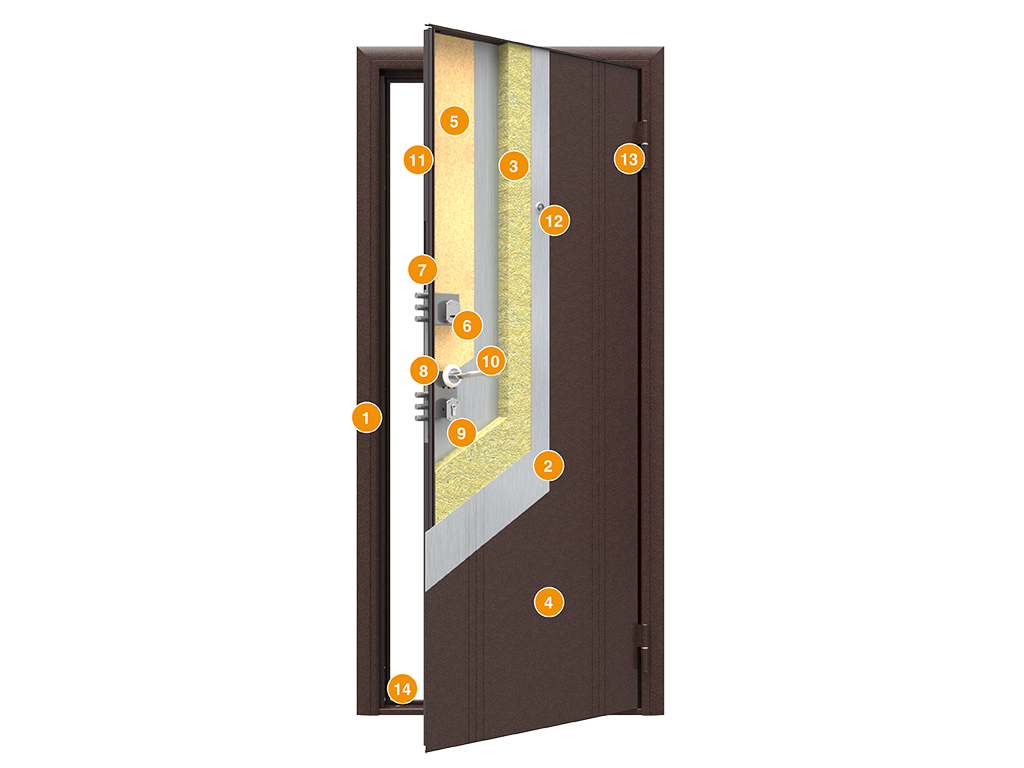

  1. Door frame
  2. Door leaf
  3. Filling and insulation
  4. Powder coating
  5. MDF panel
  6. Lever lock cover
  7. Level mortise lock
  8. Mechanical cylinder lock
  9. Cylinder “spinner” mechanism
  10. Set of spring-loaded handles on a separate bar
  11. Seal
  12. Peephole with 180° viewing angle
  13. Steel hinges with anti-removal pins
  14. Steel doorstep

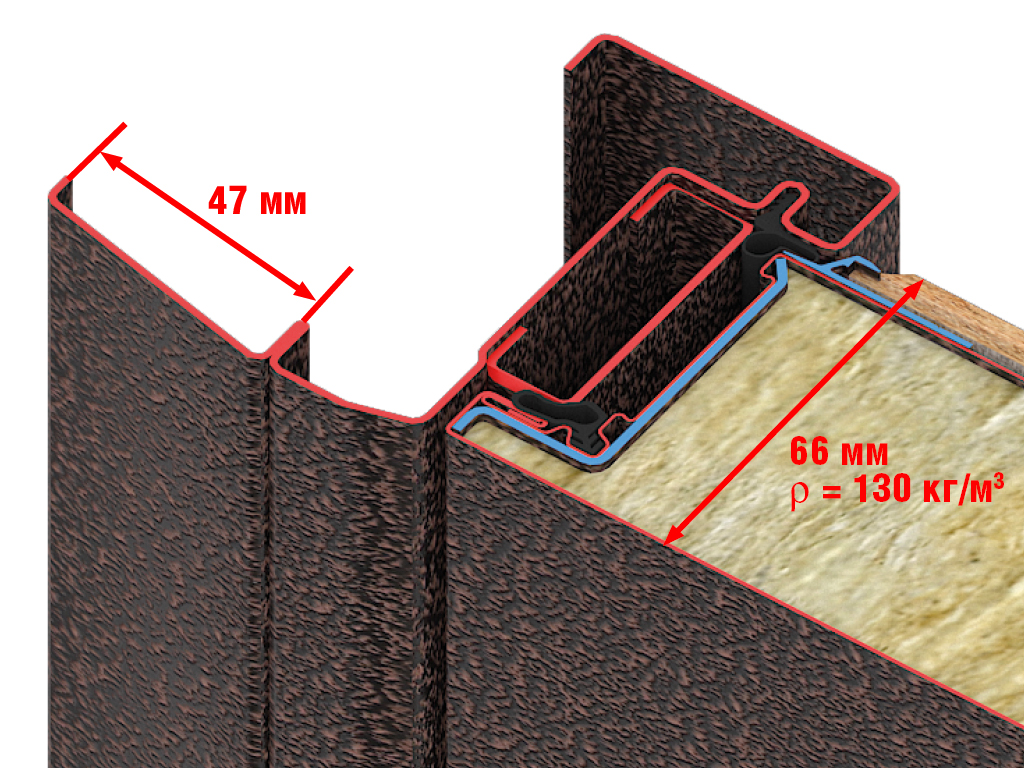

High-strength sheet made of galvanized cold-rolled steel filled with high-density mineral wool board. The platband allows you to hide the unevenness of the construction opening.

High-strength sheet made of galvanized cold-rolled steel filled with high-density mineral wool board. The platband allows you to hide the unevenness of the construction opening.

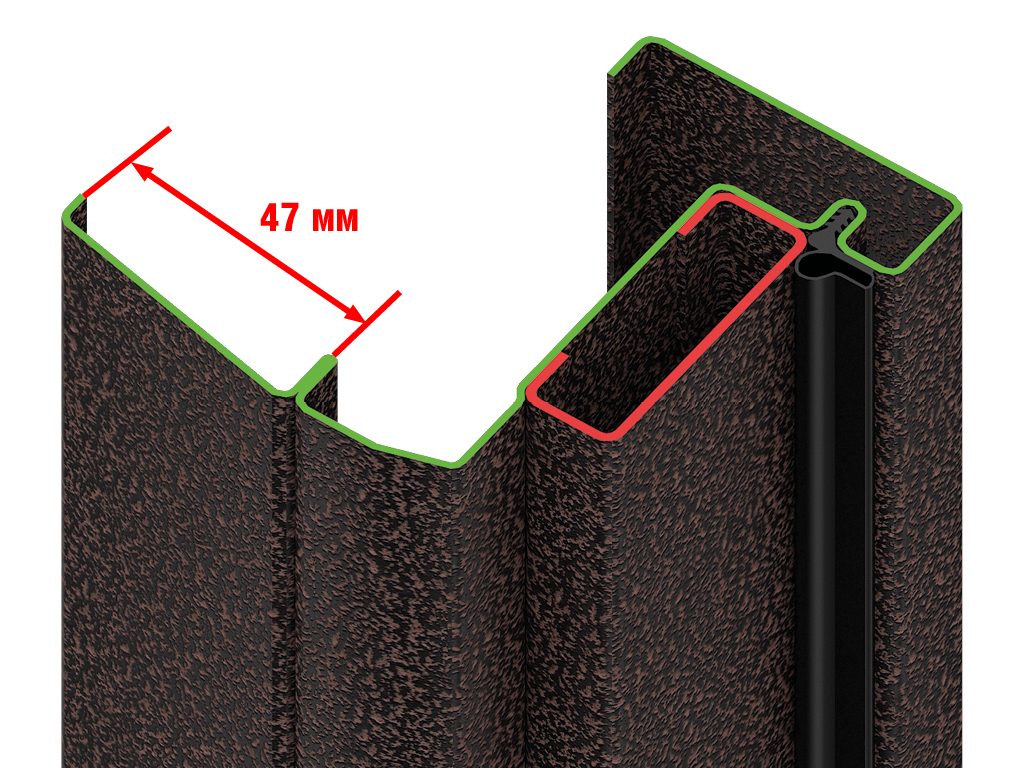

Galvanized steel frame made of 1.5 mm solid bent profile. Wide C-shaped frame 47 mm wide.

Galvanized steel frame made of 1.5 mm solid bent profile. Wide C-shaped frame 47 mm wide.

An elastic and durable specially shaped seal made of thermoplastic elastomer does not deform under temperature fluctuations (will last more than 10 years).

An elastic and durable specially shaped seal made of thermoplastic elastomer does not deform under temperature fluctuations (will last more than 10 years).

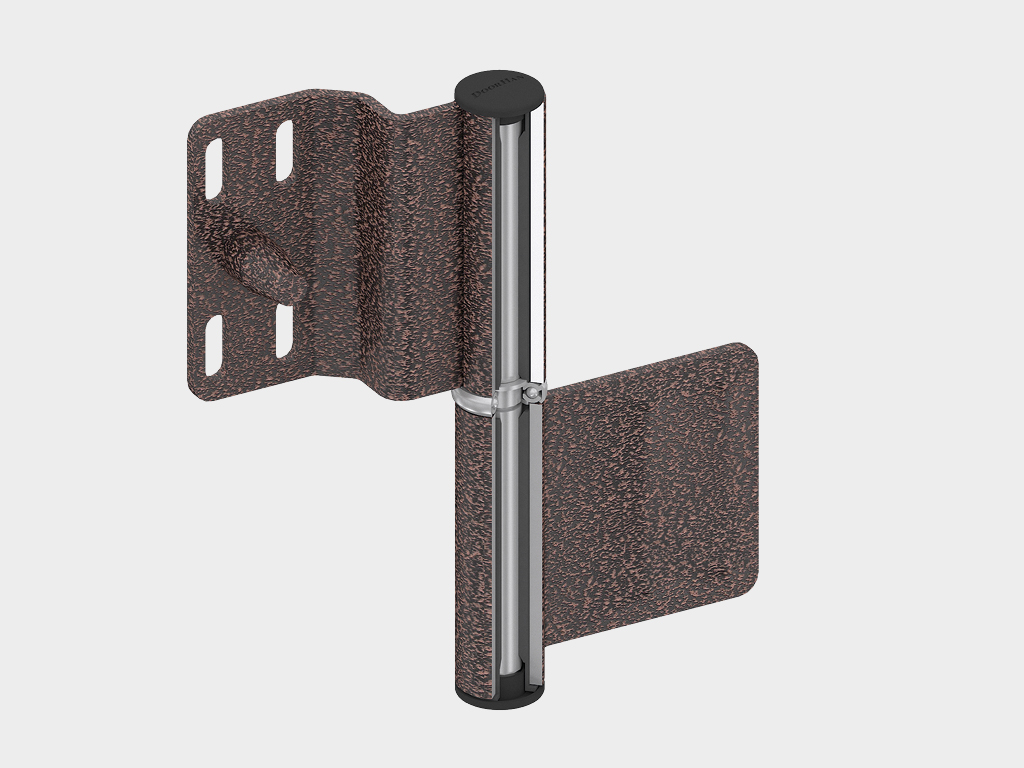

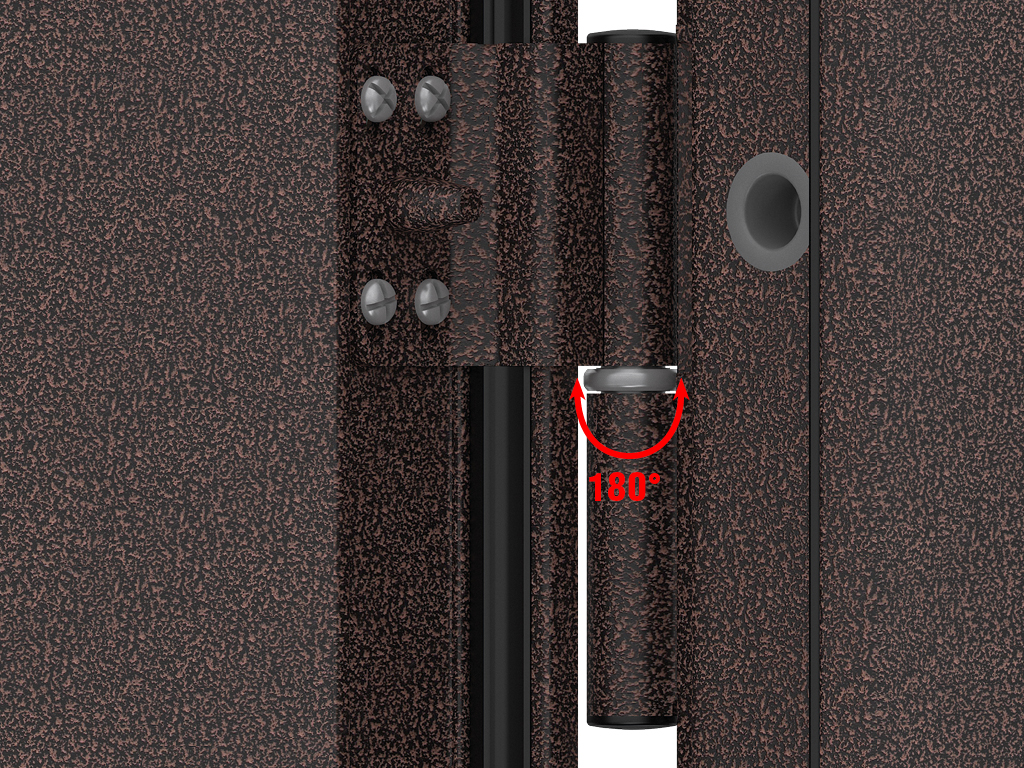

Adjustable galvanized steel hinges with anti-removal pins protect against removal from the hinges and provide a door opening angle of more than 180°.

Adjustable galvanized steel hinges with anti-removal pins protect against removal from the hinges and provide a door opening angle of more than 180°.

Parameter Value Notes
Number of cycles 500,000
Force of manual opening and closing, N no more than 72/150
Noise insulation, dB 33
Strength of fastening of handles to a cloth, H 1,000
Thermal resistance, m² · °С/W 1,1

The door can be used in industrial atmospheres, in areas with temperate and cold climates, in closed heated and ventilated rooms at ambient temperatures from -25 to +40 °C with relative humidity up to 80%.

If the door is operated from the street side, installation should be done in a cold vestibule to prevent possible condensation on the surface and, as a consequence, deformation of finishing materials.

To avoid fading of the door block coating, installation should be carried out using a protective visor to prevent sunlight and precipitation from reaching the surface of the door block.

It is not allowed to close the door leaf with the locks or bolts extended. This can lead to failure of the lock mechanisms and deformation of the bolts.

Foreign objects are not allowed to get into the openings of the door frame, as well as between the frame and the door leaf. It is recommended to cover the door with protective materials during repair and construction work.

It is prohibited to install additional equipment or accessories, or to replace or adjust individual parts yourself without consulting the manufacturer.

Care for decorative panels is carried out in accordance with the requirements for the care of furniture and wooden products. Do not use cleaning agents, aggressive liquids, solvents or abrasives.

If door systems are used for purposes other than their intended purpose, the manufacturer is not responsible for their integrity and proper operation.

It is recommended to lubricate the hinge assembly with a thin layer of lubricant every 6 months.

Packing in bubble wrap Packaging features
Contents Bubble film, cardboard corner, stretch film
Description It consists of a door block wrapped in bubble wrap at the corners, a cardboard corner that ensures the safety of the door during transportation, wrapped in stretch film
Height, mm 90
Length, mm 2,100
Width, mm 900; 1,000
Packing on pallet Packaging features
Contents Pallet, stretch film, cardboard corner
Description Packed doors are stacked vertically on a pallet; A cardboard corner is installed in the corners, designed to preserve the doors during transportation; then the packaging is wrapped with stretch film
Number of items in the packaging 22; 23
Additional Information print

The door can be transported in the manufacturer's packaging both vertically and horizontally by all types of covered transport or in containers.

When transporting and storing doors, measures must be taken to protect them from mechanical damage, violation of original packaging, contamination, and exposure to precipitation.

Installation
Mounting Options

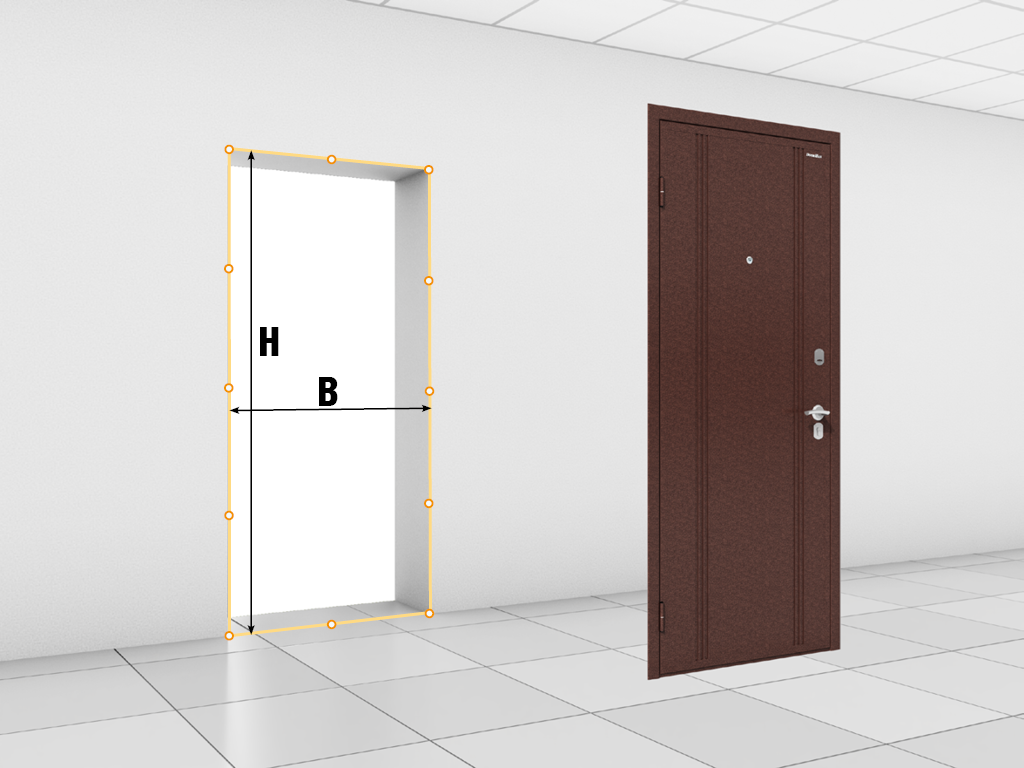

Checking Dimensional Details

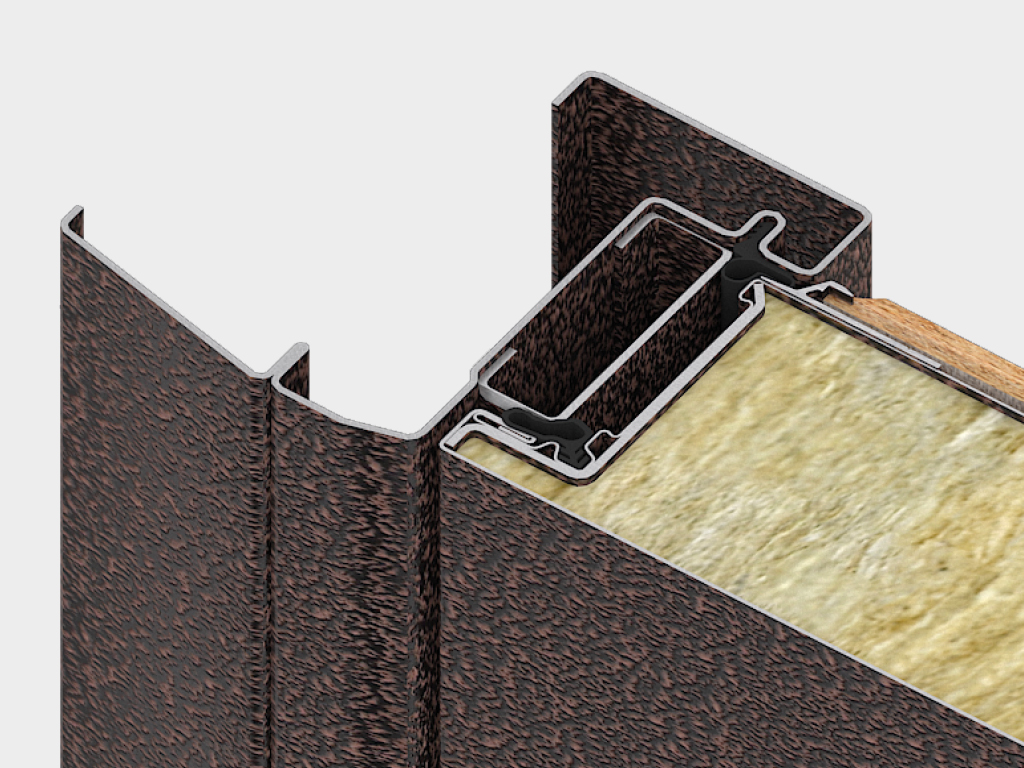

The door frame for surface mounting is the most popular. The frame of the box simultaneously performs two functions: it covers the installation gap and performs a decorative function.
The door frame for surface mounting is the most popular. The frame of the box simultaneously performs two functions: it covers the installation gap and performs a decorative function.

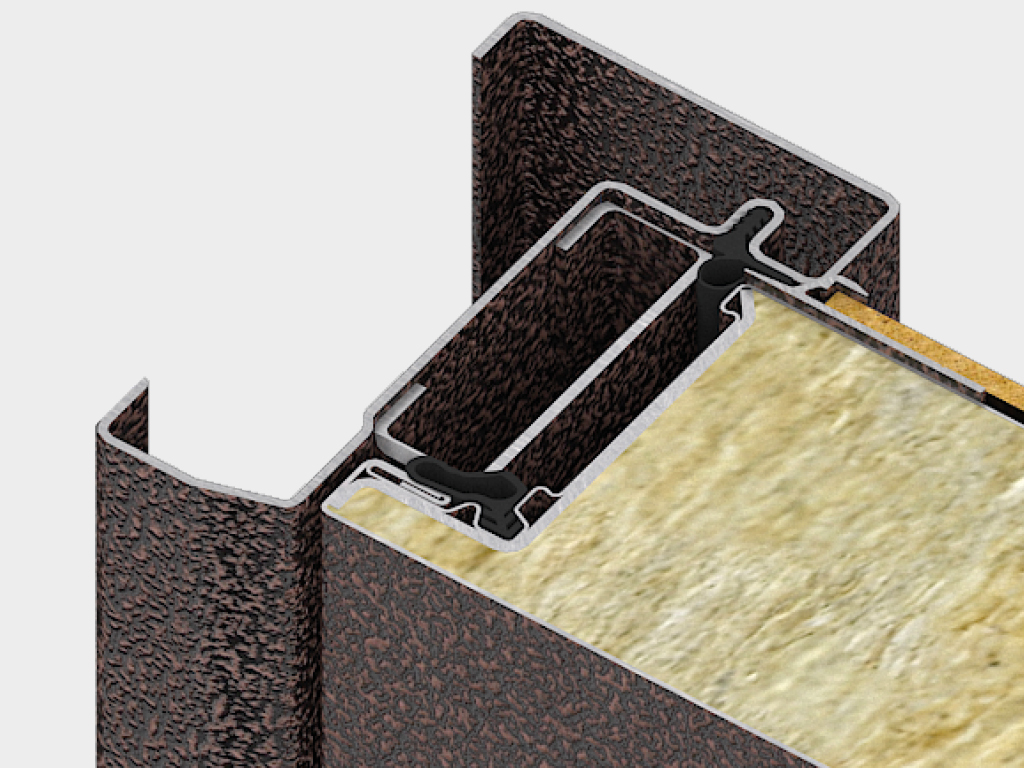

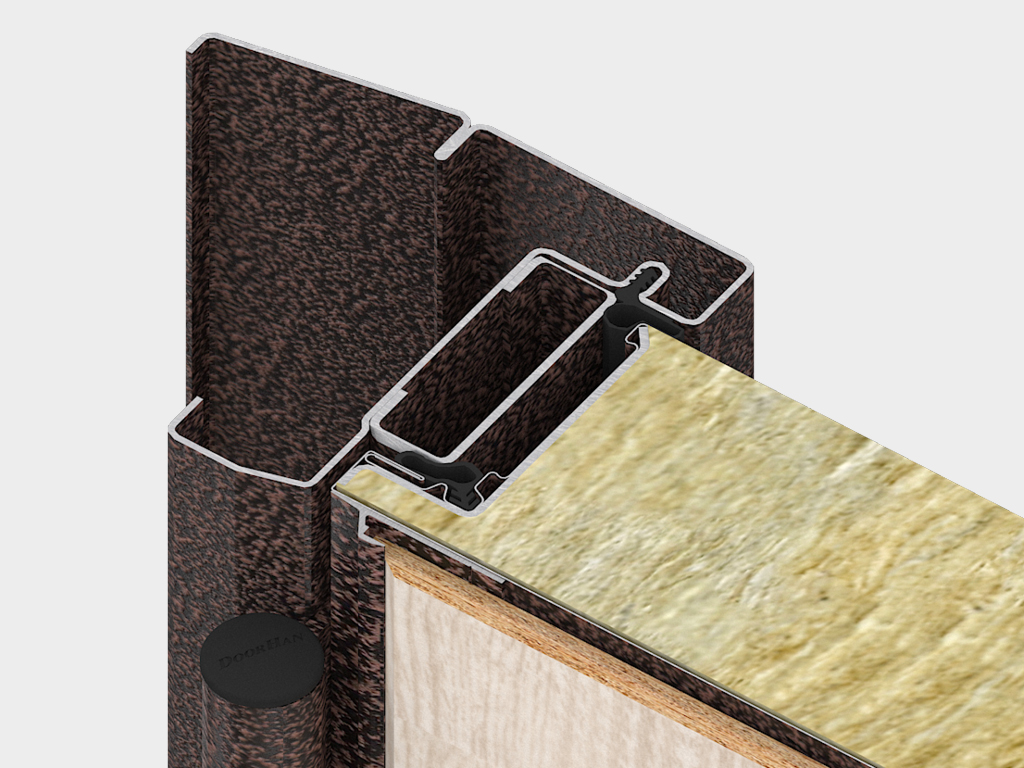

An internal opening door frame is installed where there are requirements for evacuation and it is necessary to open the door into the room.
An internal opening door frame is installed where there are requirements for evacuation and it is necessary to open the door into the room.
A door frame for mortise installation allows you to install the door both with opening inside and outside the room, and also makes it possible to install the door on the site without a wall.
A door frame for mortise installation allows you to install the door both with opening inside and outside the room, and also makes it possible to install the door on the site without a wall.
  1. Dismantle the old door and make sure the opening is ready for installing the new one. If the opening is not ready (there are fastening rods, anchor bolts, uneven surfaces in the form of sagging from plaster, wooden blocks from fastening an old door, etc.), then they must be removed. Also, the opening may require additional processing - expansion or narrowing using additional tools (grinder, level) or materials (brick, foam block, metal profile, etc.).
  2. The prepared opening should have a rectangular shape. The wall thickness must be at least 150 mm. The walls must be even and smooth, without sagging plaster and cracks. The deviation of working surfaces from the vertical and horizontal should not exceed 1.5 mm per meter, but not more than 5 mm. The difference in diagonals is no more than 5 mm. The opening must be of sufficient strength and not contain voids.
Documentation
Manuals
Technical Data and Certificates
Drawings

Installation instructions

User manual

Passport

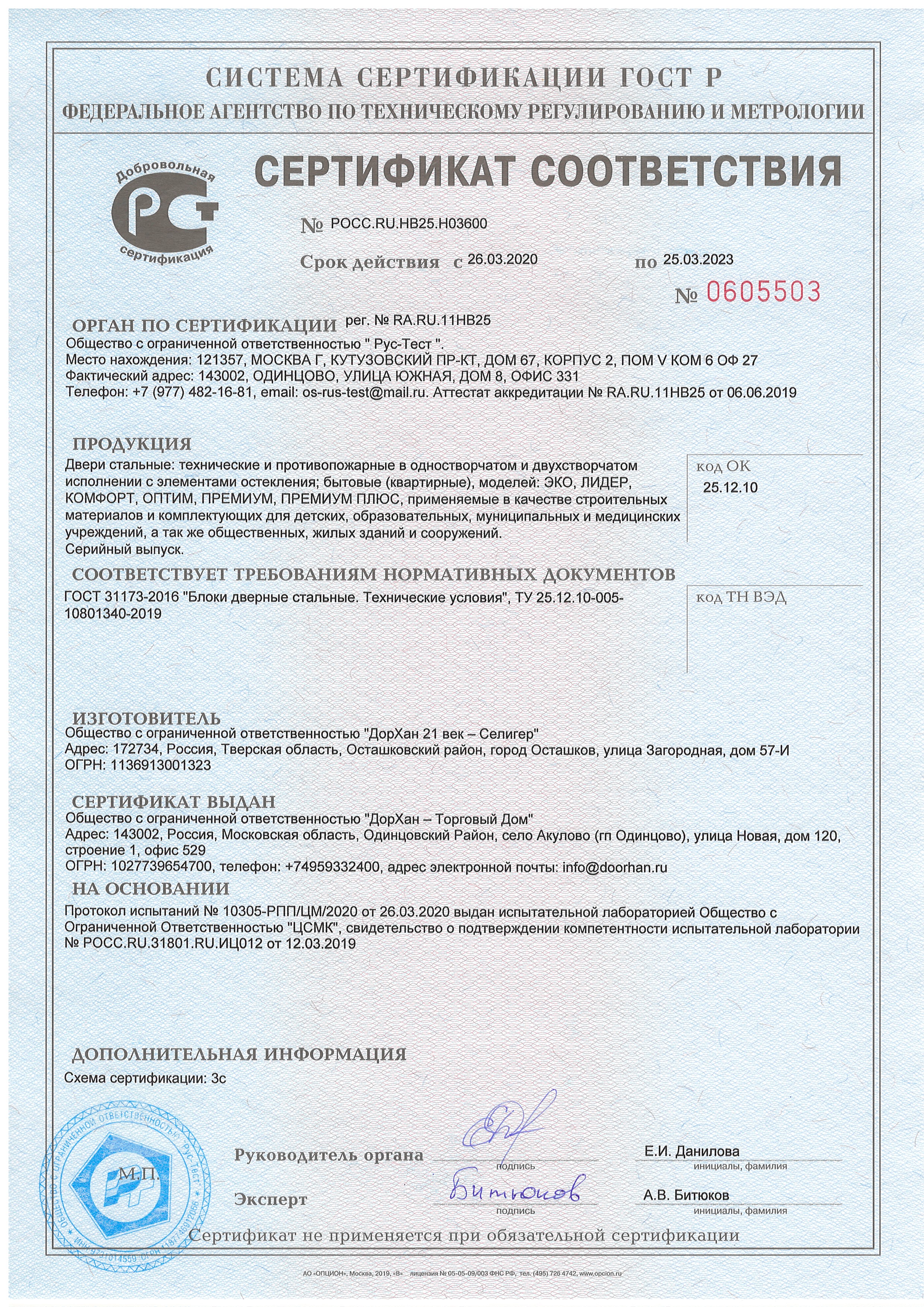

Certificate of conformity GOST R 31173-2016

Door drawing "OPTIM"

Warranty print

9. We undertake, at our option, to eliminate identified defects, replace defective products with serviceable ones, or reimburse the costs of purchasing defective products. We do not cover the costs of dismantling and installing the door, as well as transportation costs, except in cases specifically stipulated in the purchase and sale agreement.
