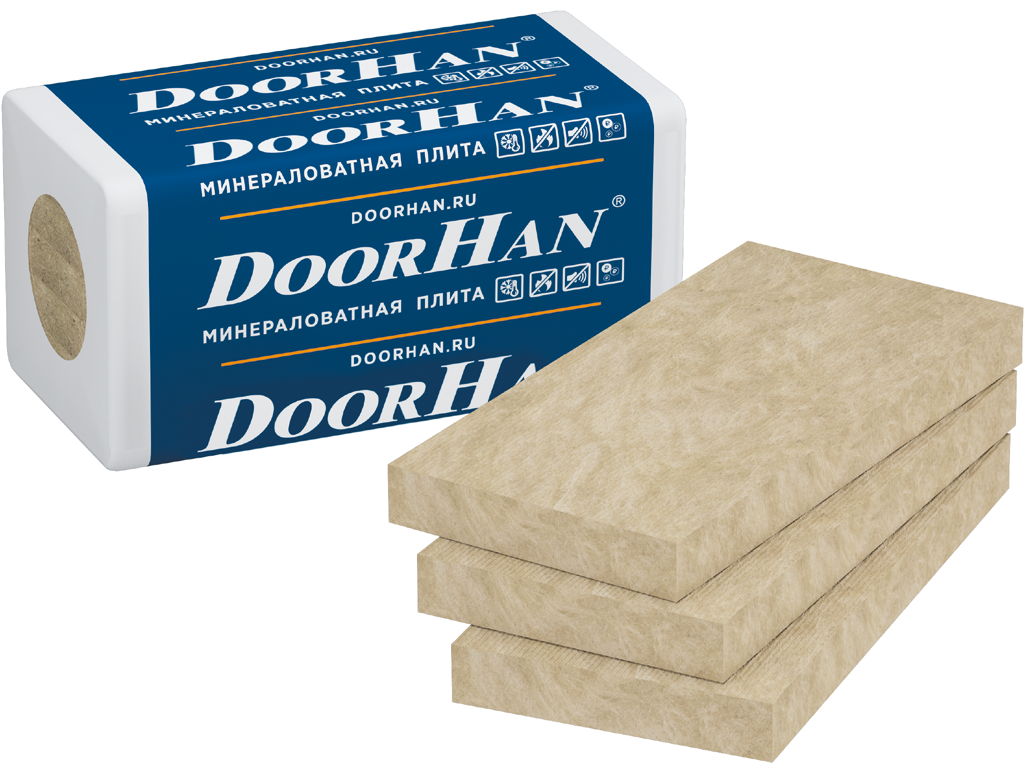

Mineral wool boards DoorHan "Ruf N Optima"

DoorHan "RUF N OPTIMA" mineral wool boards are used as a heat-insulating layer in multilayer coatings of flat roofs, including when laying on a surface without a cement screed.

Application:

As the bottom thermal insulation layer in flat roof systems
As the bottom thermal insulation layer in flat roof systems

Order with installation

Advantages

Allows to carry out installation of plates with the most dense prileganiye to each other.

Optimum vapor permeability of cotton wool eliminates the formation of fungus and mold on the inner walls of the plate.

Excellent heat-insulating properties of mineral wool significantly reduce heat loss.

Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.

Allows to carry out installation of plates with the most dense prileganiye to each other.

Optimum vapor permeability of cotton wool eliminates the formation of fungus and mold on the inner walls of the plate.

Excellent heat-insulating properties of mineral wool significantly reduce heat loss.

Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.

Technical description

Size Table

Specifications

Packaging

Parameters

Value

Length, mm

1 200

Width, mm

600; 1 200

Thickness, mm

from 50 to 160 in 10 mm increments

Packaging volume, m³

from 0.172 to 0.259 (depending on the thickness and width of the plate)

Parameter	Value	Notes
Density, kg/m³	105
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С	λ10 = 0,036	at a temperature of 10 ˚С (283±1)K, no more
Thermal conductivity, W/(m K)	λ25 = 0,038	at a temperature of 25 ˚С (298±1)K, no more
Thermal conductivity, W/(m K)	λА = 0,040	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Thermal conductivity, W/(m K)	λБ = 0,042	calculated for operating conditions A and B according to SP 50-13330-2012, no more
Compressive strength, kPa	35	for compression at 10% relative deformation, not less than
Tensile strength, kPa	5	when stretched perpendicular to the front surfaces, not less than
Concentrated force at a given absolute deformation, N	at least 400	deformation 5 mm
Water absorption, kg/sqm	1,0	no more
Content of organic substances, %	4,5	by weight, no more
Humidity, %	0,5	by weight, no more
Vapour permeability, mg/m·h·Pa	0,5	no more
Combustibility class according to European Standards	NG

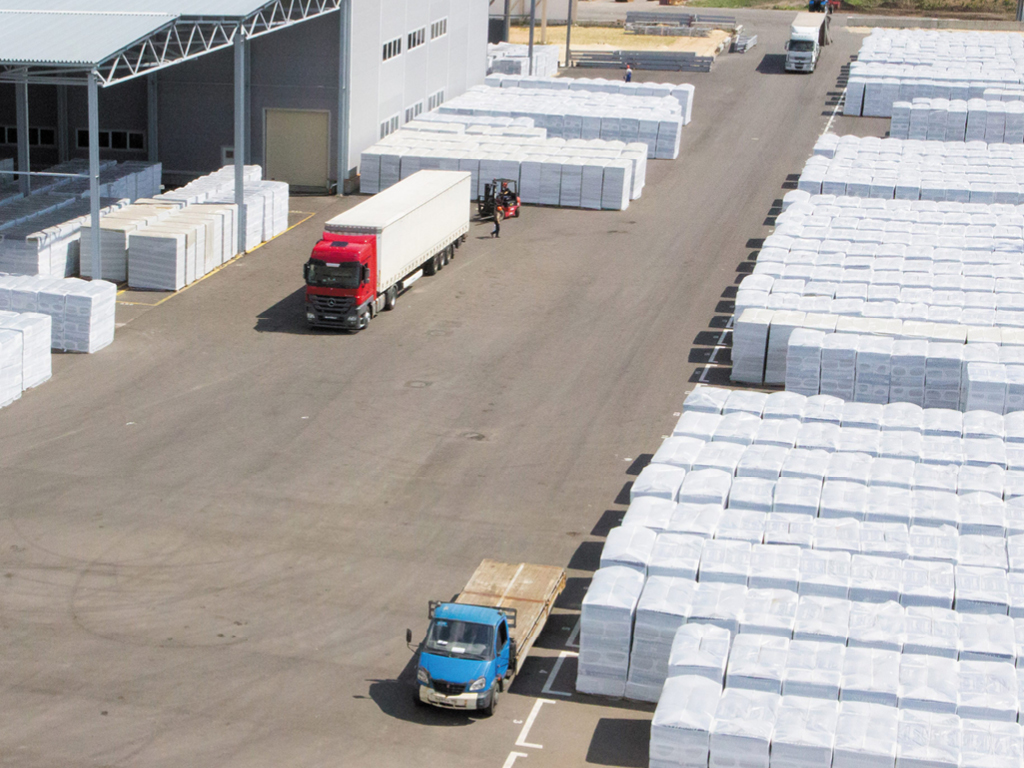

Packing on pallet	Packaging features
Description	The boards are packed in a thermo shrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is marked with information about the product.
Length, mm	2 400
Width, mm	1 200
Height, mm	2 505

Documentation

Manuals

Technical Data and Certificates

Album of technical solutions

PDF

Fire Safety Certificate

PDF

Declaration of Conformity

PDF

Expert opinion

PDF

Certificate of conformity

PDF

Certificate of Conformity

PDF

Warranty print

If the consumer maintenance the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.
