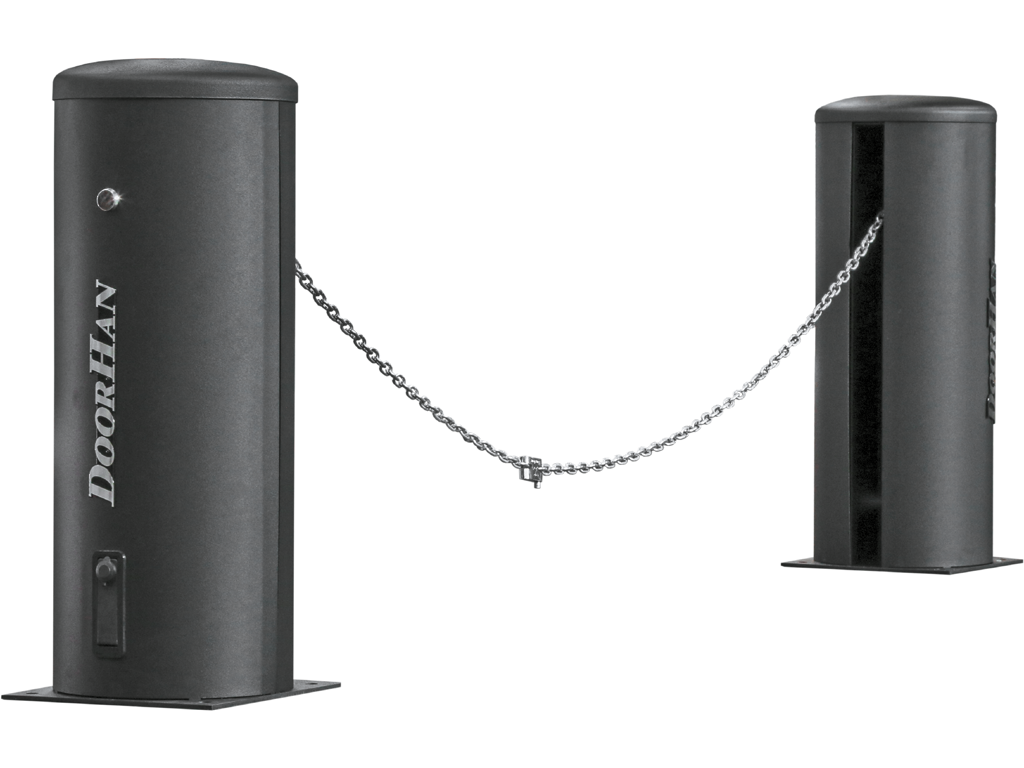

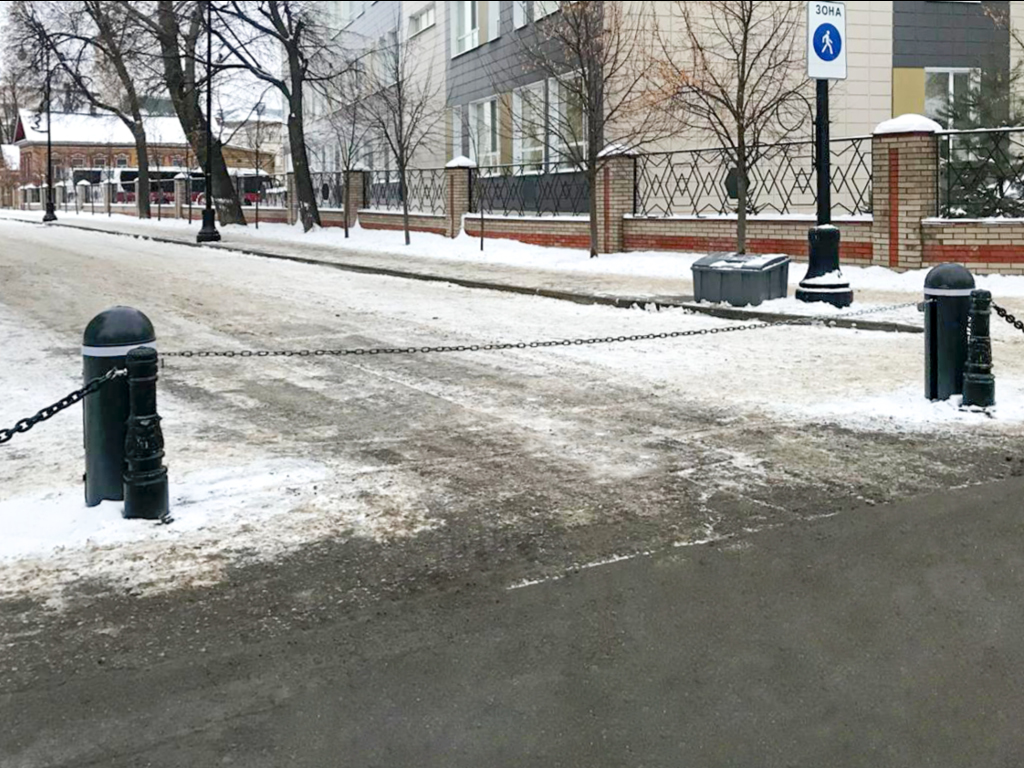

Chain barrier

Chain barrier is designed to control vehicle access for medium to high usage car parks. It is an ideal solution when protecting access in parking lots along production sites, trade centers, blocks of flats, etc.

Application:

Parking facilities of different types
Control of access to production sites, surrounding territories of business centers or blocks of flats

Order with installation

Advantages

The barrier bollard is equipped with a special release mechanism to control the vehicle access manually in case of power outage. The release lever has a lock to prevent unauthorized release of the barrier.

Two types of chain protection guide are supplied optionally, either flush with the ground, or 30 mm above the ground. The guides ensure protection to the chain when passage is open.

Control unit is supplied in a barrier complete set as standard. It is built-in into the bollard body.

The ability to mount photocells on the bollard itself makes installation simple and eliminates extra costs.

Steel anti-vandal body protects the barrier mechanisms from environmental influences and mechanical damage.

Two types of chain protection guide are supplied optionally, either flush with the ground, or 30 mm above the ground. The guides ensure protection to the chain when passage is open.

Control unit is supplied in a barrier complete set as standard. It is built-in into the bollard body.

The ability to mount photocells on the bollard itself makes installation simple and eliminates extra costs.

Steel anti-vandal body protects the barrier mechanisms from environmental influences and mechanical damage.

Design

Таблица

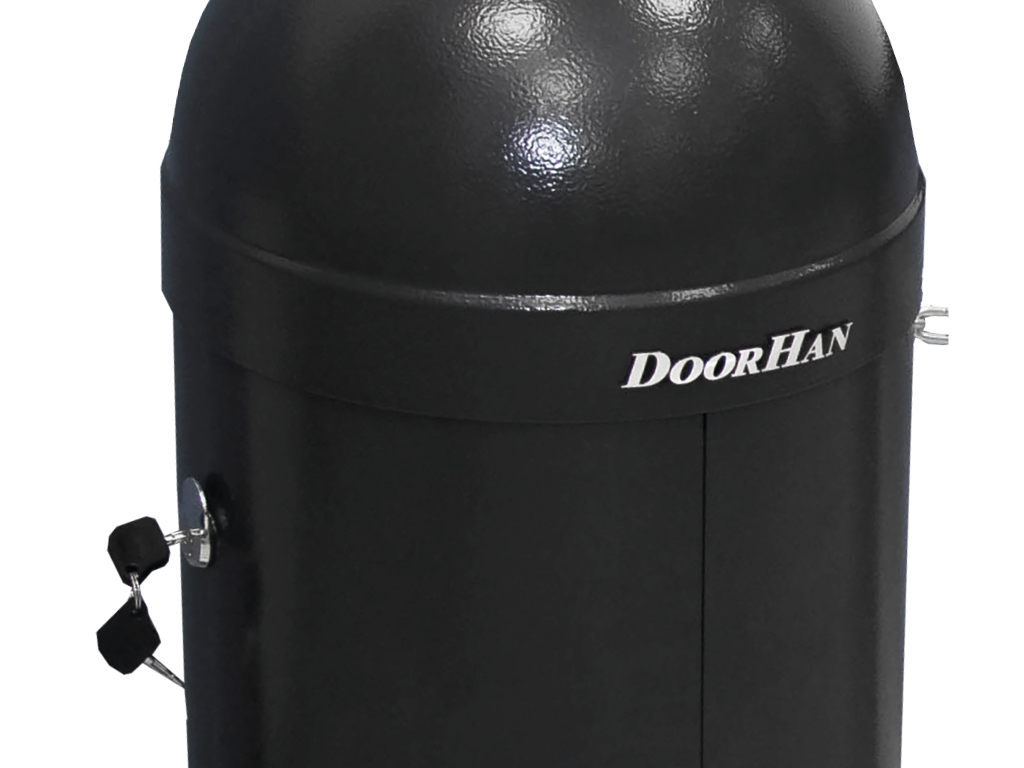

Steel cover with lock

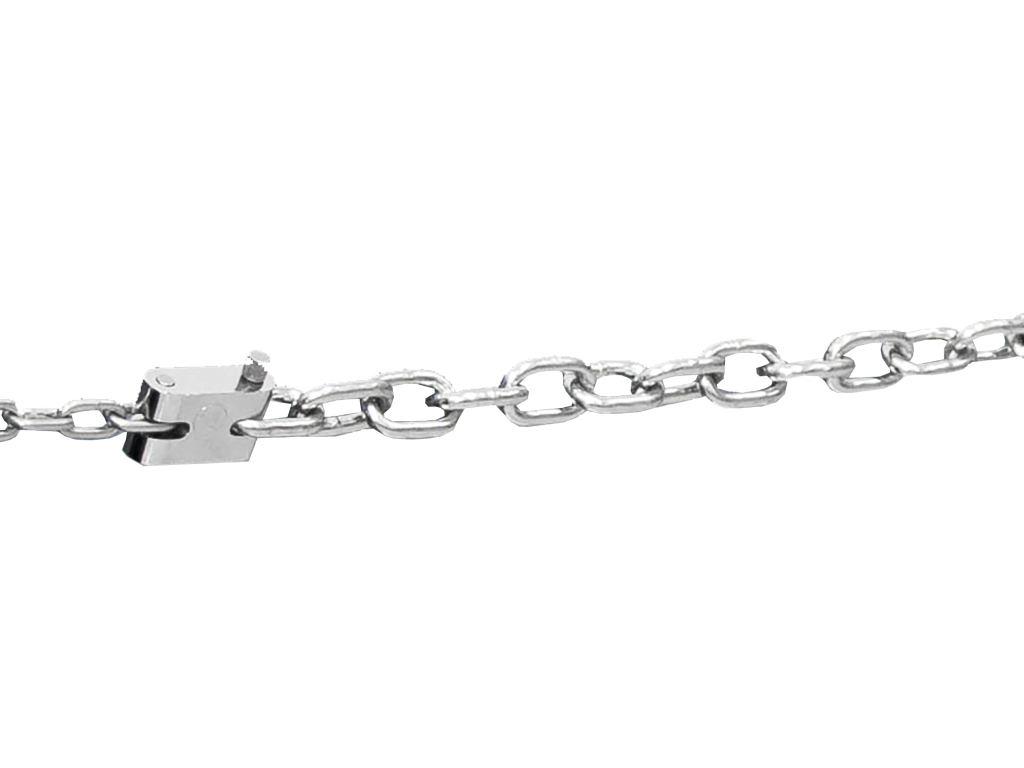

Chain lock

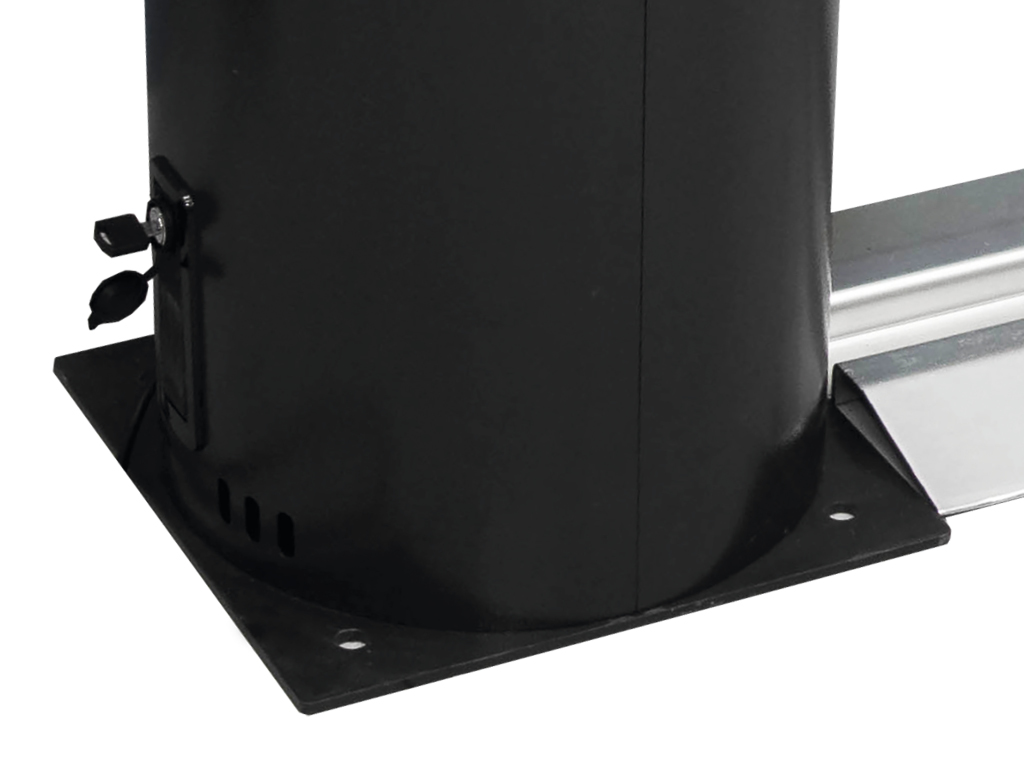

Mechanical release

Equipment

Standard

Optional

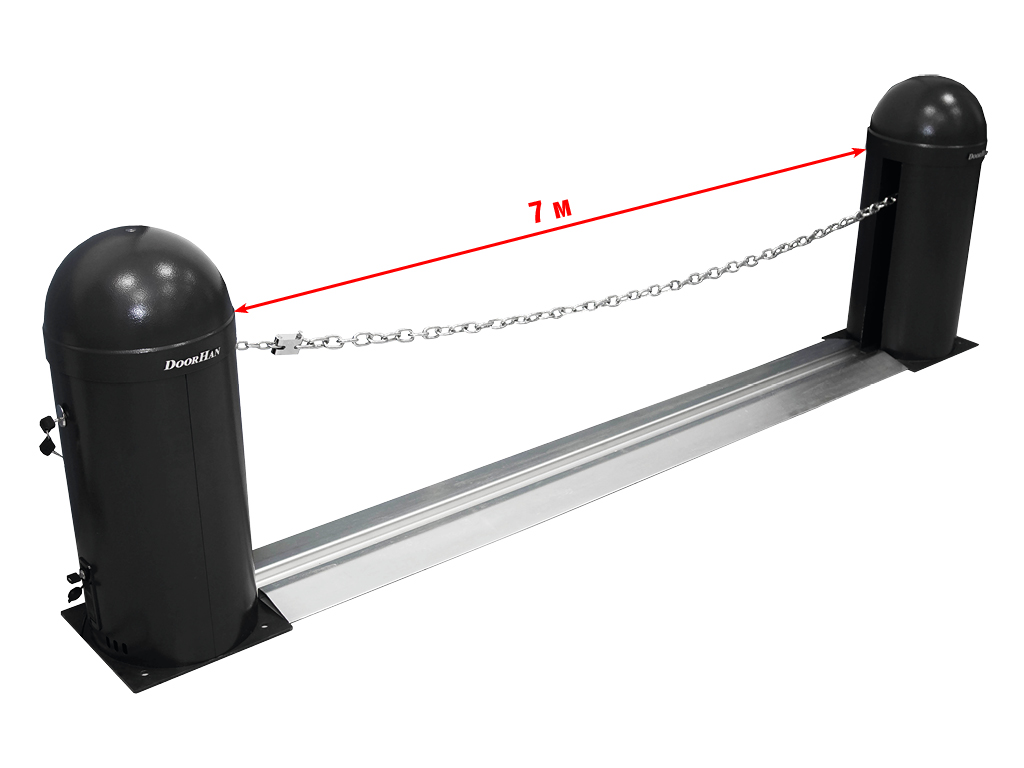

Chain-Barrier Master and Chain-Barrier Slave, 7 or 15 meters long chain, fastening hardware

Wi-Fi-module for wireless control of the electric drive (control signal, NO)

GSM-module receives a mobile phone signal and transmits a control signal to operate the opener or barrier

Transmitter-2PRO-Black remote control operates two devices

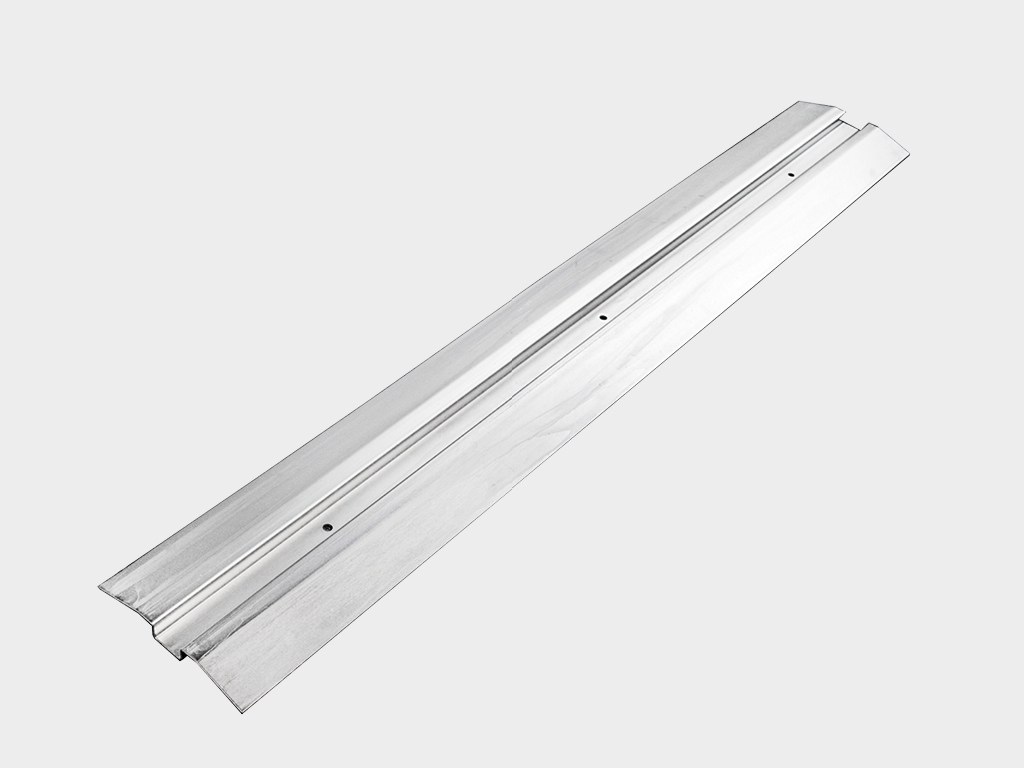

Сar-2 chain-protective rail (30 mm over the ground)

Car-4 chain-protective rail (flush with the ground)

Transmitter-4PRO-Black remote control operates four devices

Transmitter-4 remote control operates four devices

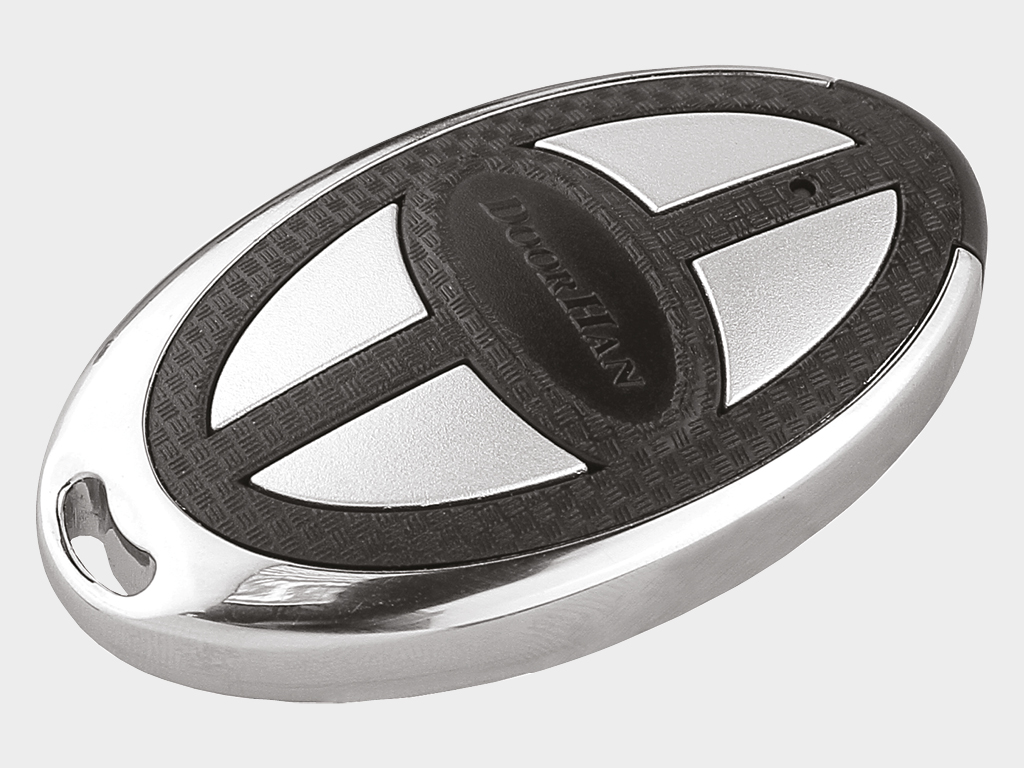

Transmitter-Premium having steel housing can operate up to four devices

Car-Transmitter remote control chargeable via cigarette lighter can operate two devices

Command-433 wireless button to control two devices

KEYPAD series code keypad controls door opener equipped with internal or external DoorHan receiver

Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device

Anti-vandal code keypad Ref: KEYCODE series controls automatic devices. It can be used as an outdoor keypad or a proximity-card reader

External DHRE-1 receiver controls other manufactures’ automatic devices with DoorHan remote control

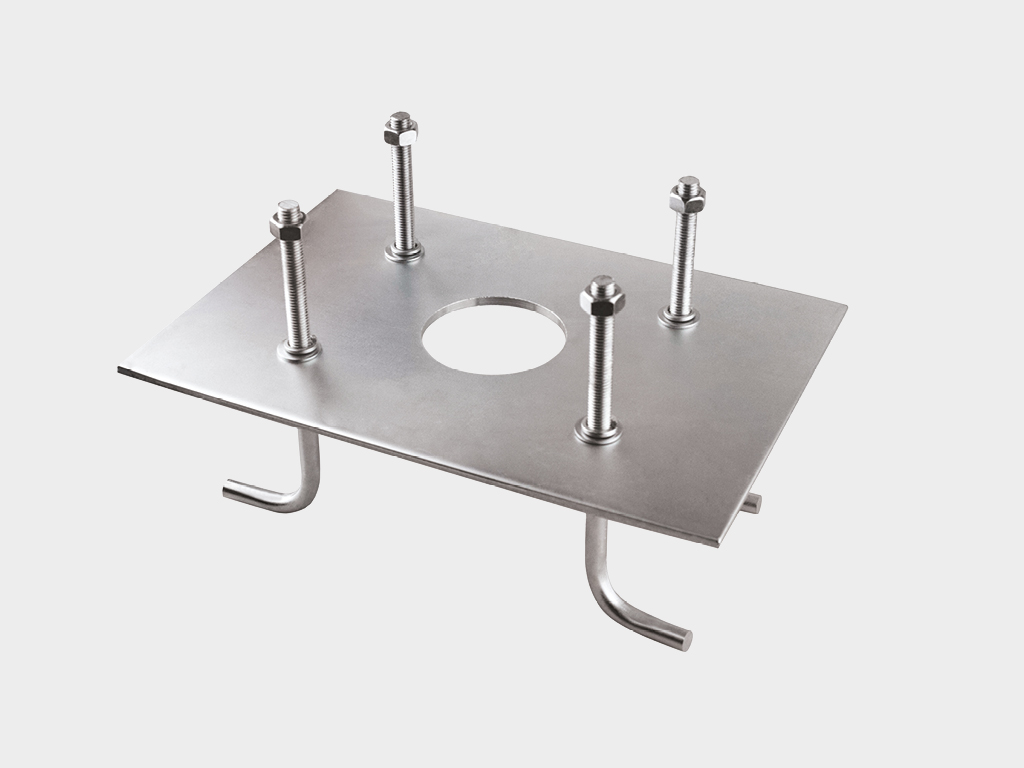

Mounting base for concreting

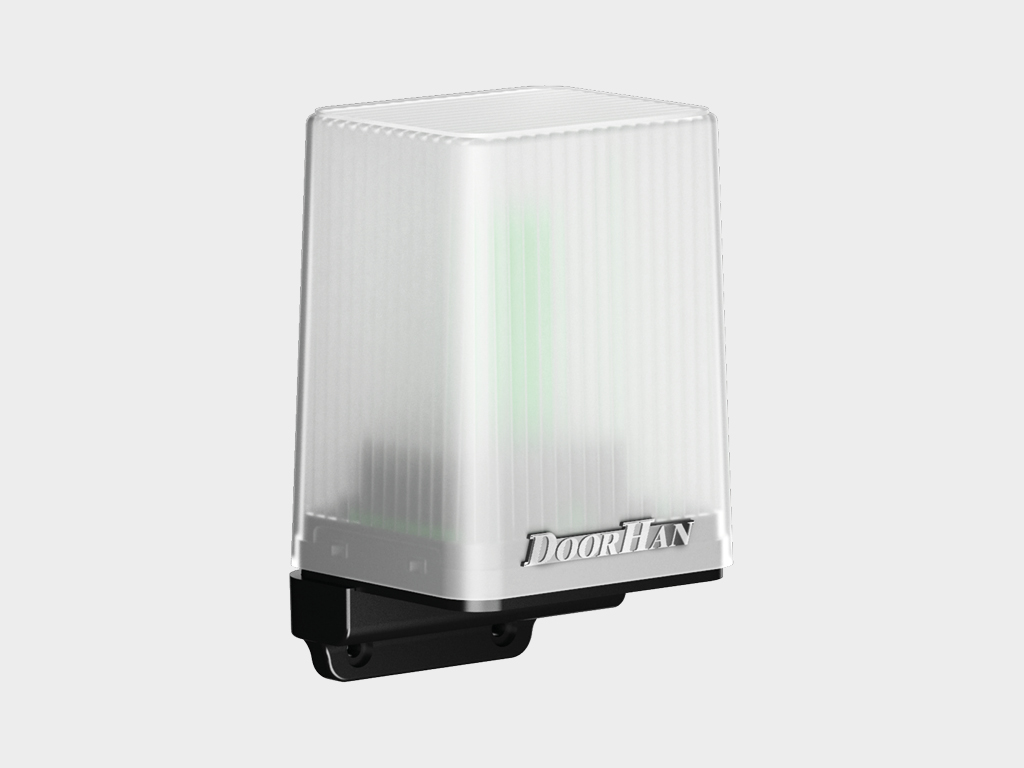

Lamp-PRO-series LED lamp with antenna to signal the chain movement

Photocell-N safety photocells consisting of infrared transmitter and receiver

Wireless photocells of Photocell-W series consisting of infrared transmitter and receiver

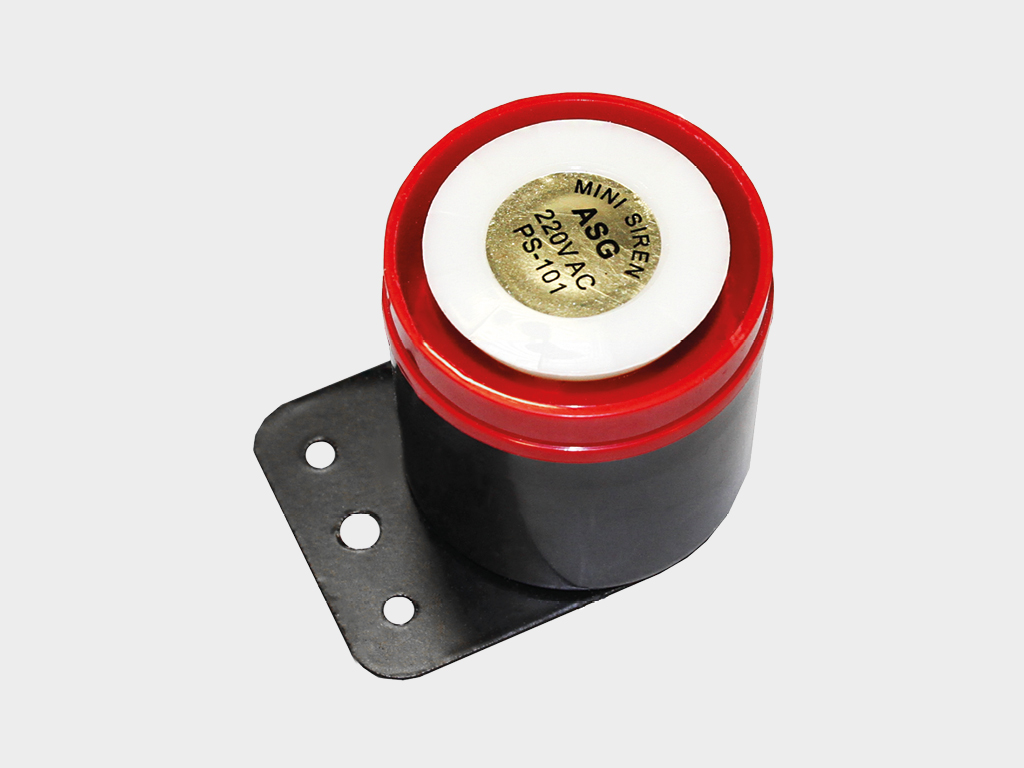

Sirena giving an audio warning about the door movement

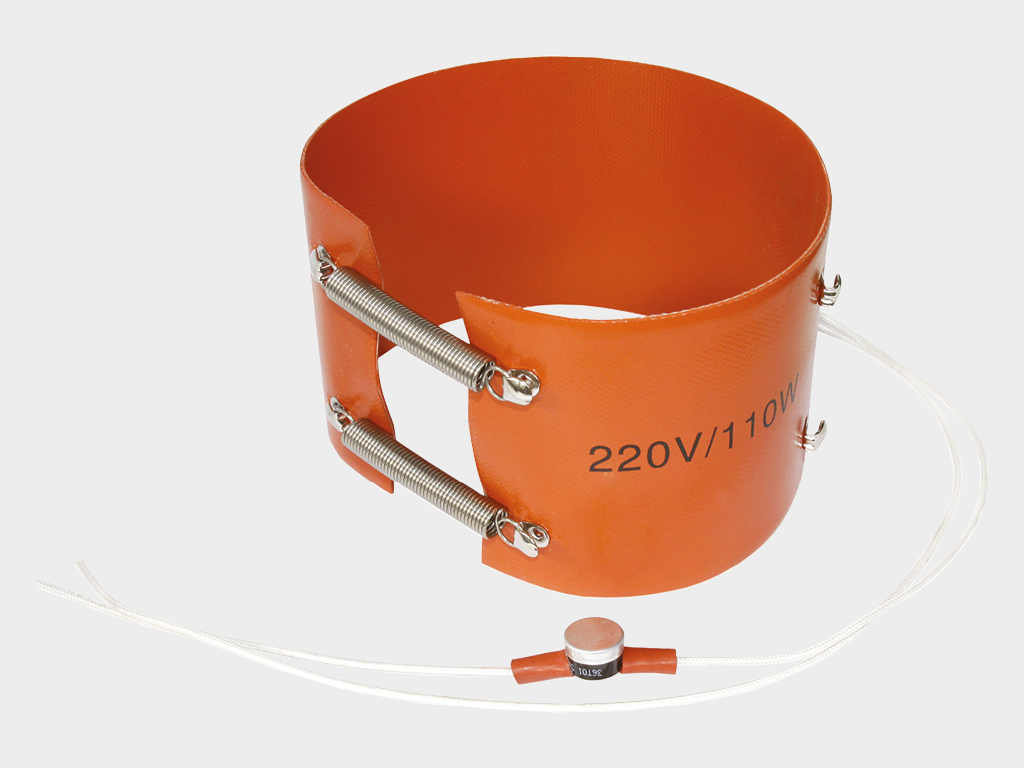

Heating device for gate and barrier operators working under extreme low temperature conditions

Technical description

Construction

Standard Construction

Specifications

Operating Conditions

Packaging

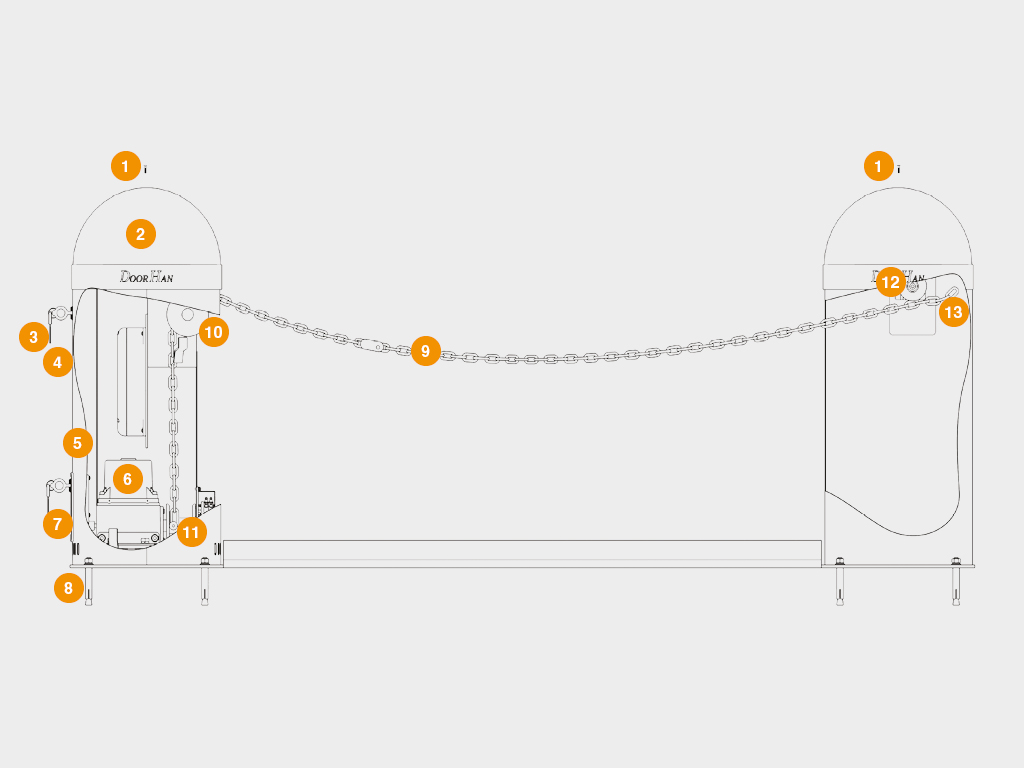

MASTER
Hexagon set screw
Steel painted protection cover
Steel painted frame
Built-in PCB-SL control unit
Pillar body
220 V motor with built-in overheat protection
Release
Anchor bolt
Chain and lock
Nylon roller for chain
Nylon guide pulley
SLAVE
Counterweight with nylon roller
Boom attachment unit

Chain barrier complete set for openings up to 7 m

Chain barrier complete set for openings up to 15 m

Parameter	Value	Notes
Passage width, m	7–15
Supply voltage, V	220
Power, W	280
Operating temperature range, °С	-20...+55
Maximum effective torque, N·m	20
IP protection class	54
Intensity of use	50

1. Make sure nothing obstructs the chain movement.

2. The barrier bollards should be installed on a concrete base.

3. Depth of concrete base depends on the soil type and the depth of soil freezing.

4. Make sure pipe lines and electric cables won’t cross the barrier installation place.

Packing in cardboard box	Packaging features
Contents	stretch-film, polystyrene, a cardboard box
Length, mm	800
Width, mm	420
Height, mm	390

Installation

Mounting Options

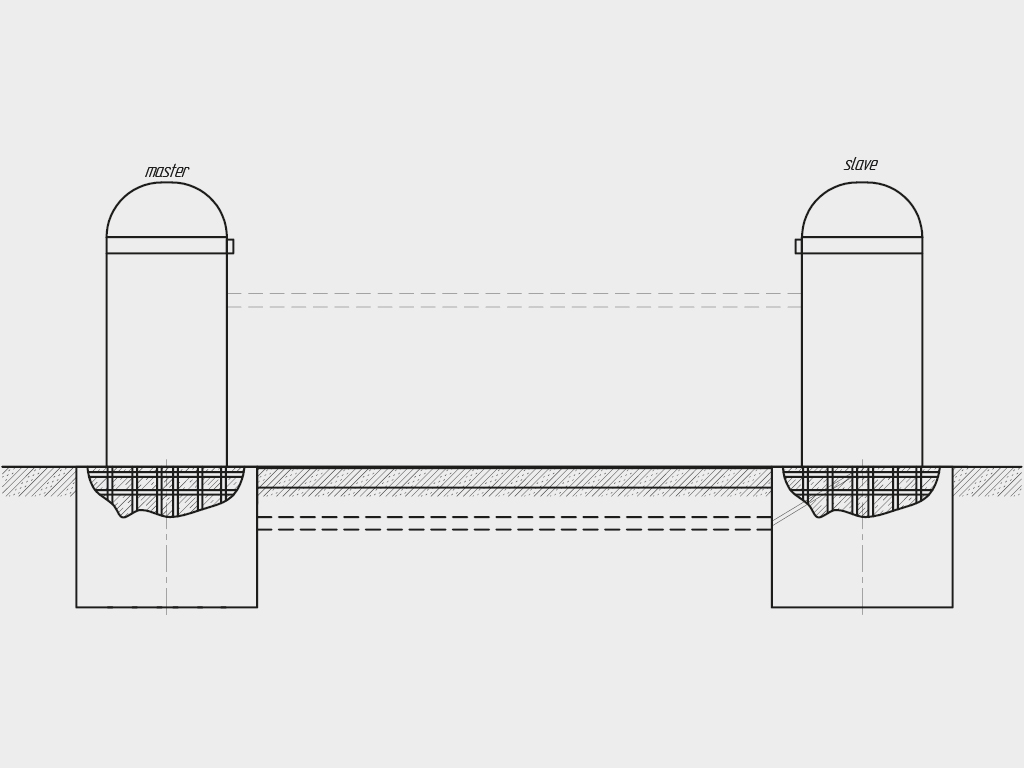

The barrier is installed on a concrete base and fixed with anchor bolts.

Documentation

Manuals

Technical Data and Certificates

Drawings

Installation and Operation Manual

PDF

Technical Data

PDF

Dimensional Drawing

PDF

Concreting Scheme

PDF

Warranty print

DoorHan s.r.o. warrants the chain barrier to work properly for a period of 3 years from purchase date. Dealer may change the warranty period.
