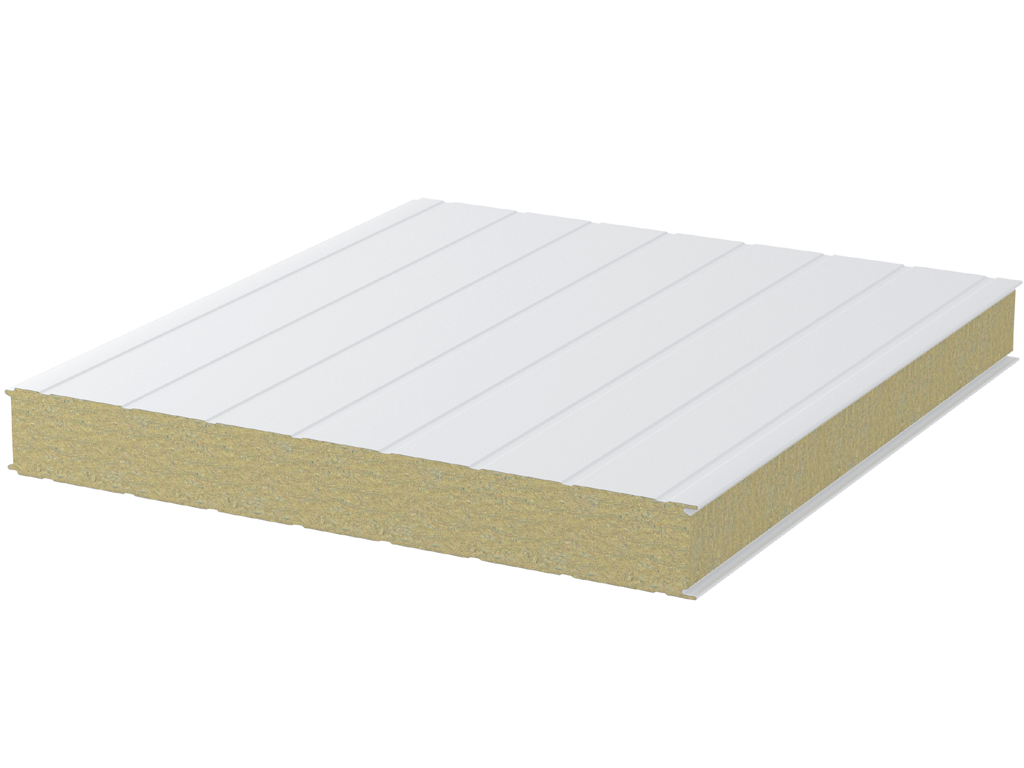

Стеновые сэндвич-панели с утеплителем из минеральной ваты

Wall sandwich panels are used in the construction of prefabricated buildings for warehouse, industrial and commercial purposes. As a heater in the manufacture of three-layer sandwich panels, DoorHan mineral wool boards based on basalt rocks are used.

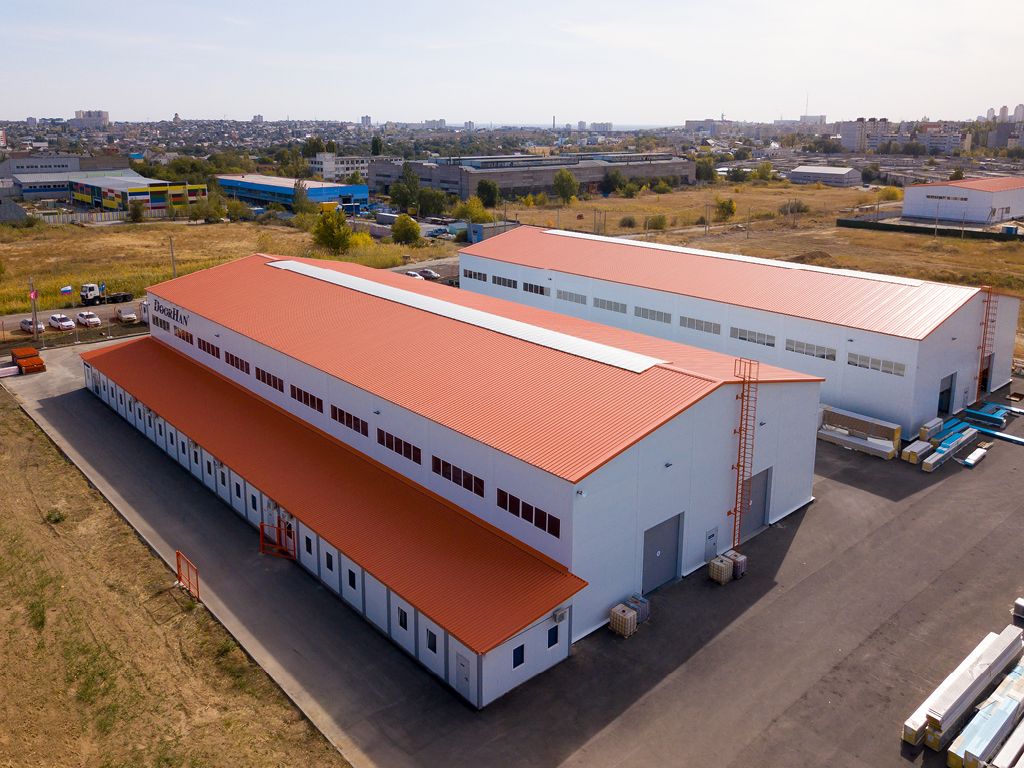

Application:
  • Industrial buildings
  • Warehouse buildings
  • Logistic buildings
  • Buildings for agriculture
  • Sports buildings
  • Trade pavilions
  • Partitions
  • Fire walls
Advantages
Thanks to mineral wool insulation, roof and wall sandwich panels are light in weight. Due to this, the load on the supporting structures is reduced and it becomes possible to erect buildings on a lightweight foundation, which significantly reduces the cost of its manufacture.
The connection of the sandwich panels is carried out in the lock. The special tongue-and-groove lock configuration provides a high-density fit and facilitates fast and accurate panel docking, which greatly speeds up and simplifies installation. Structures from such sandwich panels, unlike concrete and brick structures, can be easily dismantled, transported and assembled elsewhere.
DoorHan's high-tech production and premium quality raw materials guarantee high compressive, tensile, shear / shear strength; resistance to deformation and compressibility.
The small thickness of the panels with high thermal insulation performance can significantly increase the internal usable area of the building.
The production of materials for wall and roof sandwich panels is carried out entirely at the enterprises of the DoorHan. Own lines for painting rolled steel and producing mineral wool allow us to produce products in the shortest possible time.
The most modern laboratory and production equipment, own enterprises for the production of materials for sandwich panels, as well as highly qualified employees allow us to control product quality at all stages of production.
With a thickness of 120 mm or more, the fire resistance of the panels is EI 150, which allows them to be used as fireproof partitions.
DoorHan sandwich panels comply with the unified sanitary-epidemiological and hygienic requirements. Can be used for the construction of medical institutions and buildings for any purpose type A-B.
The period of effective operation of building sandwich panels with mineral wool insulation for 50 years has been confirmed.
Thanks to a wide range of products, we can complete any construction site with all the necessary equipment (doors, technical and refrigeration doors, handling equipment, stained-glass structures, etc.).
Thanks to mineral wool insulation, roof and wall sandwich panels are light in weight. Due to this, the load on the supporting structures is reduced and it becomes possible to erect buildings on a lightweight foundation, which significantly reduces the cost of its manufacture.
The connection of the sandwich panels is carried out in the lock. The special tongue-and-groove lock configuration provides a high-density fit and facilitates fast and accurate panel docking, which greatly speeds up and simplifies installation. Structures from such sandwich panels, unlike concrete and brick structures, can be easily dismantled, transported and assembled elsewhere.
DoorHan's high-tech production and premium quality raw materials guarantee high compressive, tensile, shear / shear strength; resistance to deformation and compressibility.
The small thickness of the panels with high thermal insulation performance can significantly increase the internal usable area of the building.
The production of materials for wall and roof sandwich panels is carried out entirely at the enterprises of the DoorHan. Own lines for painting rolled steel and producing mineral wool allow us to produce products in the shortest possible time.
The most modern laboratory and production equipment, own enterprises for the production of materials for sandwich panels, as well as highly qualified employees allow us to control product quality at all stages of production.
With a thickness of 120 mm or more, the fire resistance of the panels is EI 150, which allows them to be used as fireproof partitions.
DoorHan sandwich panels comply with the unified sanitary-epidemiological and hygienic requirements. Can be used for the construction of medical institutions and buildings for any purpose type A-B.
The period of effective operation of building sandwich panels with mineral wool insulation for 50 years has been confirmed.
Thanks to a wide range of products, we can complete any construction site with all the necessary equipment (doors, technical and refrigeration doors, handling equipment, stained-glass structures, etc.).
Design
The profile and lock of sandwich panels
The profile and lock of sandwich panels
Coating type

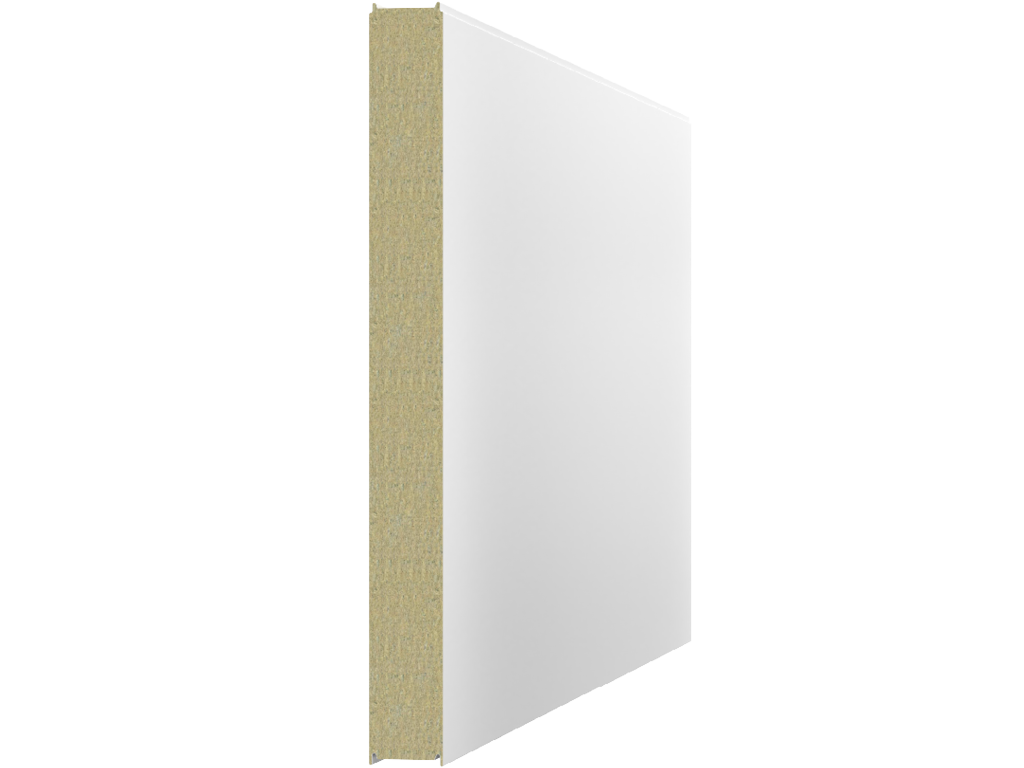

Smooth (G)
Smooth (G)

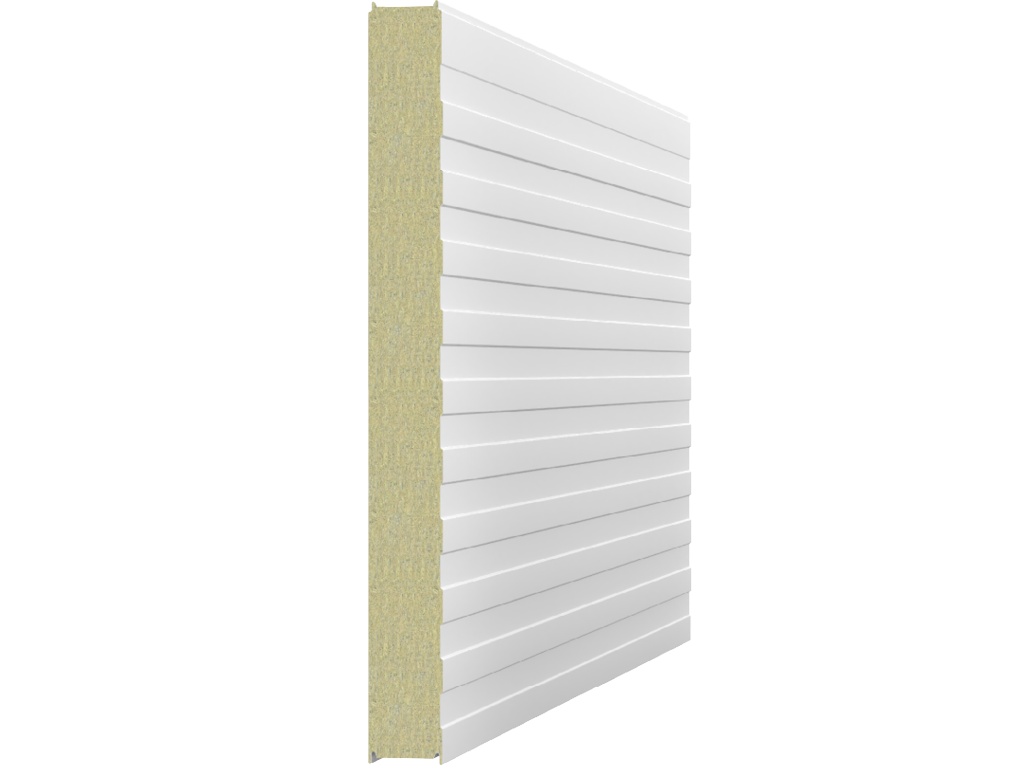

Trapeze (50/50)
Trapeze (50/50)
Wave (B20)
Wave (B20)

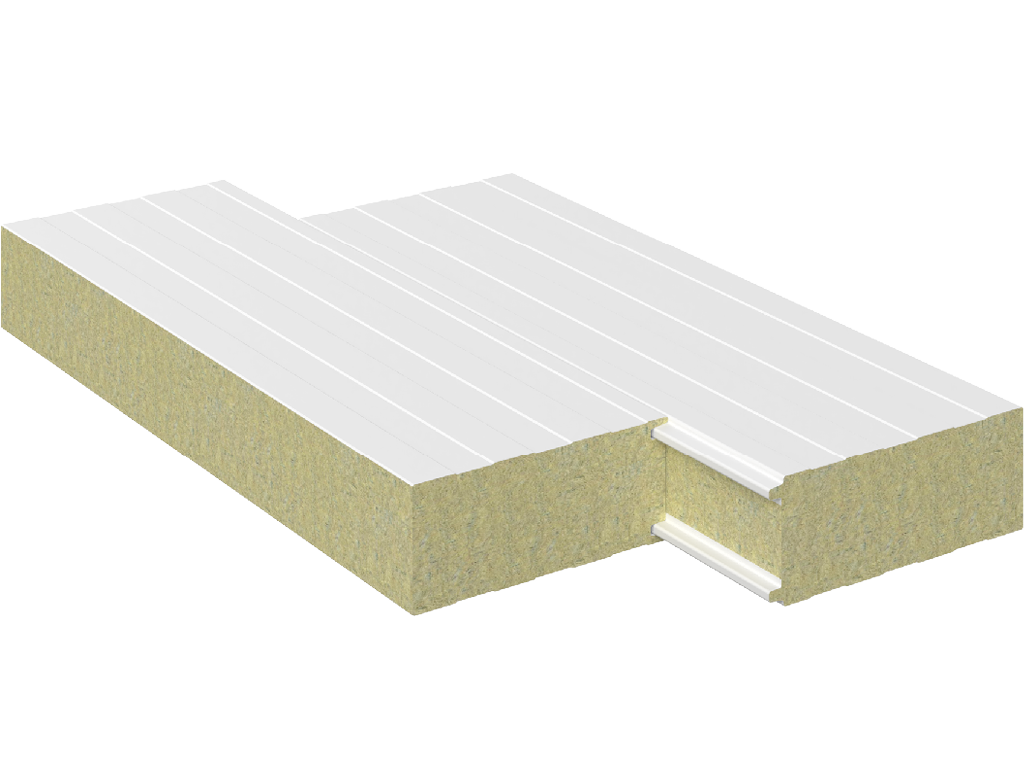

Z-lock (Z6)
Z-lock (Z6)
Smooth (G)
Smooth (G)
Trapeze (127/12)
Trapeze (127/12)
Wave (B30)
Wave (B30)
Z-lock (Z4)
Z-lock (Z4)
Polyester, PURAL, PVDF, Printech
Polyester, PURAL, PVDF, Printech
Equipment
Standard

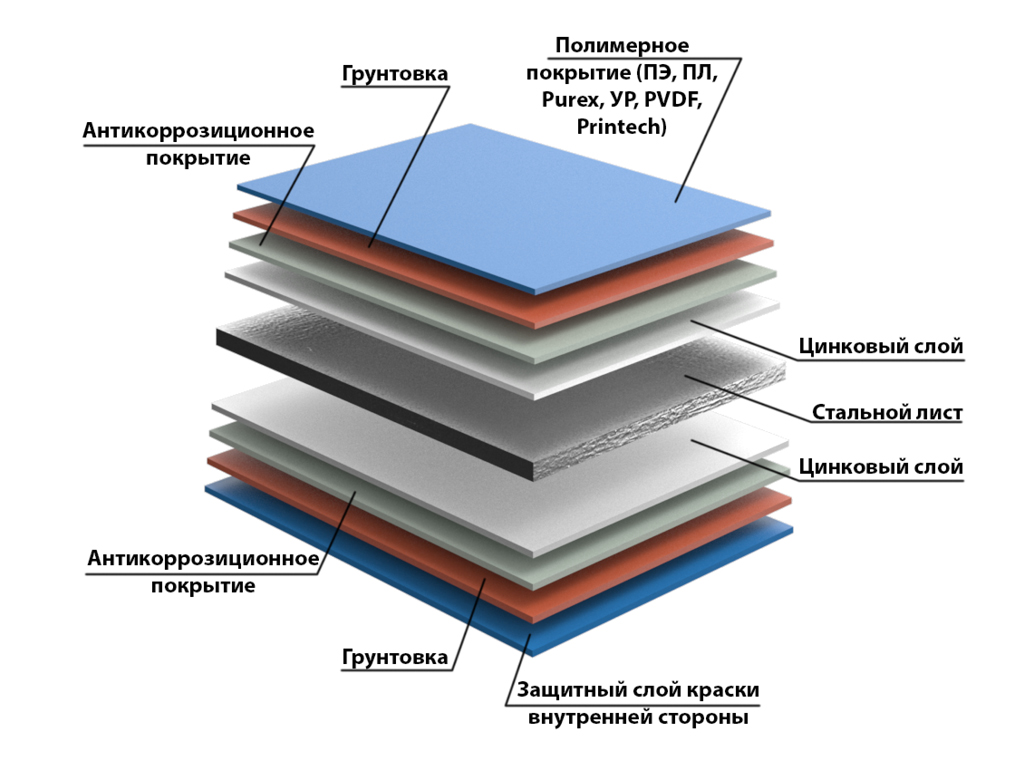

Cold-rolled hot-dipped galvanized sheet steel is used as a raw material for the manufacture of sandwich panels. For the production of building sandwich panels, steel with a thickness of 0.45–0.7 mm is used with various types of polymer coatings.

Cold-rolled hot-dipped galvanized sheet steel is used as a raw material for the manufacture of sandwich panels. For the production of building sandwich panels, steel with a thickness of 0.45–0.7 mm is used with various types of polymer coatings.

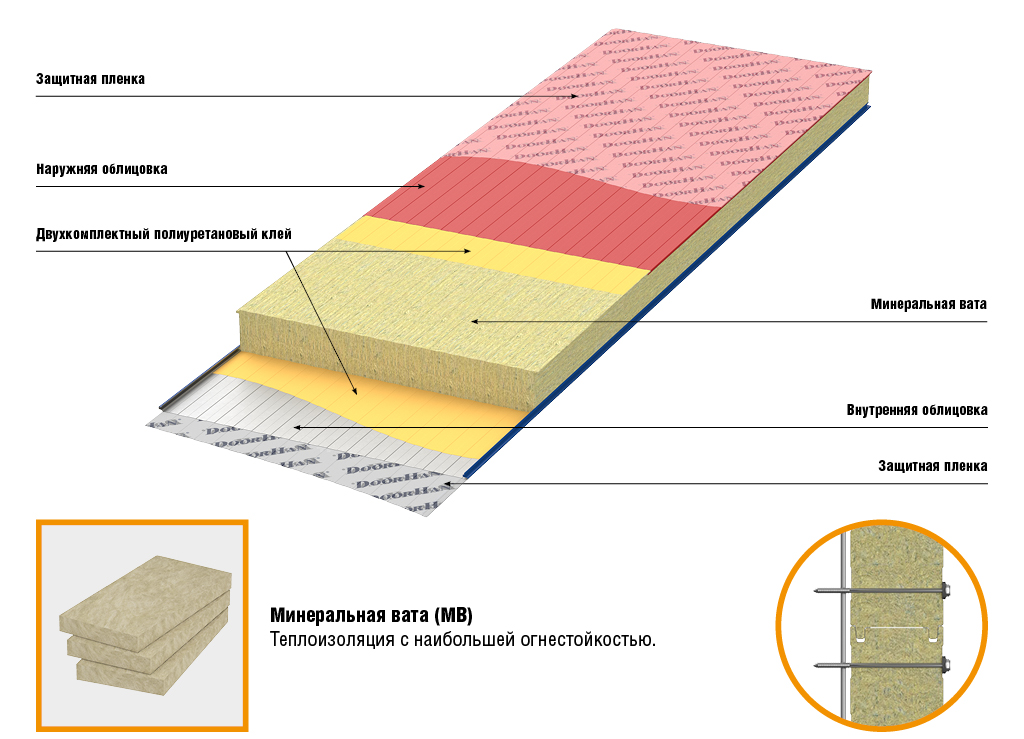

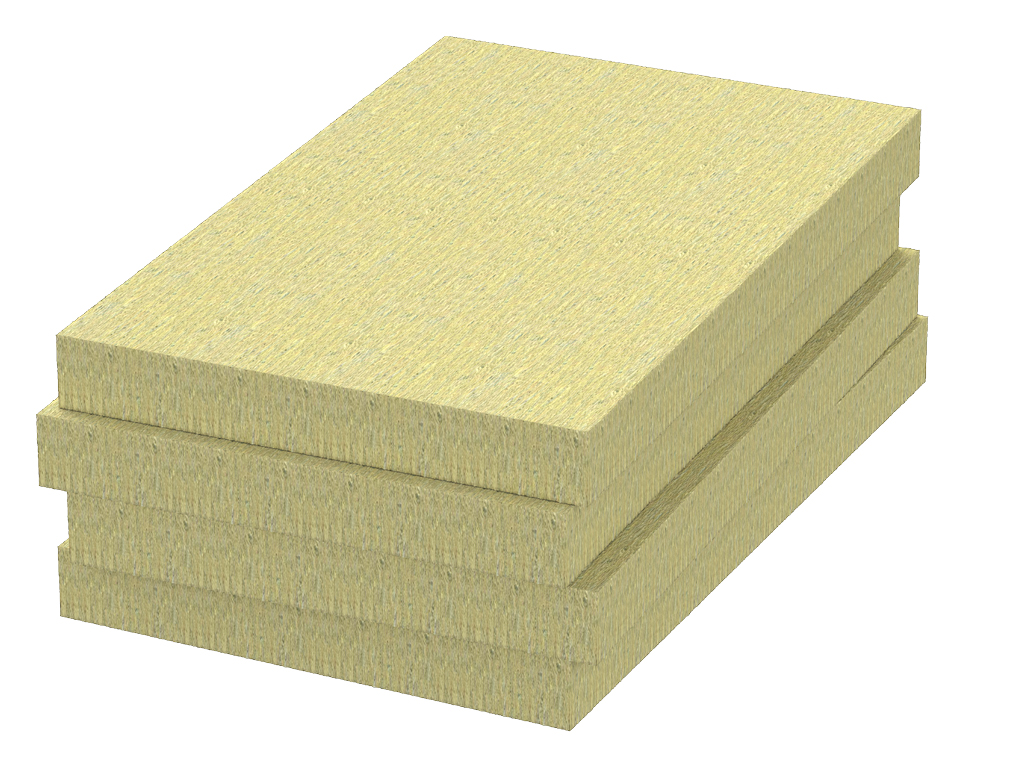

Mineral wool slabs of our own production, made on the basis of rocks of the basalt group, are used as a heater for three-layer sandwich panels.

Mineral wool slabs of our own production, made on the basis of rocks of the basalt group, are used as a heater for three-layer sandwich panels.

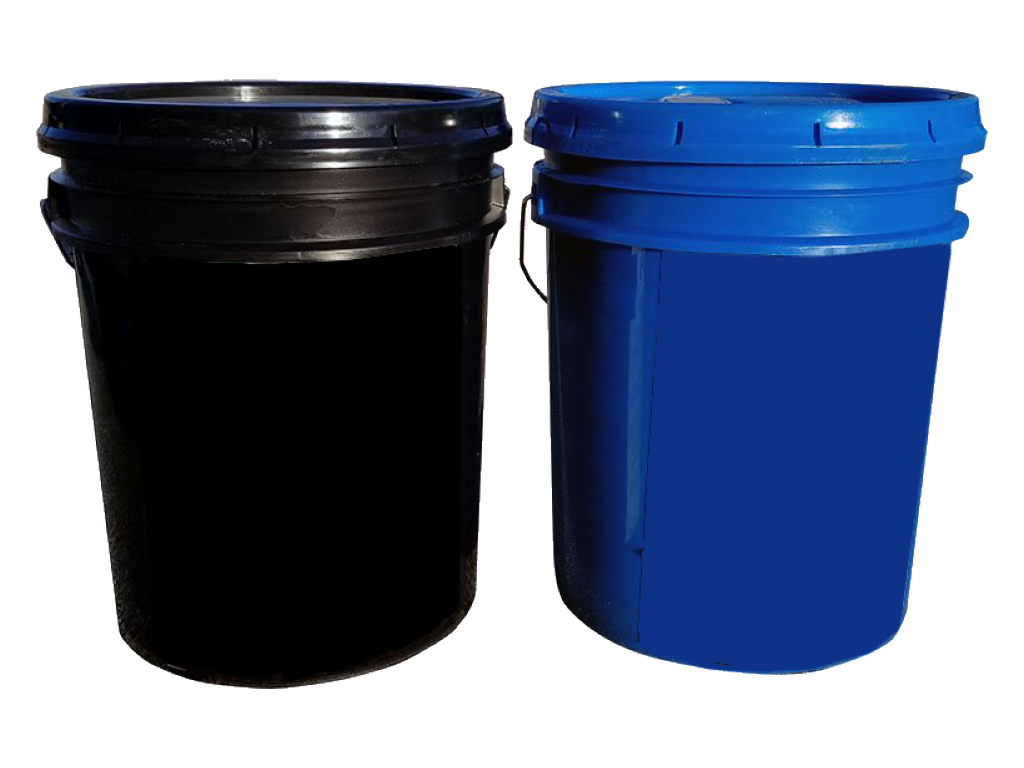

A two-component composition of polyol and isocyanate is used as a link between the insulation and the metal of the lining of building sandwich panels.

A two-component composition of polyol and isocyanate is used as a link between the insulation and the metal of the lining of building sandwich panels.

Technical description
Size Table
Construction
Standard Construction
Specifications
Packaging
Parameters
Value
Примечание:
Width, mm
1 000, 1 160, 1 190
Length, mm
from 1 500 to 13 500 (on request up to 16 000)
Thickness, mm
60, 80, 100, 120, 150, 180, 200, 250
Примечание:
Width, mm
1 000, 1 190
Length, mm
from 1,500 to 13,000 (on request up to 16,000)
Thickness, mm
60, 80, 100, 120, 150, 170, 200, 250

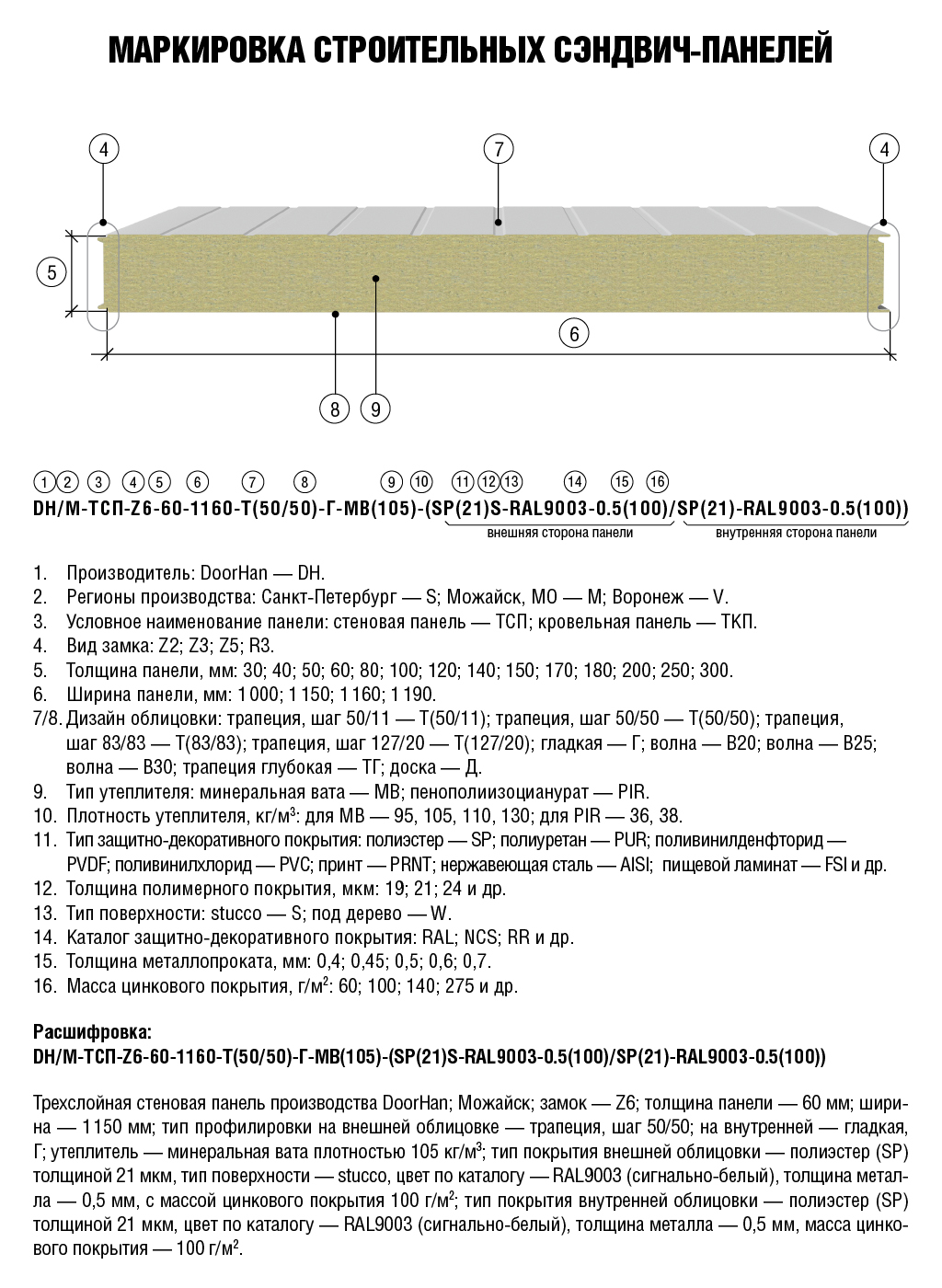

<b>Explanation of the name of sandwich panels</b>

Explanation of the name of sandwich panels

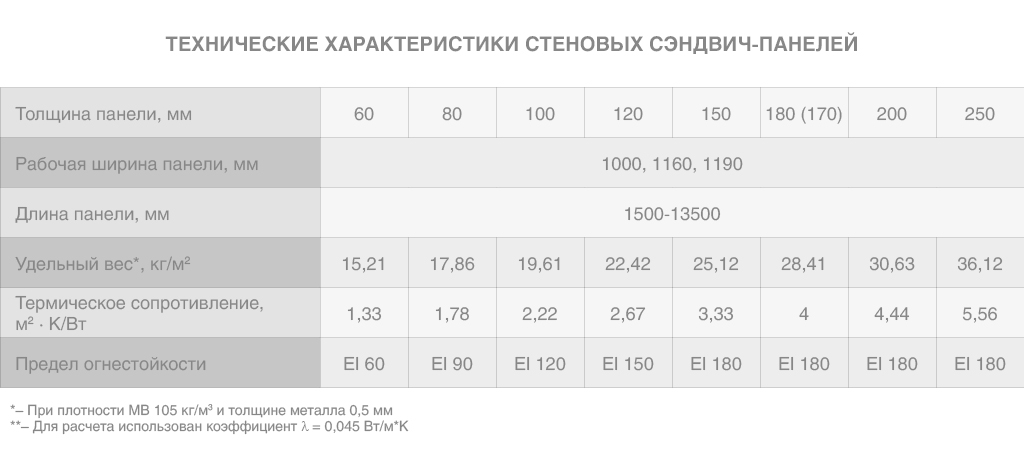

<b>Technical characteristics of sandwich panels</b>

Technical characteristics of sandwich panels

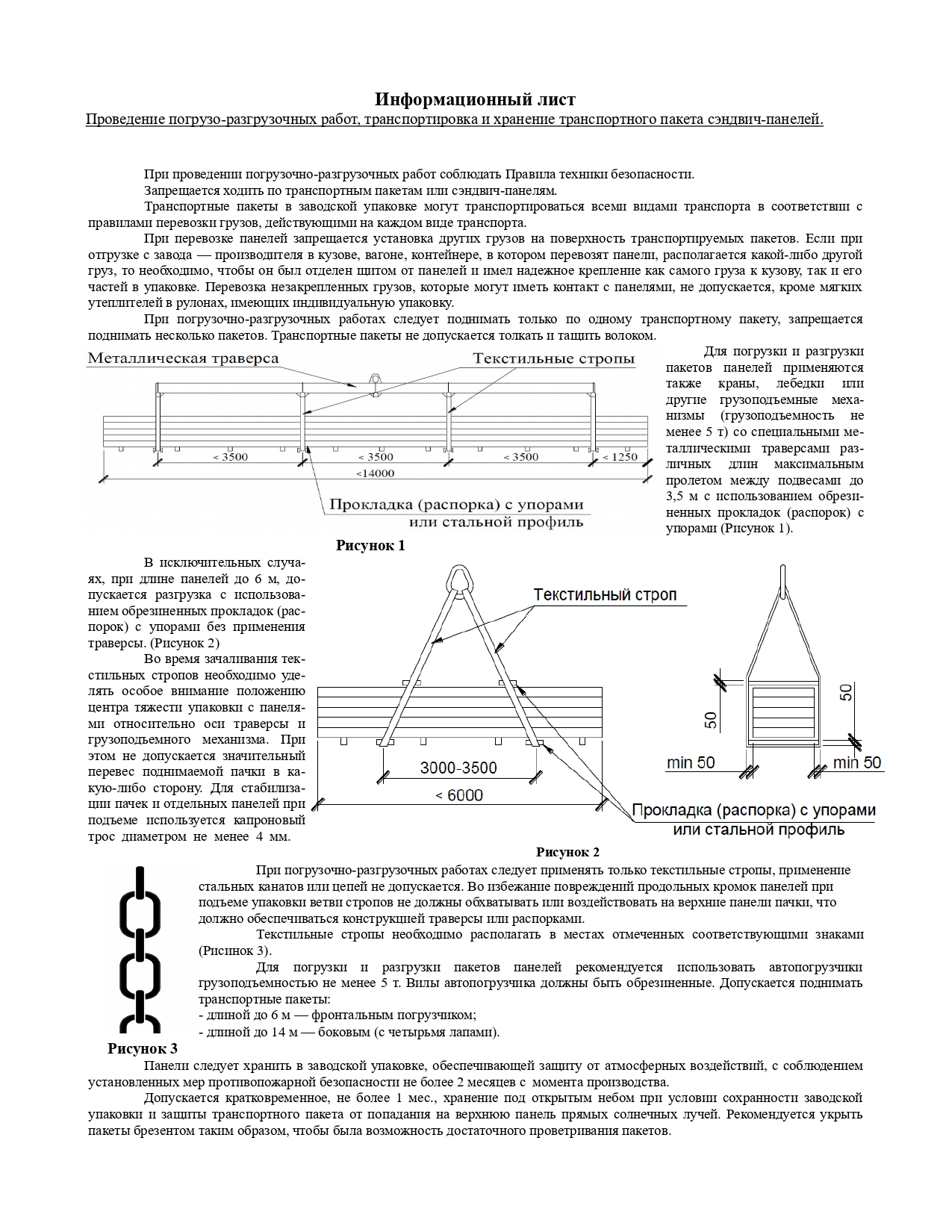

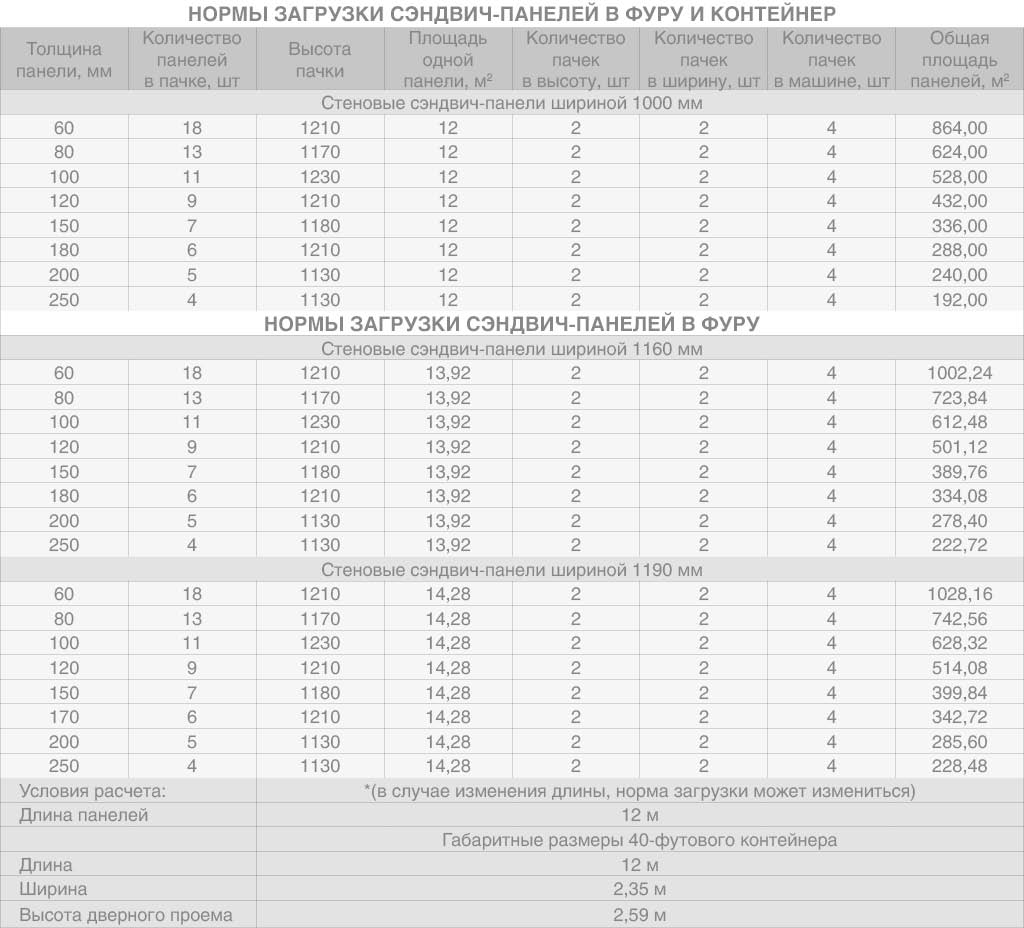

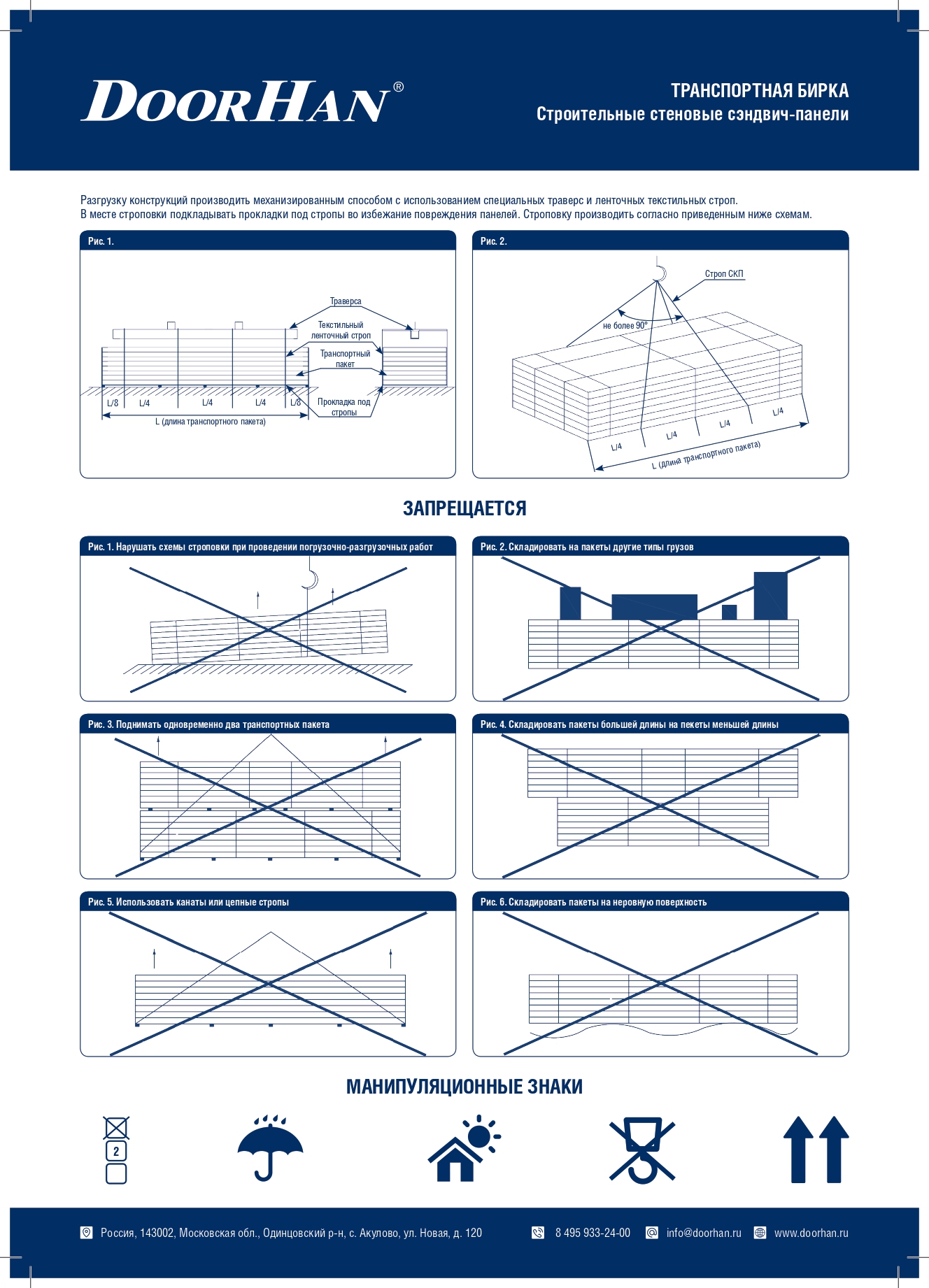

<b>Loading regulations of sandwich panels into trucks and containers</b>

Loading regulations of sandwich panels into trucks and containers

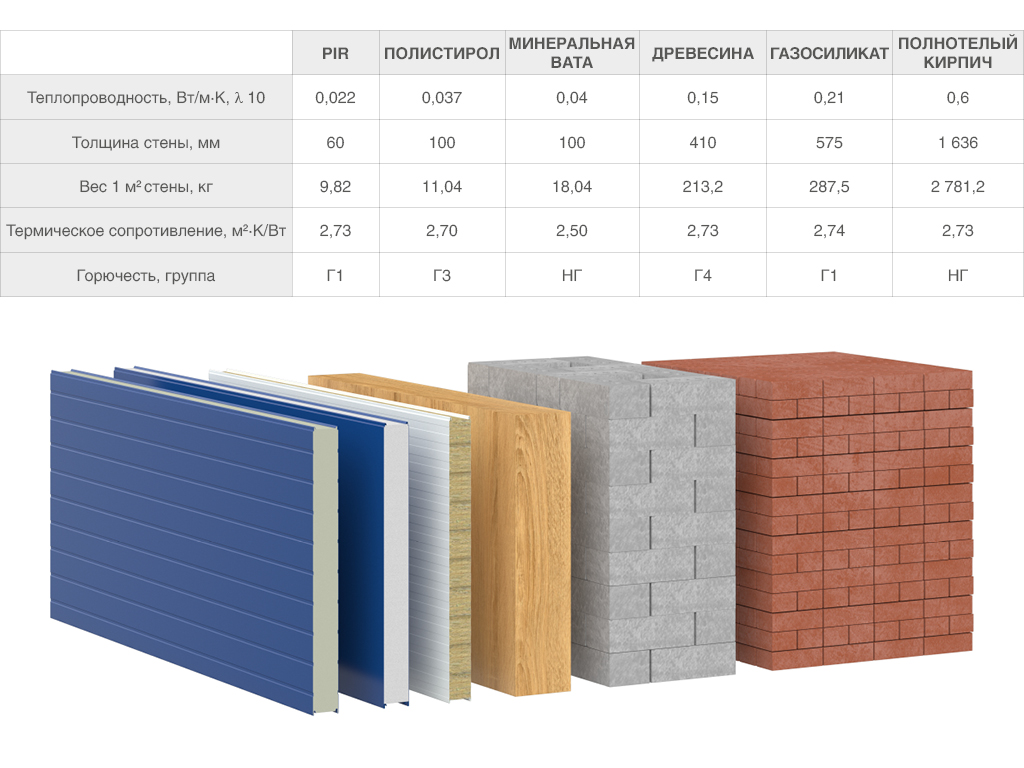

<b>Comparison of thermal characteristics of materials</b>

Comparison of thermal characteristics of materials

Parameter Value Notes
Масса цинкового покрытия, г/м² 100 60–275 g/m² on request
Толщина металла облицовок панели, мм 0,5 0.45-0.7 mm - on request
Плотность минеральной ваты, кг/м³ 105 95 kg/m³; 110 kg/m³, 130 kg/m³ on request
Коэффициент теплопроводности, Вт/(м·К) 0,042-0,043
Packing in stretch film Packaging features
Contents Packing of sandwich panels is carried out in transport packages packed with stretch film with foam sheets. See packing instructions
Description Transportation of transport packages with sandwich panels is carried out by road, rail or water transport. See packaging instructions for loading examples.
Installation
Mounting Options
Общие требования по монтажу сэндвич-панелей
1. The gripping of the panel is carried out in such a way that the panel is in balance. The mounted panel should be lifted smoothly, without damages, rocking and rotation, using braces attached to the ends of the panel, while it is necessary to fasten a safety belt around the panel before lifting it.
2. Installation work using various devices must be carried out in compliance with current safety standards and regulations.
3. Slinging of the mounted panels should be carried out in the places specified in the project for the production of works and ensure their lifting and supply to the installation site in a position close to the design one.
4. The panels should be lifted in two stages: first, lift the panel to a height of no more than 20-30 cm from the level of the site on which the fixtures were installed, and after checking the reliability of the slinging, to the design mark. Immediately before installing the panel in the design position, it is necessary to remove the safety straps and mount the panel held by the fixtures.
5. To prevent accidental fall of the panel during lifting, it is necessary to install safety straps around the panel. For this, it is recommended to use textile slings of the appropriate length and load capacity, equipped with mounting carabiners.
6. When moving, tilting, feeding panels for installation, it is necessary to exclude significant deflections and deformations of the locks, which leads to loose adjoining of the panels to each other.
7. During cutting of panels, hand-held electric circular saws or jigsaws with a fine tooth profile are used. Do not use angle grinders to cut panels. In the case of a small amount of cutting, a hand saw can be used, proceeding as follows: both surfaces of the metal sheathing are sawn separately, and the mineral wool remaining in the gap is cut with a knife or saw.
Documentation
Manuals
Technical Data and Certificates
Drawings

Packing instructions for sandwich panels

Installation instructions for wall sandwich panels

Certificate of conformity

Fire certificate

SEZ certificate

Seismic resistance certificate

Conclusion of NIISF RAASN on the terms of effective operation of sandwich panels

Complete set catalog for sandwich panels

Sandwich panel lock

Sandwich panel lock

Warranty print

2. The durability of sandwich panels depends primarily on the corrosiveness of the environment in which they are operated. In this regard, the durability of sandwich panels with standard surface finishes, operated in a normal industrial environment, is 10 years.

Design
The profile and lock of sandwich panels
Smooth (G)
Smooth (G)
Trapeze (50/50)
Trapeze (50/50)
Wave (B20)
Wave (B20)
Z-lock (Z6)
Z-lock (Z6)
The profile and lock of sandwich panels
Smooth (G)
Smooth (G)
Trapeze (127/12)
Trapeze (127/12)
Wave (B30)
Wave (B30)
Z-lock (Z4)
Z-lock (Z4)
Coating type
Polyester, PURAL, PVDF, Printech
Polyester, PURAL, PVDF, Printech
Equipment
Standard
Cold-rolled hot-dipped galvanized sheet steel is used as a raw material for the manufacture of sandwich panels. For the production of building sandwich panels, steel with a thickness of 0.45–0.7 mm is used with various types of polymer coatings.

Cold-rolled hot-dipped galvanized sheet steel is used as a raw material for the manufacture of sandwich panels. For the production of building sandwich panels, steel with a thickness of 0.45–0.7 mm is used with various types of polymer coatings.

Mineral wool slabs of our own production, made on the basis of rocks of the basalt group, are used as a heater for three-layer sandwich panels.

Mineral wool slabs of our own production, made on the basis of rocks of the basalt group, are used as a heater for three-layer sandwich panels.

A two-component composition of polyol and isocyanate is used as a link between the insulation and the metal of the lining of building sandwich panels.

A two-component composition of polyol and isocyanate is used as a link between the insulation and the metal of the lining of building sandwich panels.

Technical description
Size Table
Parameters
Value
Примечание:
Width, mm
1 000, 1 160, 1 190
Length, mm
from 1 500 to 13 500 (on request up to 16 000)
Thickness, mm
60, 80, 100, 120, 150, 180, 200, 250
Примечание:
Width, mm
1 000, 1 190
Length, mm
from 1,500 to 13,000 (on request up to 16,000)
Thickness, mm
60, 80, 100, 120, 150, 170, 200, 250
Construction
Standard Construction

<b>Explanation of the name of sandwich panels</b>

Explanation of the name of sandwich panels

<b>Technical characteristics of sandwich panels</b>

Technical characteristics of sandwich panels

<b>Loading regulations of sandwich panels into trucks and containers</b>

Loading regulations of sandwich panels into trucks and containers

<b>Comparison of thermal characteristics of materials</b>

Comparison of thermal characteristics of materials

Specifications
Parameter Value Notes
Масса цинкового покрытия, г/м² 100 60–275 g/m² on request
Толщина металла облицовок панели, мм 0,5 0.45-0.7 mm - on request
Плотность минеральной ваты, кг/м³ 105 95 kg/m³; 110 kg/m³, 130 kg/m³ on request
Коэффициент теплопроводности, Вт/(м·К) 0,042-0,043
Packaging
Packing in stretch film Packaging features
Contents Packing of sandwich panels is carried out in transport packages packed with stretch film with foam sheets. See packing instructions
Description Transportation of transport packages with sandwich panels is carried out by road, rail or water transport. See packaging instructions for loading examples.
Installation
Mounting Options
Общие требования по монтажу сэндвич-панелей
1. The gripping of the panel is carried out in such a way that the panel is in balance. The mounted panel should be lifted smoothly, without damages, rocking and rotation, using braces attached to the ends of the panel, while it is necessary to fasten a safety belt around the panel before lifting it.
2. Installation work using various devices must be carried out in compliance with current safety standards and regulations.
3. Slinging of the mounted panels should be carried out in the places specified in the project for the production of works and ensure their lifting and supply to the installation site in a position close to the design one.
4. The panels should be lifted in two stages: first, lift the panel to a height of no more than 20-30 cm from the level of the site on which the fixtures were installed, and after checking the reliability of the slinging, to the design mark. Immediately before installing the panel in the design position, it is necessary to remove the safety straps and mount the panel held by the fixtures.
5. To prevent accidental fall of the panel during lifting, it is necessary to install safety straps around the panel. For this, it is recommended to use textile slings of the appropriate length and load capacity, equipped with mounting carabiners.
6. When moving, tilting, feeding panels for installation, it is necessary to exclude significant deflections and deformations of the locks, which leads to loose adjoining of the panels to each other.
7. During cutting of panels, hand-held electric circular saws or jigsaws with a fine tooth profile are used. Do not use angle grinders to cut panels. In the case of a small amount of cutting, a hand saw can be used, proceeding as follows: both surfaces of the metal sheathing are sawn separately, and the mineral wool remaining in the gap is cut with a knife or saw.
Warranty

2. The durability of sandwich panels depends primarily on the corrosiveness of the environment in which they are operated. In this regard, the durability of sandwich panels with standard surface finishes, operated in a normal industrial environment, is 10 years.

Documentation
Manuals

Packing instructions for sandwich panels

Installation instructions for wall sandwich panels

Technical Data and Certificates

Certificate of conformity

Fire certificate

SEZ certificate

Seismic resistance certificate

Conclusion of NIISF RAASN on the terms of effective operation of sandwich panels

Drawings

Complete set catalog for sandwich panels

Sandwich panel lock

Sandwich panel lock
