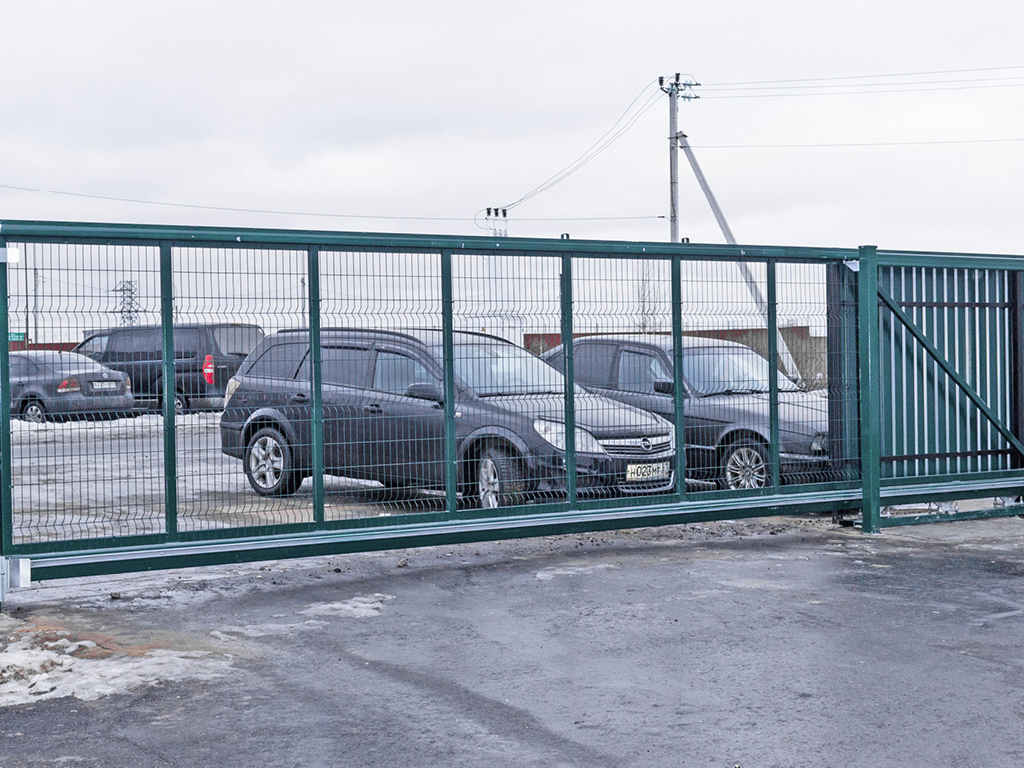

Откатные ворота со стальной рамой и с заполнением сварной сеткой

Sliding doors filled with welded mesh provide convenient access to the fenced area without disturbing the view. Suitable for both country houses and industrial facilities. The web is made from the same metal sections as the railing systems.
Application:
  • Entry to the territory of objects of any purpose; indispensable in cases where there is not enough space to install sliding doors.
  • The use of doors at the entrances to industrial parks and enterprises.
  • Delimitation of zones within the enterprise, with the possibility of delivering bulky cargo and material.
Advantages
Unified style with fence sections of fencing systems
All products are powder coated
Unified style with fence sections of fencing systems
All products are powder coated
Equipment
Standard
Optional

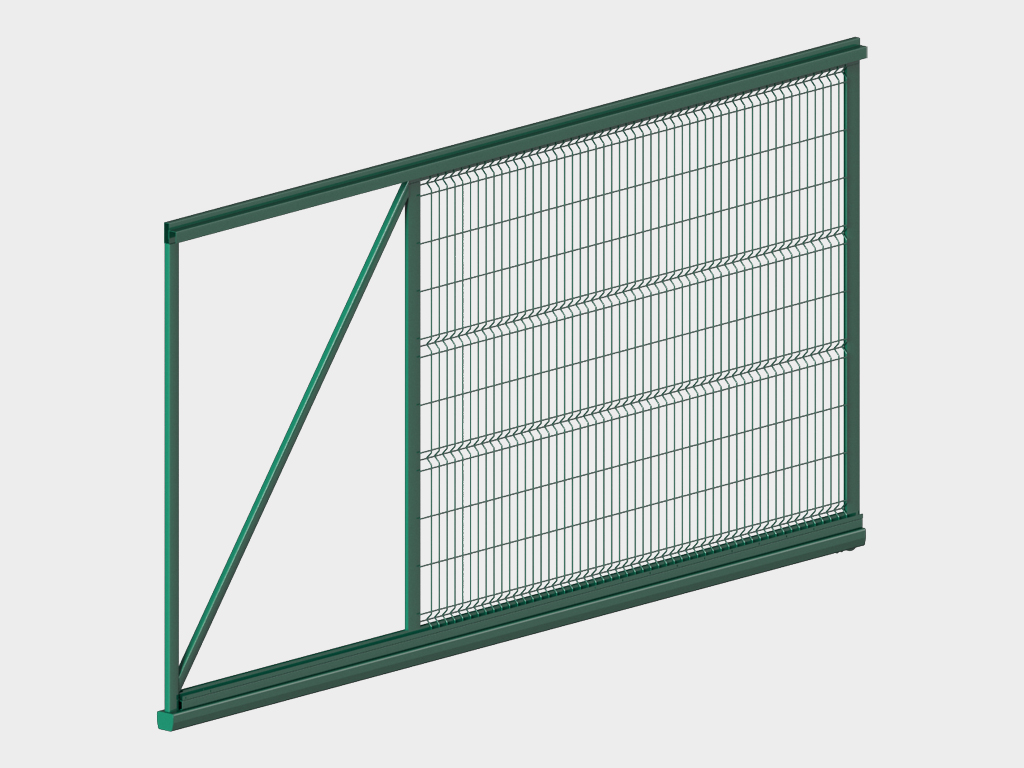

Door shield

Door shield

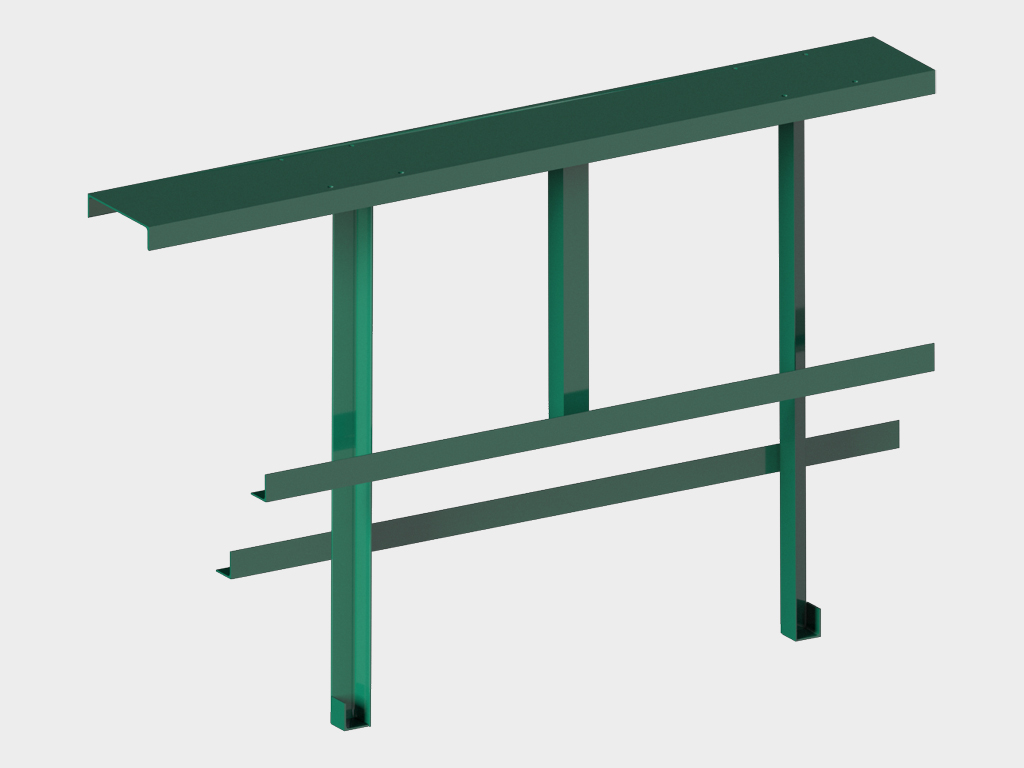

Concrete frame

Concrete frame

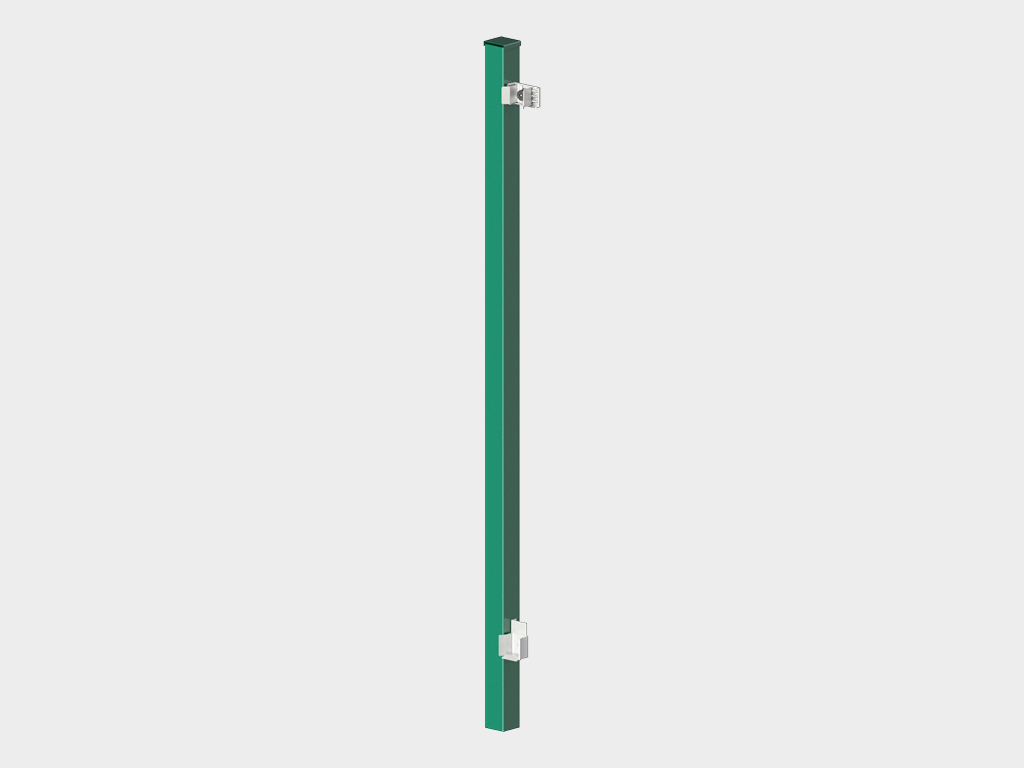

Pole

Pole

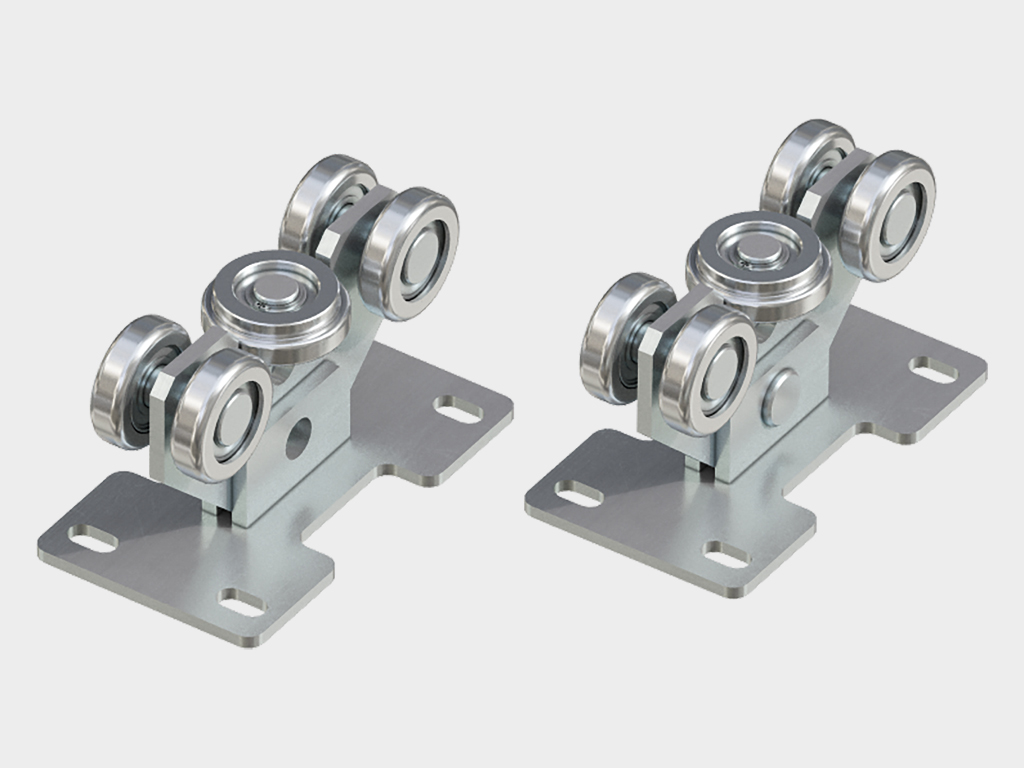

Roller bearings

Roller bearings

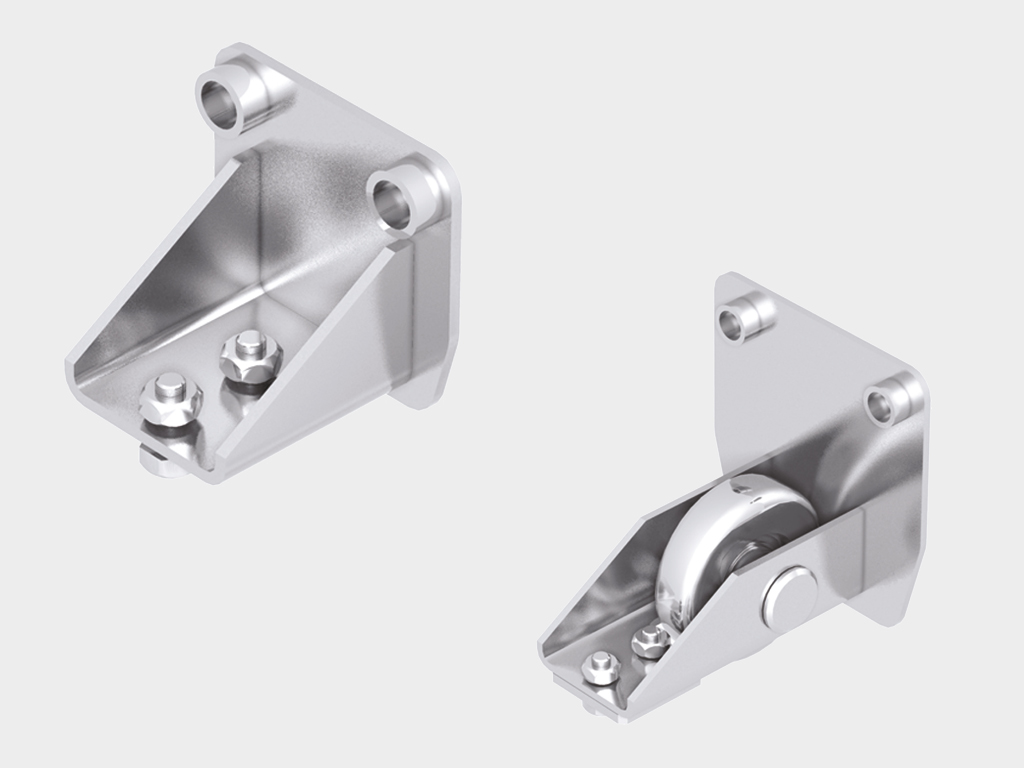

Beam covers

Beam covers

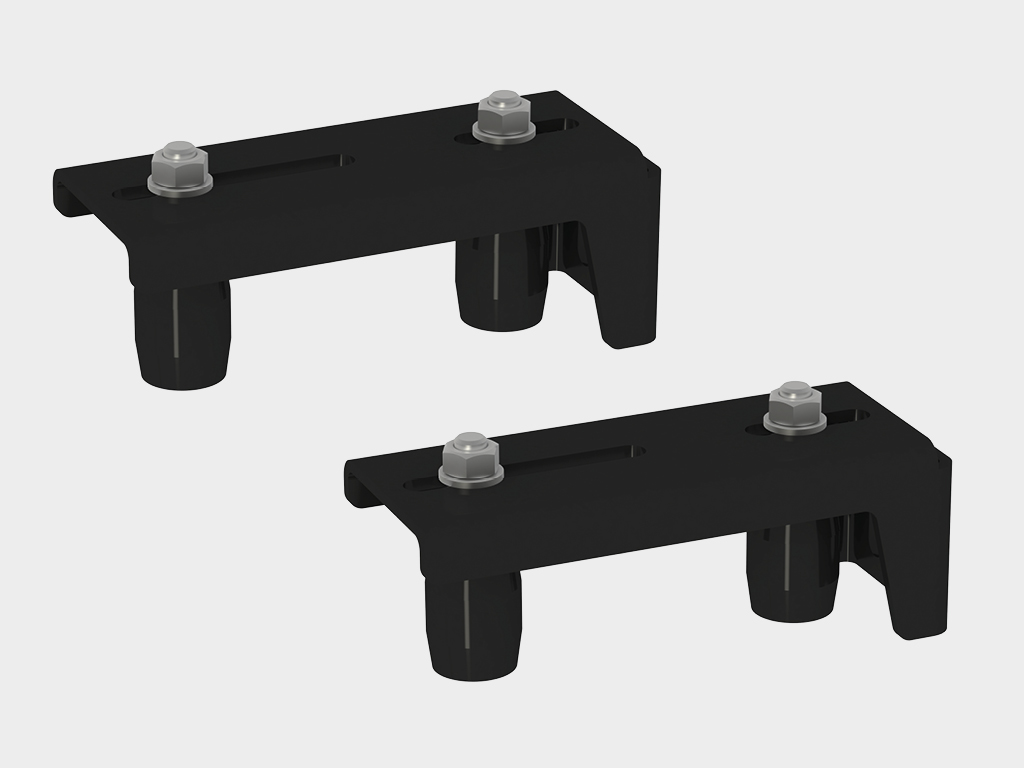

Guiding devices

Guiding devices

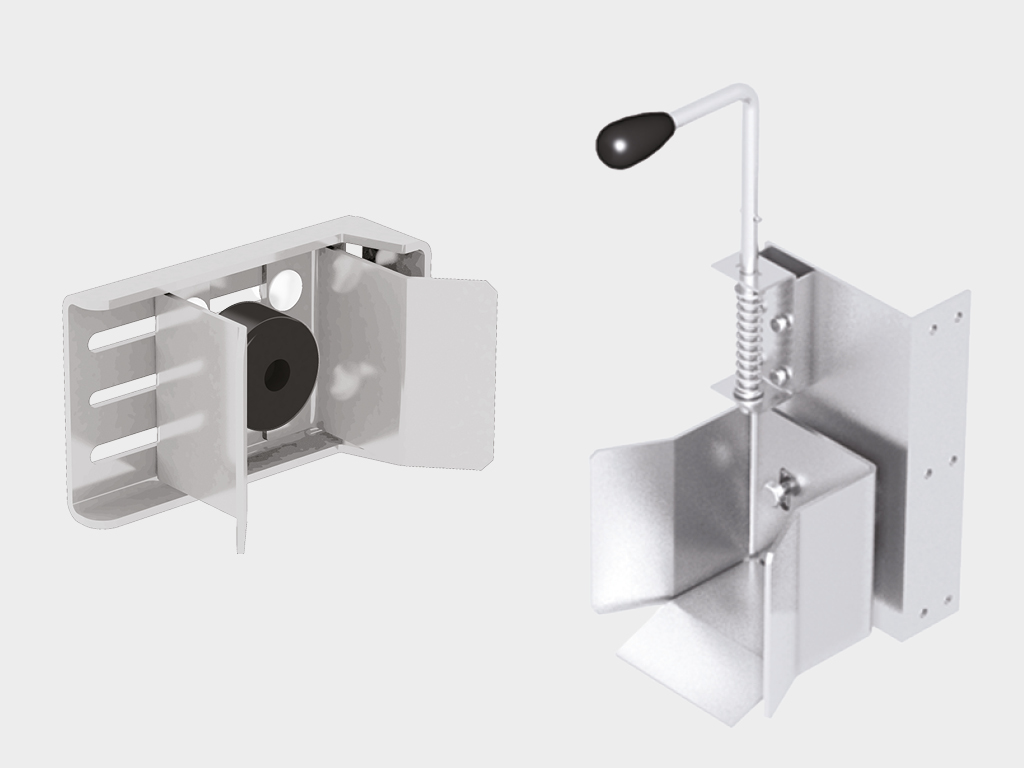

Set of catchers

Set of catchers

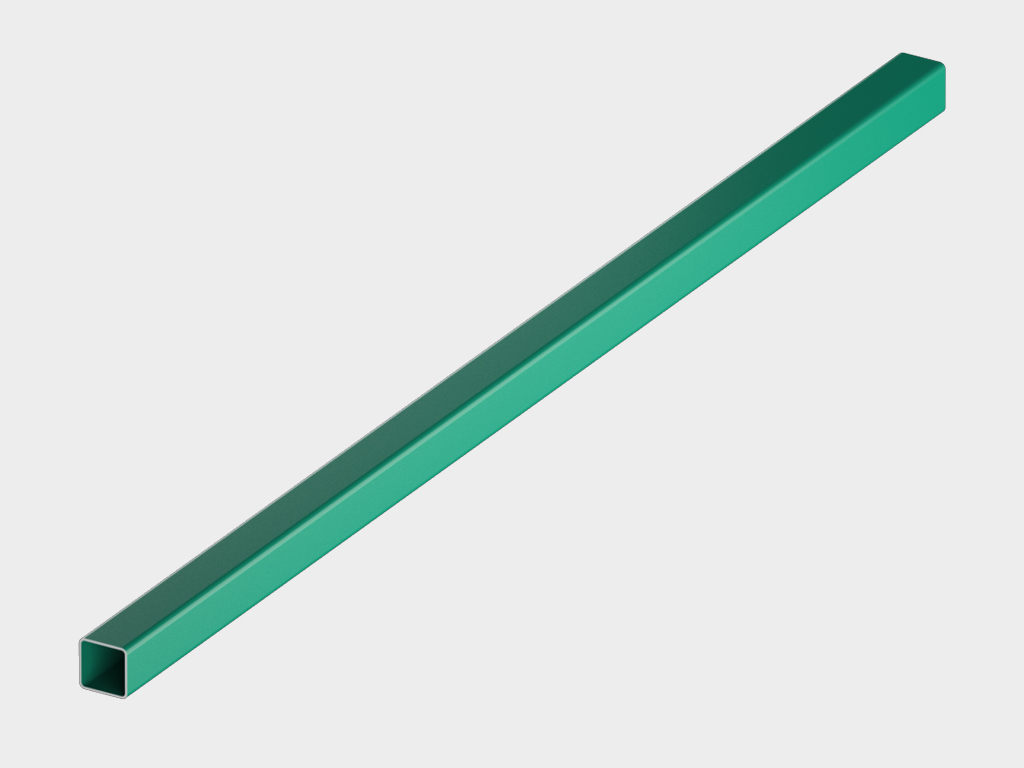

Pole for additional support (for openings more than 6 000 mm in width)

Pole for additional support (for openings more than 6 000 mm in width)

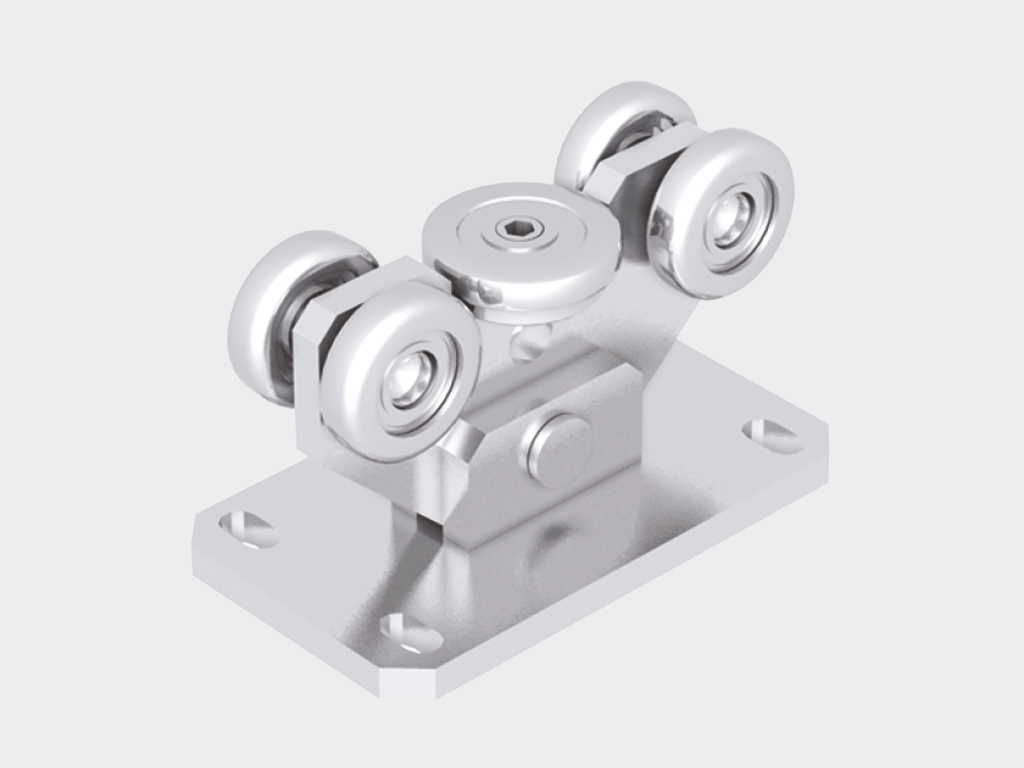

Additional roller support (for openings more than 6 000 mm in width)

Additional roller support (for openings more than 6 000 mm in width)

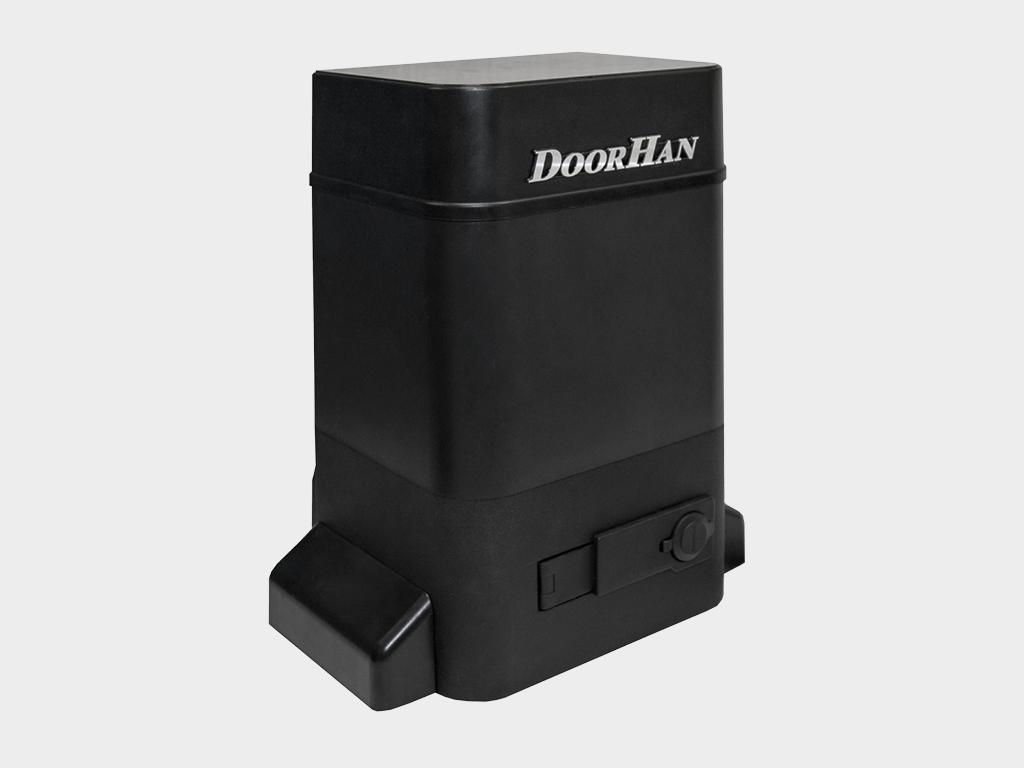

Drive SLIDING-1300PRO

Drive SLIDING-1300PRO

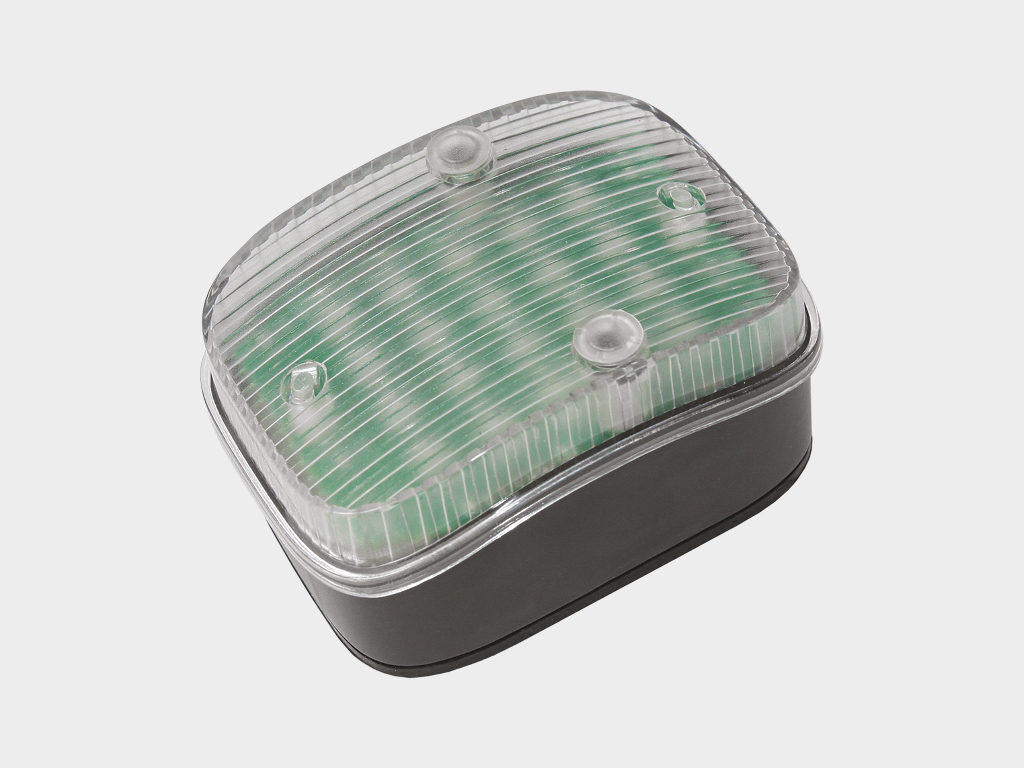

Lamp LAMP-LED

Lamp LAMP-LED

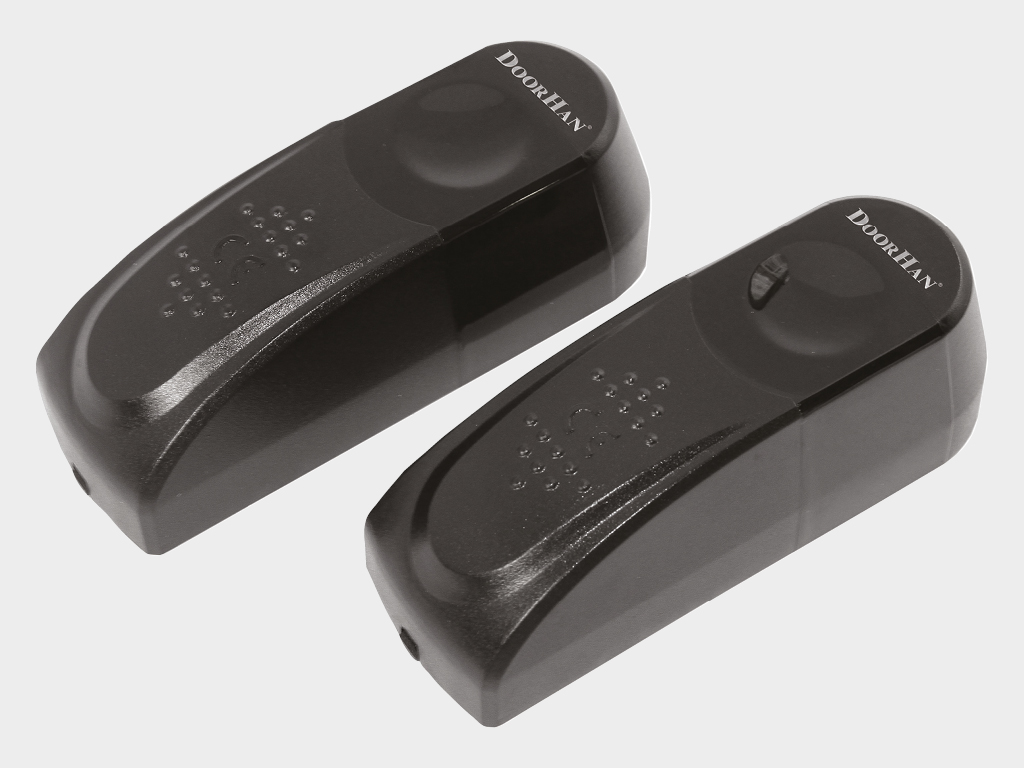

Photocells PHOTOCELL-W

Photocells PHOTOCELL-W

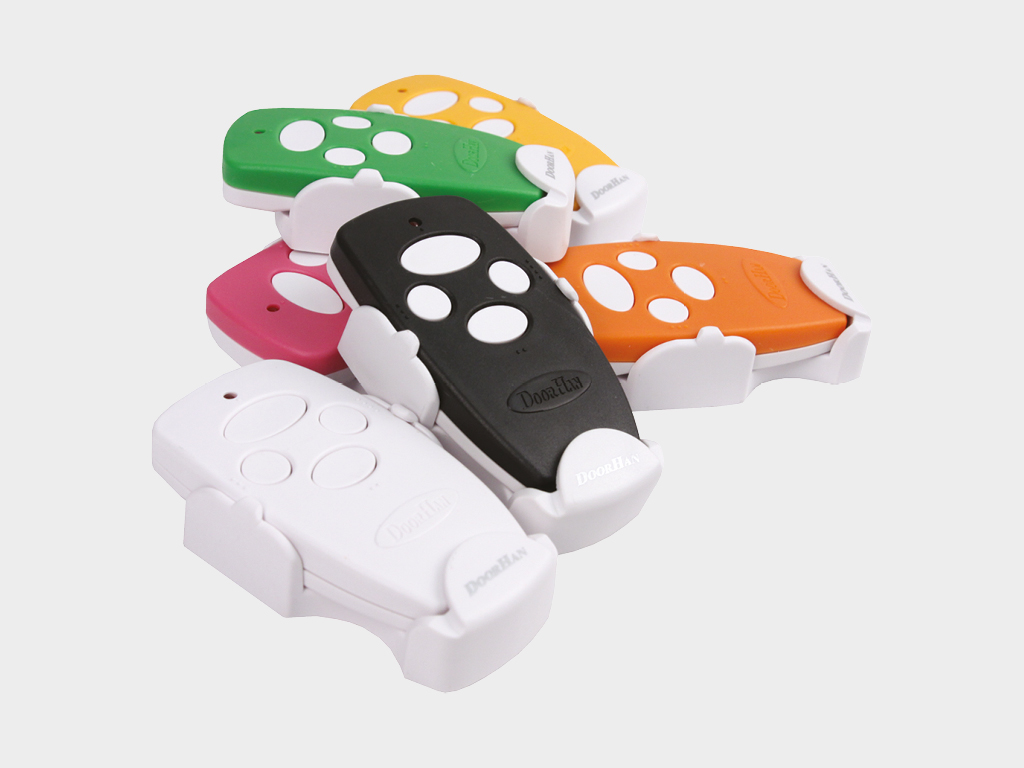

Remote controller Transmitter 4

Remote controller Transmitter 4

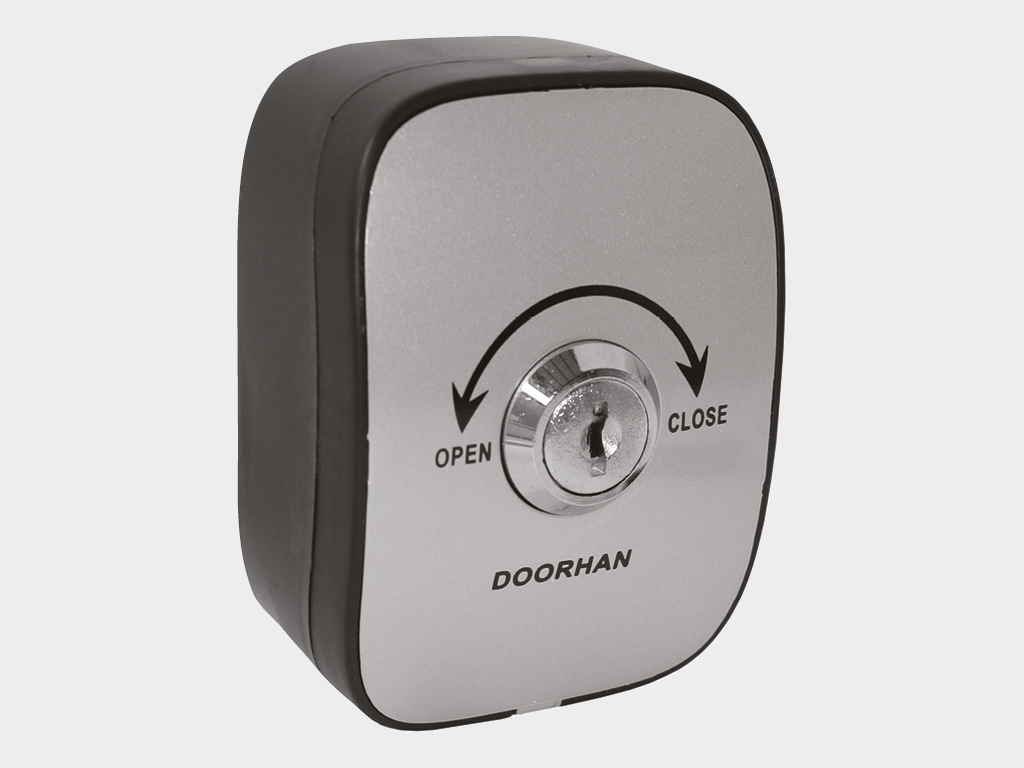

Key-button

Key-button

Technical description

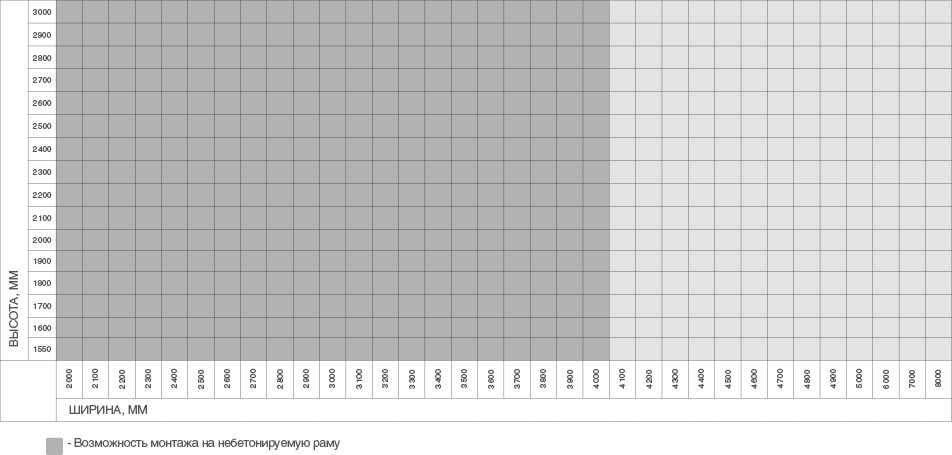

Size Table
Opening Dimensions
Construction
Standard Construction
Specifications
Operating Conditions
Packaging
Parameters
Value
Opening height, mm
From 1,000 to 3,000
Opening width, mm
From 2,000 to 6,000
Clearance, mm
From 94 to 140
  1. Door shield
  2. Guide rollers
  3. Power frame
  4. Pole
  5. Drive

T-profile steel frame swing doors are manufactured in the most popular size using 100×100mm posts. Suitable for both country houses and industrial facilities.

T-profile steel frame swing doors are manufactured in the most popular size using 100×100mm posts. Suitable for both country houses and industrial facilities.

Parameter Value Notes
Powder coating thickness not less than, microns 120
Surface density of zinc, not less than, g/m² 80
Diameter of horizontal rod, mm More than 4
Diameter of vertical rod, mm More than 4
Impact resistance, J Е = 10 joules; h = 1 m; m = 1 kg
Сопротивление ветровой нагрузке, Па 700
Number of cycles 20 000
Force of manual opening and closing, N 150

1. Proper installation and correct operation of the fence system guarantees reliability and durability of the work. During operation it is necessary:

1.1. Carry out an external inspection of the product every 6 months after the installation of the system.

1.2. During visual inspection, make sure that the welded sections are fixed to the supporting column, that there are no places with weak connections, and that there are no external mechanical damages.

1.3. If there are mortise structures (doors) in the fences, check the connections with them and their operability.

1.4. Door leaves should open and close the door smoothly, without jamming and creaking, and securely fixed with a locking device. If necessary, adjust the position using the adjusting elements, lubricate the hinges, handles and locking device.

1.5. Do not allow precipitation (water, snow, hail) to enter the column. To do this, make sure that all poles are closed with special plugs.

1.6. Operation of fences is allowed at an ambient temperature of -50 to +60 °C and a relative humidity of 75%.

2. During the operation of the fence, it is prohibited:

2.1. To hit the fence

2.2. To use substances that can cause damage to surfaces of the fence while cleaning it.

2.3. Installation of equipment not provided by the manufacturer, which changes the weight, wind and other loads of the structural elements of the fence. Any interference with the manufacturer's standard can lead to a loss of strength characteristics of the structure.

3. For the installation of security and video surveillance systems, it is necessary to use a structure which is specially designed for this purpose. Check with the manufacturer for the possibility of installing other equipment.

4. Security measures:

4.1. Installation of fences must be carried out by peole who have fully studied the installation instructions.

4.2. Use only correct tools.

4.3. When installing the sections of the fence before fixing them, be especially careful and protect the elements of the sections from falling.

4.4. When performing lifting of people to a height of more than 1.5 m, it is necessary to use a safety mounting belt. This condition must be checked before the start of work.

5. During installation, it is prohibited:

5.1. Use an attached or sliding ladder.

5.2. Use a ladder with a height of more than 2.5 m.

Packing in cardboard Packaging features
Description Shield and pole packaging
Contents Five-layer cardboard, stretch film, adhesive tape with logo
Packing in bubble wrap Packaging features
Description standard packing of poles
Packing in wood Packaging features
Description Shield and pole packaging
Contents Lathing from the board, cardboard sheet along the edges
Packing in cardboard box Packaging features
Description The package is a standard size box.
Contents 3-layer cardboard box, stretch film, adhesive tape with logo
Width, mm 450
Height, mm 300
Length, mm 550
Packing in stretch film Packaging features
Description Door shield packaging
Installation
Mounting Options
Checking Dimensional Details

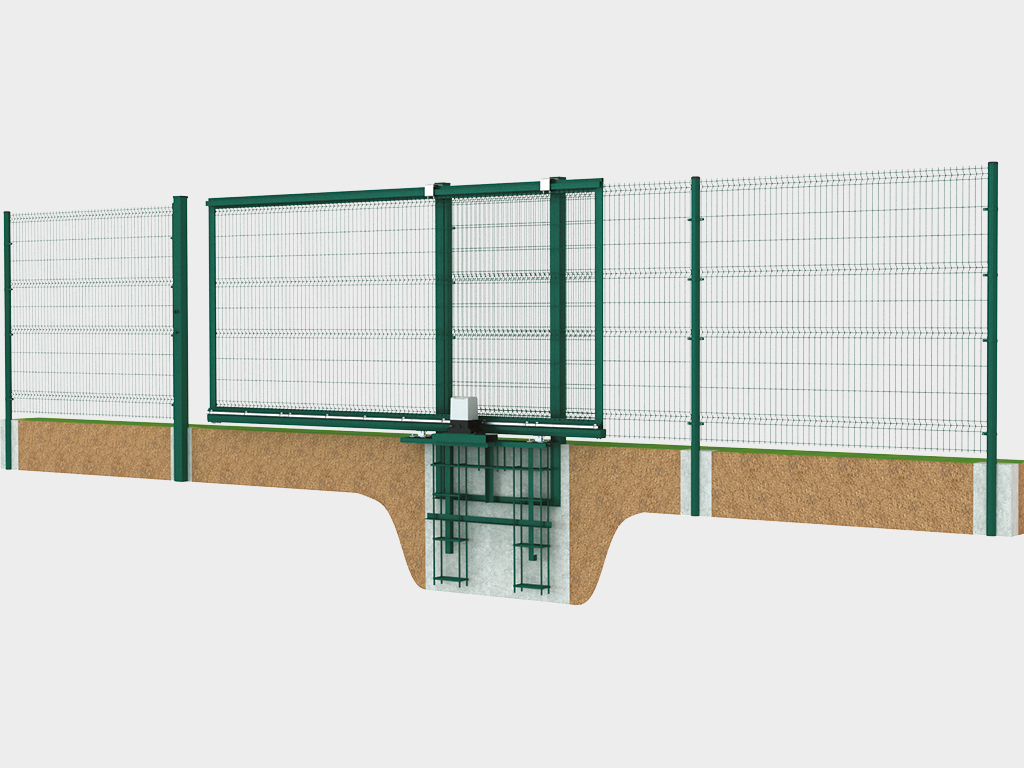

Installation with concrete frame
Installation with concrete frame

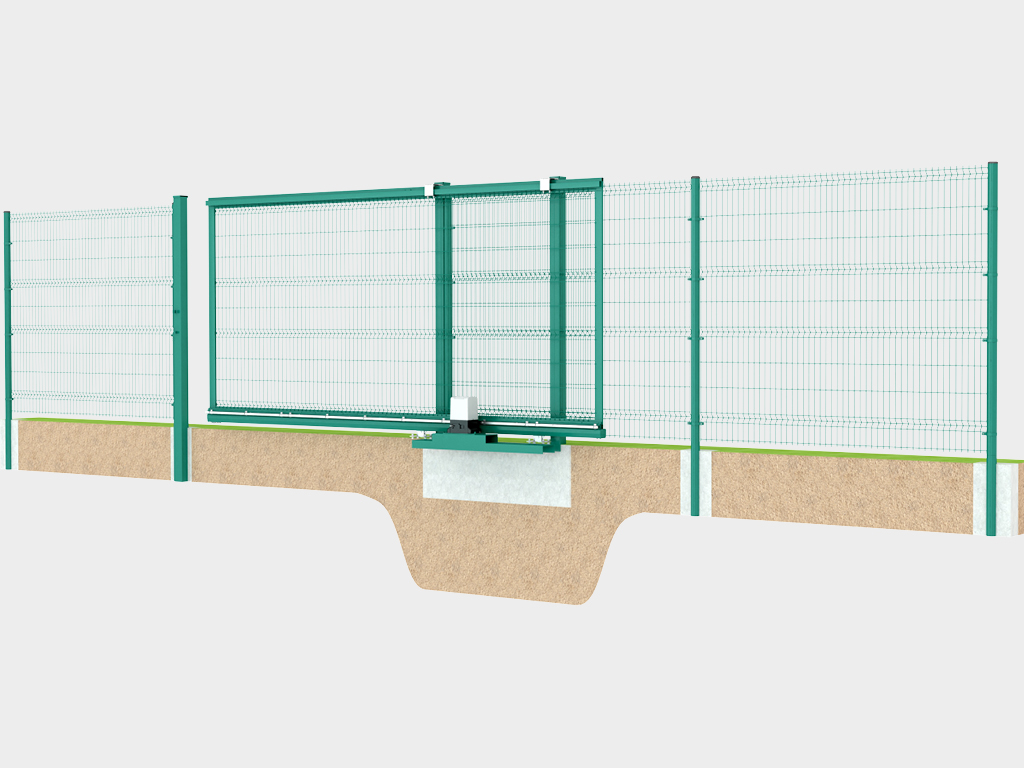

Installation with a frame  (is possible for the opening up to 4000mm in width)
Installation with a frame (is possible for the opening up to 4000mm in width)

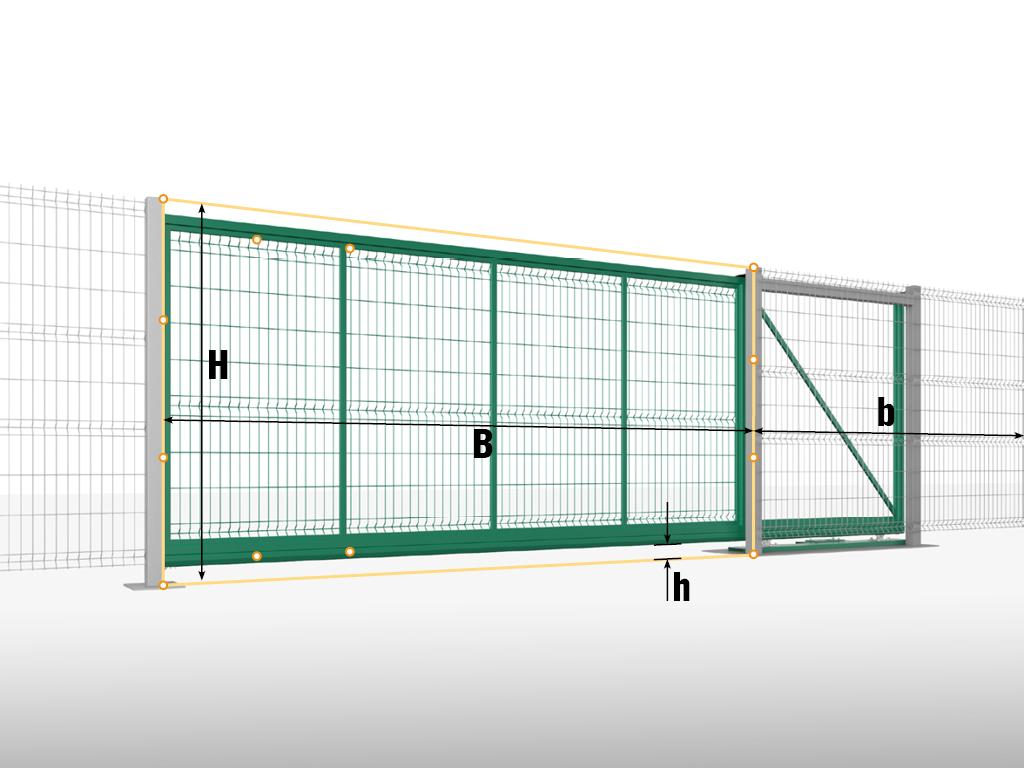

  1. H (mm)- the height of the structure.
  2. B (mm) - width of the structure.
  3. h (mm) - clearance.
Documentation
Manuals
Technical Data and Certificates
Drawings

Installation instruction for sliding doors on the example of street doors with sandwich panel infill

Certificate of Conformity

Sliding door passport for fencing systems

Sliding doors for fencing systems

Installation of sliding doors for fencing systems

Warranty print

The buyer is provided with a guarantee of the functionality of doors manufactured by the DoorHan concern for a period of 1 year for retail orders and for a period of 2 years for dealer orders from the date of purchase.

Equipment
Standard
Door shield

Door shield

Concrete frame

Concrete frame

Pole

Pole

Roller bearings

Roller bearings

Beam covers

Beam covers

Guiding devices

Guiding devices

Set of catchers

Set of catchers

Pole for additional support (for openings more than 6 000 mm in width)

Pole for additional support (for openings more than 6 000 mm in width)

Additional roller support (for openings more than 6 000 mm in width)

Additional roller support (for openings more than 6 000 mm in width)

Optional
Drive SLIDING-1300PRO

Drive SLIDING-1300PRO

Lamp LAMP-LED

Lamp LAMP-LED

Photocells PHOTOCELL-W

Photocells PHOTOCELL-W

Remote controller Transmitter 4

Remote controller Transmitter 4

Key-button

Key-button

Technical description
Size Table
Parameters
Value
Opening height, mm
From 1,000 to 3,000
Opening width, mm
From 2,000 to 6,000
Clearance, mm
From 94 to 140
Construction
  1. Door shield
  2. Guide rollers
  3. Power frame
  4. Pole
  5. Drive
Standard Construction

T-profile steel frame swing doors are manufactured in the most popular size using 100×100mm posts. Suitable for both country houses and industrial facilities.

T-profile steel frame swing doors are manufactured in the most popular size using 100×100mm posts. Suitable for both country houses and industrial facilities.

Specifications
Parameter Value Notes
Powder coating thickness not less than, microns 120
Surface density of zinc, not less than, g/m² 80
Diameter of horizontal rod, mm More than 4
Diameter of vertical rod, mm More than 4
Impact resistance, J Е = 10 joules; h = 1 m; m = 1 kg
Сопротивление ветровой нагрузке, Па 700
Number of cycles 20 000
Force of manual opening and closing, N 150
Operating Conditions

1. Proper installation and correct operation of the fence system guarantees reliability and durability of the work. During operation it is necessary:

1.1. Carry out an external inspection of the product every 6 months after the installation of the system.

1.2. During visual inspection, make sure that the welded sections are fixed to the supporting column, that there are no places with weak connections, and that there are no external mechanical damages.

1.3. If there are mortise structures (doors) in the fences, check the connections with them and their operability.

1.4. Door leaves should open and close the door smoothly, without jamming and creaking, and securely fixed with a locking device. If necessary, adjust the position using the adjusting elements, lubricate the hinges, handles and locking device.

1.5. Do not allow precipitation (water, snow, hail) to enter the column. To do this, make sure that all poles are closed with special plugs.

1.6. Operation of fences is allowed at an ambient temperature of -50 to +60 °C and a relative humidity of 75%.

2. During the operation of the fence, it is prohibited:

2.1. To hit the fence

2.2. To use substances that can cause damage to surfaces of the fence while cleaning it.

2.3. Installation of equipment not provided by the manufacturer, which changes the weight, wind and other loads of the structural elements of the fence. Any interference with the manufacturer's standard can lead to a loss of strength characteristics of the structure.

3. For the installation of security and video surveillance systems, it is necessary to use a structure which is specially designed for this purpose. Check with the manufacturer for the possibility of installing other equipment.

4. Security measures:

4.1. Installation of fences must be carried out by peole who have fully studied the installation instructions.

4.2. Use only correct tools.

4.3. When installing the sections of the fence before fixing them, be especially careful and protect the elements of the sections from falling.

4.4. When performing lifting of people to a height of more than 1.5 m, it is necessary to use a safety mounting belt. This condition must be checked before the start of work.

5. During installation, it is prohibited:

5.1. Use an attached or sliding ladder.

5.2. Use a ladder with a height of more than 2.5 m.

Packaging
Packing in cardboard Packaging features
Description Shield and pole packaging
Contents Five-layer cardboard, stretch film, adhesive tape with logo
Packing in bubble wrap Packaging features
Description standard packing of poles
Packing in wood Packaging features
Description Shield and pole packaging
Contents Lathing from the board, cardboard sheet along the edges
Packing in cardboard box Packaging features
Description The package is a standard size box.
Contents 3-layer cardboard box, stretch film, adhesive tape with logo
Width, mm 450
Height, mm 300
Length, mm 550
Packing in stretch film Packaging features
Description Door shield packaging
Installation
Mounting Options
Installation with concrete frame
Installation with concrete frame
Installation with a frame  (is possible for the opening up to 4000mm in width)
Installation with a frame (is possible for the opening up to 4000mm in width)
Checking Dimensional Details
  1. H (mm)- the height of the structure.
  2. B (mm) - width of the structure.
  3. h (mm) - clearance.
Warranty

The buyer is provided with a guarantee of the functionality of doors manufactured by the DoorHan concern for a period of 1 year for retail orders and for a period of 2 years for dealer orders from the date of purchase.

Documentation
Manuals

Installation instruction for sliding doors on the example of street doors with sandwich panel infill

Technical Data and Certificates

Certificate of Conformity

Sliding door passport for fencing systems

Drawings

Sliding doors for fencing systems

Installation of sliding doors for fencing systems
