Заборные секции из сварной сетки серии «ОПТИМА ЛАЙТ»

Fence sections OPTIMA LIGHT have a reduced bar diameter and are used for fencing extended objects for various purposes, such as: country houses, suburban areas, temporary fences.
Application:
  • The OPTIMA LIGHT series is used for fencing public institutions, country houses, summer cottages and industrial facilities.
Advantages
Galvanization of the intake sections occurs after welding, which ensures high corrosion resistance
A complete range from one manufacturer: fences and doors in the same style
All structural elements are powder coated
Warehouse stocks in each regional representative office allows to complete and deliver the fencing system as quickly as possible
Installation of fencing systems allows you to protect the required territory in the shortest possible time without disturbing aesthetical view of the facility
Galvanization of the intake sections occurs after welding, which ensures high corrosion resistance
A complete range from one manufacturer: fences and doors in the same style
All structural elements are powder coated
Warehouse stocks in each regional representative office allows to complete and deliver the fencing system as quickly as possible
Installation of fencing systems allows you to protect the required territory in the shortest possible time without disturbing aesthetical view of the facility
Design
Custom colors
Non-standard color according to the RAL map (extra charge)
Non-standard color according to the RAL map (extra charge)
Equipment
Standard
Optional

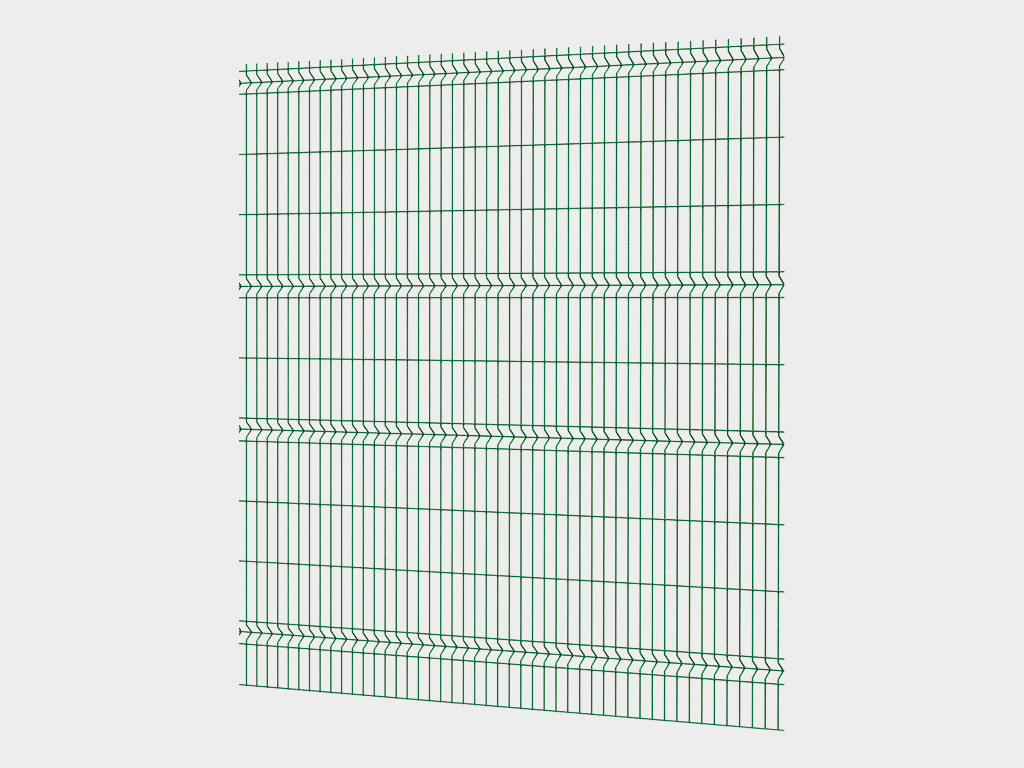

Fencing sections are made of metal bars by spot welding with subsequent processing, galvanizing and painting. To increase the strength of the panels are molded, while creating elements of spatial rigidity. The resulting structures have high strength with low weight. At the request of the customer, the fence systems can be painted in any color.

Fencing sections are made of metal bars by spot welding with subsequent processing, galvanizing and painting. To increase the strength of the panels are molded, while creating elements of spatial rigidity. The resulting structures have high strength with low weight. At the request of the customer, the fence systems can be painted in any color.

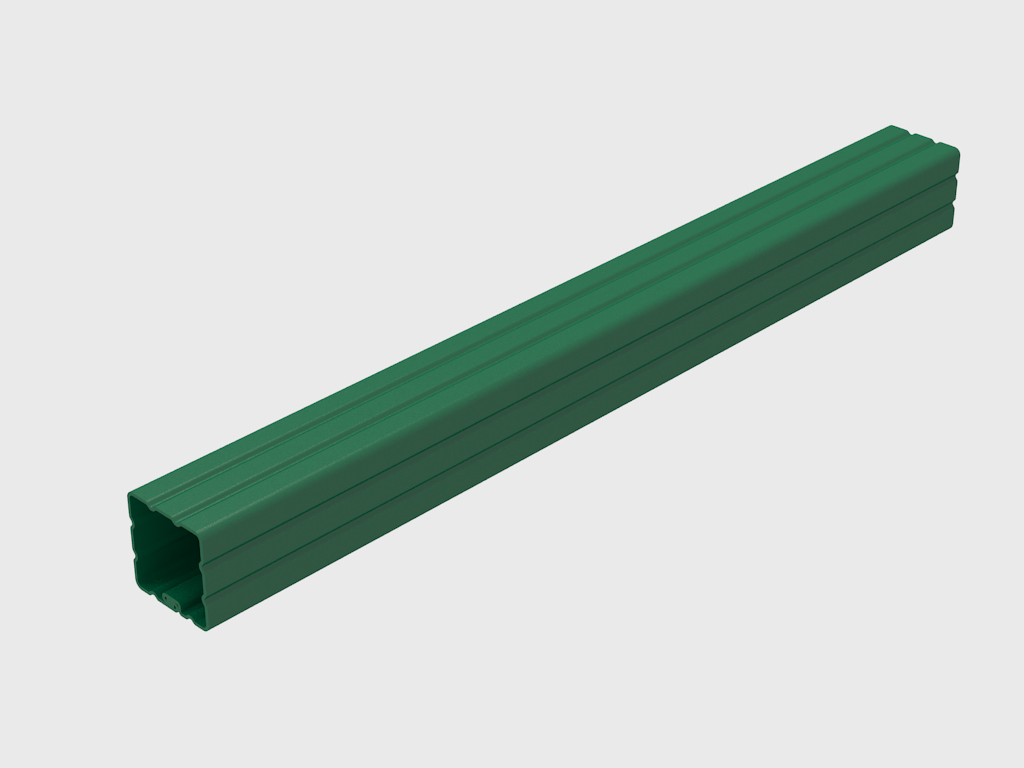

The supports are made from galvanized steel sheet on a rolling line by cold forming and further rolling at the moment of forming a closed profile. Painted in a powder coating booth with preliminary phosphating.

The supports are made from galvanized steel sheet on a rolling line by cold forming and further rolling at the moment of forming a closed profile. Painted in a powder coating booth with preliminary phosphating.

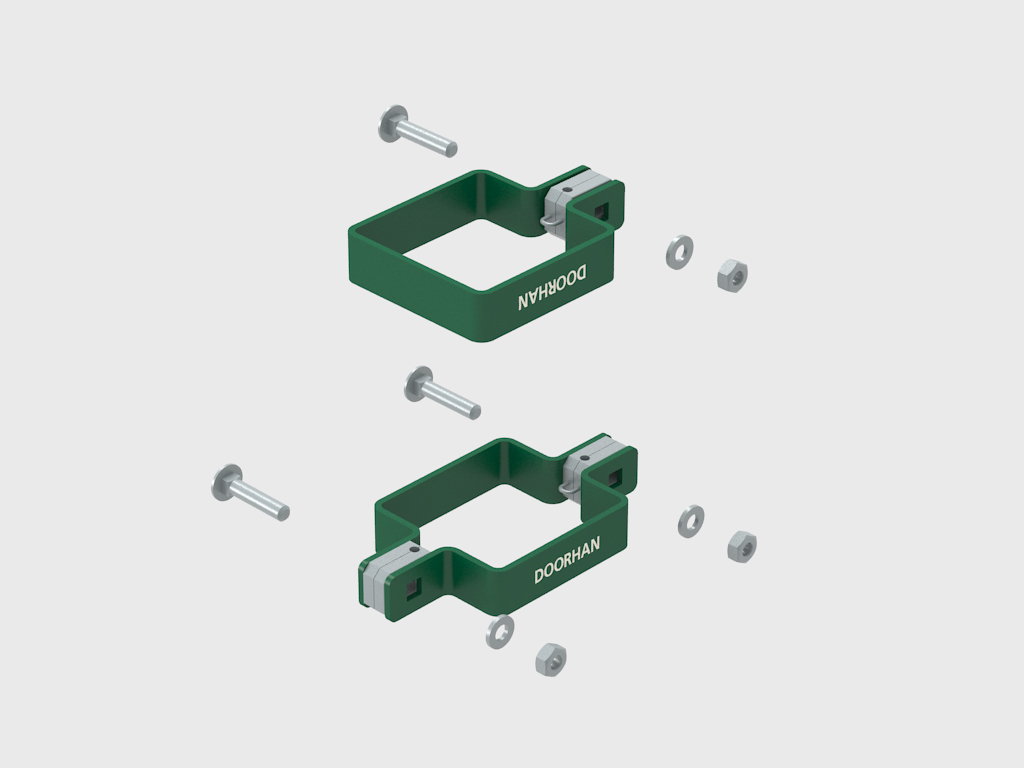

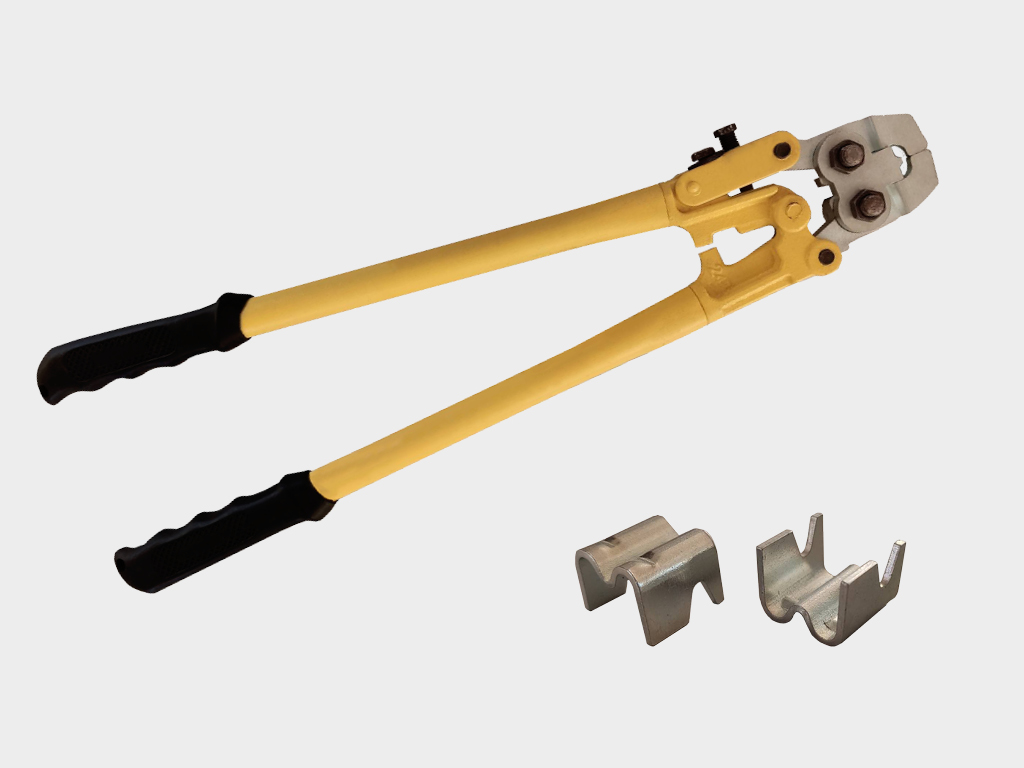

Fastening system. The special design makes it possible to simplify the installation of fencing systems and increase their burglary resistance. All elements are made by stamping from hot-rolled sheet, followed by zinc plating and powder painting.

Fastening system. The special design makes it possible to simplify the installation of fencing systems and increase their burglary resistance. All elements are made by stamping from hot-rolled sheet, followed by zinc plating and powder painting.

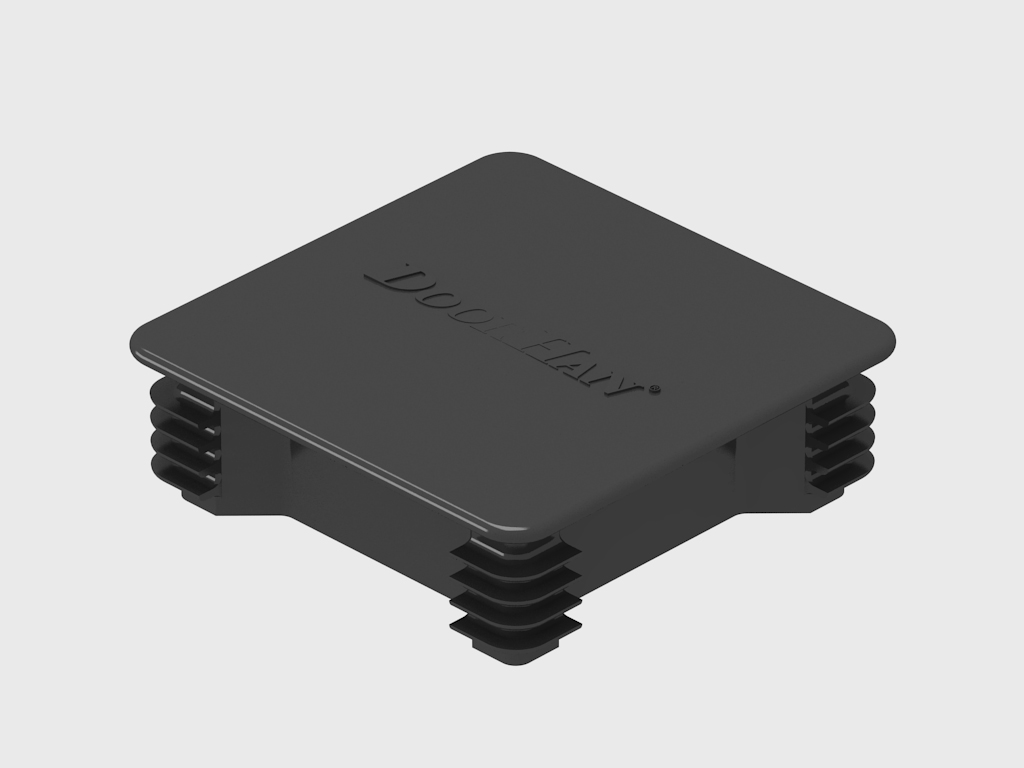

Decorative elements are a plastic plug of the upper end of the support, which prevents atmospheric precipitation from entering the structure. Decorative elements are made of wear-resistant and high-strength polyurethane.

Decorative elements are a plastic plug of the upper end of the support, which prevents atmospheric precipitation from entering the structure. Decorative elements are made of wear-resistant and high-strength polyurethane.

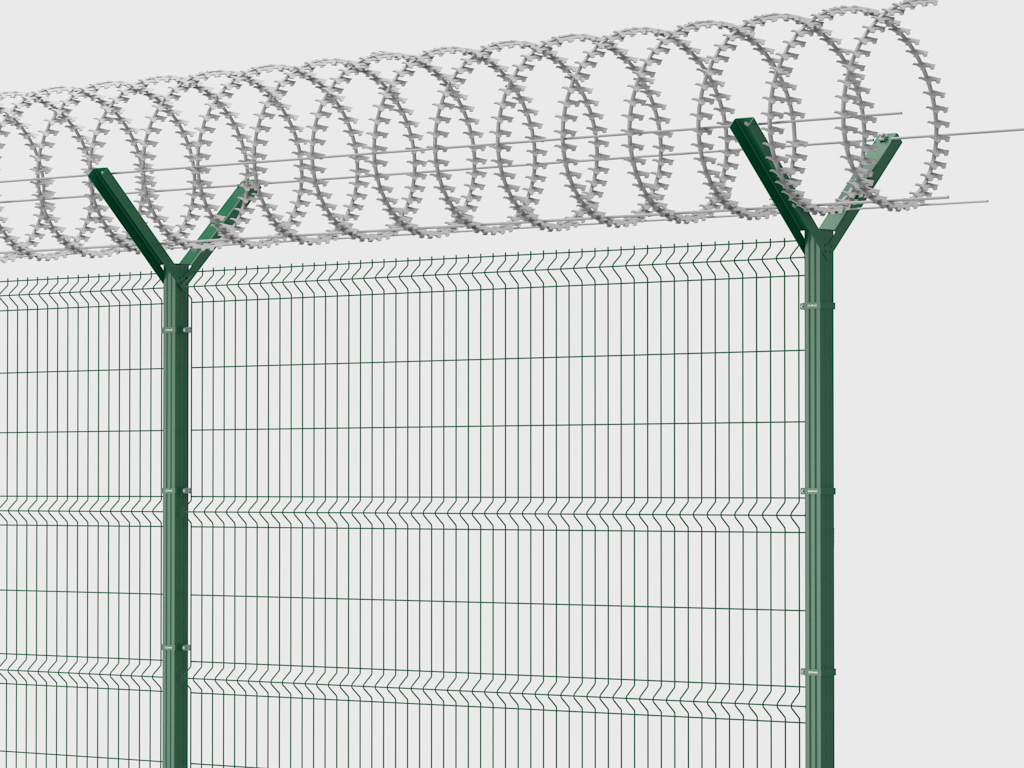

Spiral security barriers are one of the most effective elements of territory protection. Spiral barriers are widely used on objects, the protection of which requires attention.

Spiral security barriers are one of the most effective elements of territory protection. Spiral barriers are widely used on objects, the protection of which requires attention.

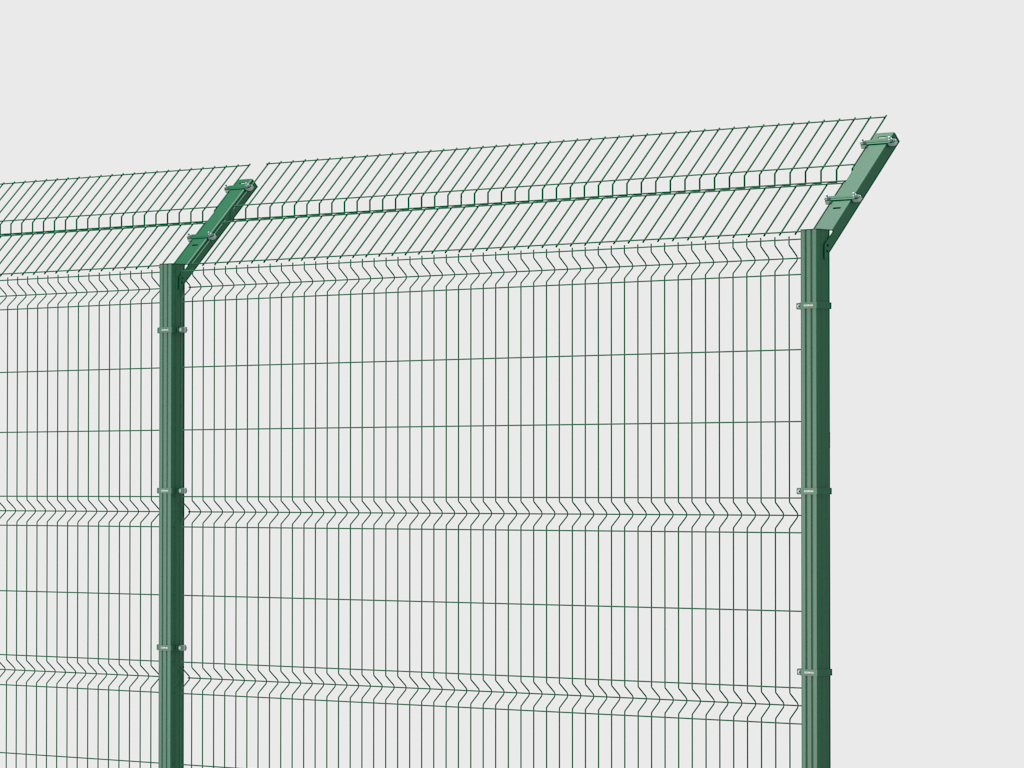

Installation of an inclined section is used when fencing sensitive facilities and high-risk areas. Inclined sections provide additional protection against unauthorized entry into the protected area.

Installation of an inclined section is used when fencing sensitive facilities and high-risk areas. Inclined sections provide additional protection against unauthorized entry into the protected area.

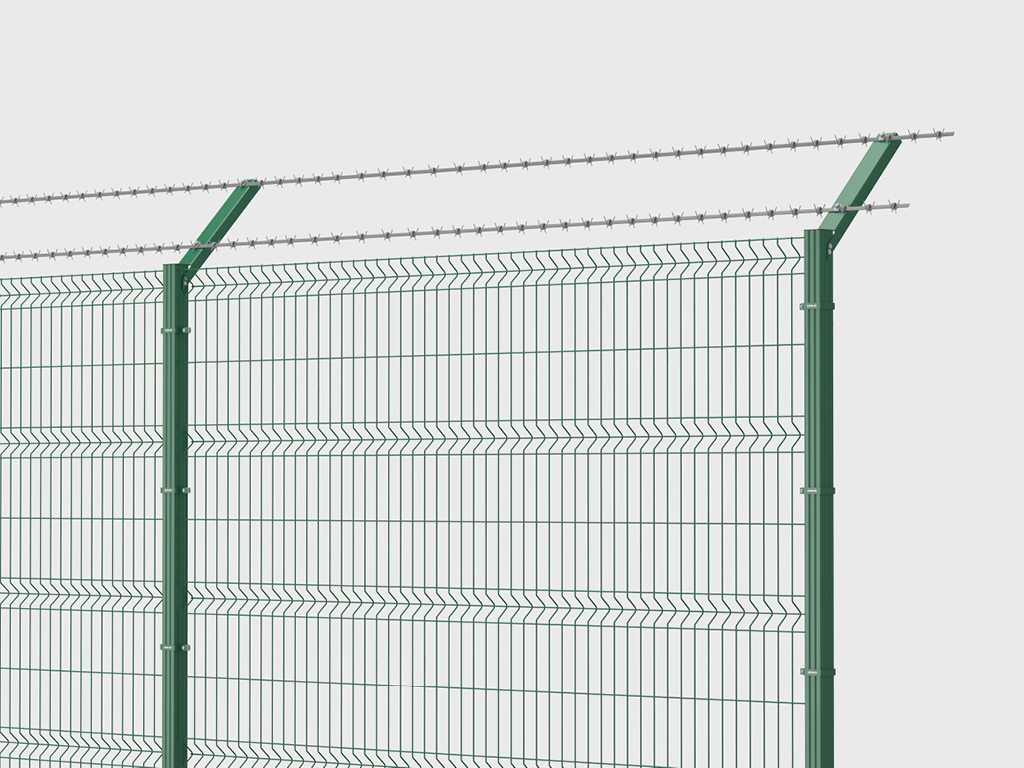

Barbed wire is an additional element of territory protection and is successfully used to protect military and construction sites, in the industrial and private sectors.

Barbed wire is an additional element of territory protection and is successfully used to protect military and construction sites, in the industrial and private sectors.

Technical description
Size Table
Construction
Standard Construction
Specifications
Operating Conditions
Packaging
Parameters
Value
Section height, mm
From 630 to 2430
Width, mm
2 535
Межосевое расстояние, м
See order parameters, depends on the type of support and fastening

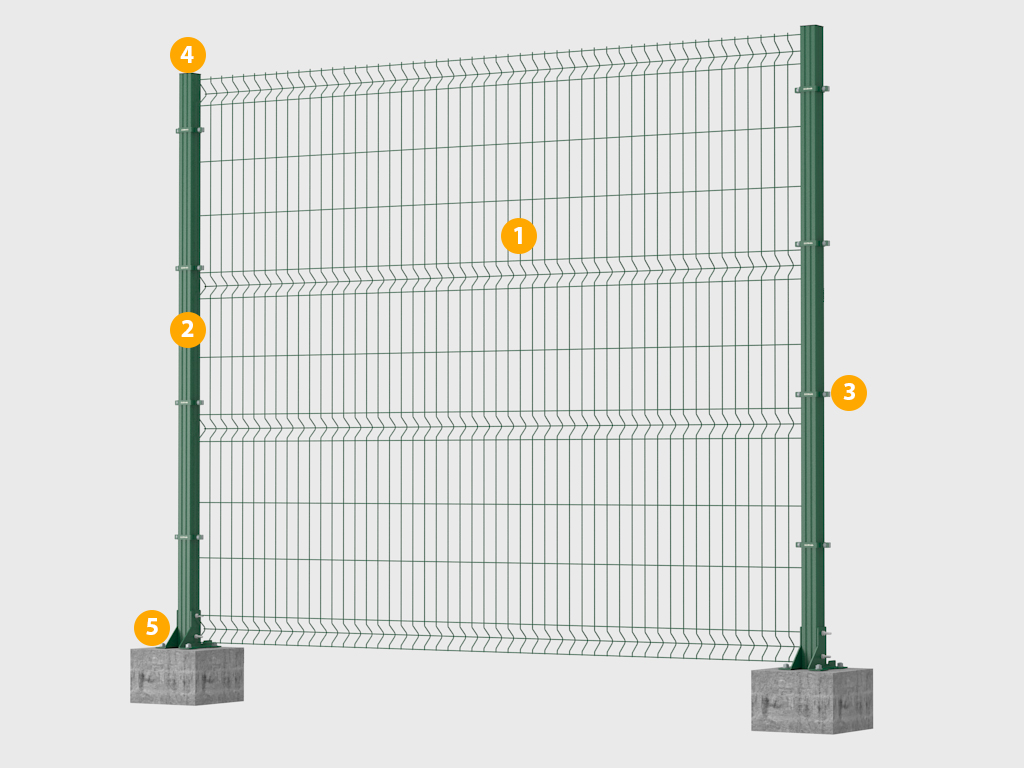

  1. Section
  2. Support
  3. Fasteners
  4. Plug
  5. Flange plate

Symbol, parameter name Calculation formula
B, мм Ширина секции 2 535
H1, mm Section height 1 530, 1 730, 2 030
Symbol, parameter name Calculation formula
BxH, мм Сечение опоры 60 × 60
L, мм Длина опоры 2 050, 2 550, 3050, 3 500
S, мм Толщина стенки опоры 1,4
Parameter Value Notes
Cell width, mm 55
Cell height, mm 200
Diameter of horizontal rod, mm 3,5
Diameter of vertical rod, mm 3,5
Surface density of zinc, not less than, g/m² 80
Powder coating thickness not less than, microns 60
Weight, kg/m² 2,133

1. Correct installation and correct operation of the fence system guarantee the reliability and durability of the work. When operating it is necessary:

1.1. Carry out an external inspection of the product every 6 months after the installation of the system.

1.2. During external inspection, make sure that the welded sections are fixed to the support, that there are no places with weak connections, and that there are no external mechanical damages.

1.3. If there are mortise structures (doors) in the fences, check the connections with them and their operability.

1.4. Door leaves, should open and close the door smoothly, without jamming and creaking, and securely fixed with a locking device. If necessary, adjust the position using the adjusting elements, lubricate the hinges, handles and locking device.

1.5. Do not allow precipitation (water, snow, hail) to enter the support. To do this, make sure that all supports are closed with special plugs.

1.6. Operation of fences is allowed at an ambient temperature of -50 to +60 °C and a relative humidity of 75%.

2. During the operation of the fence, it is prohibited:

2.1. To hit the fence and cause damage to its structure.

2.2. Cleaning the fence with the substances that can cause damage to the surface of the fence.

2.3. Installation of equipment not provided by the manufacturer, which changes the weight, wind and other loads of the structural elements of the fence. Any interference with the manufacturer's standard solutions can lead to a loss of strength characteristics of the structure.

3. For the installation of security and video surveillance systems, it is necessary to use a structure specially designed for this purpose. Check with the manufacturer for the possibility of installing other equipment.

4. Security measures:

4.1. Installation of fences must be carried out by people who have fully studied the installation instructions.

4.2. Use tools which are in good condition.

4.3. When installing the sections of the fence before fixing them, be especially careful and careful, protect the elements of the sections from falling.

4.4. When performing work related to lift the person to a height of more than 1.5 m, it is necessary to use a safety mounting belt. Its condition must be checked before starting work.

5. During installation, it is prohibited:

5.1. Use an attached or sliding ladder.

5.2. Use a ladder with a height of more than 2.5 m.

Packing in bubble wrap Packaging features
Description Packing of supports; packing of sections in a pack weighing not more than 50 kg
Packing in cardboard box Packaging features
Description Packaging of fasteners, flanges and accessories
Contents 3-layer cardboard box, stretch film, adhesive tape with logo
Width, mm 450
Height, mm 300
Length, mm 550
Packing on pallet Packaging features
Description Packing sections from 10 pieces can be carried out on a pallet
Installation
Mounting Options
Checking Dimensional Details

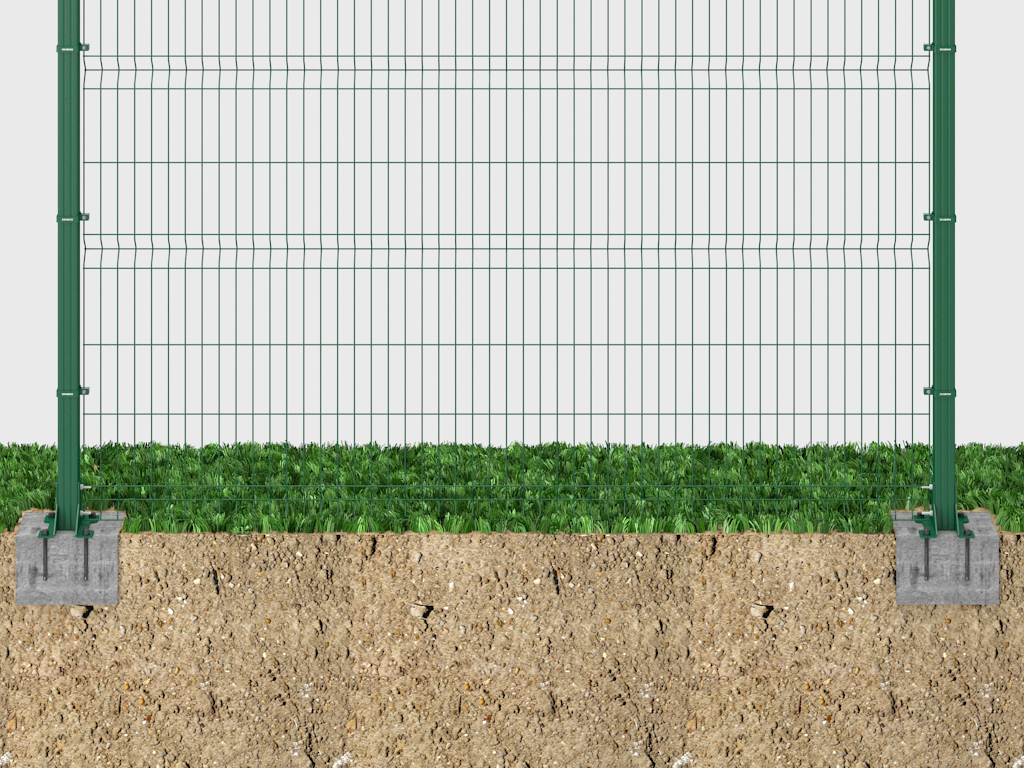

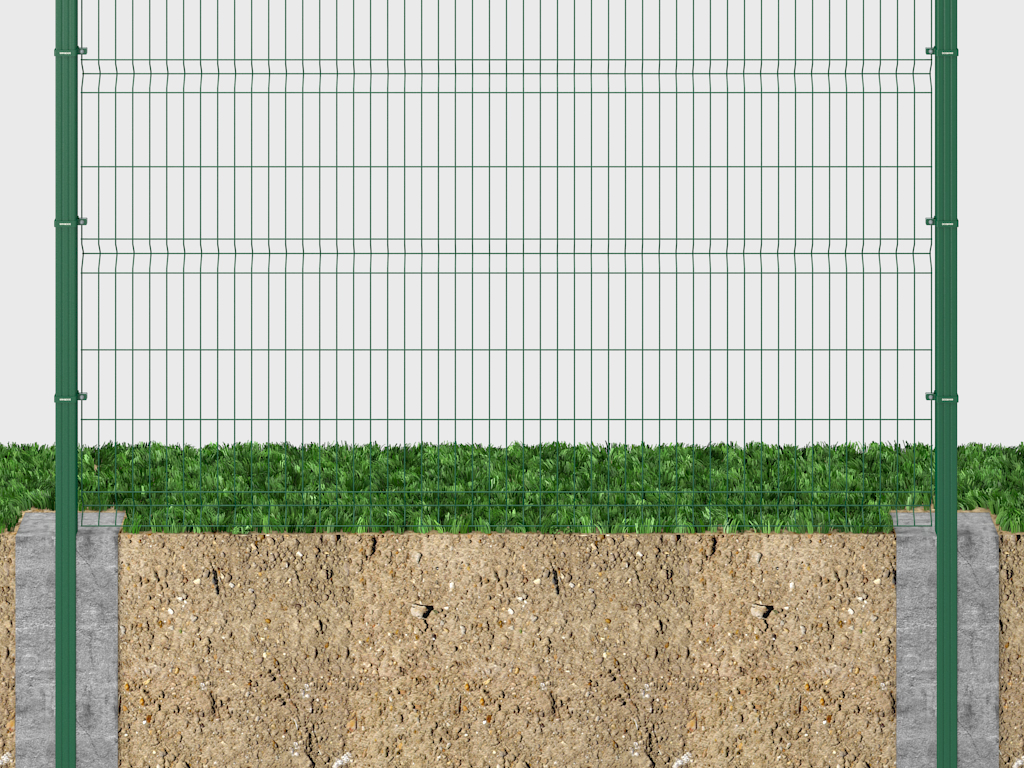

Pole concreting. The simplest and most economical installation method, in which the support is concreted into the ground.
Pole concreting. The simplest and most economical installation method, in which the support is concreted into the ground.
Installation on a finished base without adjustment. Economical flange mounting without the use of a backing plate.
Installation on a finished base without adjustment. Economical flange mounting without the use of a backing plate.

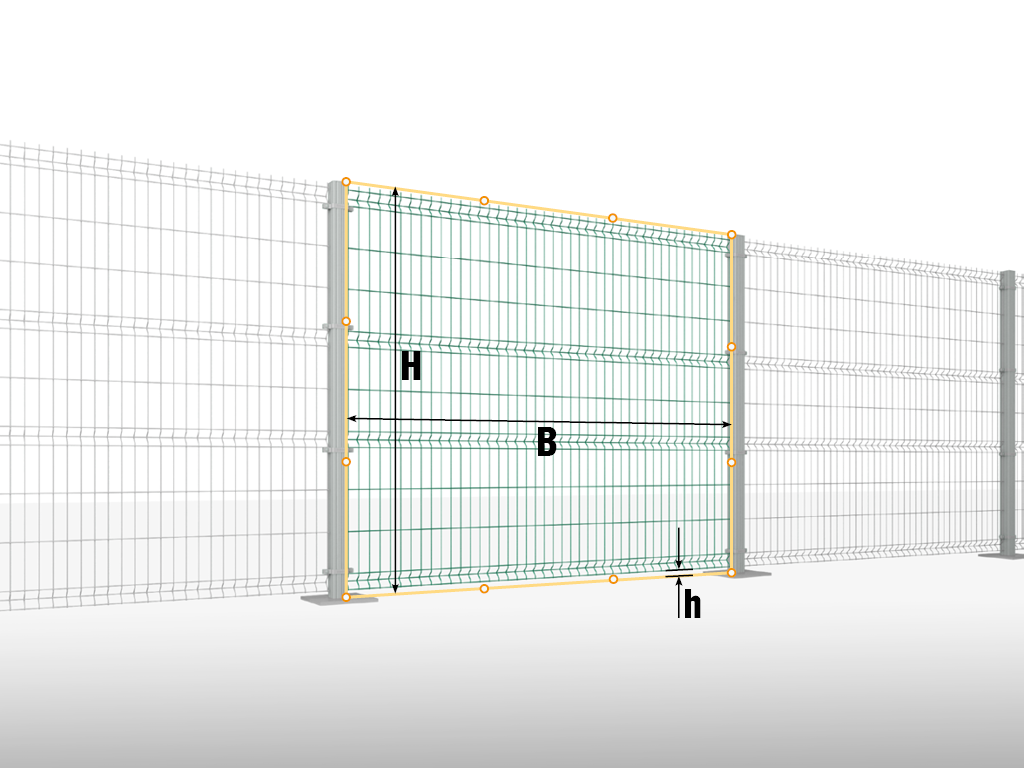

  1. H (mm)- the height of the structure.
  2. B (mm) - the width of the structure.
  3. h (mm) - clearance.
Documentation
Manuals
Technical Data and Certificates
Drawings

Installation manual

Certificate of Conformity

Fencing system passport

Sections

Standard packaging

Fasteners

Kits for fastening inclined panels and SBB

Ways to install fencing systems

Bottom additional railing

Pallet guardrail systems for sections

Pallet guardrail systems for poles

Warranty print

The buyer is provided with a guarantee of the operability of the design produced by the DoorHan concern for a period of 1 year for retail orders and for a period of 2 years for dealer orders from the date of purchase.

New Products

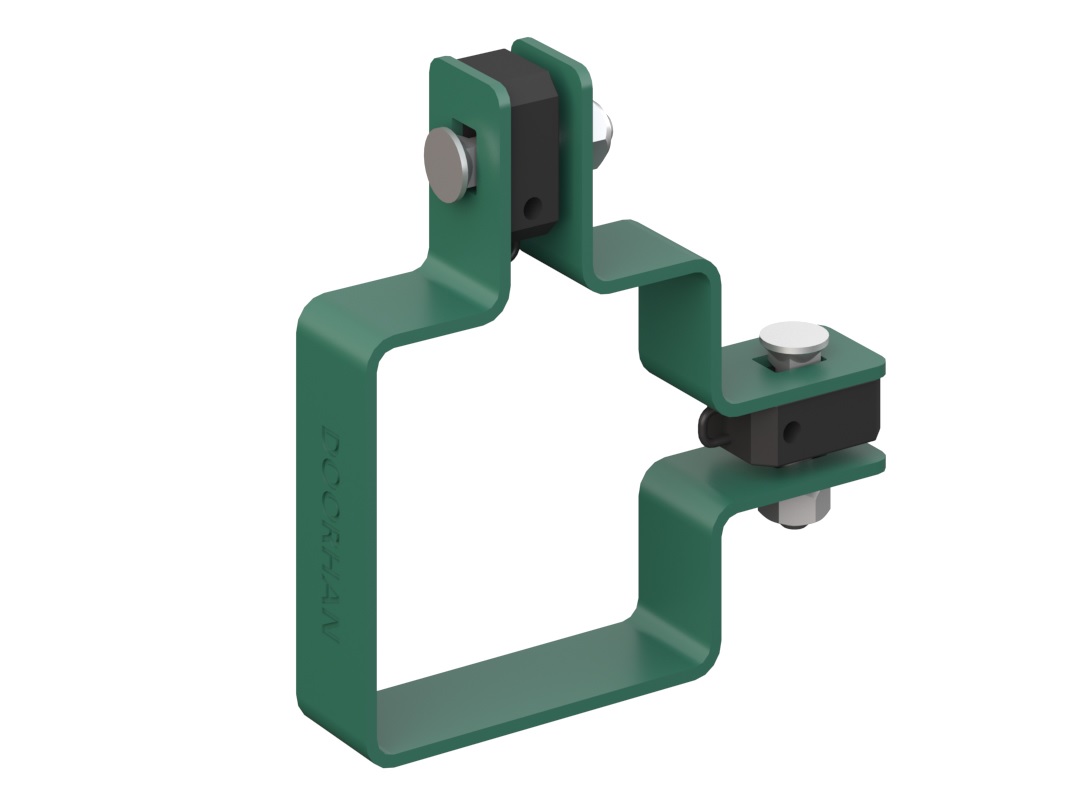

The 60 x 60 Angle Clamp is used at the corners of the fence instead of a double set of single-sided clamps, reducing installation costs.
