Sliding door operators SLIDING-500PRO and SLIDING-800PRO

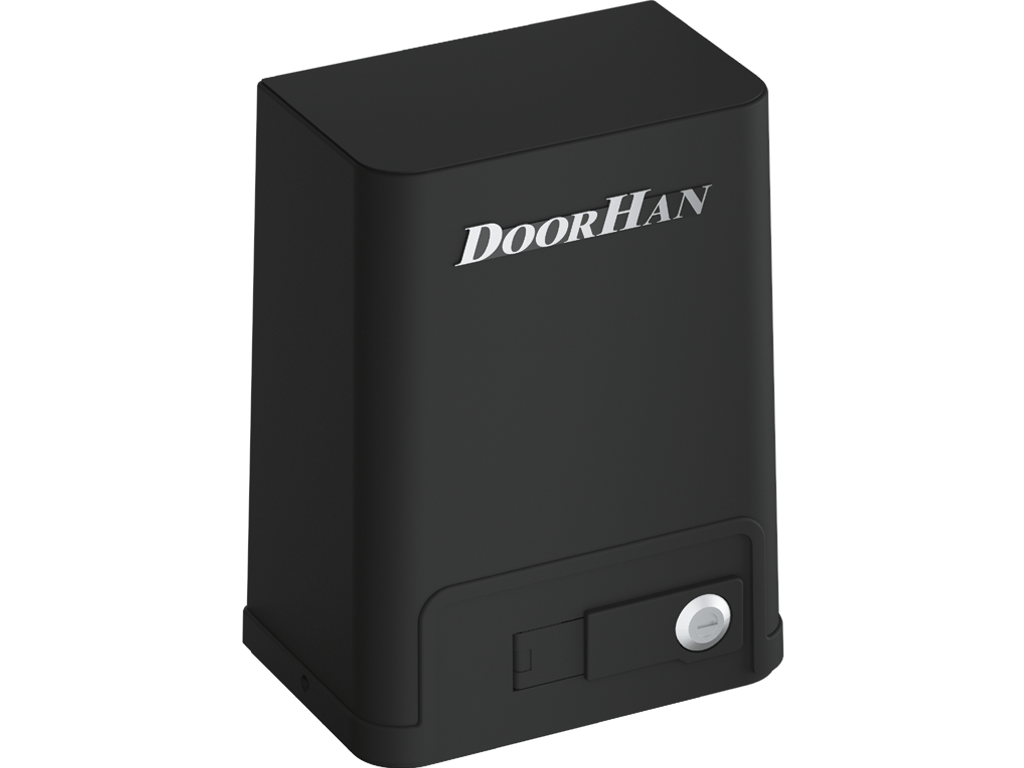

Electromechanical drives SLIDING-500PRO and SLIDING-800PRO are designed to automate household sliding doors with the weight up to 500 and 800 kg.

Application:

Gates of all types
Sliding doors with any filling

Order with installation

Advantages

A new type of spaced non-contact magnetic limit switches allow the operator to be used even in the harshest climatic conditions such as snow and ice.

The built-in control board provides simple and convenient set up of the operator which allows to connect a large number of additional controllers and safety devices, set up auto-closing and allow the pedestrian to pass in the absence of a door.

Powerful neodymium magnets provide precise stop of the gate in extreme positions and exclude the passage of the limit switch.

In the event of a power failure, the drive can be released using the built-in release. The drive is equipped with a lock to protect against unauthorized unlocking.

The built-in receiver in the control unit simplifies installation and makes the drive easy to operate.

A new type of spaced non-contact magnetic limit switches allow the operator to be used even in the harshest climatic conditions such as snow and ice.

Powerful neodymium magnets provide precise stop of the gate in extreme positions and exclude the passage of the limit switch.

In the event of a power failure, the drive can be released using the built-in release. The drive is equipped with a lock to protect against unauthorized unlocking.

The built-in receiver in the control unit simplifies installation and makes the drive easy to operate.

Design

OPERATOR DESIGN

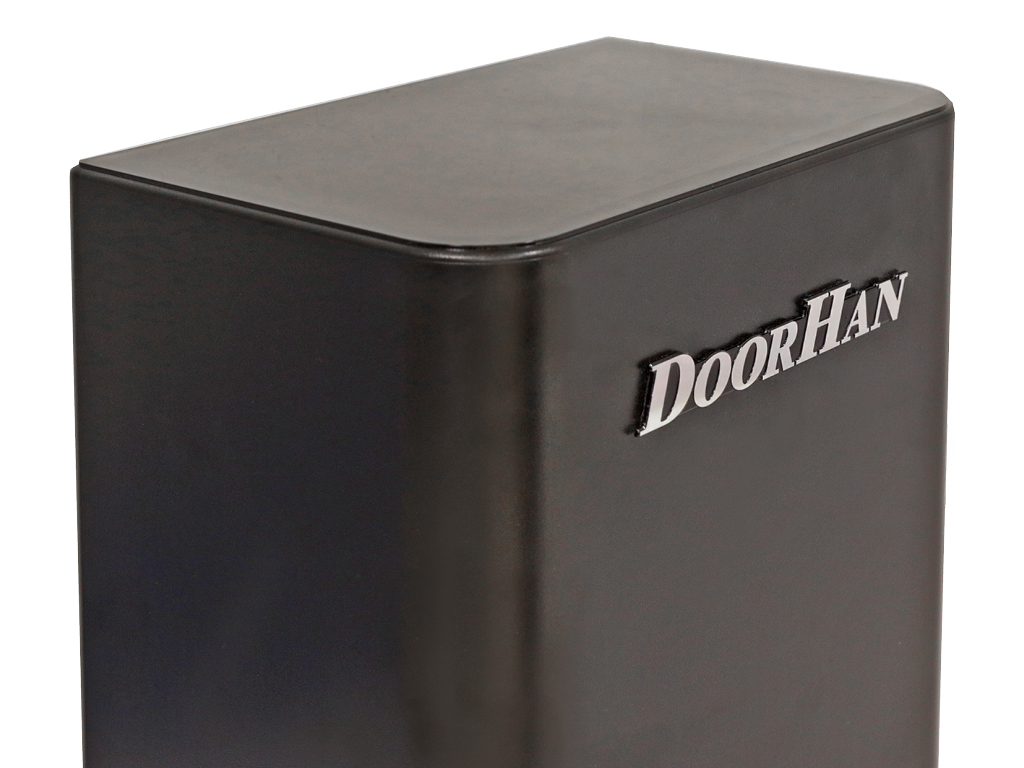

The upper one-piece part of the body is made of impact-resistant plastic.

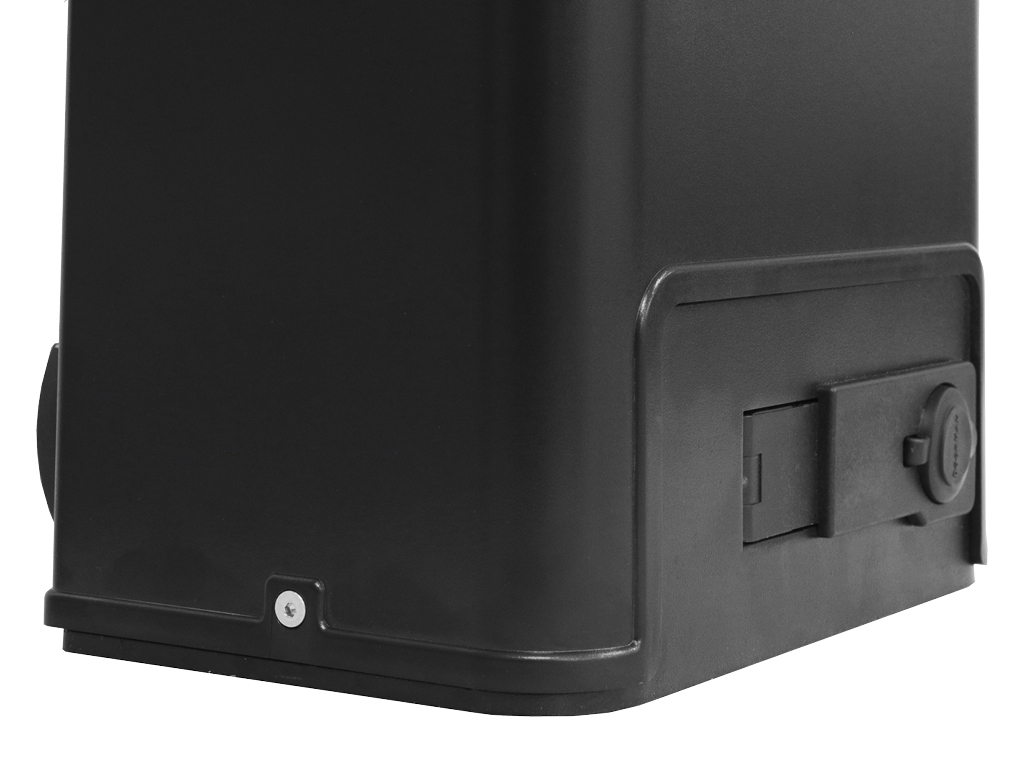

Special release mechanism

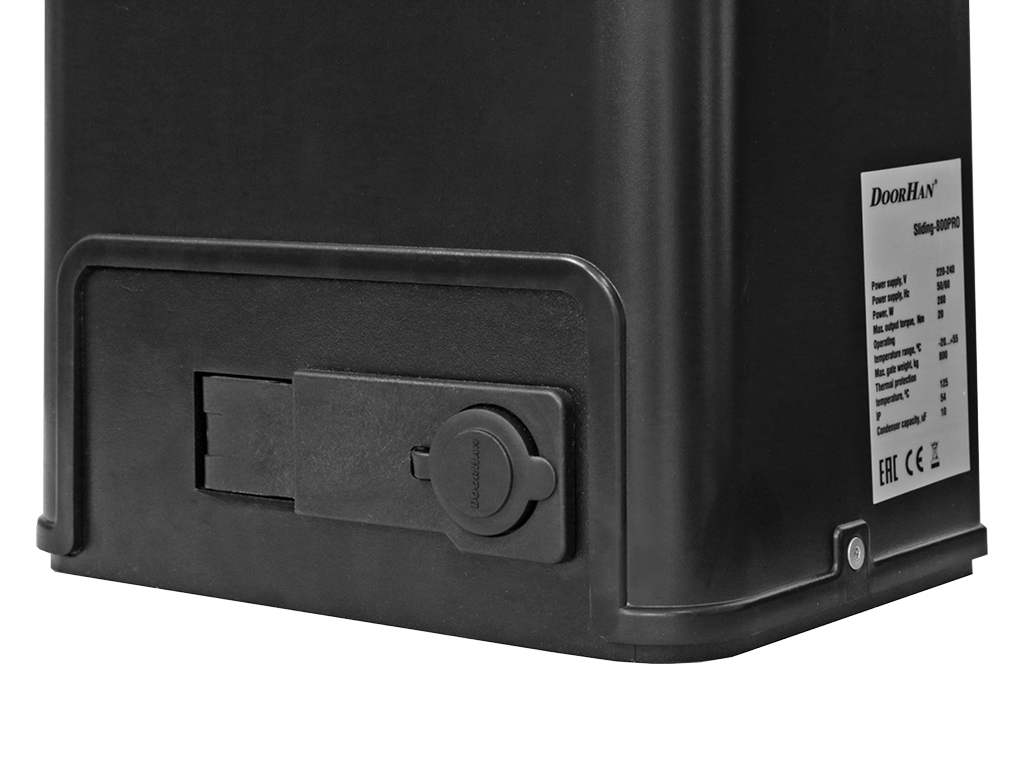

The lower part of the drive is made of high-strength aluminum alloy

Equipment

Standard

Optional

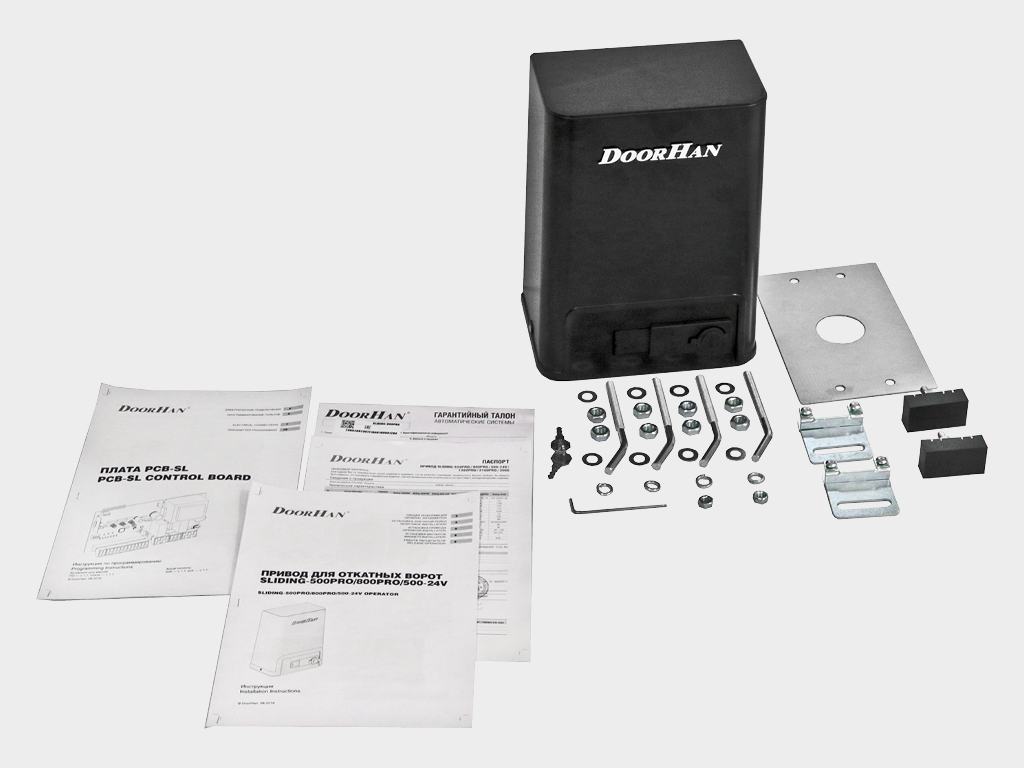

Electric operator, magnetic limit switches, mounting base, fasteners, warranty card, manual

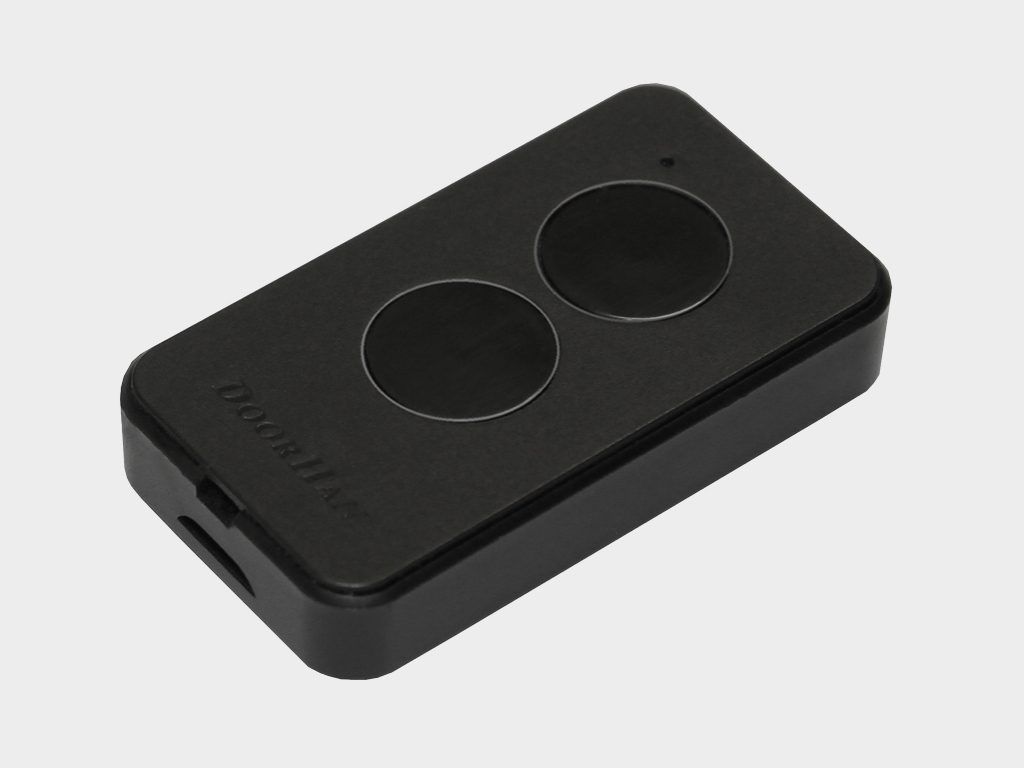

The remote controller TRANSMITTER 2-PRO-BLACK is used for the remote control of two automatic devices

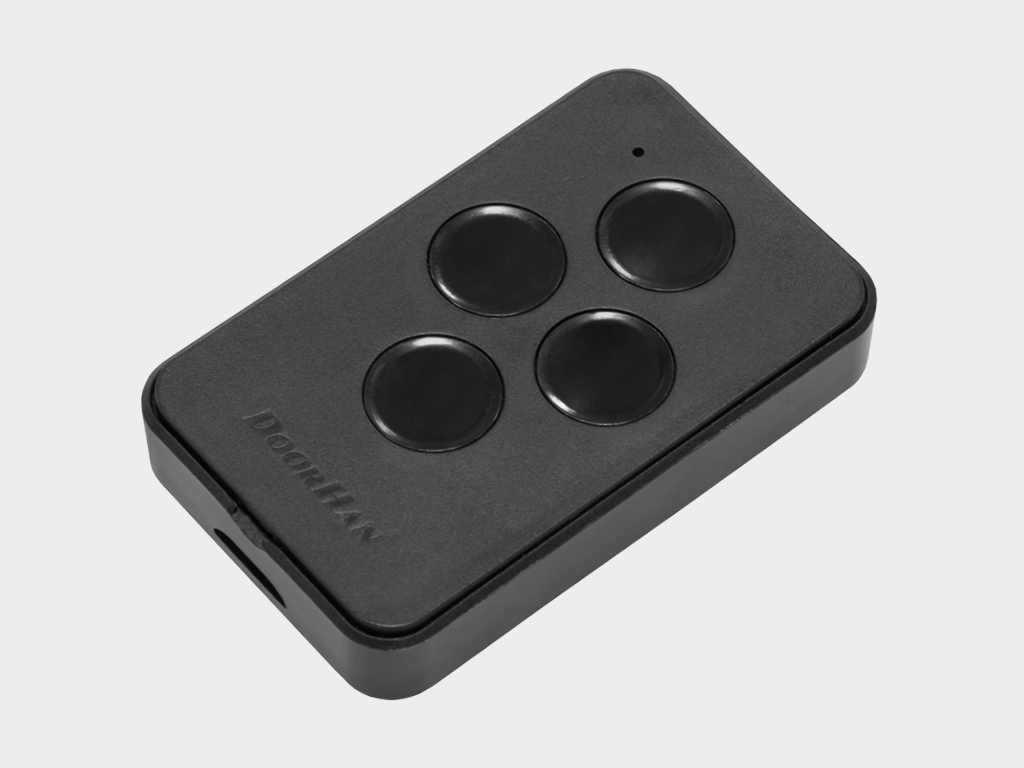

The remote controller TRANSMITTER 4-PRO-BLACK is used for remote control of four automatic devices

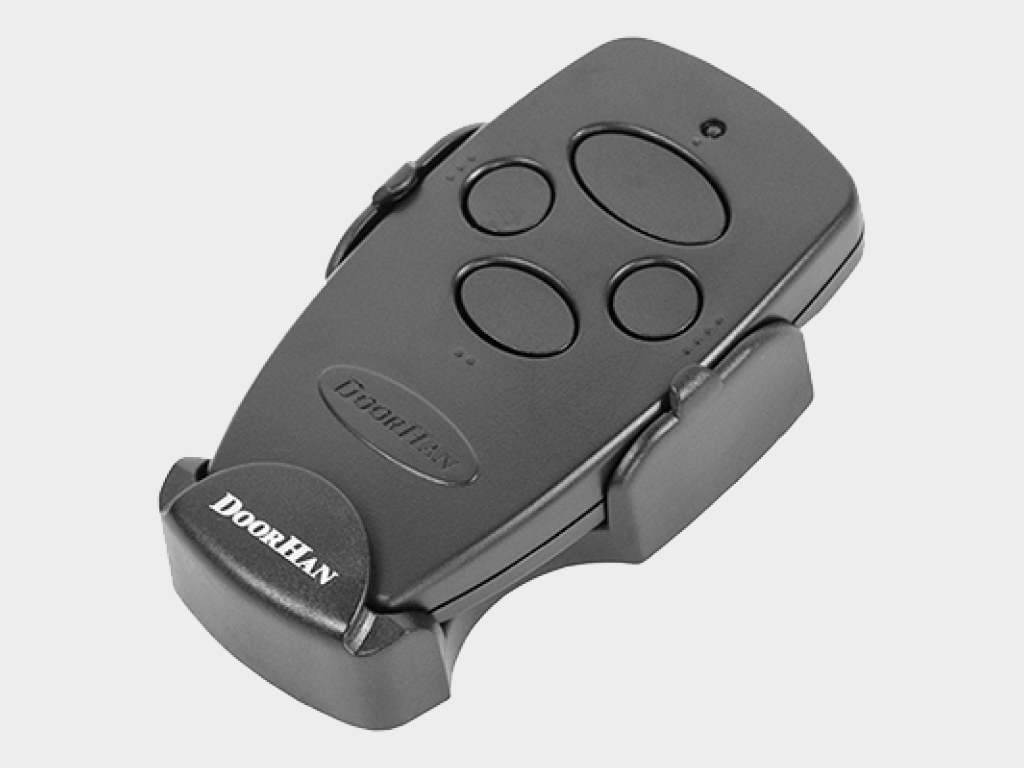

The remote controller TRANSMITTER 4 is used for remote control of four automatic devices

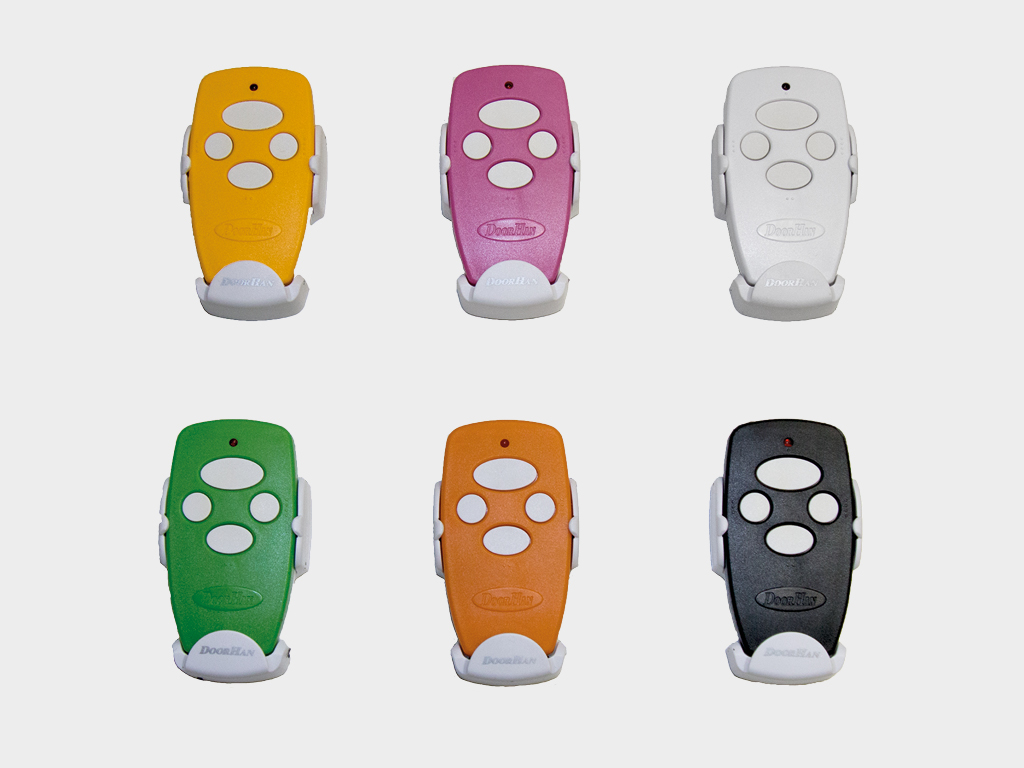

Remote controllers TRANSMITTER 4-COLOR are designed for remote control of four automatic devices

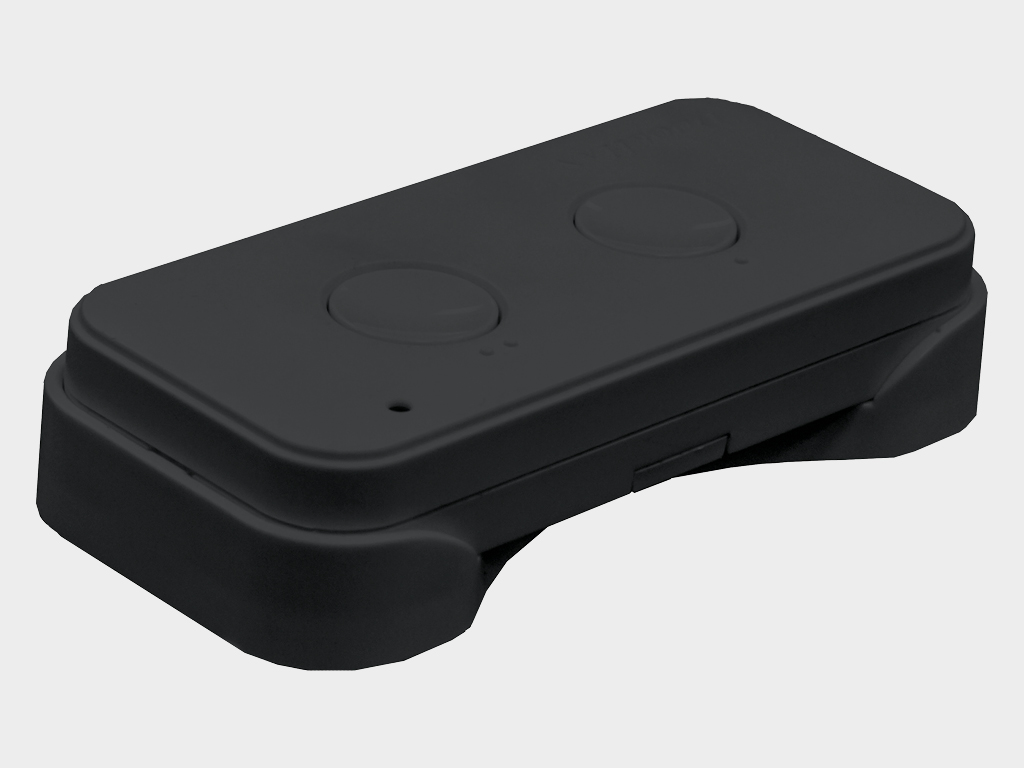

Wireless control button COMMAND-433 is designed for remote control of two automatic devices

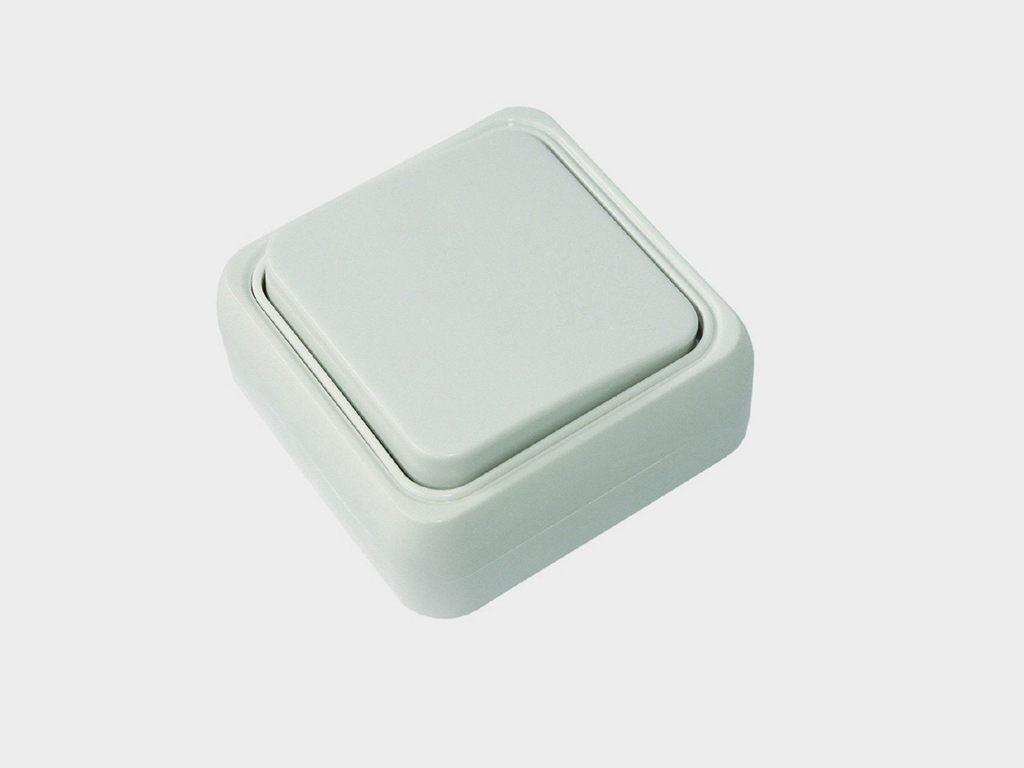

Pushbutton switch with return mechanism SWITCH is designed to send a control command to the drive control unit

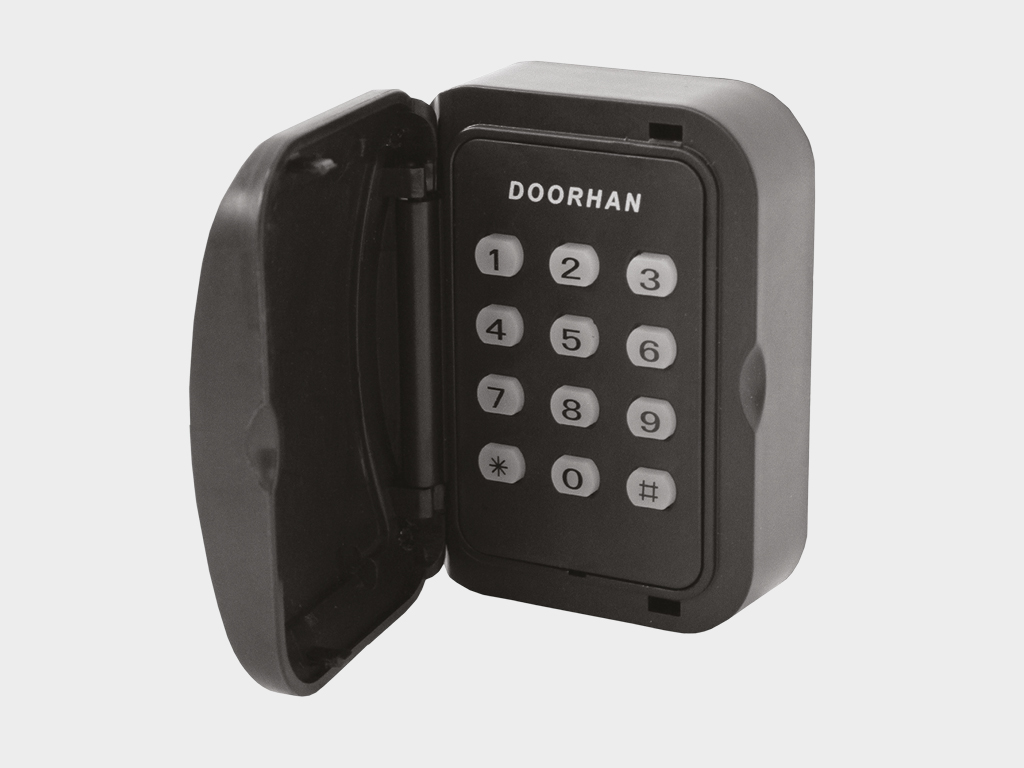

The KEYPAD is used for remote control of the drive equipped with a built-in or external DoorHan receiver

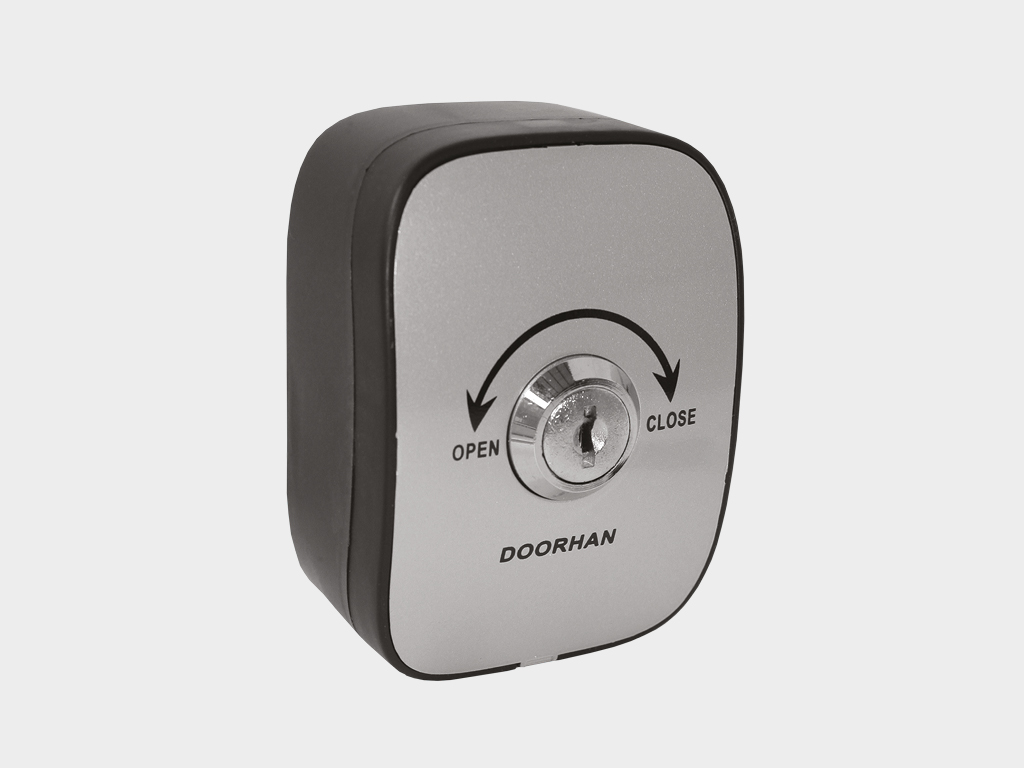

The key-button KEYSWITCH_N sends a control command to the control unit of the automatic system by the turn of the key

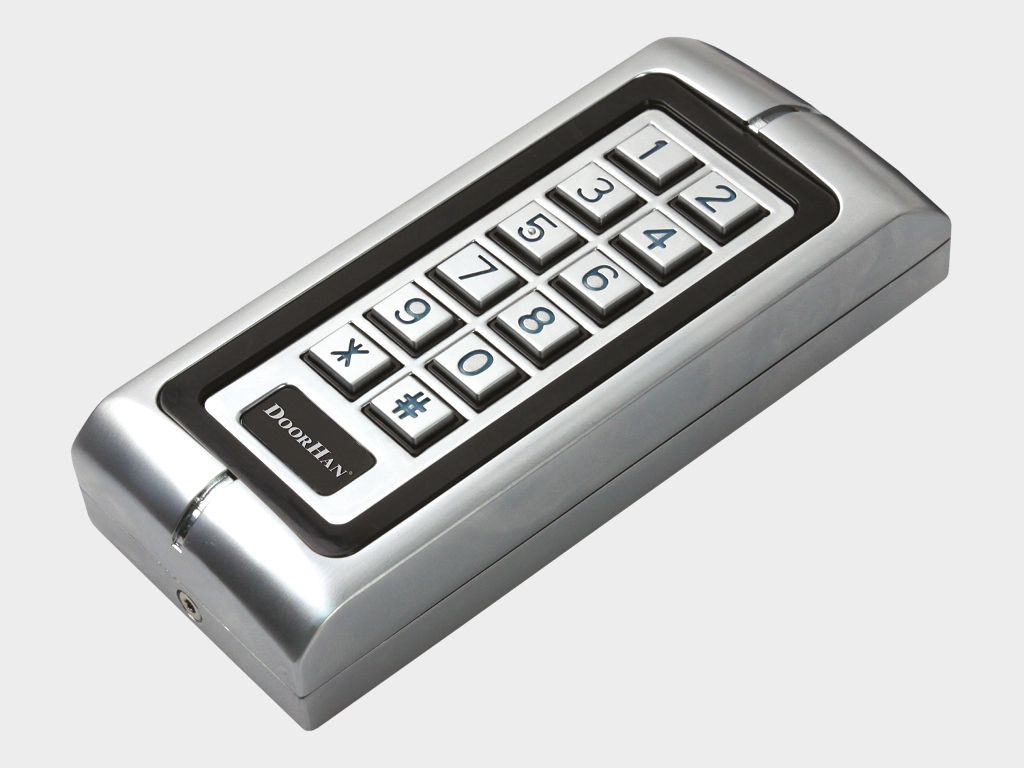

Anti-vandal code keypad KEYCODE is used to control an automatic device and as an external keypad or a proxy card reader

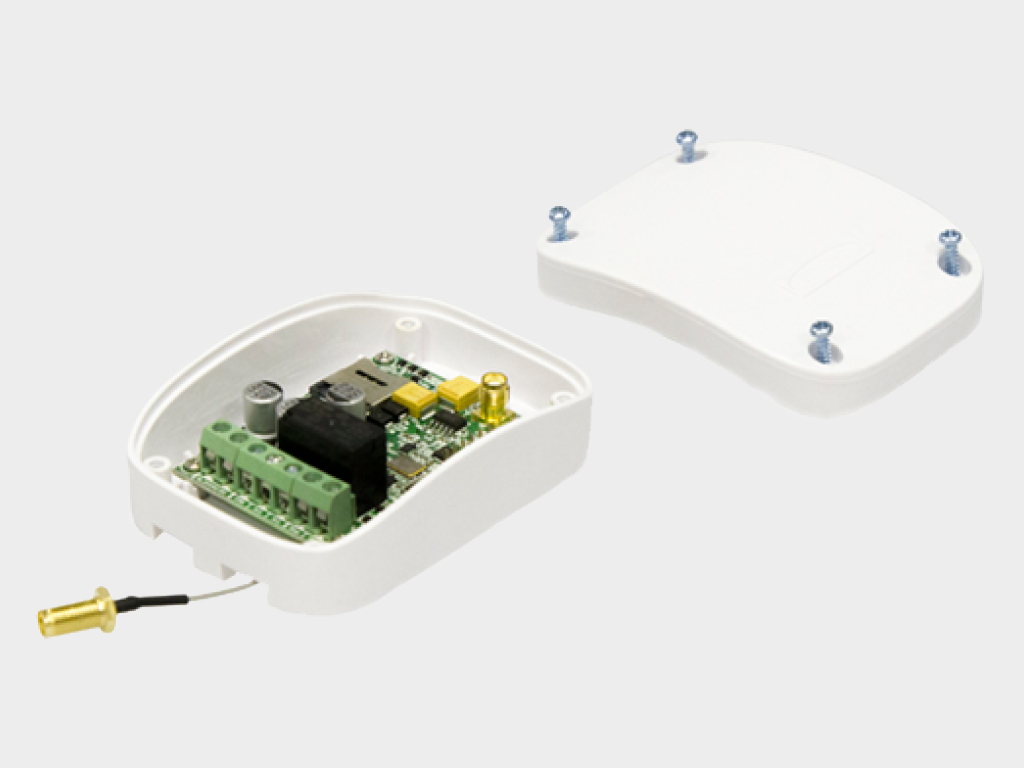

The GSM module is designed to receive a signal from a mobile phone and transmit a control command to start an electric drive or a barrier

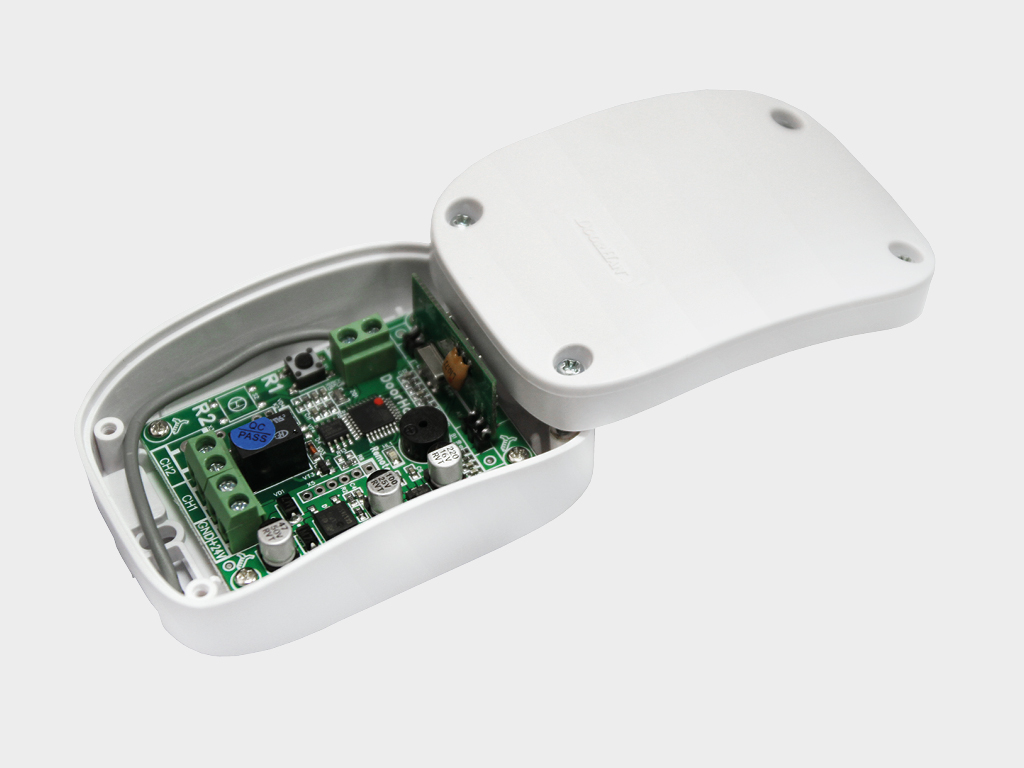

The external radio receiver DHRE-1 is designed to control automation from other manufacturers using the DoorHan remote control

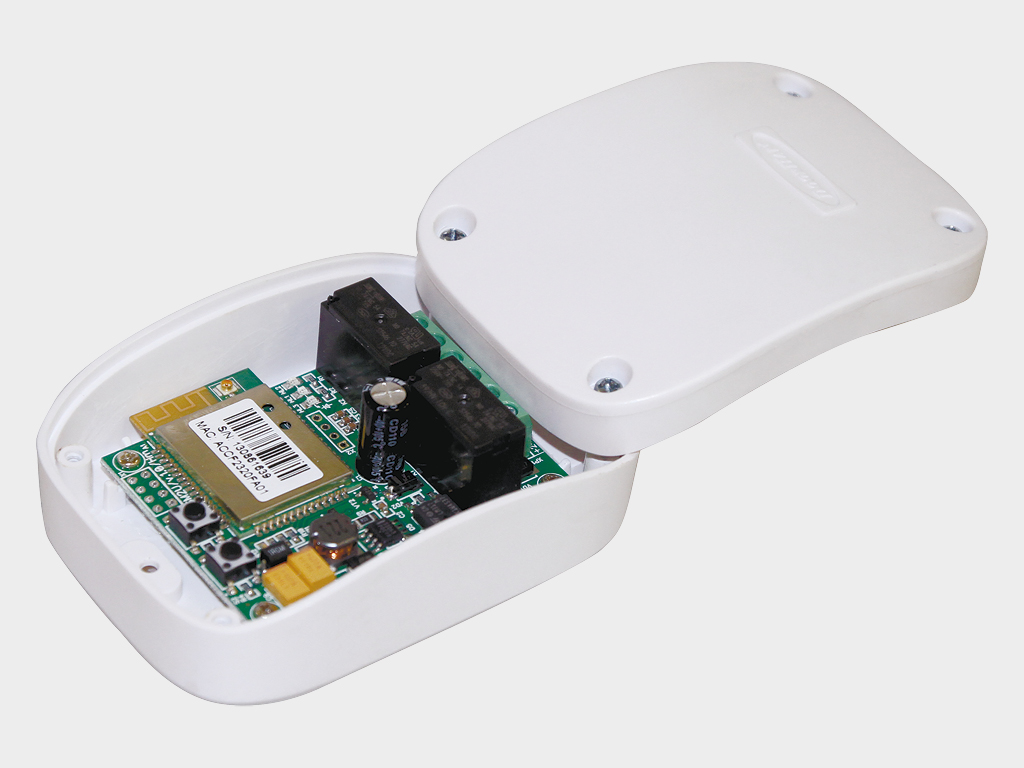

WI-FI-module is designed for wireless control (generation of NO control signal) by electric drives

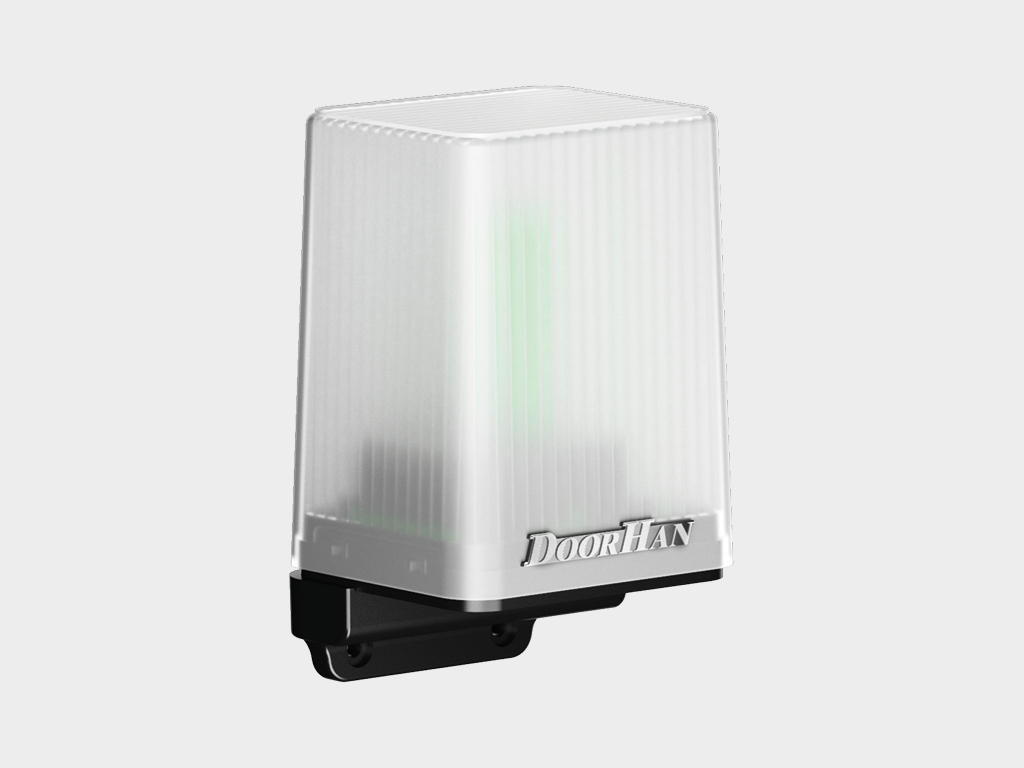

Signal LED lamp with antenna LAMP-PRO is designed to notify about the movement of the door

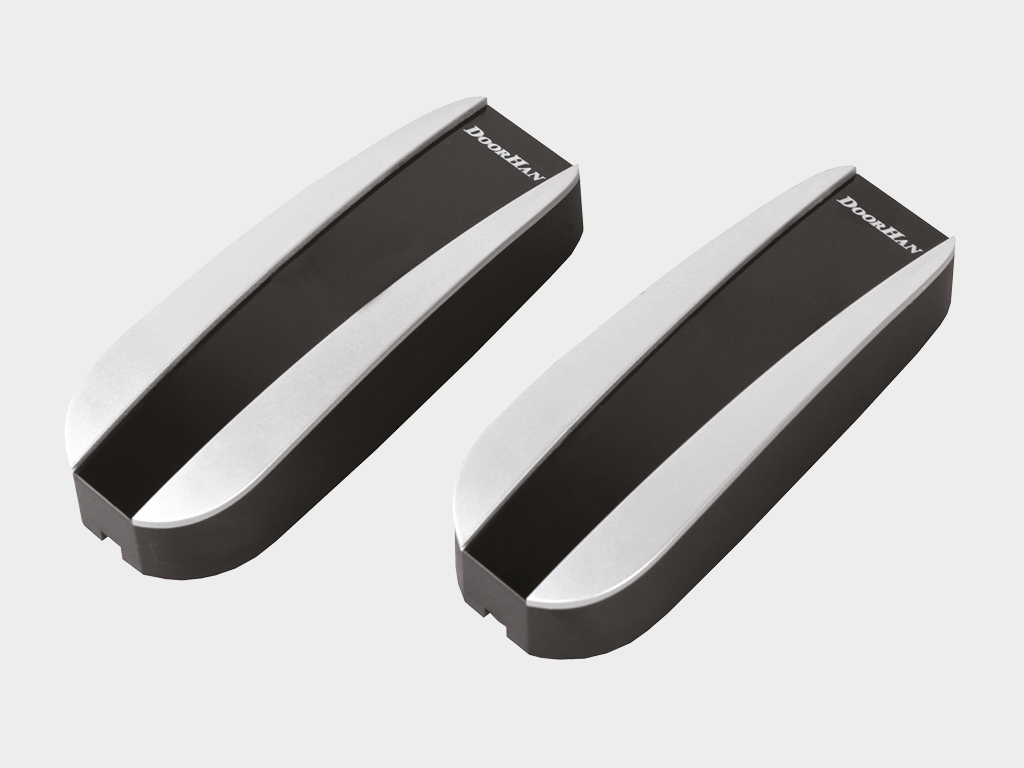

Safety photocells PHOTOCELL-N consists of an infrared transmitter and receiver

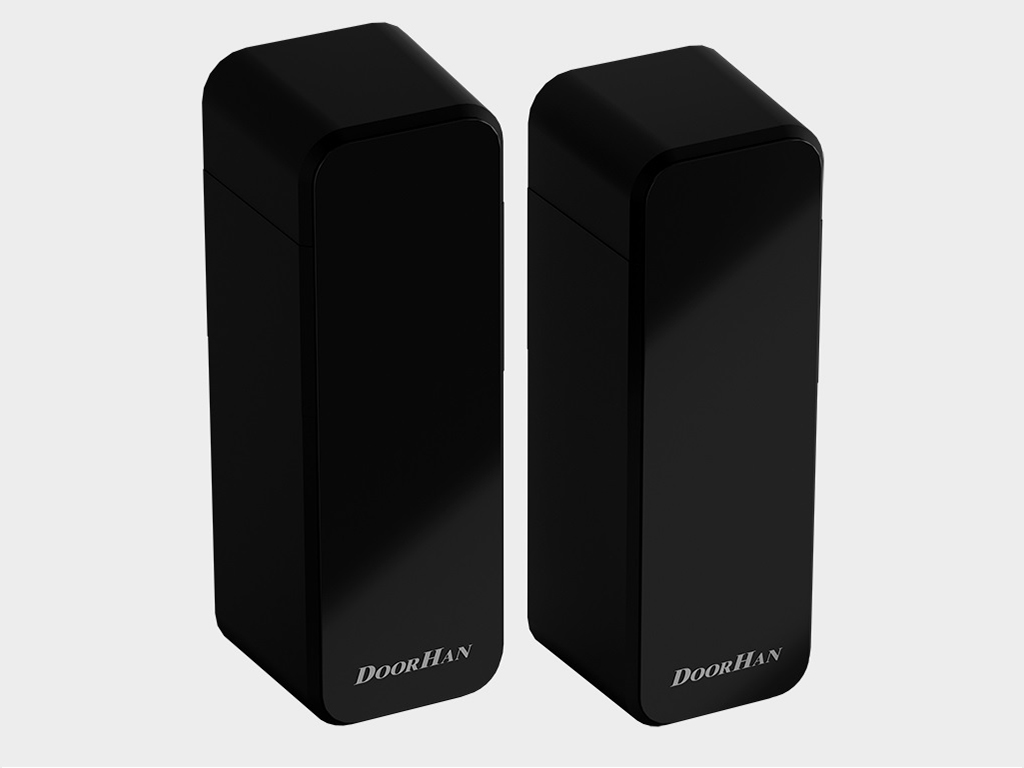

PHOTOCELL-PRO wireless safety photocells with swivel board for asymmetric openings, consisting of an infrared transmitter and receiver

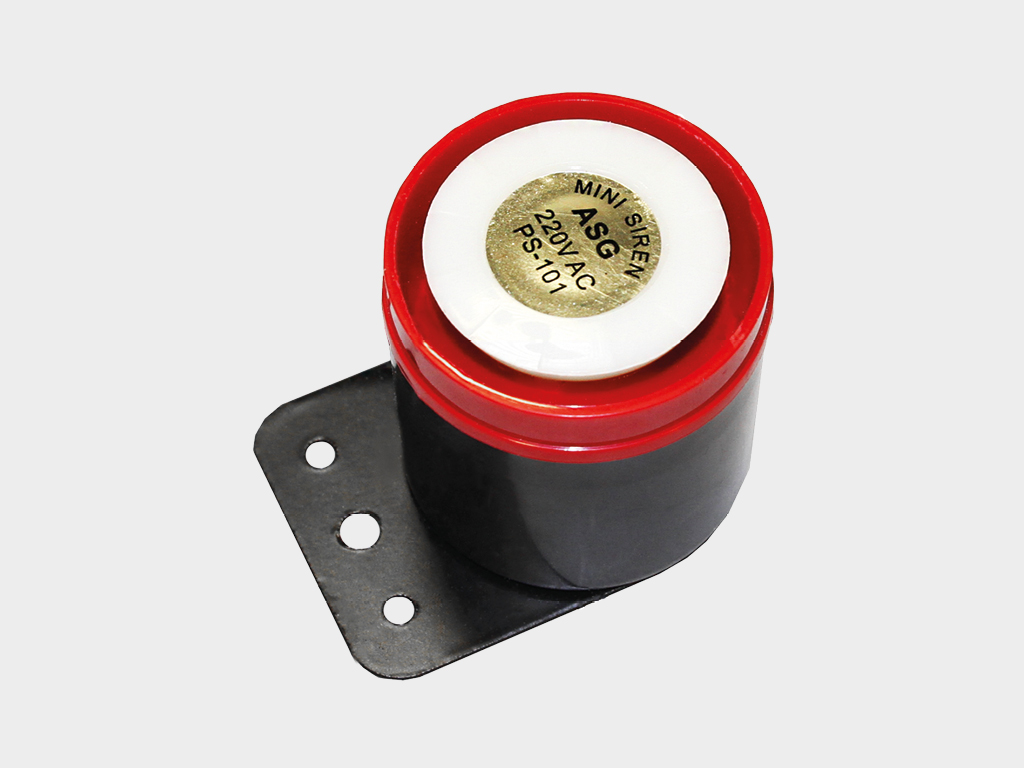

SIRENA is designed for sound notification of door movement

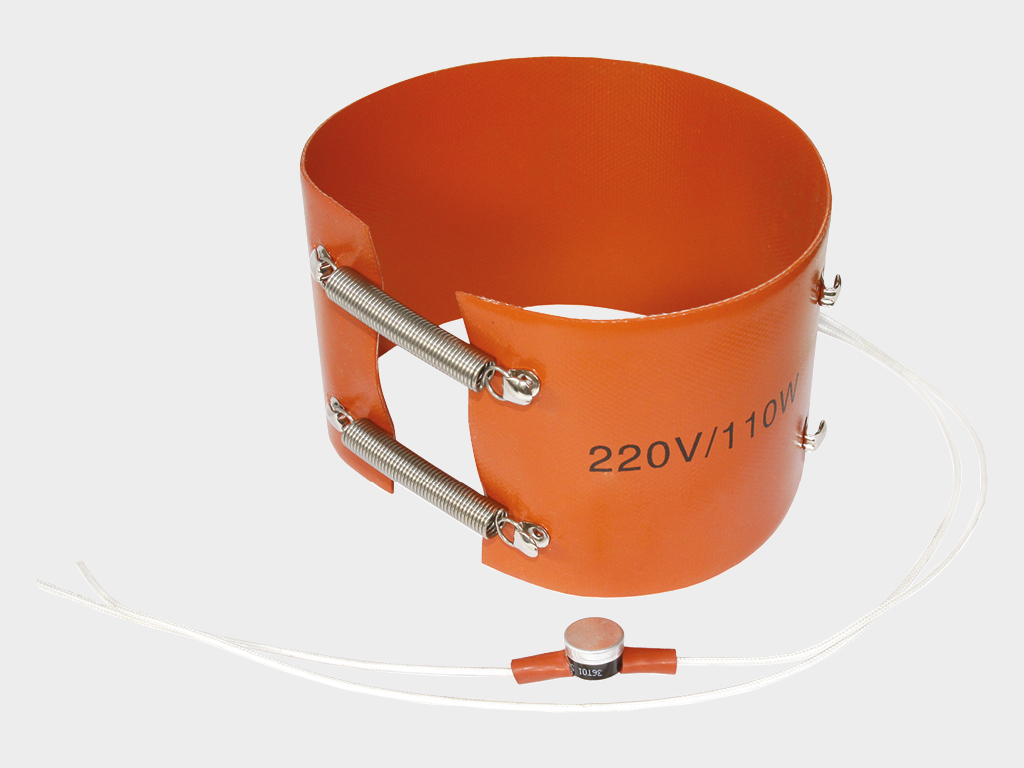

The HEATER is used for heating electric drives of doors and barriers when operating at low temperatures

Technical description

Construction

Specifications

Operating Conditions

Packaging

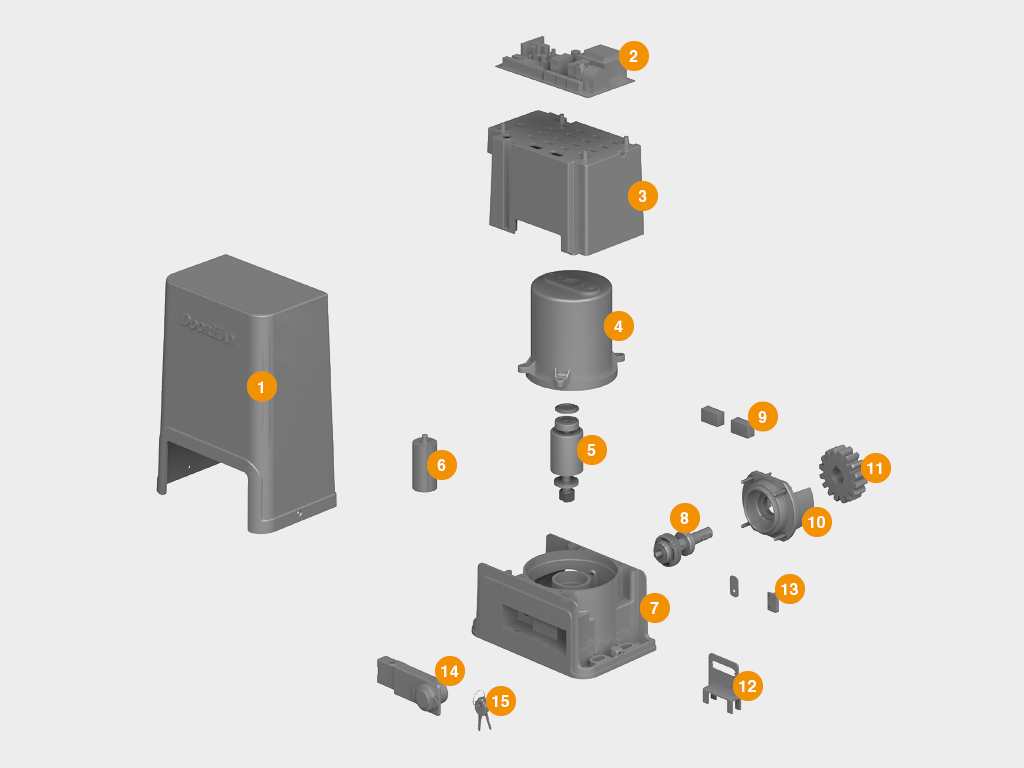

The top cover of the drive
Control board PCB-SL
Drive inner cover
Operator stator assembly with aluminum drive box
Drive rotor
Drive capacitor
Lower part of the operator box
The working shaft of the operator with gear and bearings assy
Neodymium magnetic limit switch
Side cover of the drive
Gear
New magnet stand
Set of remote readers of limit switches
Release unit
Release keys

Parameter	Value	Notes
Maximum gate weight, kg	500/800
Supply voltage, V	220–240
Maximum effective torque, N·m	16/20
Power, W	260/280
Operating temperature range, °С	-20...+55
Door opening speed, m/min	10/12
IP protection class	54
Intensity of use	50	At temperature t = 20 °С

1. Before the installation of the operator, make sure that the door operates smoothly.

2. Ensure that the climatic conditions of the place of operation corresponds with the characteristics of the operator.

3. It is forbidden to install the equipment in rooms with flammable substances or hazardous environments.

4. Make sure that there is no pinching of objects between the moving and fixed parts of the operator when the door moves.

5. It is necessary to use additional accessories only from DoorHan in order to avoid the damage of the operator.

6. It is forbidden to leave the electric motor in the disengaged state.

7.The operator must not be used if repair or adjustment is necessary.

8. Make sure that there are no objects in the area of the electric operator before starting it.

9. Driving and passing is allowed only when the door is stopped and the operator is switched off.

10. Do not let children use the operator and accessories.

11. It is forbidden to make changes to the automatic part.

Packing in cardboard	Packaging features
Description	Film, cardboard inserts, cardboard box
Length, mm	260
Width, mm	210
Height, mm	310

Additional Information print

Neodymium magnetic limit switches of a new generation ensure the accuracy of limit switches in extreme positions.

Safe use: the multifunctional control unit makes it possible to connect photocells for opening/closing the gate and a signal lamp.

Ability to adjust the force, auto-closing and separate control for ease of use.

The built-in receiver allows you to register up to 60 remotes.

Installation

Mounting Options

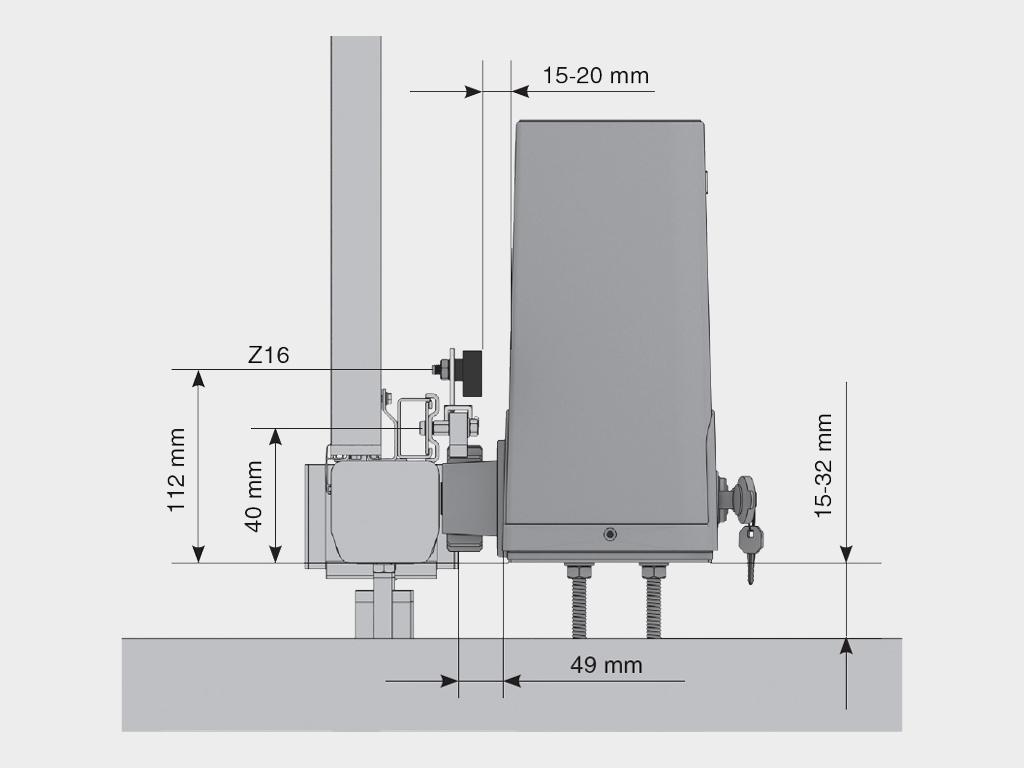

Is attached to a mounting plate, which is anchored into a concrete base.

Documentation

Drawings

Drawing

PDF

Warranty print

The buyer is provided with a 3-year operator performance guarantee from the date of purchase. Dealers have the right to change the warranty period.
