Плита минераловатная DoorHan «Сэндвич Б»

DoorHan mineral wool boards are used as a middle layer (core) in the manufacture of building three-layer sandwich panels.
Application:
  • Three-layer reinforced concrete panels
Advantages
Hydrophobic impregnation of cotton wool forms a film on its surface, which prevents the penetration of liquid inside, while not blocking the natural circulation of air.
It is used for mounting plates with a large snug fit to each other.
The resistance of cotton wool to the action of solvents and oils allows it to be safely used with any building materials.
Allows the use of mineral wool without shrinking throughout the entire service life.
Hydrophobic impregnation of cotton wool forms a film on its surface, which prevents the penetration of liquid inside, while not blocking the natural circulation of air.
It is used for mounting plates with a large snug fit to each other.
The resistance of cotton wool to the action of solvents and oils allows it to be safely used with any building materials.
Allows the use of mineral wool without shrinking throughout the entire service life.
Technical description
Size Table
Specifications
Packaging
Parameters
Value
Length, mm
1 200
Width, mm
600
Thickness, mm
from 50 to 180 in 10 mm increments
Packaging volume, m³
from 0.216 to 0.3 (depending on board thickness)
Parameter Value Notes
Density, kg/m³ 85
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С λ10 = 0,035 at a temperature of 10 ˚С (283±1) K, no more
Thermal conductivity, W/(m K) λ25 = 0,037 at a temperature of 25 ˚С (298±1) K, no more
Compressive strength, kPa 15 for compression at 10% relative deformation, not less than
Compressibility, mm 5 under specific load 2 kPa, no more
Water absorption, kg/sqm 1,0 for short-term and partial immersion, no more
Content of organic substances, % 4,5 by weight, no more
Humidity, % 0,5 by weight, no more
Vapour permeability, mg/m·h·Pa 0,5 no more
Combustibility class according to European Standards

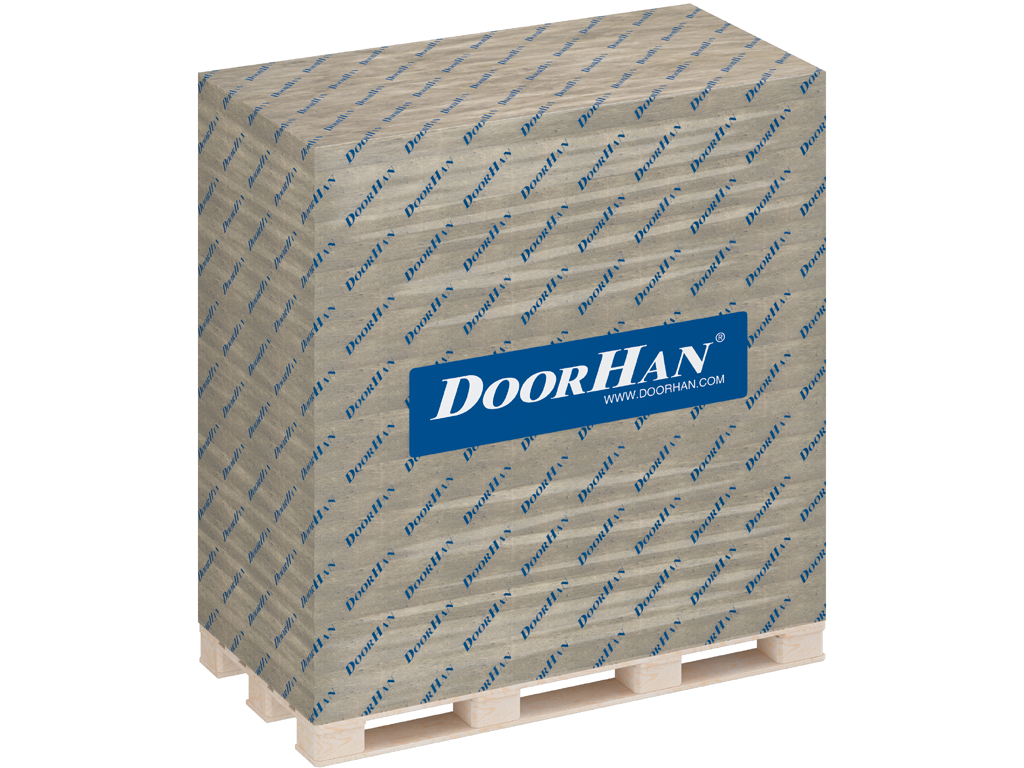

Packing on pallet Packaging features
Description The boards are packed in a thermo shrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm 2 400
Width, mm 1 200
Height, mm 2 505
Documentation
Manuals
Technical Data and Certificates

Album of technical solutions

Fire Safety Certificate

Declaration of Conformity

Expert opinion

Certificate of conformity

Certificate of conformity

Warranty print

If the consumer maintains the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.

Technical description
Size Table
Parameters
Value
Length, mm
1 200
Width, mm
600
Thickness, mm
from 50 to 180 in 10 mm increments
Packaging volume, m³
from 0.216 to 0.3 (depending on board thickness)
Specifications
Parameter Value Notes
Density, kg/m³ 85
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С λ10 = 0,035 at a temperature of 10 ˚С (283±1) K, no more
Thermal conductivity, W/(m K) λ25 = 0,037 at a temperature of 25 ˚С (298±1) K, no more
Compressive strength, kPa 15 for compression at 10% relative deformation, not less than
Compressibility, mm 5 under specific load 2 kPa, no more
Water absorption, kg/sqm 1,0 for short-term and partial immersion, no more
Content of organic substances, % 4,5 by weight, no more
Humidity, % 0,5 by weight, no more
Vapour permeability, mg/m·h·Pa 0,5 no more
Combustibility class according to European Standards
Packaging
Packing on pallet Packaging features
Description The boards are packed in a thermo shrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm 2 400
Width, mm 1 200
Height, mm 2 505
Warranty

If the consumer maintains the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.

Documentation
Manuals

Album of technical solutions

Technical Data and Certificates

Fire Safety Certificate

Declaration of Conformity

Expert opinion

Certificate of conformity

Certificate of conformity
