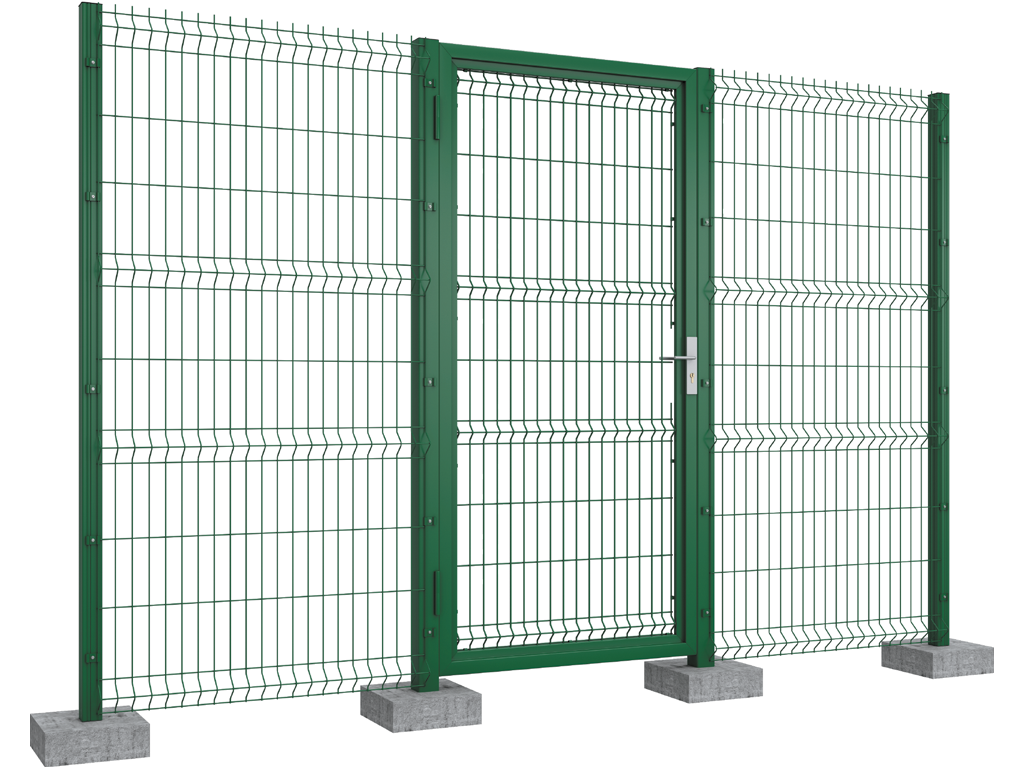

Калитка со стальной рамой и c заполнением сварной сеткой

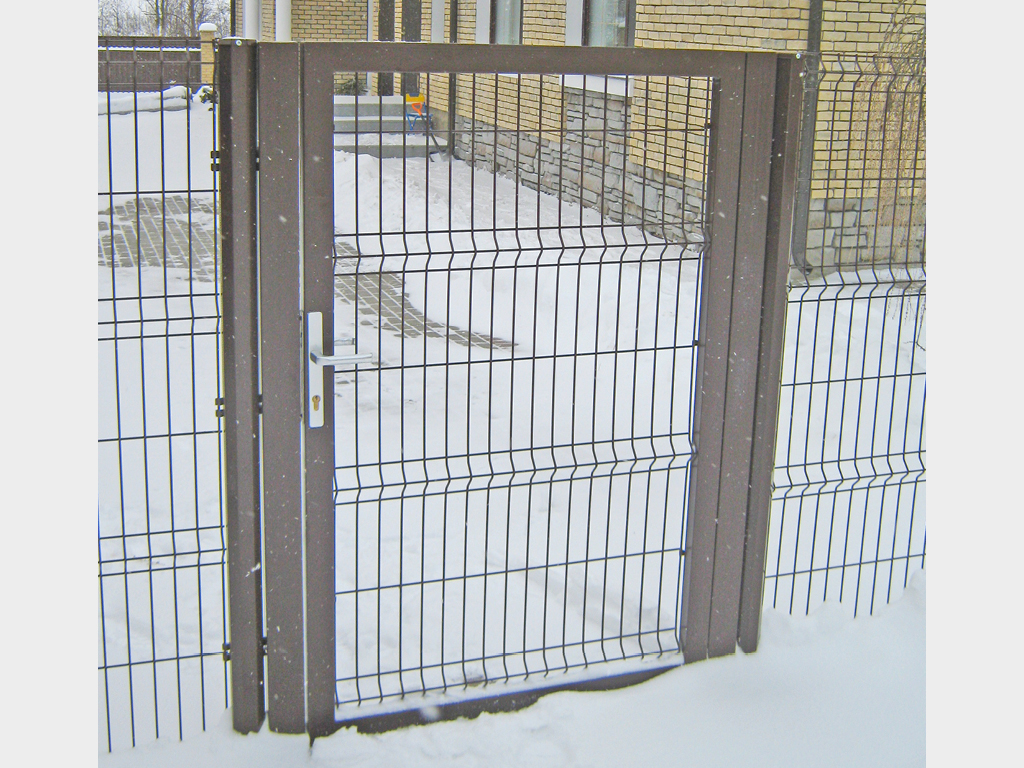

The door provides convenient access to the fenced area for pedestrians. Suitable for both country houses and industrial facilities. The web is made from the same metal sections as the fence.
Application:
  • Provide convenient access to the fenced area of the private sector
  • Installed as part of the entrance group in industrial parks and enterprises
  • Can be used to delimit zones within an enterprise
Advantages
Unified style with fence sections of fencing systems
All products are powder coated
Unified style with fence sections of fencing systems
All products are powder coated
Equipment
Standard
Optional

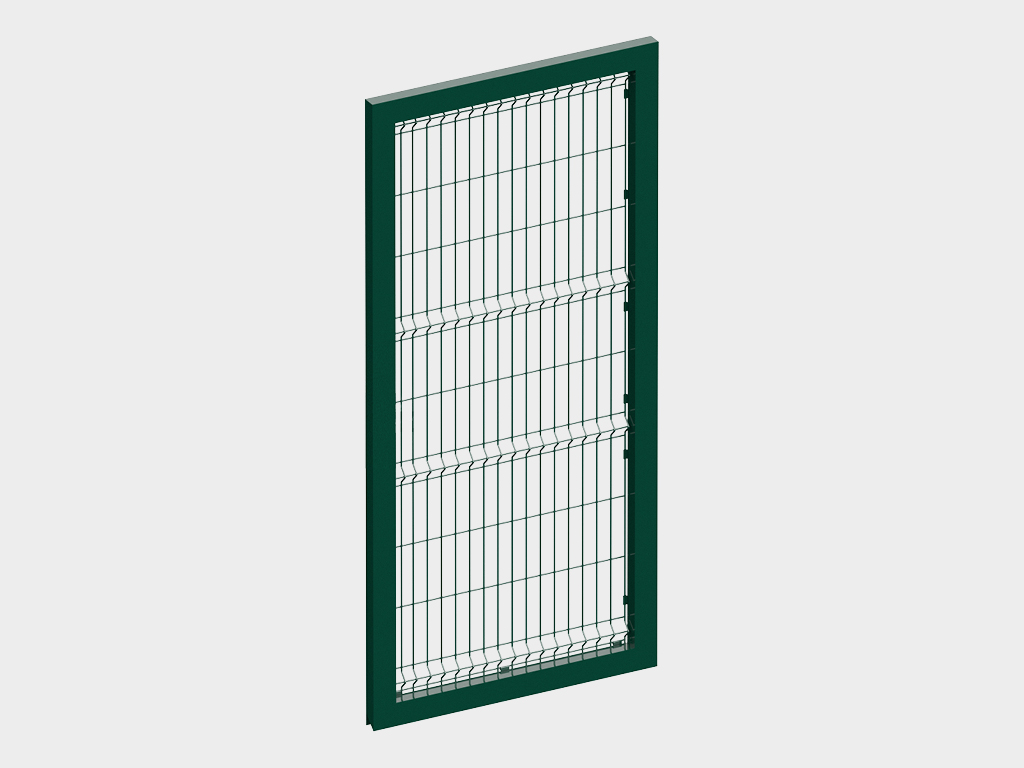

Door shield.

Door shield.

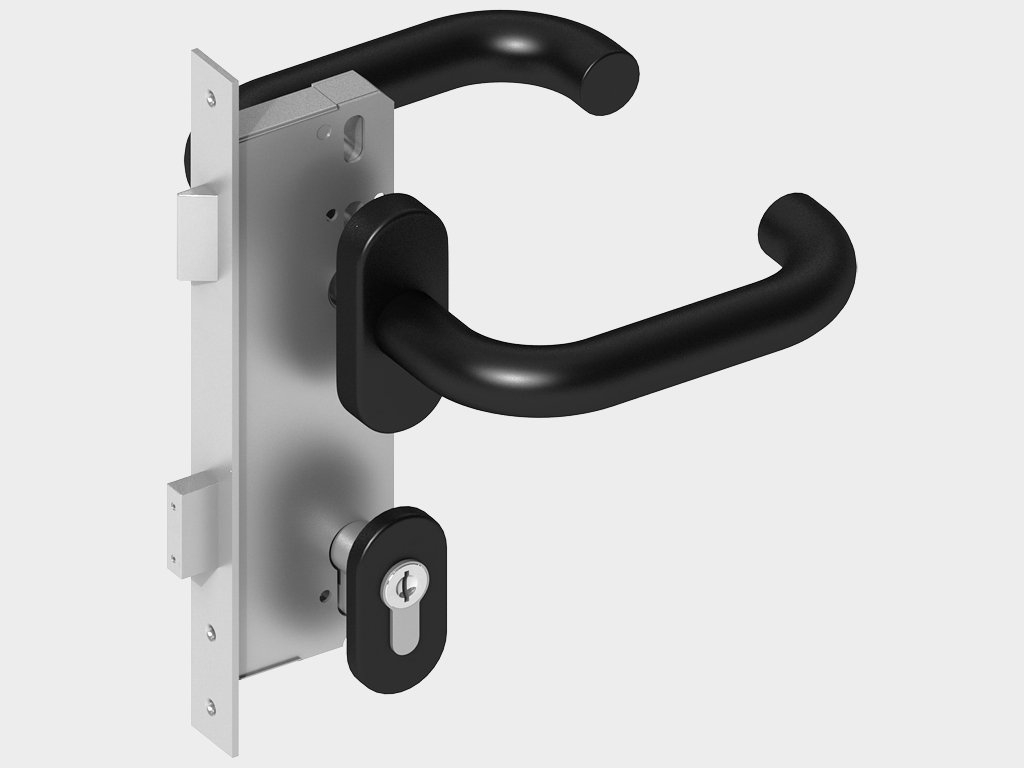

Lock with push handle.

Lock with push handle.

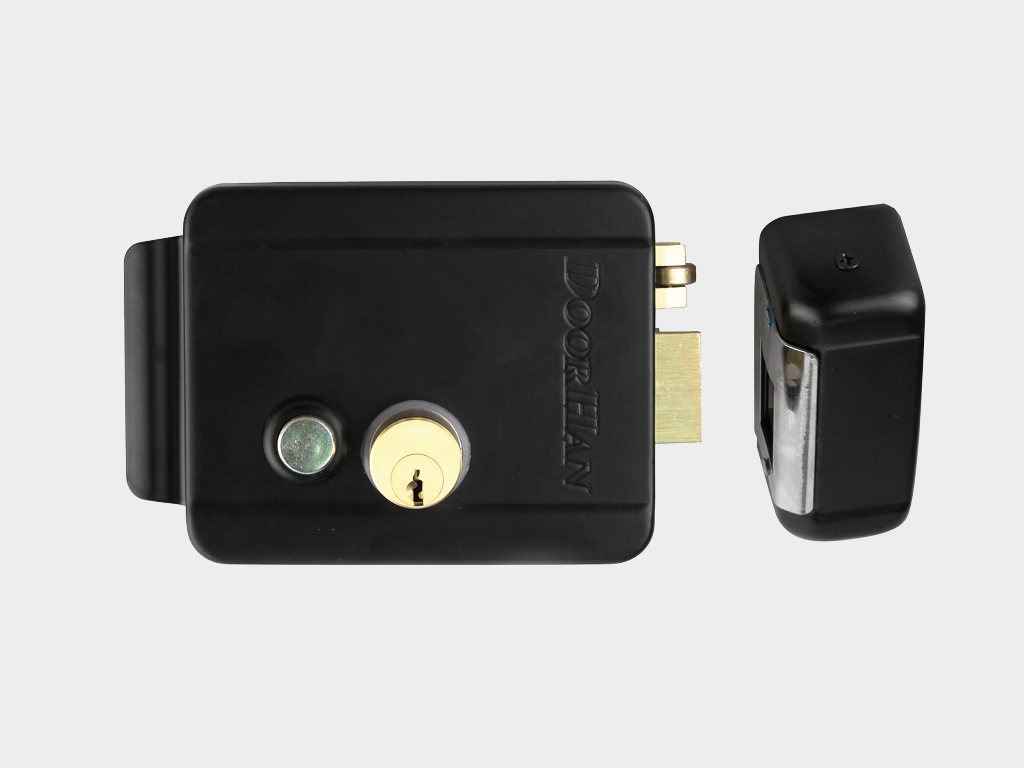

Mortise electromechanical lock.

Mortise electromechanical lock.

Technical description
Size Table
Opening Dimensions
Construction
Standard Construction
Specifications
Operating Conditions
Packaging
Parameters
Value
Opening height, mm
From 1,000 to 3,000
Opening width, mm
From 600 to 1500
Clearance, mm
From 10 to 200

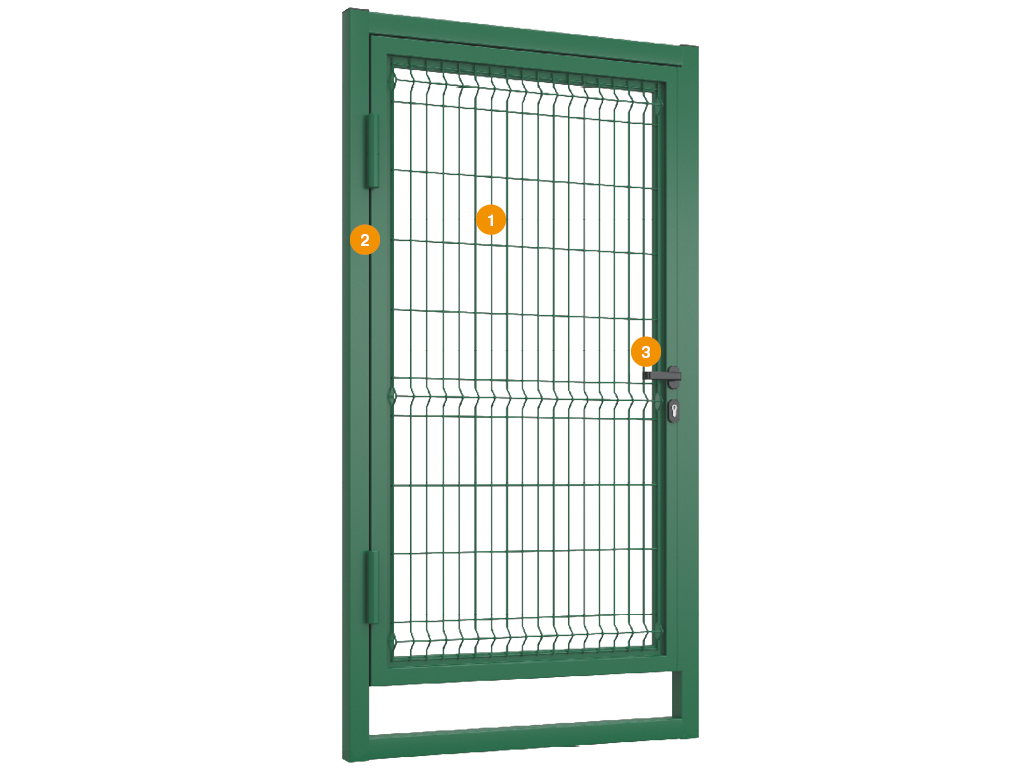

  1. Door shield
  2. O-frame
  3. Push handle lock

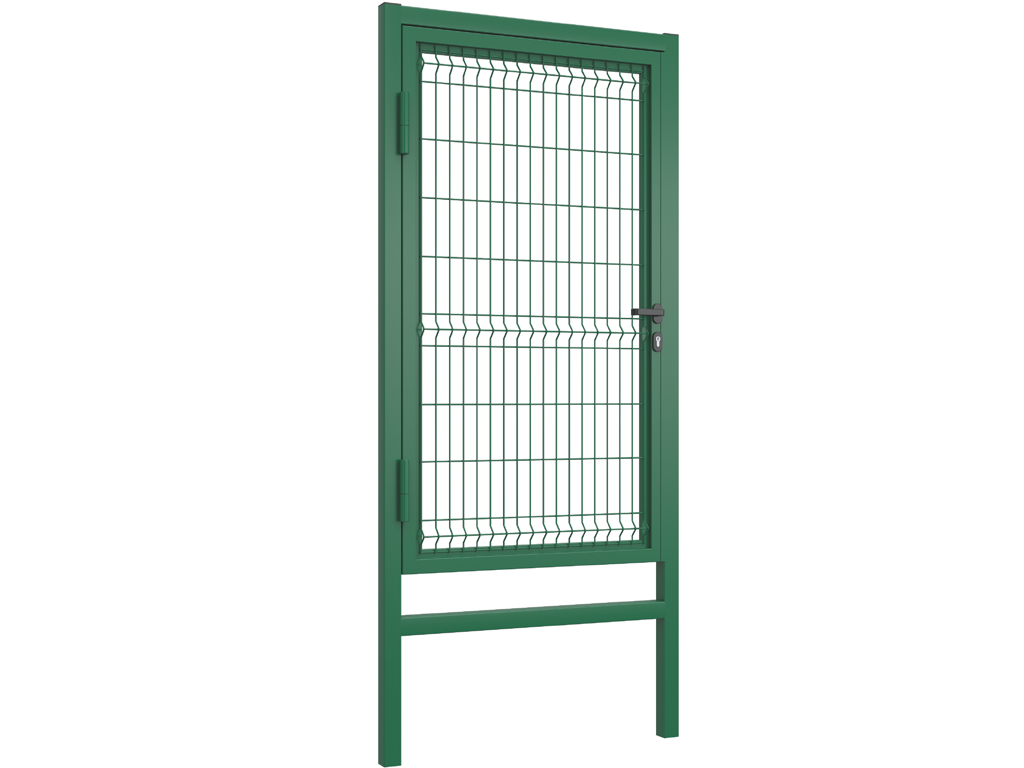

A door with T-profile steel frame are manufactured in one of the most popular sizes. The web is made from the same metal sections as the railing systems. The use of an all-welded O-frame significantly simplifies and reduces installation time. Suitable for both country houses and industrial facilities.

A door with T-profile steel frame are manufactured in one of the most popular sizes. The web is made from the same metal sections as the railing systems. The use of an all-welded O-frame significantly simplifies and reduces installation time. Suitable for both country houses and industrial facilities.

Symbol, parameter name Calculation formula
H, mm Opening height 2 000
B, mm Opening width 1 000
P, мм Просвет 100
Parameter Value Notes
Powder coating thickness not less than, microns 60
Surface density of zinc, not less than, g/m² 80
Diameter of horizontal rod, mm 4
Diameter of vertical rod, mm 4
Сопротивление ветровой нагрузке, Па 700
Impact resistance, J Е = 10 Дж; h = 1 м; m = 1 кг
Number of cycles 20 000
Strength of fastening of handles to a cloth, H Не менее 500
Усилие ручного открытия и закрытия калитки, H Не более 150
Leaf opening angle, ° 120

1. Correct installation and correct operation of the fence system guarantee the reliability and durability of the work. When operating it is necessary:

1.1. Carry out an external inspection of the product every 6 months after the installation of the system.

1.2. When visually inspecting, make sure that the welded sections are fixed to the supporting column, that there are no places with weak connections, and that there are no external mechanical damages.

1.3. If there are mortise structures (doors) in the fences, check the connections with them and their operability.

1.4. Door leaves should open and close the door smoothly, without jamming and creaking, and securely fixed with a locking device. If necessary, adjust the position using the adjusting elements, lubricate the hinges, handles and locking device.

1.5. Do not allow precipitation (water, snow, hail) to enter the column. To do this, make sure that all poles are closed with special plugs.

1.6. Operation of fences is allowed at an ambient temperature of -50 to +60 °C and a relative humidity of 75%.

2. During the operation of the fence, it is prohibited:

2.1. To hit the fence and cause damage to its structure.

2.2. Cleaning the fence with the substances that can cause damage to the surface of the fence.

2.3. Installation of equipment not provided by the manufacturer, which changes the weight, wind and other loads of the structural elements of the fence. Any interference with the manufacturer's standard solutions can lead to a loss of strength characteristics of the structure.

2.4. For the installation of security and video surveillance systems, it is necessary to use a design which is constructed for this purpose. Check with the manufacturer for the possibility of installing other equipment.

3. Security measures:

3.1. Installation of fences must be carried out by people who have fully studied the installation instructions. When performing installation work:

3.2. Use tools which are in good condition.

3.3.When installing the sections of the fence before fixing them, be especially careful and careful, protect the elements of the sections from falling.

3.4. When performing work related to lift the person to a height of more than 1.5 m, it is necessary to use a safety mounting belt. Its condition must be checked before starting work.

4. During installation, it is prohibited:

4.1. Use an attached or sliding ladder.

4.2. Use a ladder with a height of more than 2.5 m.

Packing in cardboard Packaging features
Description Packaging of the shield and poles
Contents Five-layer cardboard, stretch film, adhesive tape with logo
Packing in bubble wrap Packaging features
Description Standard packaging of poles
Packing in wood Packaging features
Description Shield and pole packaging
Contents Lathing from the board, cardboard sheet along the edges
Packing in cardboard box Packaging features
Description Packaging of parts
Contents 3-layer cardboard box, stretch film, adhesive tape with logo
Width, mm 450
Height, mm 300
Length, mm 550
Packing in stretch film Packaging features
Description Packaging of the shield and push handle as part of the shield
Installation
Mounting Options
Checking Dimensional Details

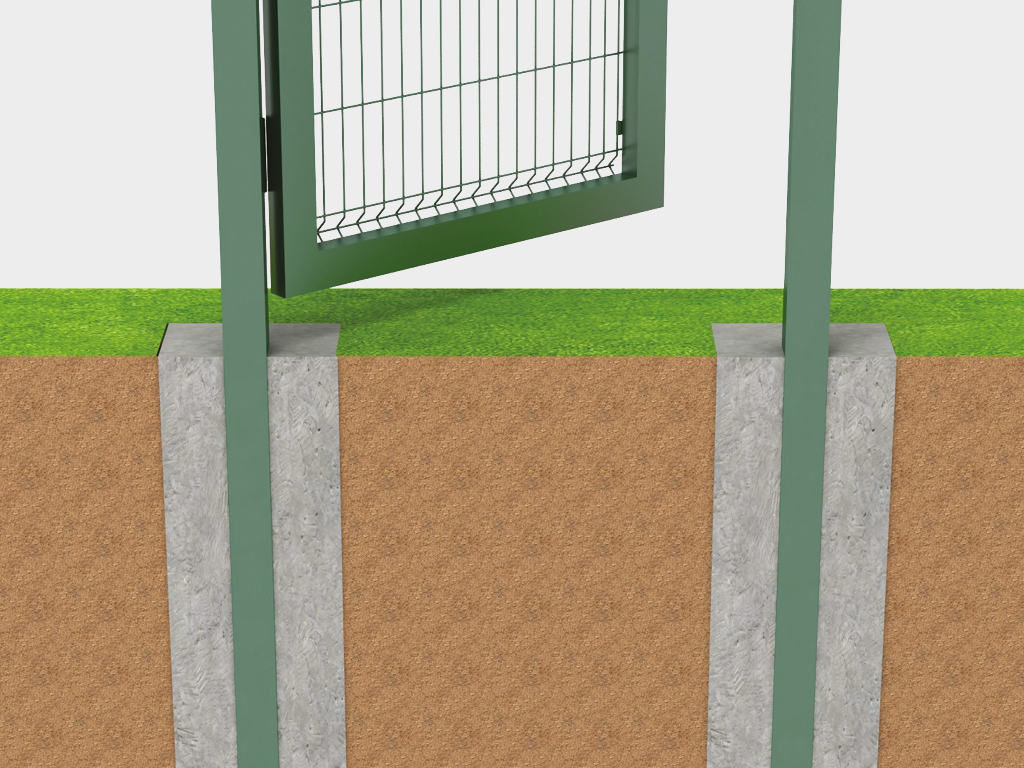

Installation with concreting poles.
Installation with concreting poles.

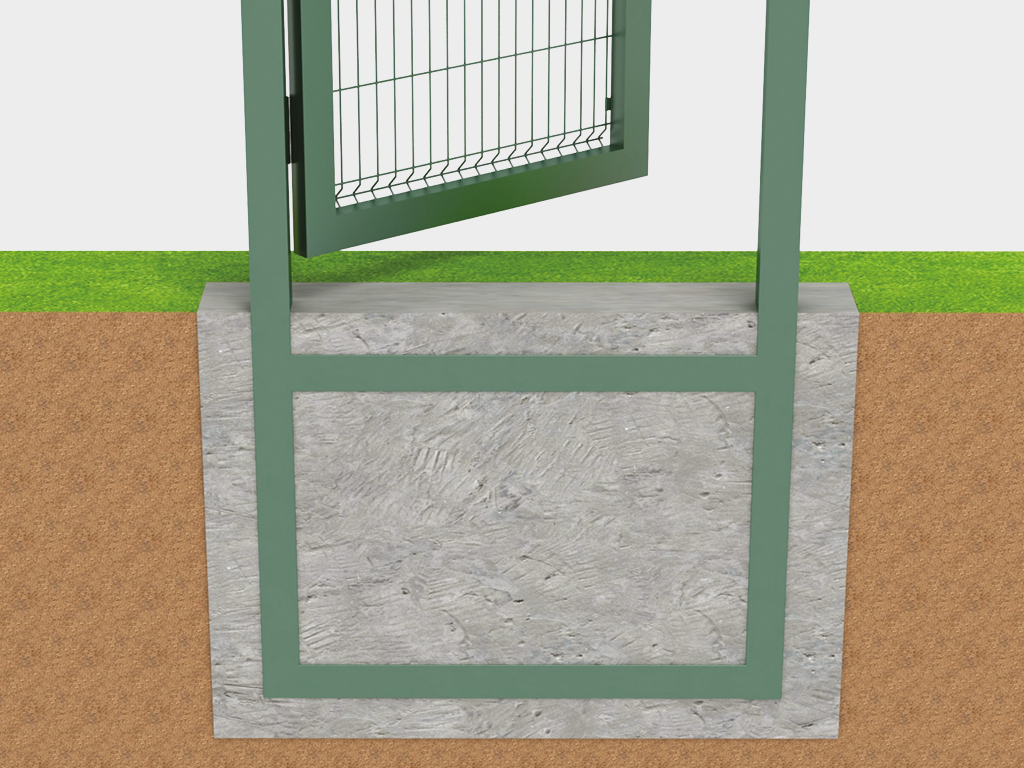

Installation with concreting frame.
Installation with concreting frame.

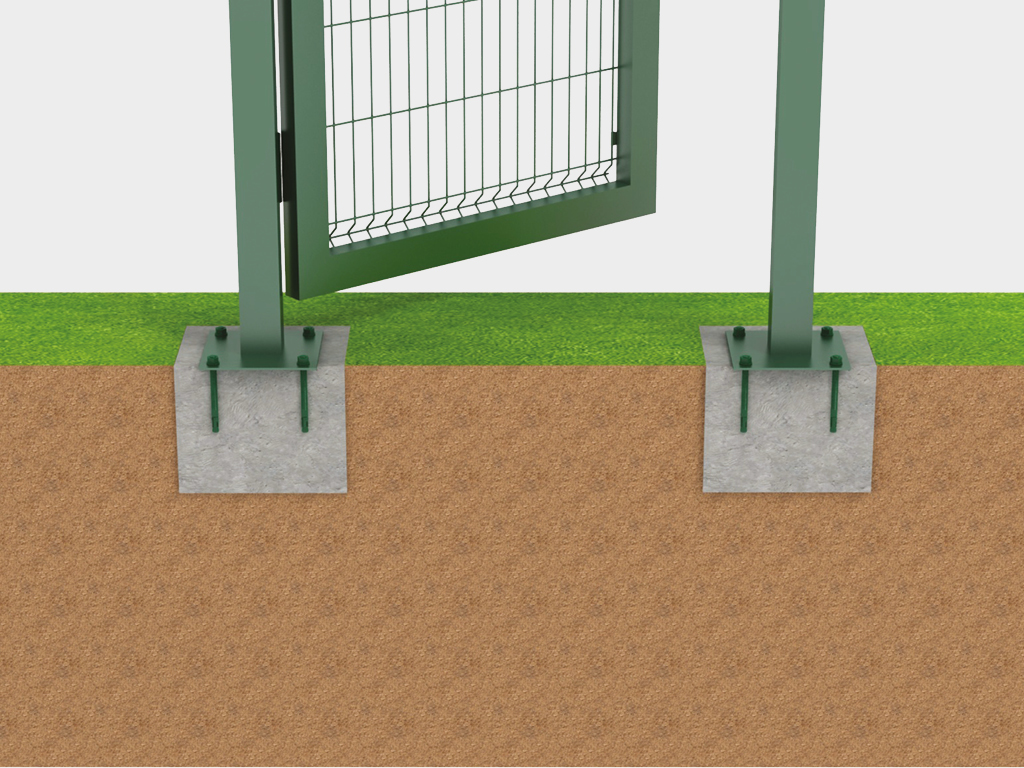

Flange mounting.
Flange mounting.

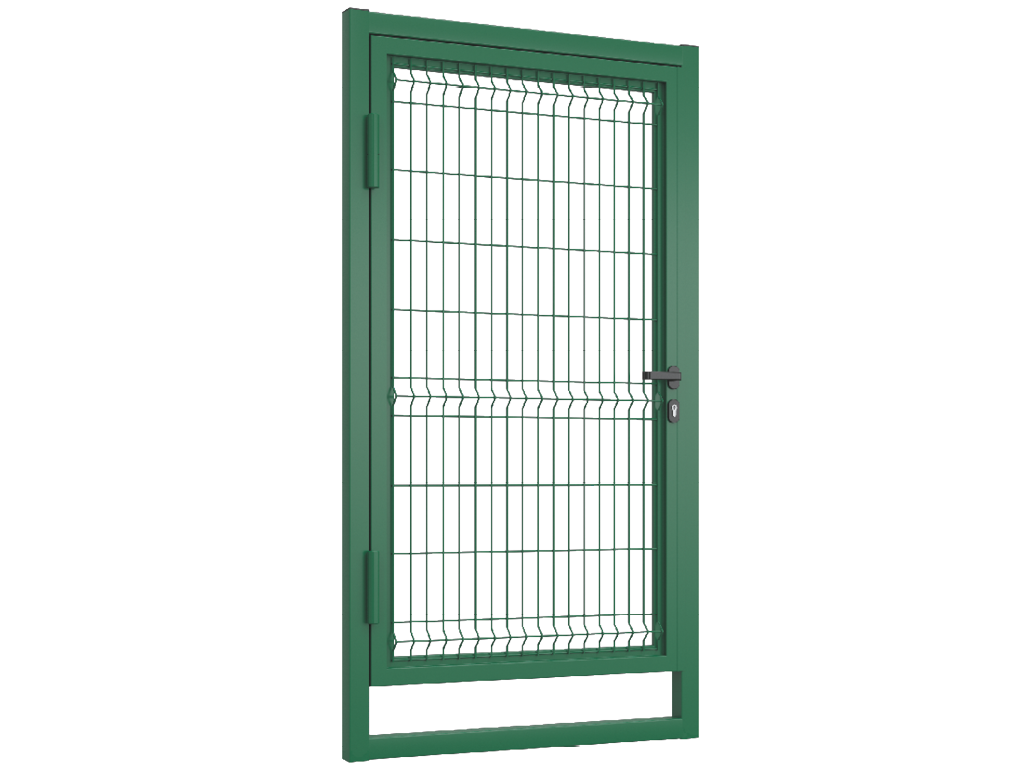

Installation of O-frame.
Installation of O-frame.

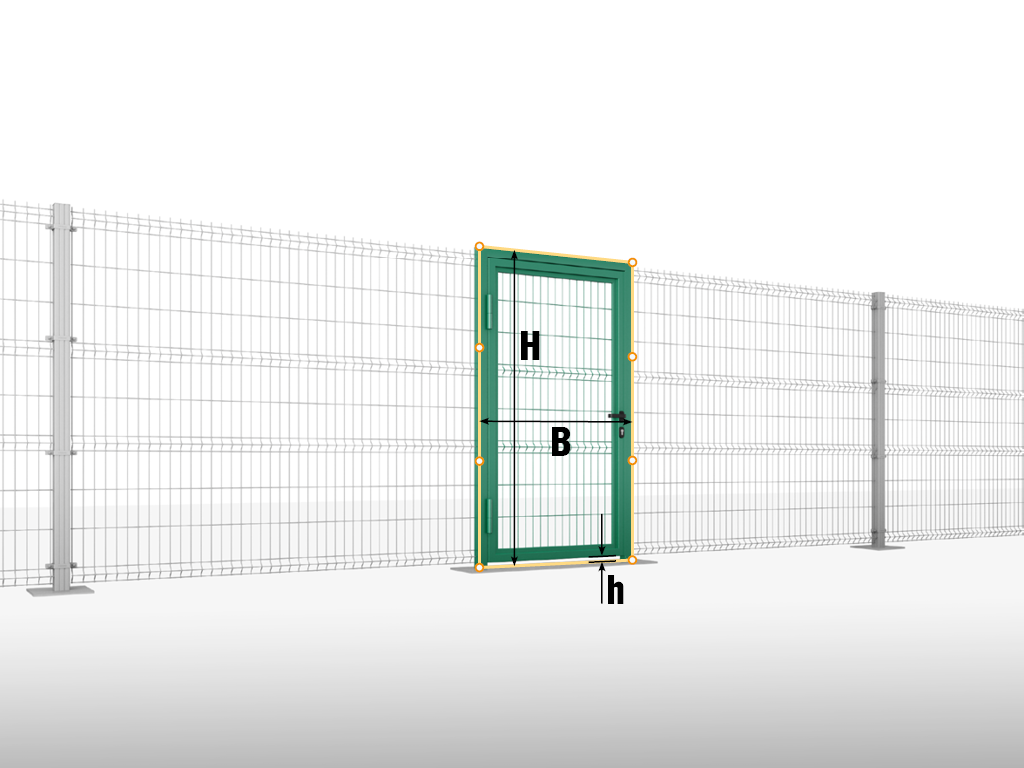

  1. H (mm)- the height of the structure.
  2. B (mm) - width of the structure.
  3. h (mm) - clearance.
Documentation
Technical Data and Certificates
Drawings

Certificate of conformity

Door’s passport for fencing systems

Door for fencing systems

Installation of the door

Warranty print

The buyer is provided with a guarantee of the operability of the design produced by the DoorHan concern for a period of 1 year for retail orders and for a period of 2 years for dealer orders from the date of purchase.

New Products

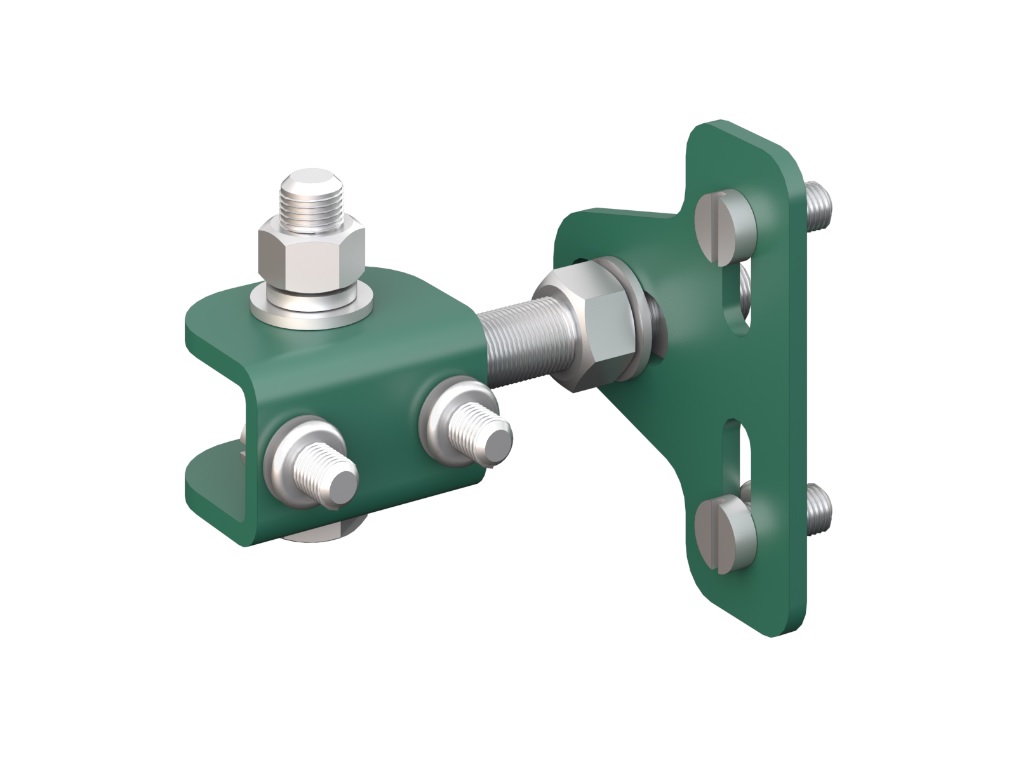

The hinges allow you to adjust the position of the sashes in height, width and reach.
