Roller shutter operator SHAFT

SHAFT-500KIT and SHAFT-200KIT drives are designed for automation of roller shutters installed in industrial, commercial, domestic and other premises. The drives are easy and safe to operate. In the event of an emergency, pressing the emergency button immediately turns off the power to the motor control unit. Quick and accurate stop of the electric operator is provided by the electromagnetic braking system. To increase the reliability of operation, double limit switches are used in the design of the drives.

Application:

For street roller doors
For garage roller doors

Order with installation

Advantages

The drive kit includes a remote control unit with a built-in three-position post and an emergency stop button with the possibility of expanding functionality.

With the help of the emergency hand drive, which is included in the basic package, it is possible to open and close the door manually in case of power outages.

Quick and precise stop of the engine is provided by the electromagnetic braking system.

The drive has a separate terminal for connecting a traffic light without using an additional control unit.

The main and backup limit switches are used to increase the accuracy of the door stop.

The drive kit includes a remote control unit with a built-in three-position post and an emergency stop button with the possibility of expanding functionality.

With the help of the emergency hand drive, which is included in the basic package, it is possible to open and close the door manually in case of power outages.

Quick and precise stop of the engine is provided by the electromagnetic braking system.

The drive has a separate terminal for connecting a traffic light without using an additional control unit.

The main and backup limit switches are used to increase the accuracy of the door stop.

Design

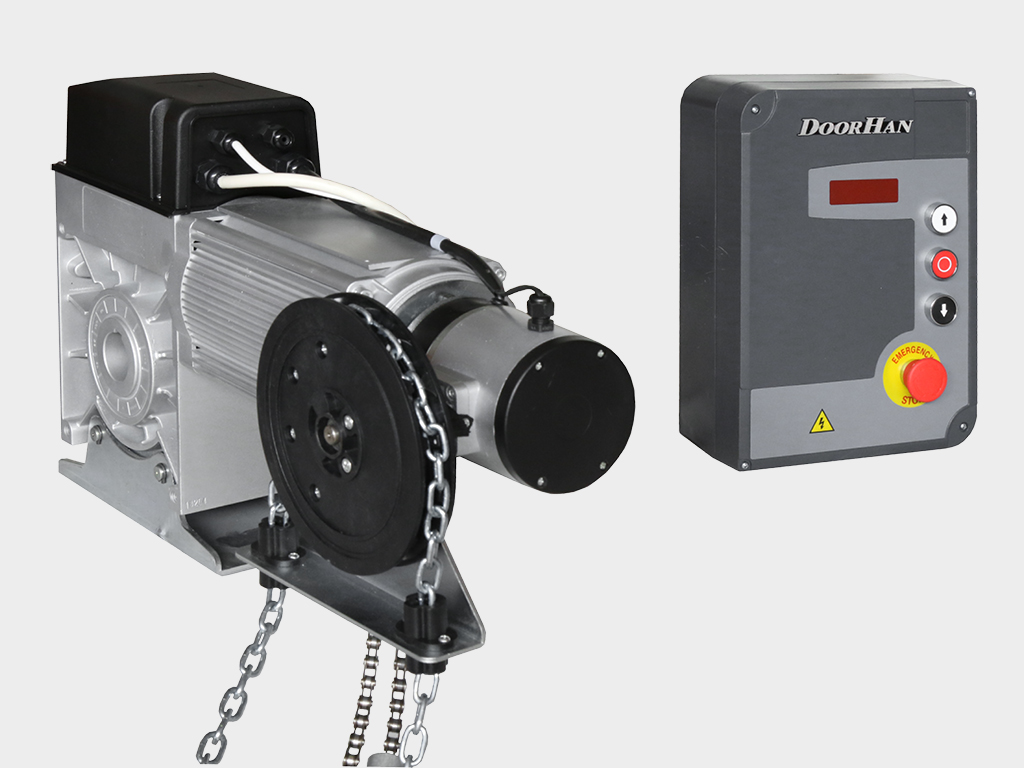

Shaft-500KIT

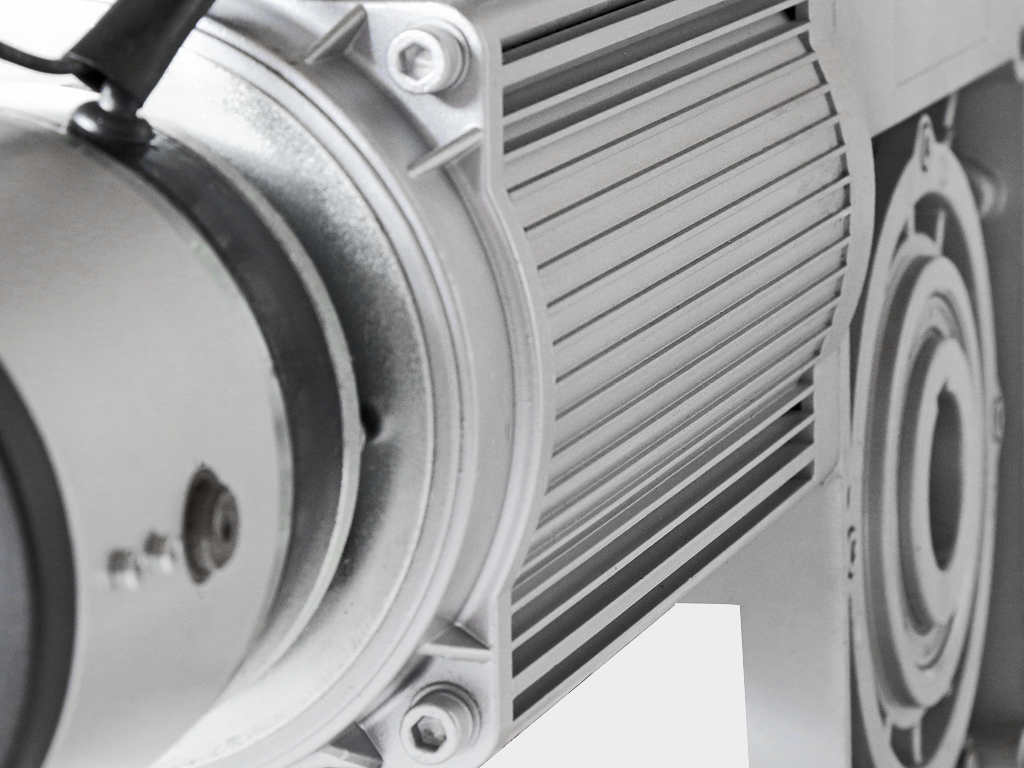

Metal case heatsinks

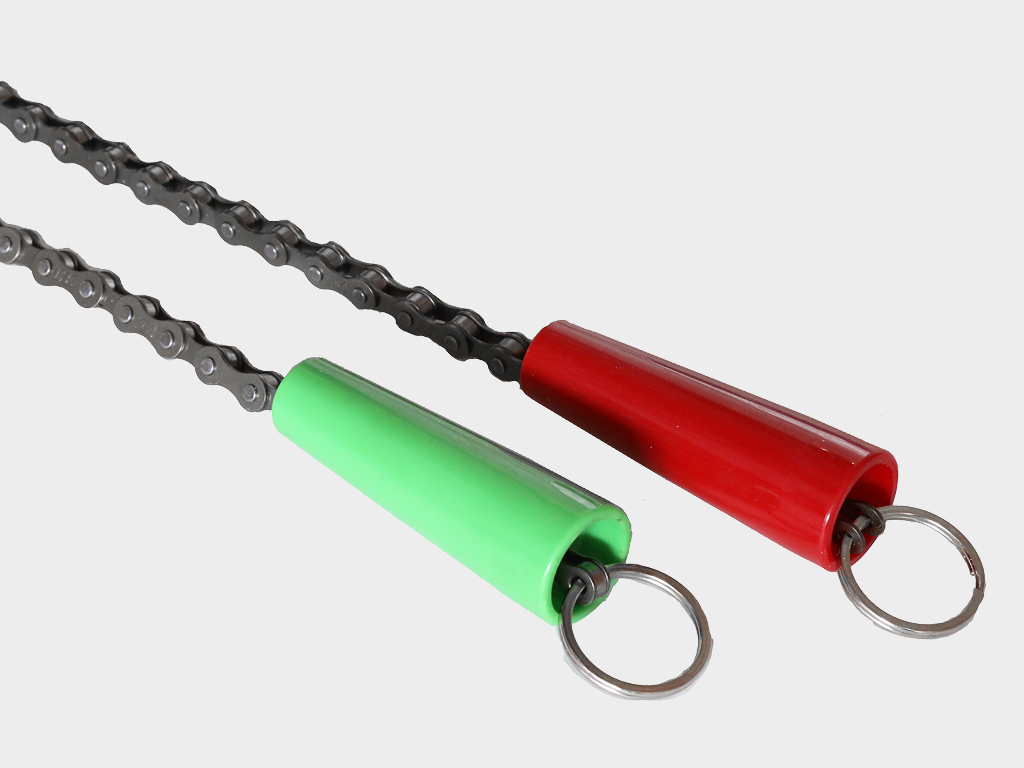

Built-in chain reducer with release handles

Remote control unit

Equipment

Standard

Optional

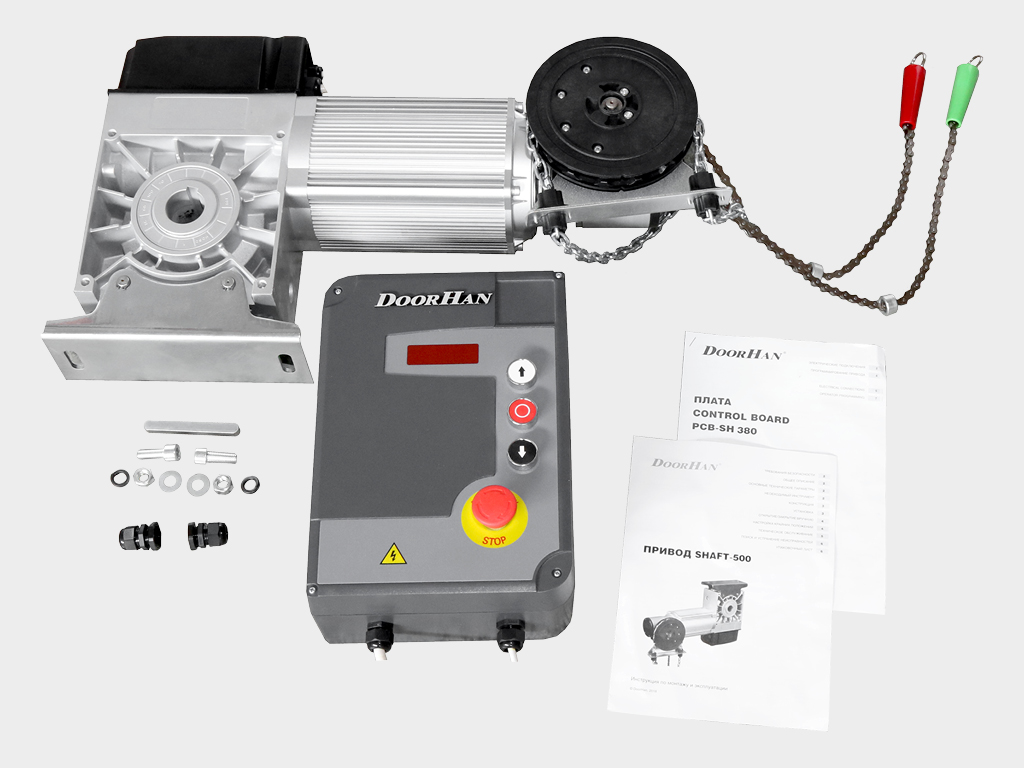

Operator with remote control unit, support bracket, key, fastening bolts.

Remote controller Transmitter-2PRO-Black for remote control of two automatic devices

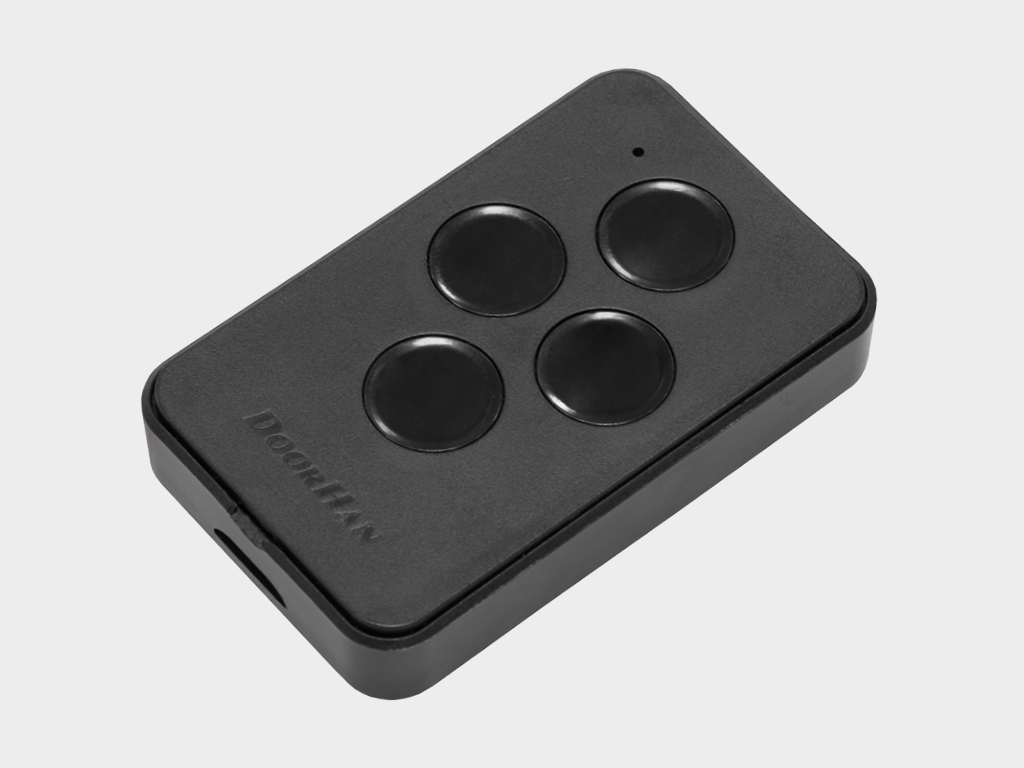

Remote controller Transmitter-4PRO-Black for remote control of four automatic devices

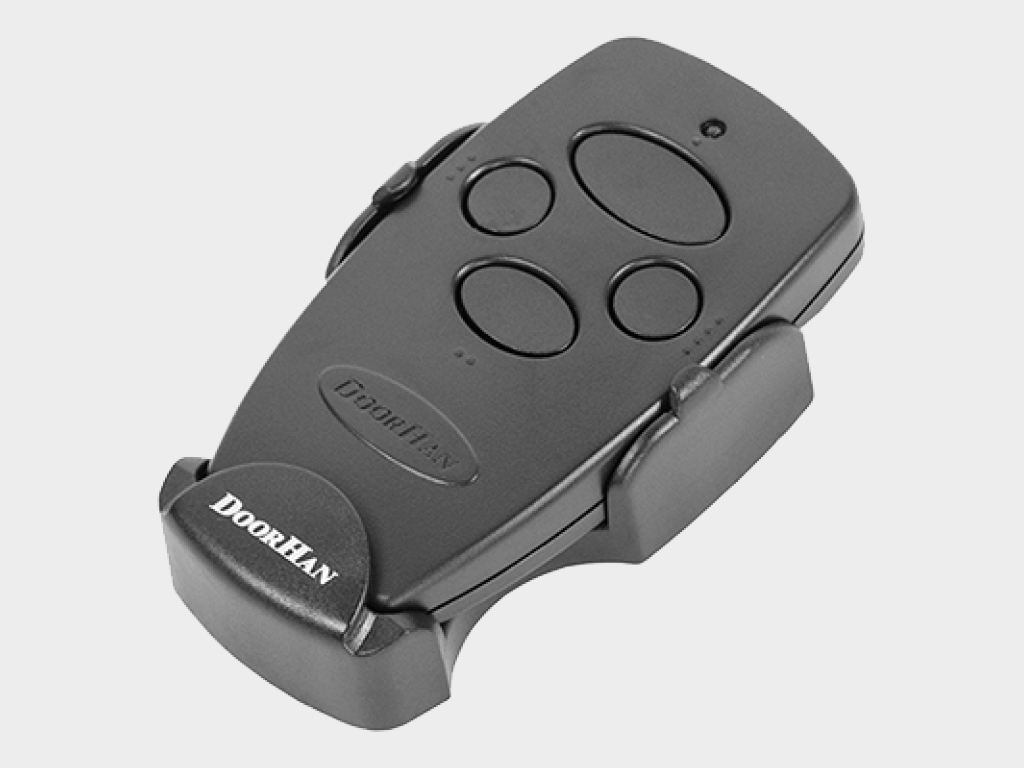

Remote controller Transmitter-4 for remote control of four automatic devices

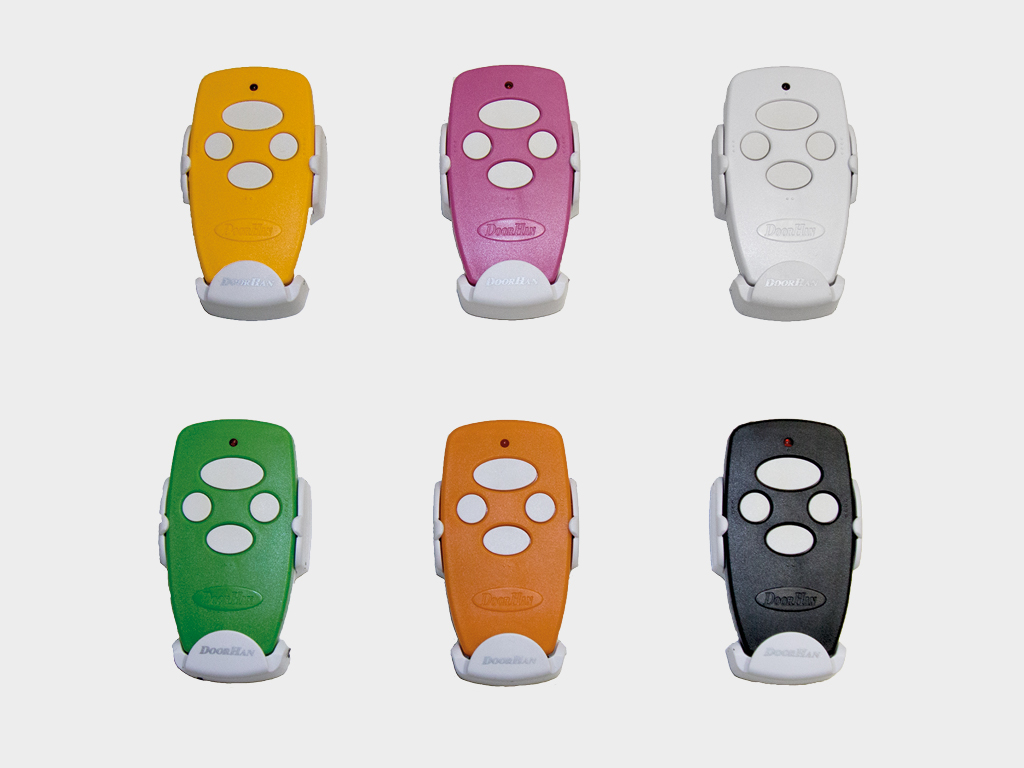

Color transmitters Transmitter-4 (Color) are designed for remote control of four automatic devices

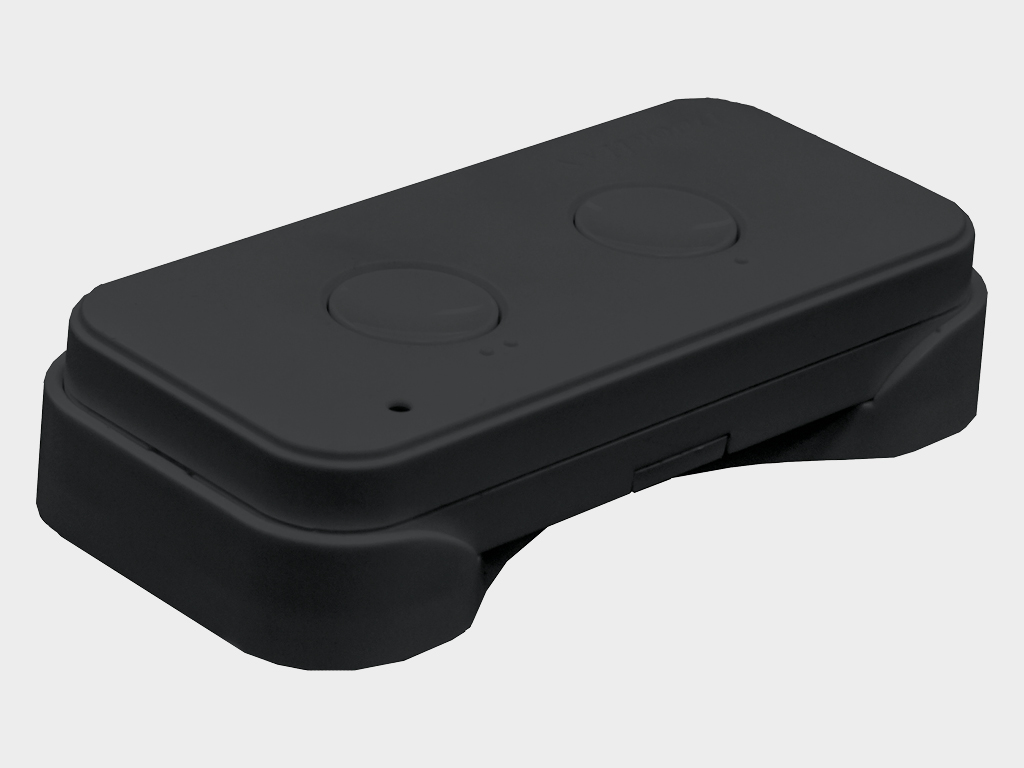

Command-433 wireless button for remote control of two automatic devices

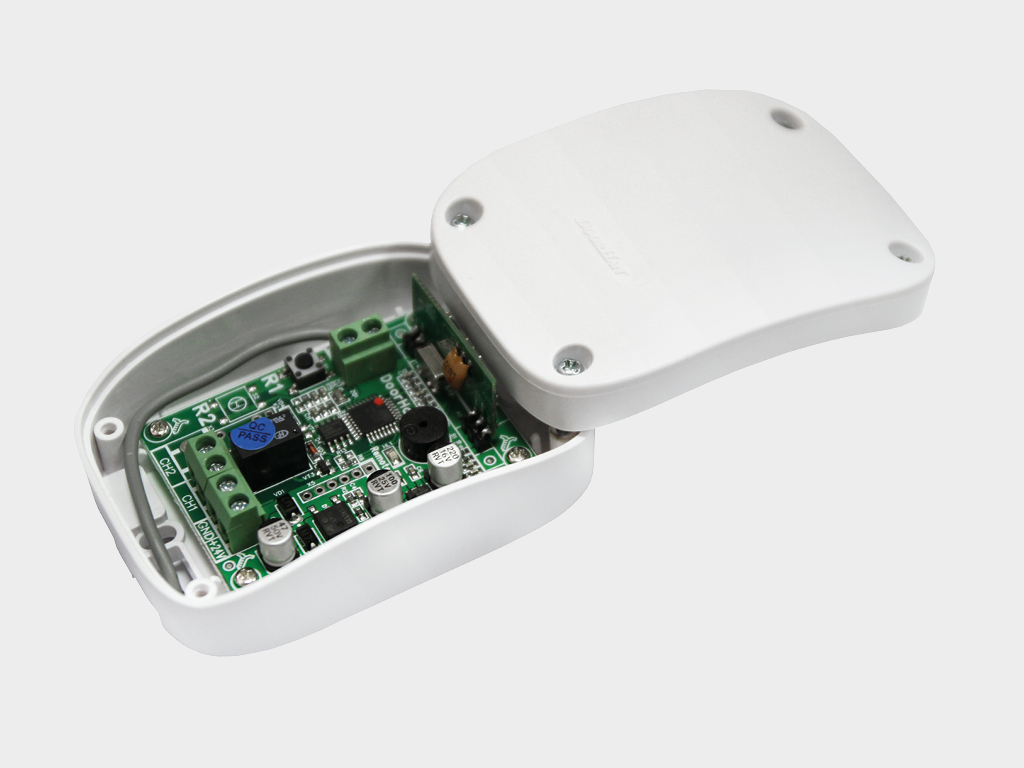

External radio receiver DHRE-1 for controlling automation of other manufacturers using the DoorHan remote control

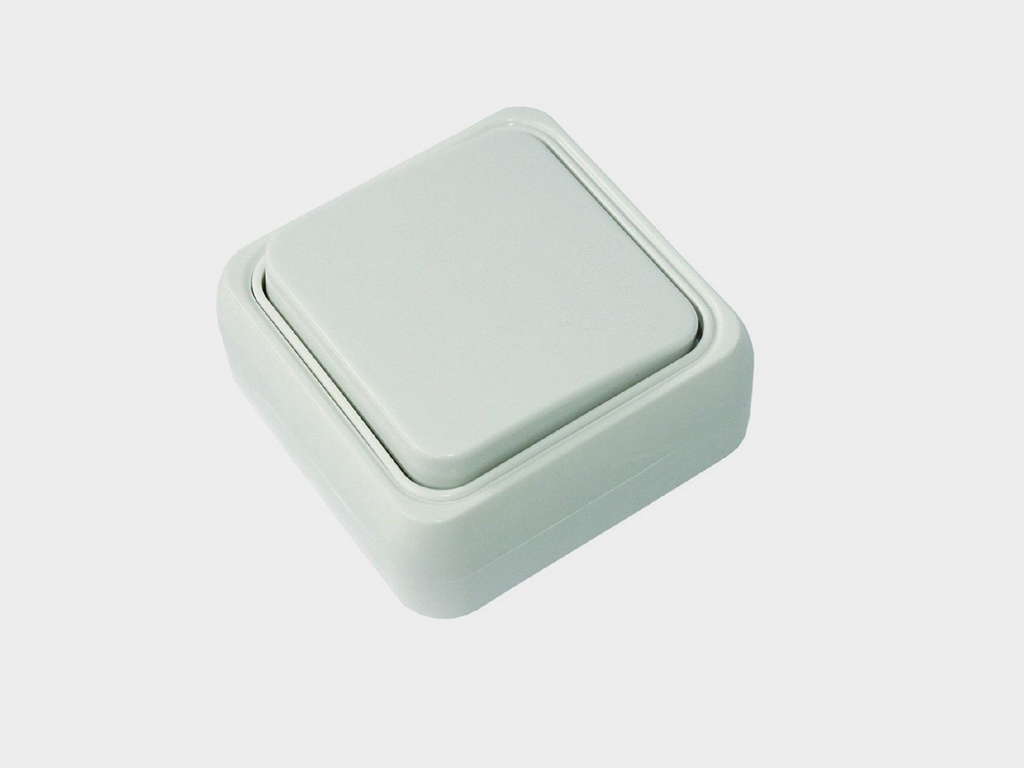

Rocker switch with return mechanism SWITCH for issuing a control command to the drive control unit

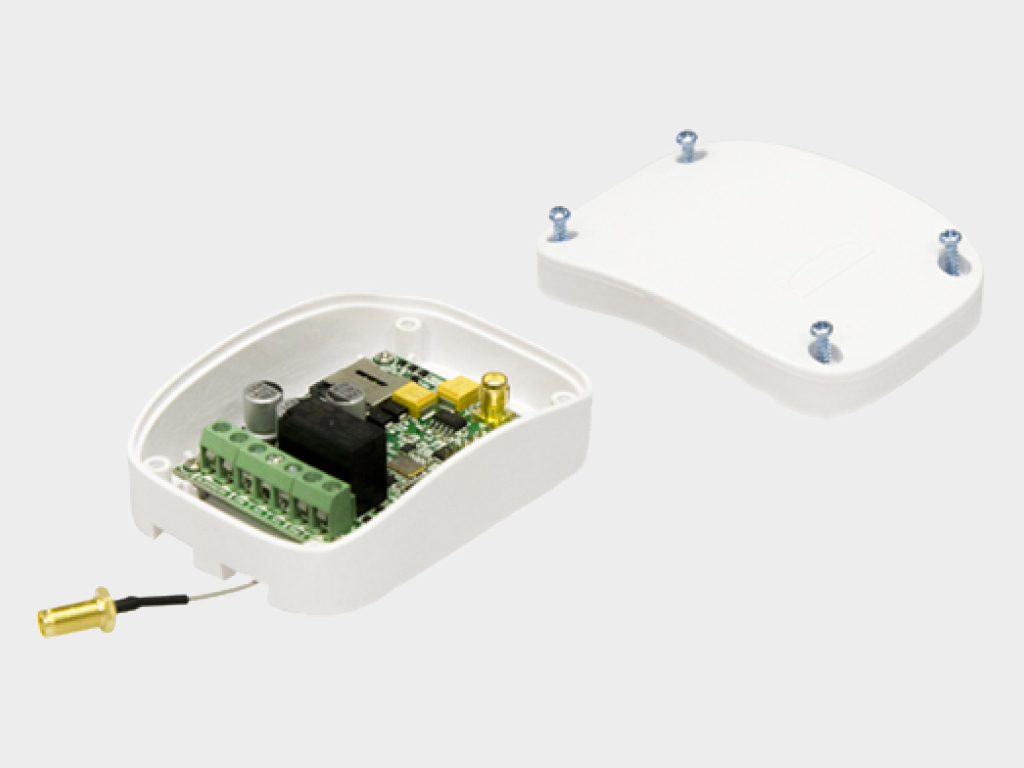

GSM module for receiving a signal from a mobile phone and transmitting a control command to start the electric drive

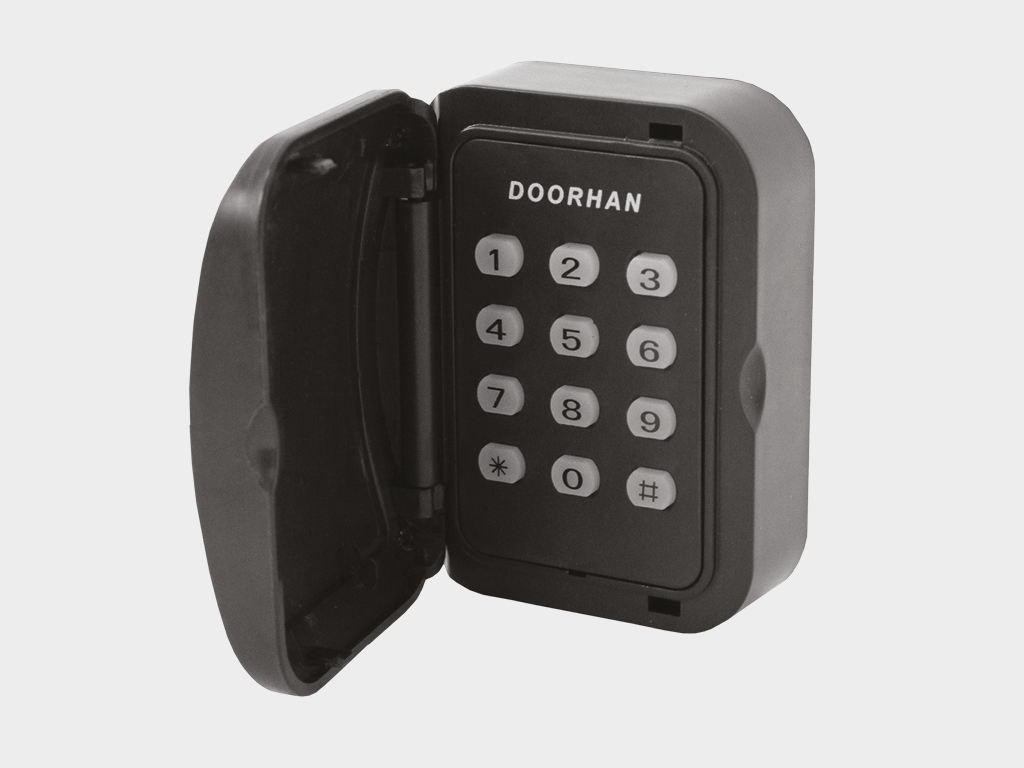

KEYPAD code keypad for remote control of the electric gate drive equipped with a built-in or external DoorHan receiver

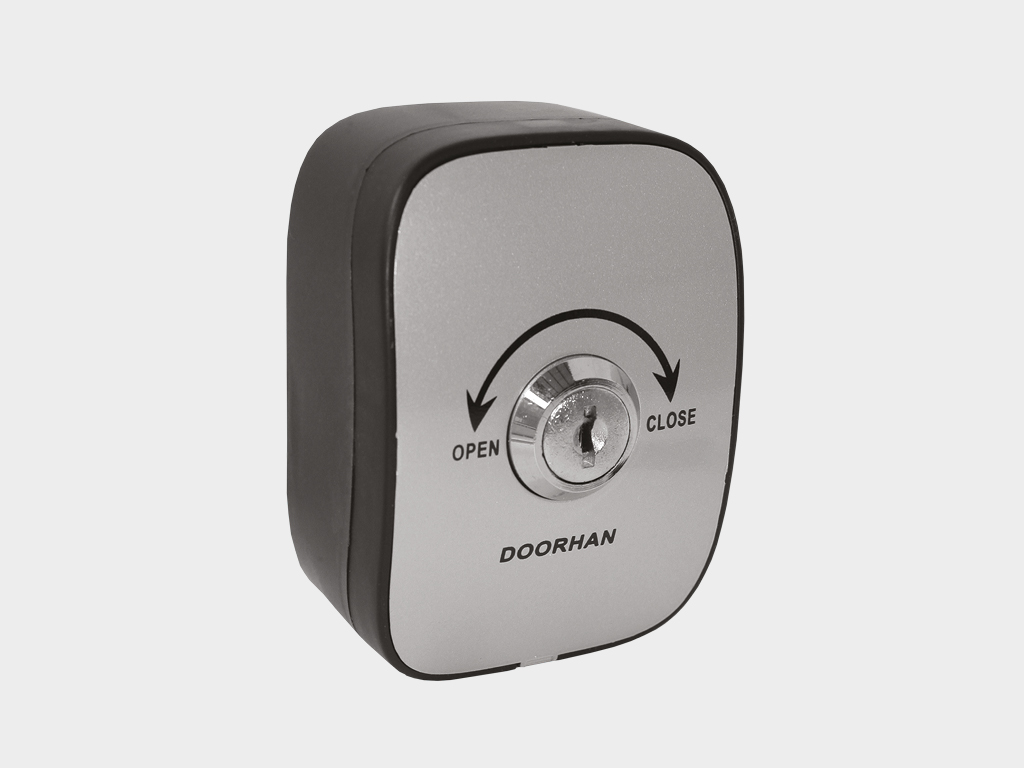

Key-button KEYSWITCH-N for issuing a control command to the control unit of the automatic system by turning the key

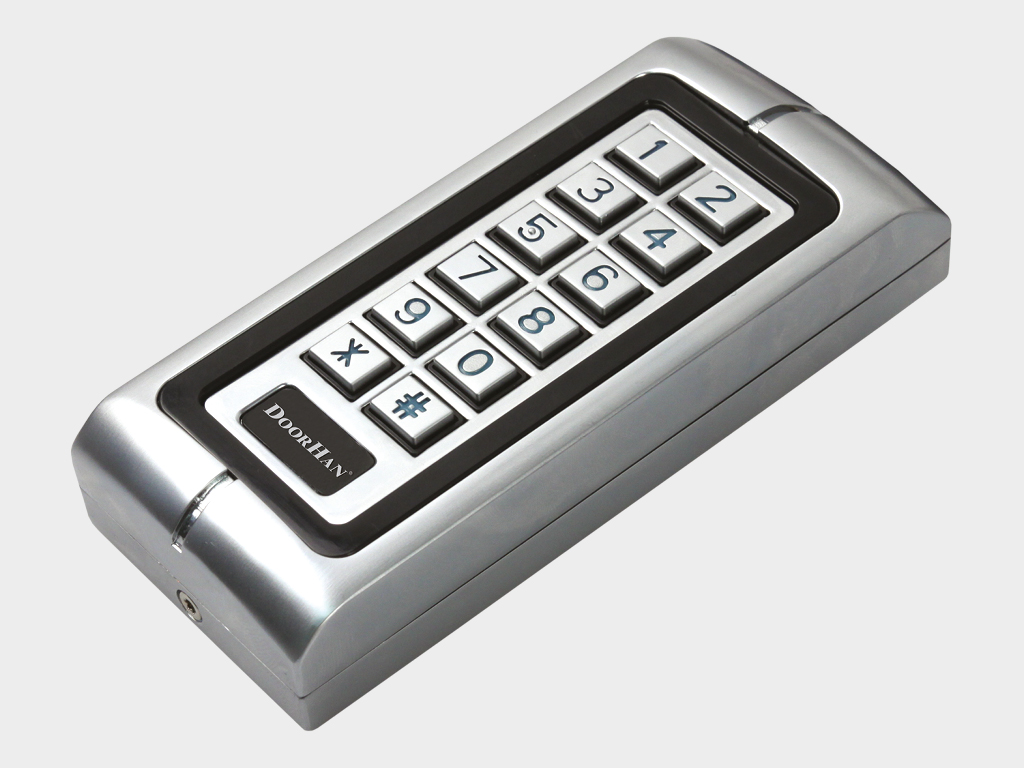

Anti-vandal code keypad KEYCODE to control the automatic device. Can be used as an external keypad or proxy card reader

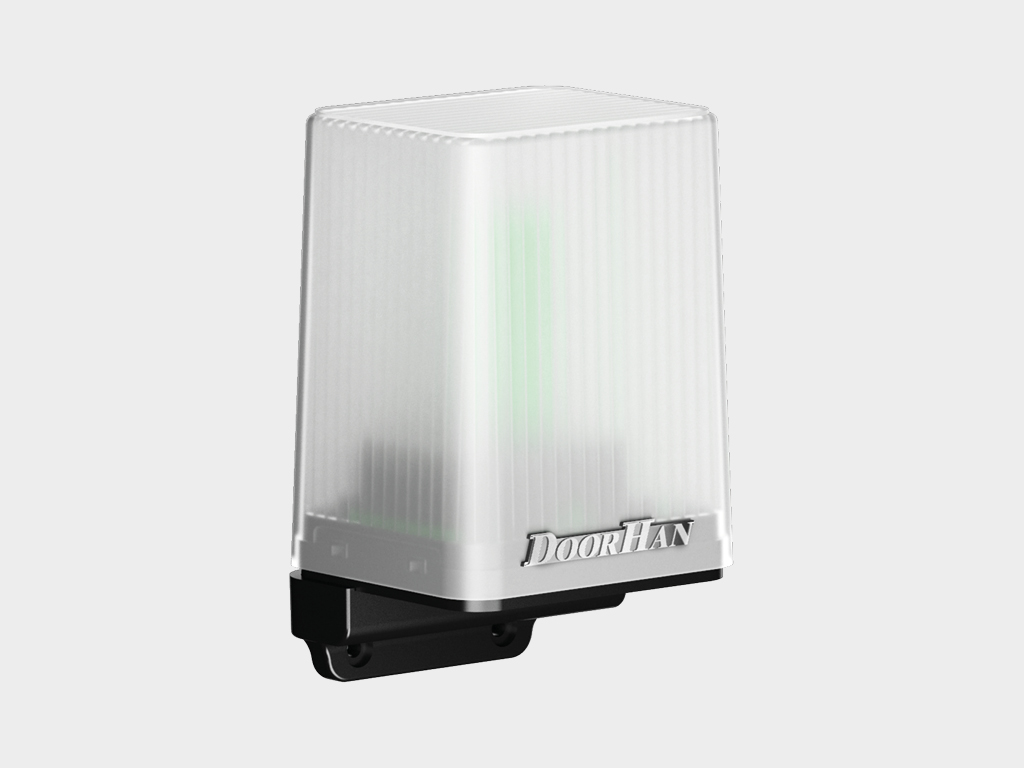

LED signal lamp with Lamp-PRO antenna for notification of the door movement

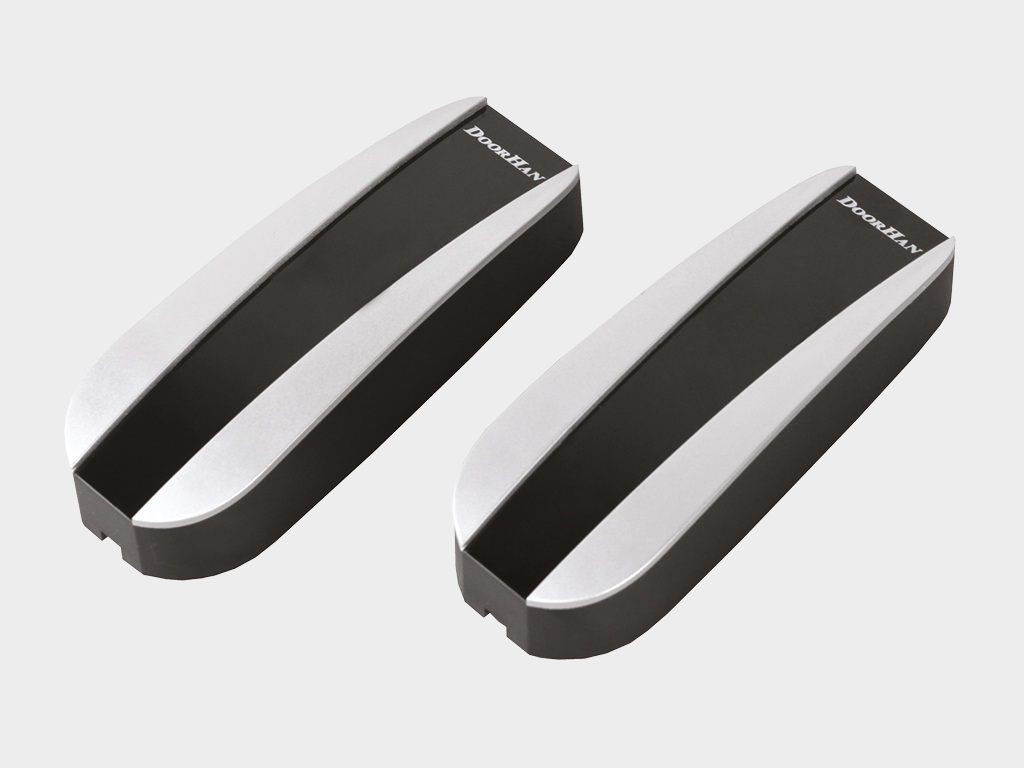

Safety photocells Photocell-N, consisting of an infrared transmitter and receiver

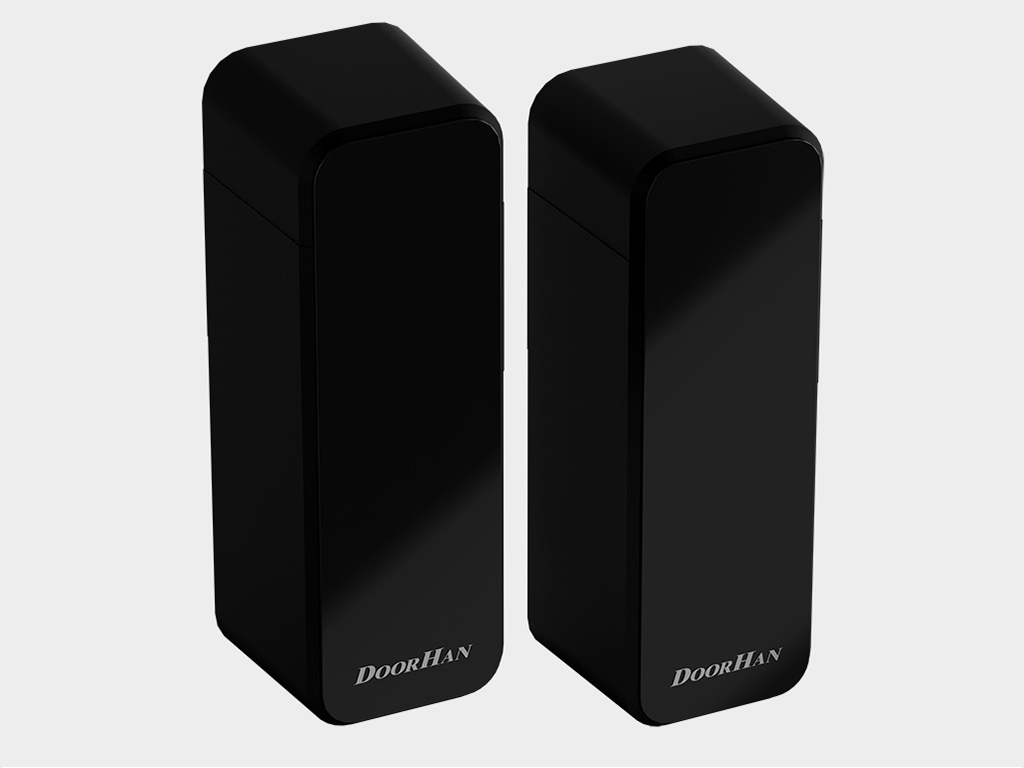

Photocell-PRO wireless security photocells with a swivel board for asymmetrical openings, consisting of an infrared transmitter and receiver

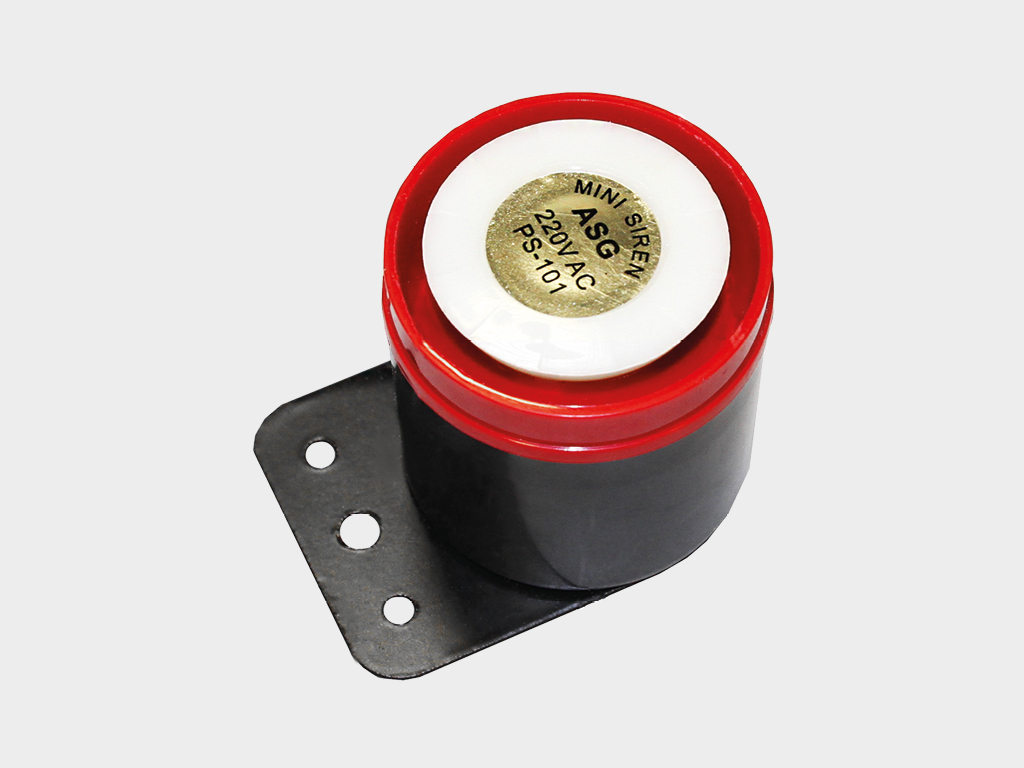

Siren for audible notification of the door movement

The LED traffic light is used with automatic devices that restrict access to parking lots, car washes, garage complexes, underground and multi-level parking lots

Technical description

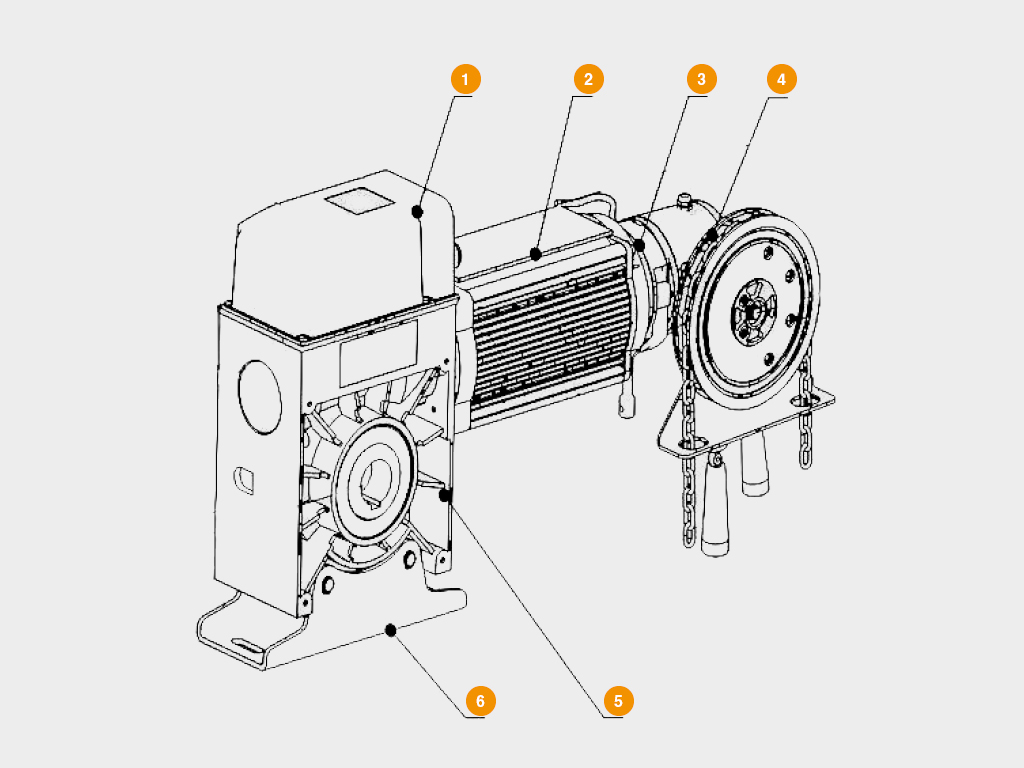

Construction

Specifications

Operating Conditions

Packaging

Protection cover for limit switches
Operator
Electromagnetic brake
Manual chain reducer
Reducer
Mounting support bracket

Parameter	Value	Notes
Supply voltage, V	380–400 V / 50/60 Hz
Motor rotational speed, rev/min	1 400 / 720
Power, W	800 / 1 500
Torque, Nm	200 / 500
Operating temperature range, °С	-30...+55 / -20…+45
Thermal protection, °С	120
Weight, kg	25 / 35

1. Make sure that the place of use corresponds to the characteristics of the drive in terms of its climatic conditions.

2. Do not install the equipment in rooms with flammable substances or hazardous environments.

3. Make sure that there will be no pinching of objects between the moving and fixed parts of the drive when the door moves.

4. Use only original accessories to avoid damage to the drive.

5. Do not leave the electric operator in a disengaged state.

6. Do not use the drive if repair or adjustment is necessary.

7. Make sure that there are no foreign objects in the area of the electric drive before starting it.

8. Passage is allowed only when the roller shutter is stopped and the drive is turned off.

9. Do not let children use the drive and accessories.

10. Do not make changes to the automation.

Packing in cardboard	Packaging features
Length, mm	680
Height, mm	230
Width, mm	400

Additional Information print

The emergency drive allows the door leaf to be lifted manually.

The main and backup limit switches are used in the design of the drive to increase the accuracy of the door stop.

The drive control unit has compact dimensions. All necessary connections are made at the production stage.

High class of dust and moisture protection - IP54.

Installation

Mounting Options

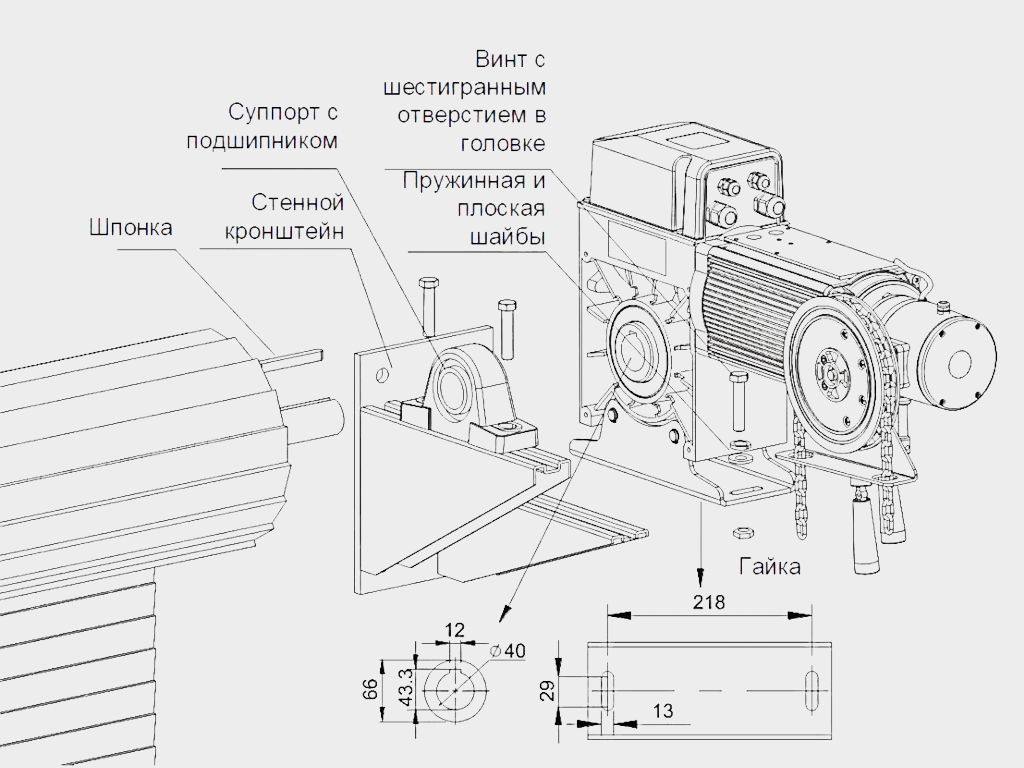

Attaching the Support Bracket to the Optional Console

Documentation

Manuals

Drive installation and operating manual PCB-SH 380

PDF

Warranty print

The buyer is provided with a 3-year drive performance guarantee from the date of purchase. Dealers have the right to change the warranty period.
