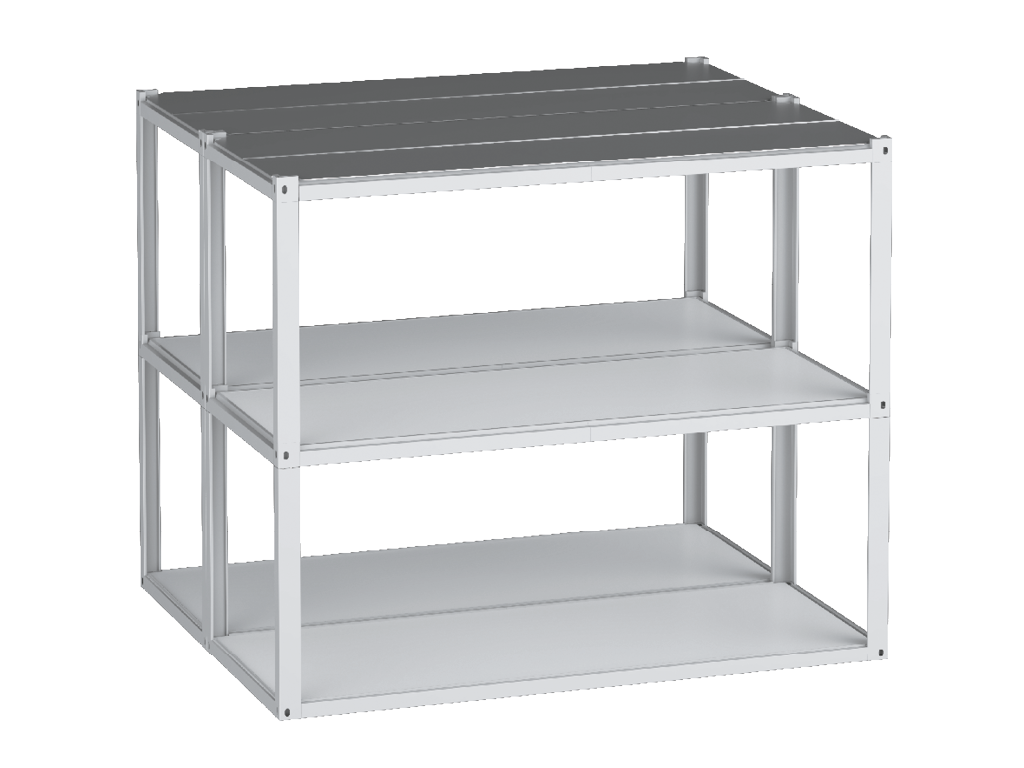

Комплект рам для сборки зданий с общим перекрытием

It is used for the production of modular buildings with a height of two to four floors. The special design of the frame profile has a high load-bearing capacity, and the corner element of the frame provides a detachable connection of the structure. Thanks to bolted connections, the assembly of the structure is carried out without welding.
Application:
  • Frame sets are used to create various, complex and simple, frame configurations for modular buildings (with combined ceilings) for various purposes: residential, public, technical and industrial, domestic and special.
Advantages
The production of frames at several factories of the concern and the presence of a large warehouse stock guarantee the shortest terms of production and delivery of products.
Transportation in the form of "transpack" allows you to load the volume of vehicles as efficiently as possible: up to eight units of transport packages per vehicle.
The production of frames is carried out on modern automated lines from high-quality raw materials, which allows us to increase the warranty period of the product up to 24 months.
Well-developed solutions for all units, completeness of delivery, absence of welding processes.
The production of frames at several factories of the concern and the presence of a large warehouse stock guarantee the shortest terms of production and delivery of products.
Transportation in the form of "transpack" allows you to load the volume of vehicles as efficiently as possible: up to eight units of transport packages per vehicle.
The production of frames is carried out on modern automated lines from high-quality raw materials, which allows us to increase the warranty period of the product up to 24 months.
Well-developed solutions for all units, completeness of delivery, absence of welding processes.
Design
Frame color
RAL 7035 (light grey)
RAL 7035 (light grey)
Individual color according to RAL-card
Individual color according to RAL-card
Technical description
Size Table
Parameters
Value
Length, m
2,06—9
Width, m
up to 3
Height, m
15,2*
* Based on a maximum floor-to-ceiling height of 3.5 m, 4-tier frame and 300 mm insulation thickness for frames
Documentation
Technical Data and Certificates

Сертификат соответствия продукции ООО «ДорХан – Торговый Дом»

Сертификат соответствия продукции ООО «ДорХан 21 век – Новосибирск»
