Frame buildings according to an individual project

Frame buildings, made according to an individual project, are distinguished by a variety of architectural and planning solutions. They are widely used in industrial, agricultural, transport logistics and trade facilities. The frames of such buildings can be made using either metal or reinforced concrete columns, which makes it possible to take into account various conditions in terms of fire safety requirements and environmental aggressiveness.
Application:
  • Industrial and warehouse complexes
  • Industrial buildings for various purposes
  • Buildings for agriculture
  • Logistics centers
  • Sports and recreation complexes
  • Shopping and entertainment complexes
Advantages
Allows you to link all sections together, eliminate possible collisions and intersections and determine optimal technical and economic indicators.
Dimensions and characteristics are determined by the customer based on the technology requirements and his wishes.
This is achieved by taking into account all possible natural factors (temperature, seismological, man-made) during design.
The wide range of DoorHan products allows you to equip any construction site with all the necessary equipment (gates, technical and refrigeration doors, loading equipment, stained glass structures, etc.).
Designing BIM models of a building based on standard design solutions significantly reduces the time required to prepare production and price specifications, as well as working design documentation.
The frames of such buildings can be made using either metal or reinforced concrete columns, which makes it possible to implement various architectural solutions and layouts, taking into account the customer’s wishes regarding the size and characteristics of future premises.
Allows you to link all sections together, eliminate possible collisions and intersections and determine optimal technical and economic indicators.
Dimensions and characteristics are determined by the customer based on the technology requirements and his wishes.
This is achieved by taking into account all possible natural factors (temperature, seismological, man-made) during design.
The wide range of DoorHan products allows you to equip any construction site with all the necessary equipment (gates, technical and refrigeration doors, loading equipment, stained glass structures, etc.).
Designing BIM models of a building based on standard design solutions significantly reduces the time required to prepare production and price specifications, as well as working design documentation.
The frames of such buildings can be made using either metal or reinforced concrete columns, which makes it possible to implement various architectural solutions and layouts, taking into account the customer’s wishes regarding the size and characteristics of future premises.
Design
BUILDING ENVELOPE
PROFILE VIEW OF SANDWICH PANELS
VIEW OF SANDWICH PANELS LOCK

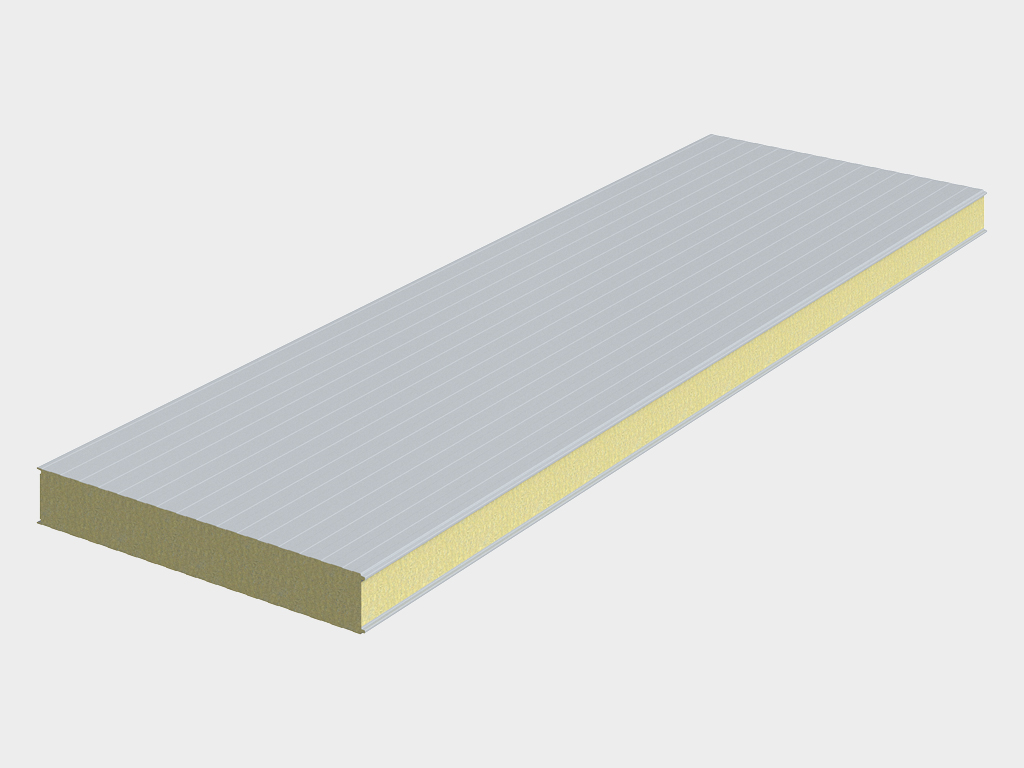

Wall sandwich panels
Wall sandwich panels

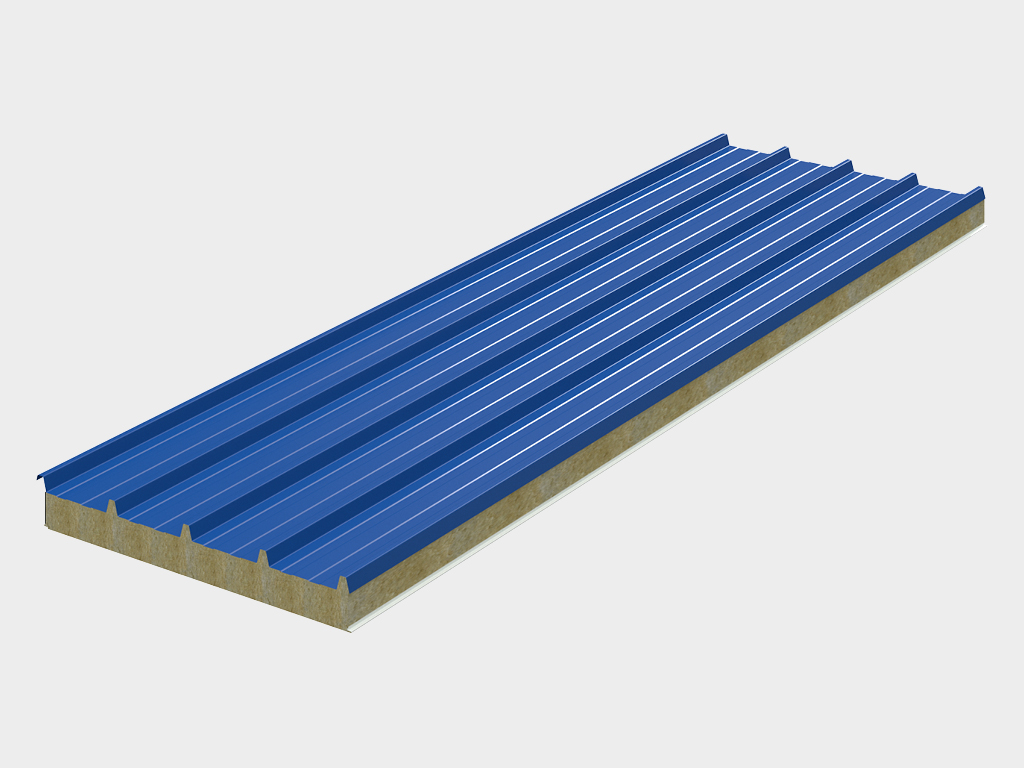

Roof sandwich panels
Roof sandwich panels

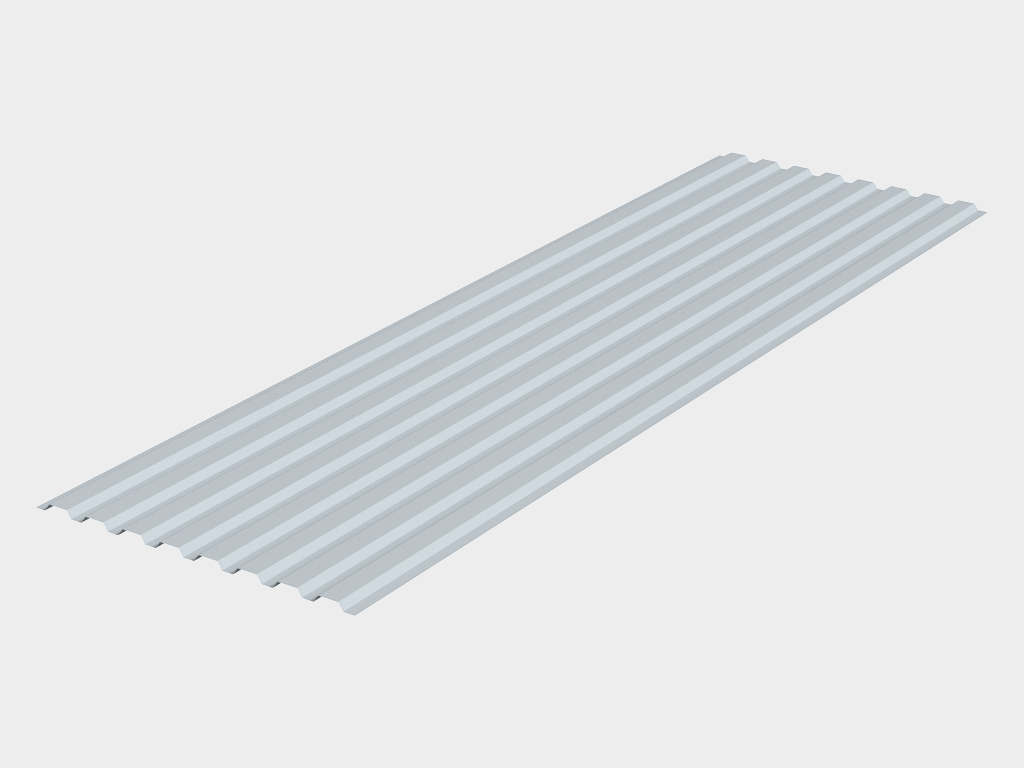

Wall profiled sheet (C21)
Wall profiled sheet (C21)

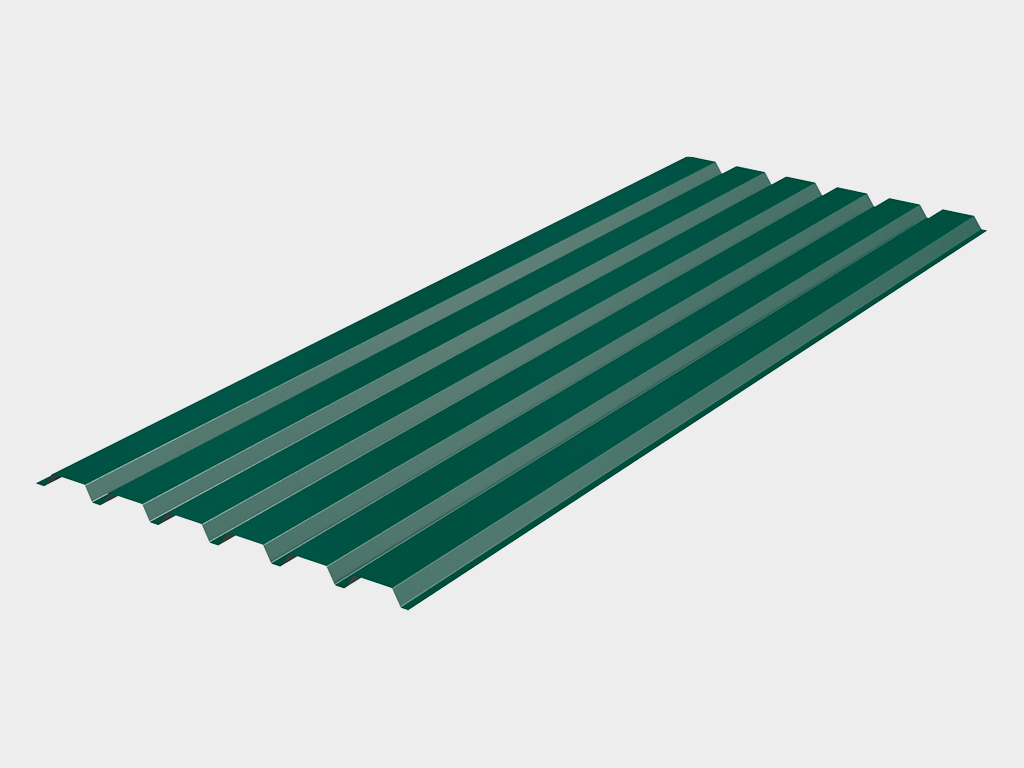

Roofing profiled sheet (C44)
Roofing profiled sheet (C44)

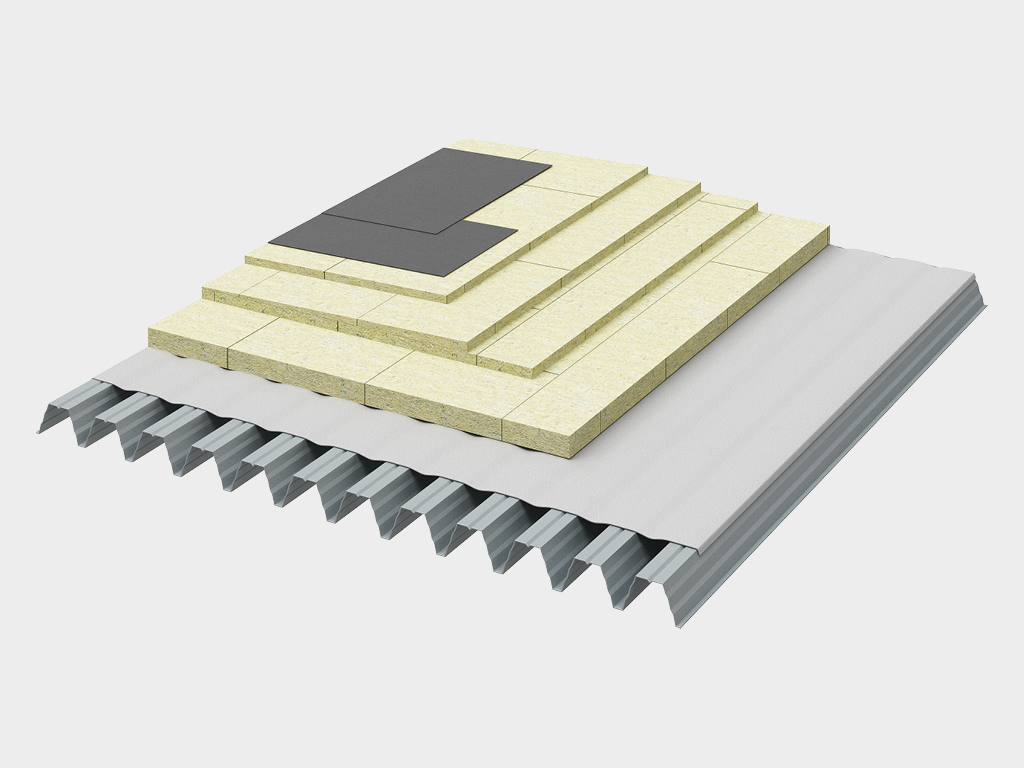

Soft (membrane) roofing
Soft (membrane) roofing

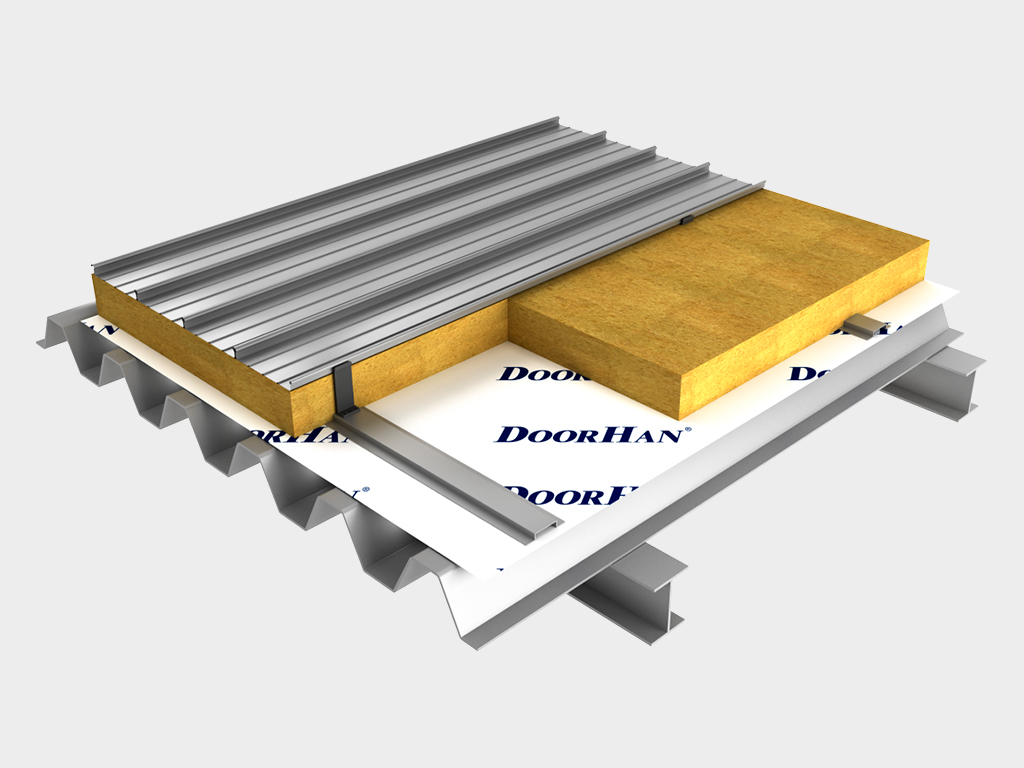

Seam aluminum roofing
Seam aluminum roofing

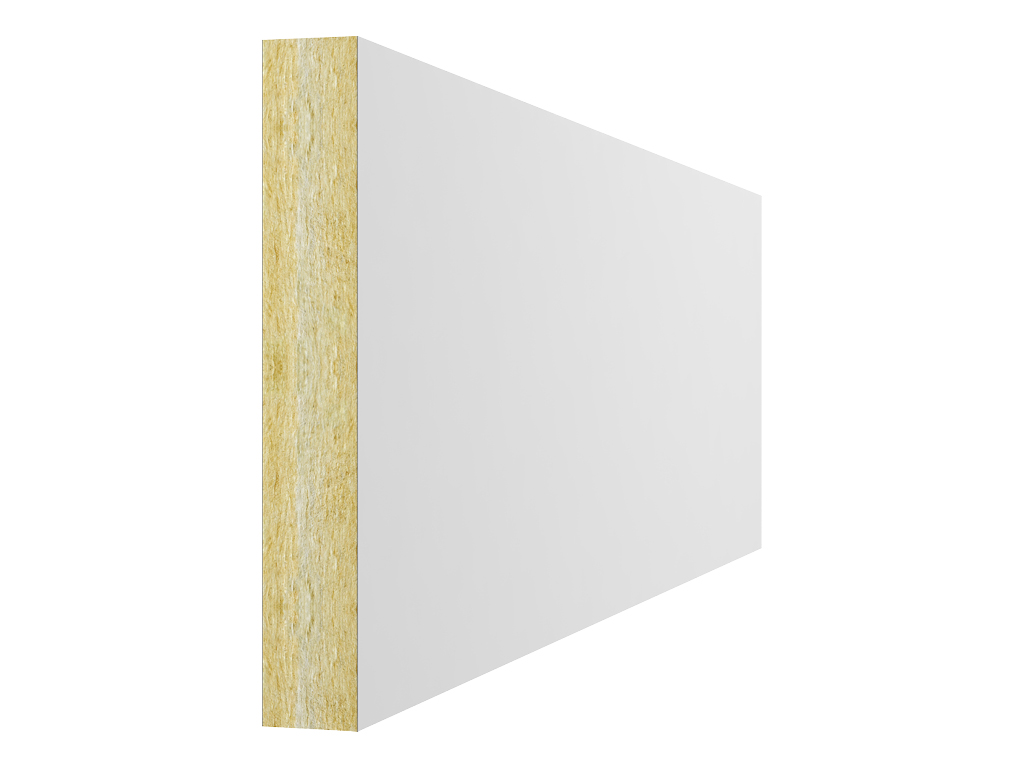

Smooth(G)
Smooth(G)

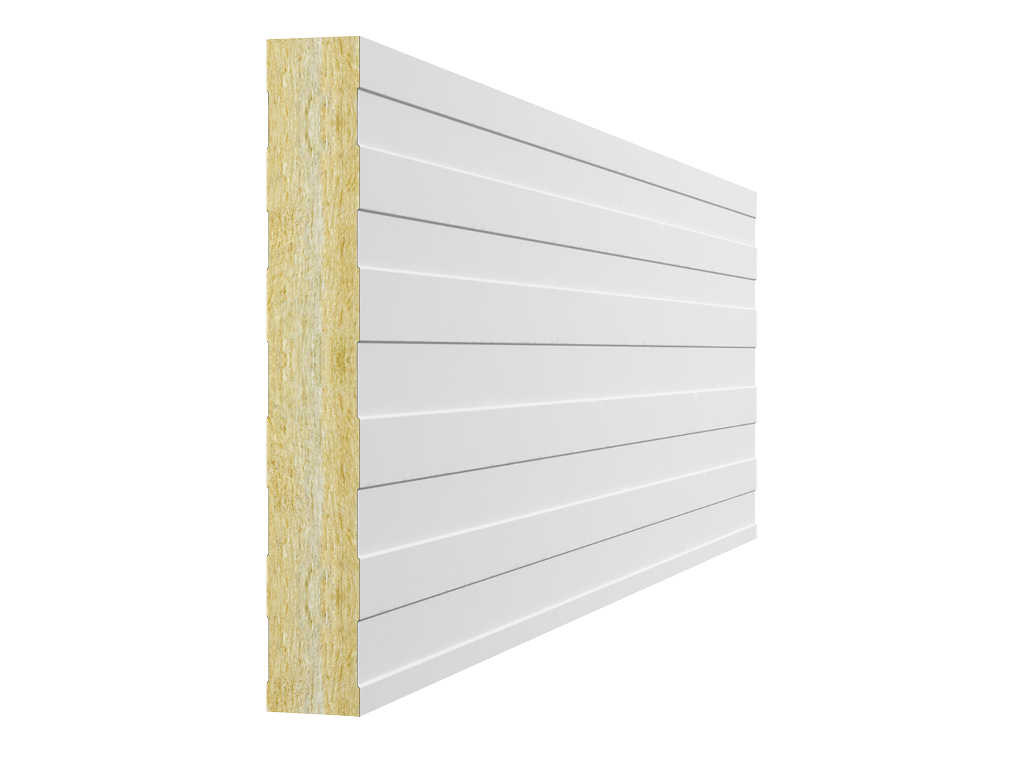

Trapezoid(T)
Trapezoid(T)

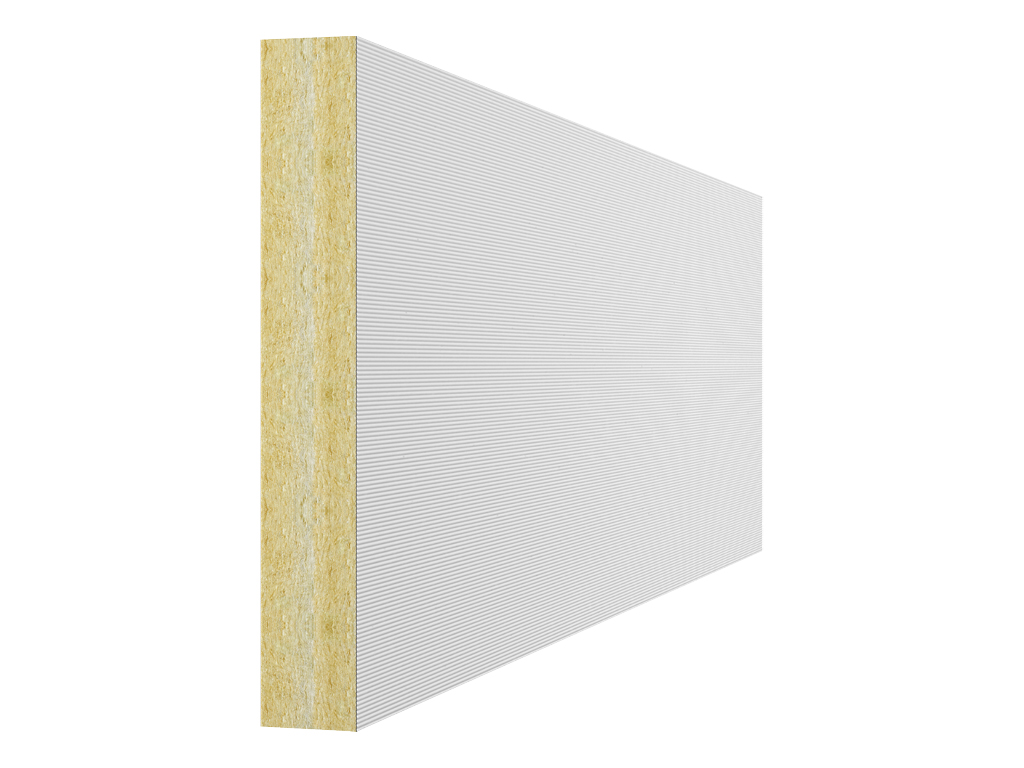

Wave(V)
Wave(V)
Z-lock
Z-lock

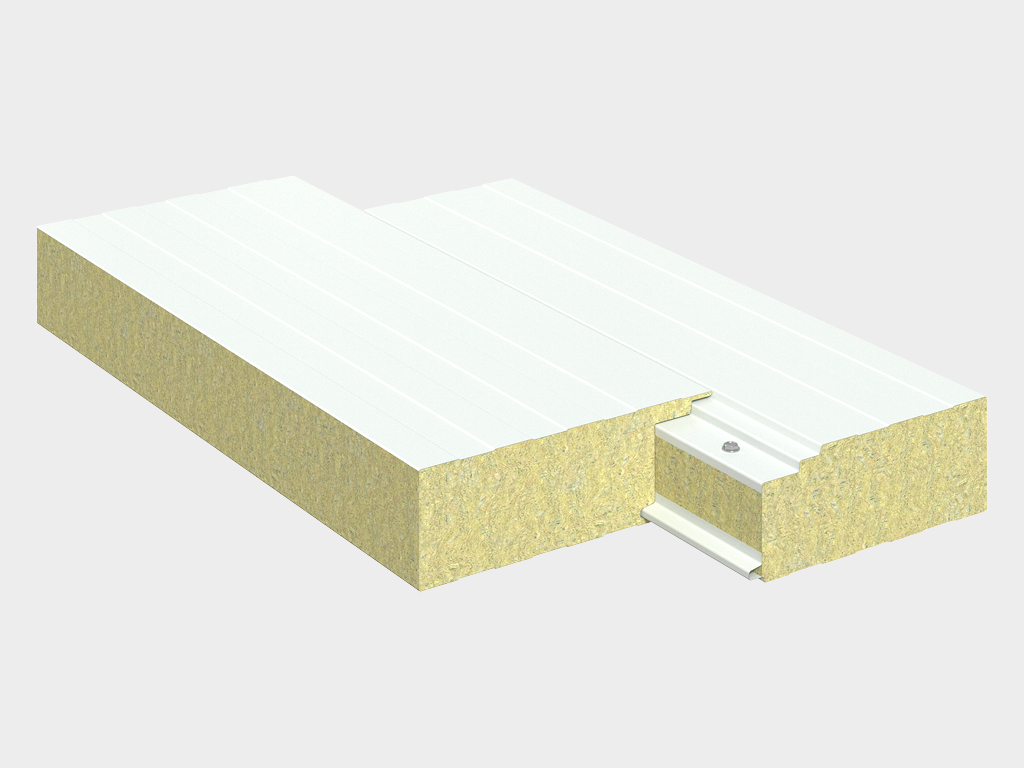

Secret-fix
Secret-fix

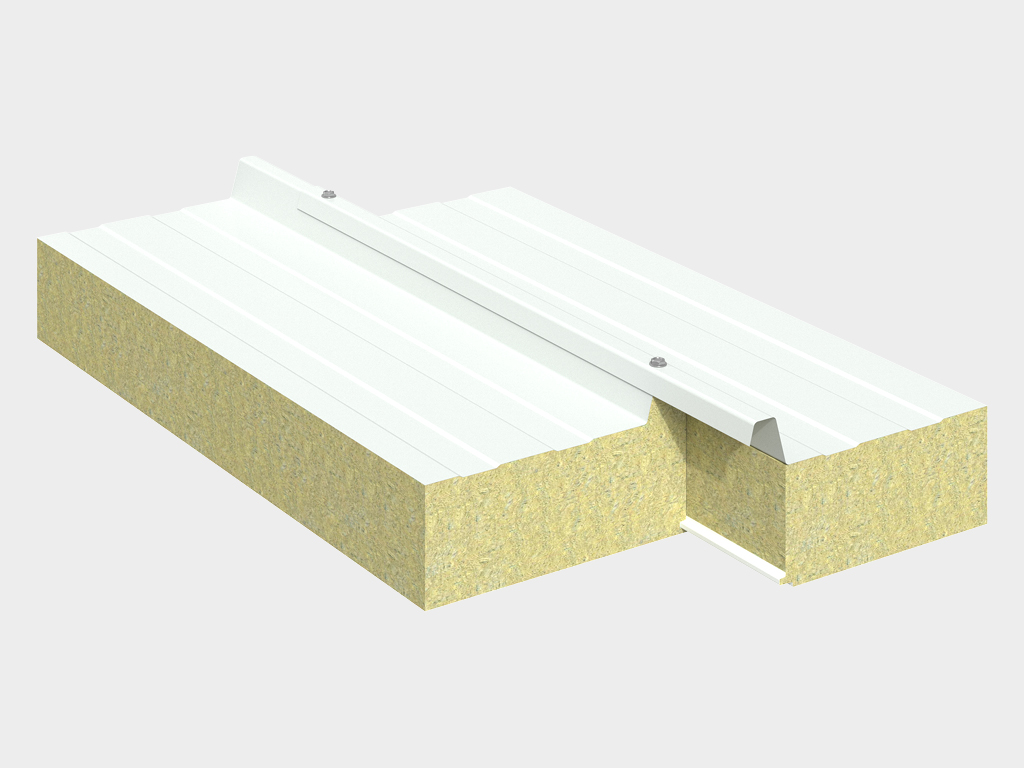

Roof lock
Roof lock
Equipment
Standard
Optional
Support frame

Support frame

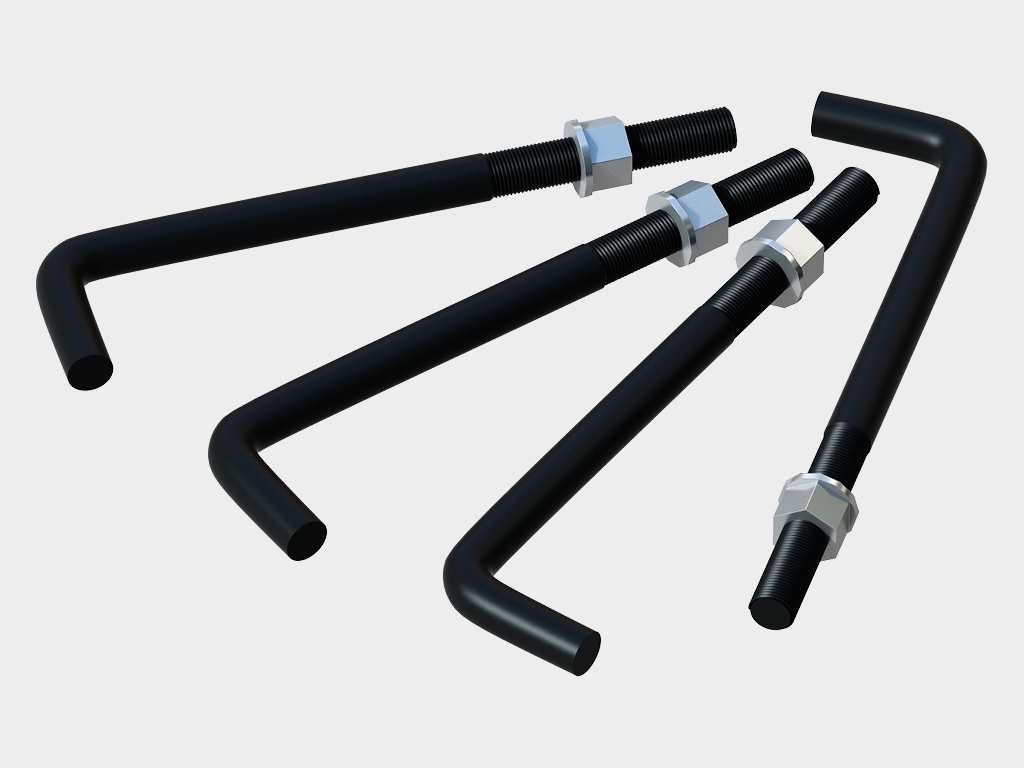

Anchor bolts (groups)

Anchor bolts (groups)

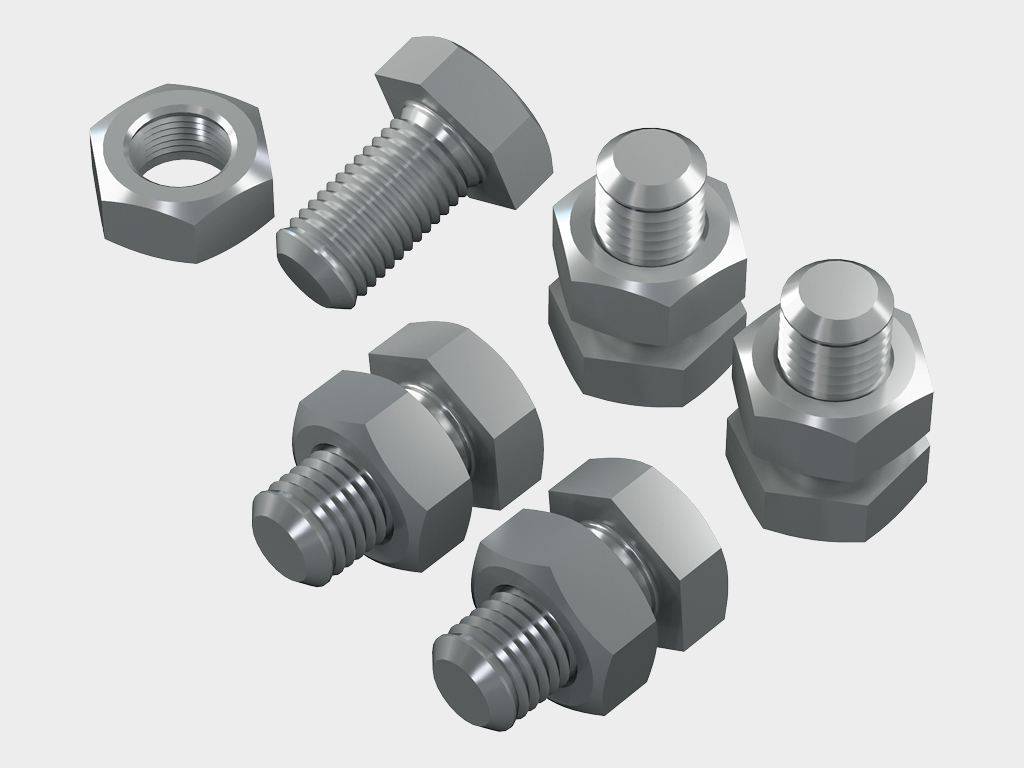

Bolts for connecting frame elements

Bolts for connecting frame elements

Individual color according to RAL

Individual color according to RAL

Purlin systems (roofing, wall purlins)

Purlin systems (roofing, wall purlins)

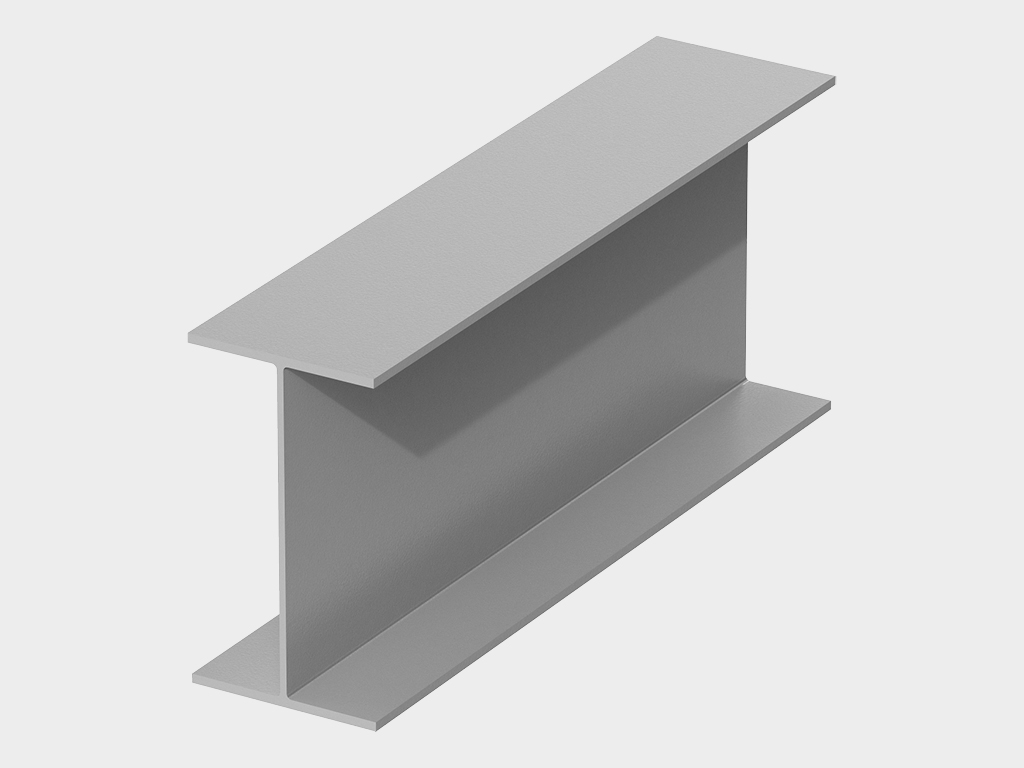

Crane beams (for overhead and overhead cranes)

Crane beams (for overhead and overhead cranes)

Walling

Walling

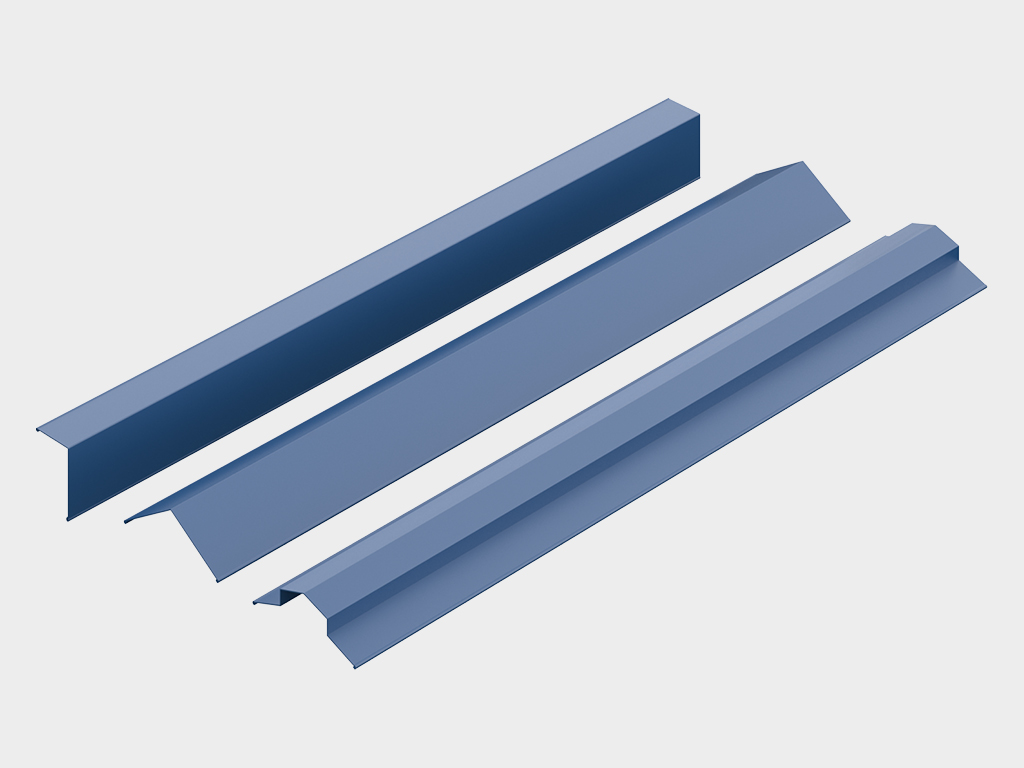

Additional elements, flashings

Additional elements, flashings

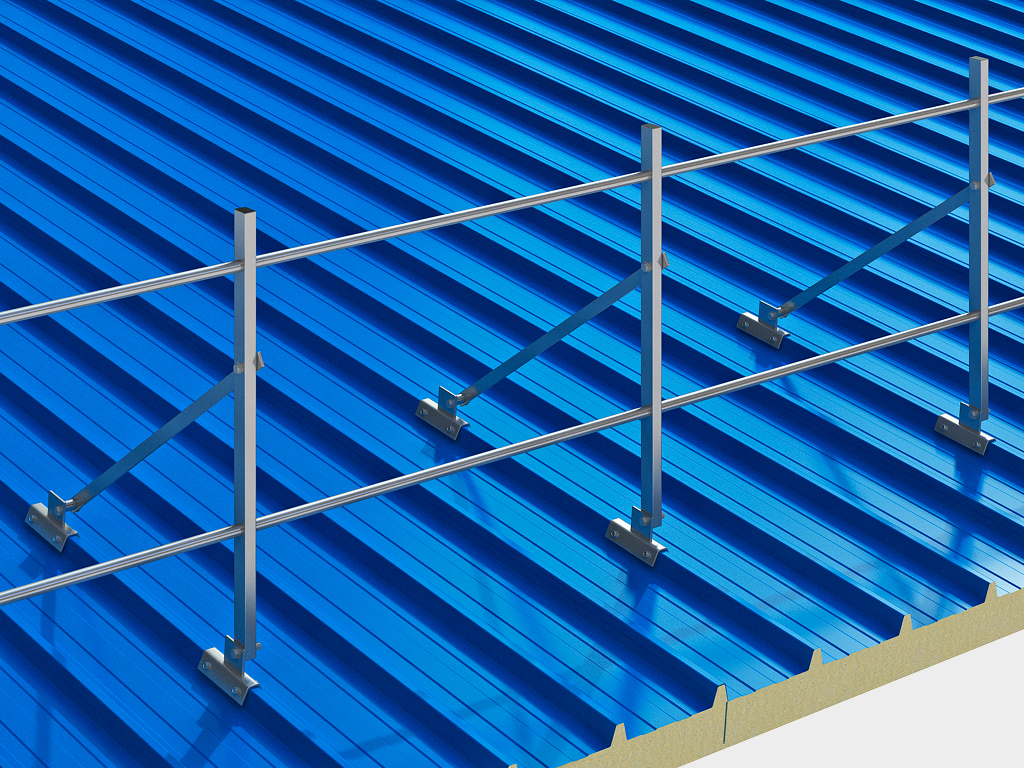

Roof railings

Roof railings

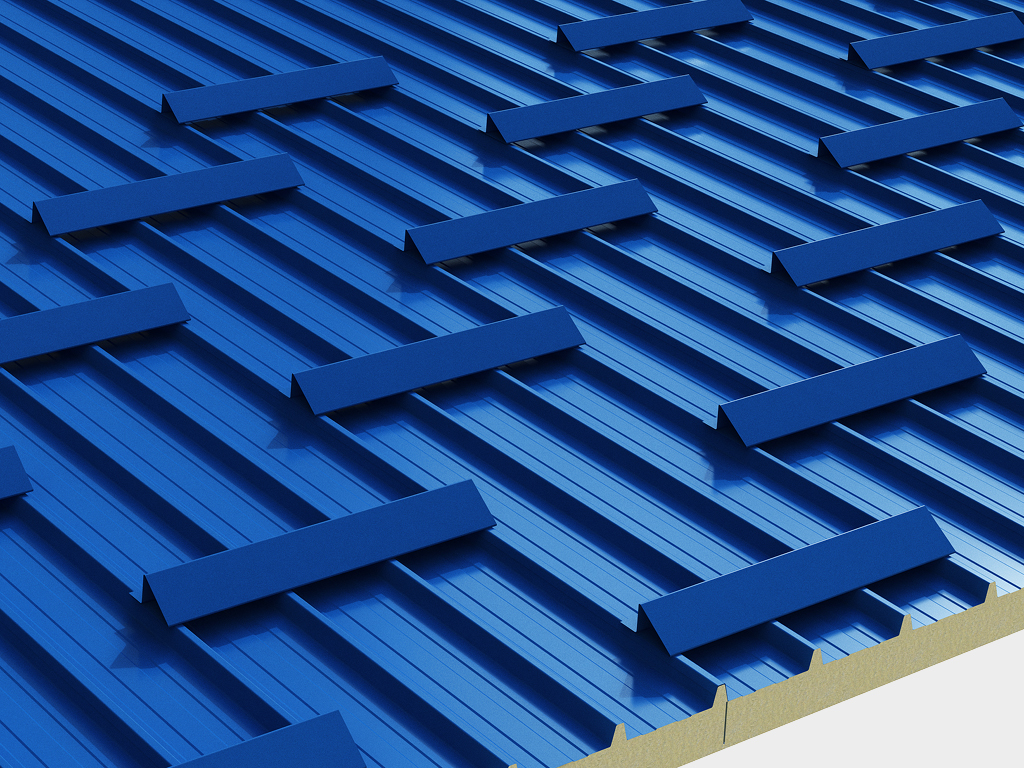

Snow guards

Snow guards

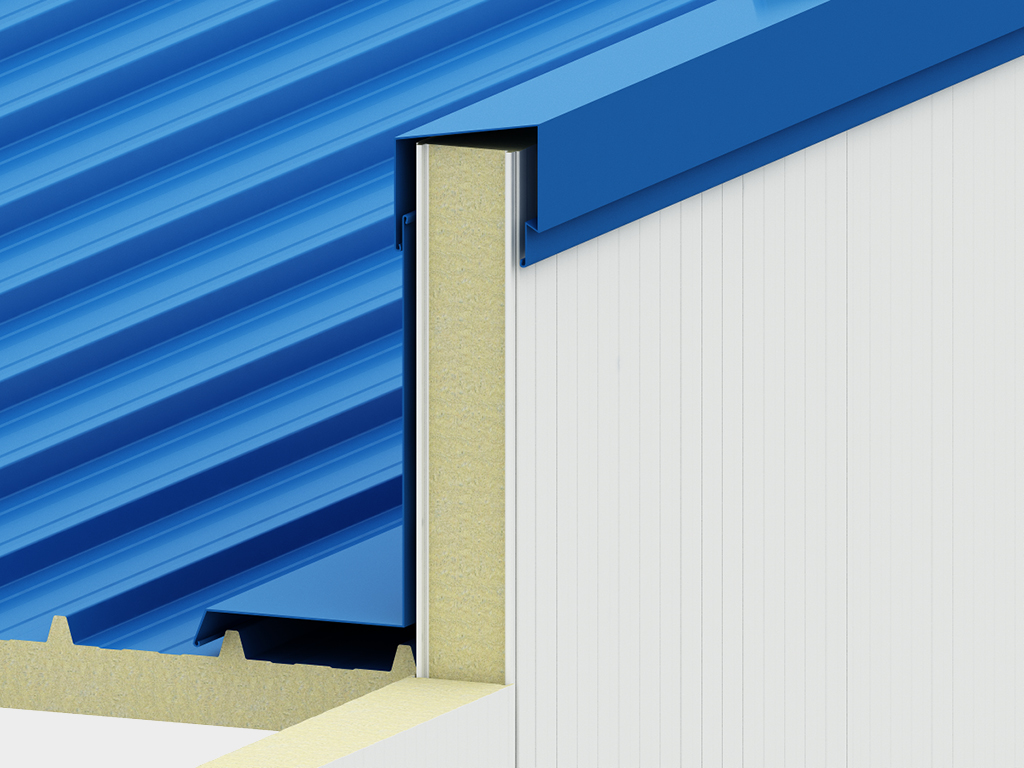

Parapet

Parapet

Visor

Visor

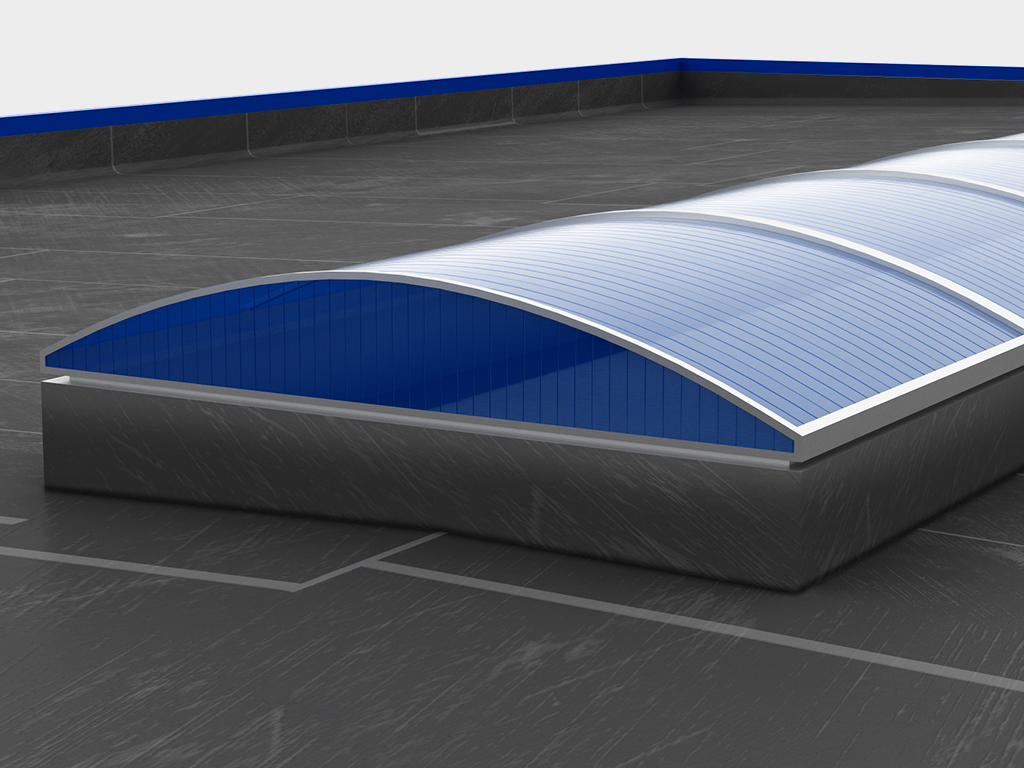

Roof lights

Roof lights

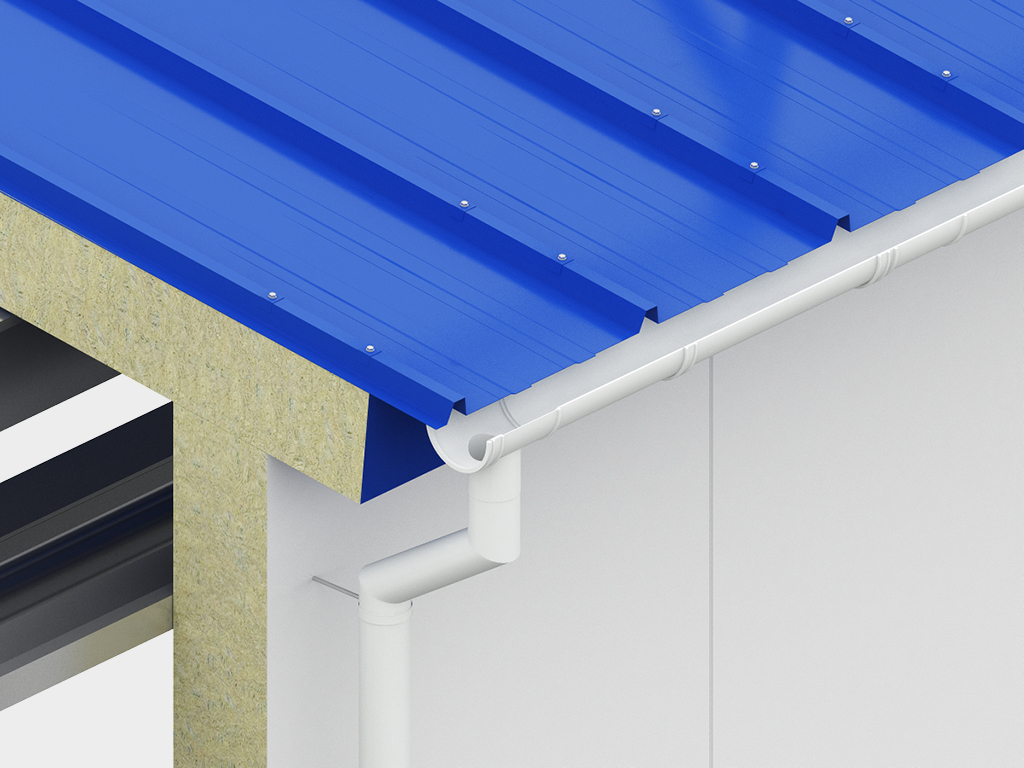

Drainage system (internal and/or external drainage)

Drainage system (internal and/or external drainage)

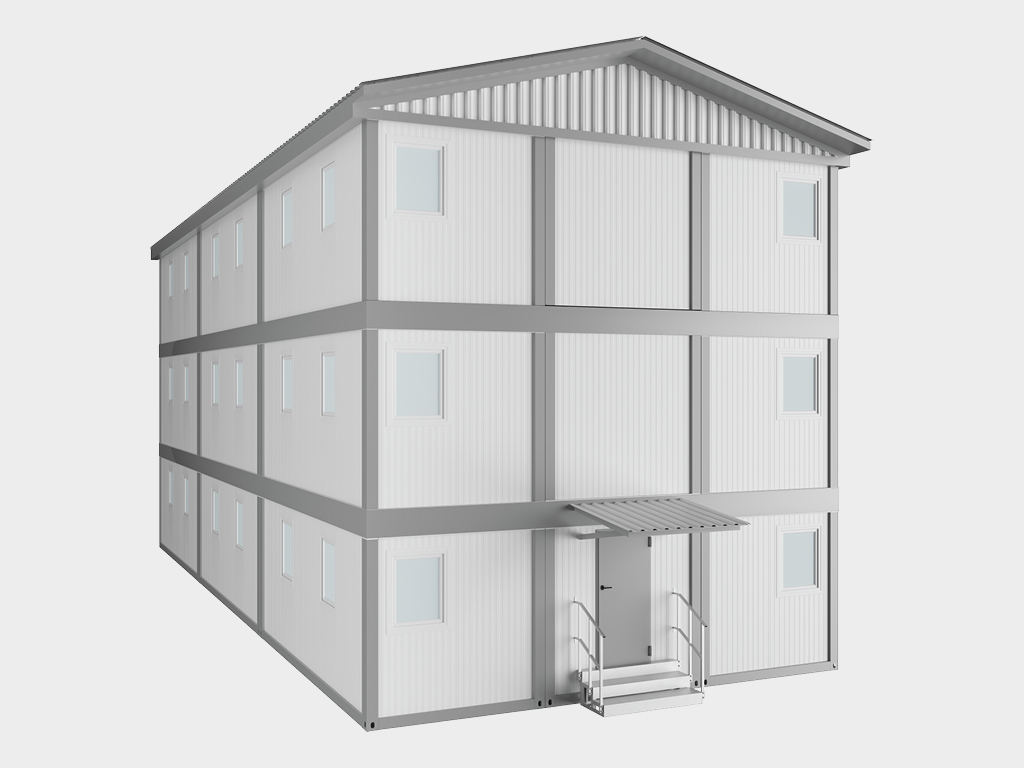

Modular systems

Modular systems

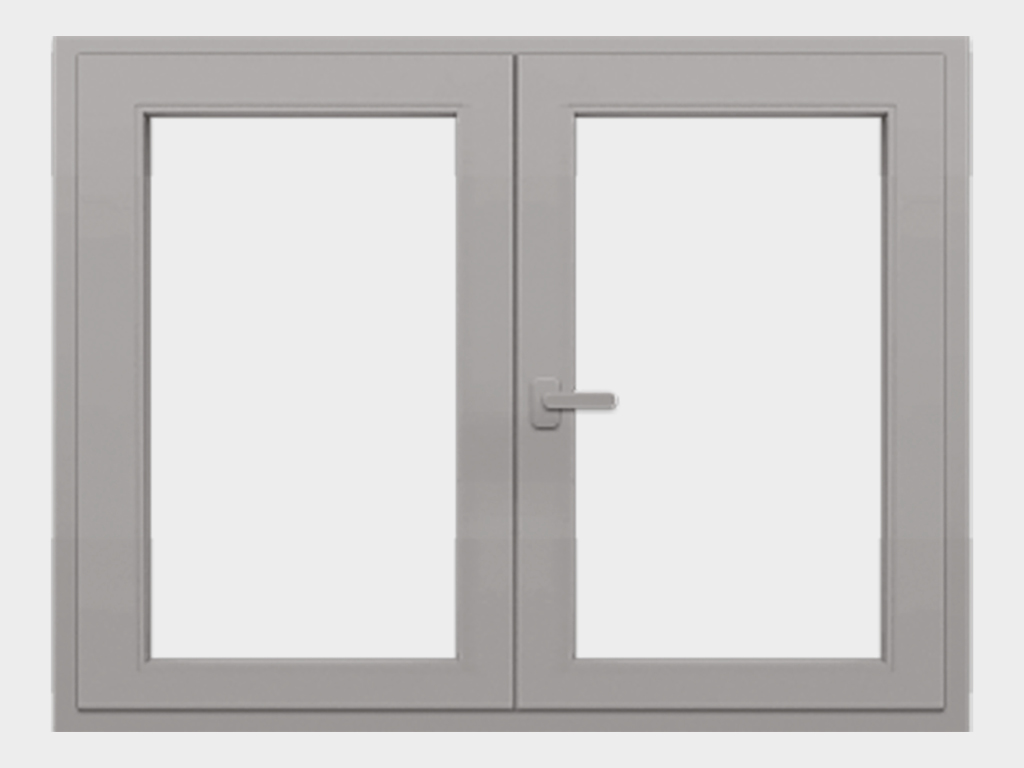

Window

Window

Gate systems (sectional, folding, sliding, hangar, spiral, roller, fireproof)

Gate systems (sectional, folding, sliding, hangar, spiral, roller, fireproof)

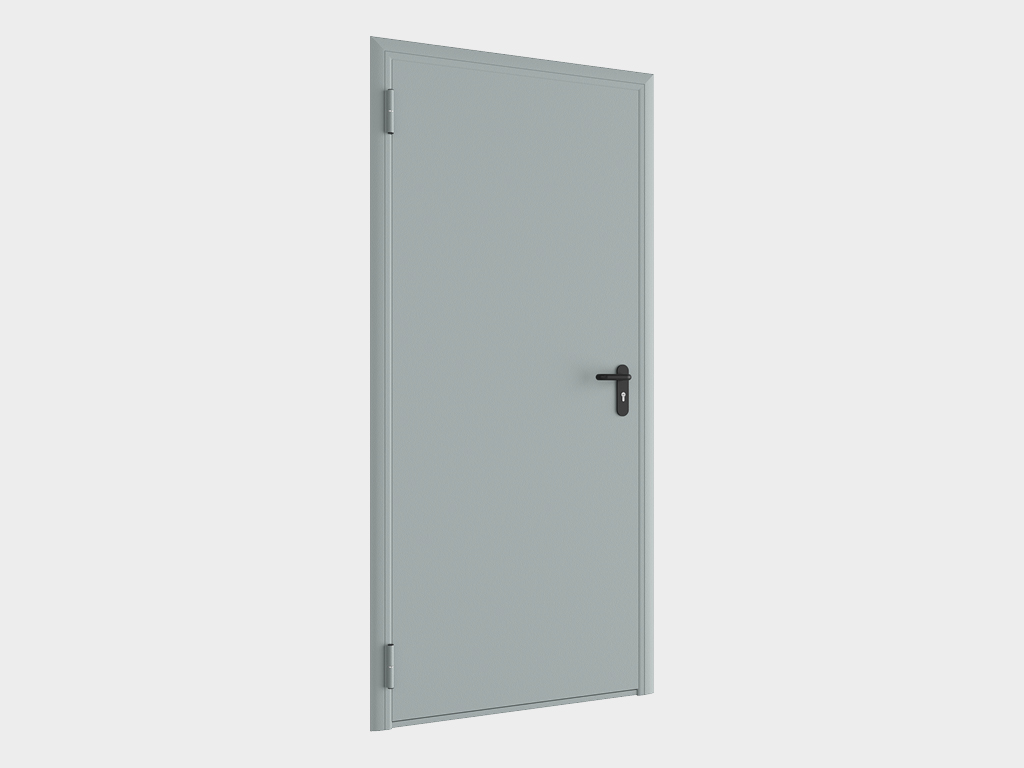

Door systems (technical, fire safety, doors for refrigeration chambers)

Door systems (technical, fire safety, doors for refrigeration chambers)

Aluminum systems (stained glass systems)

Aluminum systems (stained glass systems)

Reloading equipment (reloading platforms, sealers, leveling platforms, lifting tables)

Reloading equipment (reloading platforms, sealers, leveling platforms, lifting tables)

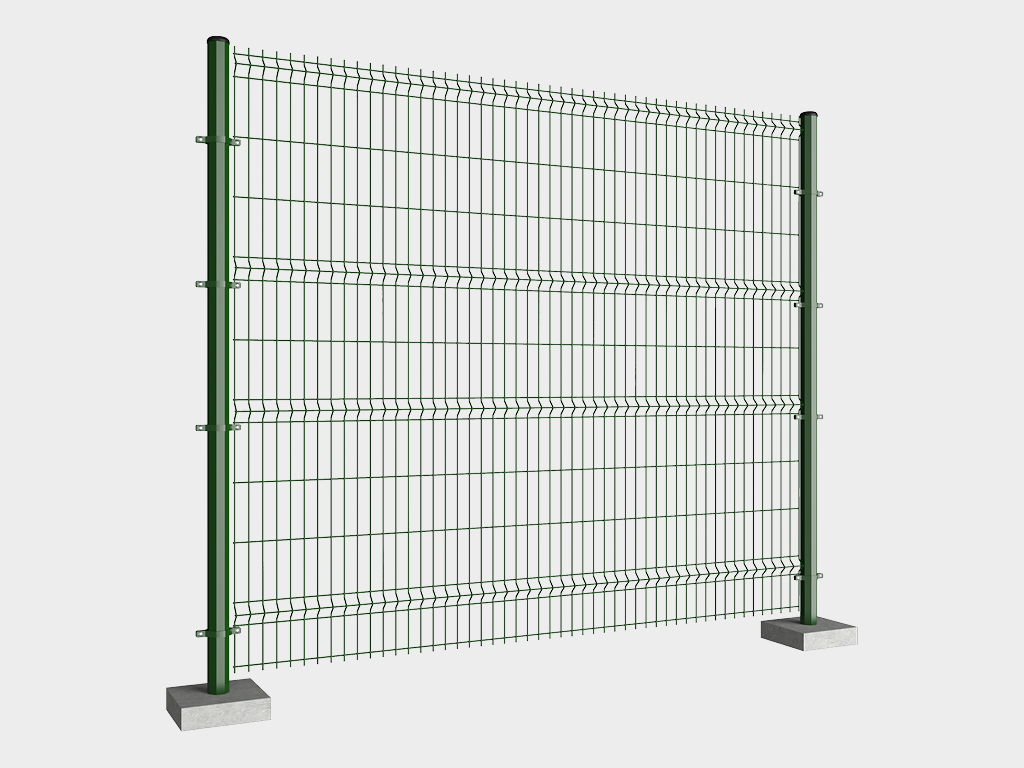

Street fencing systems

Street fencing systems

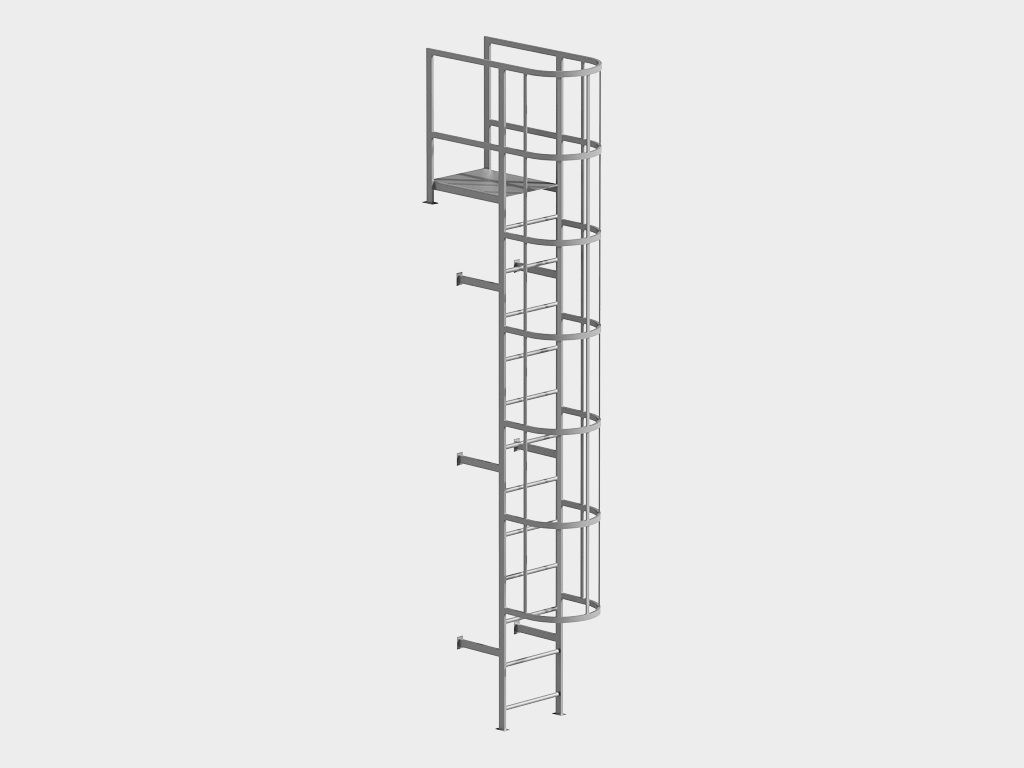

Firefighter vertical ladders

Firefighter vertical ladders

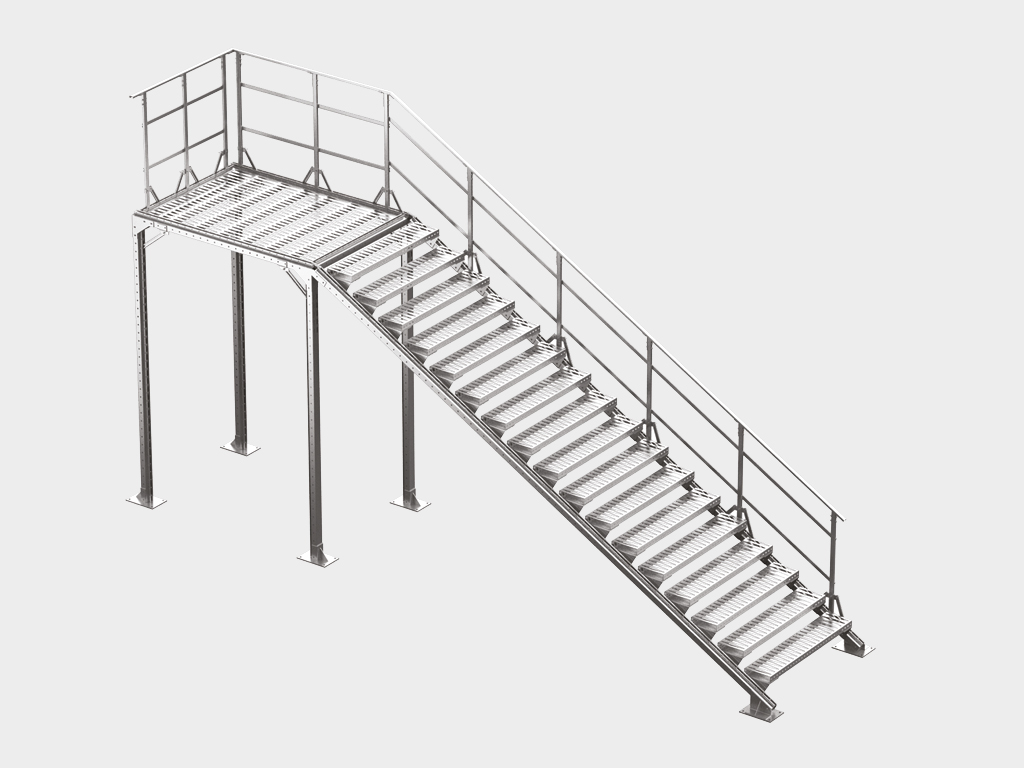

Marching stairs (external and internal)

Marching stairs (external and internal)

Technical description
Size Table
Construction
Standard Construction
Specifications
Operating Conditions
Packaging
Parameters
Value
Length, mm
without limitation
Width, mm
up to 100,000
Step between frames, m
up to 12
Height to the bottom of the supporting beam, m
up to 40
Roof slope, %
2-30
Number of spans, pcs
not limited

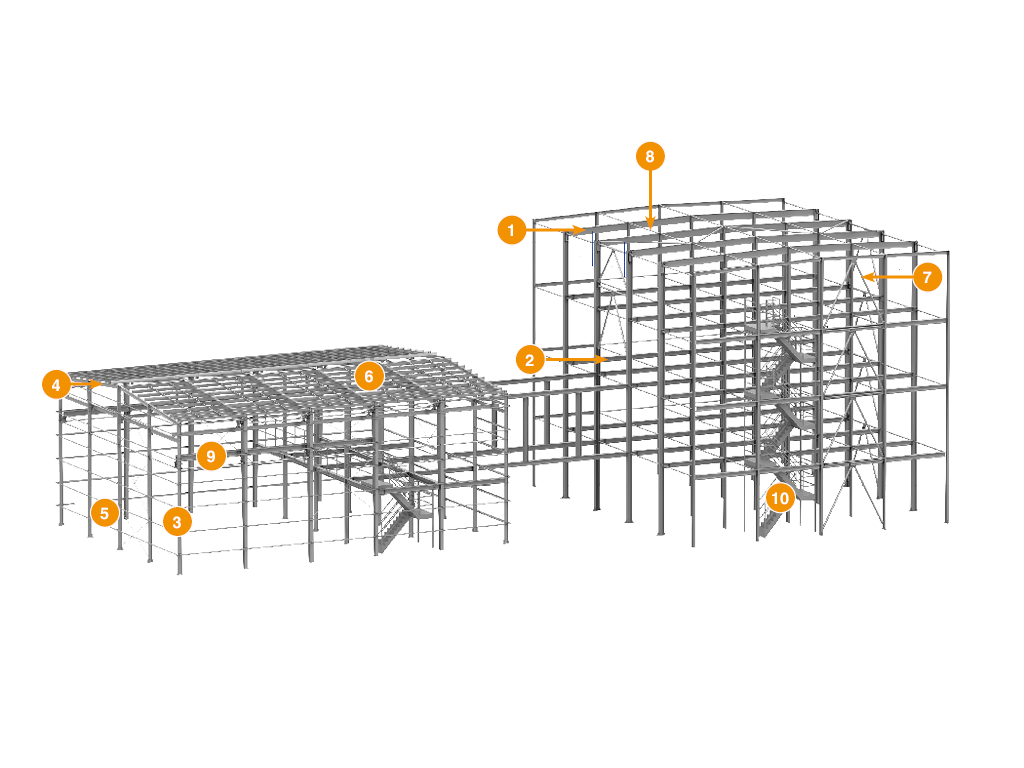

  1. Load-bearing element of the covering (truss, crossbar)
  2. Load-bearing element of the floor (beam)
  3. Column
  4. End frame
  5. Wall purlin
  6. Roof purlin
  7. Vertical communication
  8. Horizontal communication
  9. Crane structures
  10. Marching staircase

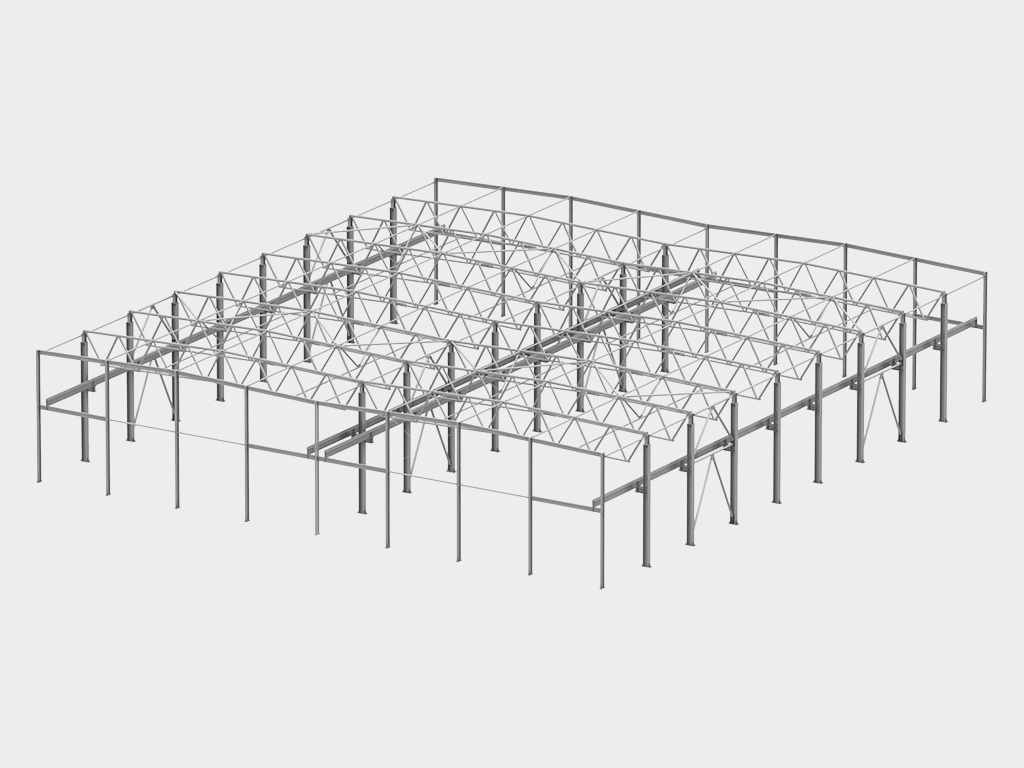

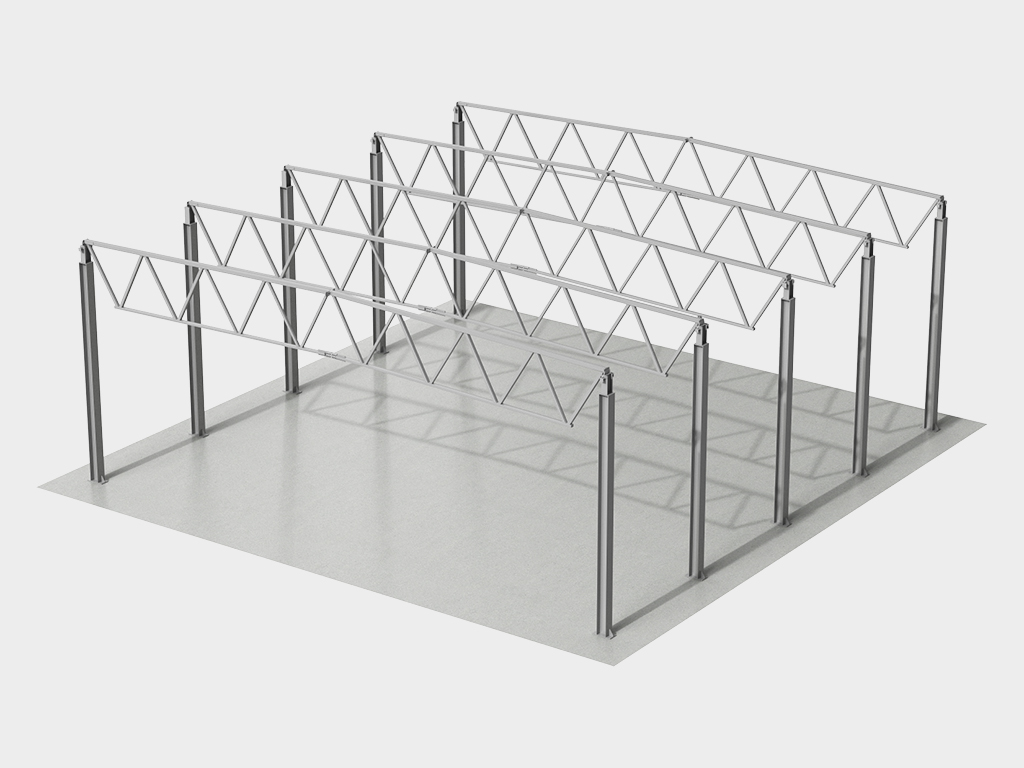

Truss building frame

Truss building frame

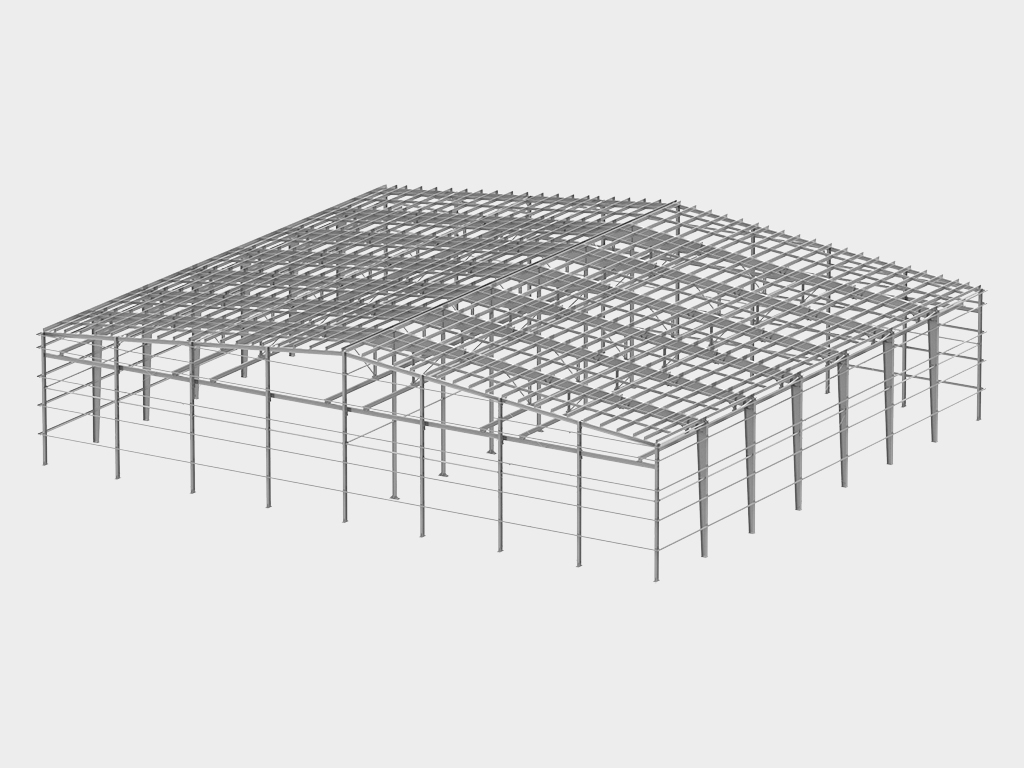

Frame type frame

Frame type frame

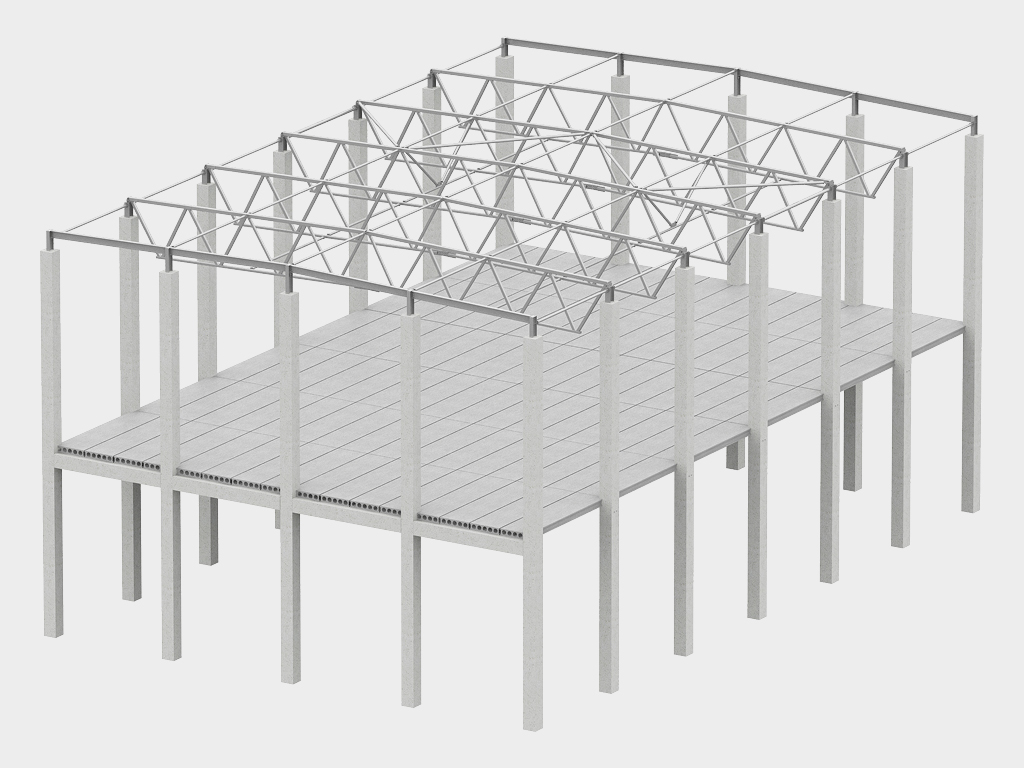

Mixed frame (reinforced concrete columns and metal roof beams)

Mixed frame (reinforced concrete columns and metal roof beams)

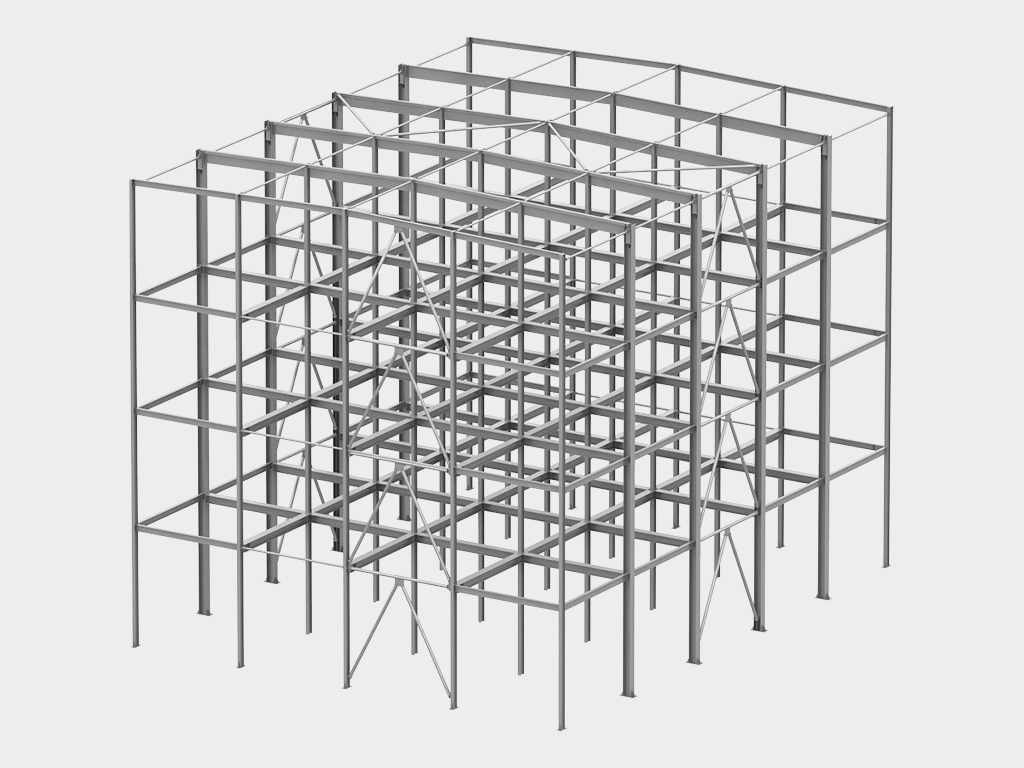

Hinged frame

Hinged frame

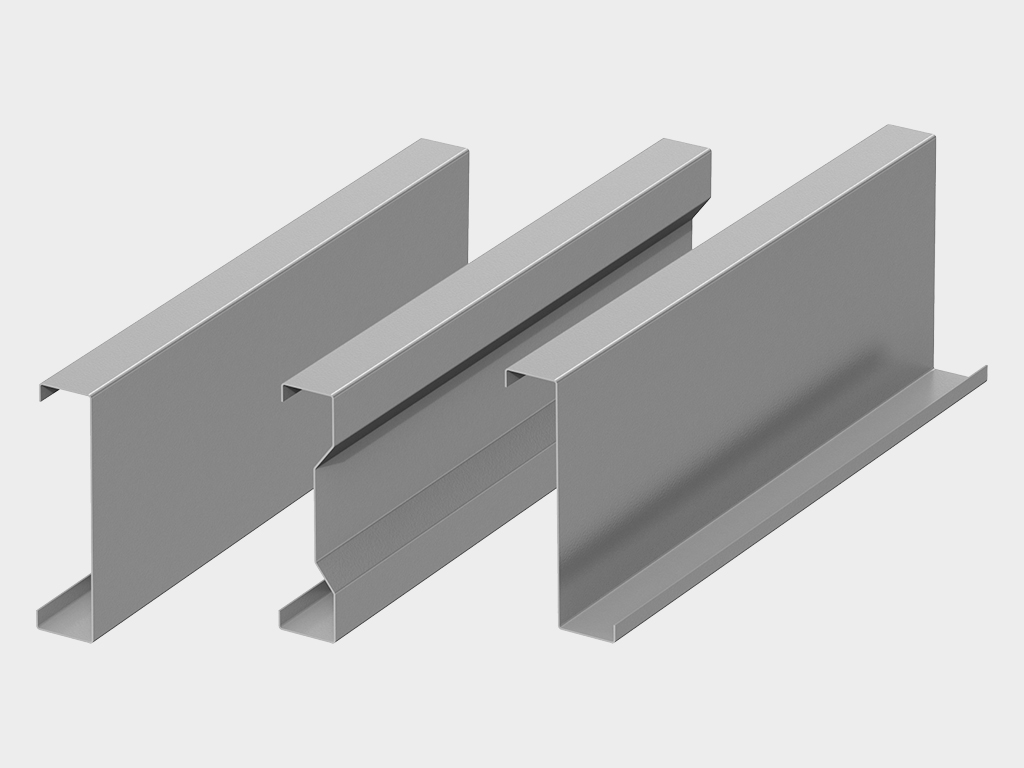

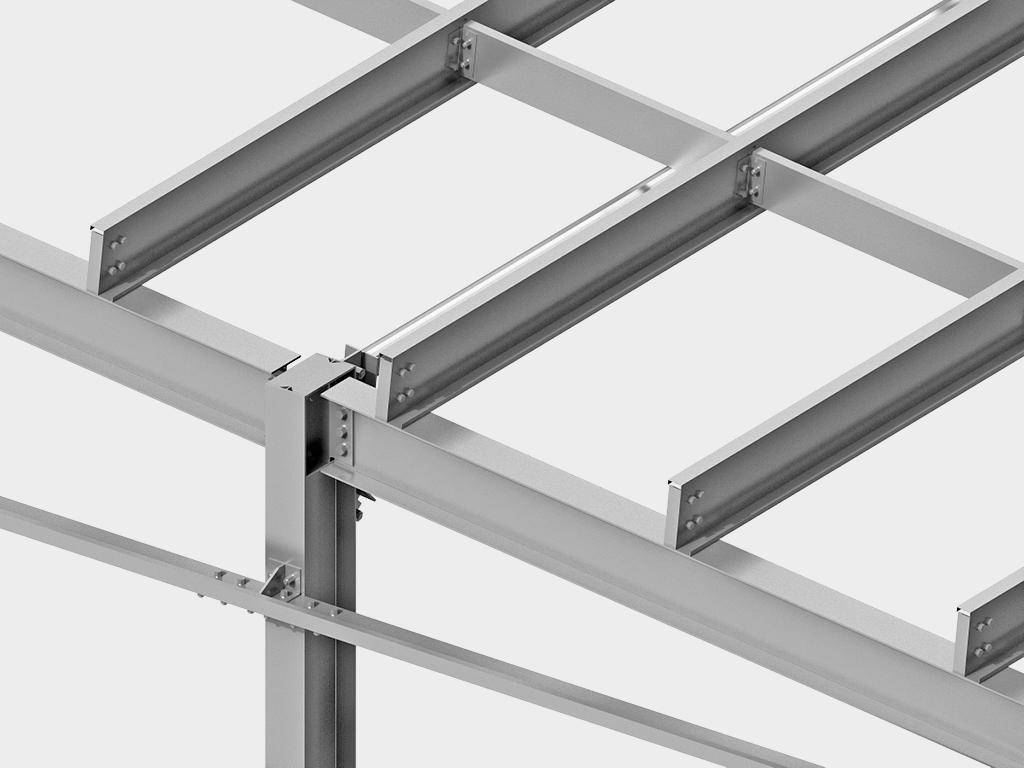

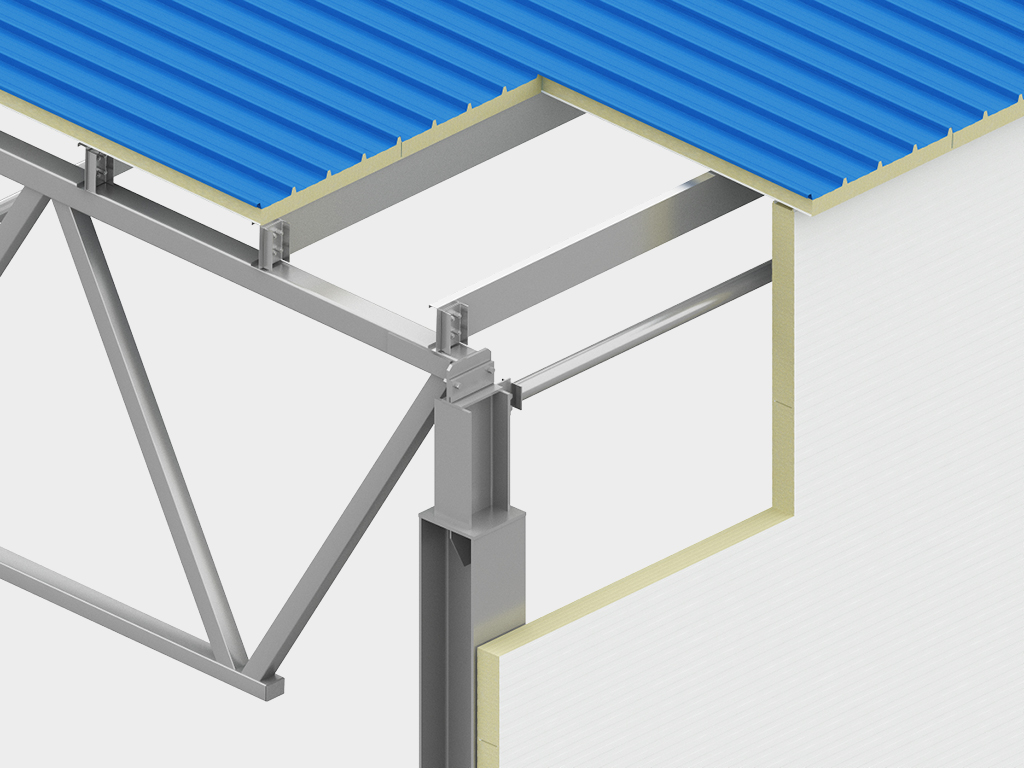

Purlin system made of galvanized Z, C, ∑-shaped profiles

Purlin system made of galvanized Z, C, ∑-shaped profiles

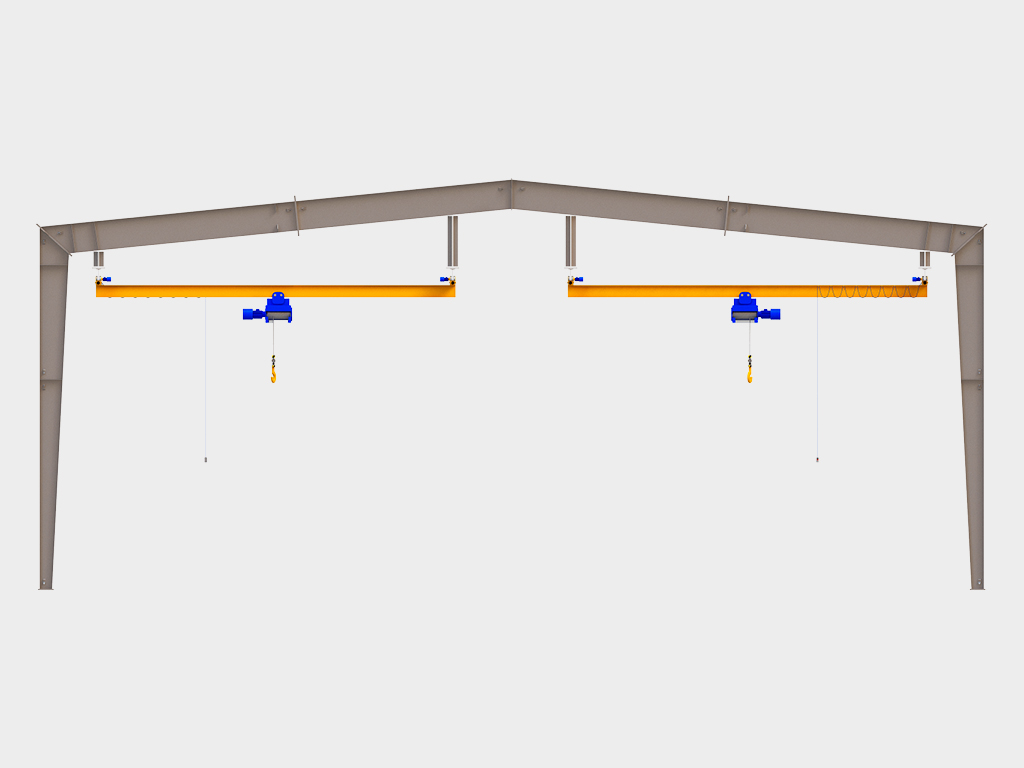

Crane structures for overhead cranes with lifting capacity up to 5 tons

Crane structures for overhead cranes with lifting capacity up to 5 tons

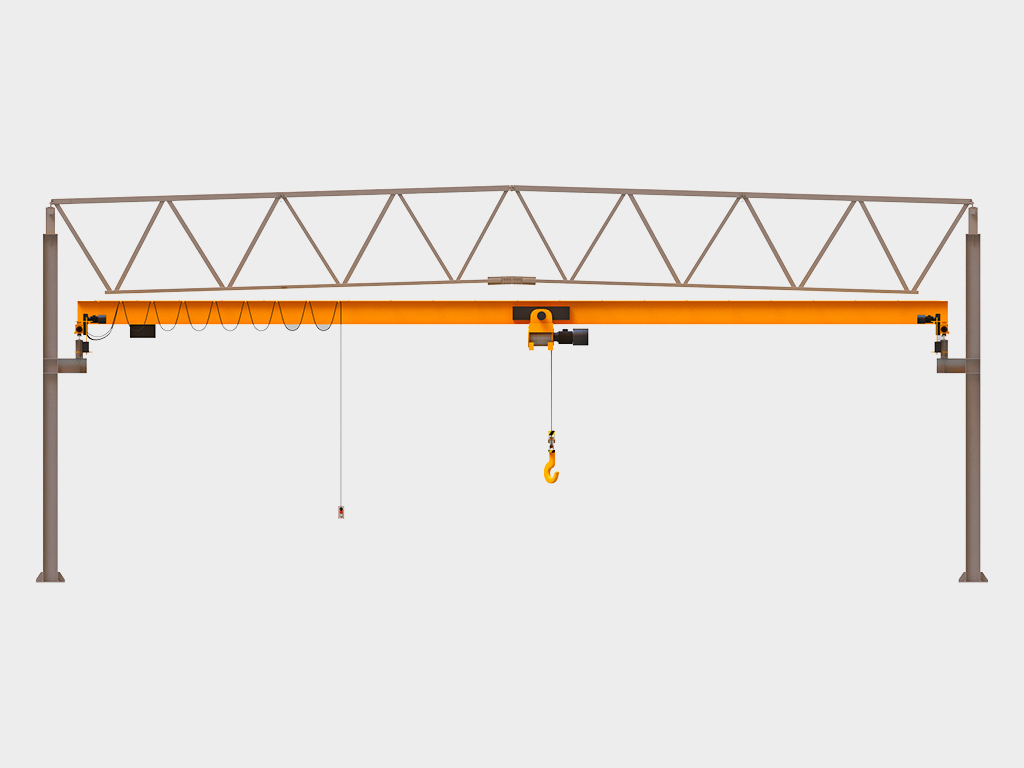

Crane structures for overhead cranes with lifting capacity up to 100 tons

Crane structures for overhead cranes with lifting capacity up to 100 tons

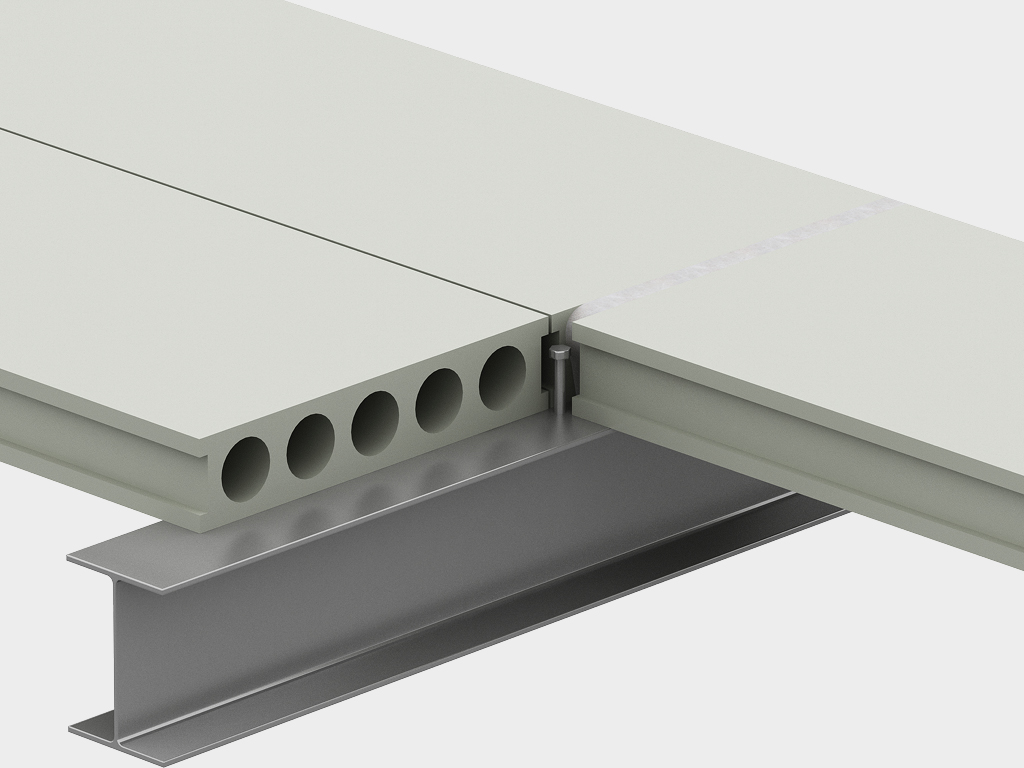

Flooring with prefabricated reinforced concrete slabs

Flooring with prefabricated reinforced concrete slabs

Monolithic ceiling with permanent formwork made of corrugated sheets

Monolithic ceiling with permanent formwork made of corrugated sheets

Parameter Value Notes
Snow load, kg/m² 80–560 (for I–VIII snow regions)
Wind load, kg/sqm 17–85 (for wind regions I–VII)
Seismic load, points until 9
Filling thickness, mm 80; 100; 120; 150; 180; 200; 250 for wall sandwich panels with mineral wool insulation
Filling thickness, mm 80; 120; 160 for wall sandwich panels with PIR/PUR insulation
Filling thickness, mm 100; 120; 150; 180; 200; 250 for roofing sandwich panels with mineral wool insulation
Filling thickness, mm 120; 160 for roofing sandwich panels with PIR/PUR insulation
Filling thickness, mm 140; 160; 180; 200; 240 for soft (membrane) roofing with mineral wool insulation
Number of storeys multi-storey buildings up to 40 m high
Service life, years up to 50

1. Buildings and structures based on a metal frame must be systematically maintained in order to prevent the destructive effects of atmospheric, climatic and man-made factors.

2. It is necessary to timely carry out a set of operations to maintain the serviceability and serviceability of buildings, their individual parts and structural elements.

3. During the operation, maintenance, technological re-equipment and repair of a building or structure based on a metal frame, it is prohibited to change their design solutions, to carry out work to strengthen building structures without a design or agreement with a design organization or other specialized organization.

4. It is prohibited to make changes that affect the load-bearing capacity of structures without agreement with the design organization.

5. It is necessary to comply with the operating conditions of individual building components: external steel doors, gates, plastic windows. When operating, follow the manufacturer's instructions.

6. It is necessary to carry out regular maintenance of the roof of the building: clear snow from the roof, clean gutters, drain funnels and drainpipes.

7. To prevent icing of the drainage system, it is recommended to install heating cables in gutters and pipes.

8. During periods of heavy snowfall, regularly check the amount of snow on the roof. If the weight of the snow cover on the roof exceeds the requirements of regulatory documents of the Russian Federation, immediately clear the excess snow from the roof.

9. Buildings can be operated at temperatures from -55 to +55 °C.

10. When operating buildings, fire safety rules must be observed.

Packing in cardboard Packaging features
Description Piece long elements are factory-packed according to standard sizes with appropriate markings
Packing in bubble wrap Packaging features
Description Designed to avoid damage to building structural elements
Packing in wood Packaging features
Description Designed for frame elements when loading onto vehicles
Packing in container Packaging features
Description Provided for transportation of structures by rail or water transport
Packing in cardboard box Packaging features
Description Hardware is packaged at the factory according to standard sizes with appropriate box markings
Packing in stretch film Packaging features
Description The front surface of the flashings is provided to prevent damage to the paintwork
Additional Information print

1. The following structural designs of the load-bearing frame are possible: frame, hinged, mixed. The frame can have various static schemes, optimally selected for a specific case.

2. Frames are designed and manufactured taking into account the possibility of installing various crane equipment in them: overhead cranes with a lifting capacity of up to 5 tons and support cranes with a lifting capacity of up to 100 tons.

3. Buildings can be single-span or multi-span, with spans up to 100 m.

4. When designing interfloor slabs, the grid of columns tailored to the client’s needs is taken into account.

5. Bracing system: the rigidity of the building frame as a whole is ensured by a system of vertical and horizontal bracings and struts. The connections can be made in both flexible (with pre-tensioning) and rigid versions (rolled, welded elements). Type of connections used: cross, portal.

6. The building may have a parapet of various configurations: horizontal, stepped, along a slope.

7. The roof of a building can have the following configuration: single-slope, gable, multi-slope, hip.

8. The design of the building may include: canopies, extensions, canopies, passages.

9. All structures are shot blasted to SA 2.5. All elements of the main supporting frame are coated with a primer (red-brown or gray, coating thickness 80µm).

10. The delivery set includes anchor bolts, metal structures, bolts for connecting elements.

11. Secondary structures: made of galvanized Z-, C-, ∑-profiles. They are mounted both on a crossbar or column, and in the body of a crossbar or column. Connections to the supporting frame and to each other are bolted.

12. The enclosing structures are also equipped with all additional and fastening elements.

13. The system allows you to freely integrate traditional materials such as glass, concrete, brick, etc.

Installation
Mounting Options
Checking Dimensional Details
Element-by-element installation
Element-by-element installation
Installation in enlarged blocks
Installation in enlarged blocks
  1. Prepare storage areas for elements of a complete building.
  2. Equip the construction site with the machinery and equipment necessary to carry out the installation of a complete building.
  3. Perform the necessary zero cycle work.
  4. Extend the building axes to the terrain.
  5. Pour the foundations under the supporting frame and install the anchor bolts in the design position.
  6. Carry out a geodetic survey of the top of the foundations and determine possible deviations in the position of the anchor bolts from the design one.
  7. The results of geodetic survey should be formalized properly.
  8. If there are deviations in the position of the anchor bolts from the design, send information to the design department of the DoorHan concern to make a decision on the subsequent installation of structures.
  9. Foundations must be designed in such a way as to absorb all the necessary loads from the load-bearing and enclosing structures of a complete building.
    Deviation of the position of the axes of the object under construction from the design ones is not allowed.
    Deviations of the position of anchor bolts from the design are allowed by no more than 3 mm.
    When carrying out installation work, it is necessary to comply with safety requirements.
Warranty print

2. Guarantee of the quality of coating of enclosing structures— 3 years.
