SECTIONAL-1200 operator for domestic sectional doors

Electromechanical chain drive SECTIONAL-1200 is designed for automation of domestic sectional doors and small industrial sectional doors with low and standard lift types and door leaf weight up to 220 kg.

Application:

Residential garage doors
Industrial sectional doors with low intensity use

Order with installation

Advantages

The drive comes complete with a 4-channel remote control that allows you to control the drive remotely.

The built-in lighting lamp ensures safety when entering the premises.

The ability to connect a backup battery allows you to open and close the gate even in the absence of electricity.

The board has a built-in receiver with a carrier frequency of 433 MHz, into which up to 60 remote controls can be registered.

The chain sprocket is made of high-quality metal and has an unlimited service life.

The drive comes complete with a 4-channel remote control that allows you to control the drive remotely.

The built-in lighting lamp ensures safety when entering the premises.

The ability to connect a backup battery allows you to open and close the gate even in the absence of electricity.

The board has a built-in receiver with a carrier frequency of 433 MHz, into which up to 60 remote controls can be registered.

The chain sprocket is made of high-quality metal and has an unlimited service life.

Design

Operator design

Protection panel

Light lens

Streamlined body

Equipment

Standard

Optional

Operator, curved arm, Transmitter-4 remote control, brackets

Photocell-N safety photocells consisting of infrared transmitter and receiver

Wi-Fi-module for wireless control of the door operator (control signal, NO)

GSM-module receives a mobile phone signal and transmits a control signal to operate the operator or barrier

Transmitter-2PRO-Black remote control operates two devices

Command-433 wireless button to control two devices

Car-Transmitter remote control working on cigarette lighter can operate two devices

KEYPAD series code keypad controls door operator equipped with internal or external DoorHan receiver

Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device

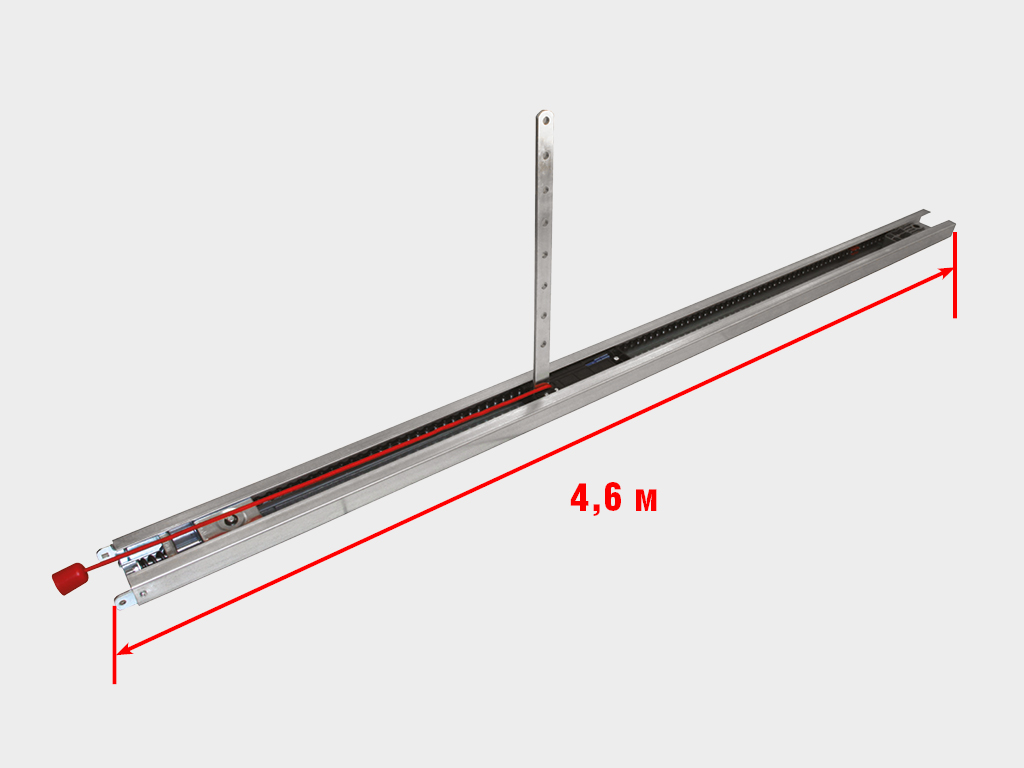

SK-series chain rail

External DHRE-1 receiver controls other manufactures’ automatic devices with DoorHan remote control

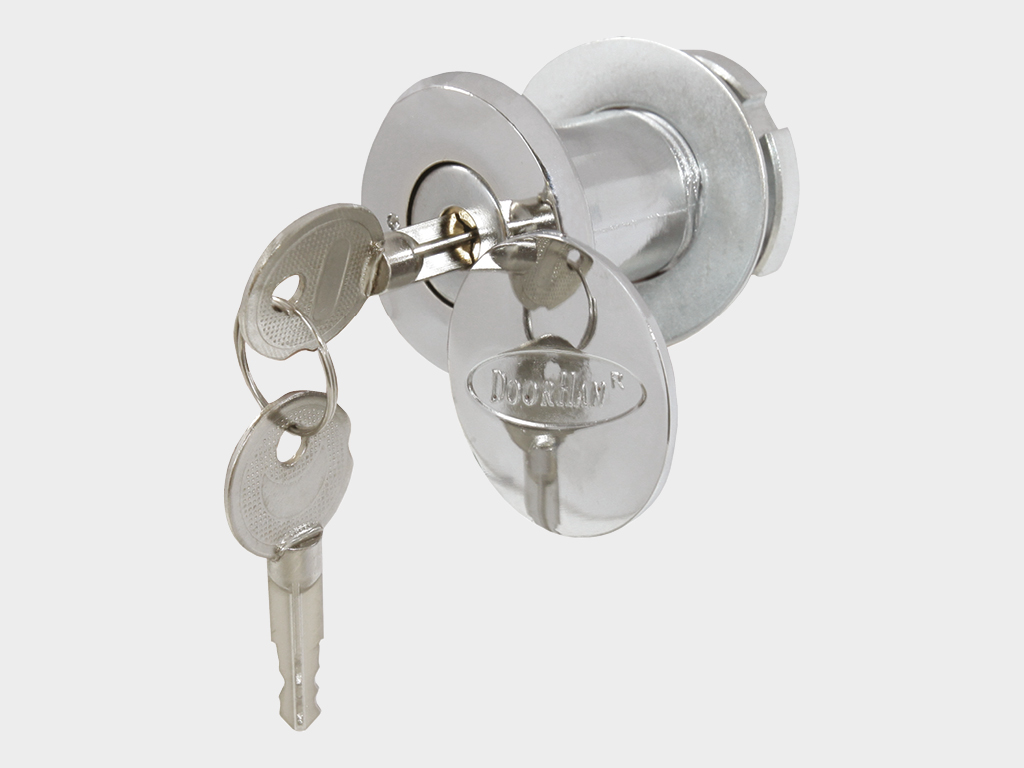

External release mechanism LOCK used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

External release mechanism LOCK-N used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

External release mechanism LOCK-MINI used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

Technical description

Construction

Specifications

Operating Conditions

Packaging

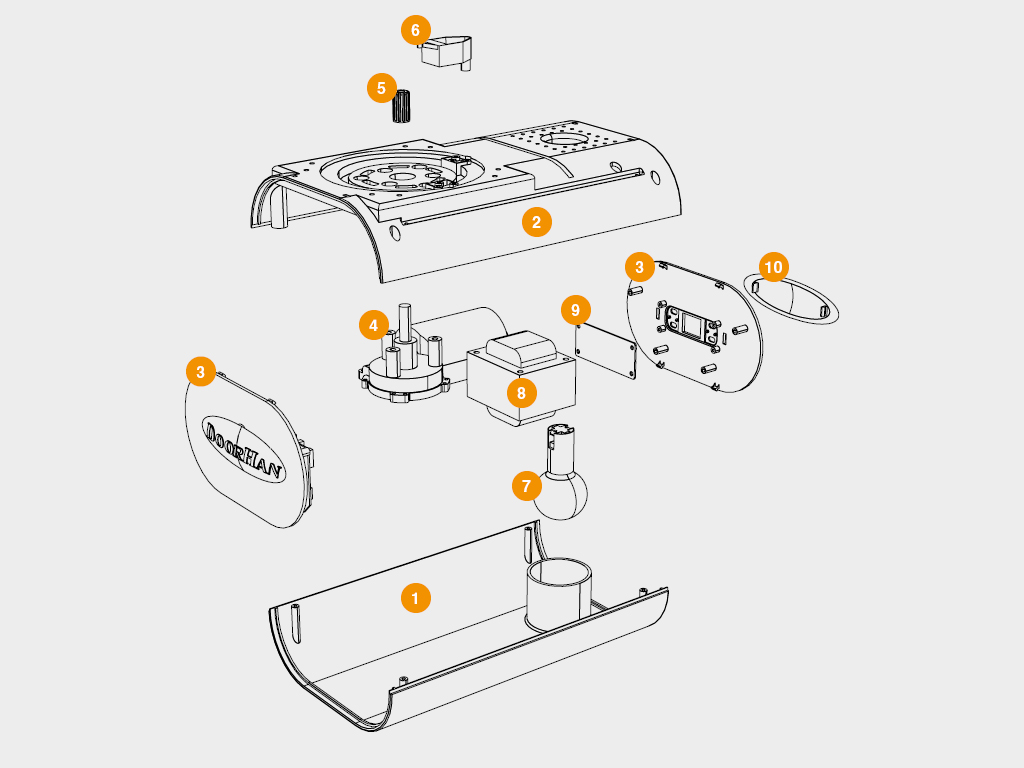

Bottom housing
Top housing
Panel cover with control unit
Gear motor
Bushing
Microswitch
LED lamp
Transformer
Control board
Cover

Parameter	Value	Notes
Door area, sqm	16
Supply voltage, V	180-240
Maximum force, N	1 200
Motor, V	24 DС
Operating temperature range, °С	-20...+55
Door opening speed, m/min	6
IP protection class	20
Intensity of use	50

Install garage door operator only on properly balanced and lubricated garage door.

Make sure the door operator specifications correspond to local climatic conditions.

Never install this garage door operator in hazardous locations.

Never exceed maximum load of 20 kg.

Use only DoorHan accessories to prevent door operator damage.

Never leave the door operator disengaged.

Never use the door operator if any repair or adjustment needs to be done.

Activate door only when there are no obstructions preventing door travel.

Walk or drive through the opening only when the door is fully opened and stopped. The operator must be on stop.

Never permit children to operate or play with door control push buttons or remote control transmitters.

Do not make any changes to automatics of the operator.

Packing in cardboard box	Packaging features
Contents	stretch film, polystyrene, cardboard box
Length, mm	493
Width, mm	245
Height, mm	175

Installation

Mounting Options

The operator is attached to a rail fastened to the ceiling. A bracket fastens the carriage with a straight and curved arm to the door leaf.

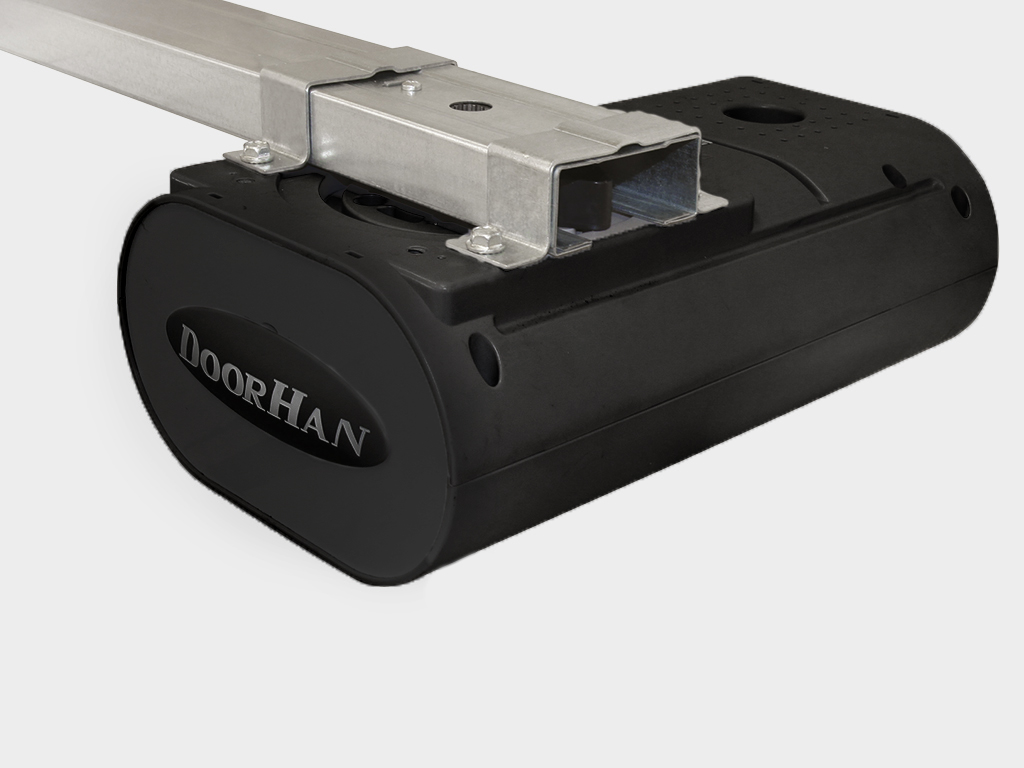

Should you fasten the operator at 90º position the micro switch in the operator according to instructions in the installation manual.

Warranty print

DoorHan warrants the door operator to operate properly for a period of 3 years from purchase date. Dealer may change the warranty period.
