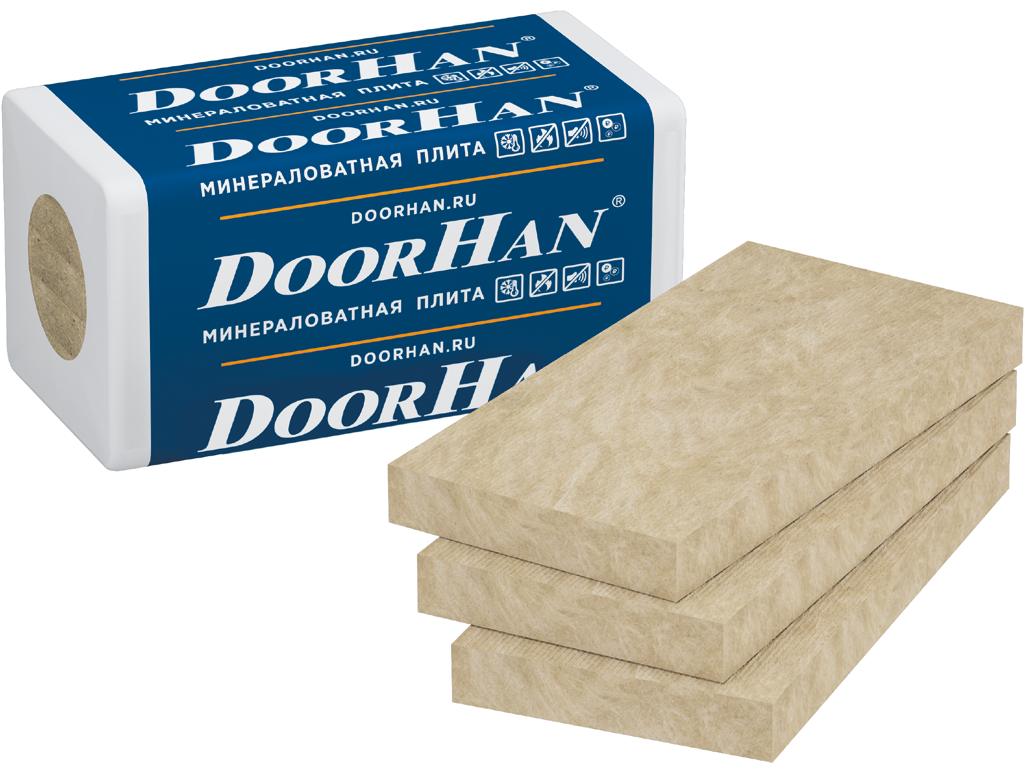

Плита минераловатная DoorHan «Руф В Экстра»

DoorHan "RUF EXTRA" mineral wool boards are used as a heat-insulating layer in multi-layer coatings of flat roofs, including when laying on a surface without a cement screed.
Application:
  • As top thermal insulation layer in flat roof systems
  • As top thermal insulation layer in flat roof systems
Advantages
Excellent heat-insulating properties of mineral wool significantly reduce heat loss.
Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.
Allows to carry out installation of plates with the most dense prileganiye to each other.
The material is resistant to bacterial growth, mold and is not suitable as food for rodents.
Excellent heat-insulating properties of mineral wool significantly reduce heat loss.
Mineral wool is a non-combustible material and helps to maintain the integrity of the building in the event of a fire.
Allows to carry out installation of plates with the most dense prileganiye to each other.
The material is resistant to bacterial growth, mold and is not suitable as food for rodents.
Technical description
Size Table
Specifications
Packaging
Parameters
Value
Length, mm
1 200
Width, mm
600; 1 200
Thickness, mm
from 40 to 100 in 10 mm increments
Packaging volume, m³
from 0.1008 to 0.144 (depending on the thickness and width of the plate)
Parameter Value Notes
Density, kg/m³ 190
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С λ10 = 0,040 at a temperature of 10 ˚С (283±1)K, no more
Thermal conductivity, W/(m K) λ25 = 0,041 at a temperature of 25 ˚С (298±1)K, no more
Thermal conductivity, W/(m K) λА = 0,042 calculated for operating conditions A and B according to SP 50-13330-2012, no more
Thermal conductivity, W/(m K) λБ = 0,043 calculated for operating conditions A and B according to SP 50-13330-2012, no more
Compressive strength, kPa 80 for compression at 10% relative deformation, not less than
Tensile strength, kPa 15 when stretched perpendicular to the front surfaces, not less than
Concentrated force at a given absolute deformation, N at least 800 deformation 5 mm
Water absorption, kg/sqm 1,0 with short-term partial immersion, no more
Content of organic substances, % 4,5 by weight, no more
Humidity, % 0,5 by weight, no more
Vapour permeability, mg/m·h·Pa 0,5 no more
Combustibility class according to European Standards NG
Packing on pallet Packaging features
Description The boards are packed in a thermo shrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm 2 400
Width, mm 1 200
Height, mm 2 505
Documentation
Manuals
Technical Data and Certificates

Album of technical solutions

Fire Safety Certificate

Declaration of Conformity

Expert opinion

Certificate of conformity

Certificate of conformity

Warranty print

If the consumer observes the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.

Technical description
Size Table
Parameters
Value
Length, mm
1 200
Width, mm
600; 1 200
Thickness, mm
from 40 to 100 in 10 mm increments
Packaging volume, m³
from 0.1008 to 0.144 (depending on the thickness and width of the plate)
Specifications
Parameter Value Notes
Density, kg/m³ 190
Thermal conductivity, W/(m K), not more than at a temperature of 10 ˚С λ10 = 0,040 at a temperature of 10 ˚С (283±1)K, no more
Thermal conductivity, W/(m K) λ25 = 0,041 at a temperature of 25 ˚С (298±1)K, no more
Thermal conductivity, W/(m K) λА = 0,042 calculated for operating conditions A and B according to SP 50-13330-2012, no more
Thermal conductivity, W/(m K) λБ = 0,043 calculated for operating conditions A and B according to SP 50-13330-2012, no more
Compressive strength, kPa 80 for compression at 10% relative deformation, not less than
Tensile strength, kPa 15 when stretched perpendicular to the front surfaces, not less than
Concentrated force at a given absolute deformation, N at least 800 deformation 5 mm
Water absorption, kg/sqm 1,0 with short-term partial immersion, no more
Content of organic substances, % 4,5 by weight, no more
Humidity, % 0,5 by weight, no more
Vapour permeability, mg/m·h·Pa 0,5 no more
Combustibility class according to European Standards NG
Packaging
Packing on pallet Packaging features
Description The boards are packed in a thermo shrinkable polyethylene film. The packs are stacked on a pallet and additionally protected by a plastic bag. Each package is labeled with product information.
Length, mm 2 400
Width, mm 1 200
Height, mm 2 505
Warranty

If the consumer observes the rules of transportation and storage, the warranty shelf life of the plates is six months from the date of manufacture.

Documentation
Manuals

Album of technical solutions

Technical Data and Certificates

Fire Safety Certificate

Declaration of Conformity

Expert opinion

Certificate of conformity

Certificate of conformity
