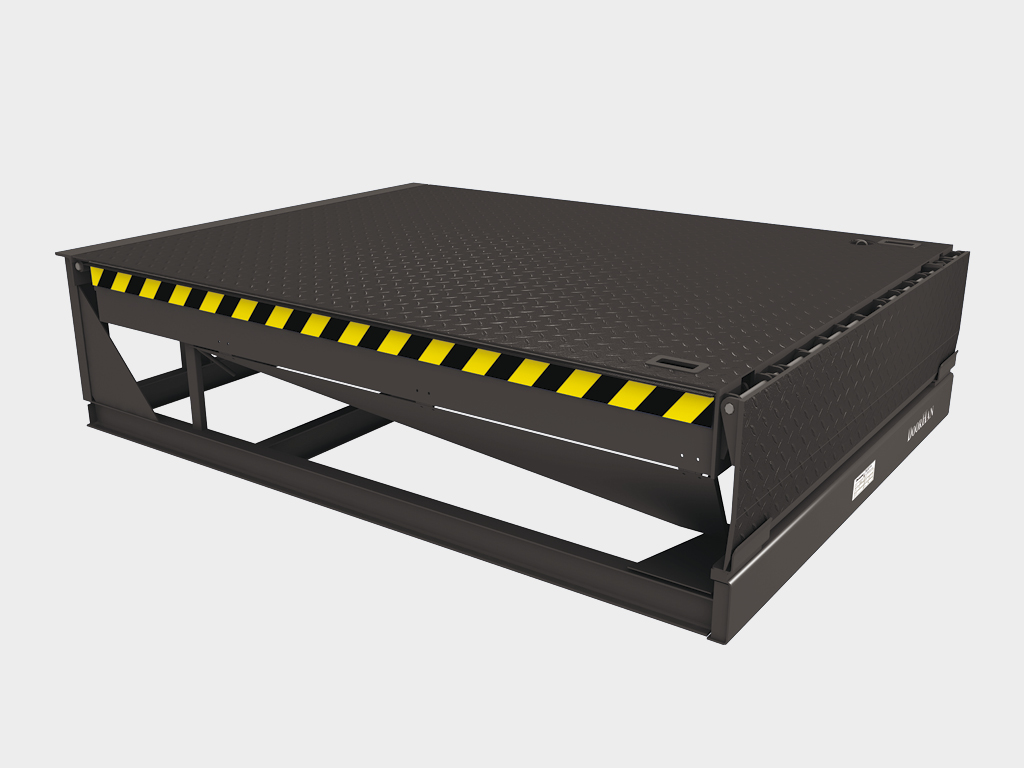

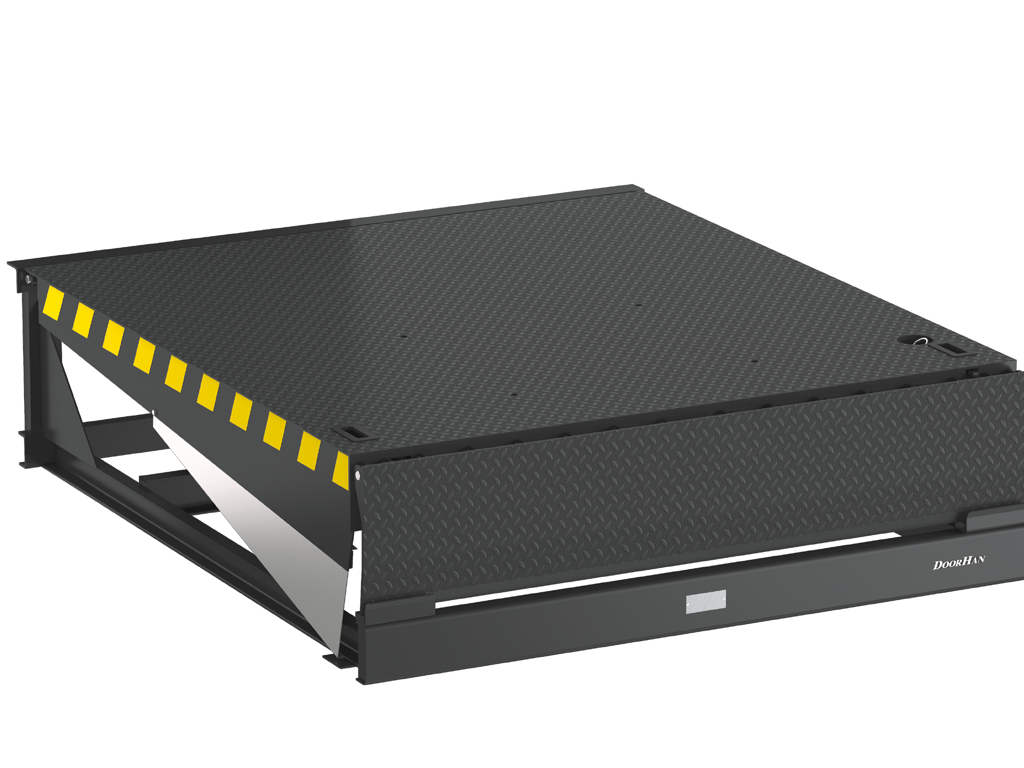

Mechanical leveler platform MODL series

The mechanical leveling platform of the MODL series does not require power supply, therefore it can be used in cases where there is no electricity and it is not possible to install an electro-hydraulic platform. The mechanical platform is lifted manually by two people, while the ramp turns and opens automatically.

Application:

Warehouses and logistics facilities

Order with installation

Equipment

Standard

Optional

Dock leveler

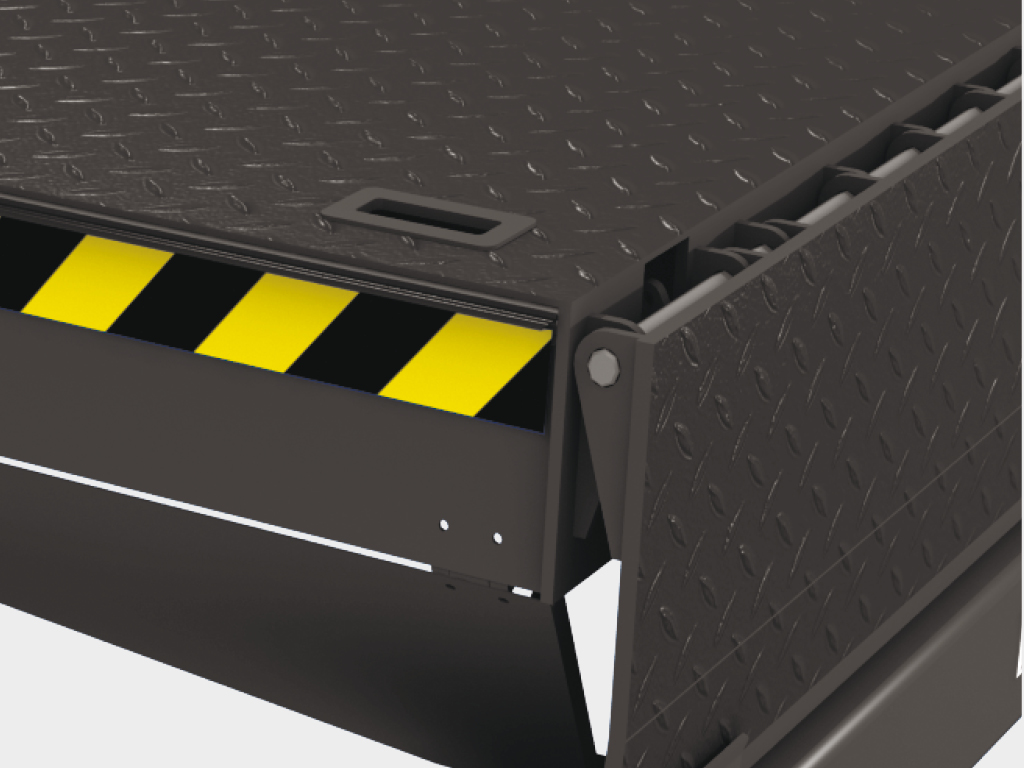

Side sealing between deck and frame

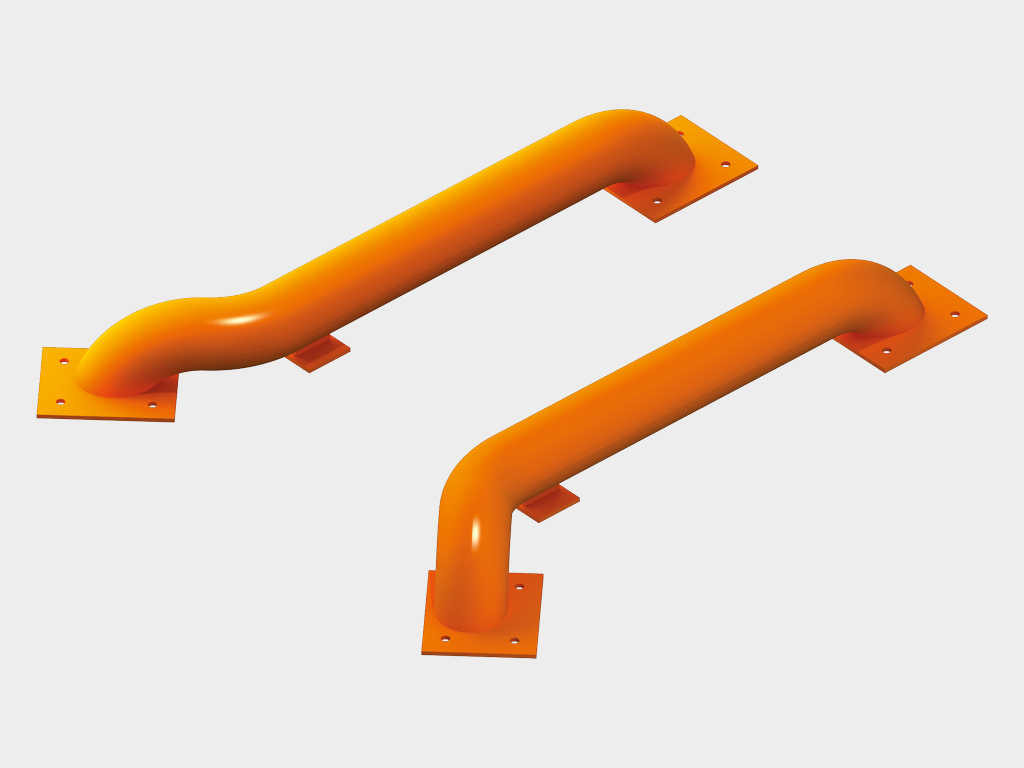

Wheel guides. They are used to direct reversing vehicles safely and quickly on to the loading docks thus preventing damages to dock shelters or the building. The guides are designed to minimise possible contact with the truck wheel rim. They are made of steel tubes with 159 mm diameter and positioned in front of the loading dock. These wheel guides are fixed to the surface with anchor bolts or embedded into a concrete foundation.

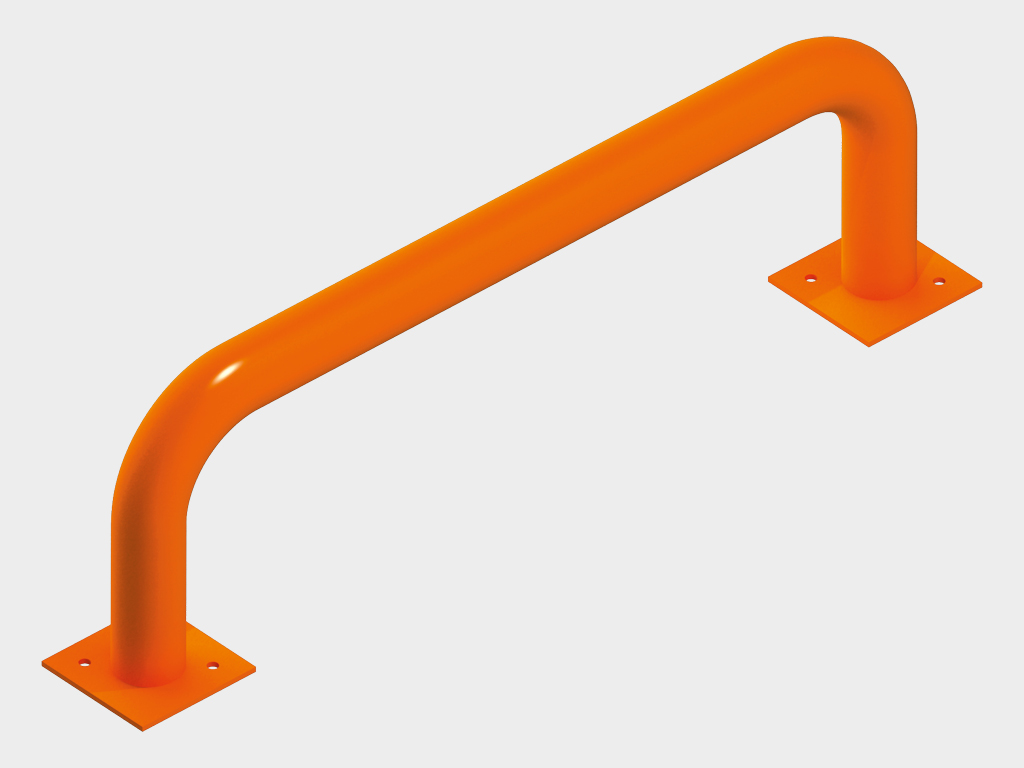

Safety fences. Fences are placed inside the premise to protect the walls from collisions with forklifts, ensuring correct and safe movement of the vehicle inside the premises and near the loading dock. Fences are made of steel tubes of 100–159 mm diameter, may have any design and be manufactured in accordance with customer’s orders.

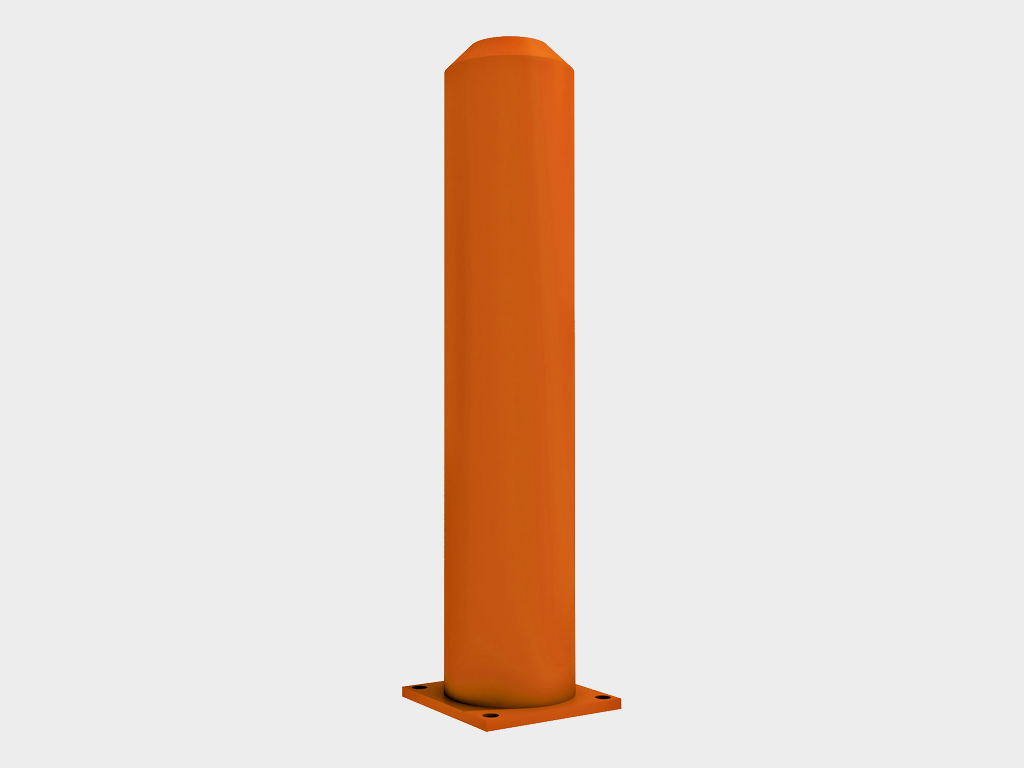

Shock columns. Designed to prevent forklifts from damaging vertical angles of sectional doors used in loading docks. Shock columns are installed inside the premise in front of the doors vertical angle. Available in any diameter from 100 to 159 mm.

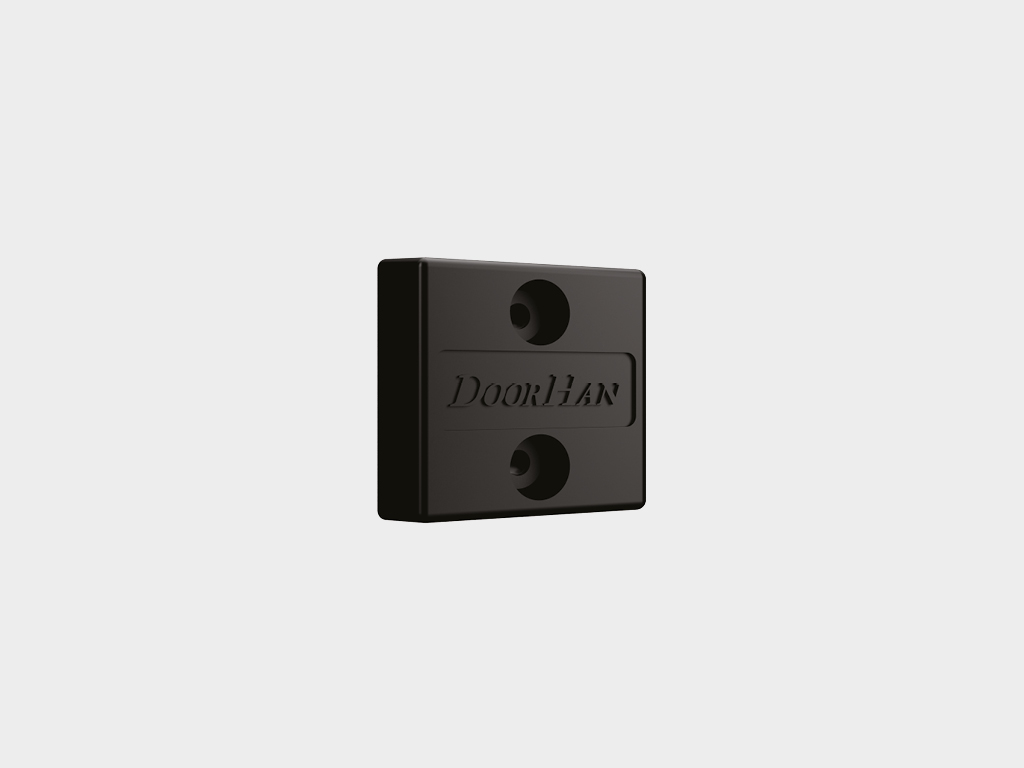

Molded rubber bumpers 250 × 250 × 100 mm. Standard. Product number BR250×250×100. Ensure safe truck movement reversing into the loading dock, protect the building walls. For mounting dimensions, please, refer to drawings.

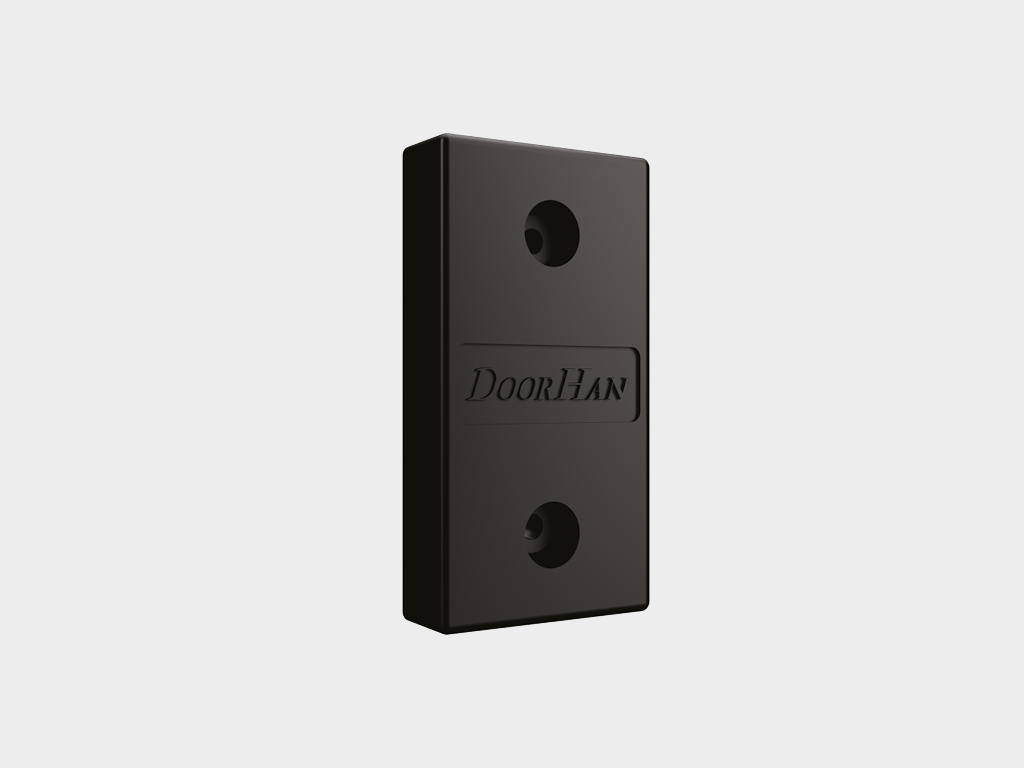

Molded rubber bumpers 450 × 250 × 100 mm. Standard. Product number BR450×250×100. Ensure safe truck movement reversing into the loading dock, protect the building walls. For mounting dimensions, please, refer to drawings.

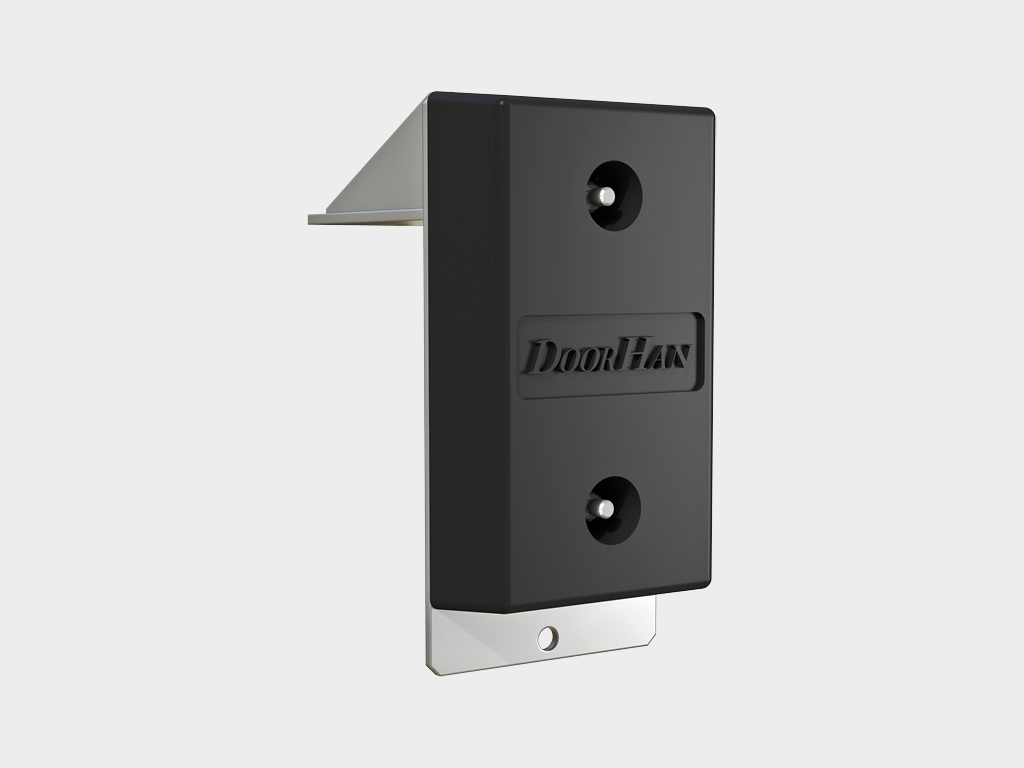

Molded rubber bumpers 510 × 250 × 330 mm (external dimensions), console type. Based on rubber bumper 450 × 250 × 100 mm. Product number BRC510×250×330. Ensure safe truck movement reversing into the loading dock, protect the building walls. Used when truck load bed is higher than the ramp. For mounting dimensions, please, refer to drawings.

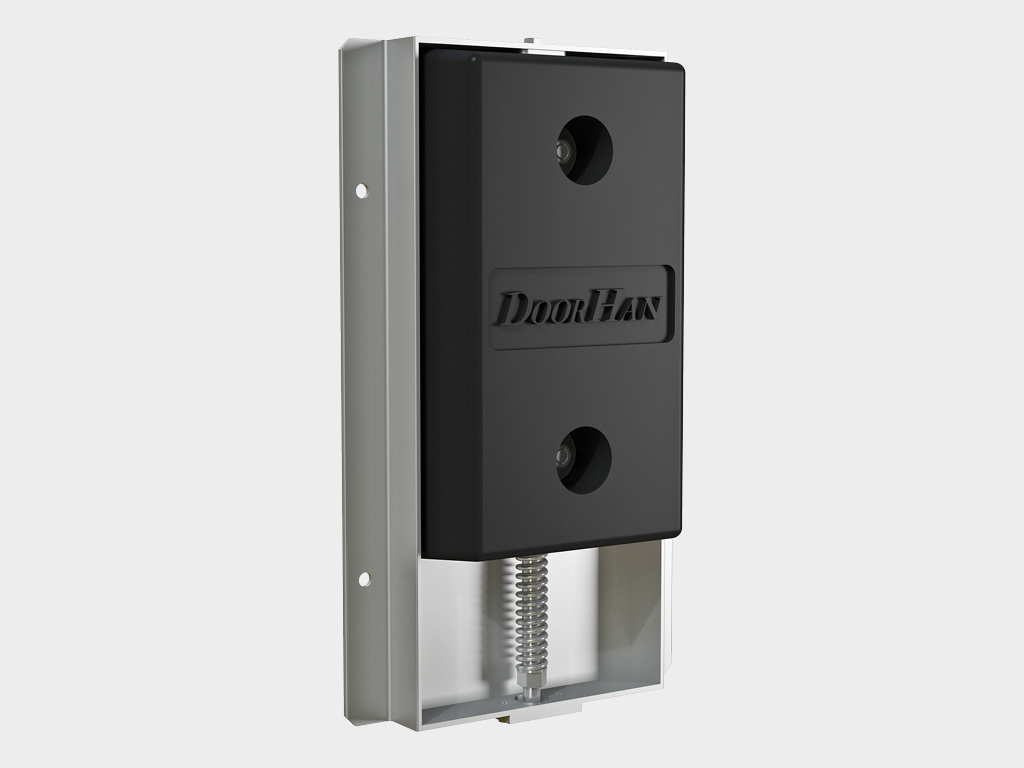

Molded rubber bumpers 600 × 364 × 110 mm (external dimensions), moving. Based on rubber bumper 450 × 250 × 100 mm. Product number BRM600×364×110. Move up and down following vehicle raising and lowering as the suspension floats during the loading/unloading cycle. Has greater service life. For mounting dimensions, please, refer to drawings.

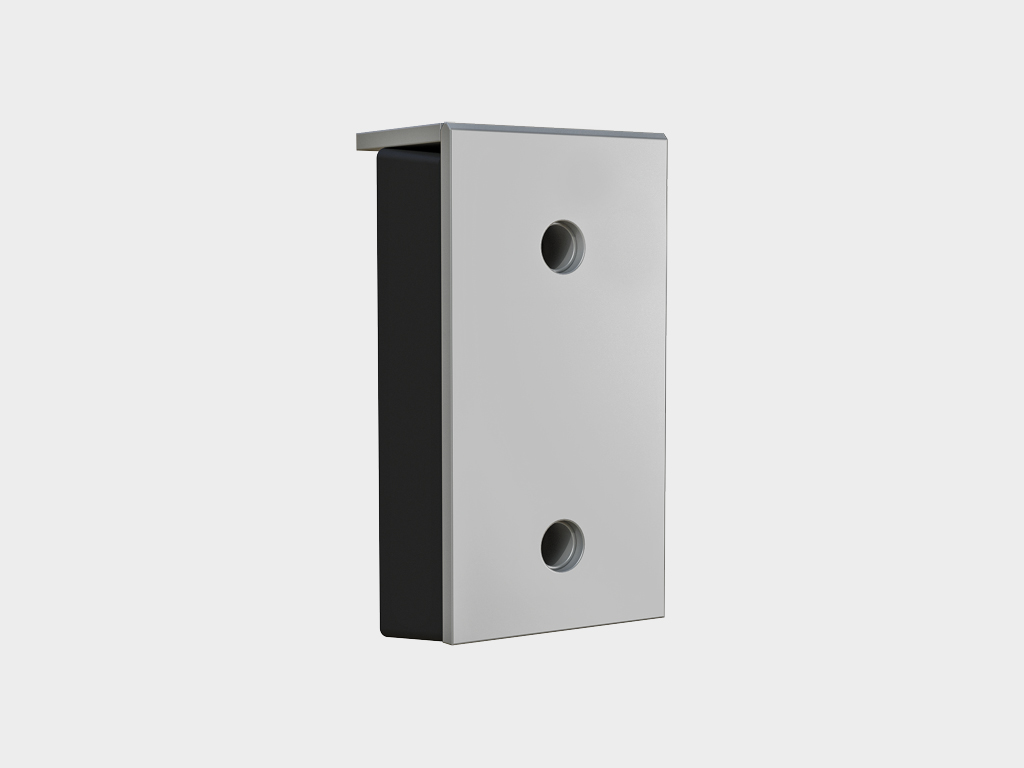

Steel face dock bumpers 465 × 250 × 165 mm (external dimensions) with 16 mm steel plate and parking sensor. Based on rubber bumper 450 × 250 × 100 mm. Product number BRSP(16)465×250×165S. Consist of a rubber bumper 450 × 250 × 100 mm covered with durable steel plate and parking sensor. Steel face improves life expectancy of the rubber bumper and protects it from damaging by parking vehicle and during loading/unloading cycle. Manufacturer’s warranty doesn’t cover steel plate replacement in case of wear and deformation due to its extreme abnormal wear. These dock bumpers are used together with parking radar. For mounting dimensions, please, refer to drawings.

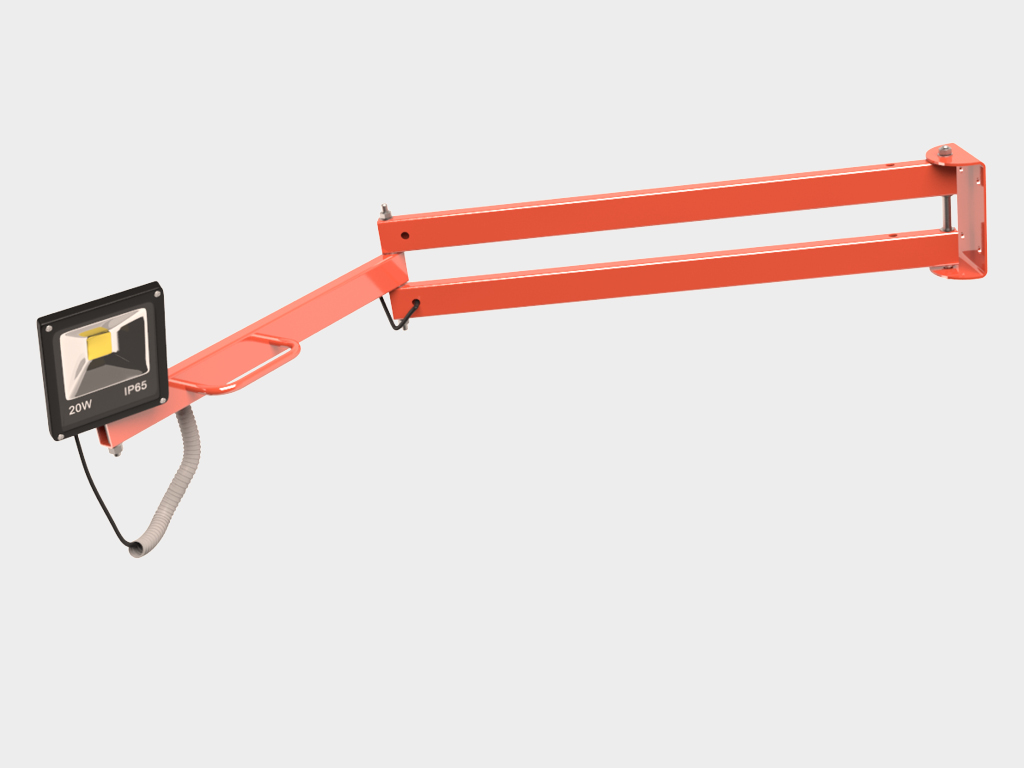

LED dock light is used to illuminate the loading dock.

Technical description

Size Table

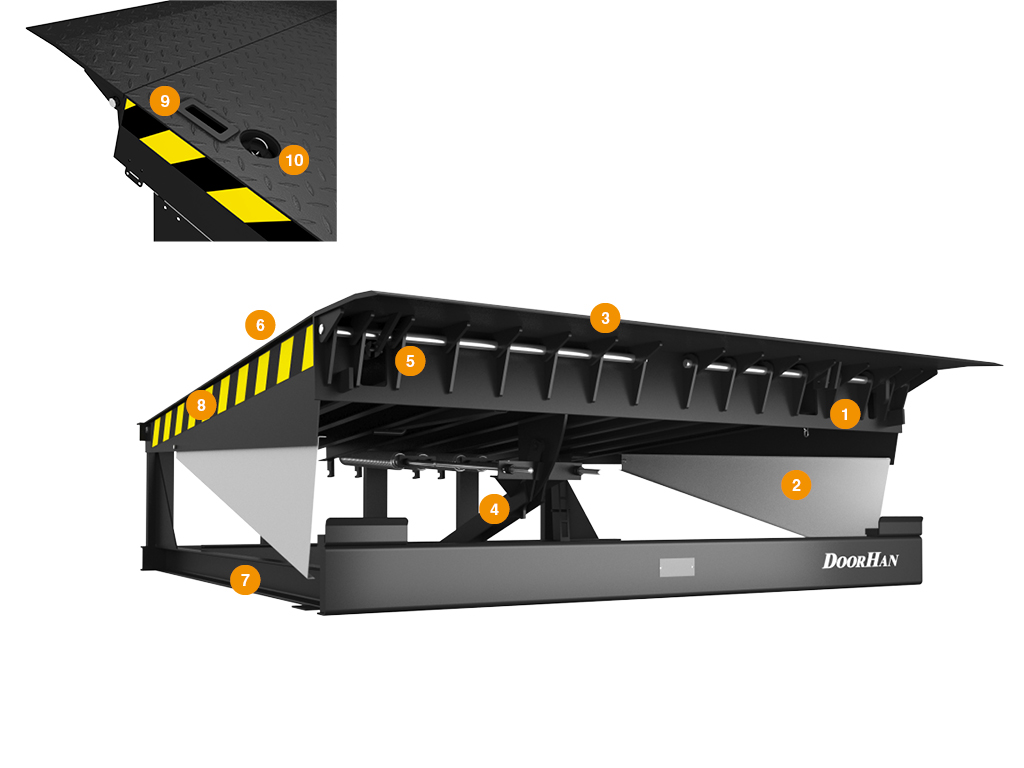

Construction

Standard Construction

Specifications

Operating Conditions

Parameters

Value

Length of dock leveler with load capacity of 6 000 kg (60 kN)*, mm

2 500

Dock leveler width, mm

1 800; 2 000

Lip damping mechanism
Toeguard
Lip
Platform balancing mechanism
Lip opening mechanism
Deck
Frame
Signal black and yellow stripes
Lever
Chain operator

Standard lip 400 mm. 35 mm bevel. Whole rectangular lip for trucks with one-size load bed.

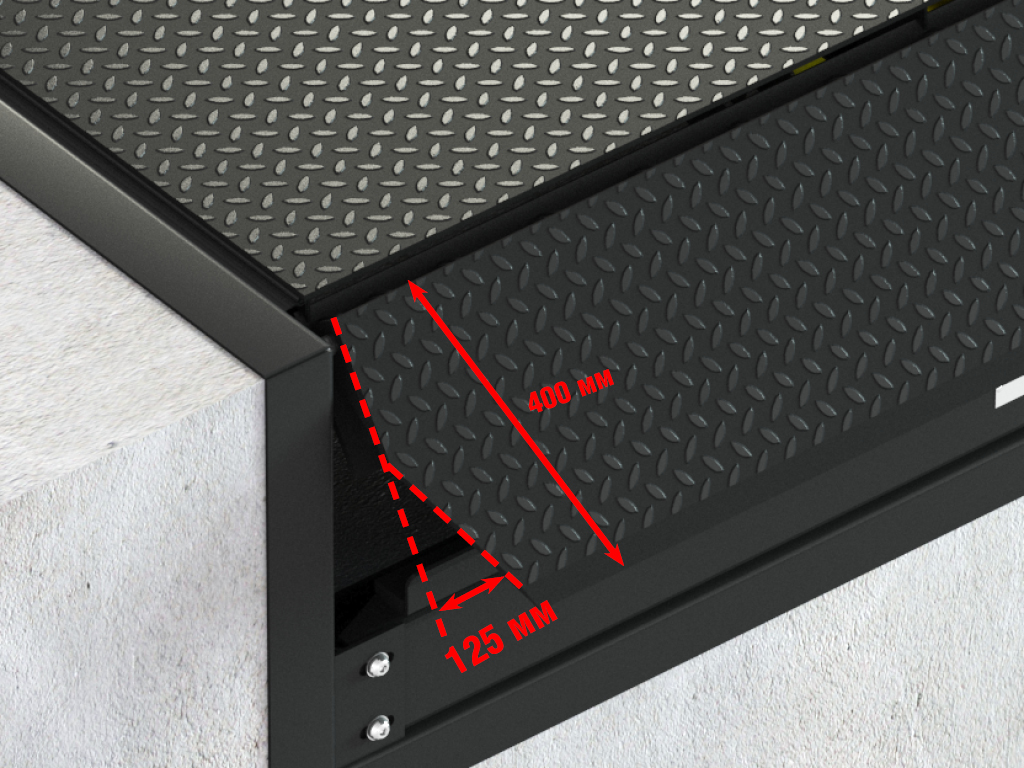

Wedge-shaped lip. 35 mm bevel. Whole, without segments. Such levelers are ideal for trucks with different-size load beds or in case a truck parks not in the center of the loading dock preventing truck damage.

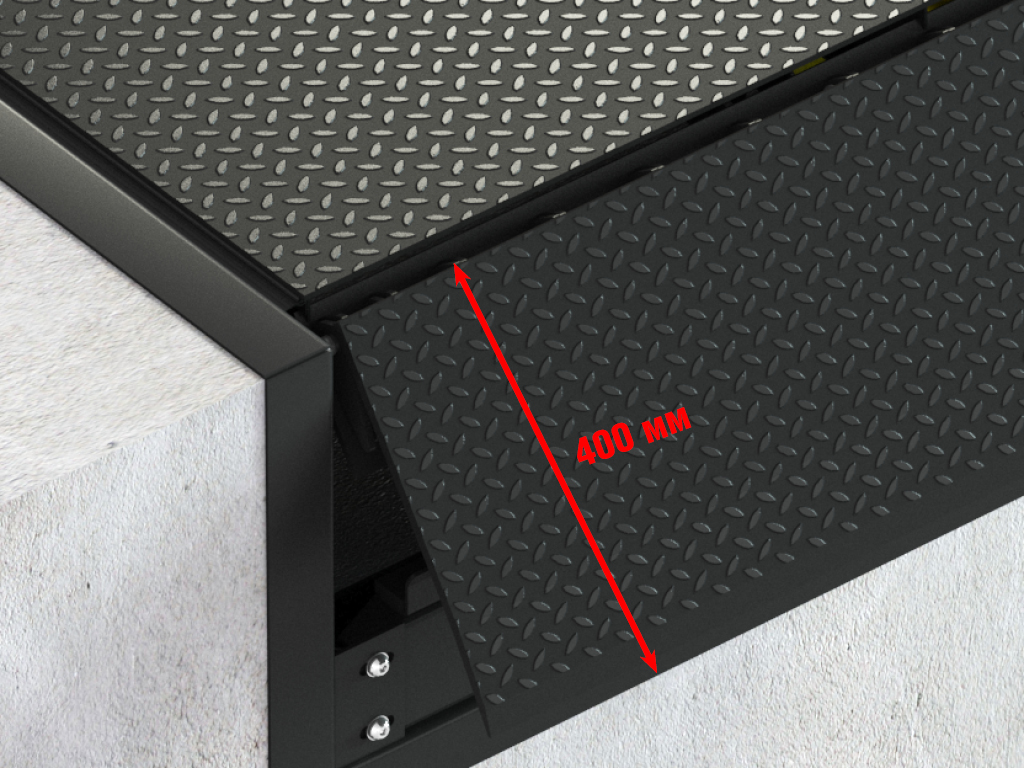

Lip without bend. 35 mm bevel. Whole, without segments. Rectangular lip ideal for trucks with one-size load bed and loaders with low or very low clearance.

Parameter	Value	Notes
Length, mm	2 500
Width, mm	1 800; 2 000
Weight, kg	850
Load capacity, kg (kN)	6 000 (60)
Maximum point load, Н/mm²	1,3	6 mm top sheet
Preparation of steel surface before application of paints, class	Sa 2
Thickness of paint layer, not less than, mkm	60
Operating temperature range, °С	from -30 to +50

Conduct routine inspections and maintenance of the dock leveler to ensure its safe and smooth operation.

Keep people and goods clear of working area while operating the dock leveler.

Keep overhead door fully open while operating the dock leveler.

Make sure the vehicle is properly parked against the dock bumpers. Chock the wheels if needed.

Do not drive on the leveler unless the lip is securely positioned on the truck bed and has a minimum of 100 mm overlap on its surface.

Ensure that the control unit location allows the operator to clearly see and control dock leveler operation.

Use dock levelers with 1,3 Н/mm² point load only with standard forklifts having inflatable wheels.

Additional Information print

Lifting equipment: forklift truck (minimum load capacity — 35 kN, fork length — not less than 2 000 mm); crane (minimum load capacity — 20 kN).

Mounting equipment: welding machine (5–200 A); 3 mm welding electrodes.

Installation

Mounting Options

Checking Dimensional Details

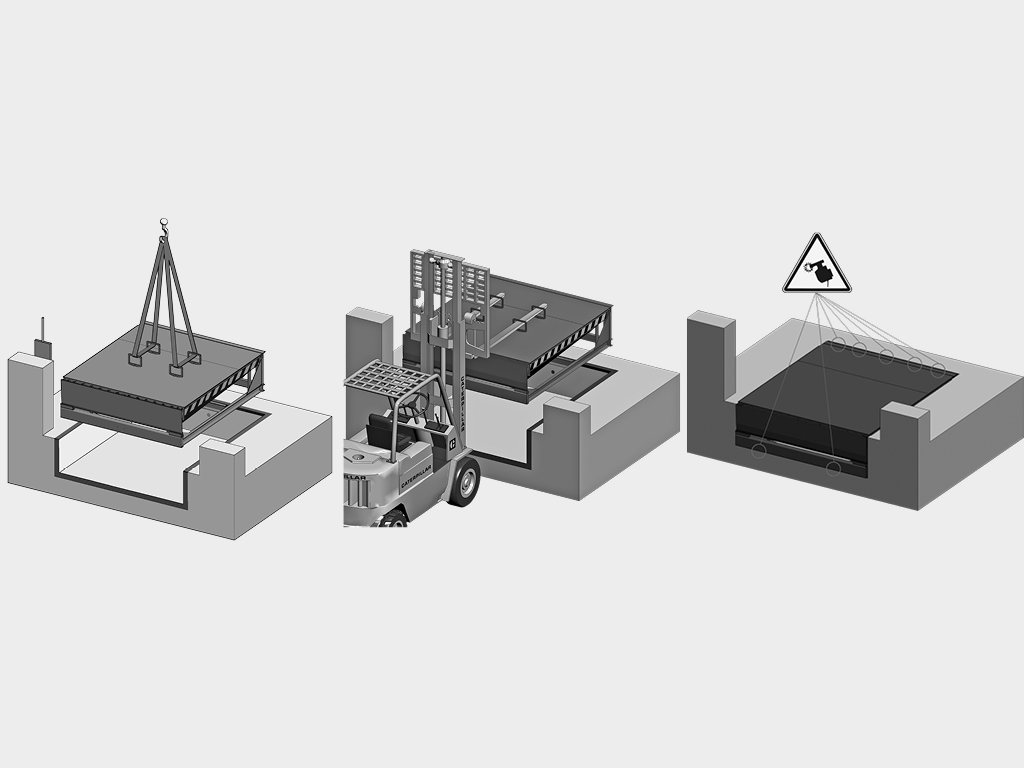

Embedded mounting

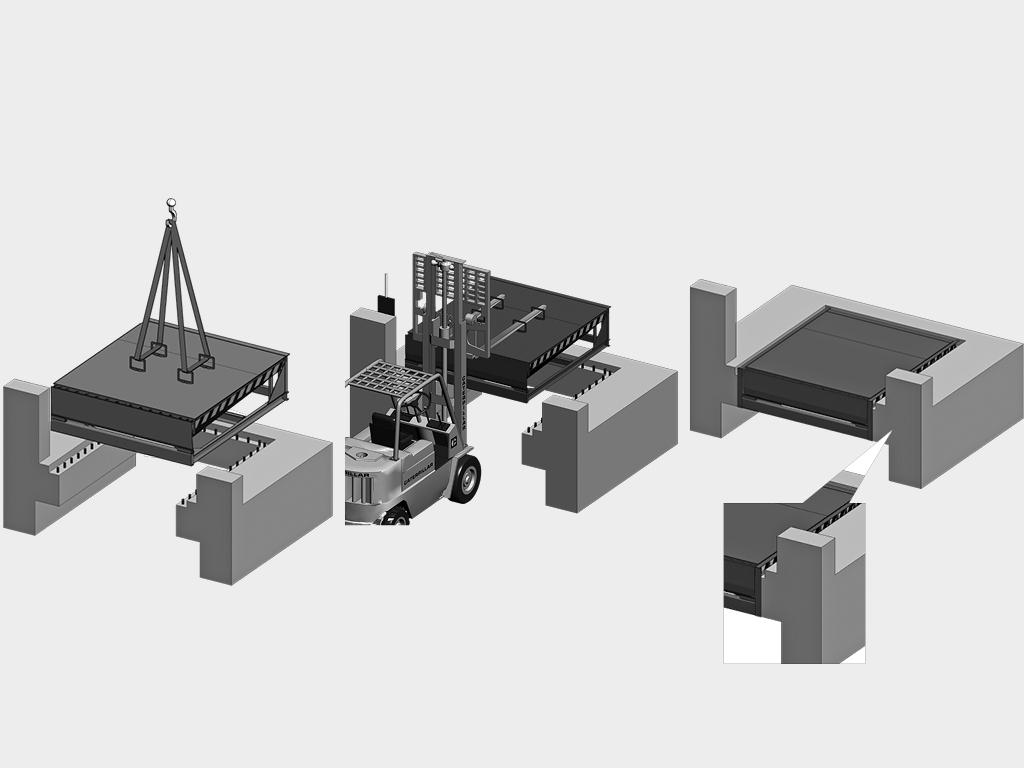

Suspended mounting

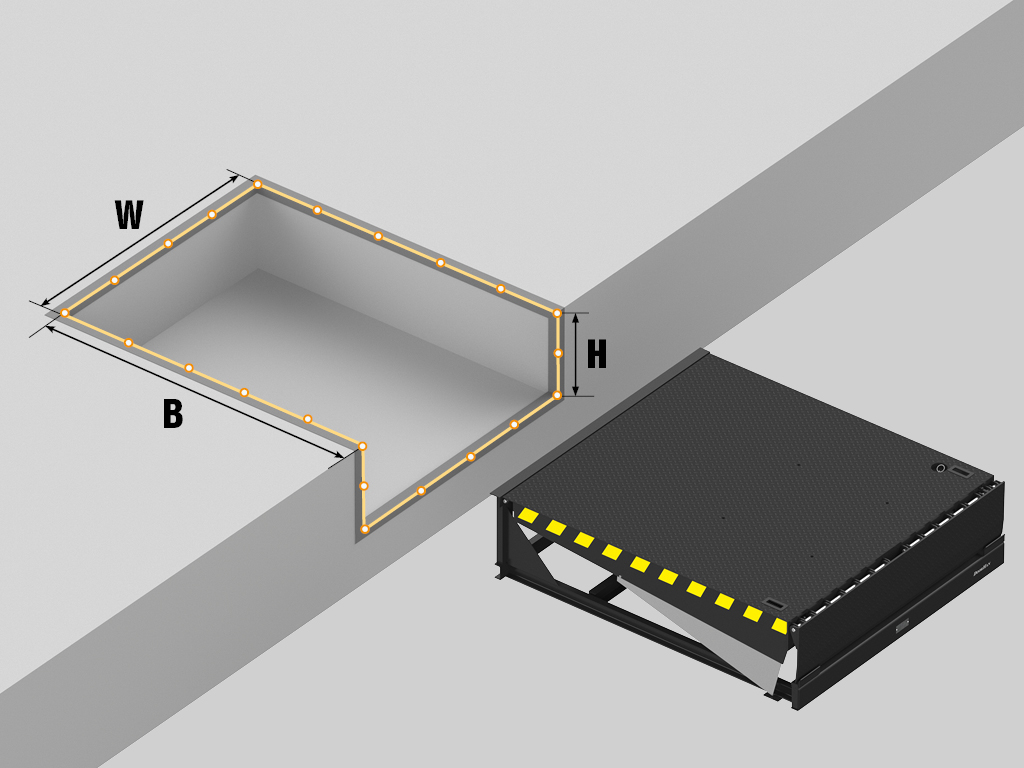

Pits for dock levelers are prepared in accordance with DoorHan drawings and correspond to dock leveler’s type and mounting.

Documentation

Manuals

Technical Data and Certificates

Drawings

Mechanical Dock Leveler

PDF

Certificate of Conformity (loading equipment)

PDF

Certificate of Conformity #151299198

PDF

Certificate of Conformity #151299199

PDF

Certificate of Conformity #151299200

PDF

Technical Data for Mechanical Dock Leveler

PDF

MODLE embeded mechanical dock leveler

PDF

MODLIE embeded mechanical dock leveler

PDF

MODLE pit preparation drawing (without hydraulic lift)

PDF

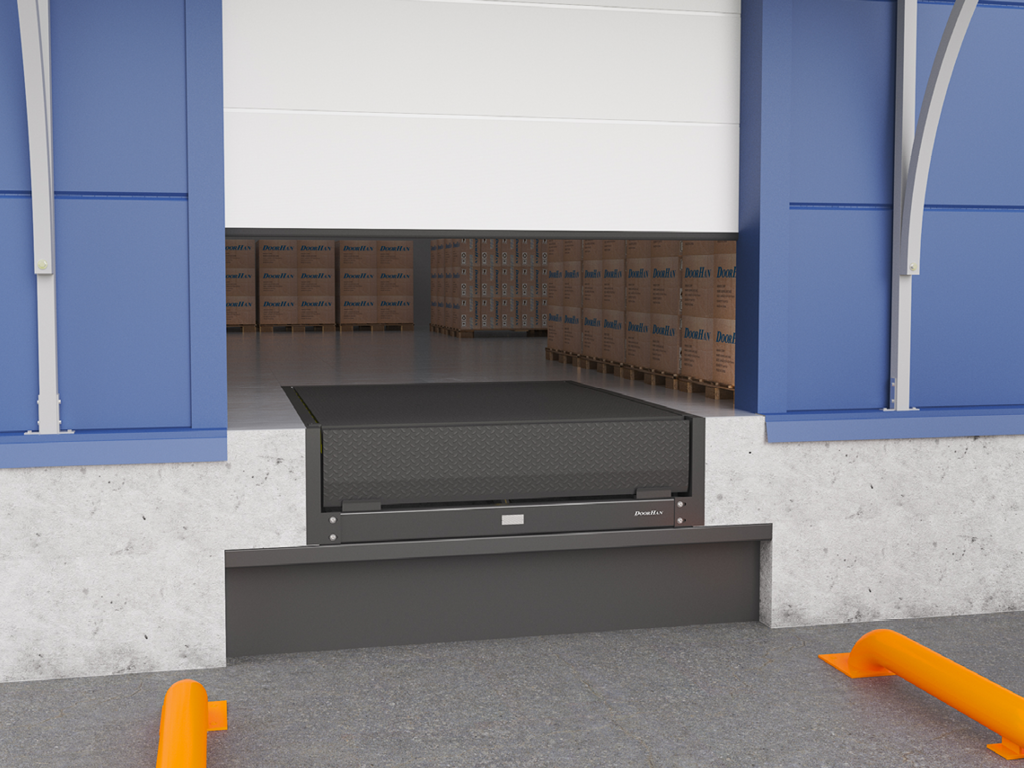

MODLE pit preparation drawing (with hydraulic lift)

PDF

MODLS pit preparation drawing

PDF

Scheme of force distribution in dock leveler pits

PDF

Installation drawings for BR250x250x100, BR450x250x100, BRC510x250x330, BRM610x250x175, BRM600x364x110 dock bumpers

PDF

Installation drawings for BRSP(16)465x250x165, BRSP(16)465x250x165S, BRSP(10)460x250x160, BS500x255x205, BS800x255x205 dock bumpers

PDF

Warranty print

DoorHan warrants the dock leveler with hinged lip to operate properly for a period of 2 years from purchase date for retail and dealer orders.
