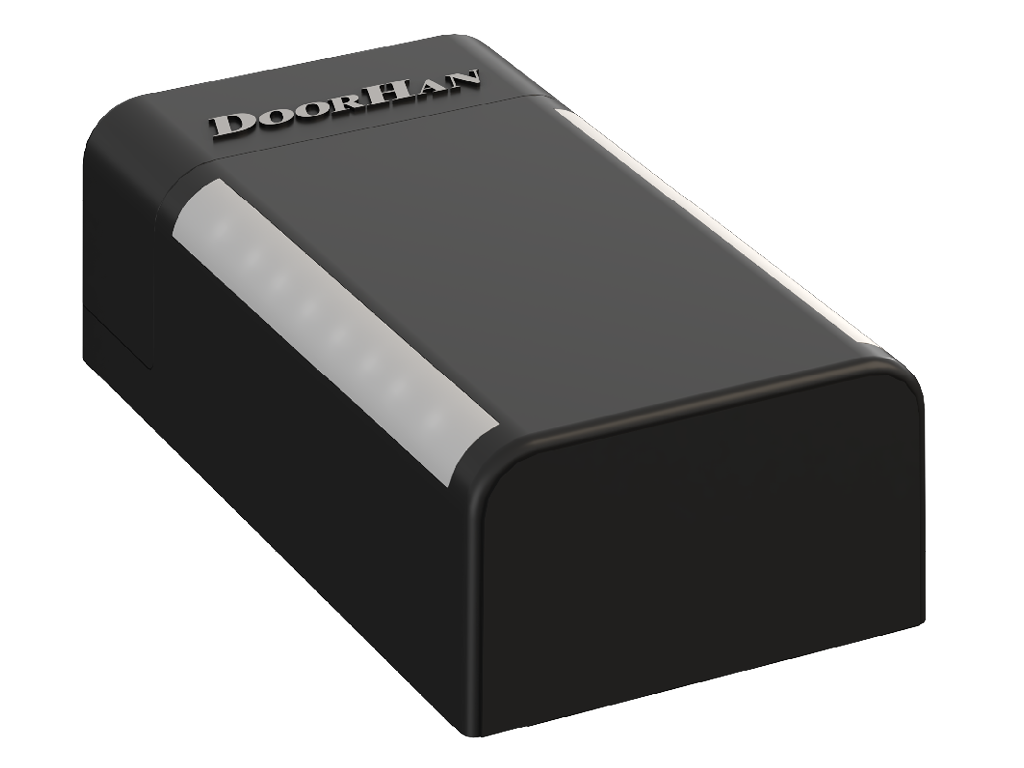

SECTIONAL-1200PRO operator for domestic sectional doors

Electromechanical chain drive SECTIONAL-1200PRO is designed for automation of domestic sectional doors and small industrial sectional doors with low and standard lift types and door leaf weight up to 220 kg.
Application:
  • Sectional doors of household type with low and standard lift types
  • Sectional industrial doors for low-intensity use with low and standard lift types
Advantages

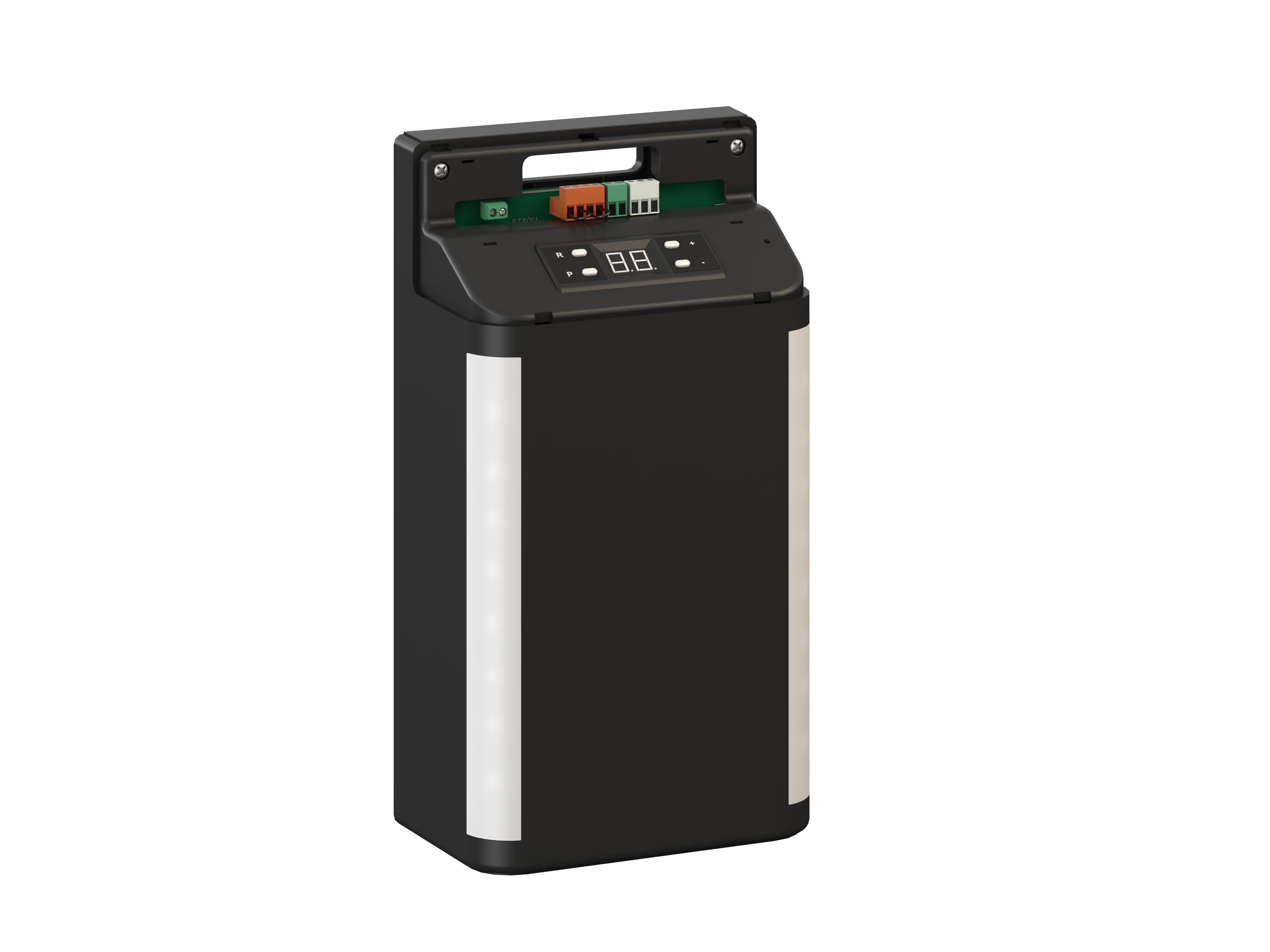

Control buttons and digital display are located at the opener front ensuring easy and convenient programming. All the buttons are covered with a protection panel to prevent unauthorized access to the operator controls.
If the premises depth is limited than the opener may be turned 90° during installation without any negative impact on its operating characteristics and performance.
The operators control unit is adapted for operation in networks with unstable voltage and is protected from high voltage impulse noise.
The rail has a special chain or belt tightening device with a spring preventing the chain or belt from dropping ensuring self-tensioning.
The chain gear sprocket is made of high quality metal and has an unlimited service life.
Control buttons and digital display are located at the opener front ensuring easy and convenient programming. All the buttons are covered with a protection panel to prevent unauthorized access to the operator controls.
If the premises depth is limited than the opener may be turned 90° during installation without any negative impact on its operating characteristics and performance.
The operators control unit is adapted for operation in networks with unstable voltage and is protected from high voltage impulse noise.
The rail has a special chain or belt tightening device with a spring preventing the chain or belt from dropping ensuring self-tensioning.
The chain gear sprocket is made of high quality metal and has an unlimited service life.
Design
Operator design
Protection panel
Protection panel
Light lens
Light lens

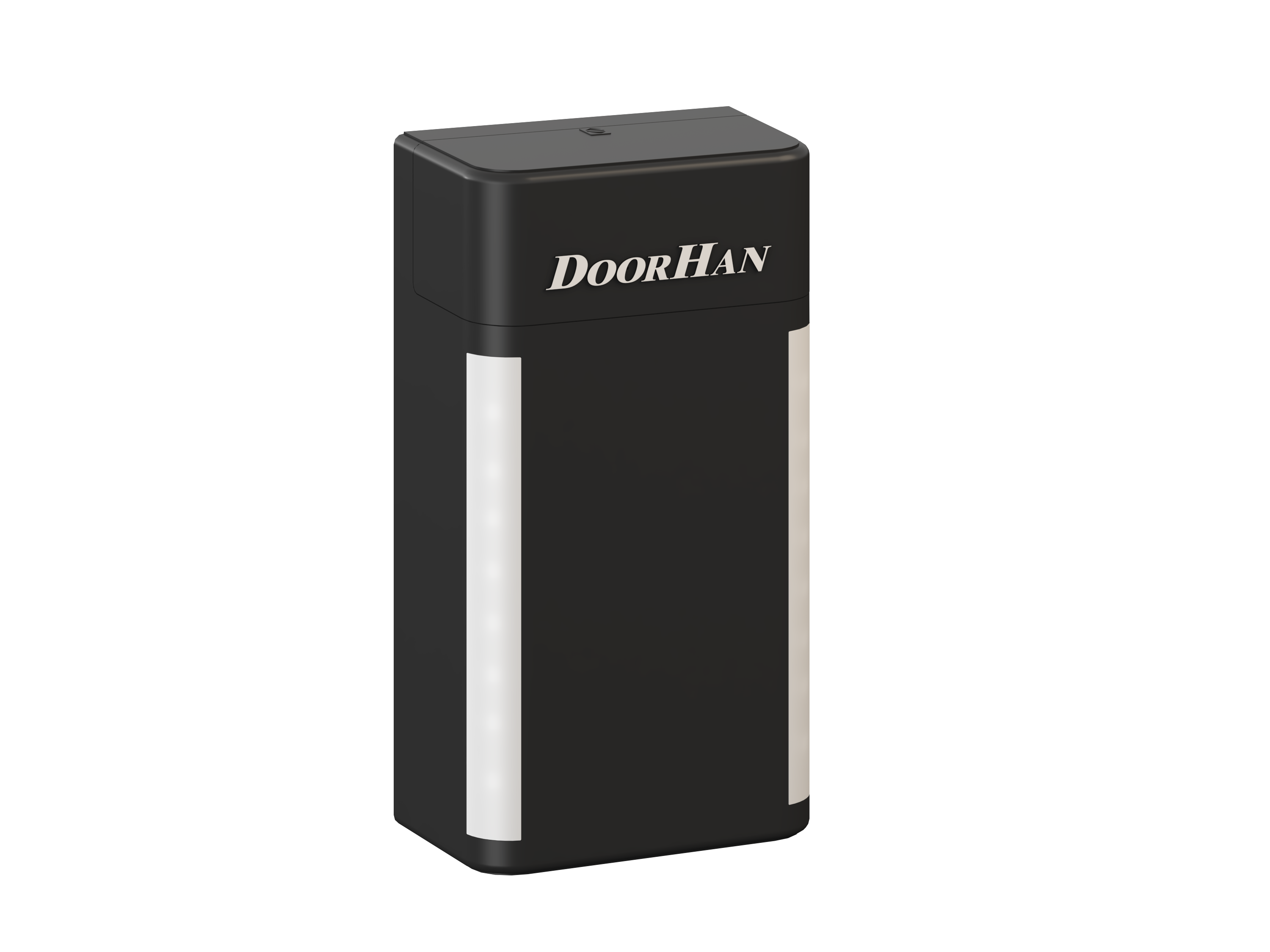

Streamlined body
Streamlined body
Equipment
Standard
Optional

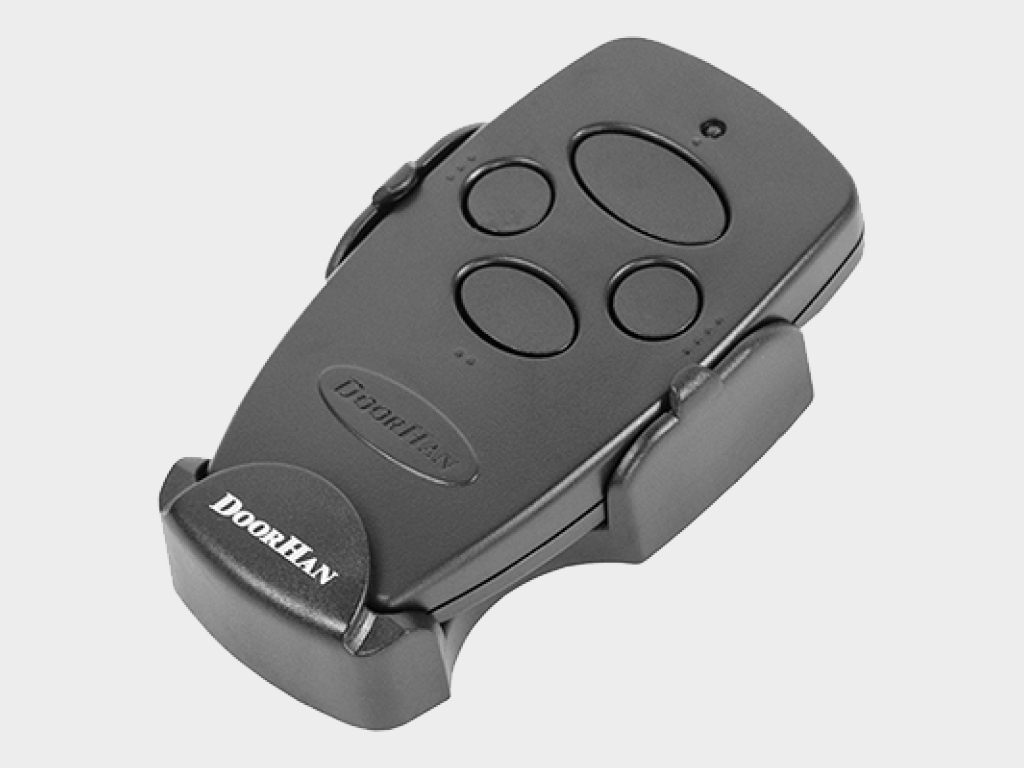

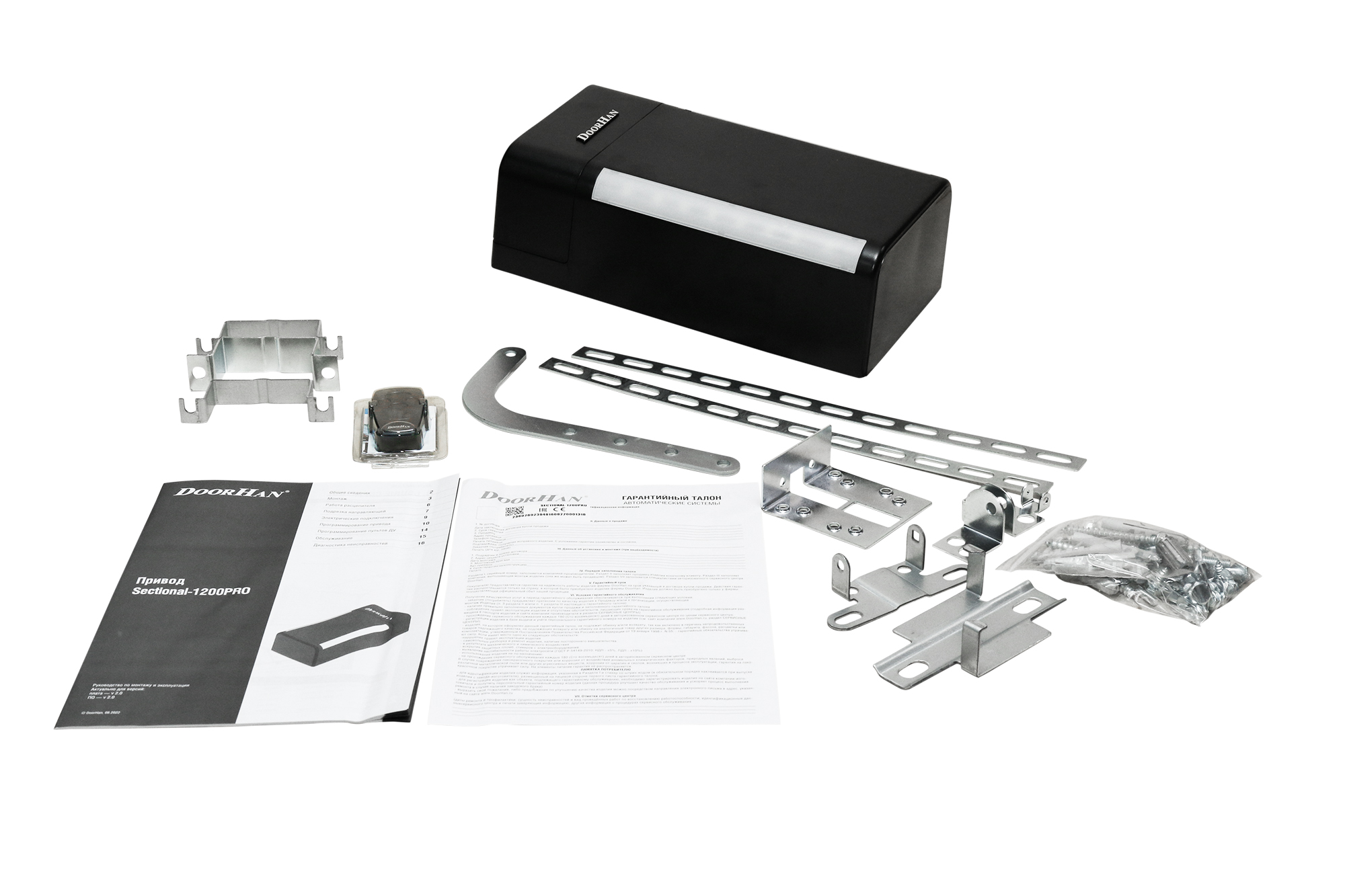

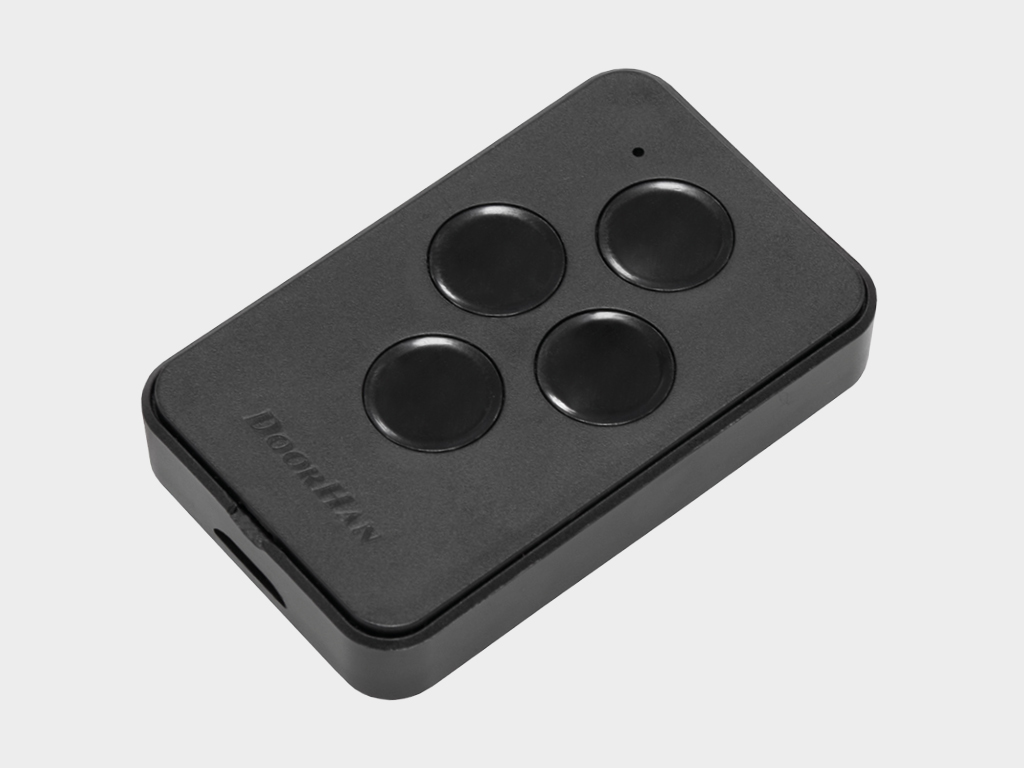

Operator, curved arm, Transmitter-4 remote control, brackets

Operator, curved arm, Transmitter-4 remote control, brackets

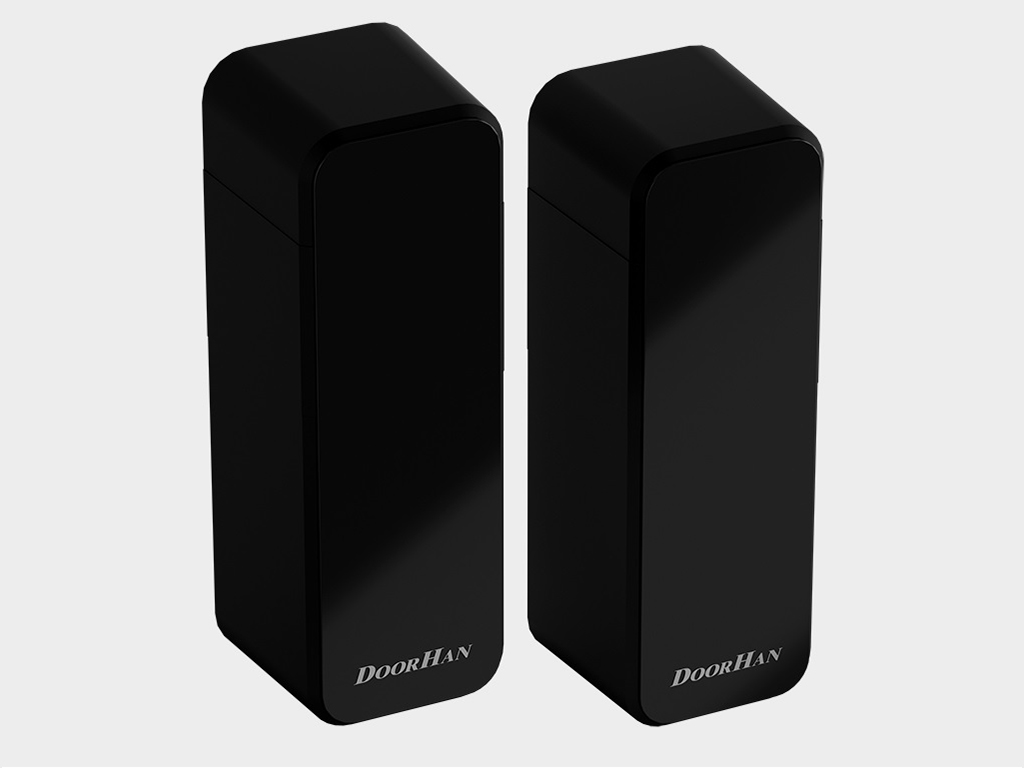

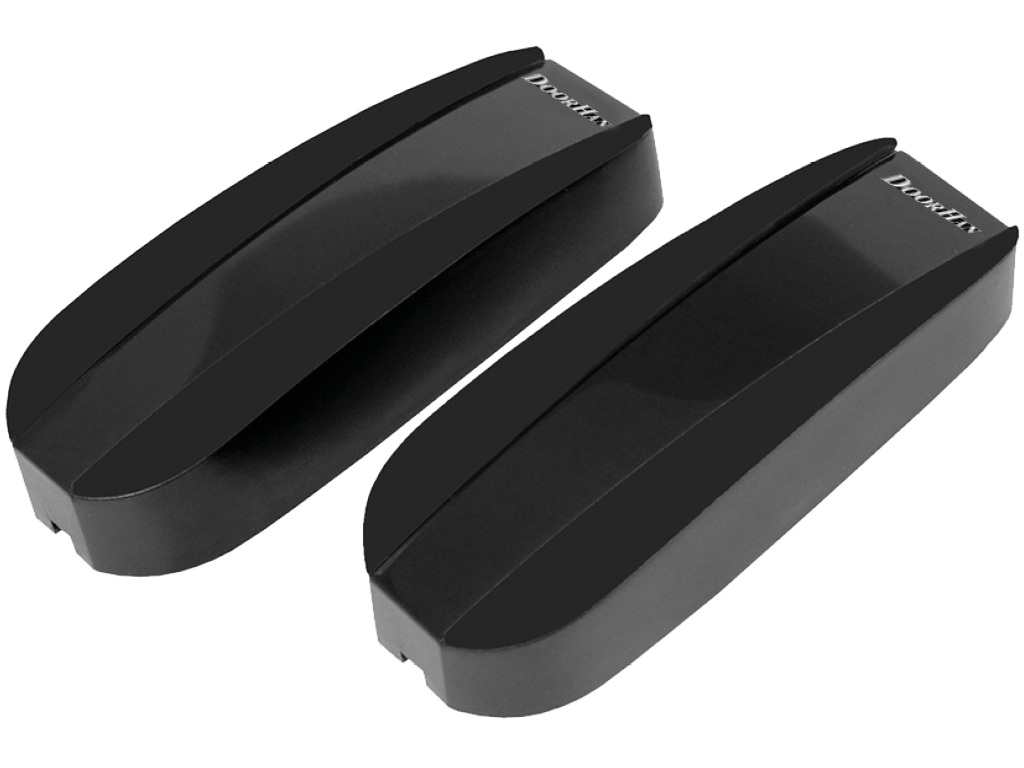

Photocell-N safety photocells consisting of infrared transmitter and receiver

Photocell-N safety photocells consisting of infrared transmitter and receiver

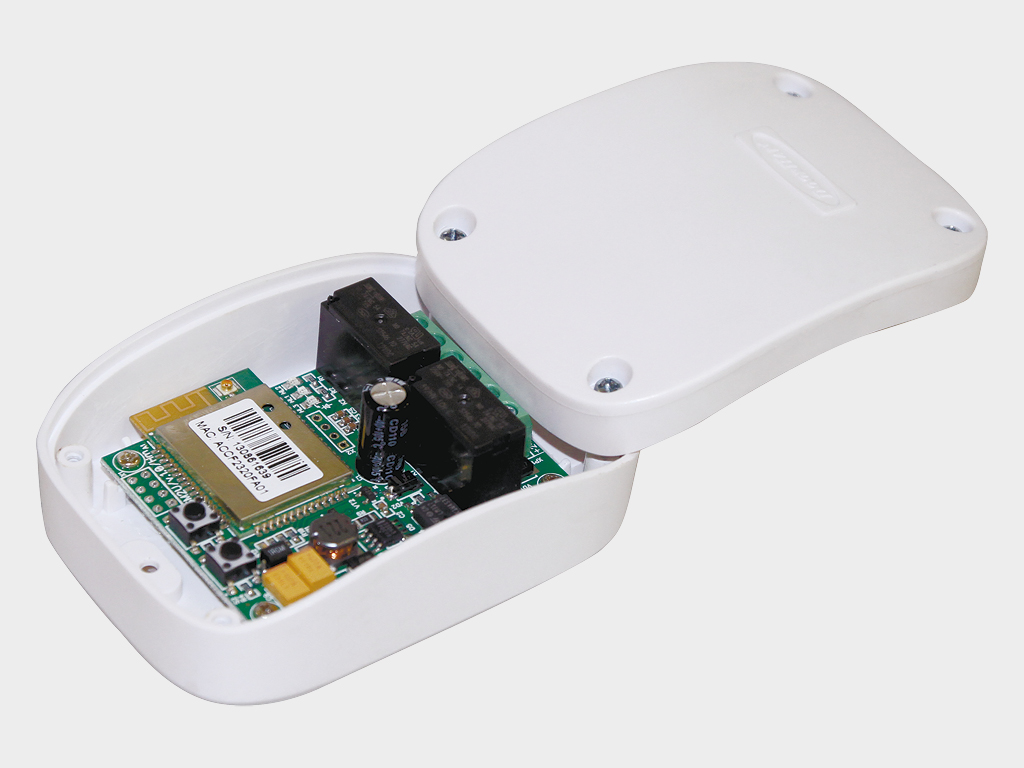

Wi-Fi-module for wireless control of the door operator (control signal, NO)

Wi-Fi-module for wireless control of the door operator (control signal, NO)

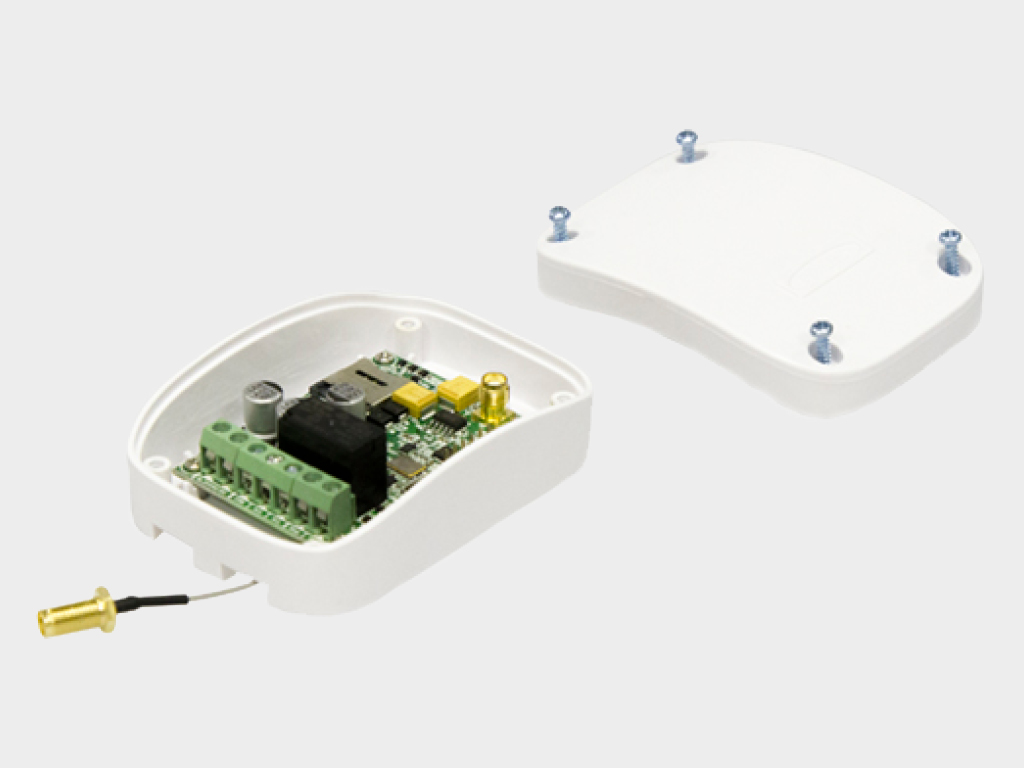

GSM-module receives a mobile phone signal and transmits a control signal to operate the operator or barrier

GSM-module receives a mobile phone signal and transmits a control signal to operate the operator or barrier

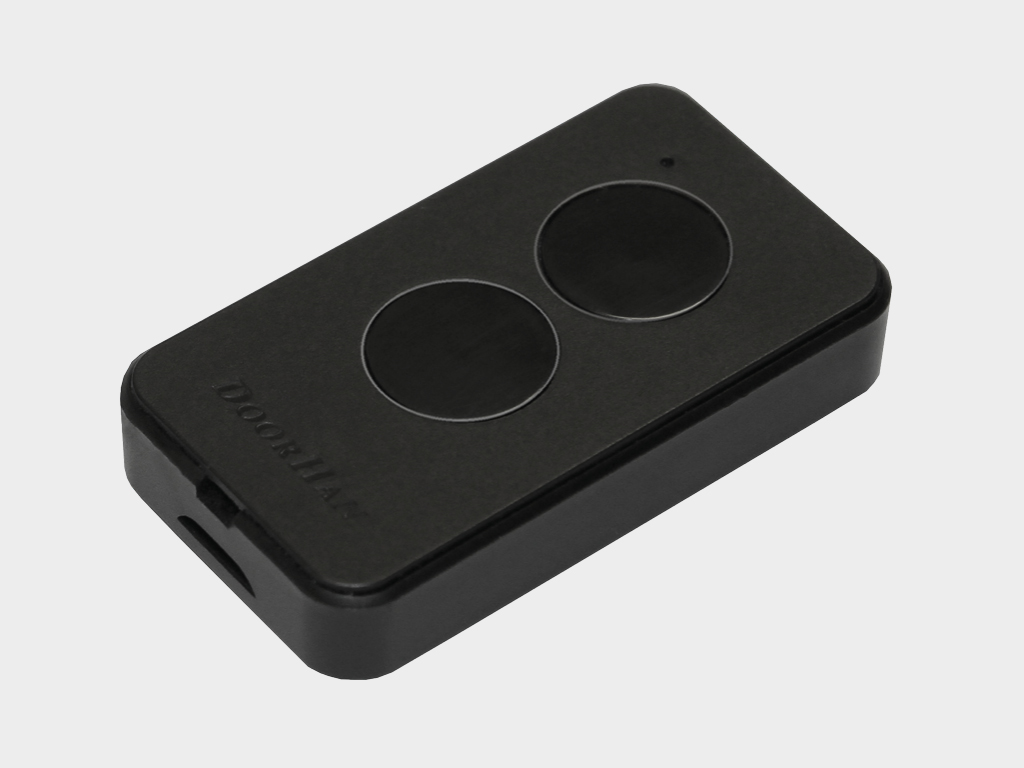

Transmitter-2PRO-Black remote control operates two devices

Transmitter-2PRO-Black remote control operates two devices

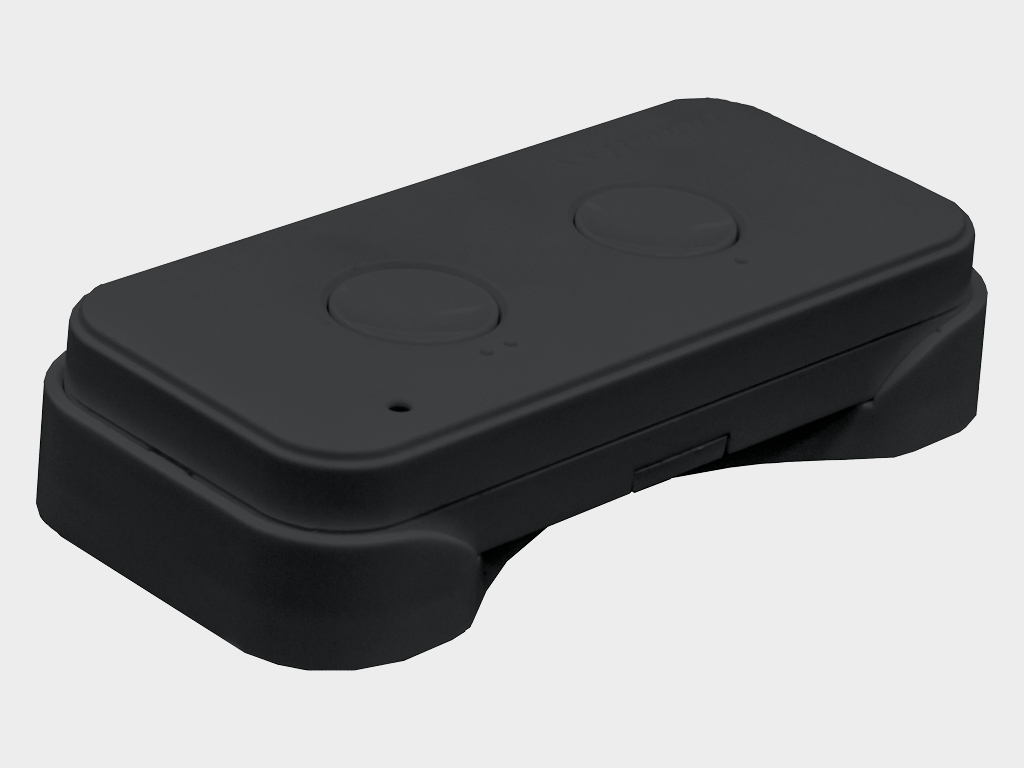

Command-433 wireless button to control two devices

Command-433 wireless button to control two devices

Car-Transmitter remote control working on cigarette lighter can operate two devices

Car-Transmitter remote control working on cigarette lighter can operate two devices

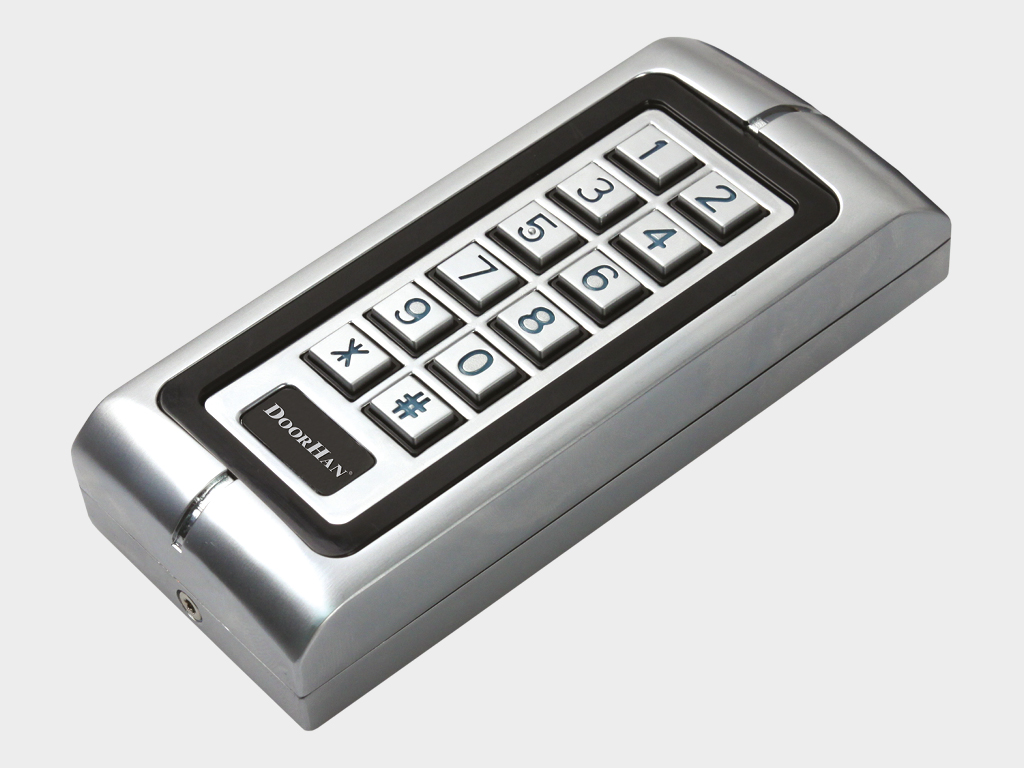

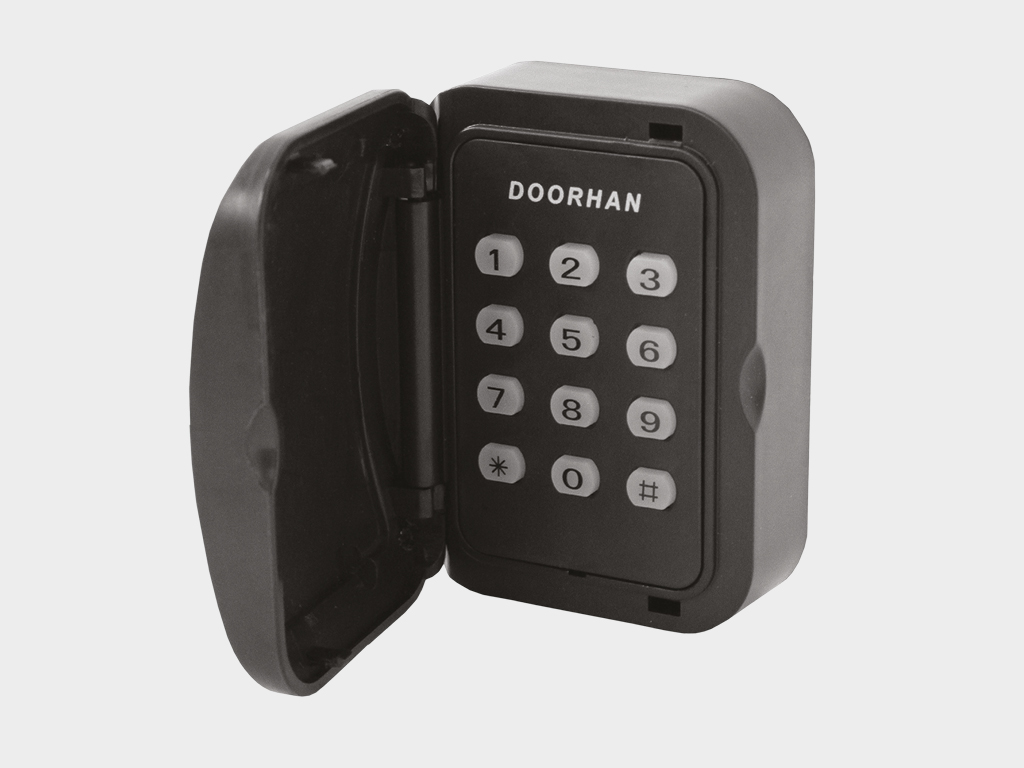

KEYPAD series code keypad controls door operator equipped with internal or external DoorHan receiver

KEYPAD series code keypad controls door operator equipped with internal or external DoorHan receiver

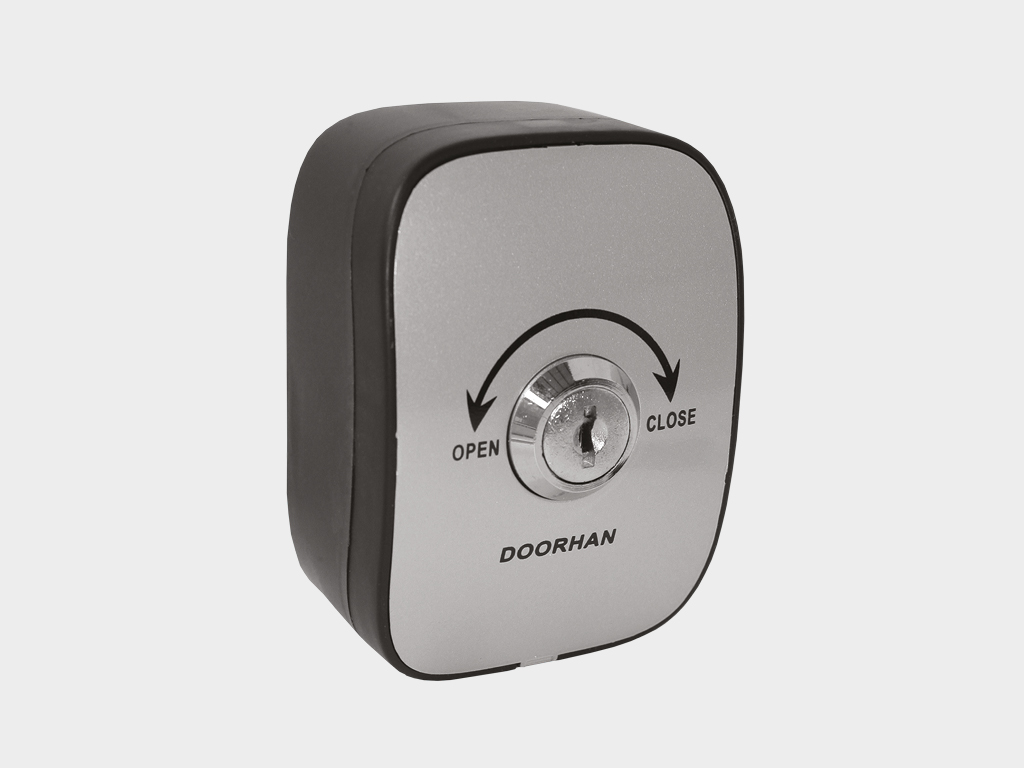

Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device

Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device

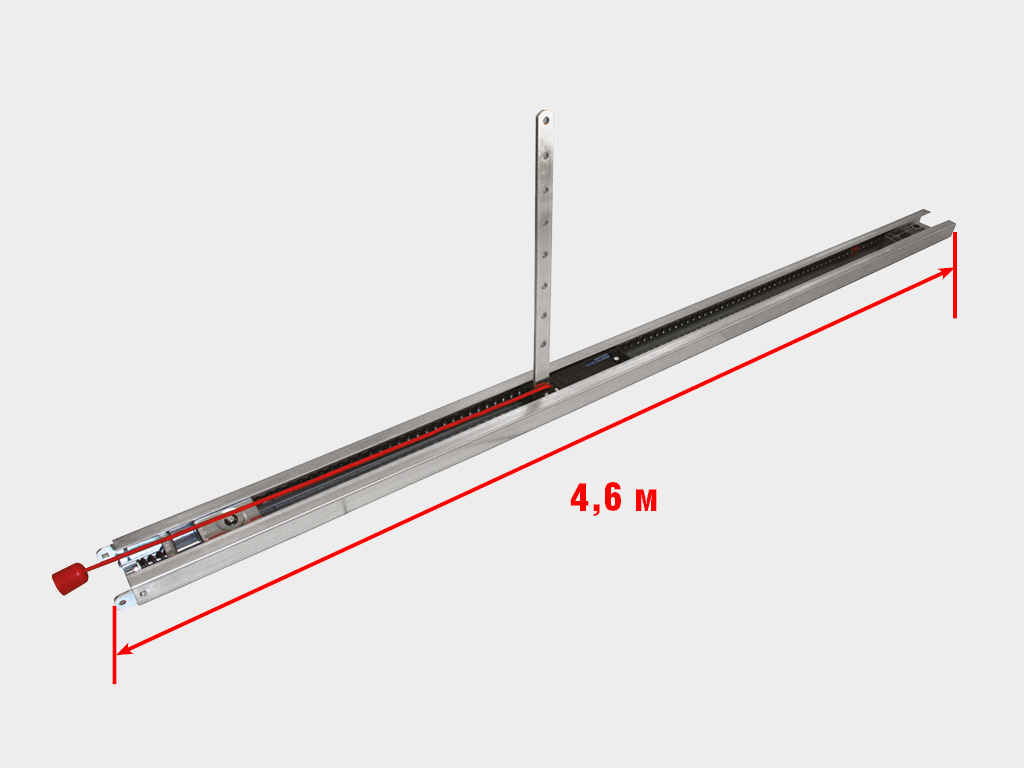

SK-series chain rail

SK-series chain rail

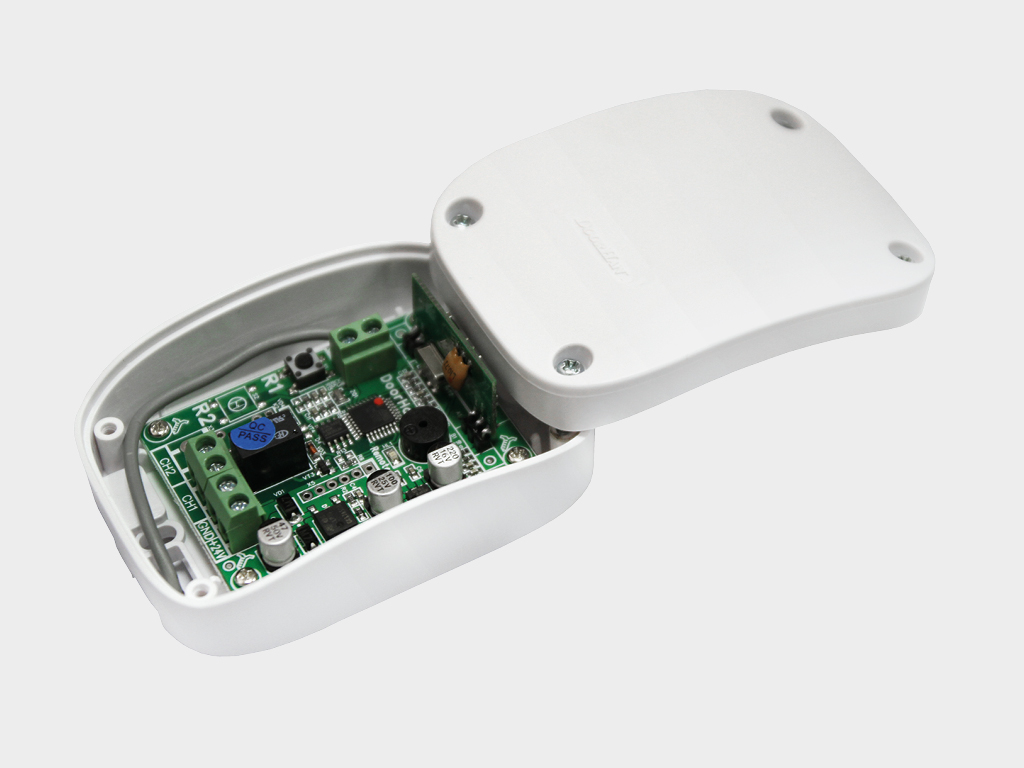

External DHRE-1 receiver controls other manufactures’ automatic devices with DoorHan remote control

External DHRE-1 receiver controls other manufactures’ automatic devices with DoorHan remote control

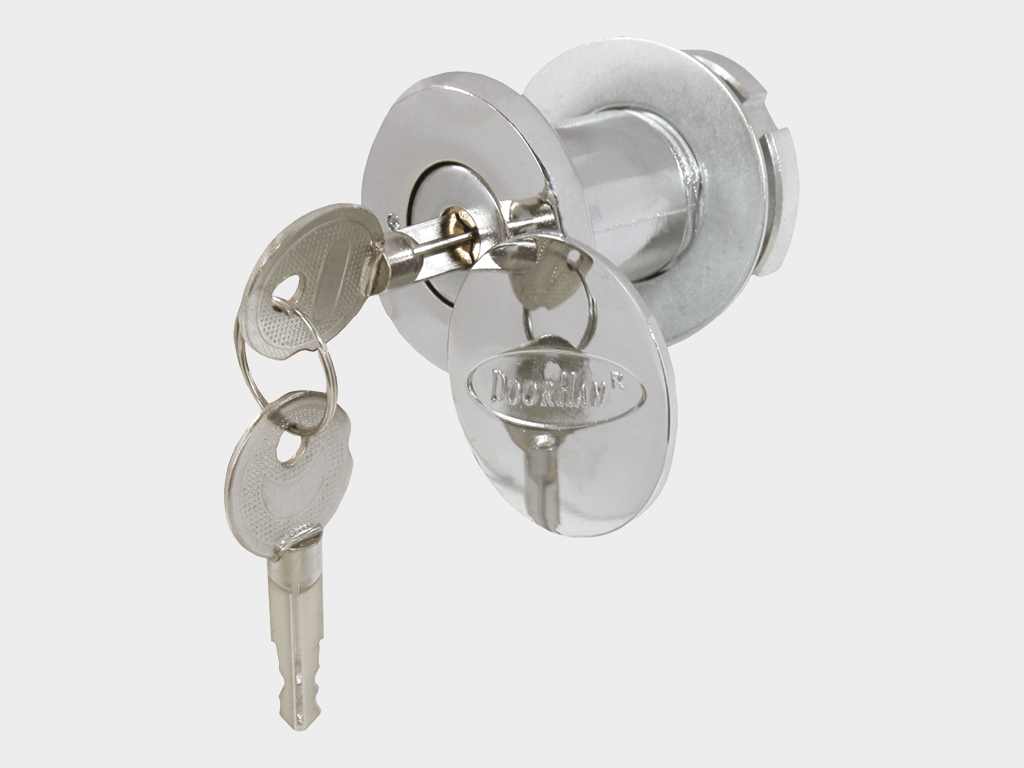

External release mechanism LOCK used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

External release mechanism LOCK used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

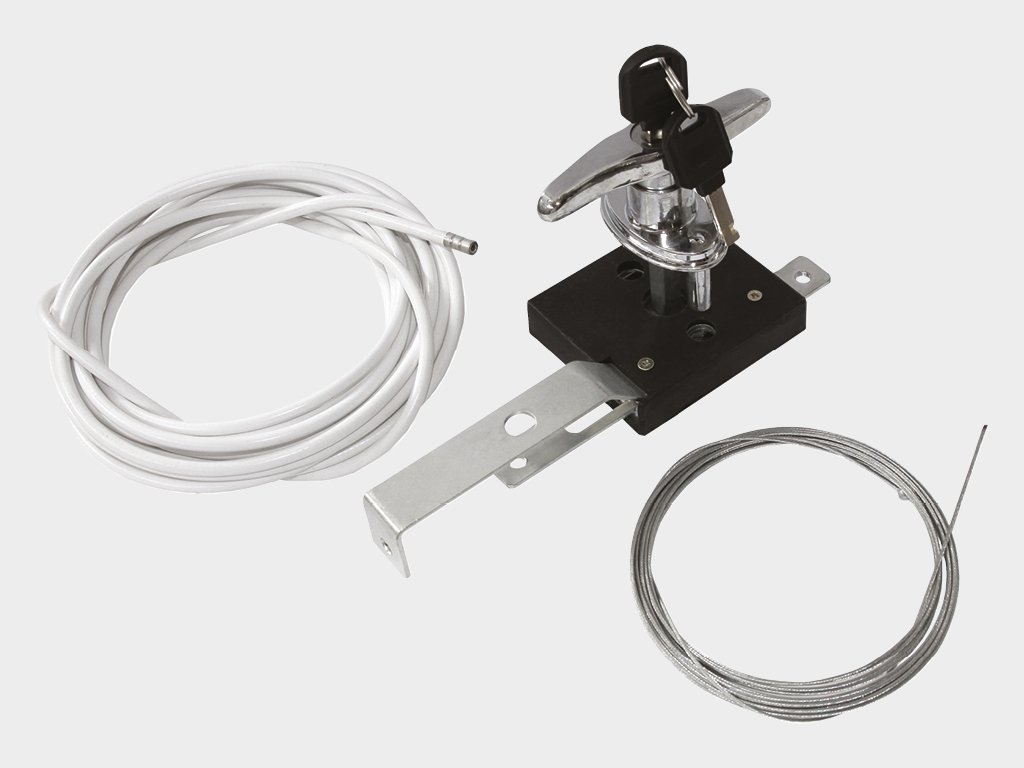

External release mechanism LOCK-N used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

External release mechanism LOCK-N used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

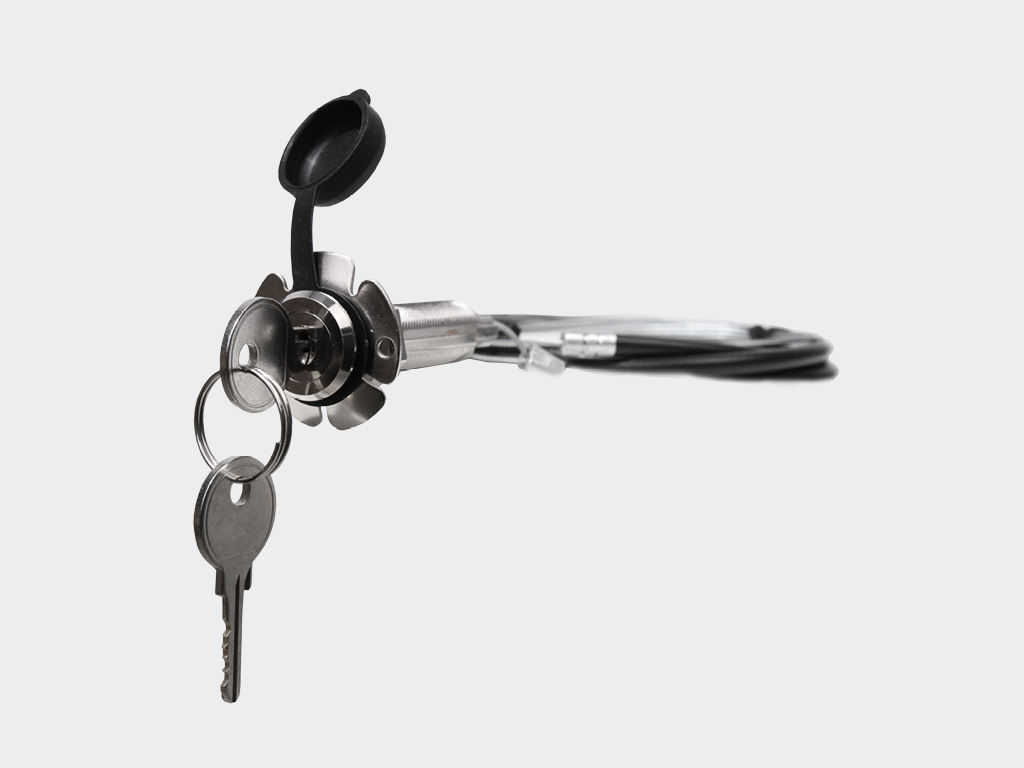

External release mechanism LOCK-MINI used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

External release mechanism LOCK-MINI used to open sectional doors in case of blackout if there is no pass door or another alternative entrance into the garage

Technical description
Construction
Specifications
Operating Conditions
Packaging
  1. Bottom housing
  2. Top housing
  3. Panel cover with control unit
  4. Gear motor
  5. Bushing
  6. Microswitch
  7. LED lamp
  8. Transformer
  9. Control board
  10. Cover
Parameter Value Notes
Door area, sqm 16
Supply voltage, V 180-240
Maximum force, N 1 200
Motor, V 24 DС
Operating temperature range, °С -20...+55
Door opening speed, m/min 6
IP protection class 20
Intensity of use 50

Install garage door operator only on properly balanced and lubricated garage door.

Make sure the door operator specifications correspond to local climatic conditions.

Never install this garage door operator in hazardous locations.

Never exceed maximum load of 20 kg.

Use only DoorHan accessories to prevent door operator damage.

Never leave the door operator disengaged.

Never use the door operator if any repair or adjustment needs to be done.

Activate door only when there are no obstructions preventing door travel.

Walk or drive through the opening only when the door is fully opened and stopped. The operator must be on stop.

Never permit children to operate or play with door control push buttons or remote control transmitters.

Do not make any changes to automatics of the operator.

Packing in cardboard box Packaging features
Contents stretch film, polystyrene, cardboard box
Length, mm 493
Width, mm 245
Height, mm 175
Installation
Mounting Options
The operator is attached to a rail fastened to the ceiling. A bracket fastens the carriage with a straight and curved arm to the door leaf.
The operator is attached to a rail fastened to the ceiling. A bracket fastens the carriage with a straight and curved arm to the door leaf.
Should you fasten the operator at 90º position the micro switch in the operator according to instructions in the installation manual.
Should you fasten the operator at 90º position the micro switch in the operator according to instructions in the installation manual.
