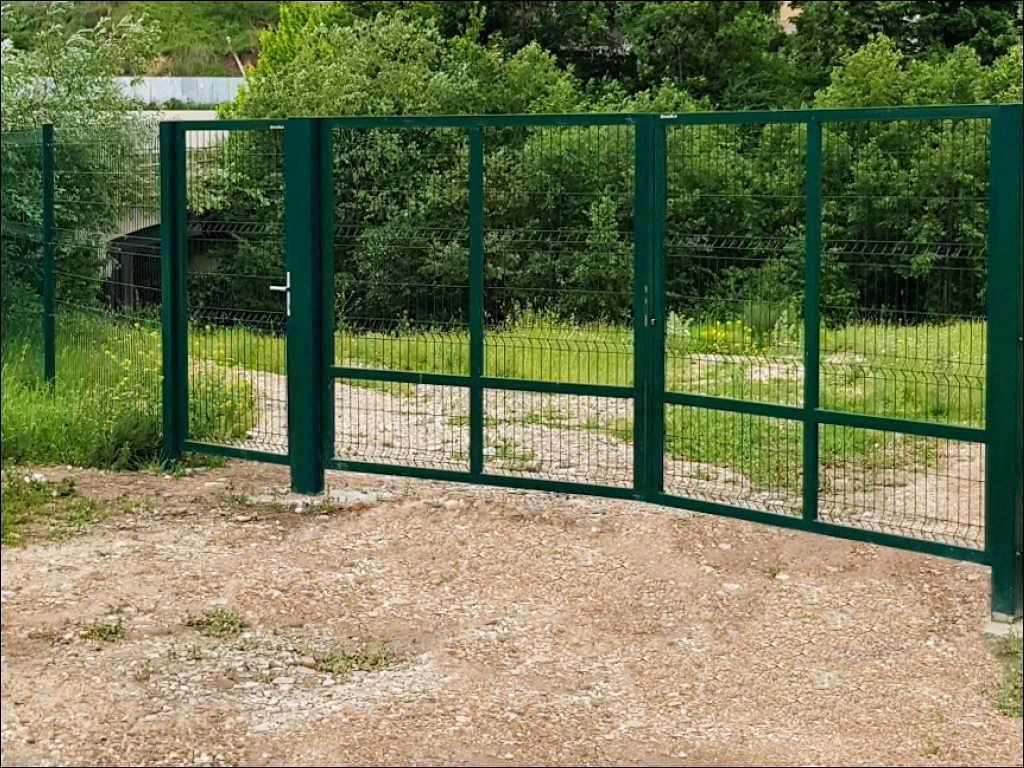

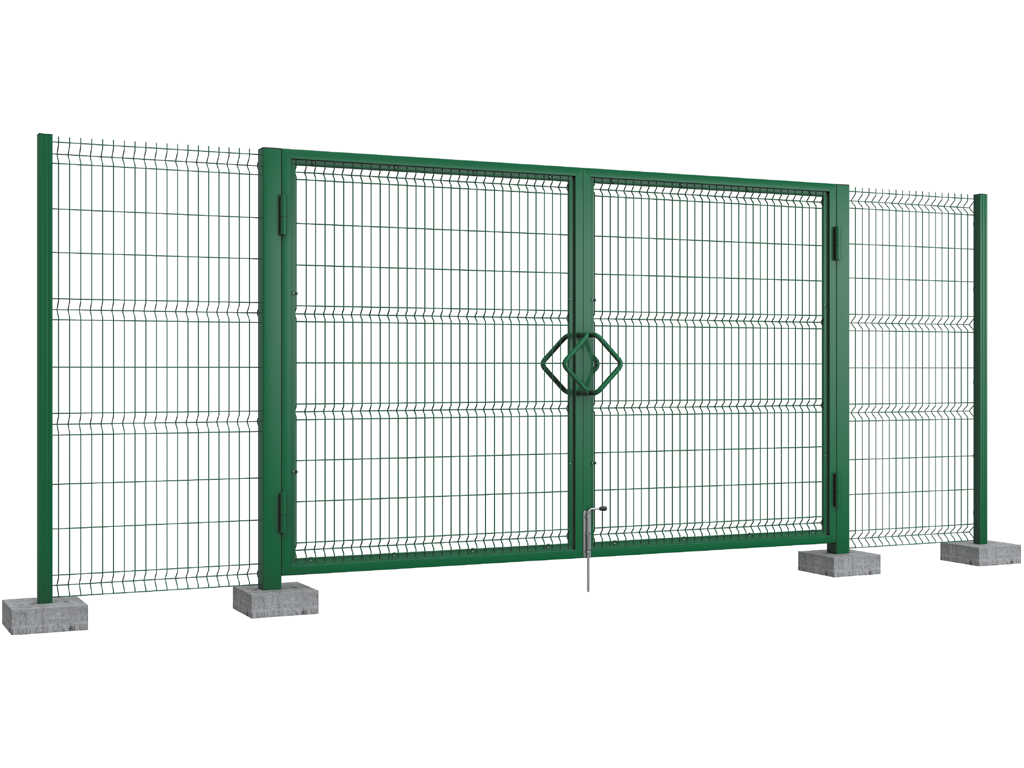

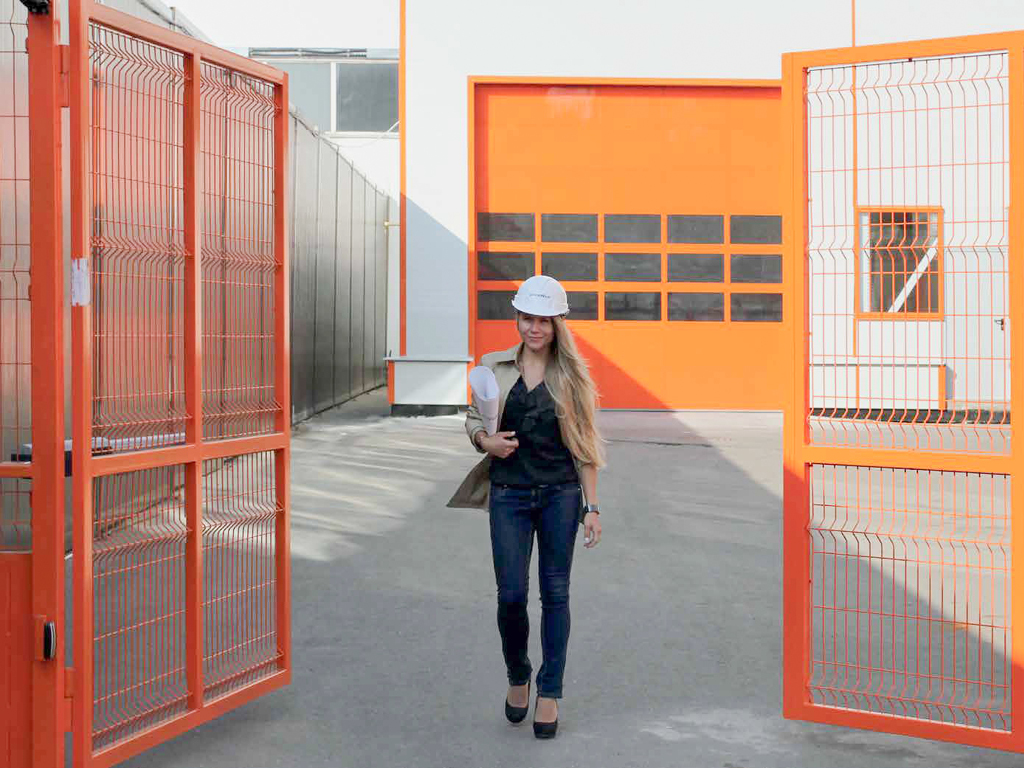

Swing gates with a steel frame and filled with welded mesh

Swing doors have a classic design and are still popular. They are installed in the case when it is technically impossible to use sliding doors. They provide a comfortable entrance to the territory and are suitable for both a country house and industrial facilities.
Application:
  • Entry to the territory of objects of any purpose; indispensable in cases where there is not enough space to install sliding doors.

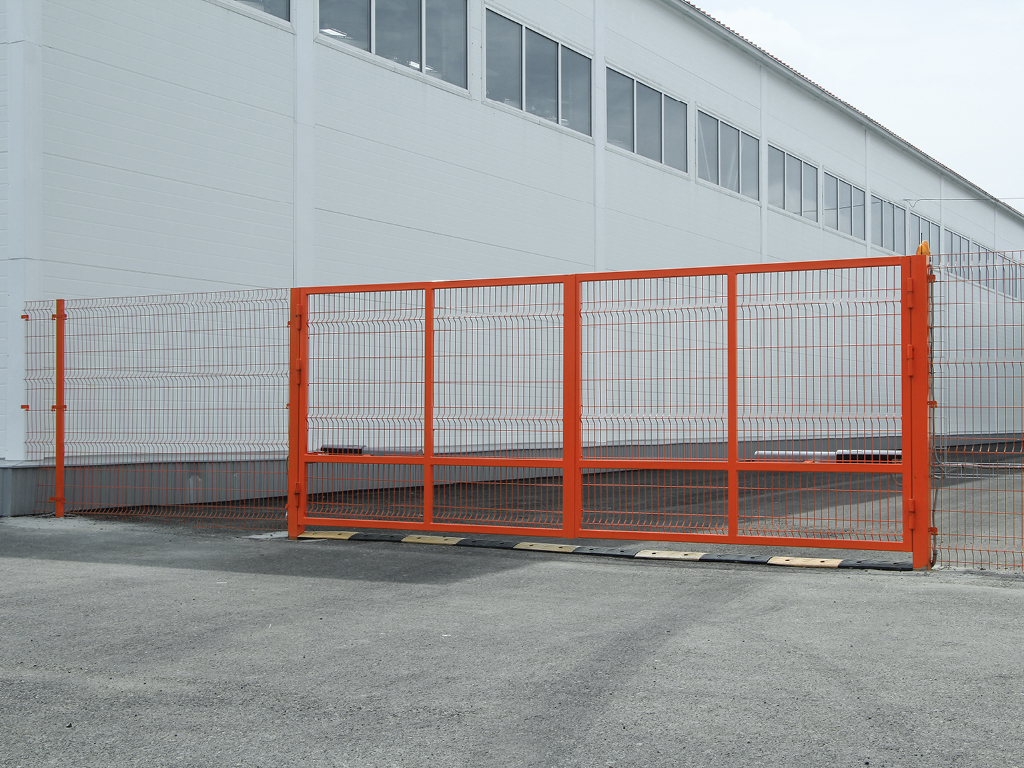

  • The use of doors at the entrances to industrial parks and enterprises.
  • Delimitation of zones within the enterprise, with the possibility of delivering bulky cargo and material.
Advantages
Unified style with fence sections of fencing systems
All products are powder coated
Unified style with fence sections of fencing systems
All products are powder coated
Equipment
Standard
Optional

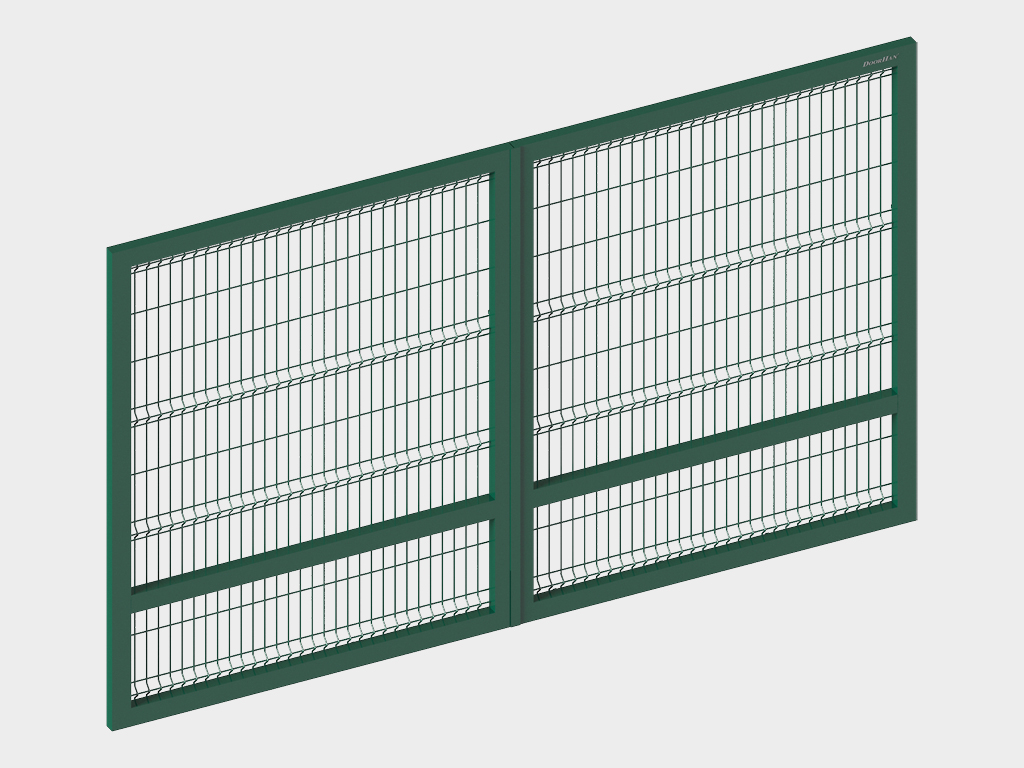

Door shield

Door shield

Pillars for concreting

Pillars for concreting

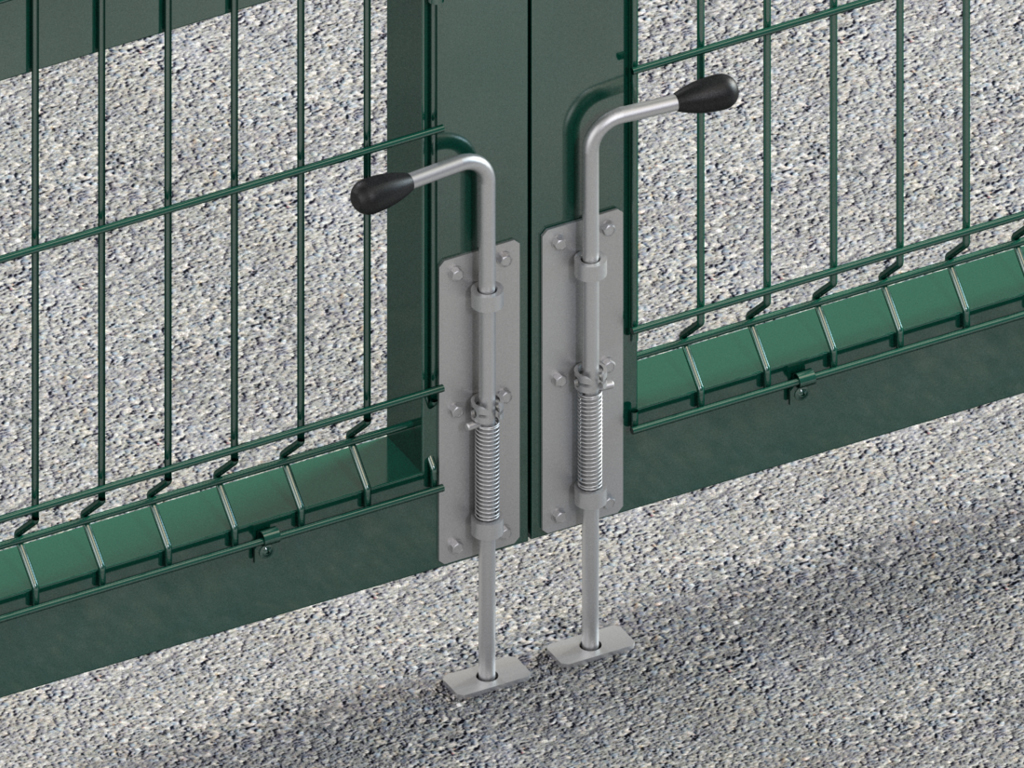

Door valve to the ground

Door valve to the ground

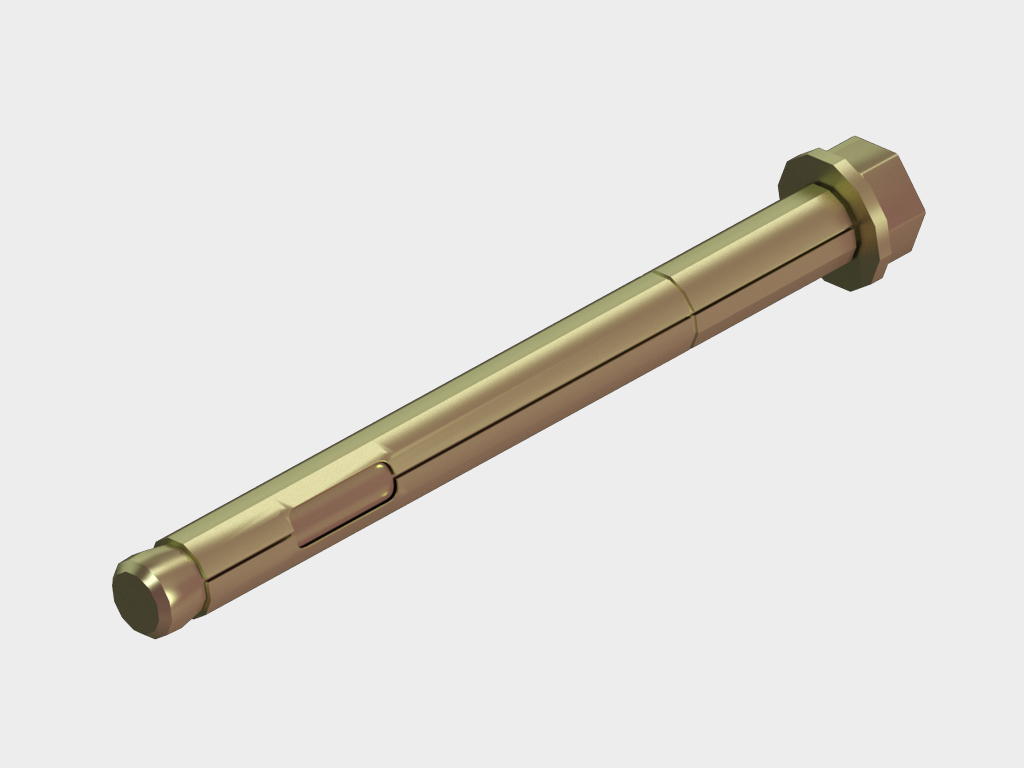

Anchor bolt 12 × 120 mm

Anchor bolt 12 × 120 mm

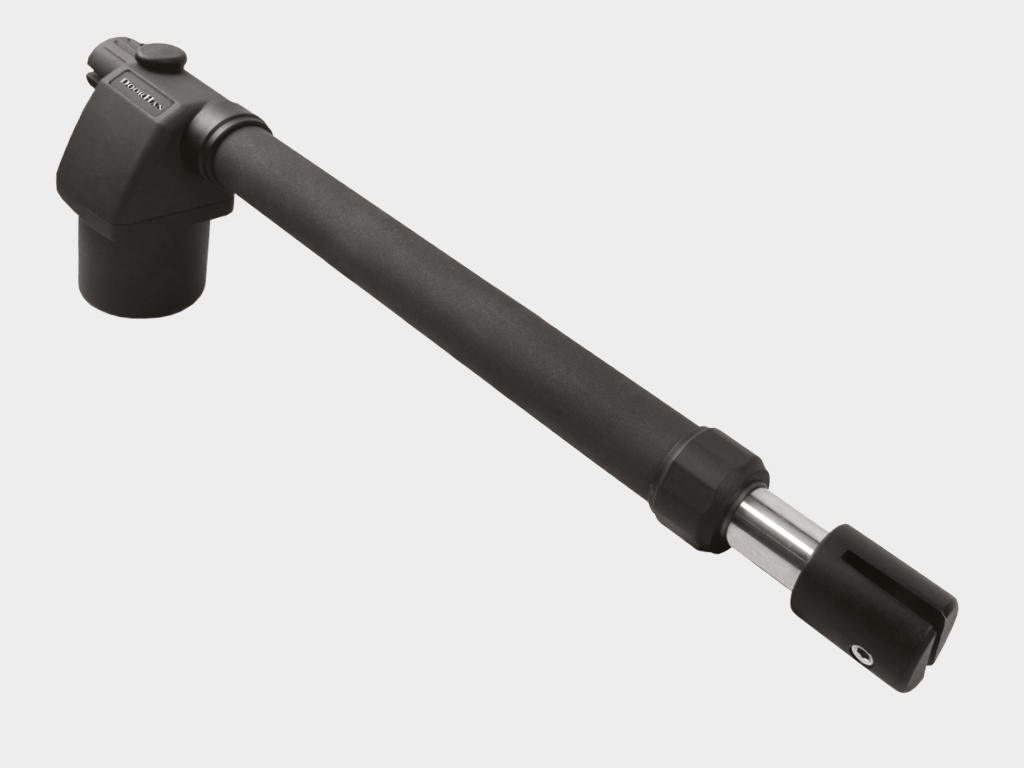

Drive for door automation

Drive for door automation

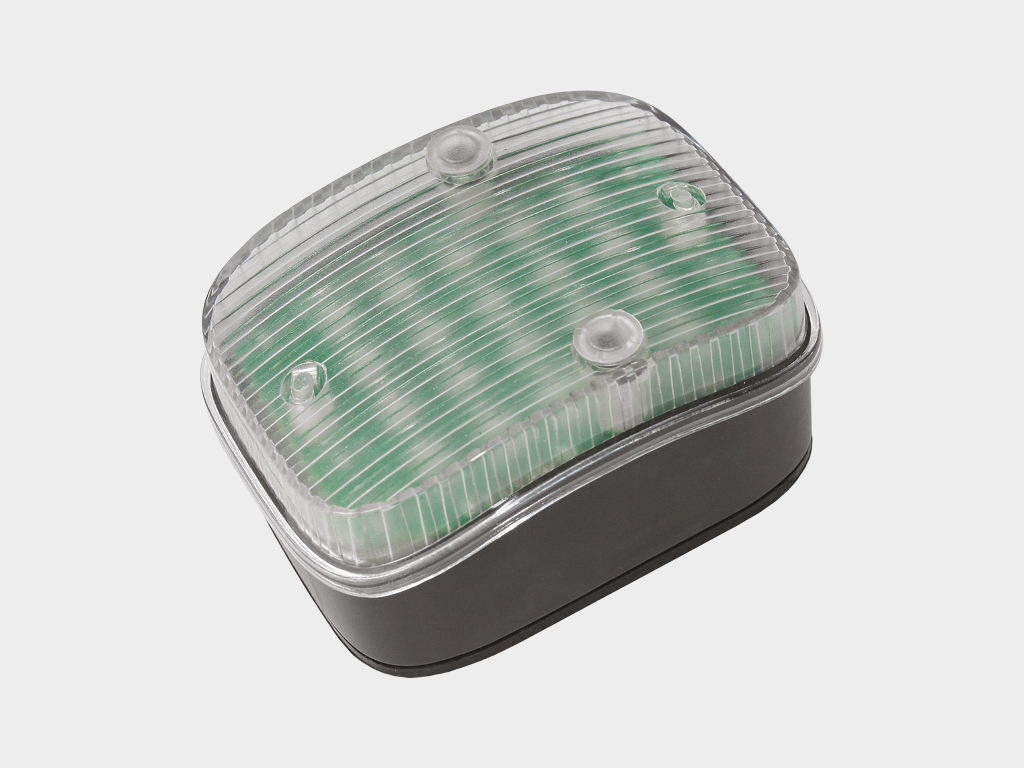

Lamp to indicate the opening of the door

Lamp to indicate the opening of the door

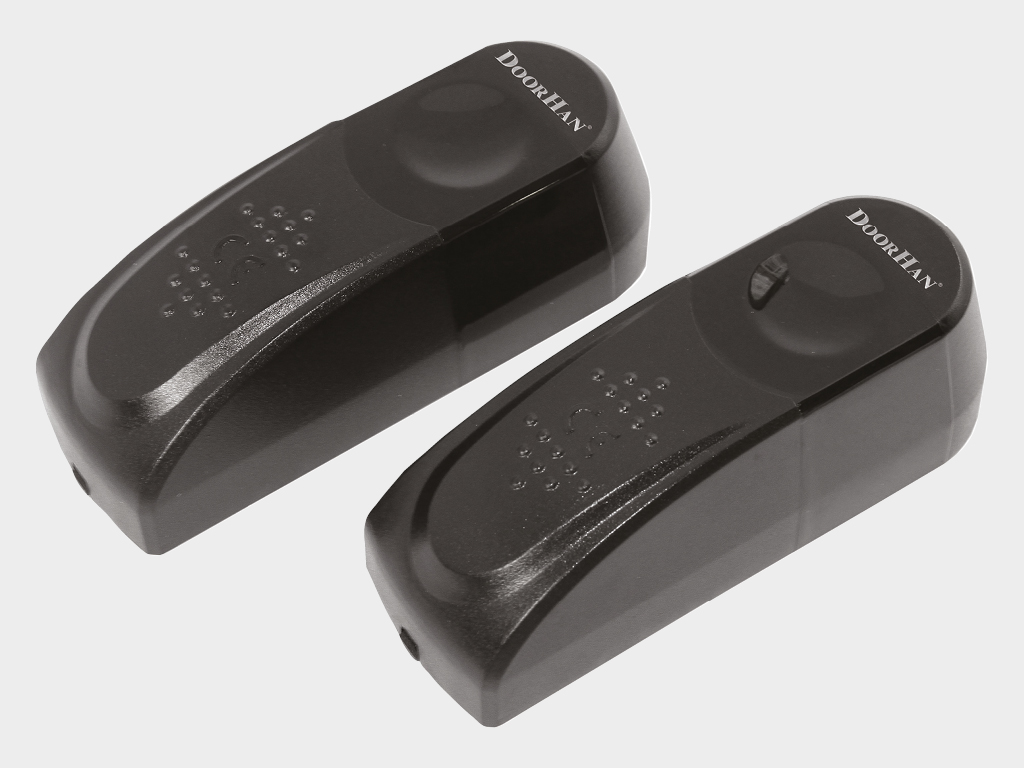

Photocells

Photocells

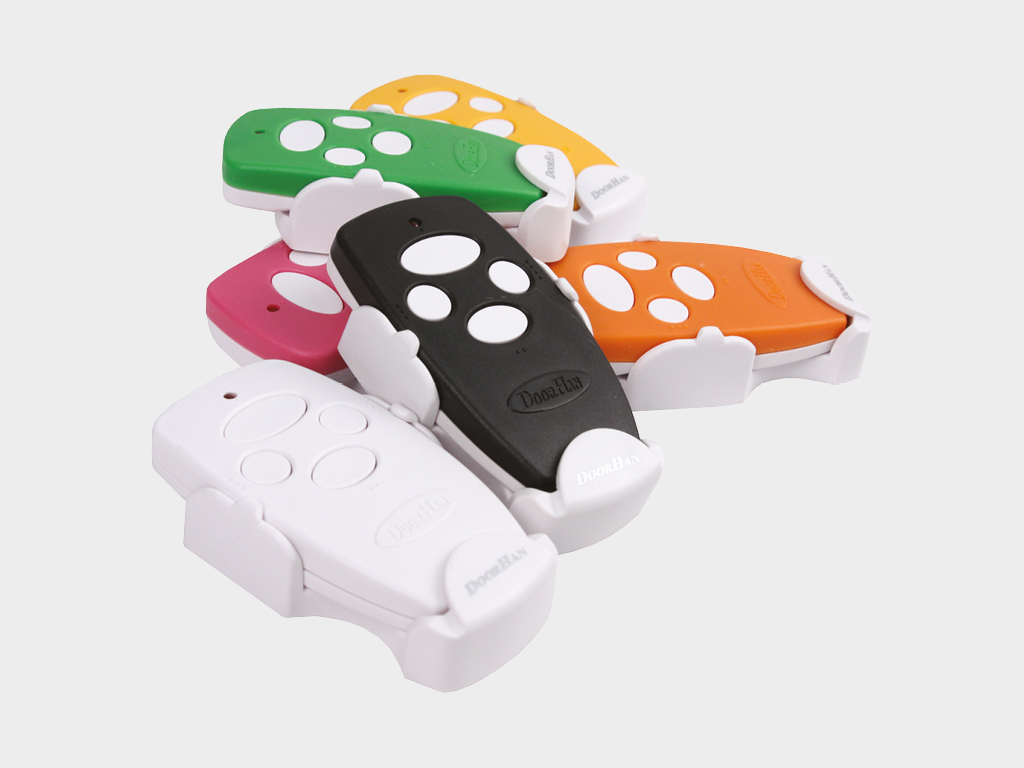

Remote controller

Remote controller

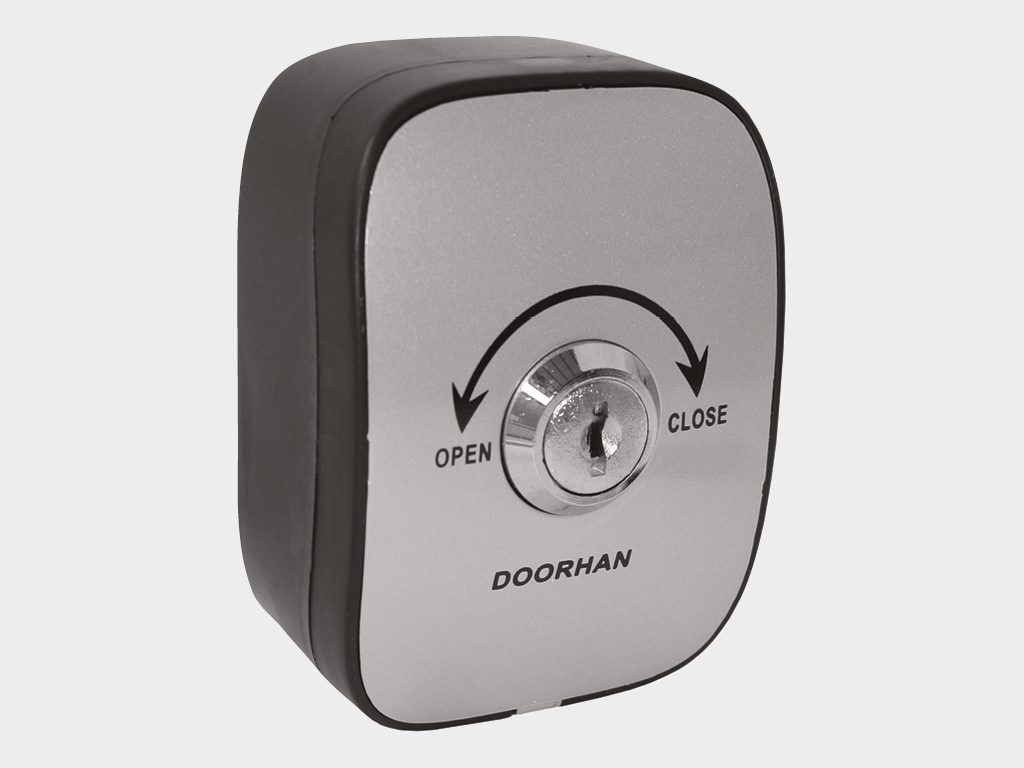

Key-button

Key-button

Technical description
Size Table
Opening Dimensions
Construction
Standard Construction
Specifications
Operating Conditions
Packaging
Parameters
Value
Opening height, mm
From 1,000 to 3,000
Opening width, mm
From 2,000 to 6,000
Clearance, mm
From 50 to 200

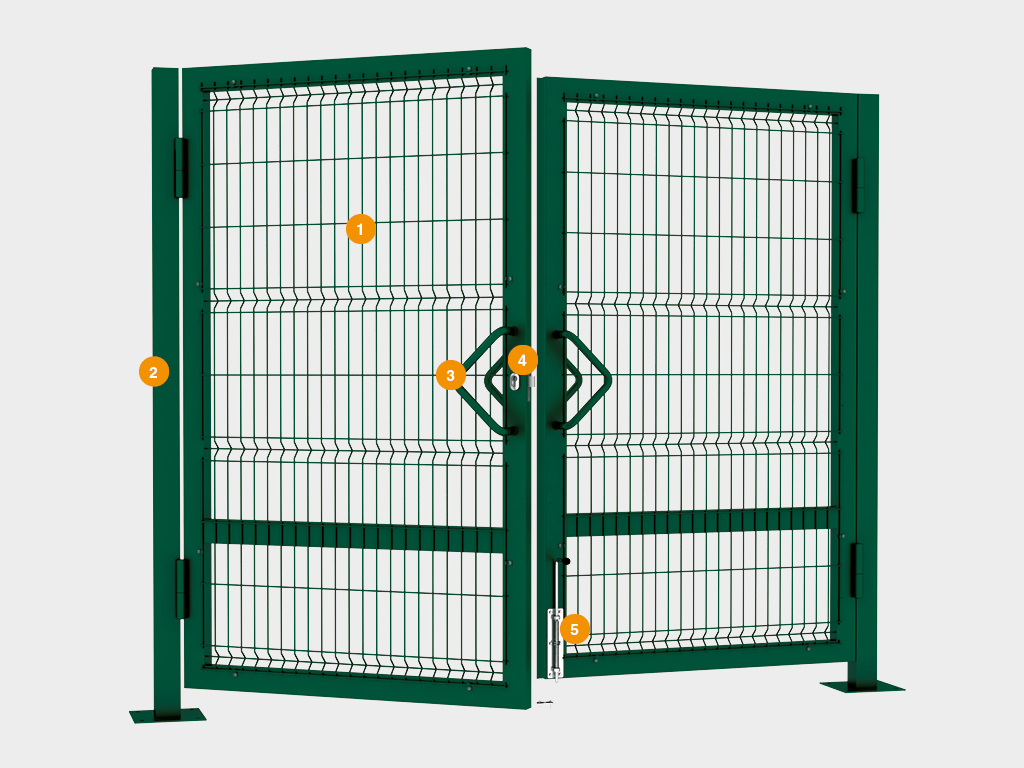

  1. Door shield
  2. Poles 100 × 100 mm
  3. Handle-bracket
  4. Lock
  5. Шпингалет-задвижка

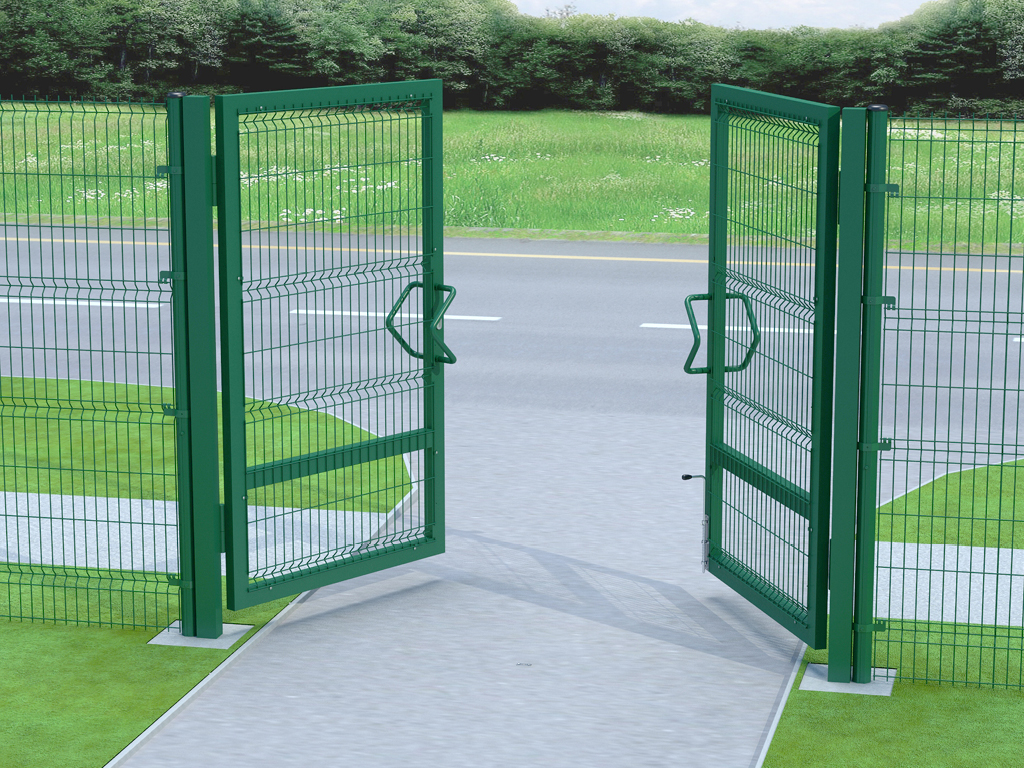

T-profile steel frame swing doors are manufactured in the most popular size using 100×100mm posts. Suitable for both country houses and industrial facilities.

T-profile steel frame swing doors are manufactured in the most popular size using 100×100mm posts. Suitable for both country houses and industrial facilities.

Symbol, parameter name Calculation formula
H, mm Opening height 2 000
B, mm Opening width 4 000
P, мм Просвет 100
Parameter Value Notes
Powder coating thickness not less than, microns 60
Surface density of zinc, not less than, g/m² 80
Diameter of horizontal rod, mm 4
Diameter of vertical rod, mm 4
Сопротивление ветровой нагрузке, Па 700
Impact resistance, J Е = 10 J; h = 1 m; m = 1 kg
Number of cycles 20 000
Force of manual opening and closing, N 150
Strength of fastening of handles to a cloth, H More than 1 000
Leaf opening angle, ° 120

1. Correct installation and correct operation of the fence system guarantee the reliability and durability of the work. When operating it is necessary:

1.1. Carry out an external inspection of the product every 6 months after the installation of the system.

1.2. При внешнем осмотре убедитесь в жесткости крепления сварных секций к несущему столбу, в отсутствии мест со слабыми соединениями, а также в отсутствии внешних механических повреждений.

1.2. When visually inspecting, make sure that the welded sections are fixed to the supporting column, that there are no places with weak connections, and that there are no external mechanical damages.

1.4. Door leaves should open and close the door smoothly, without jamming and creaking, and securely fixed with a locking device. If necessary, adjust the position using the adjusting elements, lubricate the hinges, handles and locking device.

1.5. Do not allow precipitation (water, snow, hail) to enter the column. To do this, make sure that all poles are closed with special plugs.

1.6. Operation of fences is allowed at an ambient temperature of -50 to +60 °C and a relative humidity of 75%.

2. During the operation of the fence, it is prohibited:

2.1. To hit the fence and cause damage to its structure.

2.2. Cleaning the fence with the substances that can cause damage to the surface of the fence.

2.3. Installation of equipment not provided by the manufacturer, which changes the weight, wind and other loads of the structural elements of the fence. Any interference with the manufacturer's standard solutions can lead to a loss of strength characteristics of the structure.

3. For the installation of security and video surveillance systems, it is necessary to use a structure specially designed for this purpose. Check with the manufacturer for the possibility of installing other equipment.

4. Security measures:

4.1. Installation of fences must be carried out by people who have fully studied the installation instructions.

4.2. Use tools which are in good condition.

4.3. When installing the sections of the fence before fixing them, be especially careful and careful, protect the elements of the sections from falling.

4.4. When performing work related to lift the person to a height of more than 1.5 m, it is necessary to use a safety mounting belt. Its condition must be checked before starting work.

5. During installation, it is prohibited:

5.1. Use an attached or sliding ladder.

5.2. Use a ladder with a height of more than 2.5 m.

Packing in cardboard Packaging features
Description Shield and pole packaging
Contents Five-layer cardboard, stretch film, adhesive tape with logo
Packing in bubble wrap Packaging features
Description Standard packing of poles
Packing in wood Packaging features
Description Shield and pole packaging
Contents Lathing from the board, cardboard sheet along the edges
Packing in cardboard box Packaging features
Description The package is a standard size box.
Contents 3-layer cardboard box, stretch film, adhesive tape with logo
Width, mm 450
Height, mm 300
Length, mm 550
Packing in stretch film Packaging features
Description Door shield packaging
Installation
Mounting Options

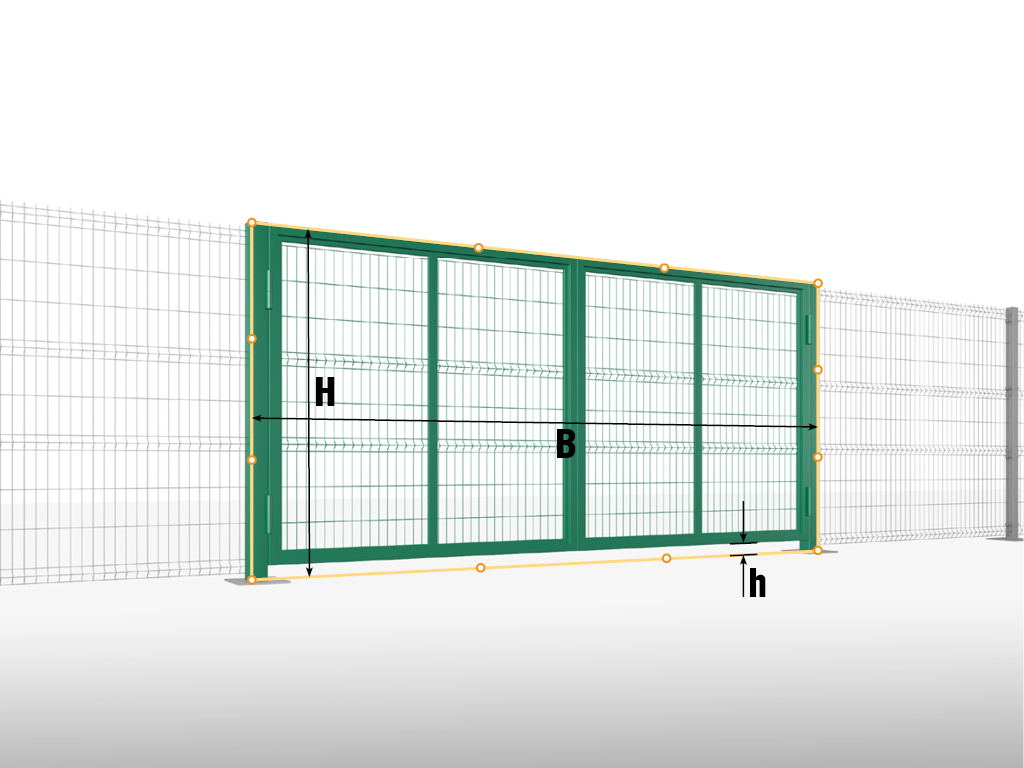

Checking Dimensional Details

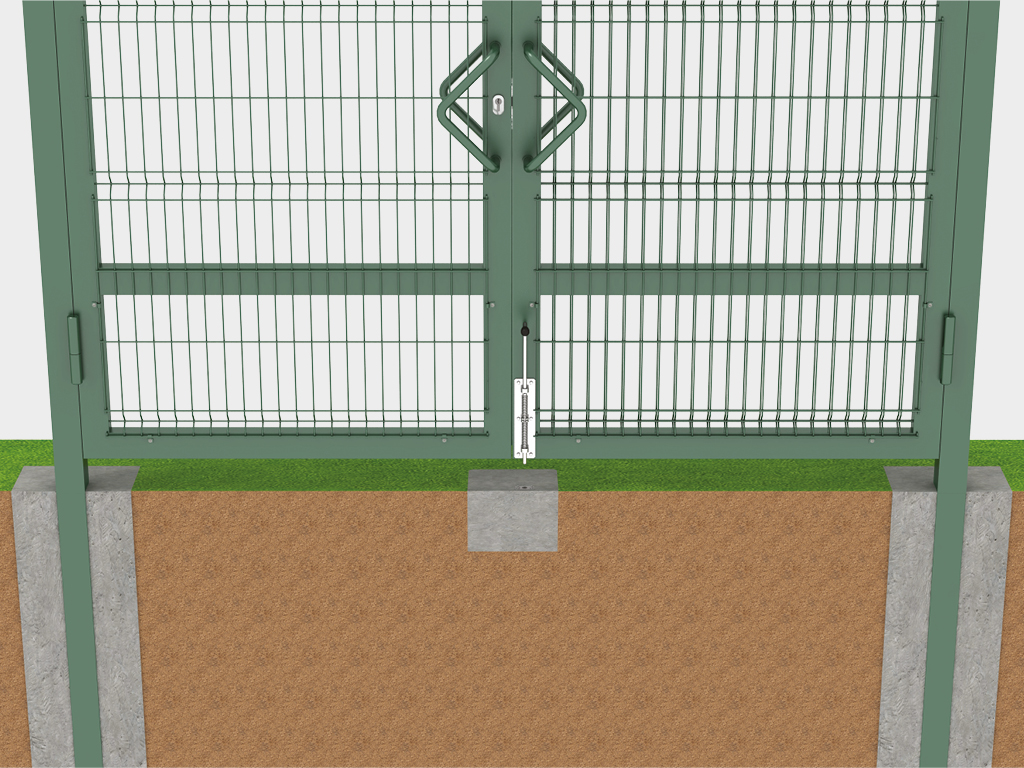

Installation with concrete pillars (depth 1,500 mm)
Installation with concrete pillars (depth 1,500 mm)

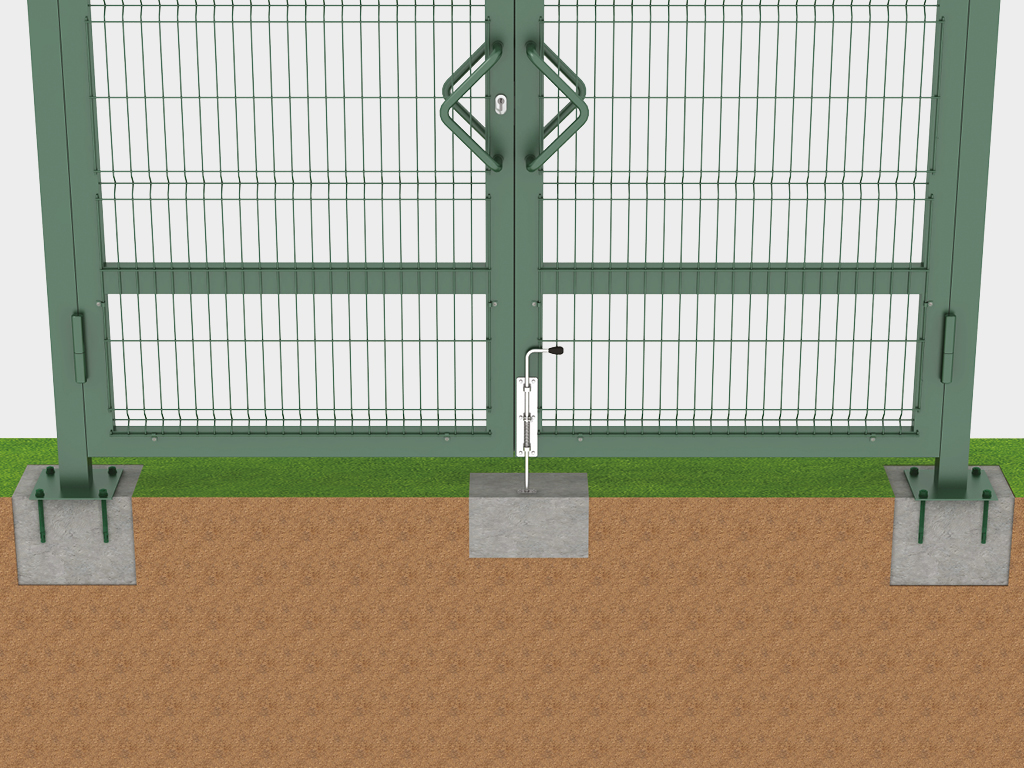

Flange mounting
Flange mounting
  1. H (mm)- the height of the structure.
  2. B (mm) - width of the structure.
  3. h (mm) - clearance.
Documentation
Technical Data and Certificates
Drawings

Certificate of Conformity

Swing door passport for fencing systems

Sliding doors for fencing systems

Installation of sliding doors for fencing systems

Warranty print

The buyer is provided with a guarantee of the functionality of doors manufactured by the DoorHan concern for a period of 1 year for retail orders and for a period of 2 years for dealer orders from the date of purchase.

New Products

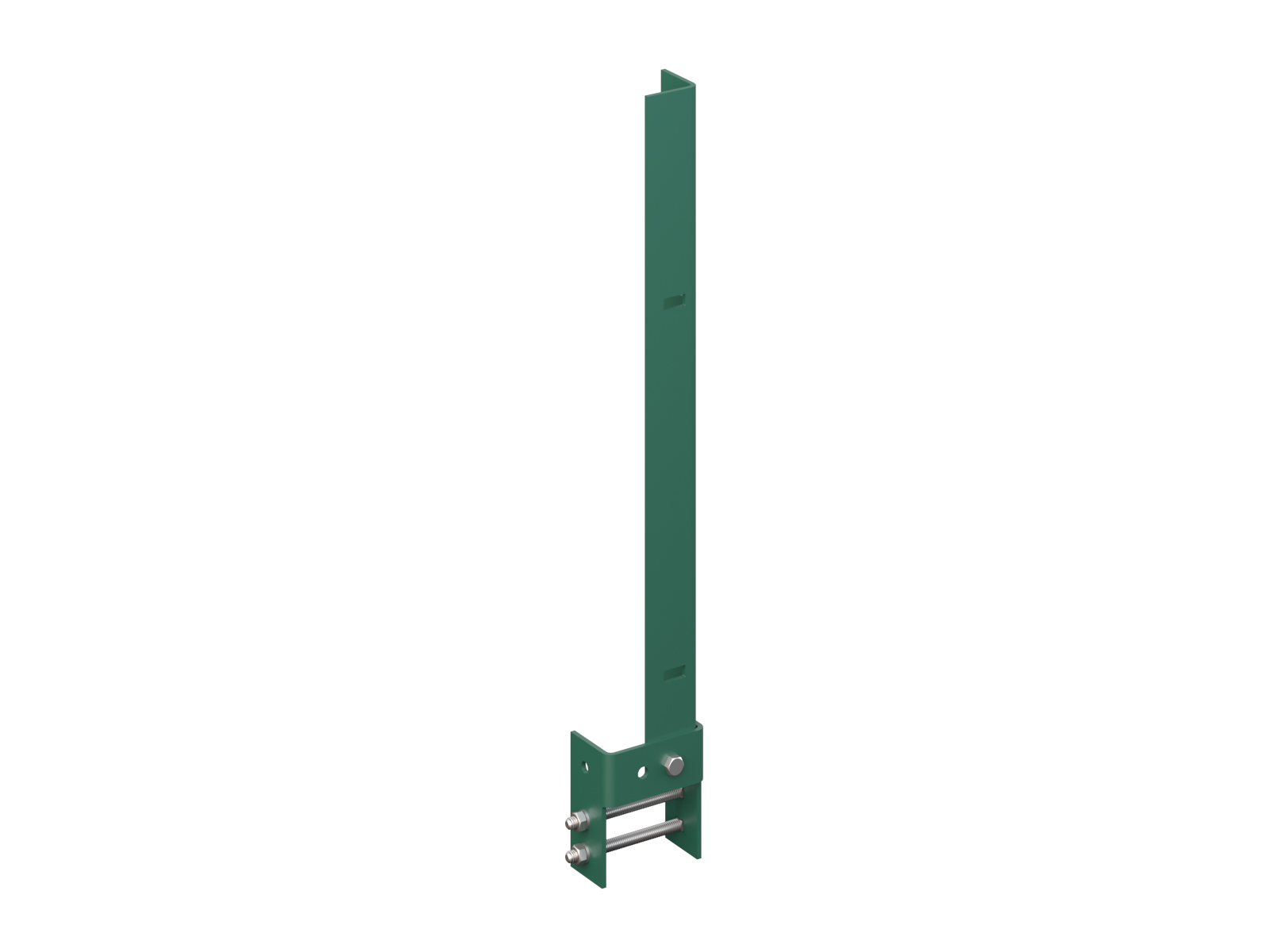

The I-tip is designed for installation on swing doors and the subsequent installation of a hinged fence.

The I-tip is designed for installation on swing doors and the subsequent installation of a hinged fence.

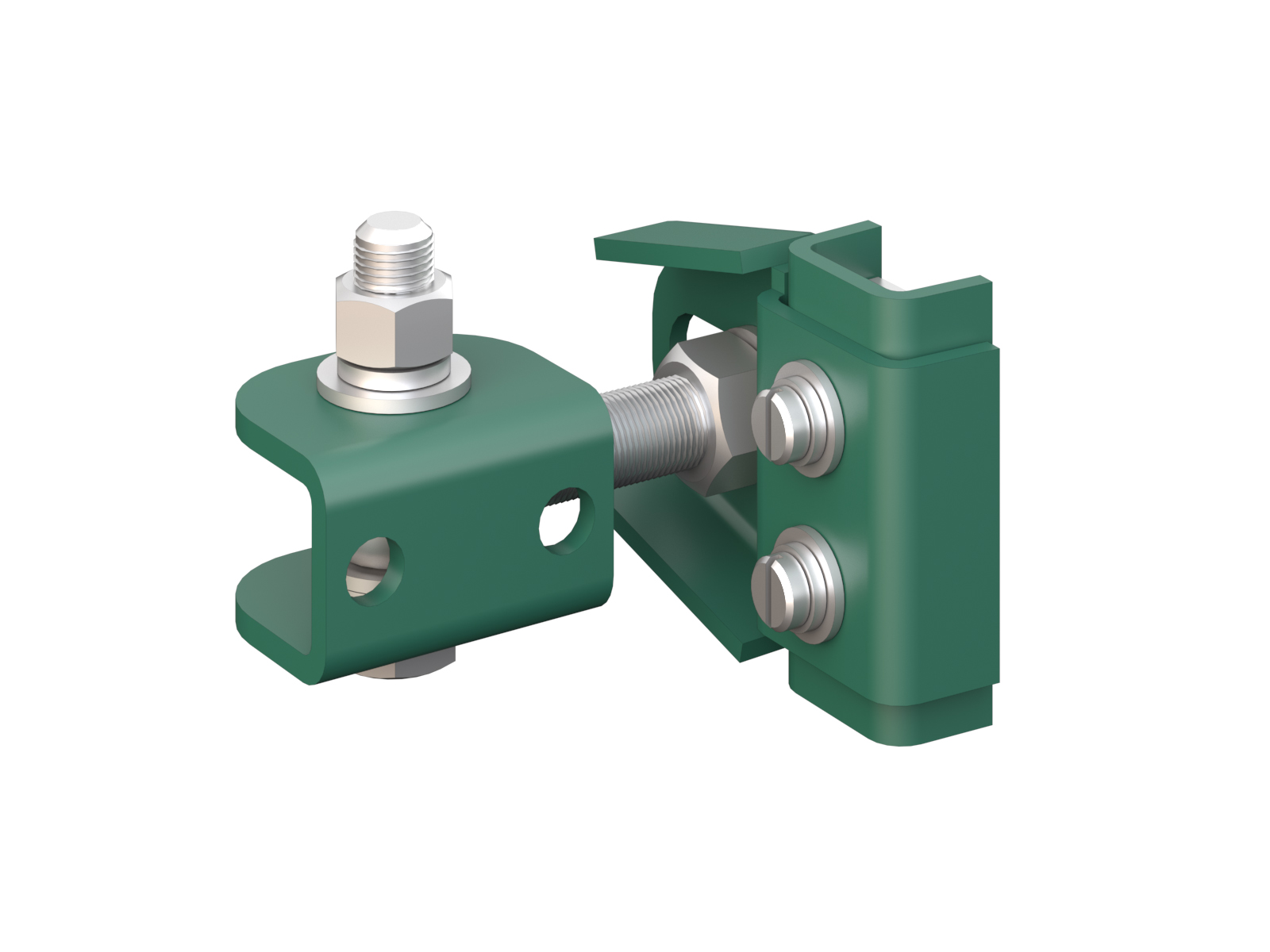

The hinges allow you to adjust the position of the sashes in height, width and reach.
