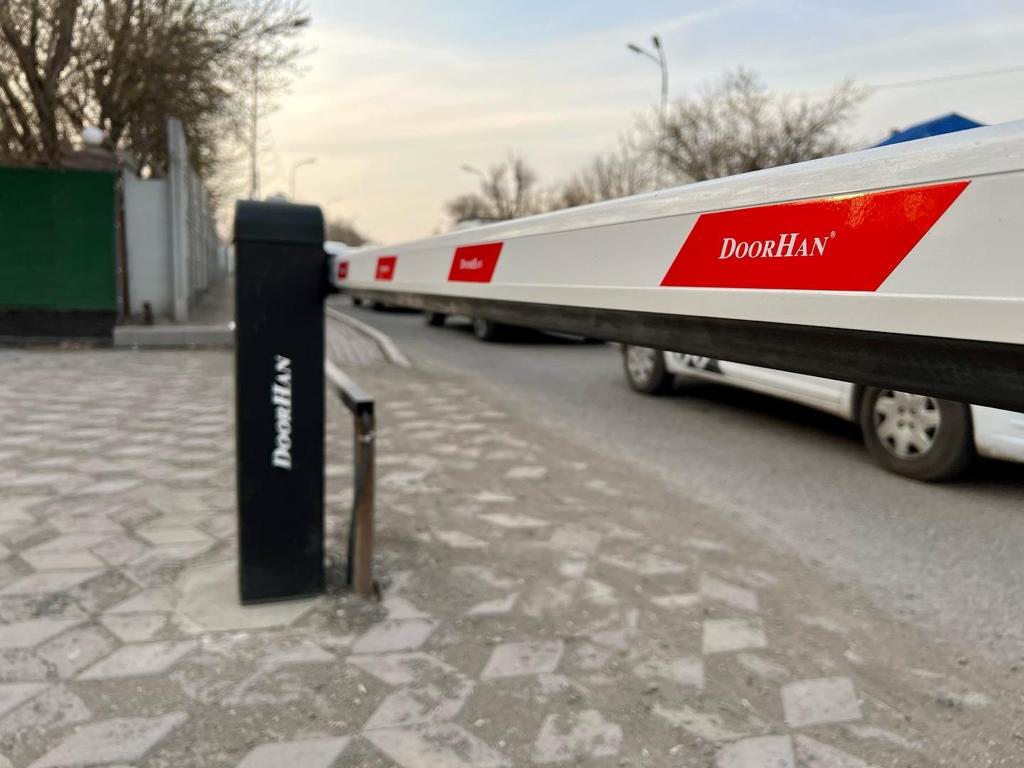

Barrier-PRO Barrier

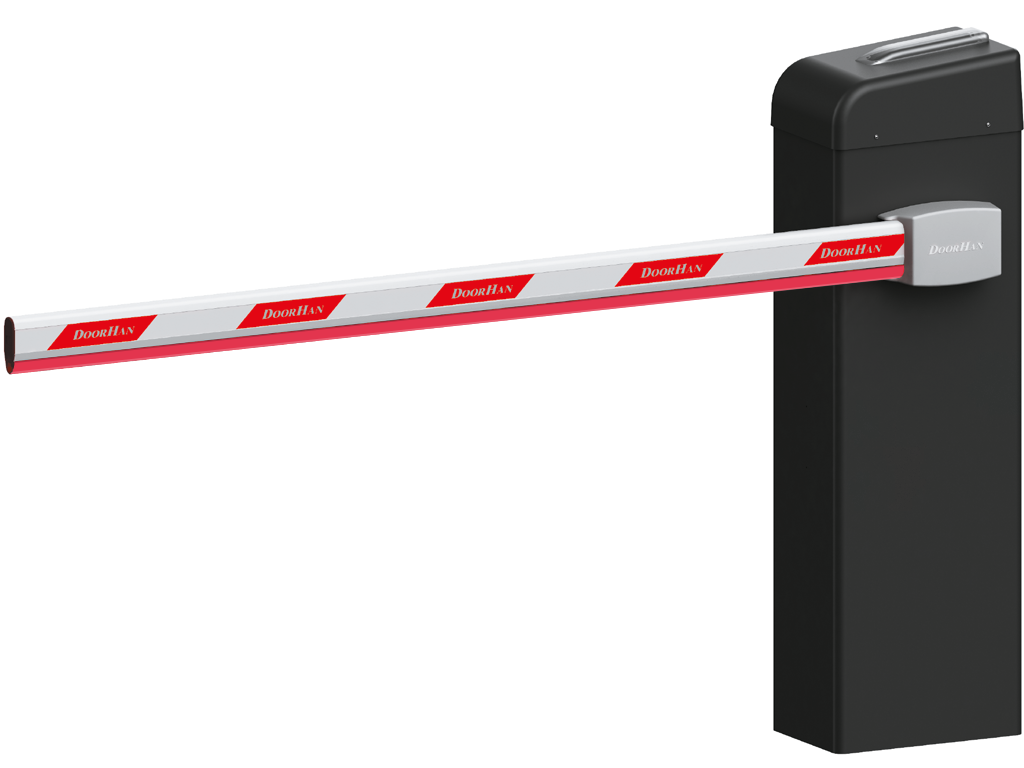

BARRIER-PRO barrier is an ideal automatic rising boom barrier to control vehicle access for medium to high usage car parks. It can be used to control access in small settlements, factories access, shopping centres parking lots, community housing, office parkings, parkings with limited access, etc.

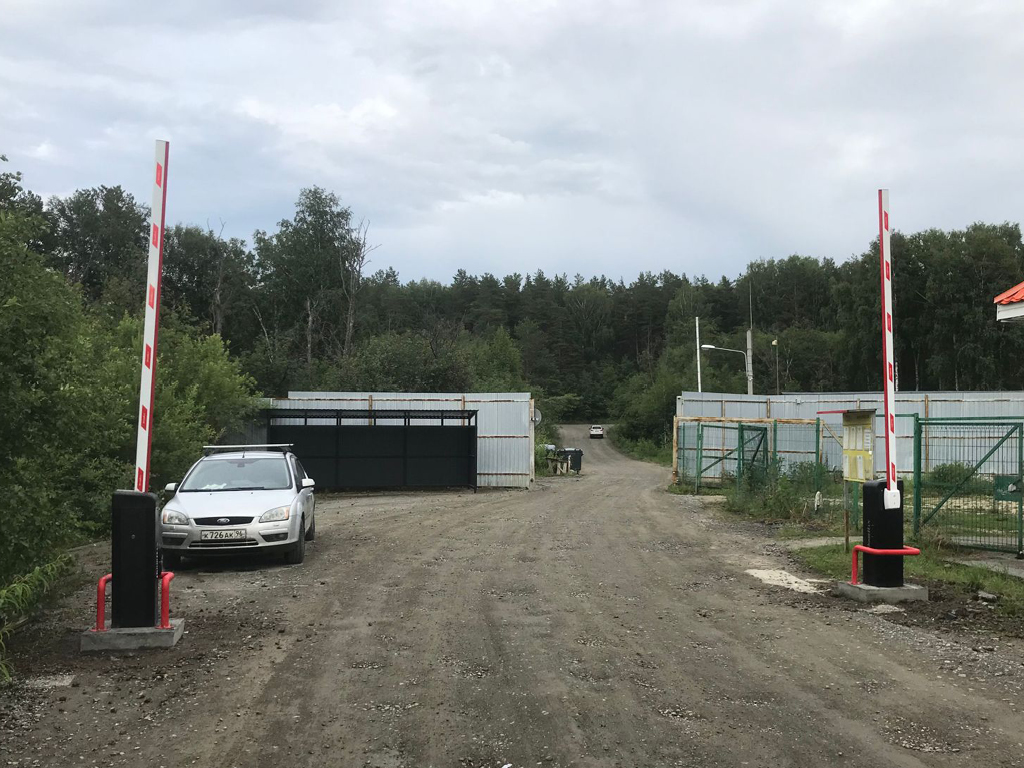

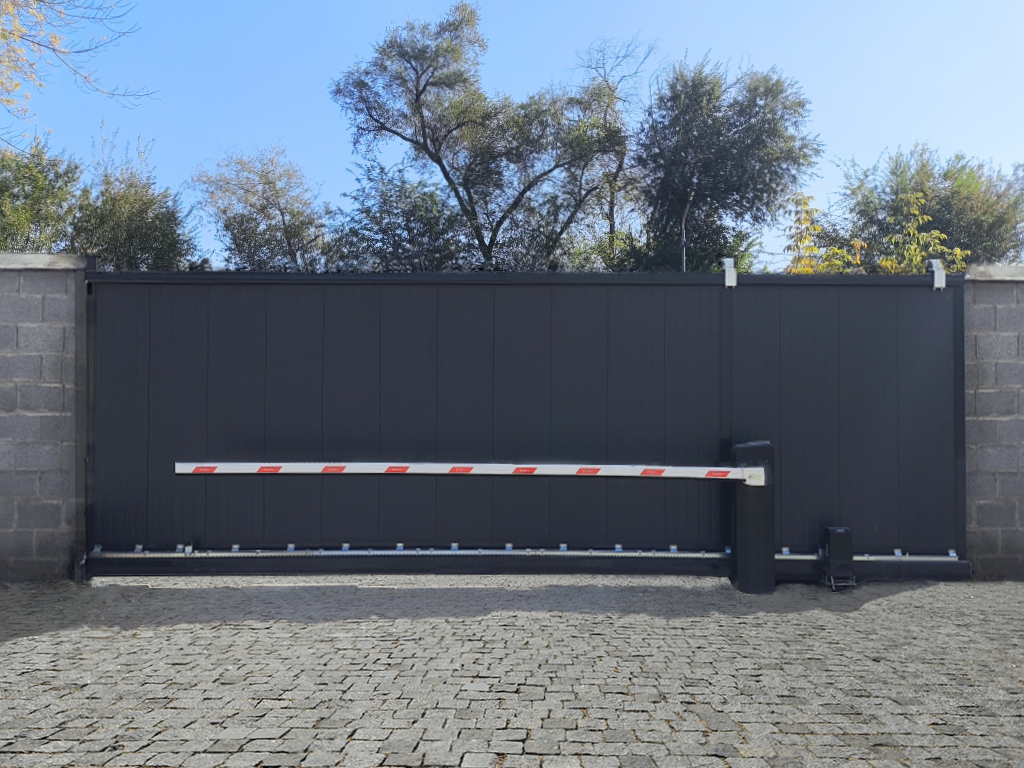

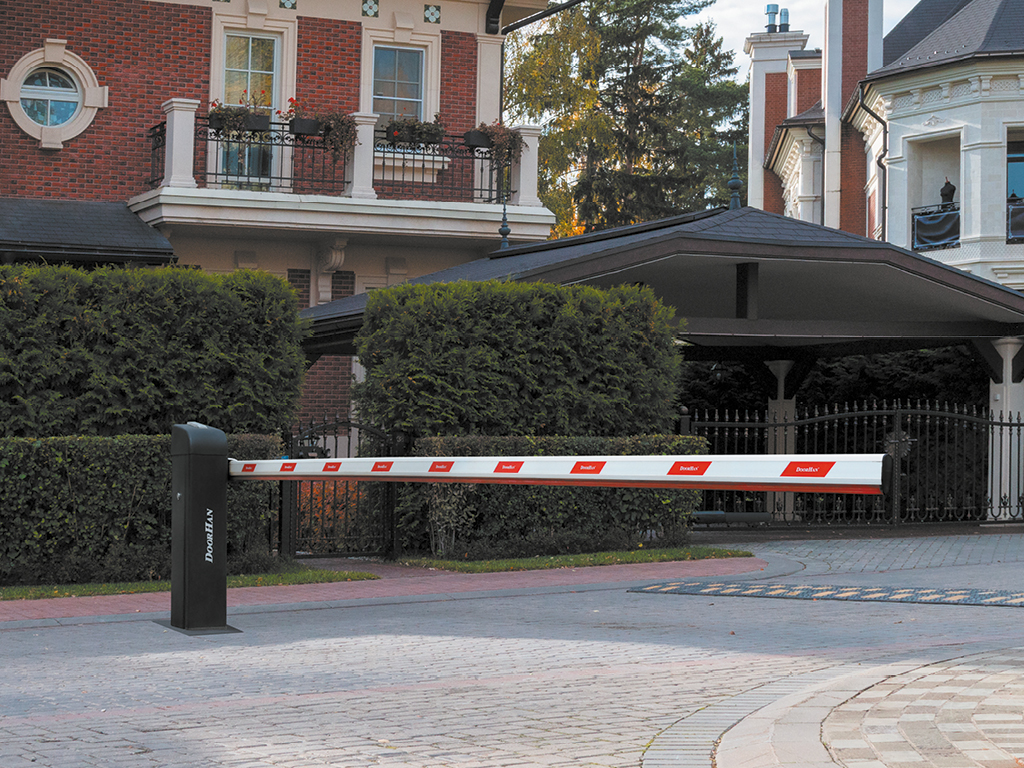

Application:

Small settlements (SNT, PzhSK, etc.)
Office parking, parkings with limited access, access to an enterprise territory, etc.

Order with installation

Advantages

Newly designed LCD-lamp acts both as a decorative and a functional element.

New spring tensioner securely balances the boom and facilitates its adjustment.

Electric limit switches provide precise boom positioning.

The barrier is equipped with a special release mechanism allowing to manually raise and lower the boom in case of power outage.

A specially designed open-type gearbox and a large diameter gear uniformly distributing the load significantly increase the barrier service life. The reducer gears, firmly fixed on a cast iron base, guarantee safe and reliable operation of the barrier throughout its service life.

Newly designed LCD-lamp acts both as a decorative and a functional element.

New spring tensioner securely balances the boom and facilitates its adjustment.

Electric limit switches provide precise boom positioning.

The barrier is equipped with a special release mechanism allowing to manually raise and lower the boom in case of power outage.

Design

Barrier design

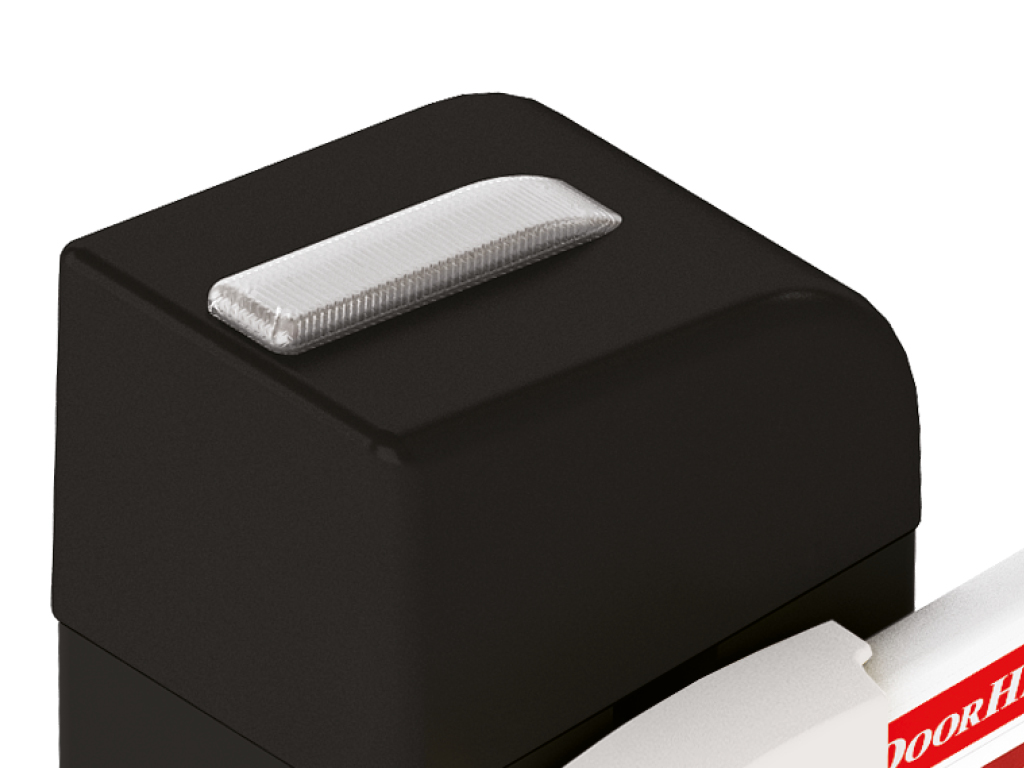

LED-light signal lamp

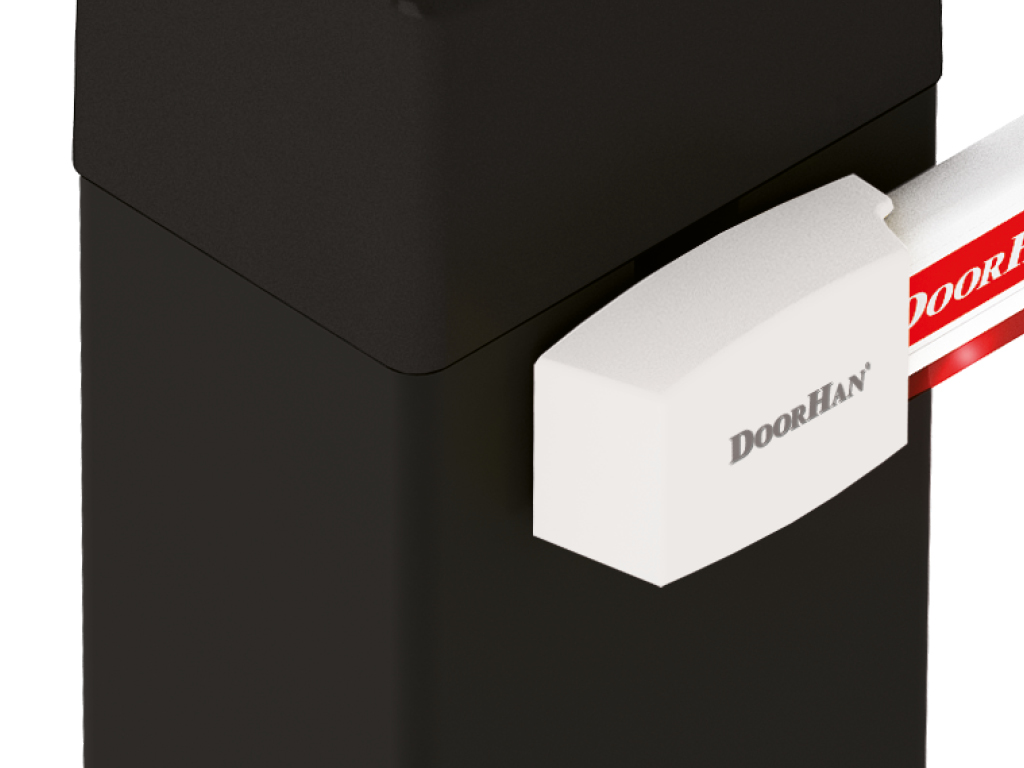

Boom attachment

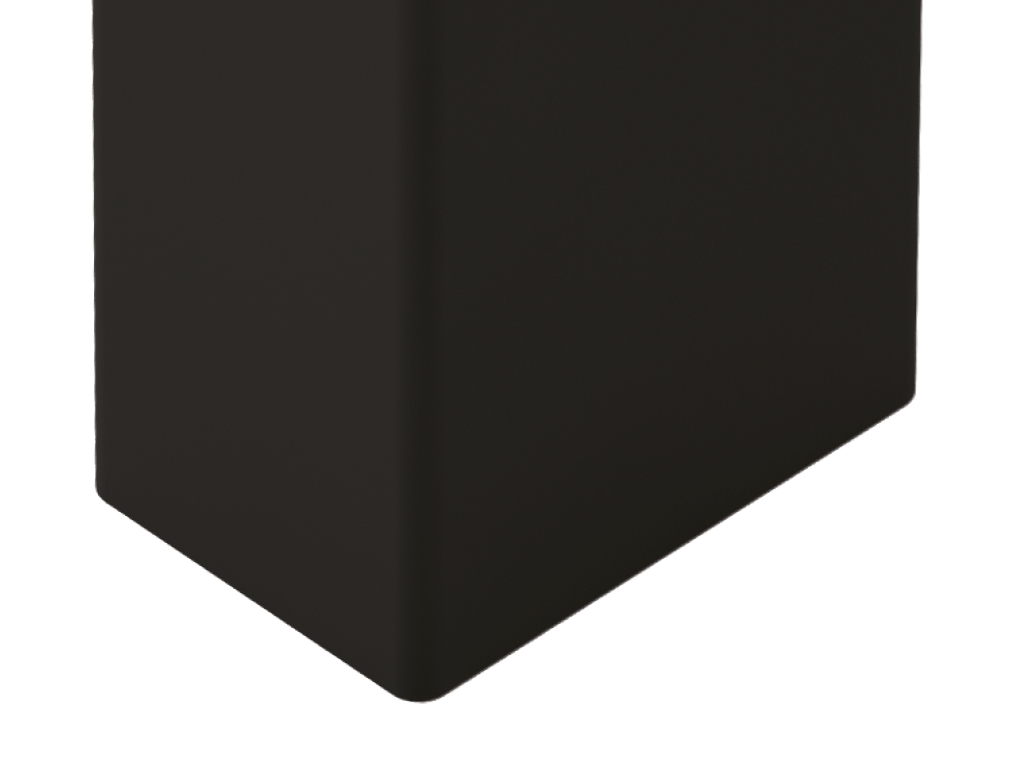

Stand made of steel sheet 1.5 mm thick

Equipment

Standard

Optional

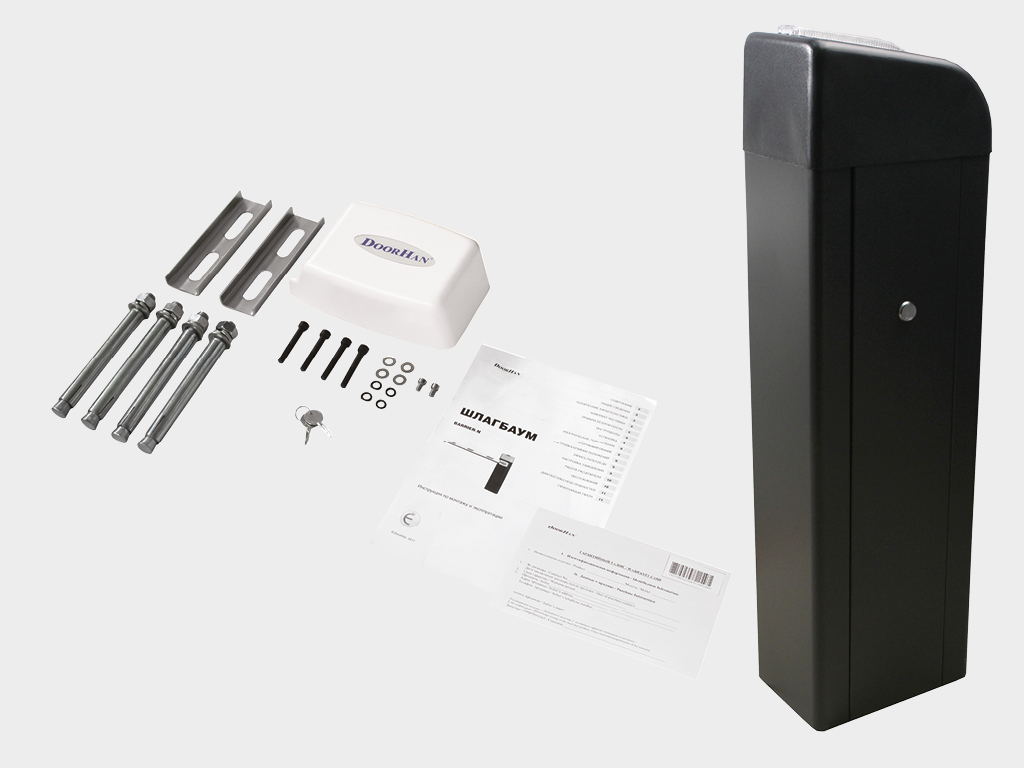

Barrier cabinet with built-in control unit, fastening hardware, BR-11PRO spring

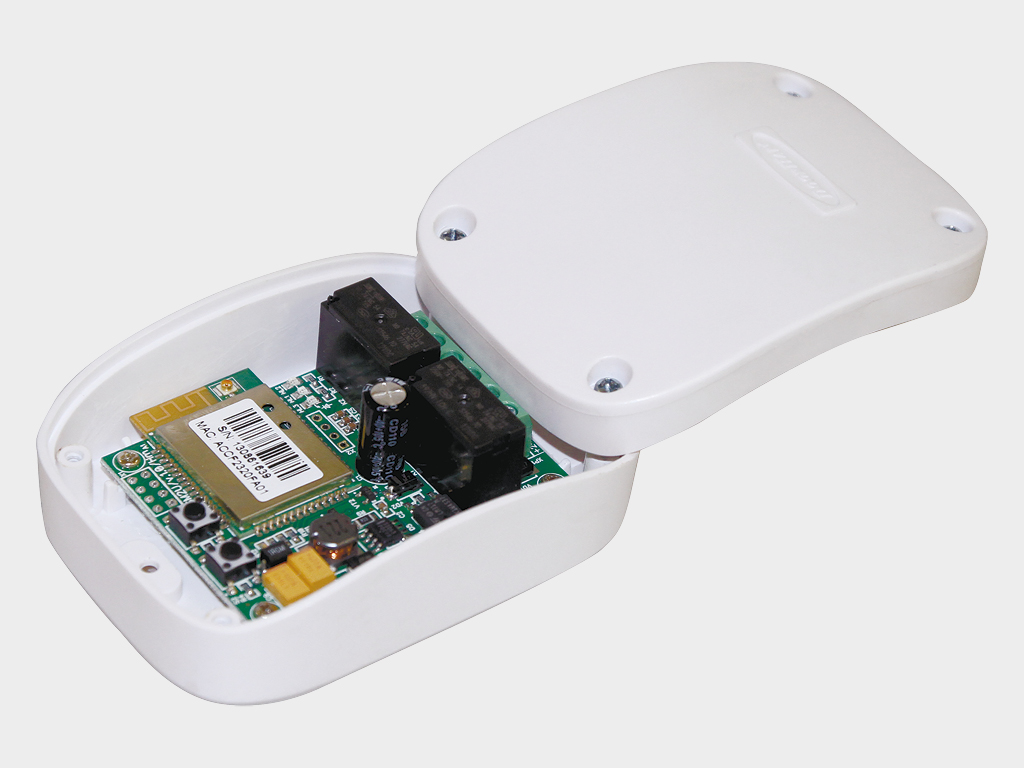

Wi-Fi-module for wireless control of the door opener (control signal, NO)

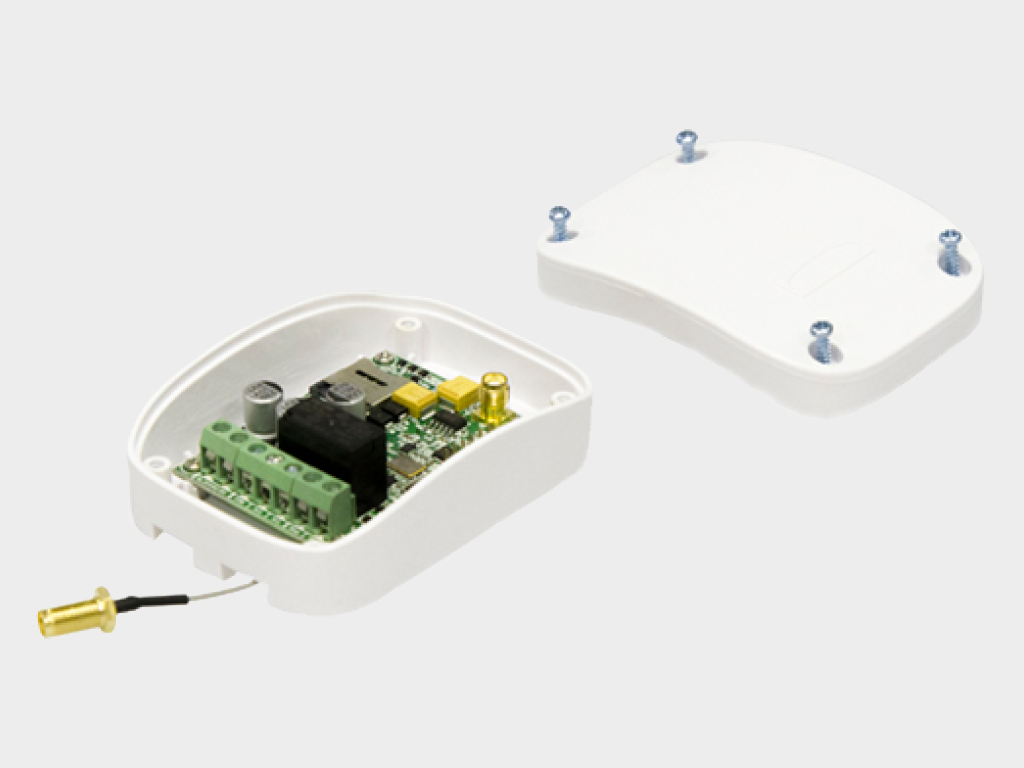

GSM-module receives a mobile phone signal and transmits a control signal to operate the opener or barrier

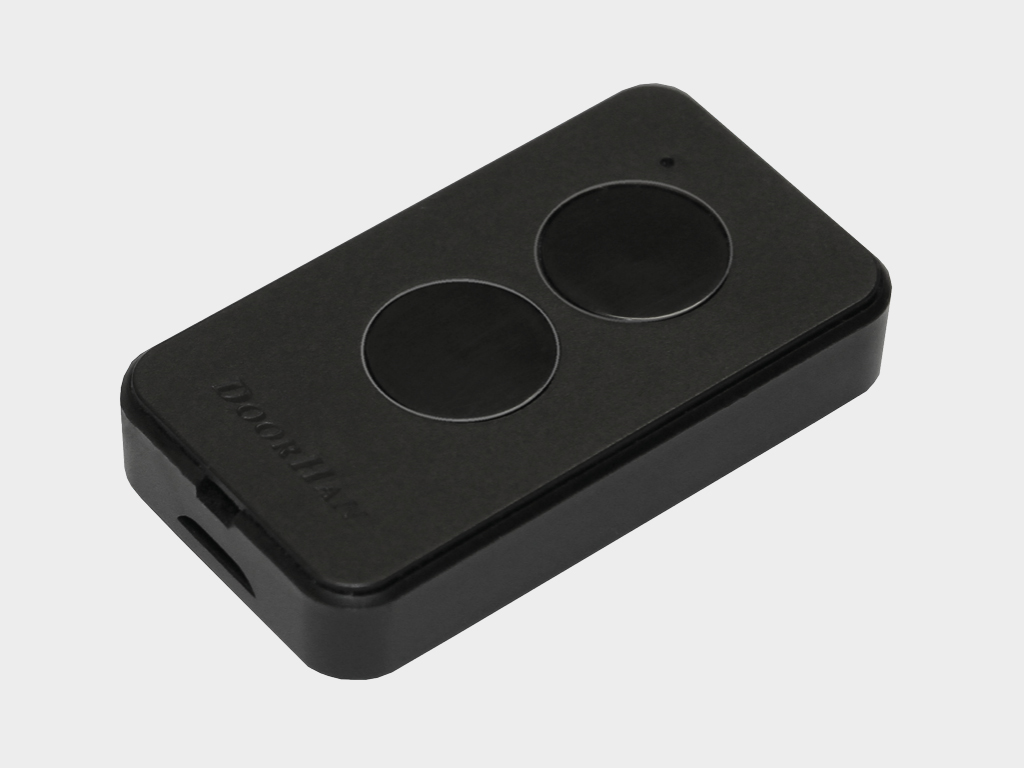

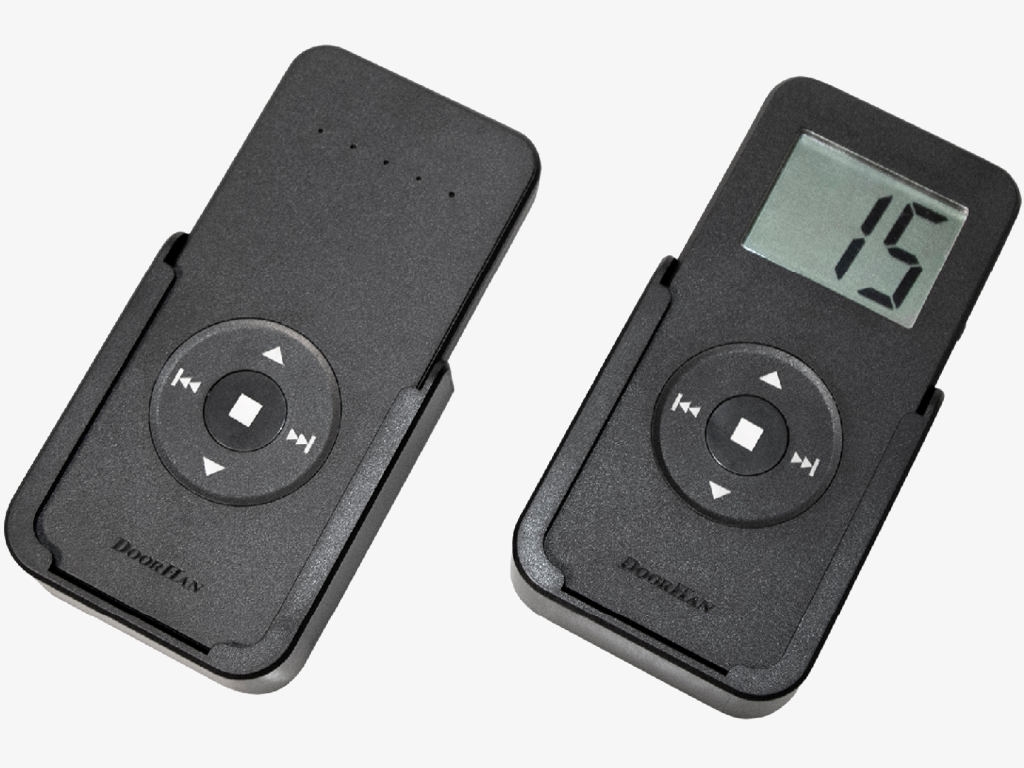

TRANSMITTER-2PRO-Black remote control operates two devices

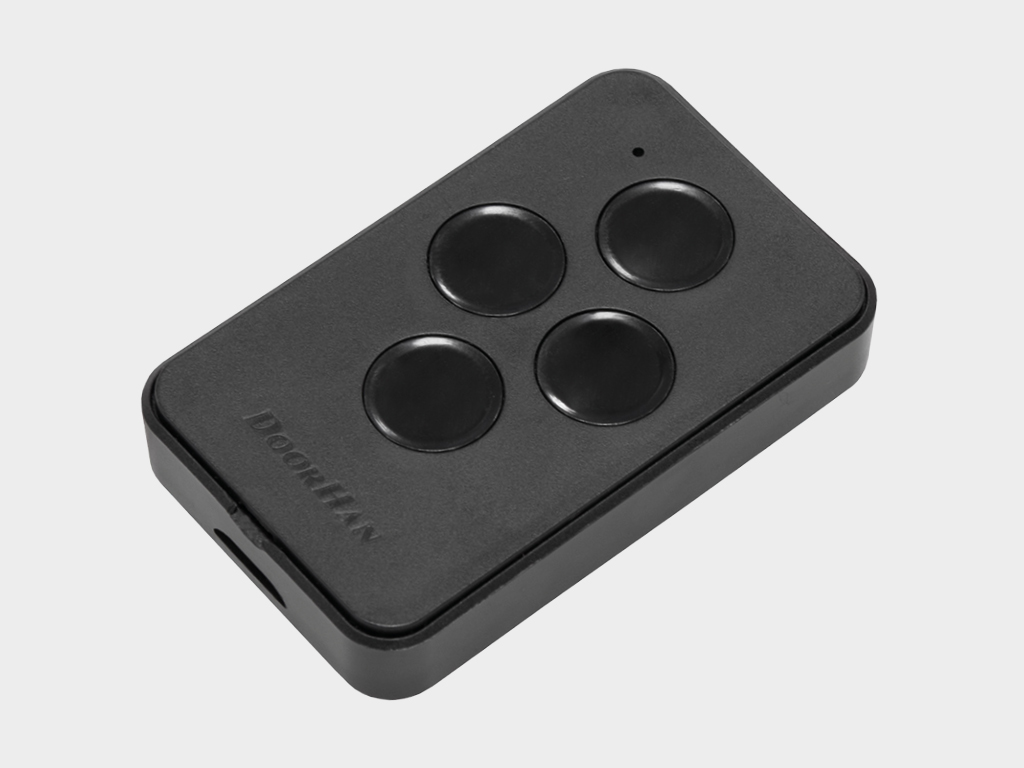

TRANSMITTER-4PRO-Black remote control operates four devices

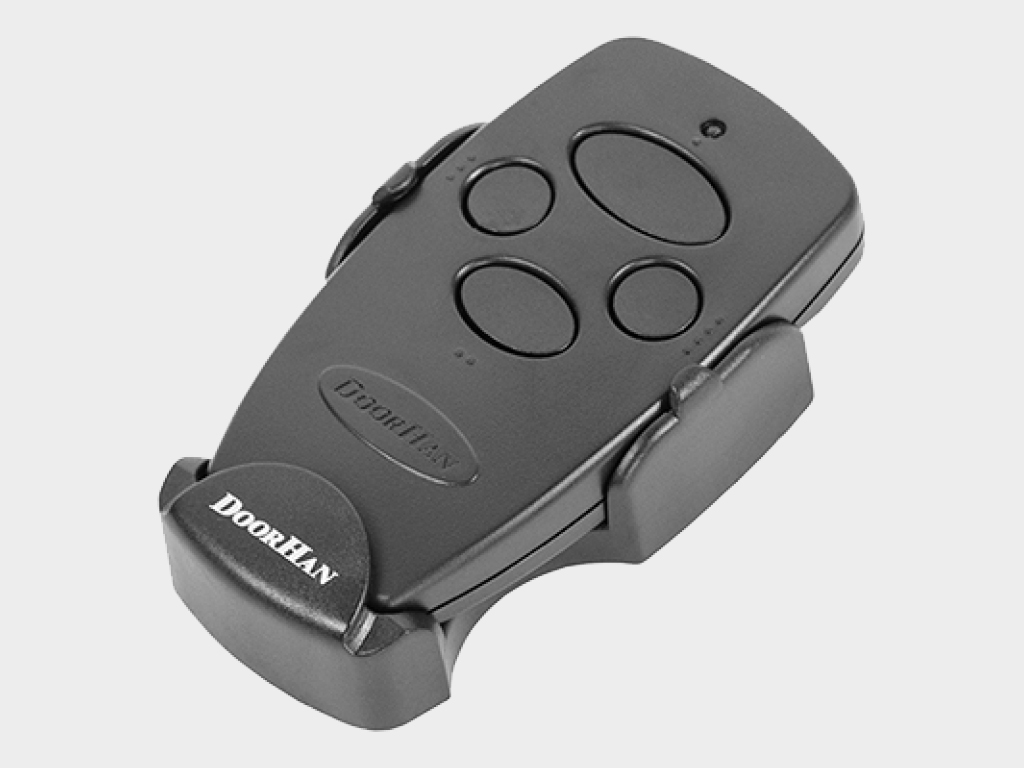

TRANSMITTER-4 remote control operates four devices

TRANSMITTER-PREMIUM having steel housing can operate up to four devices

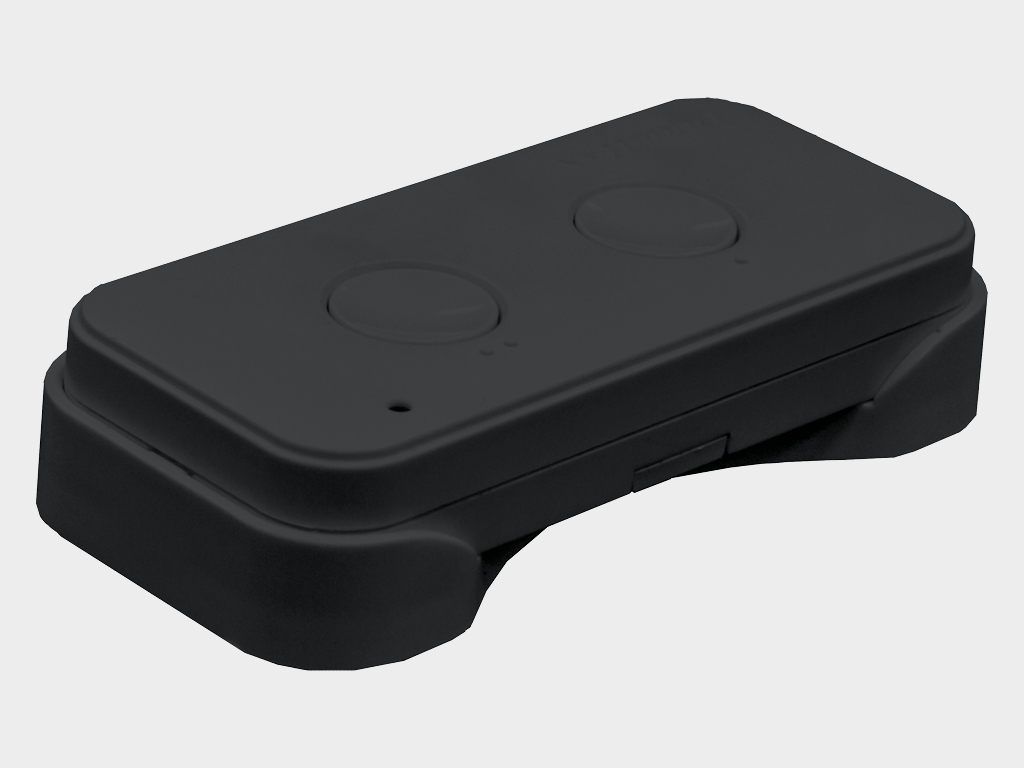

COMMAND-433 wireless button to control two devices

Car-TRANSMITTER remote control chargeable via cigarette lighter can operate two devices

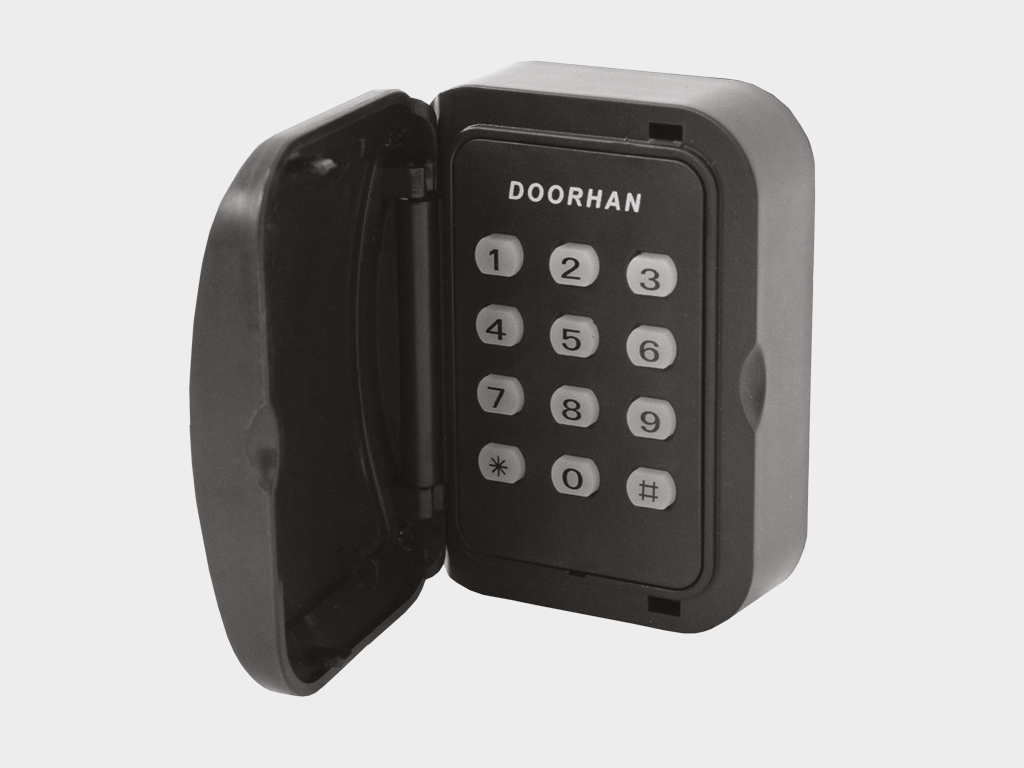

KEYPAD series code keypad controls door opener equipped with internal or external DoorHan receiver

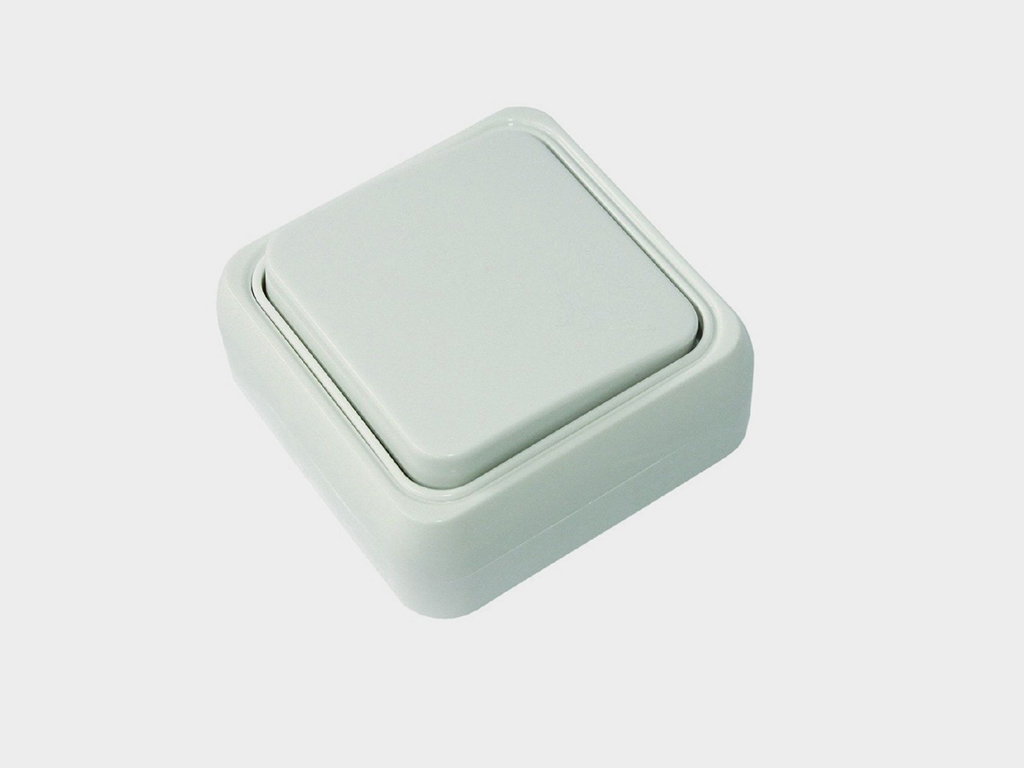

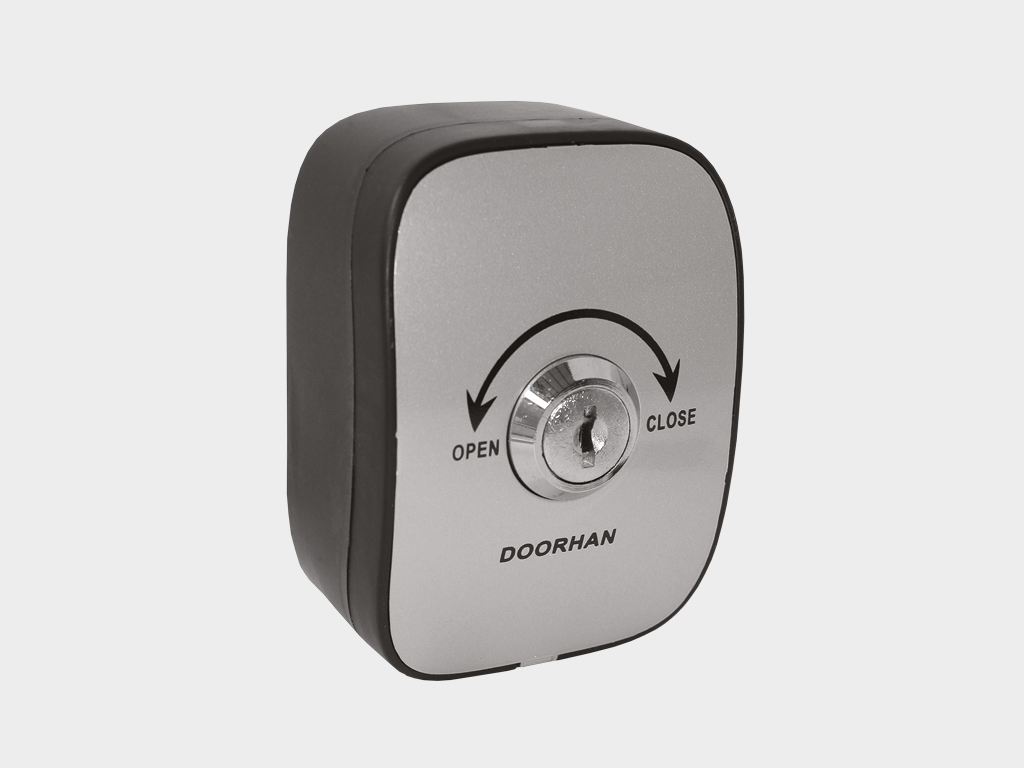

Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device

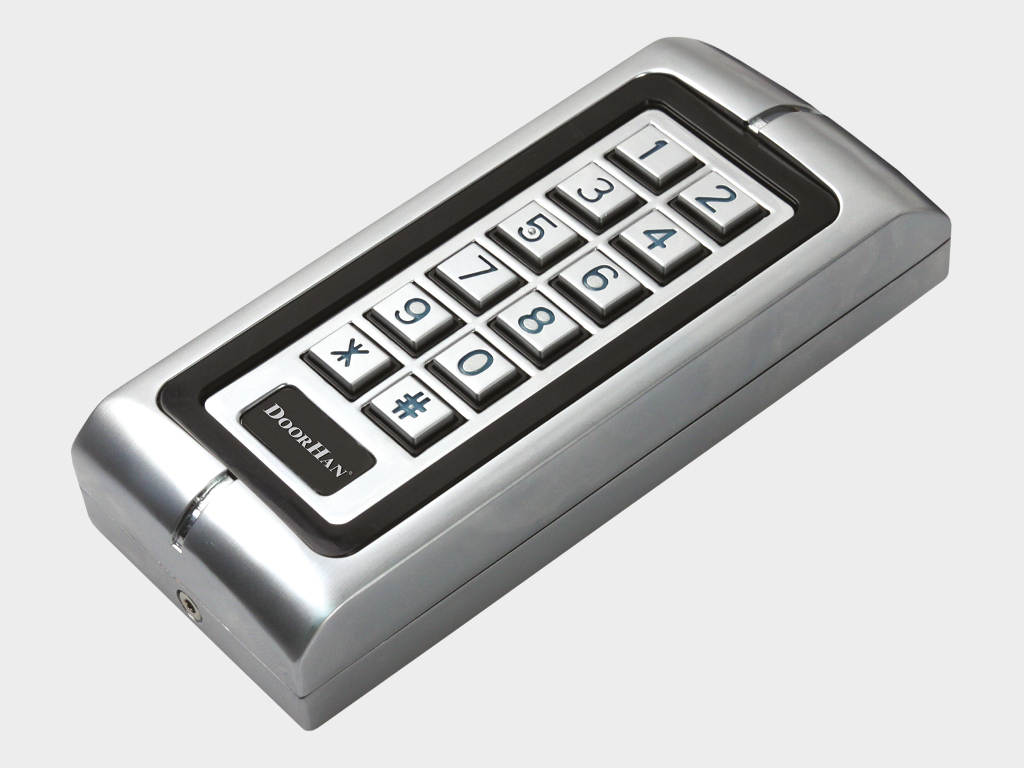

Anti-vandal code keypad Ref: KEYCODE series controls automatic devices. It can be used as an outdoor keypad or a proximity-card reader

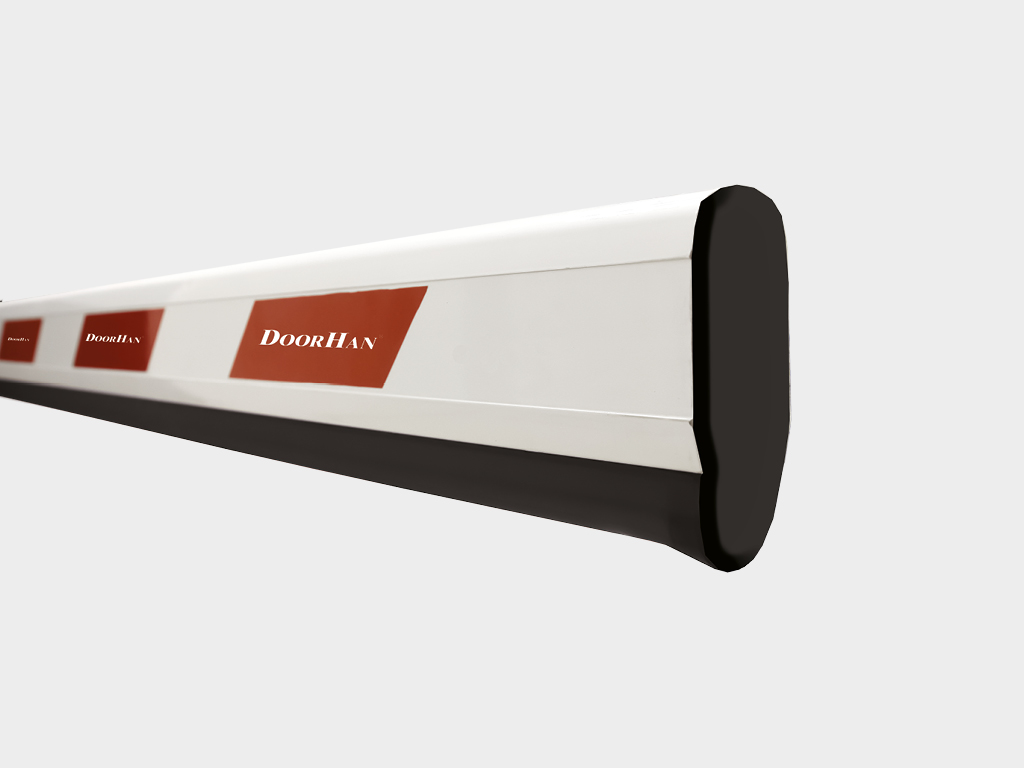

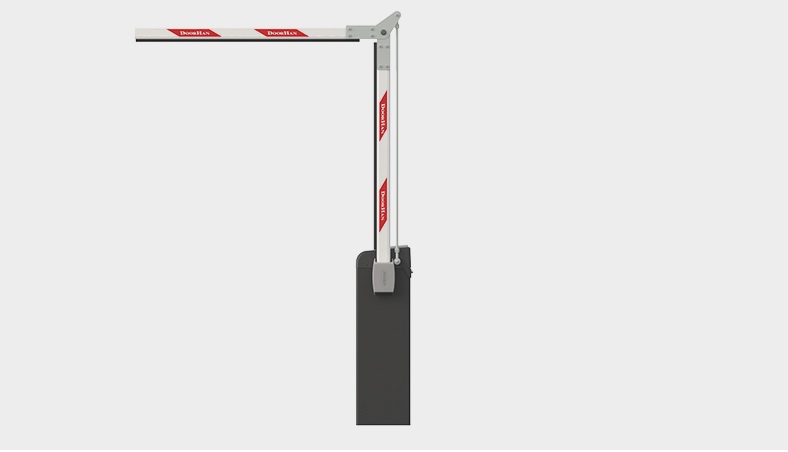

3 to 6 meters long barrier boom

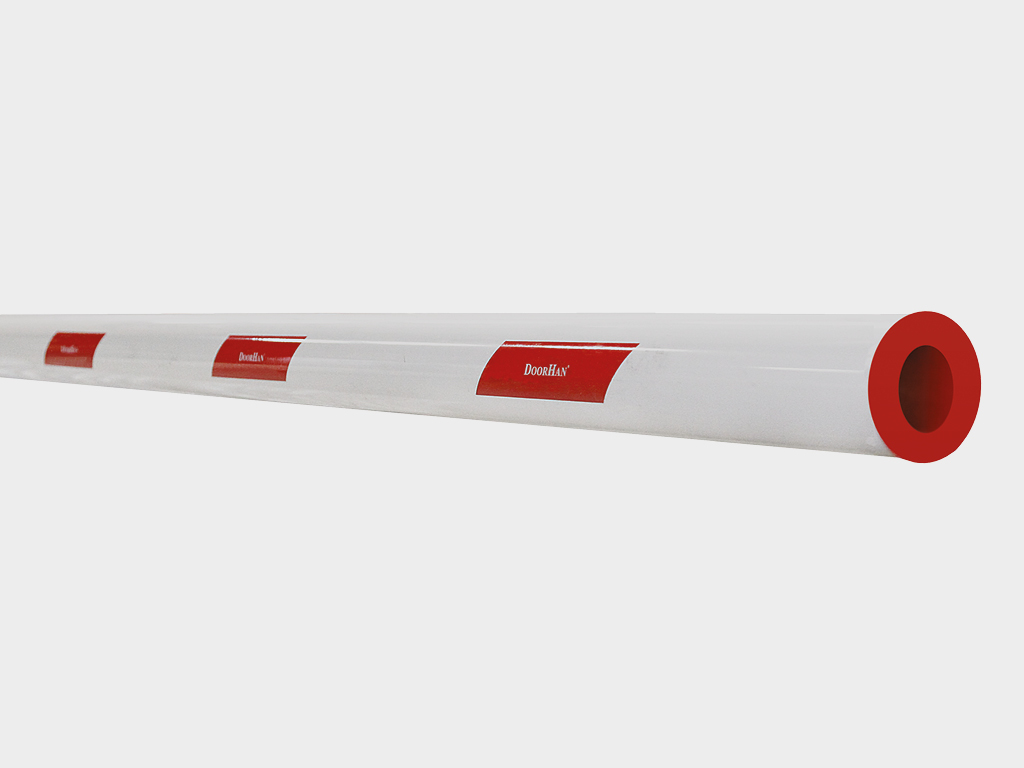

Round boom 3 to 6 meters long (length ratio: 1 m, diameter — 85 mm, material — 1.9 mm thick aluminium)

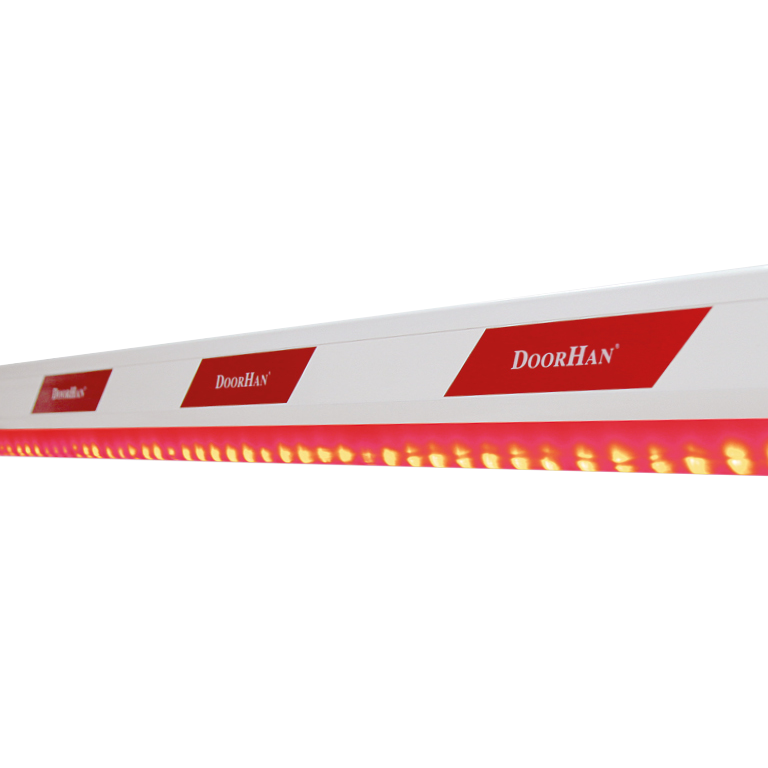

Lighted barrier boom with 3 to 6 meters length (length ratio: 1 m)

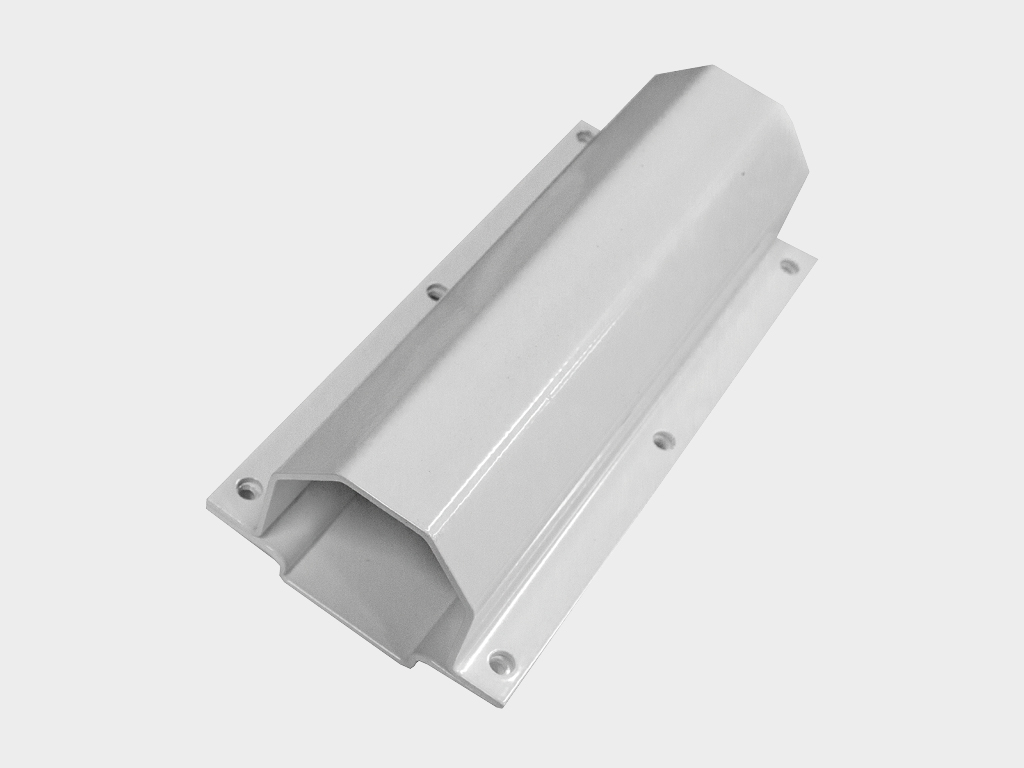

Round boom mounting kit

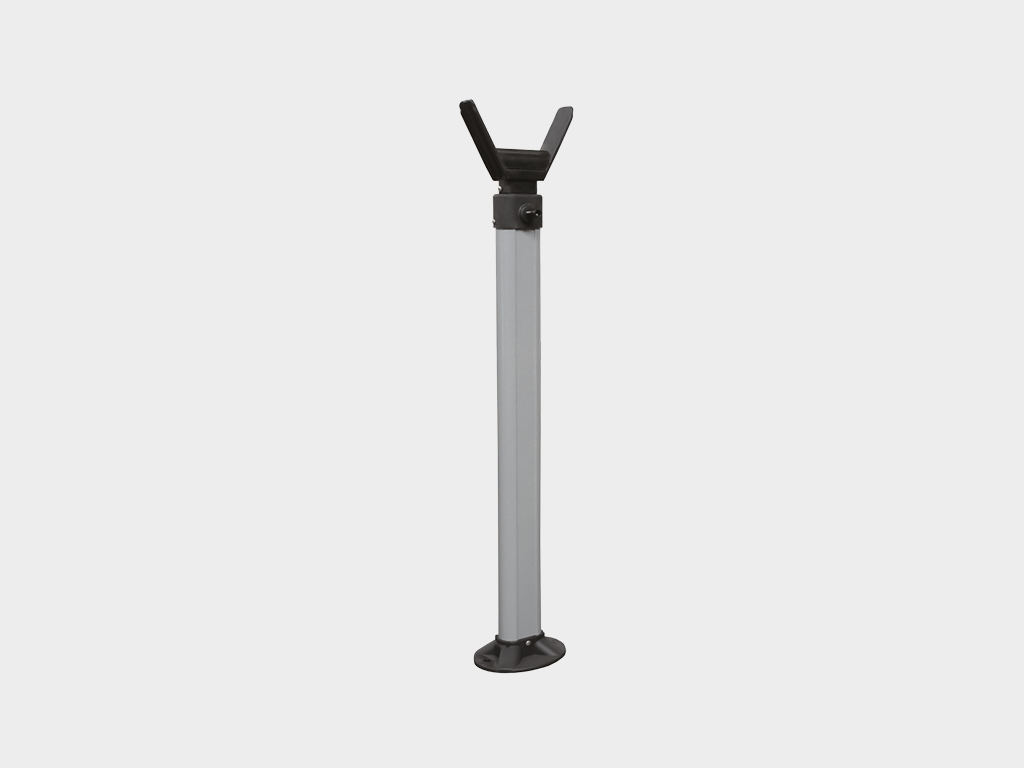

Adjustable boom tip holder

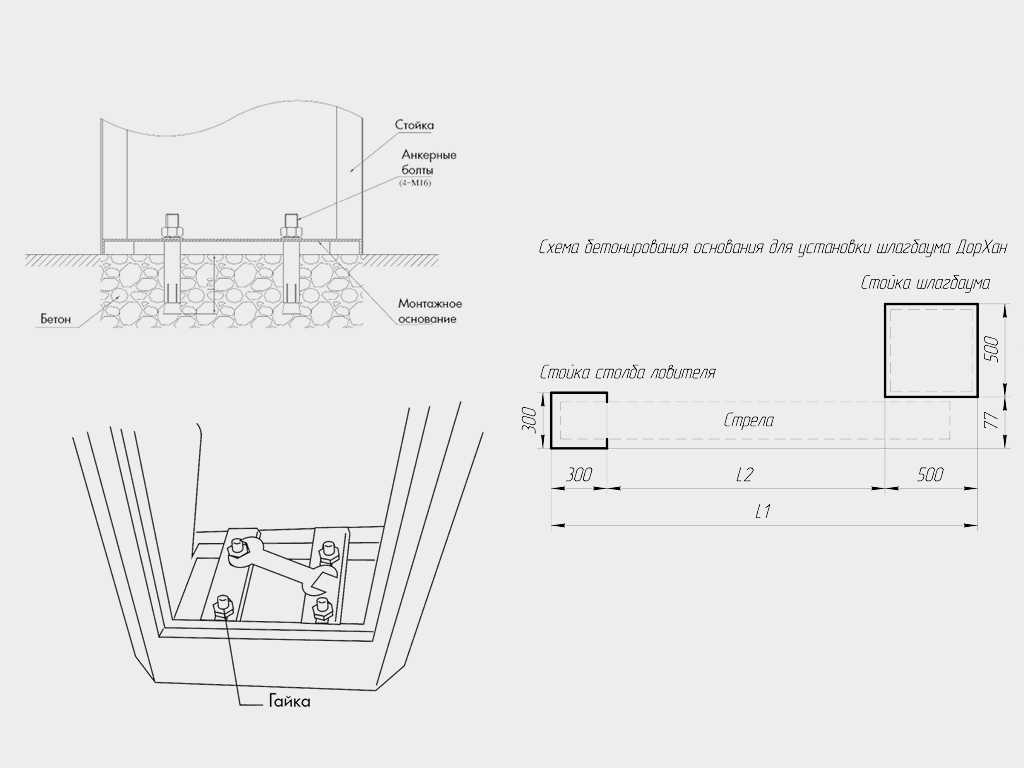

Mounting base for concreting

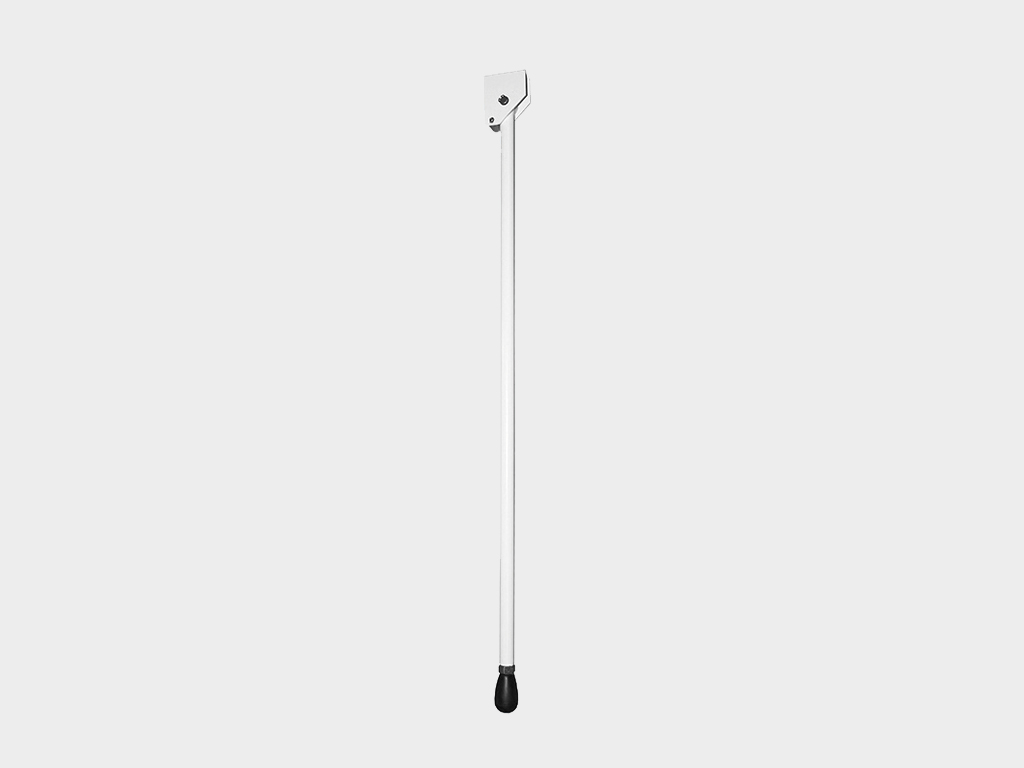

Mobile stand, attached to the boom end

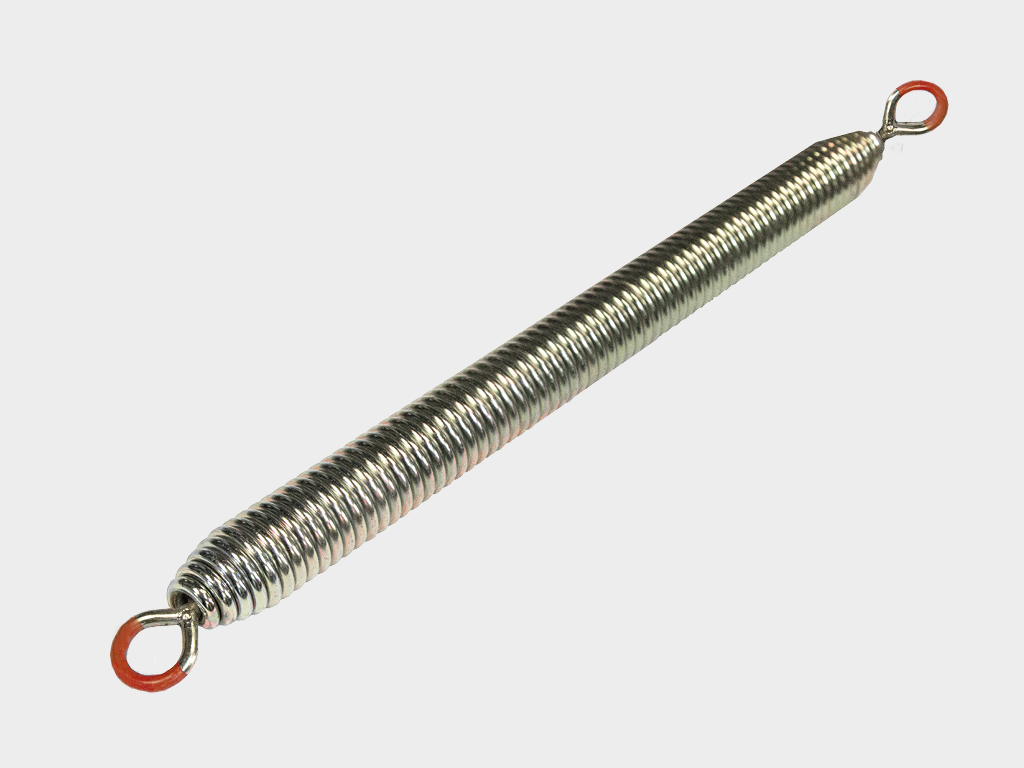

BR-11PRO balancing spring

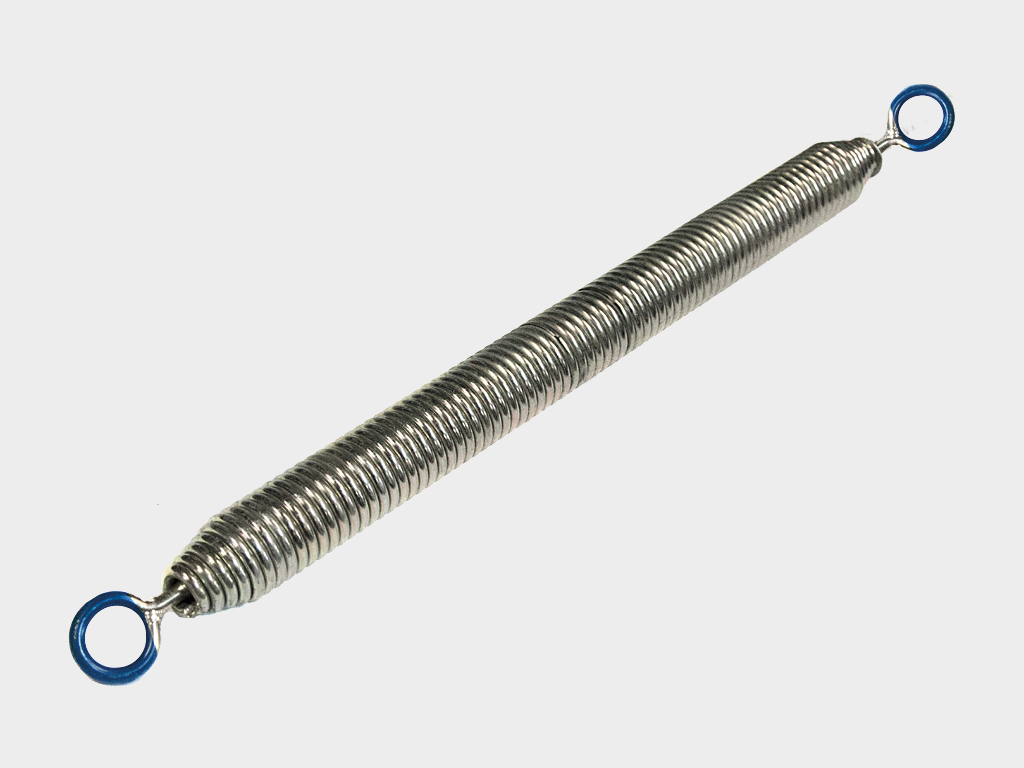

BR-13PRO balancing spring

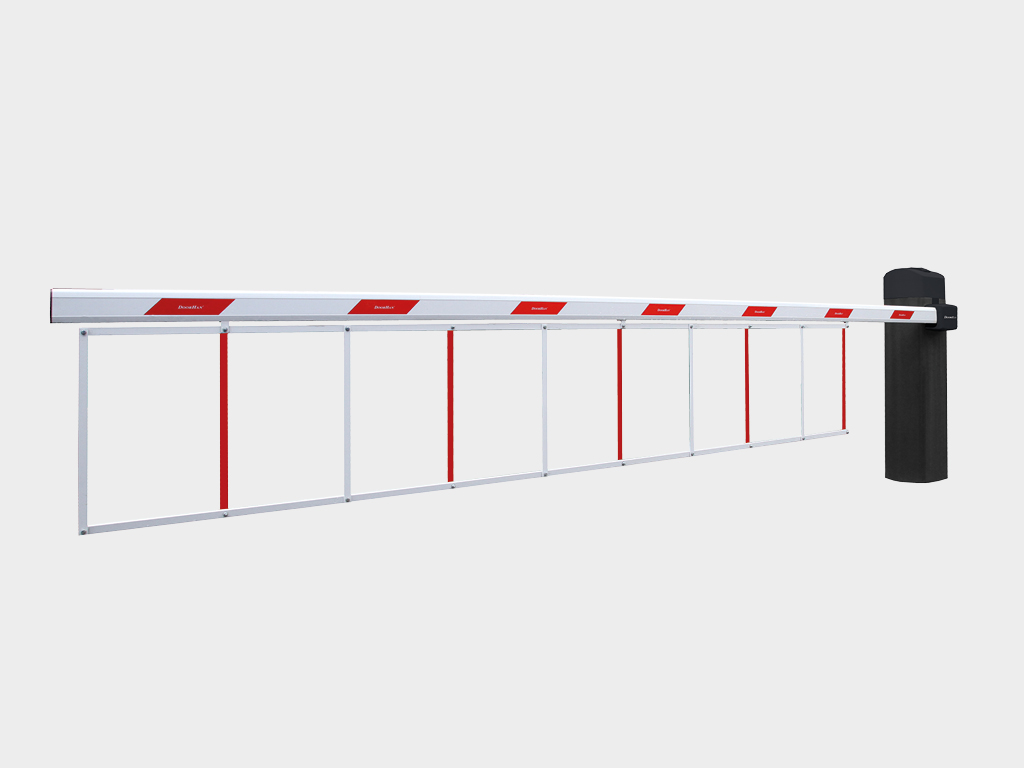

Bottom skirt for a rectangular boom

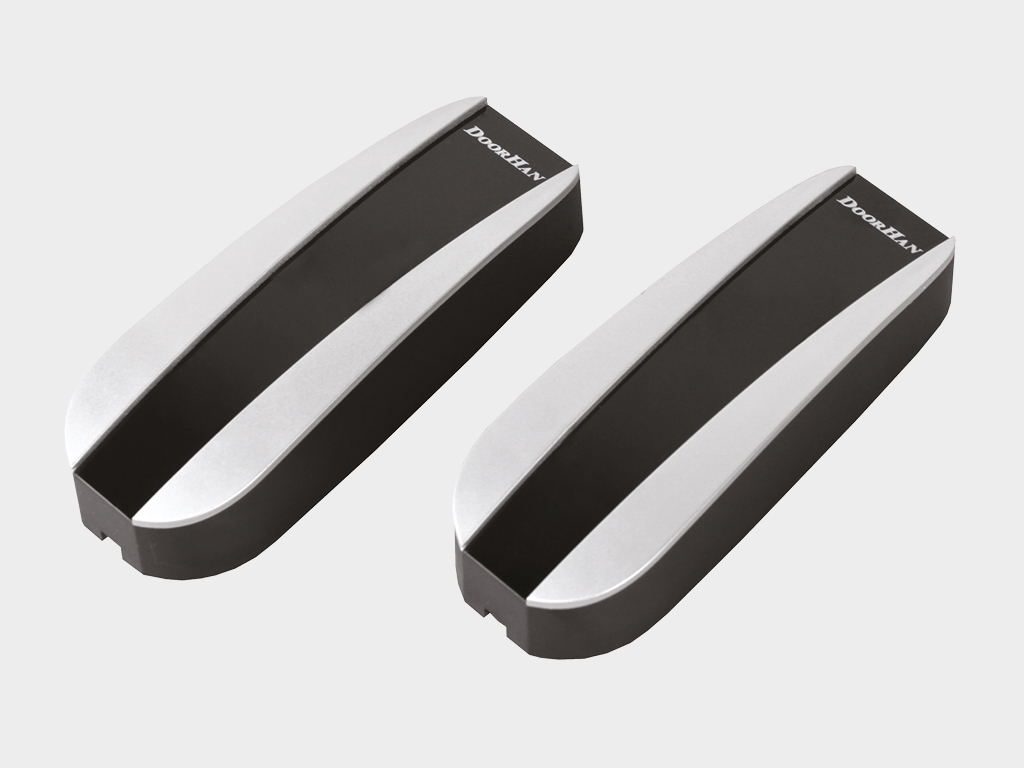

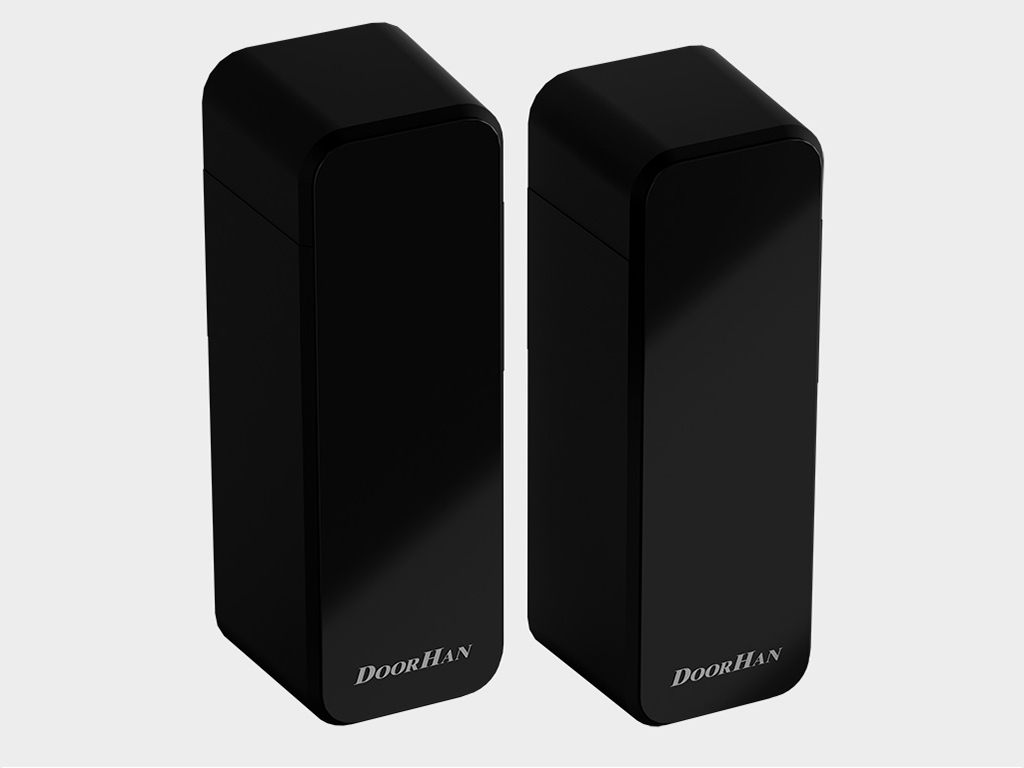

PHOTOCELL-N safety photocells consisting of infrared transmitter and receiver

Wireless photocells of PHOTOCELL-W series consisting of infrared transmitter and receiver

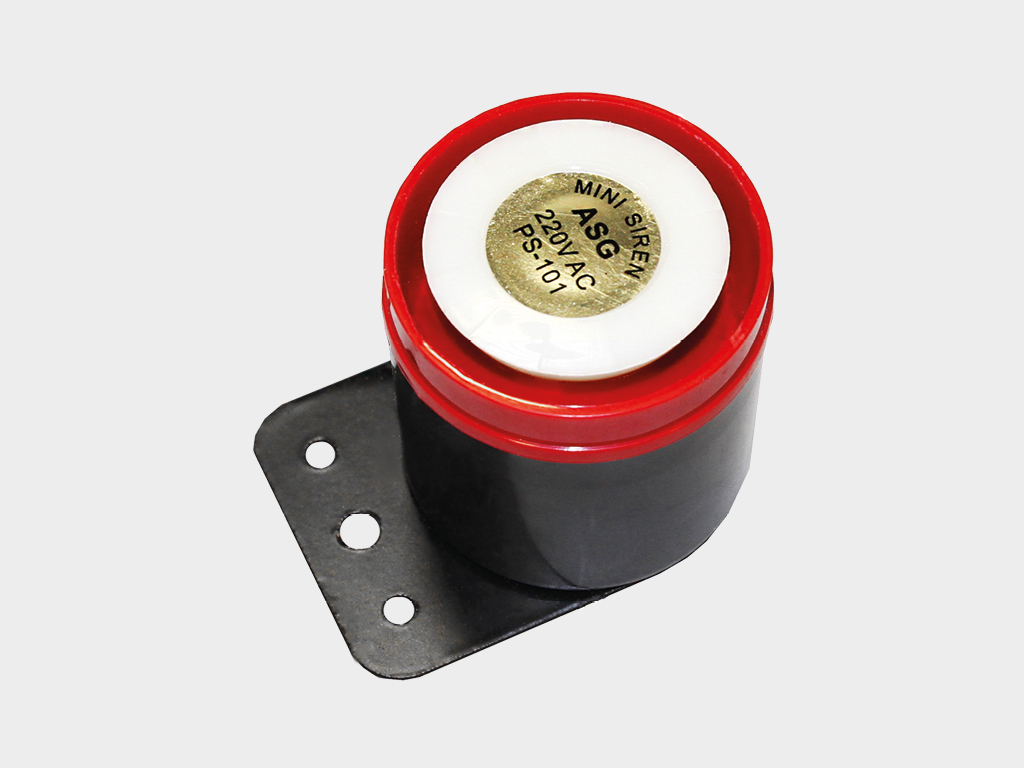

Sirena giving an audio warning about the door movement

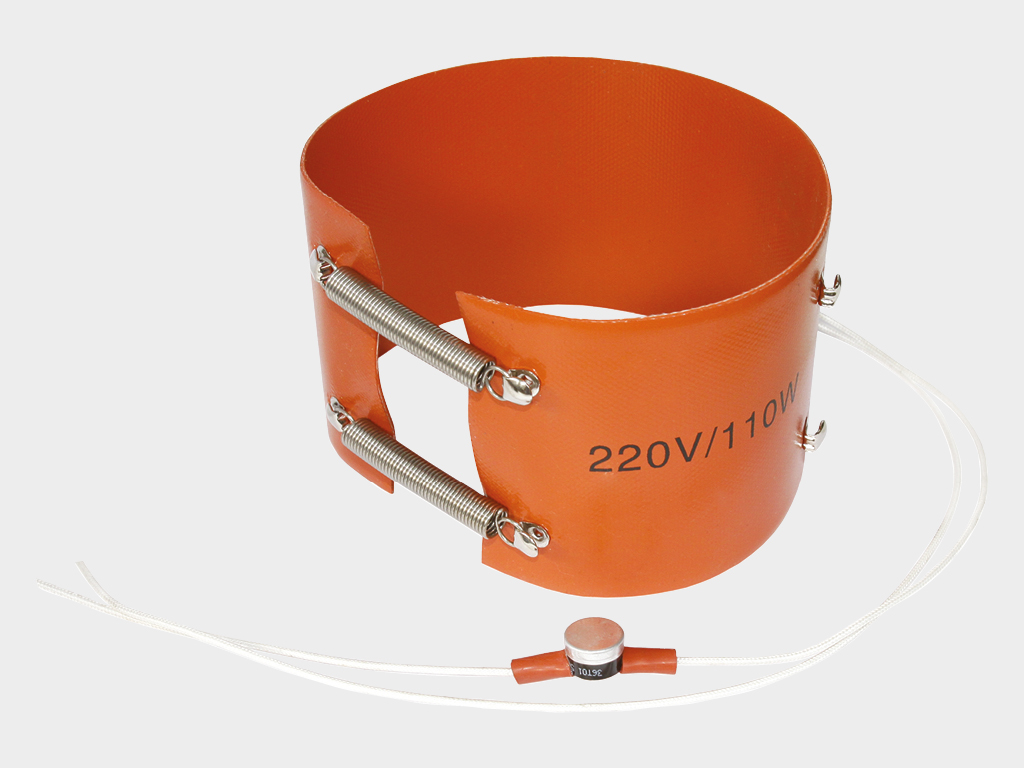

Heating device for gate and barrier operators working under extreme low temperature conditions

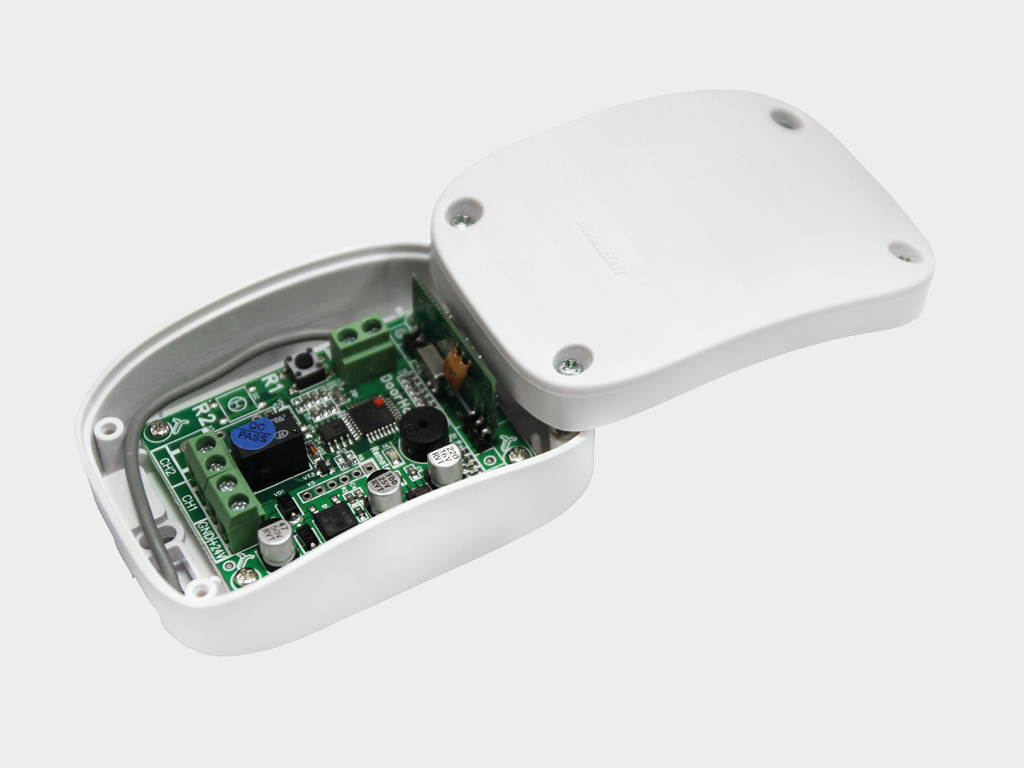

External DHRE-1 receiver controls other manufactures’ automatic devices with DoorHan remote control

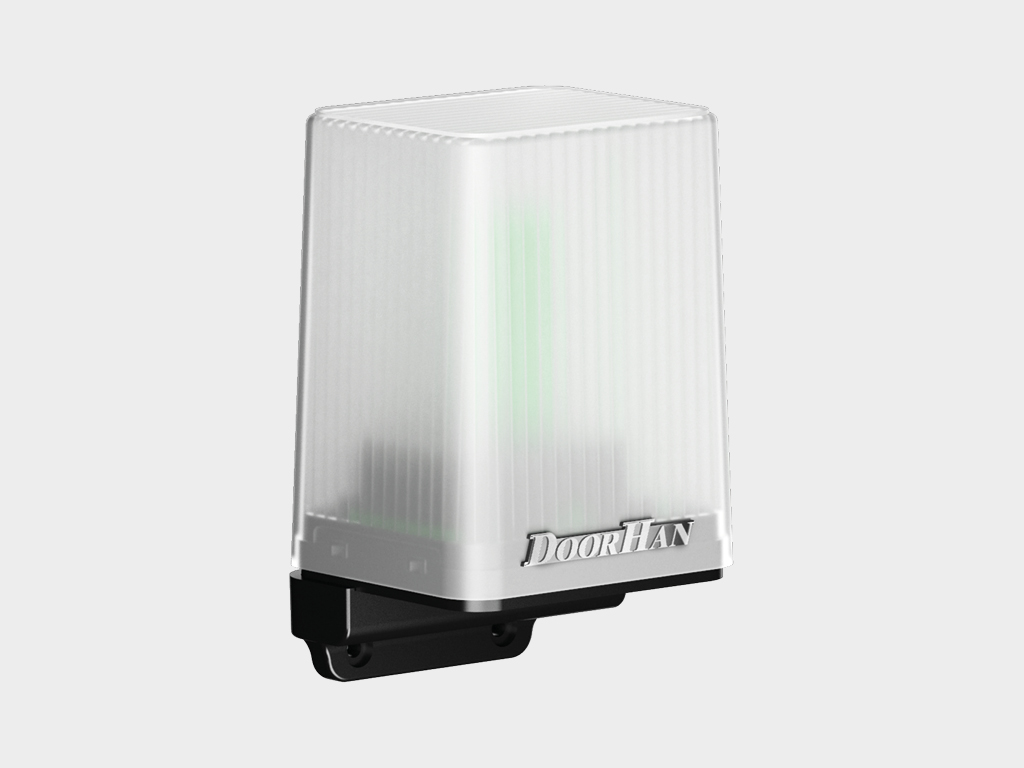

LAMP-PRO-series LED lamp with antenna to signal the door movement

Technical description

Construction

Specifications

Operating Conditions

Packaging

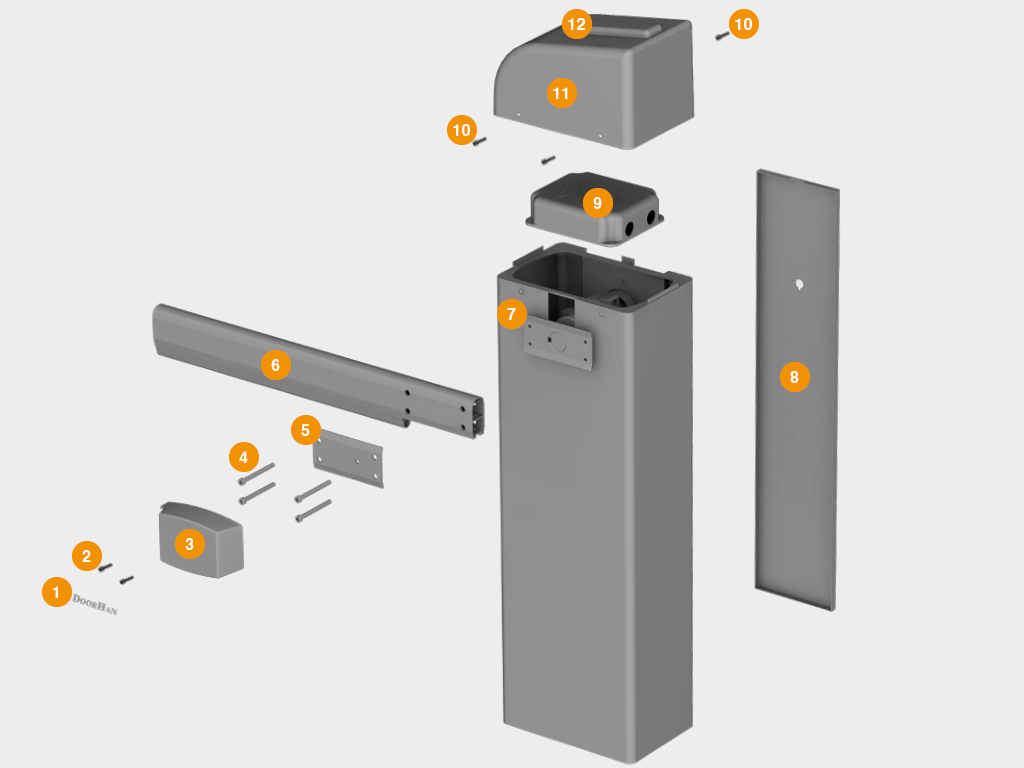

Logo
Hexagon set screws
Boom housing
Hexagon set screws
Boom mounting plate
Boom of 4 to 6 (optional) meters long
Barrier cabinet
Side cover
Control unit
Hexagon set screws
Top cover
LED-light lamp

Parameter	Value	Notes
Boom length, m	3; 4; 5; 6
Supply voltage, V	220
Power, W	300
Operating temperature range, °С	-40...+55
Maximum opening/closing time, sec	6
IP protection class	54
Intensity of use	70

1. Make sure the moving boom won’t touch any objects and be at least 2 m away from overhead power lines

2. The barrier cabinet should be installed on a concrete base

3. Depth of concrete base depends on the soil type and the depth of soil freezing

4. Make sure pipe lines and electric cables won’t cross the barrier installation place

Packing in cardboard box	Packaging features
Contents	stretch-film, polystyrene, a cardboard box
Length, mm	1,200
Width, mm	390
Height, mm	295

Documentation

Drawings

Dimensional drawing

PDF

Warranty print

DoorHan s.r.o. warrants the barrier to work properly for a period of 3 years from purchase date. Dealer may change the warranty period.
