Sectional garage doors made of steel sandwich panels with torsion mechanism RSD02

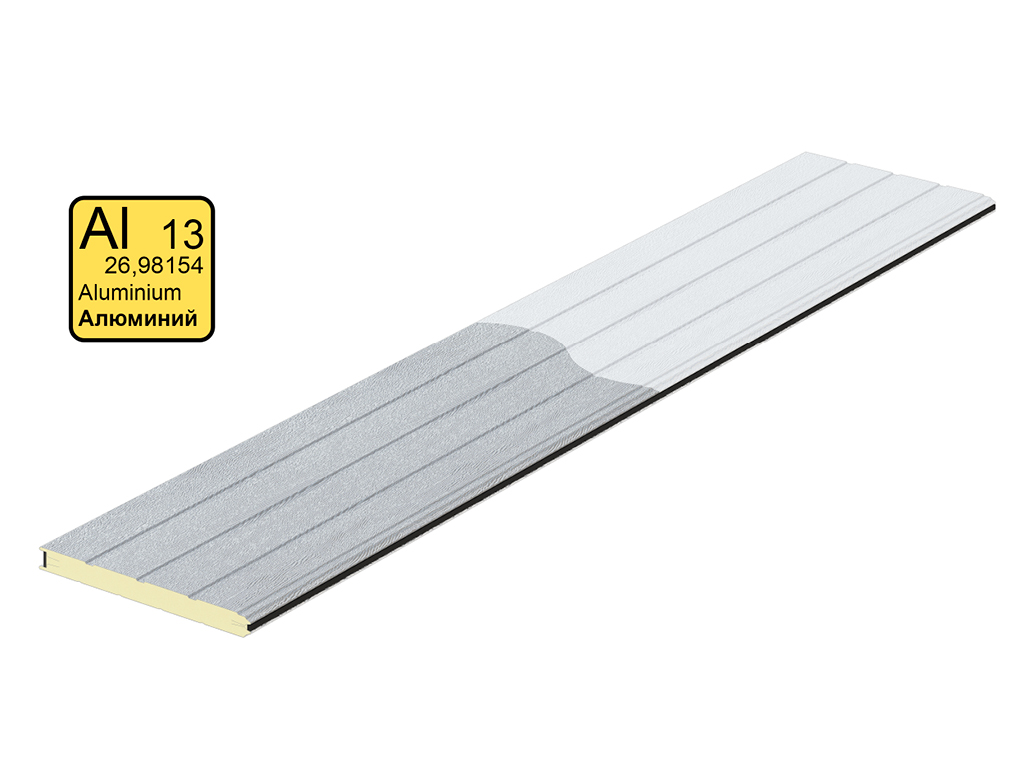

Garage doors of the RSD02 series have a design that has been proven over the years. They are designed for installation in openings of both small and medium sizes, and can be equipped with panoramic sections, windows or a gate embedded in the canvas. It is possible to make the gate with a shield made of aluminum panels.

Application:

Residential. Garages
Residential. Garages with individual entrance
Residential. Storerooms

Order with installation

Advantages

The absence of a cold bridge in the sandwich panel, great sealing around the entire opening, and leaf profiles with thermal separation guarantee maximum thermal efficiency of the door.

Different types of the sectional door lift allows to install them in rooms with any architecture of the internal space.

Spring break protection systems (optional) prevent the blade from falling in emergency situations.

The design, proven over years, and the safety margin of the components guarantee a long service life.

The absence of a cold bridge in the sandwich panel, great sealing around the entire opening, and leaf profiles with thermal separation guarantee maximum thermal efficiency of the door.

Different types of the sectional door lift allows to install them in rooms with any architecture of the internal space.

Spring break protection systems (optional) prevent the blade from falling in emergency situations.

The design, proven over years, and the safety margin of the components guarantee a long service life.

Design

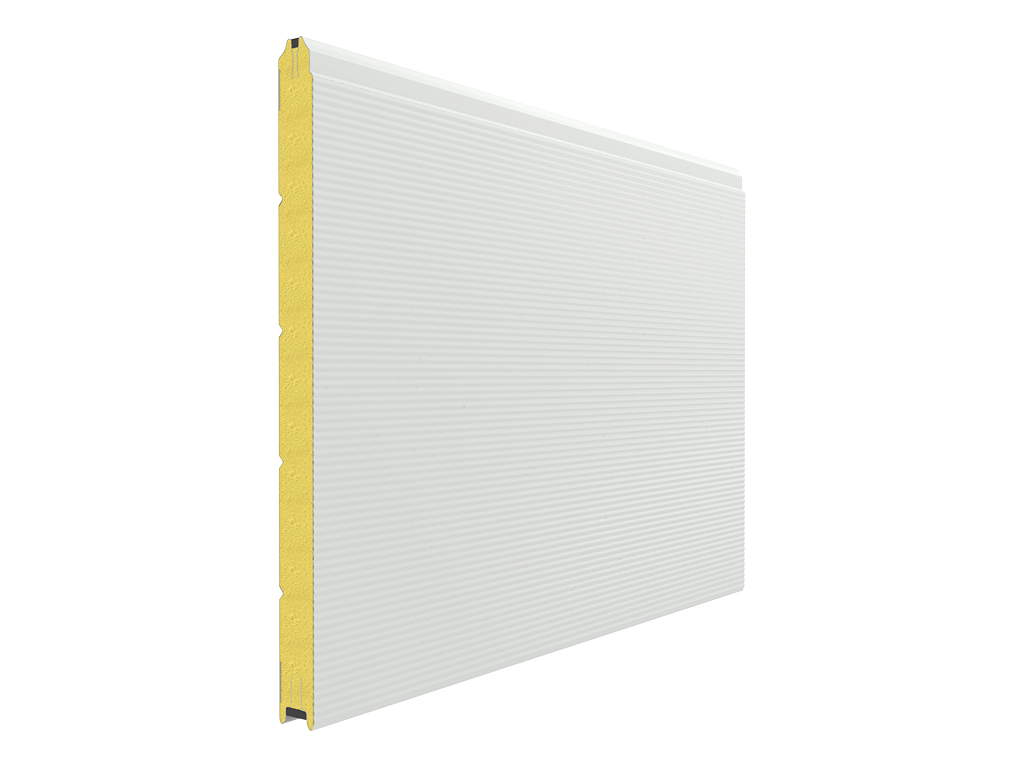

Panel Type

Surface Type

Colour Options

S-Line

D-Line

M-Line

Cassette

V-Line

D-Line — inside

Woodgrain (outside)

Stucco (inside)

RAL 9003 (white)

RAL 9006 (silver)

RAL 7004 (gray)

RAL 1014 (beige)

RAL 6005 (green)

RAL 5005 (blue)

RAL 7016 (anthracite)

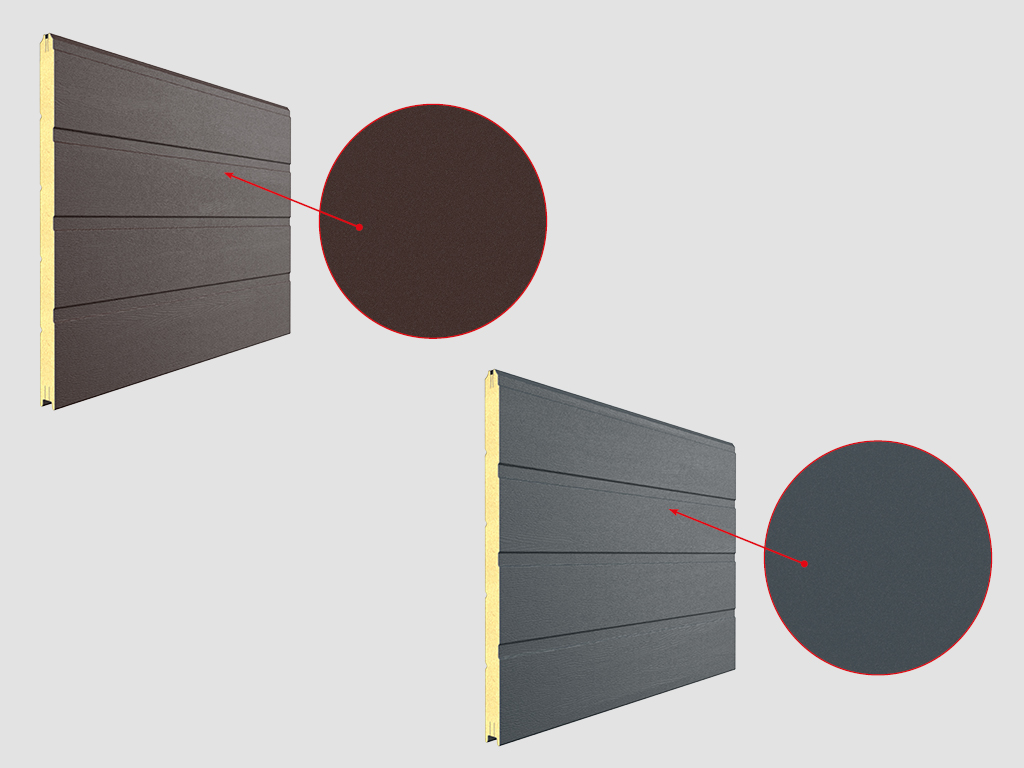

RAL 7016 (“frost”, extra charge)

RAL 3000 (red)

RAL 3005 (burgundy)

RAL 8017 (brown-red)

RAL 8017 (“frost”, extra charge)

Golden oak

Wenge

Non-standard color according to RAL card

Equipment

Standard

Optional

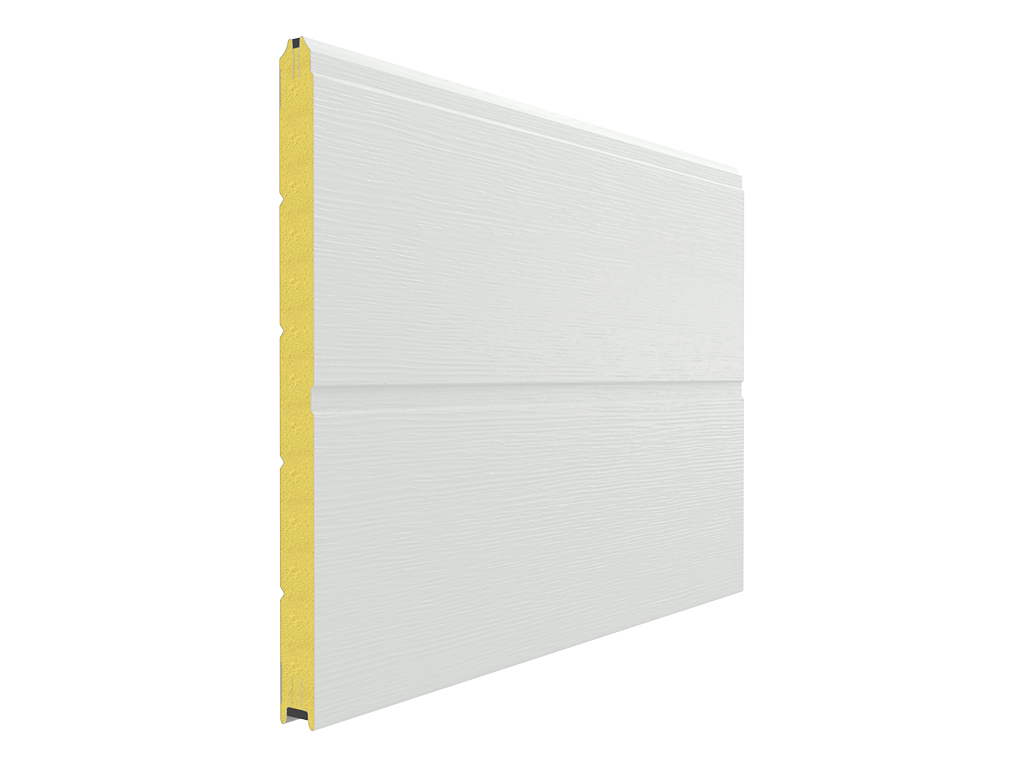

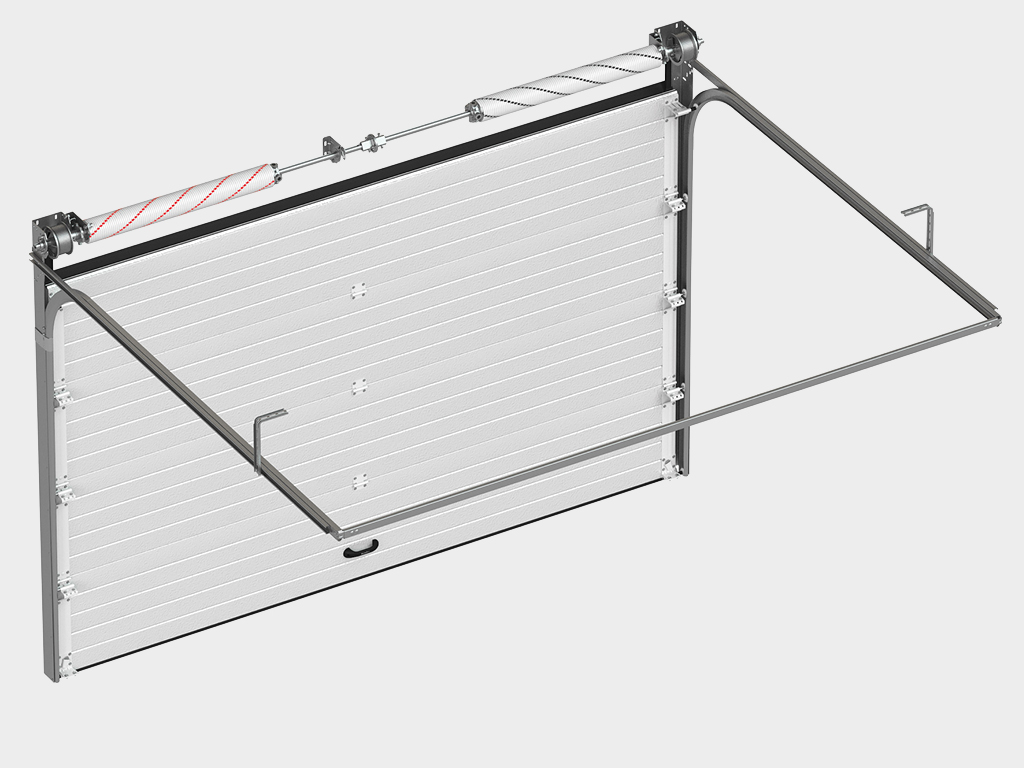

Door leaf of 40 mm energy-efficient sandwich panels with reinforcement for hinges and side supports.

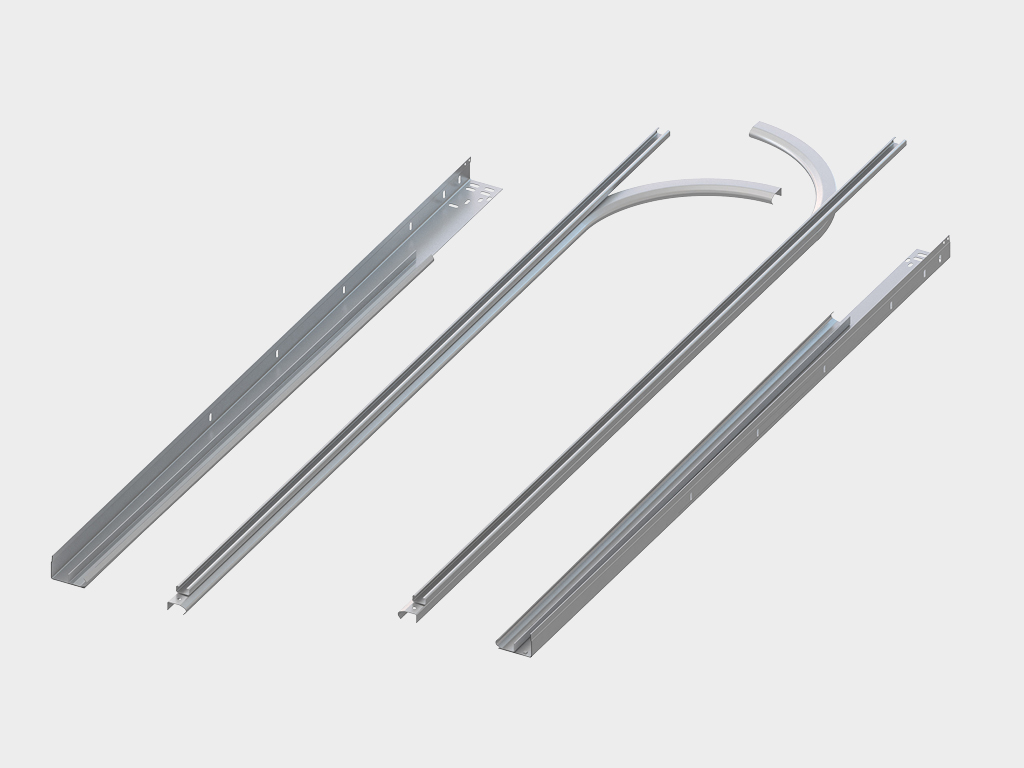

Side tracks and vertical angles made of 1,5-2 mm steel have increased strength and all the necessary perforation.

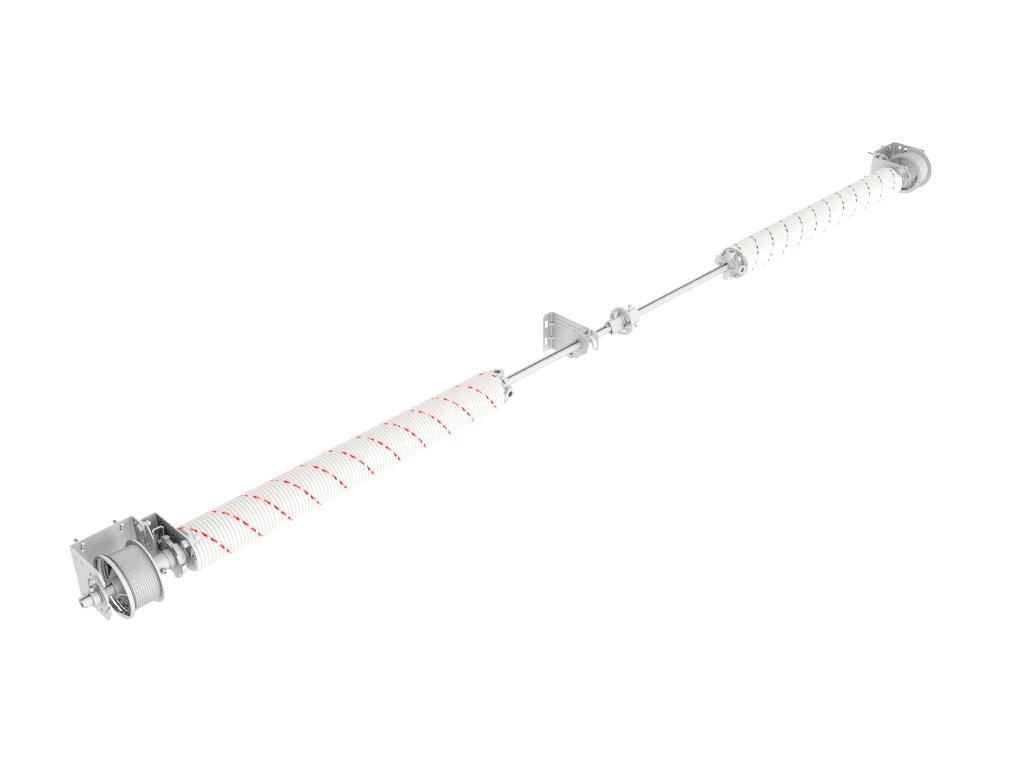

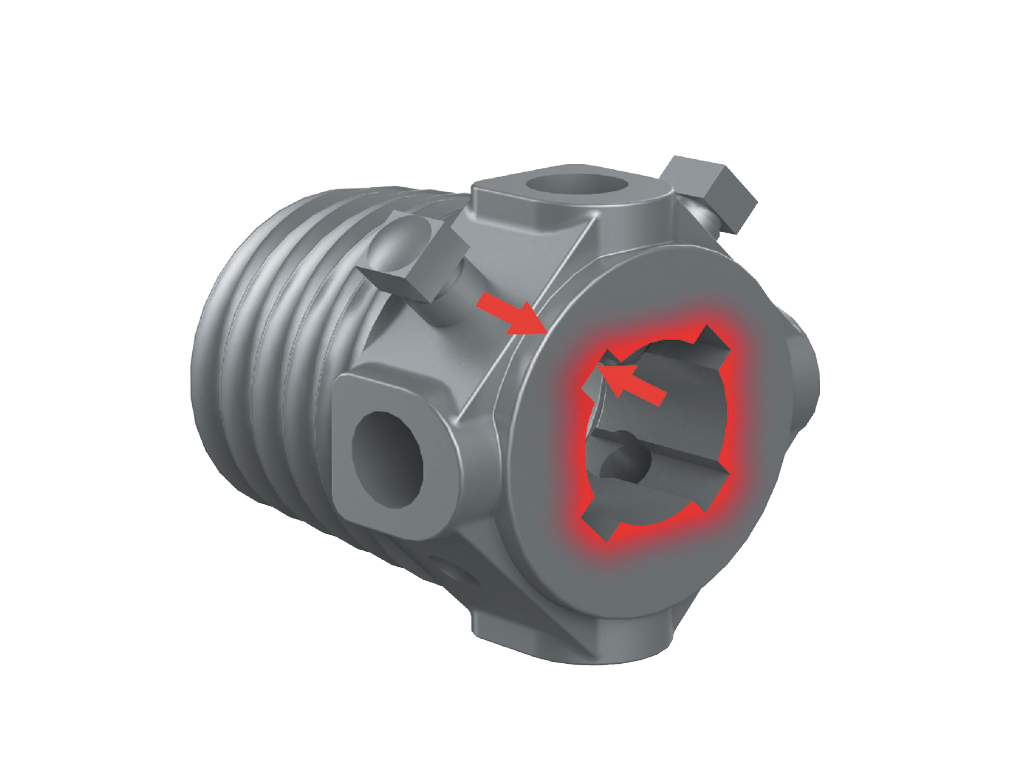

High-quality durable torsional springs designed for 25 000 operating cycles provide effortless closing and opening of the door.

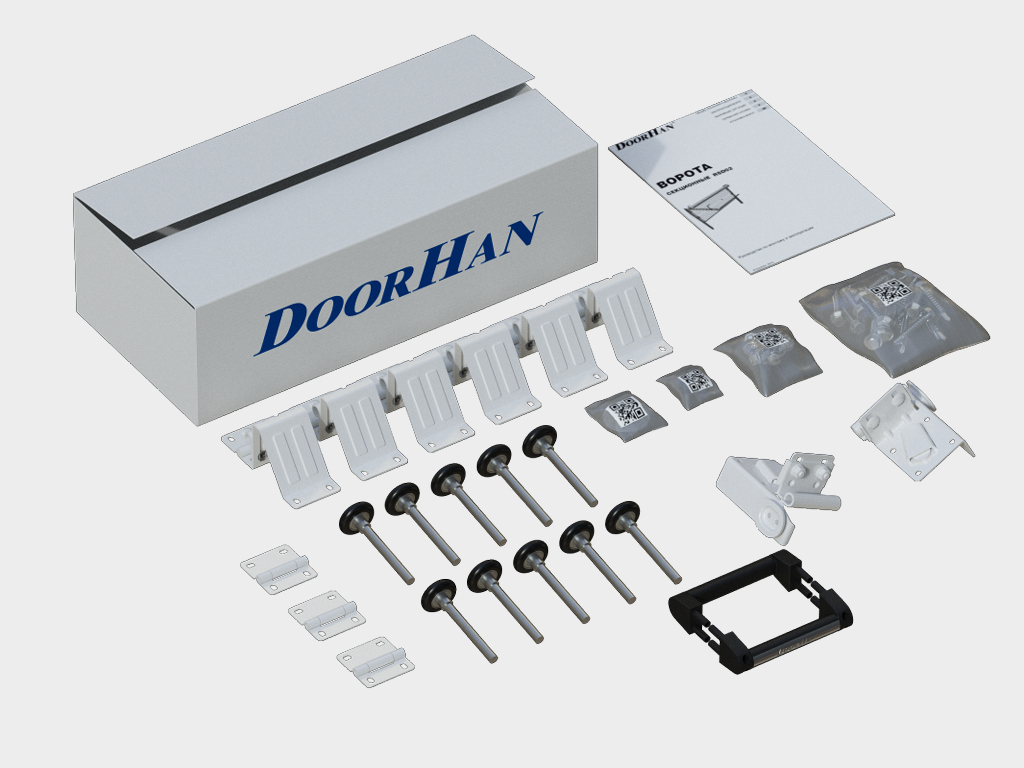

A set of mounting hardware, instruction manual and product technical data.

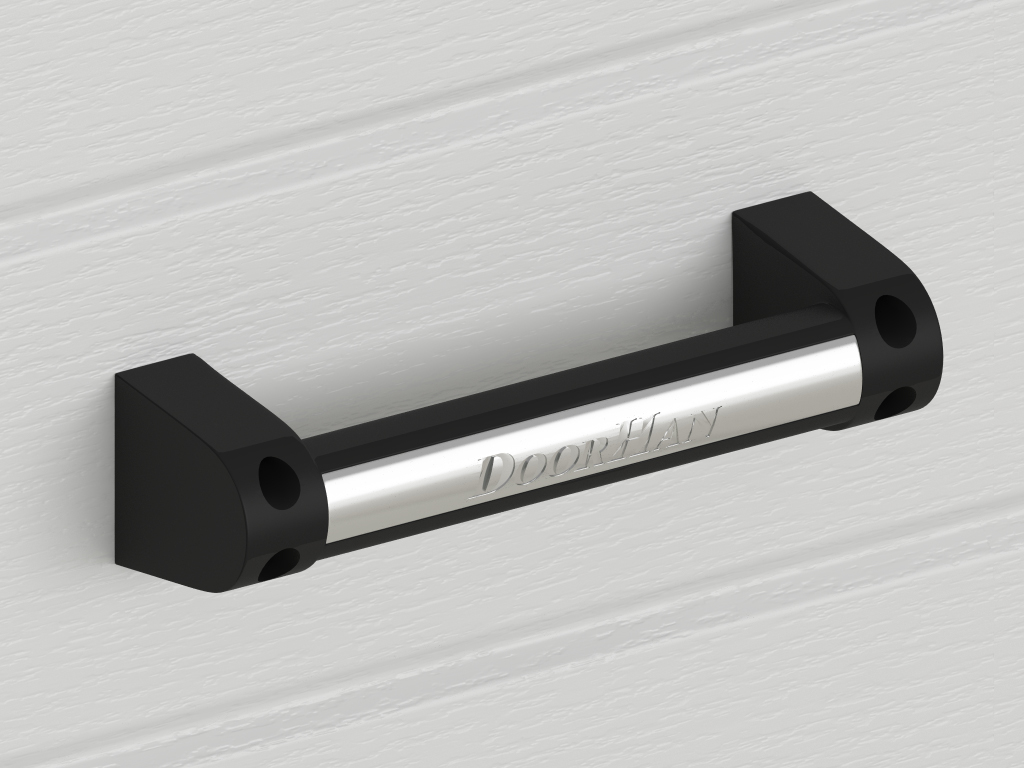

Stylish, elegantly shaped handle acts as an elegant decoration of the door leaf.

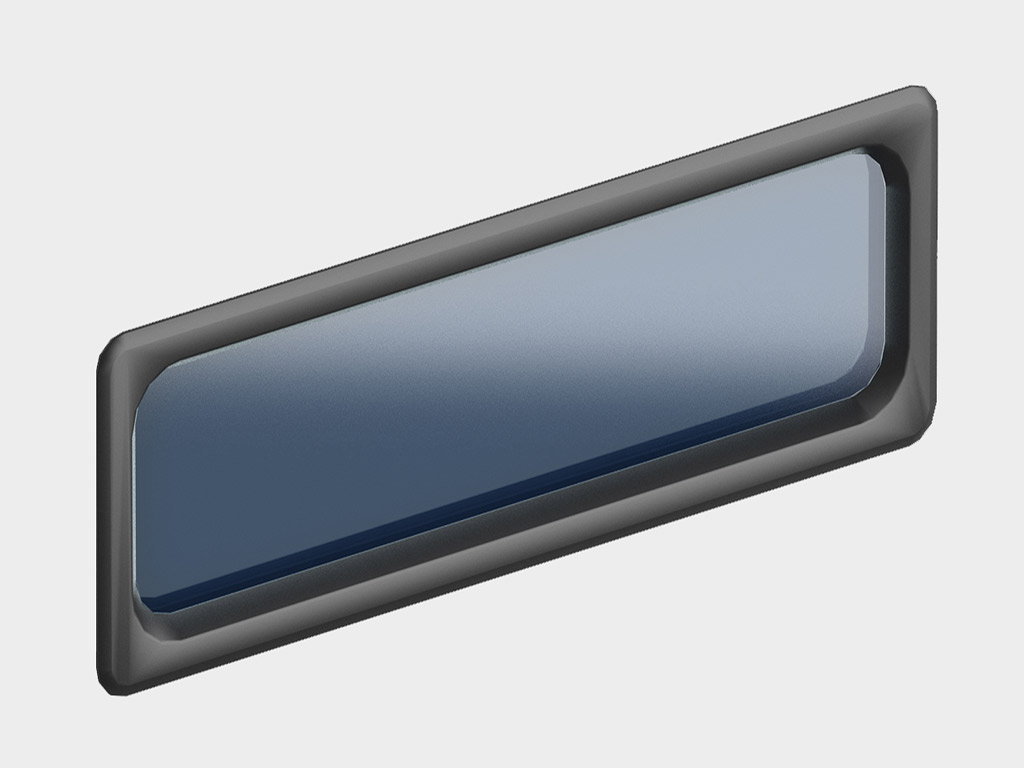

Acrylic window 607 х 202, black (DH85602). Special window design guarantees tight fitting in the door leaf preventing temperature loss. Black framing.

Acrylic window 627 х 327, black, industrial (DH85603). Special window design guarantees tight fitting in the door leaf preventing temperature loss. Black framing.

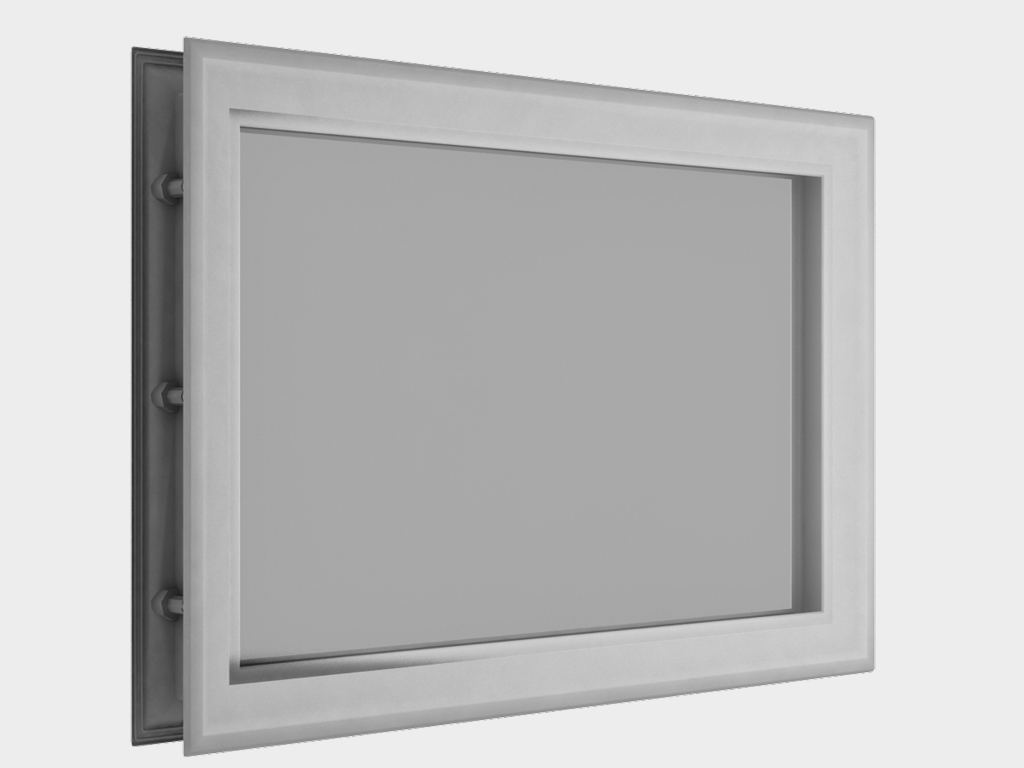

Acrylic window 452 х 302, white (DH85626). Special window design guarantees tight fitting in the door leaf preventing temperature loss. White framing.

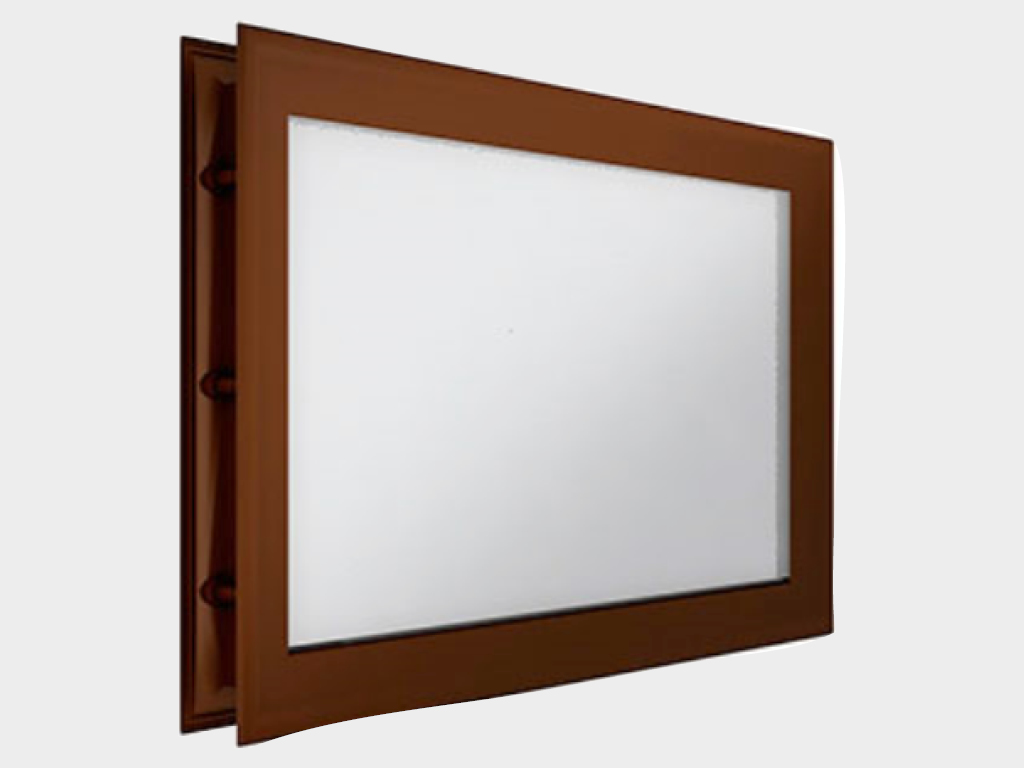

Acrylic window 452 х 302, brown (DH85631). Special window design guarantees tight fitting in the door leaf preventing temperature loss. Brown framing.

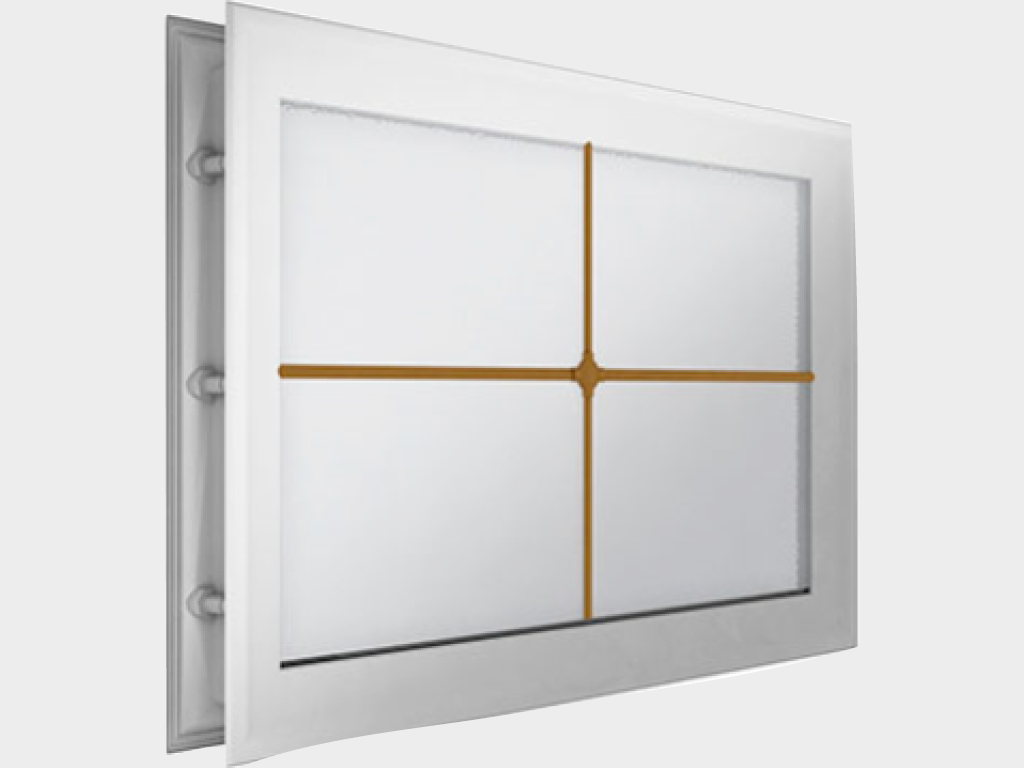

Acrylic window 452 х 302, white with “cross design” (DH85627) decorating insert. Special window design guarantees tight fitting in the door leaf preventing temperature loss. Cross-shaped insert. White framing.

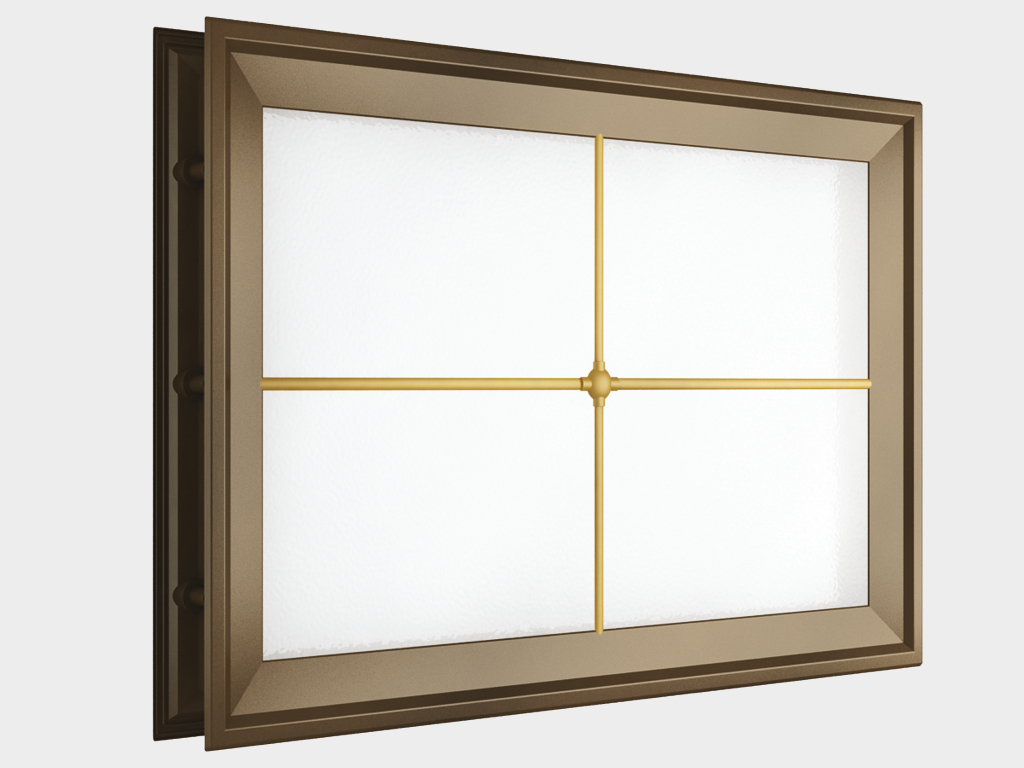

Acrylic window 452 х 302, brown with “cross design” (DH85628) decorating insert. Special window design guarantees tight fitting in the door leaf preventing temperature loss. Cross-shaped insert. Brown framing.

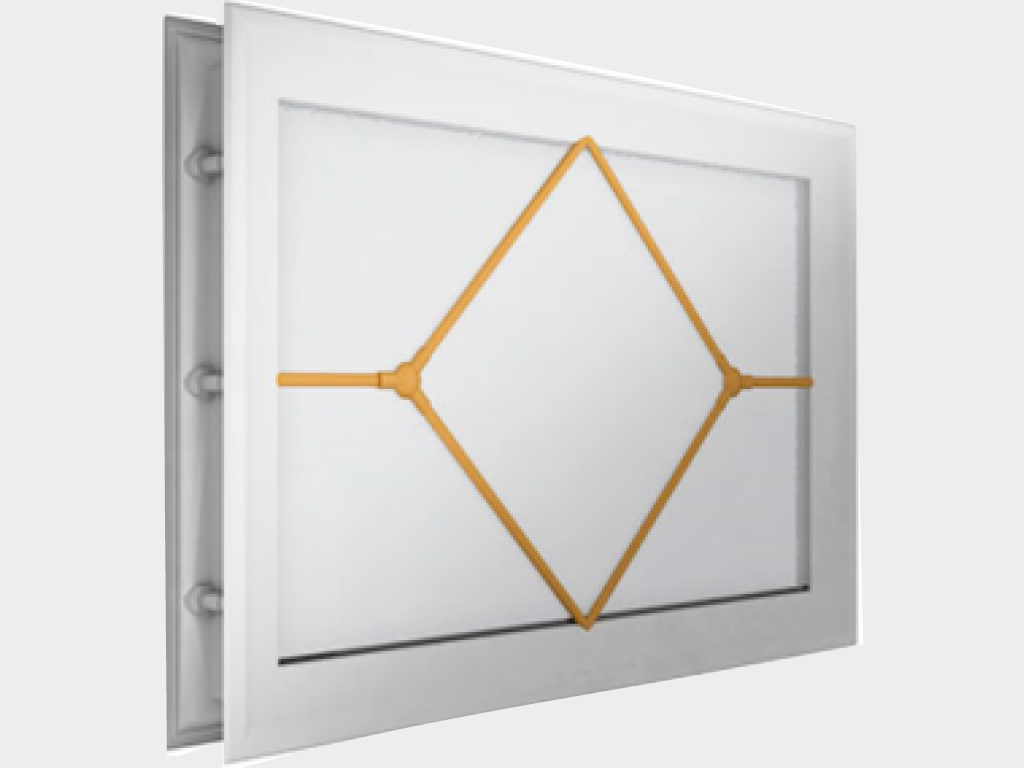

Acrylic window 452 х 302, white with “diamond design”(DH85629) decorating insert. Special window design guarantees tight fitting in the door leaf preventing temperature loss. Diamond-shaped insert. White framing.

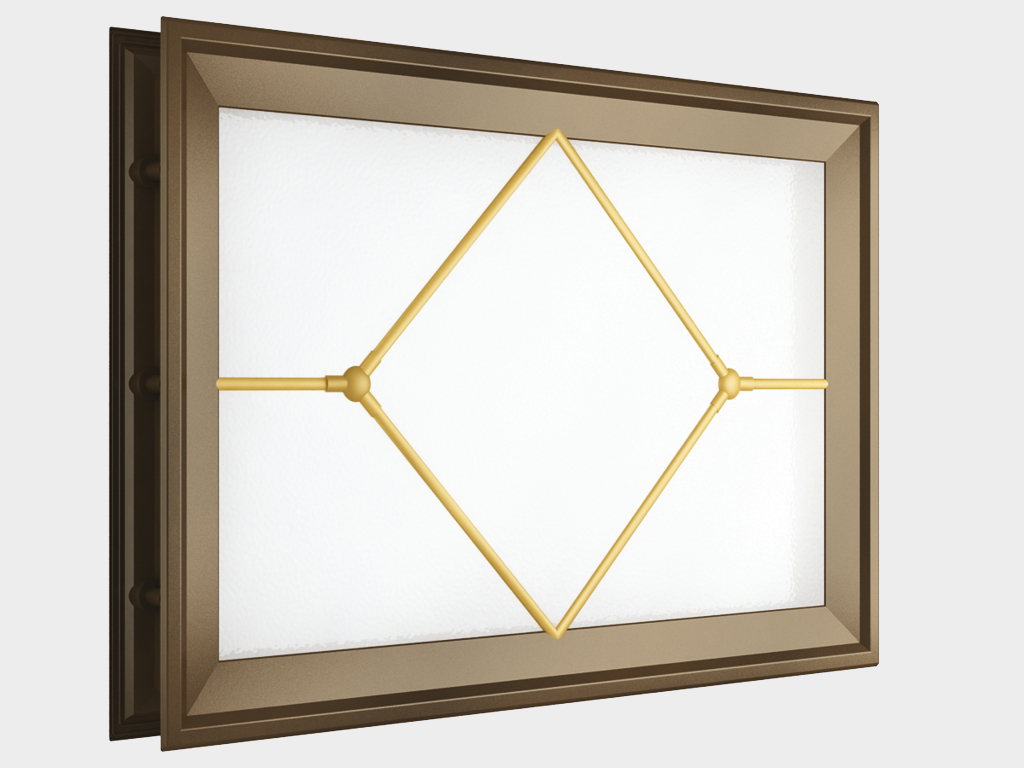

Acrylic window 452 х 302, brown with “diamond design” (DH85630) decorating insert. Special window design guarantees tight fitting in the door leaf preventing temperature loss. Diamond-shaped insert. Brown framing.

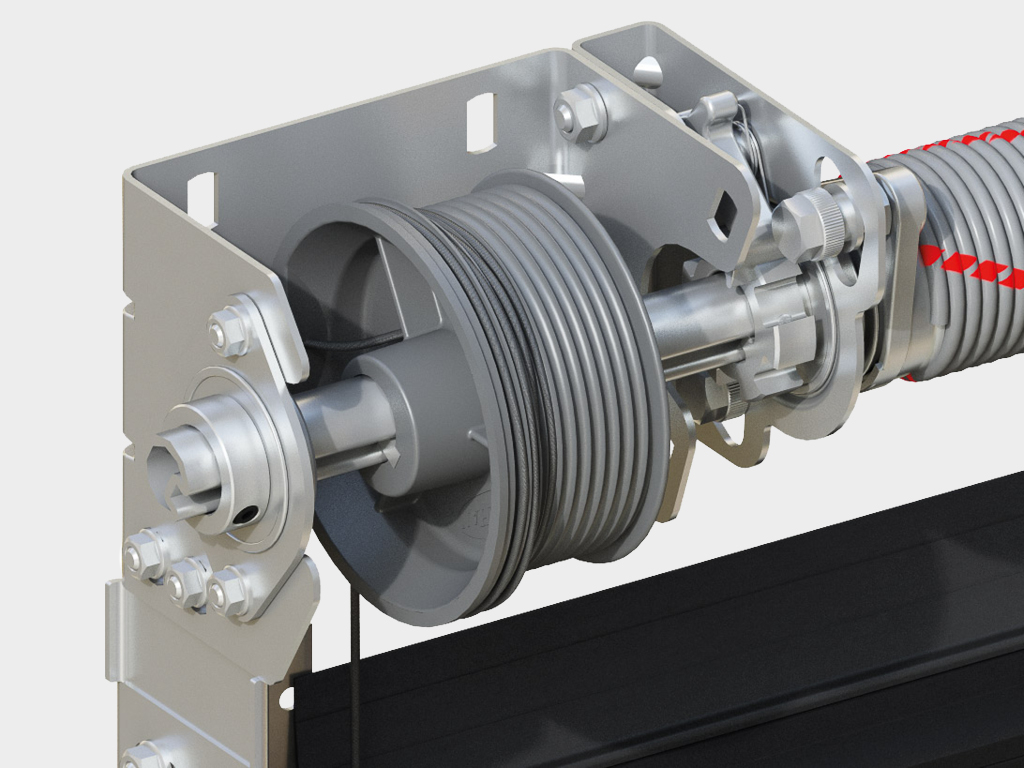

Spring break safety device reliably locks the shaft in case of emergency preventing the door leaf from falling.

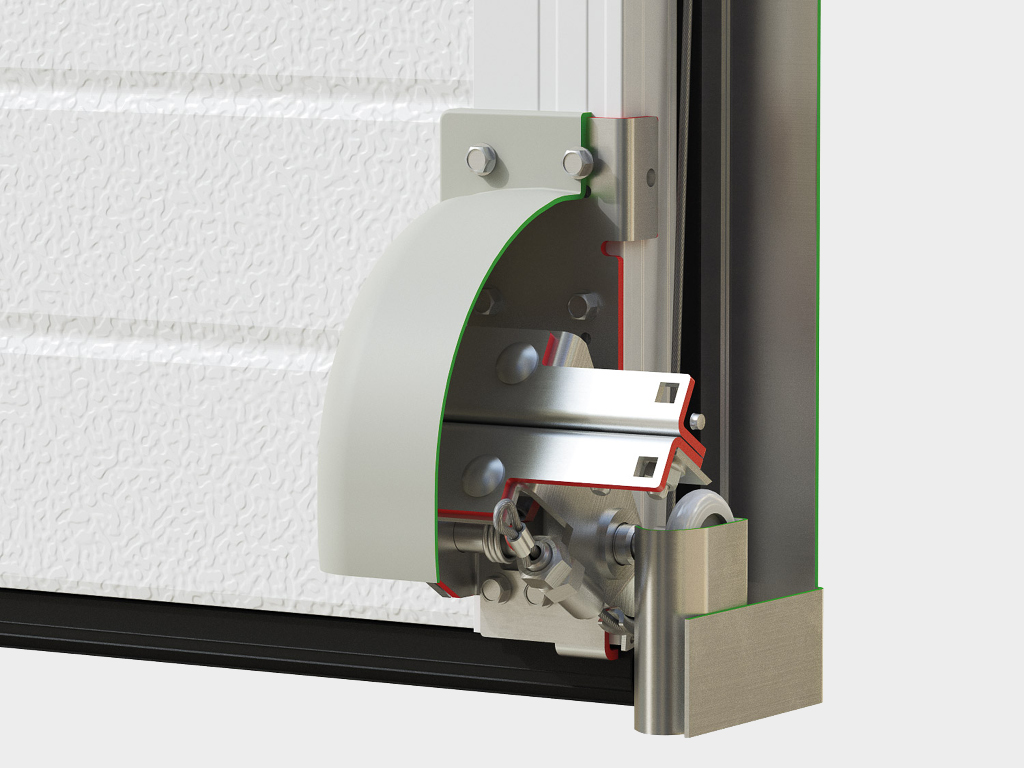

Cable break safety device is used as bottom bracket. It stops door leaf from falling by fixing itself to the track in case of cable failure.

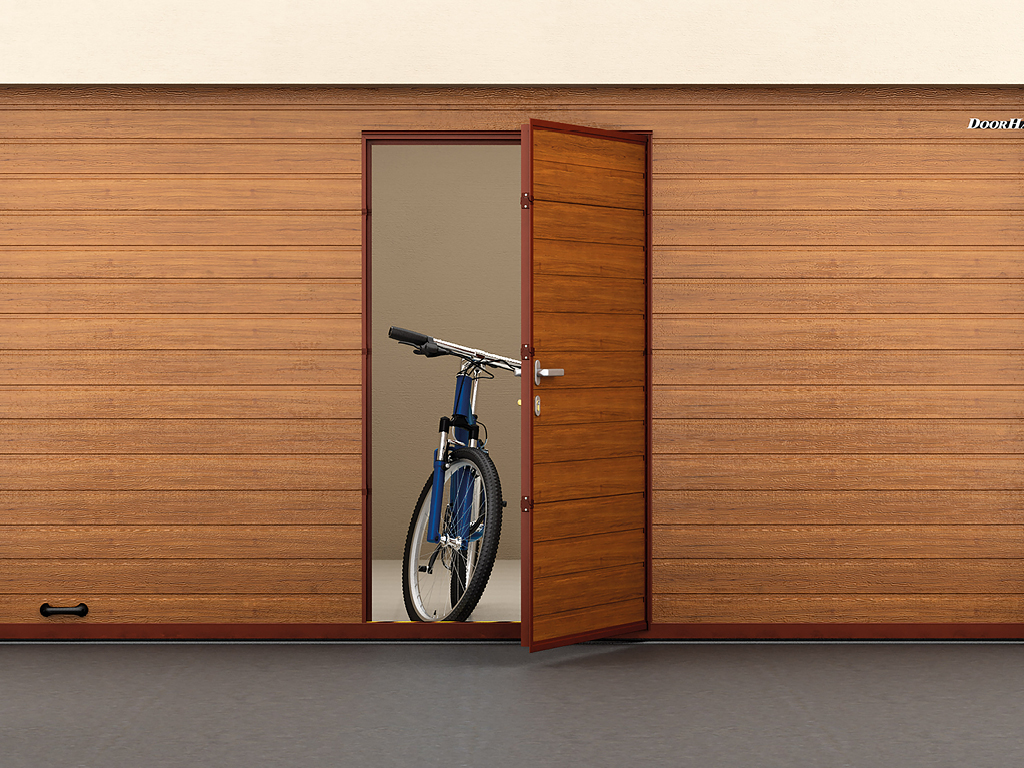

Pass door has improved construction, enhanced durability and aesthetic appearance. Minimum pass door height — 2 130 mm.

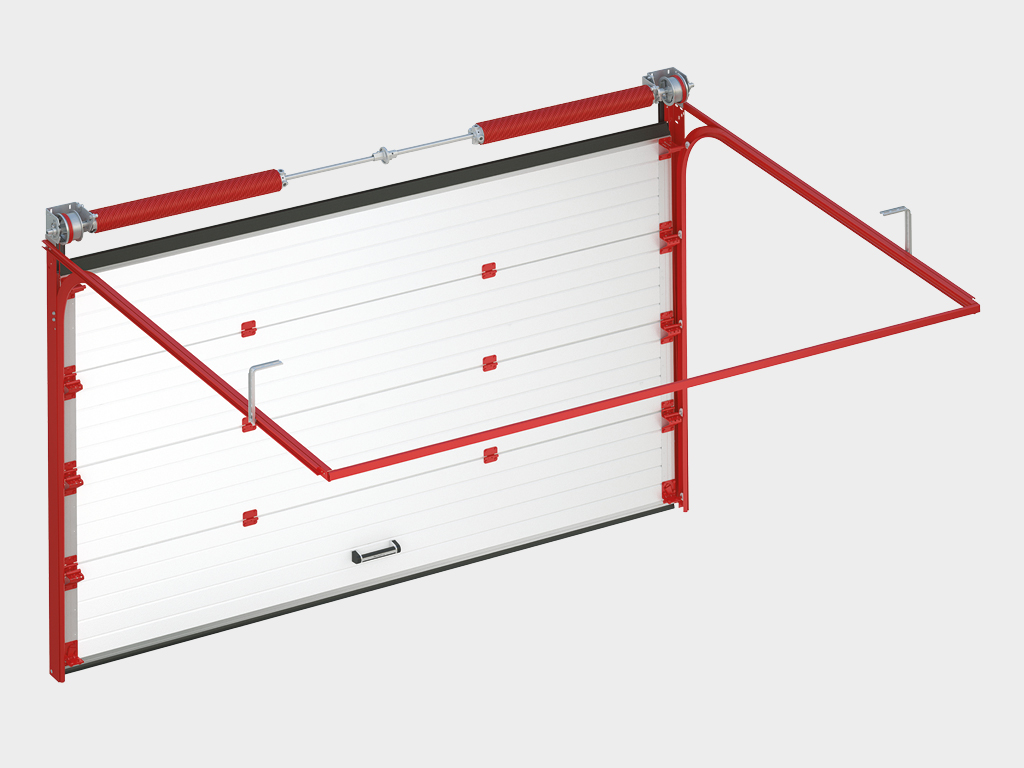

It’s recommended to install corrosion-resistant component parts in case the door is used in high humidity environment to provide secure protection from corrosion and ensure long-lasting durability. These component parts have prolonged service life and include powder-coated springs and tracks, non corrosive side tracks and cables, hinges and door fixtures, powder-coated side caps.

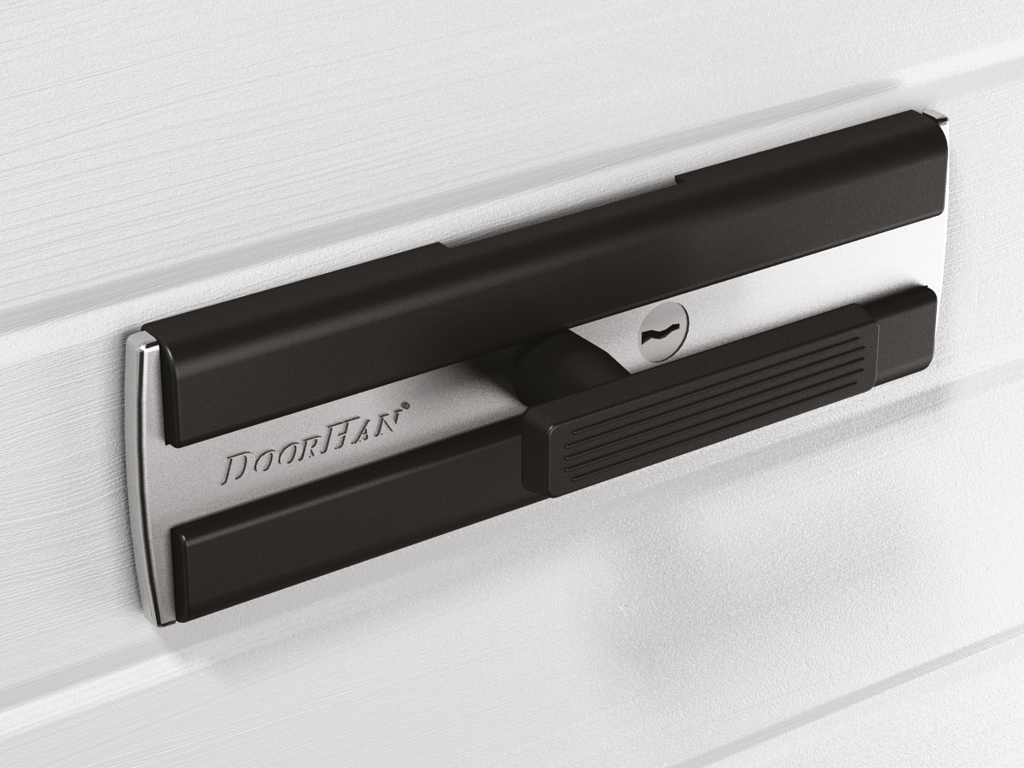

T-lock blocks the door leaf both from inside and outside the premise.

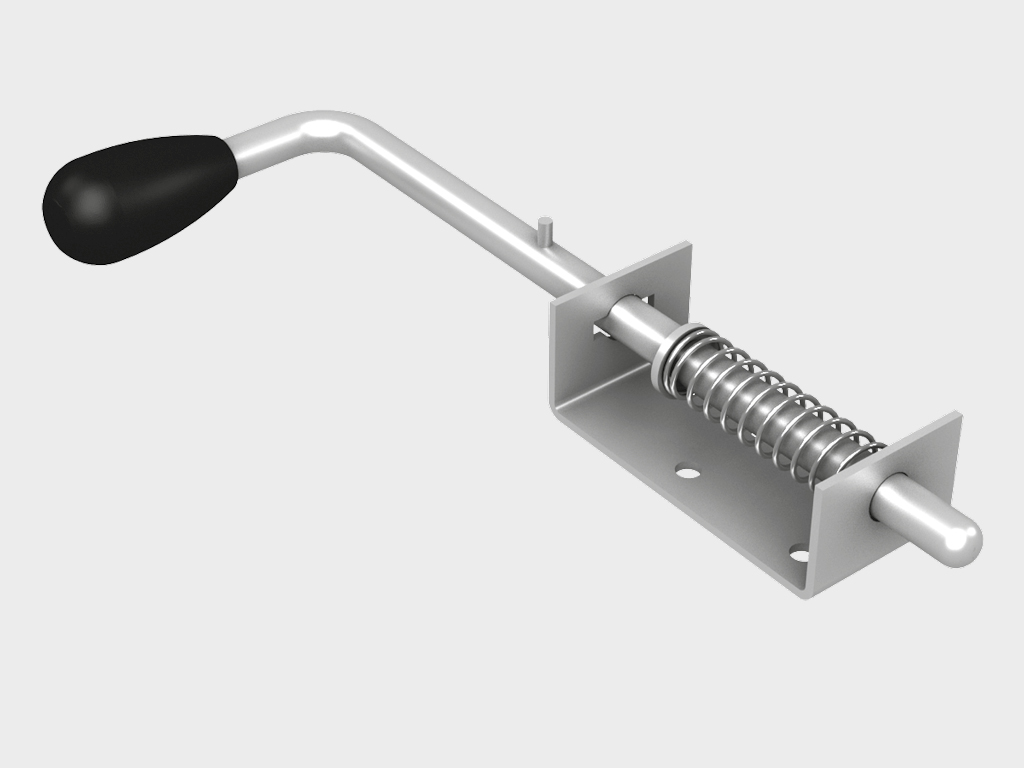

Latch lock blocks the door leaf from inside the premise. Simple and reliable.

Technical description

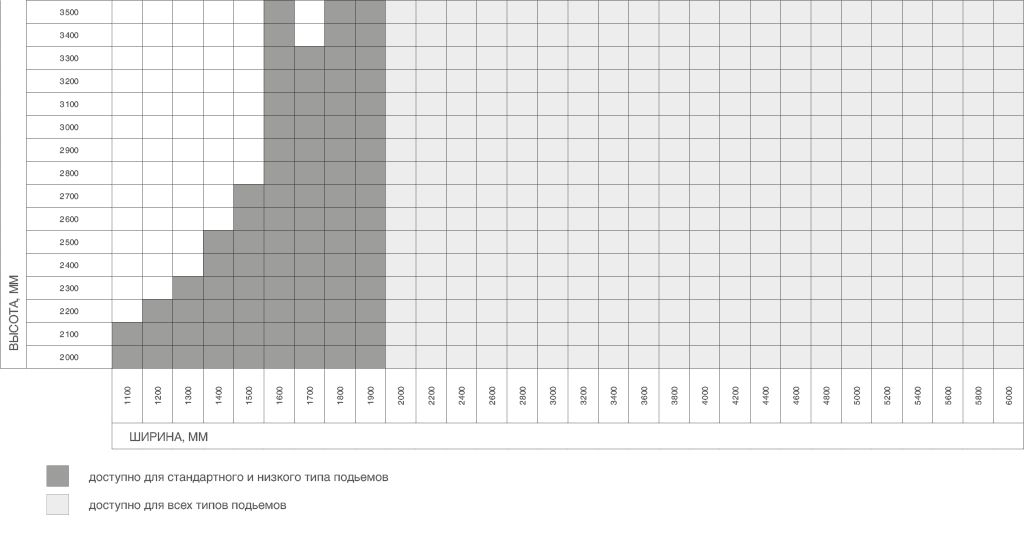

Size Table

Opening Dimensions

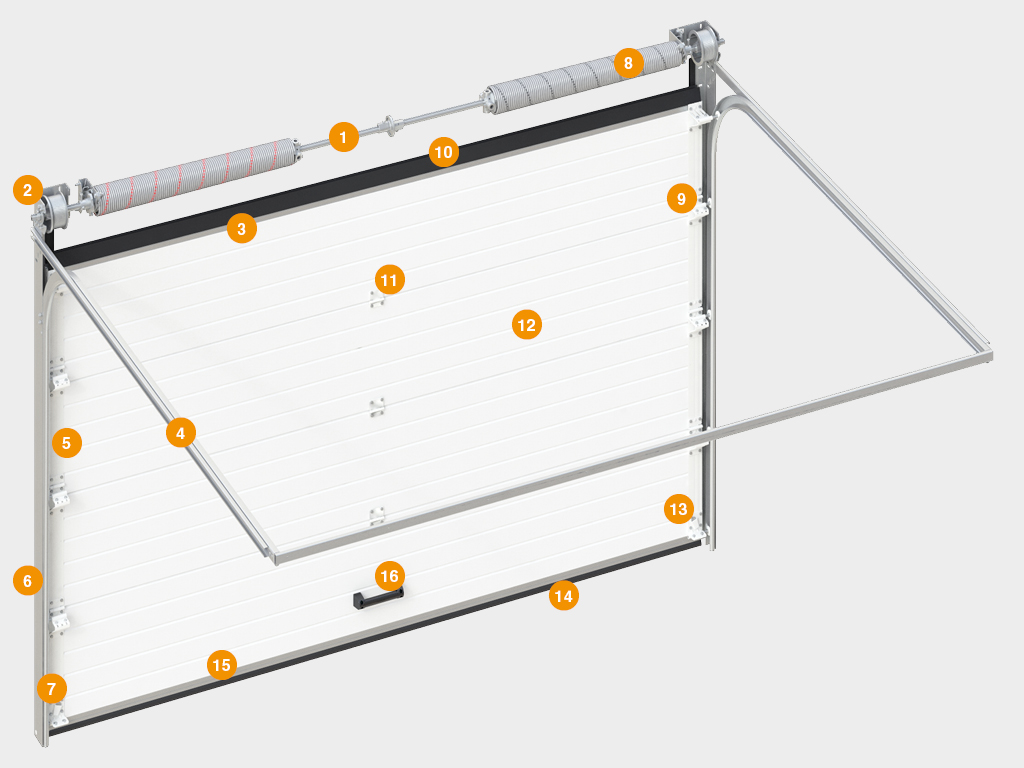

Construction

Standard Construction

Specifications

Operating Conditions

Packaging

Parameters

Value

Opening width, mm

2 000–6 000

Opening height, mm

1 800–3 500

Headroom, mm

150 and more

Sideroom clearance, mm

120 and more

Torsion spring mechanism
U-shaped end support bracket
Top profile
Vertical track
Support with roller and roller holder
Vertical angle
Side cap
Spring safety device
Universal mounting bracket for horizontal tracks
Top support bracket
Top sealer
Hinge
Sandwich panel
Latch lock (optional)
Bottom bracket
Bottom profile with weather seal
Handle

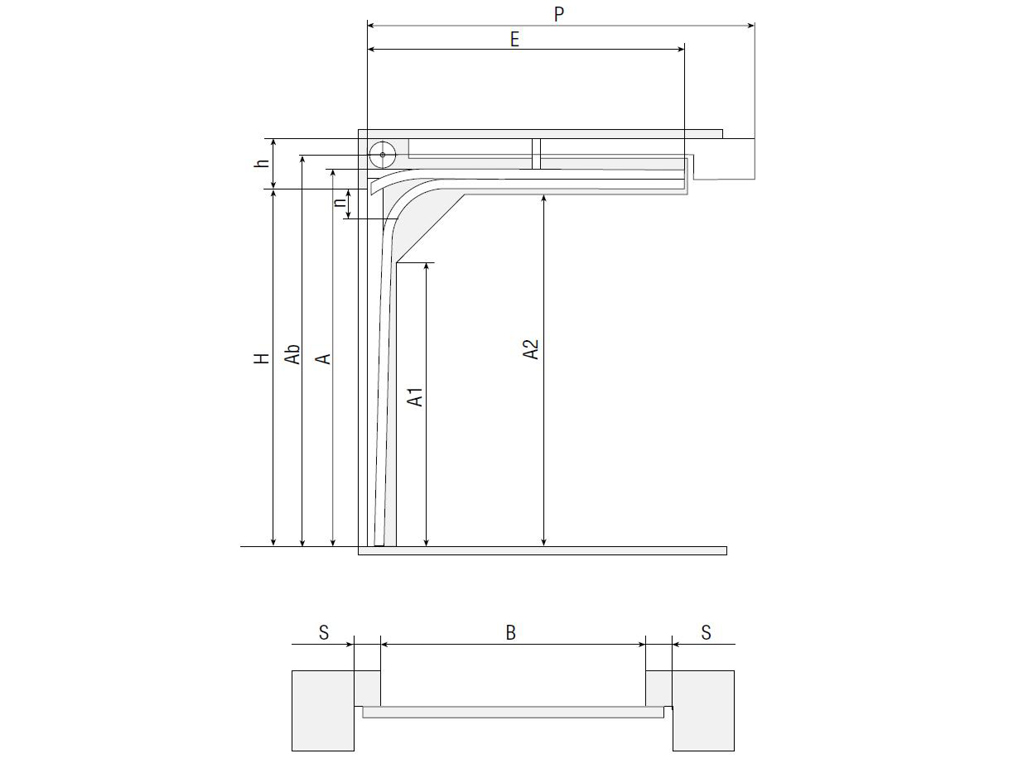

Low lift, front mount

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	≥ 230 (≥ 260 if door operator is used)
B, mm Opening width	B
A, mm Angle track height	H + 110
Ab, mm Height of shaft axle and drum	≥ A + 59
A1, mm Vertical track height	А - 543
A2, mm Horizontal track height	А - 106
E, mm Horizontal track length	Н + 300
Db, mm Torsion spring operation space	depends on opening dimensions and door leaf weight
S, mm Minimum side room clearance	120
P, mm Door opener position	Н + 1 185
n, mm Clear opening	190 (without door operator); 0...10 (with door operator)

Low lift, front mount (RKTN tracks standard kit)

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	≥ 160
B, mm Opening width	B
A, mm Angle track height	H + 54
Ab, mm Height of shaft axle and drum	≥ A + 59
A1, mm Vertical track height	А - 552
A2, mm Horizontal track height	А - 115
E, mm Horizontal track length	Н + 440
Db, mm Torsion spring operation space	depends on opening dimensions and door leaf weight
S, mm Minimum side room clearance	120
P, mm Door opener position	Н + 1,185
n, mm Clear opening	245 (without door operator); 40...60 (with door operator)

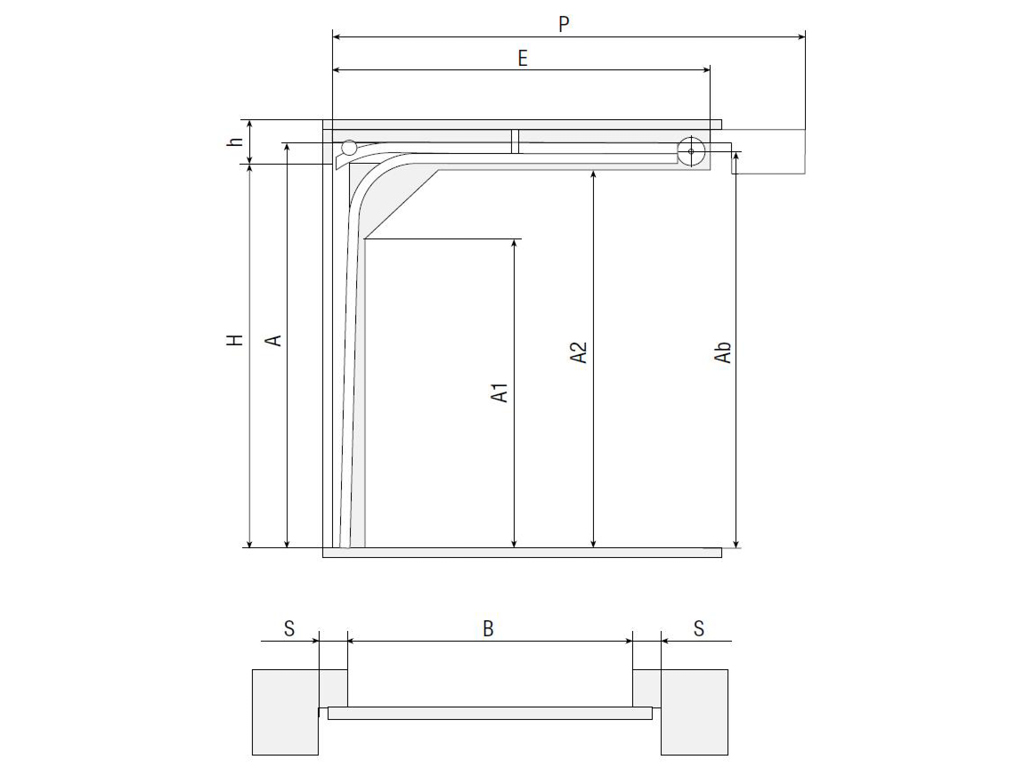

Low lift, rear mount

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	≥ 150 (≥160 with door opener)
B, mm Opening width	B
A, mm Angle track height	if h < 170: H + 110; if 150 ≤ h ≤170: H + h - 60
Ab, mm Height of shaft axle and drum	if h ≤ 170: H + 55; if 150 ≤ h ≤ 170: H + h - 47
A1, mm Vertical track height	А - 543
A2, mm Horizontal track height	А - 106
E, mm Horizontal track length	Н + 510
Db, mm Torsion spring operation space	depends on opening dimensions and door leaf weight
S, mm Minimum side room clearance	120
P, mm Door opener position	Н + 1,185
n, mm Clear opening	240 (without door operator); 40...60 (with door operator)

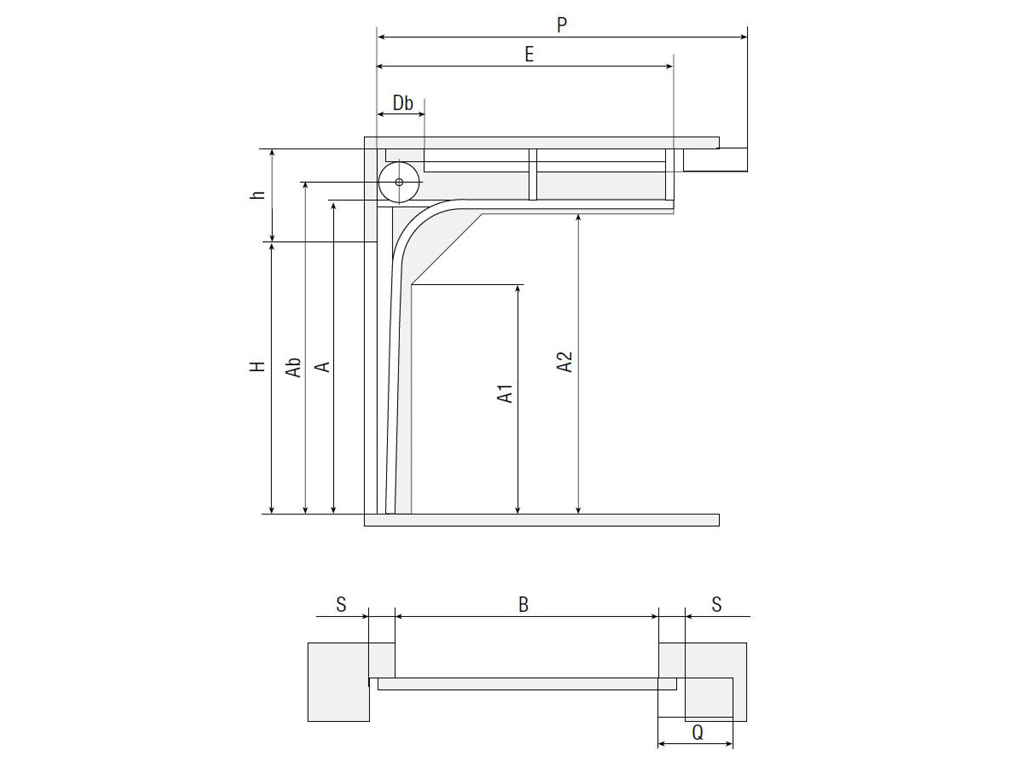

Standard lift

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	R381: ≥ 420; R305: ≥ 350
B, mm Opening width	B
A, mm Angle track height	R381: H + 235; R305: H + 165
Ab, mm Height of shaft axle and drum	A + 97
A1, mm Vertical track height	R381: A — 580; R305: A — 490
A2, mm Horizontal track height	А - 110
E, mm Horizontal track length	R381: H + 200; R305: H + 250
Db, mm Torsion spring operation space	depends on opening dimensions and door leaf weight
S, mm Minimum side room clearance	120
P, mm Door opener position	Н + 1 060
Q, mm Shaft opener position	300

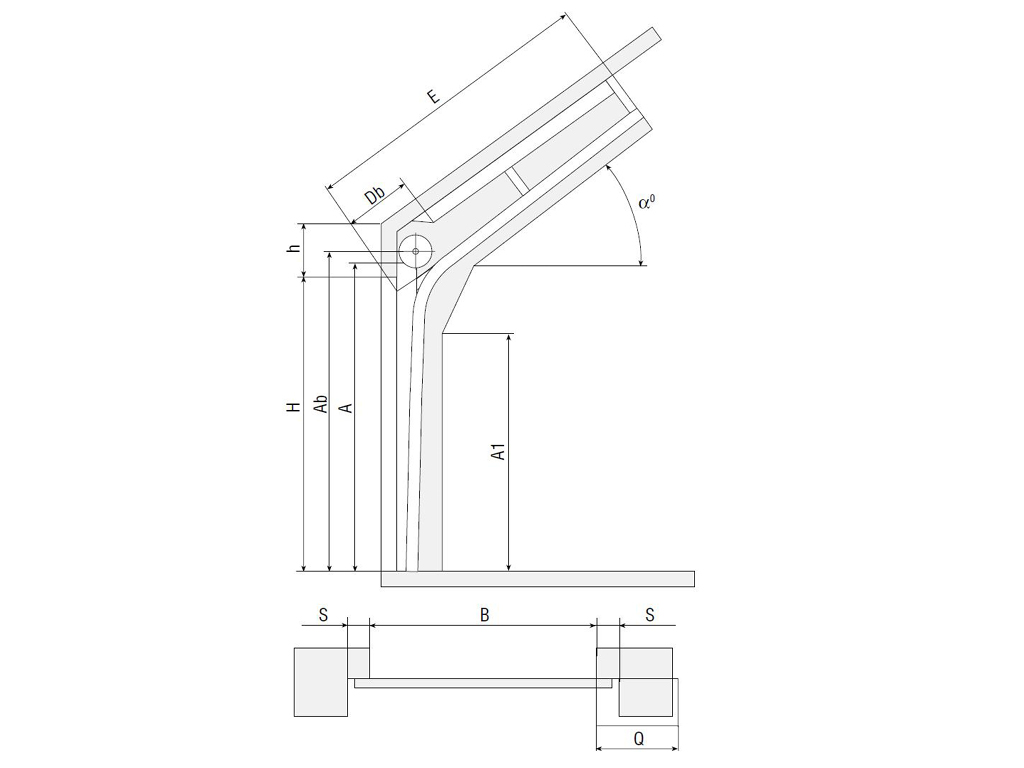

Roof pitch, standard lift

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	> 500
B, mm Opening width	B
A, mm Angle track height	H + 250…985
Ab, mm Height of shaft axle and drum	А + 86/97
A1, mm Vertical track height	Н - 300
E, mm Horizontal track length	depends on α°
Db, mm Torsion spring operation space	depends on opening dimensions and door leaf weight
S, mm Minimum side room clearance	120
α° Angle of the tracks to horizontal	5...65 (divisible by 5°)
Q, mm Shaft opener position	300

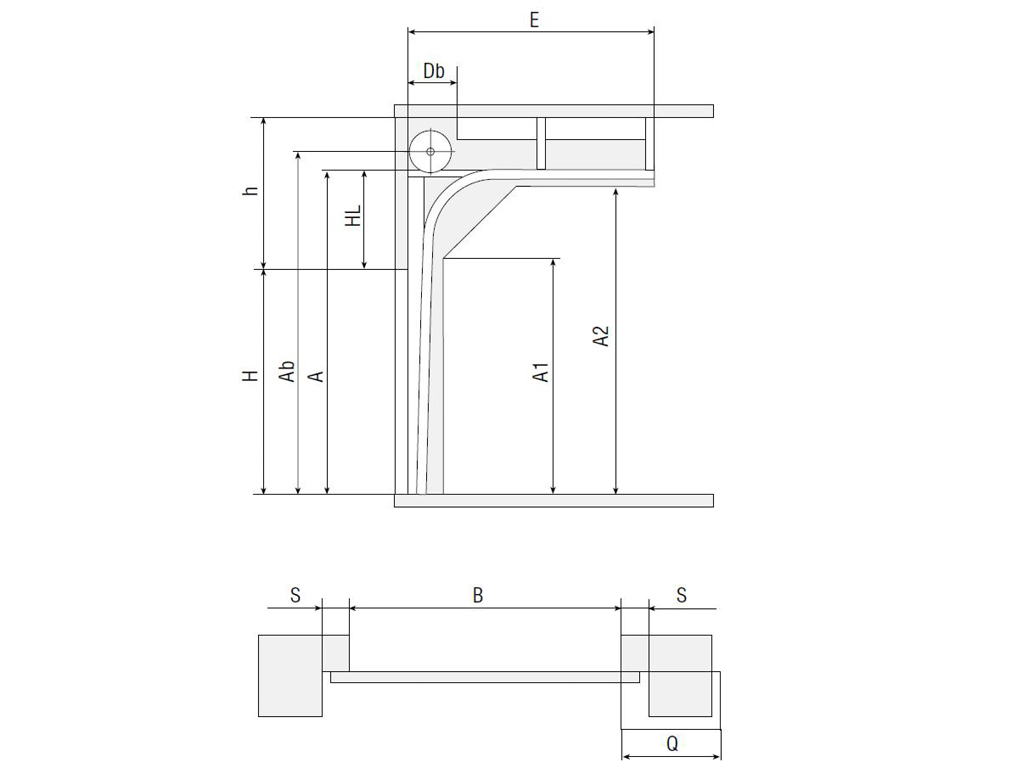

High lift

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	≥ 660
B, mm Opening width	B
HL, mm Distance from opening to horizontal tracks level	by default h - 330
A, mm Angle track height	H + HL
Ab, mm Height of shaft axle and drum	A + 86/97
A1, mm Vertical track height	А - 580
A2, mm Horizontal track height	А - 53
E, mm Horizontal track length	H - НL + 470...600
Db, mm Torsion spring operation space	depends on opening dimensions and door leaf weight
S, mm Minimum side room clearance	120
Q, mm Shaft opener position	300

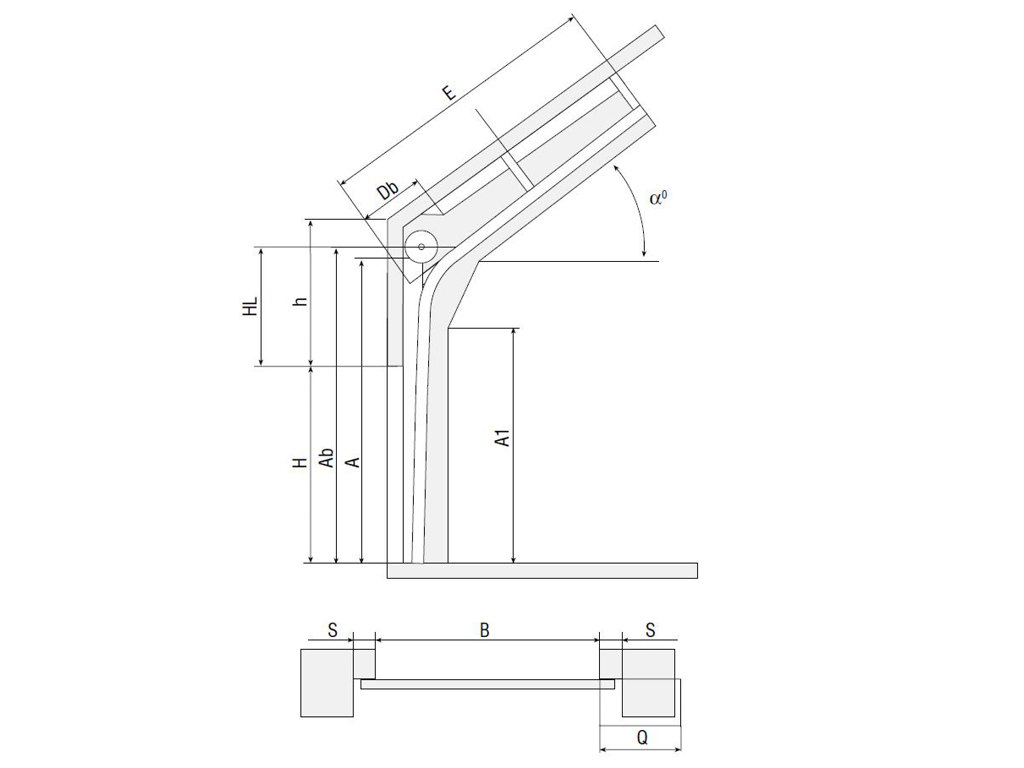

Roof pitch, high lift

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	≥ 660
B, mm Opening width	B
HL, mm Distance from opening to horizontal tracks level	330
A, mm Angle track height	H + HL + 15...749
Ab, mm Height of shaft axle and drum	≤ А + 86/97
A1, mm Vertical track height	Н + HL - 330...580
E, mm Horizontal track length	depends on α°
Db, mm Torsion spring operation space	depends on opening dimensions and door leaf weight
S, mm Minimum side room clearance	120
α° Angle of the tracks to horizontal	5...65 (divisible by 5°)
Q, mm Shaft opener position	300

Vertical lift

Symbol, parameter name	Calculation formula
H, mm Opening height	H
h, mm Headroom height	> H + 500
B, mm Opening width	B
A, mm Angle track height	2H + 120
Ab, mm Height of shaft axle and drum	A + 166
A1, mm Vertical track height	H
S, mm Minimum side room clearance	120
Q, mm Shaft opener position	300

Parameter	Value	Notes
Thermal resistance, m² · °С/W	1,13 (А)	depends on door size, listed for a 3 500 × 3 000 mm door
Noise insulation, dB	24 (А)
Wind load, Pa	460 (В)
Number of cycles	25 000
Force of manual opening and closing, N	150
Water resistance at pressure change, Pa	250
Air permeability, m³/m²*h	4,9
Door leaf weight, kg/m²	13	depends on type and size of door panels

Door leaf should smoothly slide vertically along the tracks, and be properly balanced, i. e. torsion springs should compensate leaf weight.

For opening the door in manual operation use only the door handle.

Do not lift too much force when opening/closing the door. Prevent any sharp movements of the door.

Keep people and animals clear of opening while door is operated.

Never stay or cross an opening under a moving door leaf as it may cause serious injury or death.

Don’t strike the door leaf or obstruct its movement.

Keep the door opening clear of any objects and litter as it may unbalance and jam the door leaf.

Keep tracks and rollers clean, as dirt may prevent the door from smooth movement and cause overloading and damage of the door opener (if used).

Packing in cardboard	Packaging features
Description	the door leaf and the tracks system are packed in a fibre board and polystyrene combination wrapped in a stretch film. Hardware is packed in a box wrapped in a stretch film. All packages are labeled with stickers containing order information and DoorHan logo
Contents	corrugated fiberboard, polystyrene, stretch-film, adhesive tape
Width, mm	from 500 to 800
Height, mm	from 200 to 400
Length, mm	from 2 100 to 6 100
Gross weight, kg	up to 200
Number of items in the packaging	leaf packaging — from 3 to 5 panels; tracks package — 1 track system; mounting items — 1 box

Packing in cardboard box	Packaging features
Length, mm	550

Additional Information print

Sandwich panels should be stored in producer’s packaging on a flat horizontal surface in warehouses or under a canopy for a period not exceeding 6 months from the production date. Provide proper protection from water, snow, dirt, and direct sunlight.

Installation

Mounting Options

Checking Dimensional Details

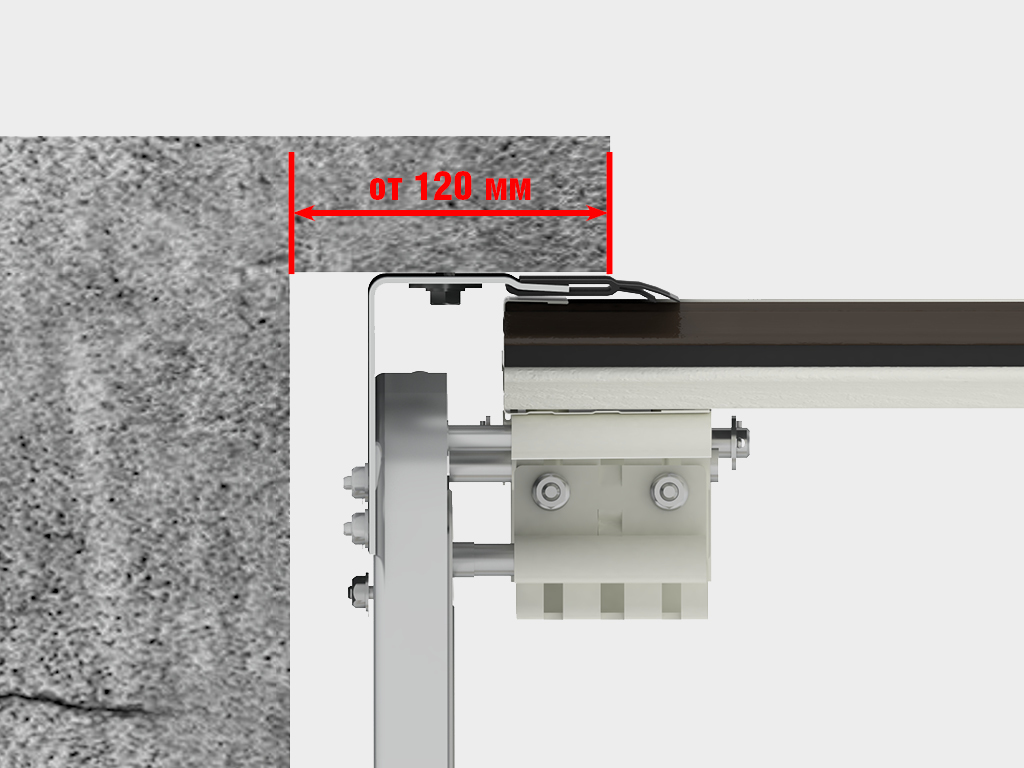

Overhead mounting. All the tracks are mounted on the inner side of headroom and side rooms.

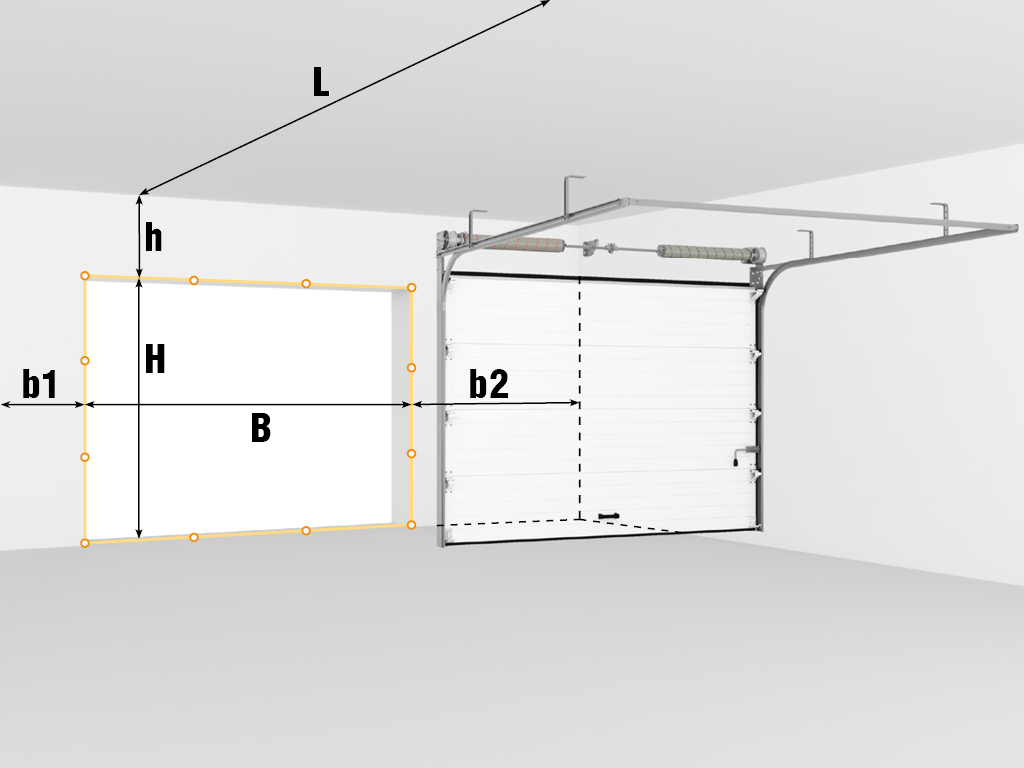

All the necessary measurements are taken inside the premises with just a measuring tape and a water level. Every dimension should be taken at least in three points:
H — opening height (distance from floor to opening top);
B — opening width (distance between left and right side of the opening);
h — headroom (distance between opening top and ceiling) min 150 mm;
b1/ b2 — left/right side room clearance (distance between a corresponding opening edge and obstacle) min 120 mm;
L — backroom.
When measuring Н and В the largest figure is taken for final dimension.
When measuring h, b1, b2 and L the smallest figure is taken for final dimension.
Difference of floor level along the opening should not exceed 10 mm. Make sure that mounting surface of headroom and side rooms is level. The inside perimeter of the door opening should be framed with metal or other solid material in case the surface is not concrete or solid enough to install tracks system.

Warranty print

DoorHan warrants to the original purchaser of the product that the sandwich panels and steel profiles of the track system will be free from corrosion for a period of ten years.

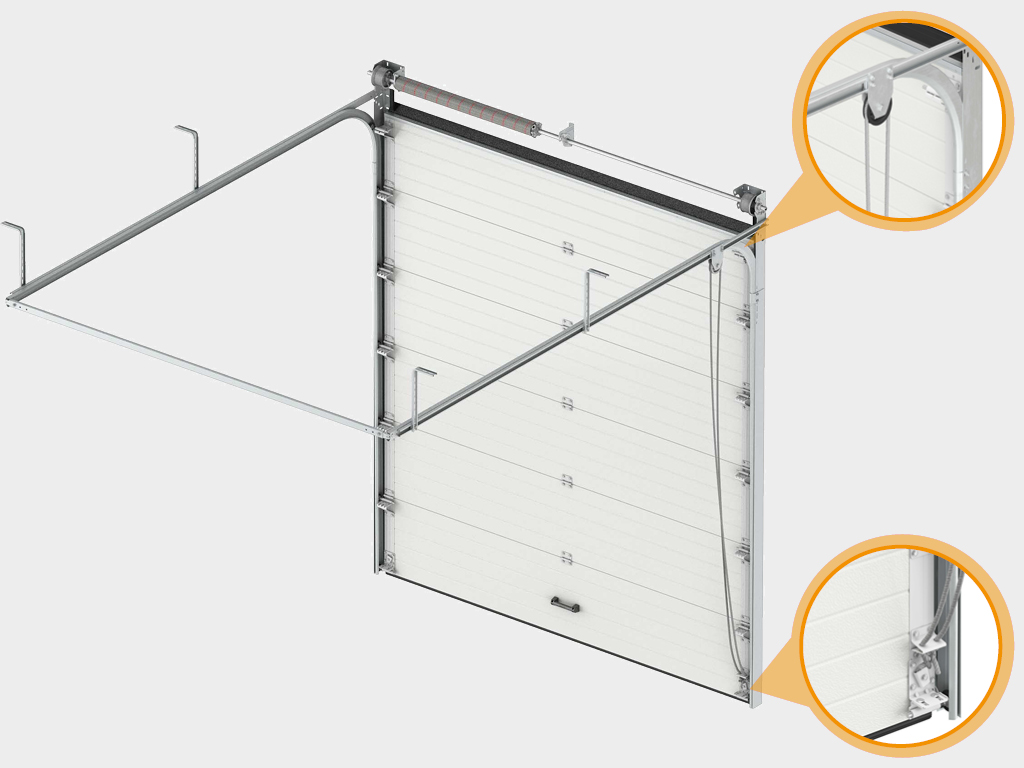

New Products

RSD02 doors with front mount can fit small premises with low headroom (of 160 mm) thanks to new support bracket.

Universal mounting bracket for C-profile guarantees effortless and correct installation.

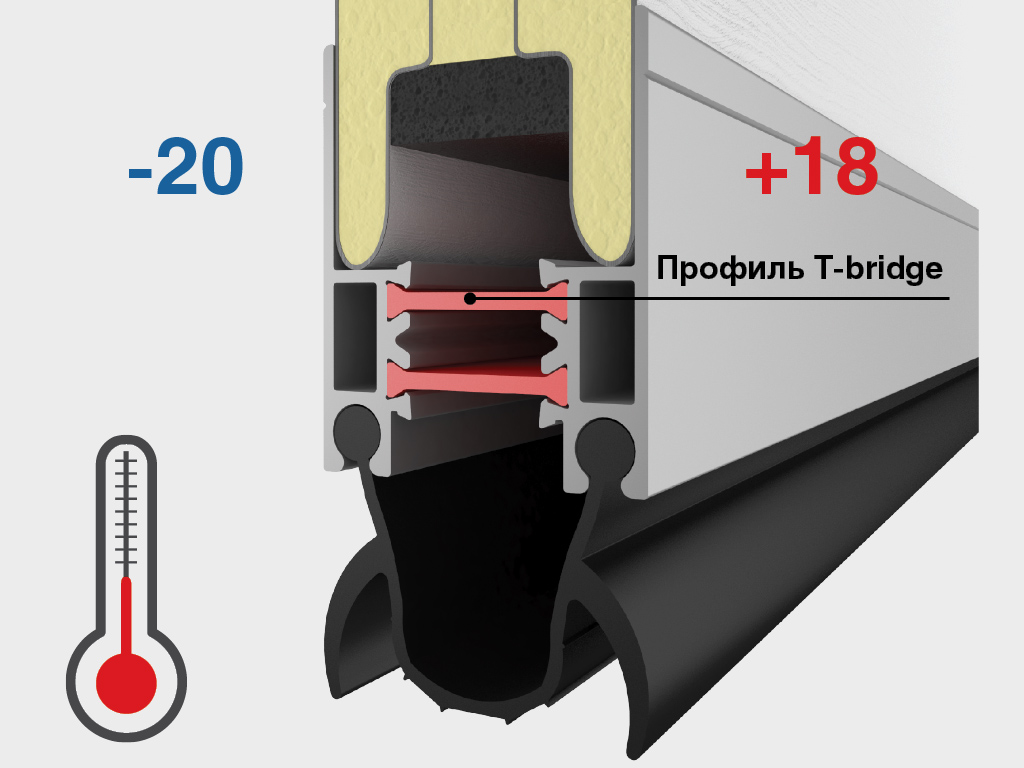

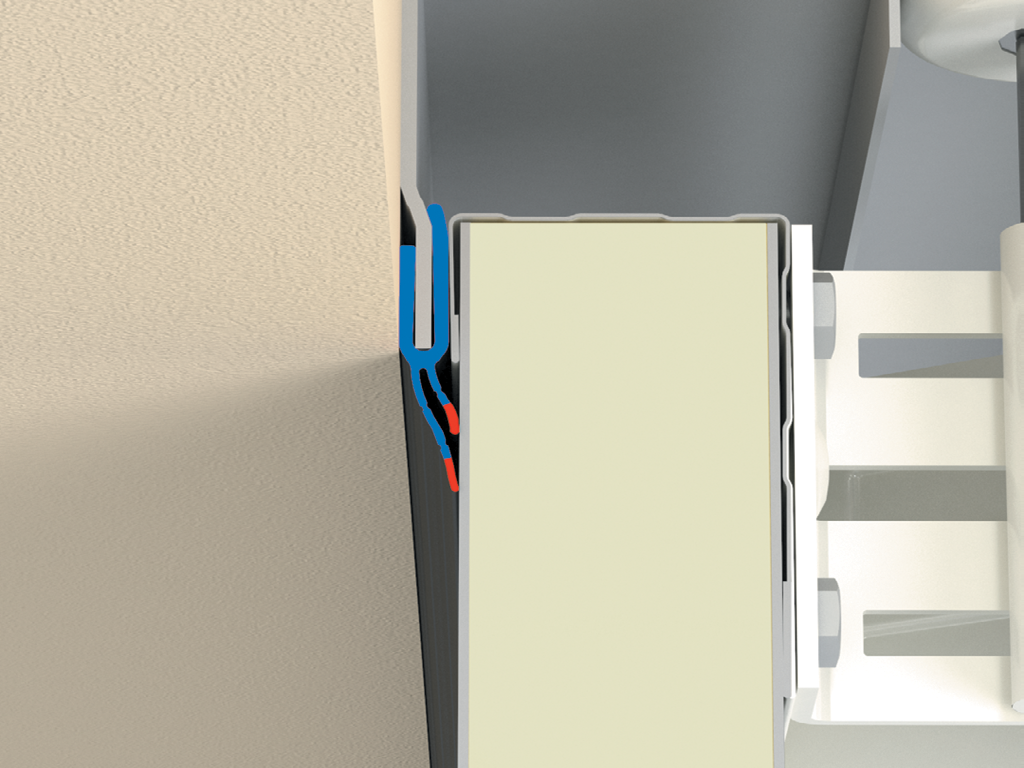

New built-in profile with thermal break prevents door panel from temperature (cold or hot) transfer. Bottom seal perfectly seals the opening.

New rollers have sealed bearings to prevent dust penetration and increase service life.

One-side top profile ensures a full thermal break in the panel preventing condensate and ice from forming on the interior side of the door leaf.
