- Swing gates of any type
- Swing gates and wide wickets

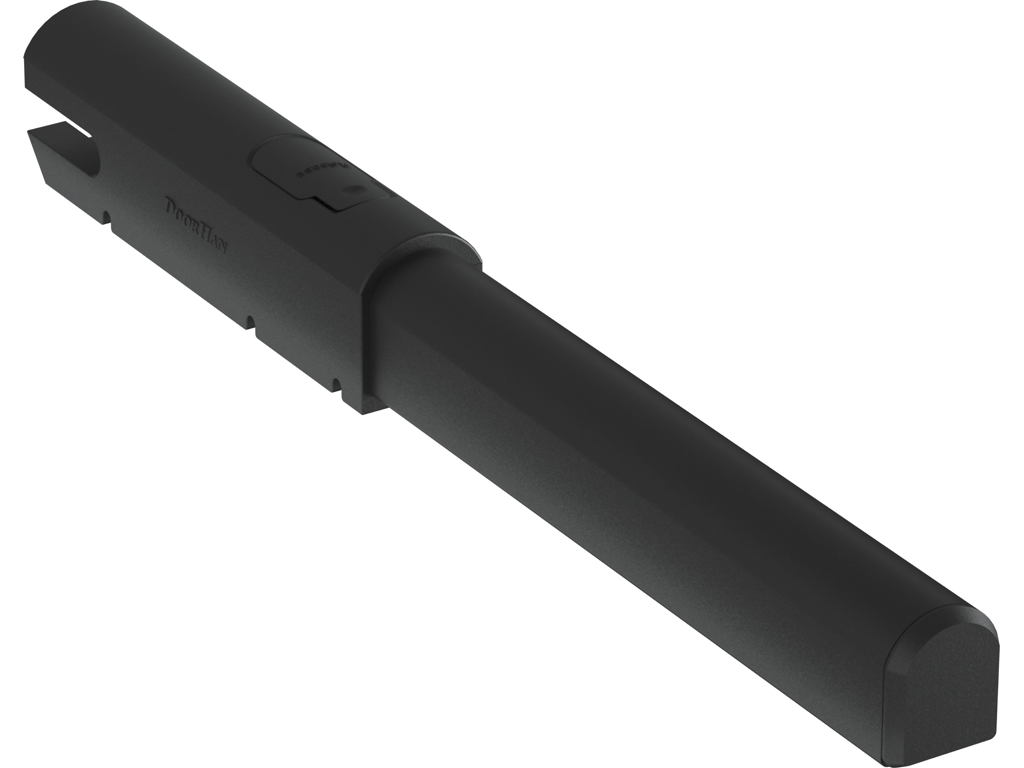

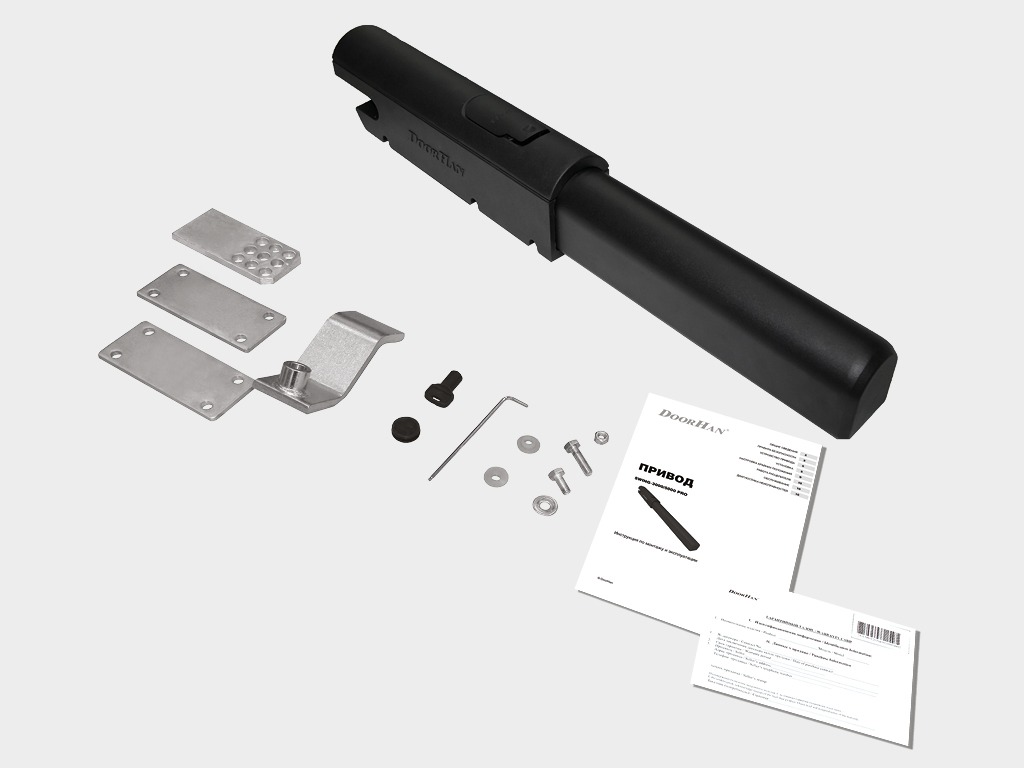

Two operators, control unit integrated into the operator body, hardware, release key.
TRANSMITTER-2PRO-Black remote control operates two devices

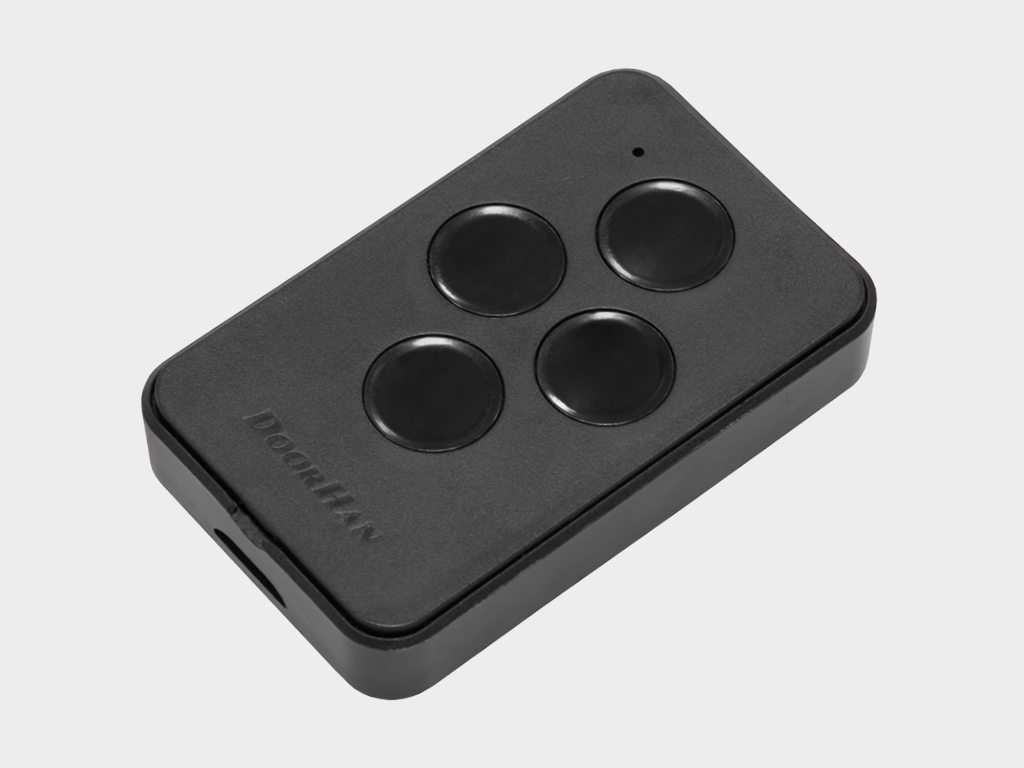

TRANSMITTER-4PRO-Black remote control operates four devices

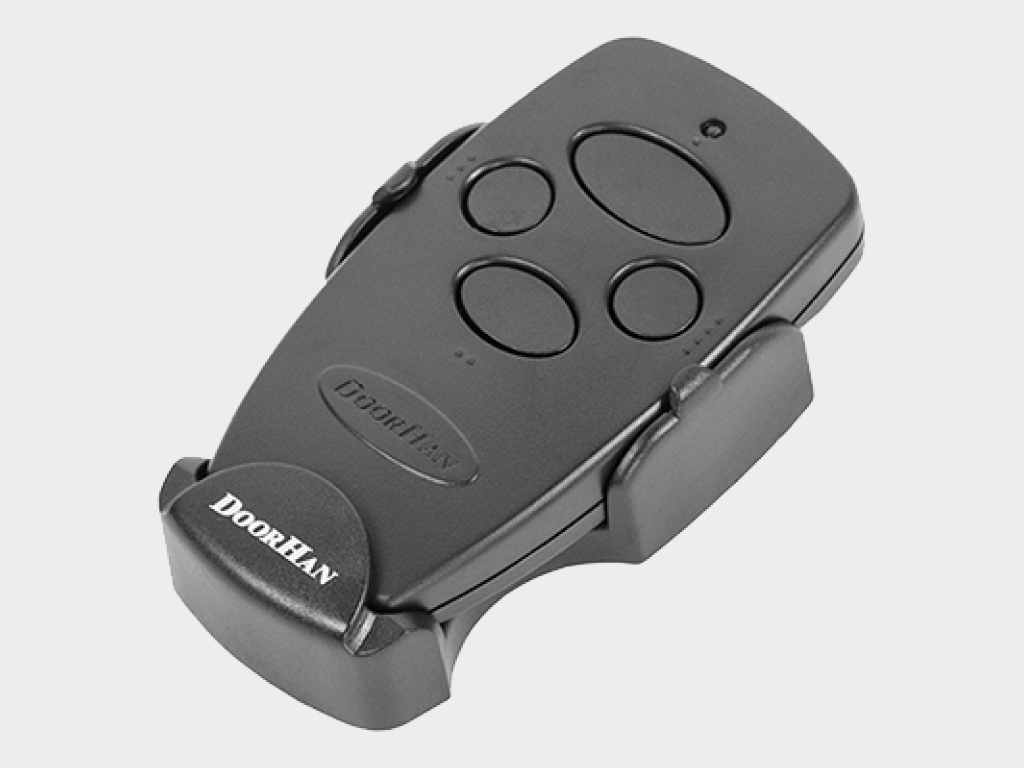

TRANSMITTER-4 remote control operates four devices
TRANSMITTER-4 (Color) remote controls of different colours which can operate four devices
TRANSMITTER-PREMIUM having steel housing can operate up to four devices
Car-TRANSMITTER remote control working on chargeable via cigarette lighter can operate two devices
COMMAND-433 wireless button to control two automatic devices

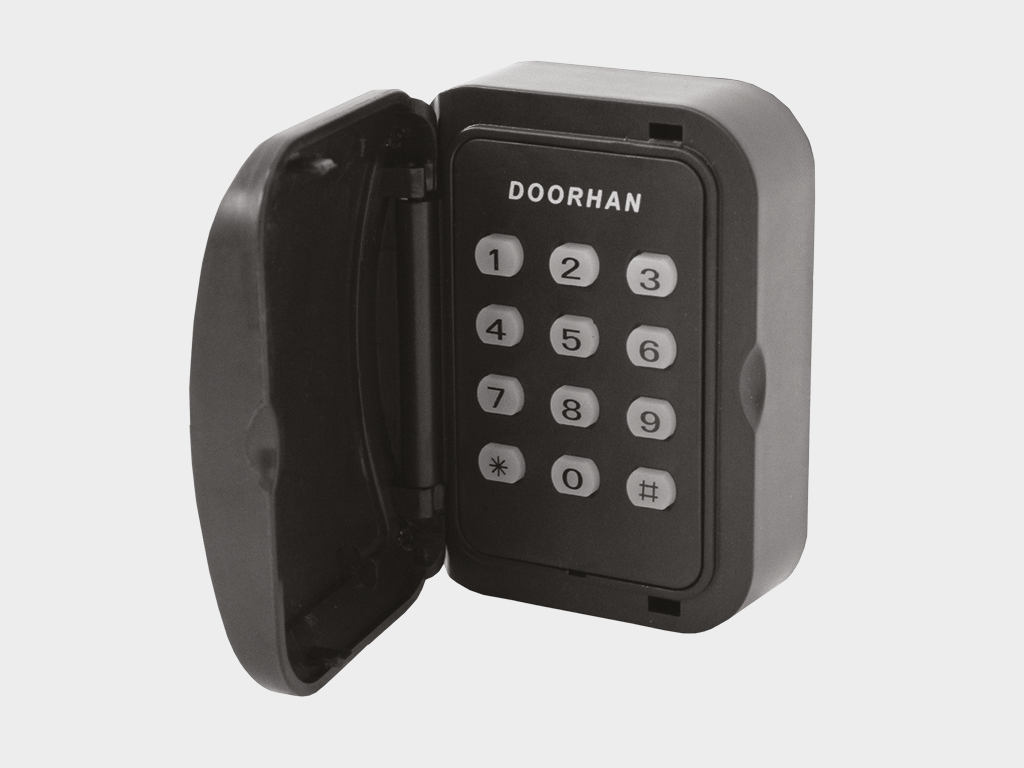

KEYPAD series code keypad controls door operators equipped with internal or external DoorHan receiver
Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device

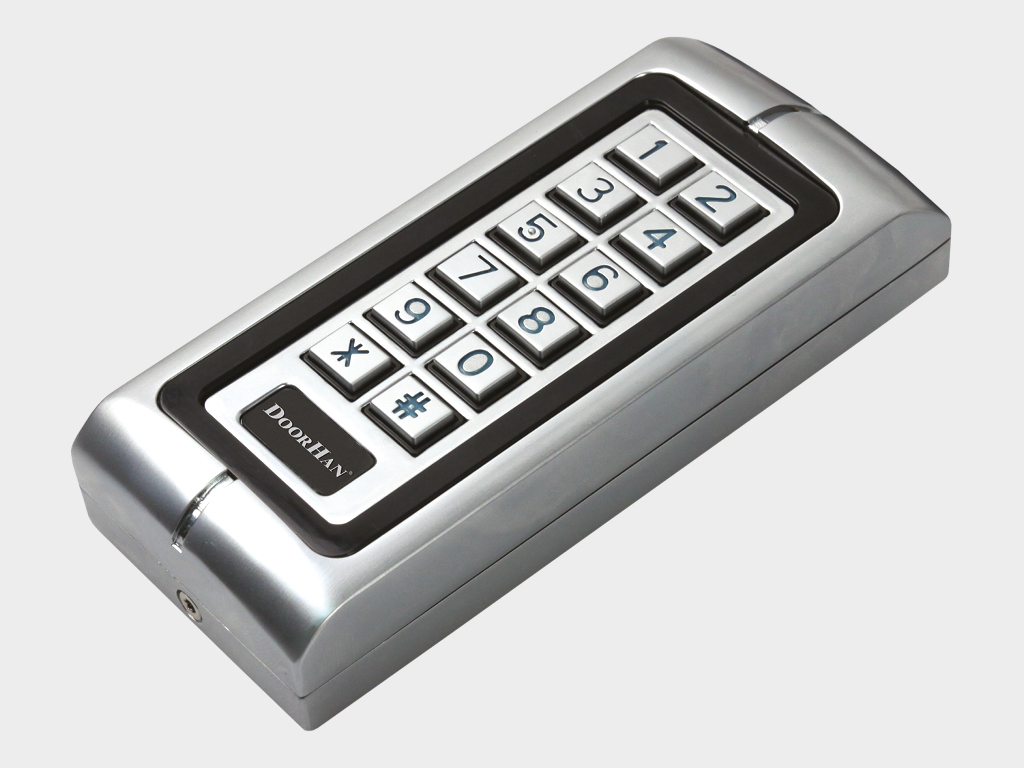

Anti-vandal code keypad Ref.: KEYCODE controls automatic devices. It can be used as an outdoor keypad or a proximity-card reader

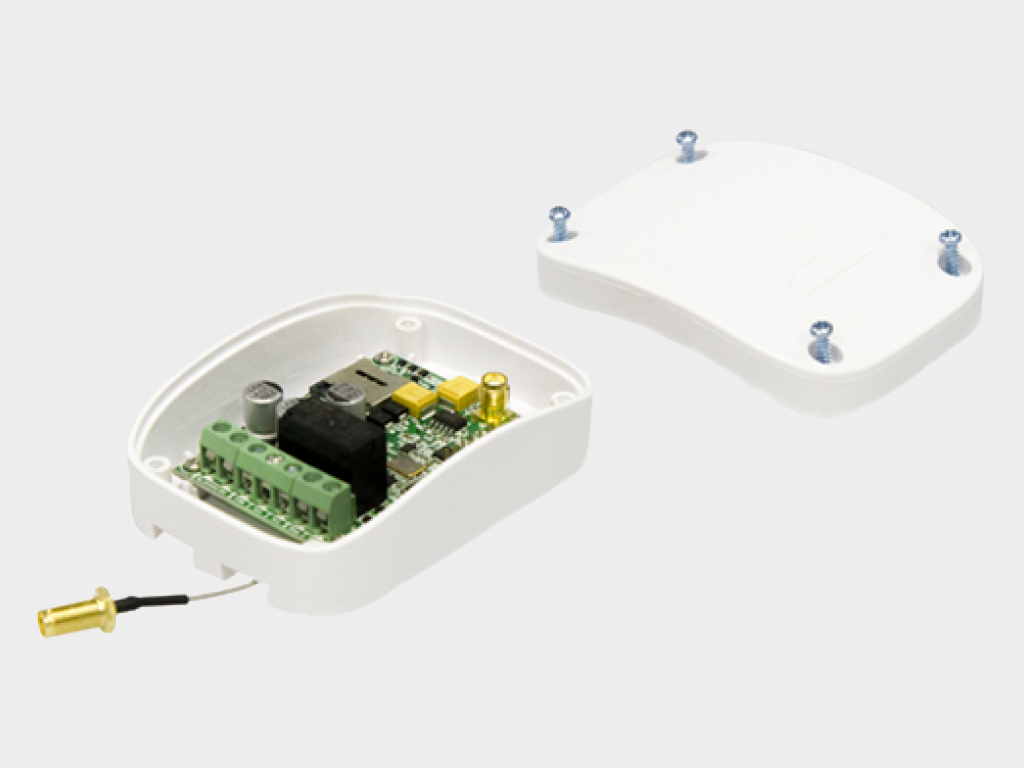

GSM-module receives a mobile phone signal and transmits a control signal to actuate the opener or barrier

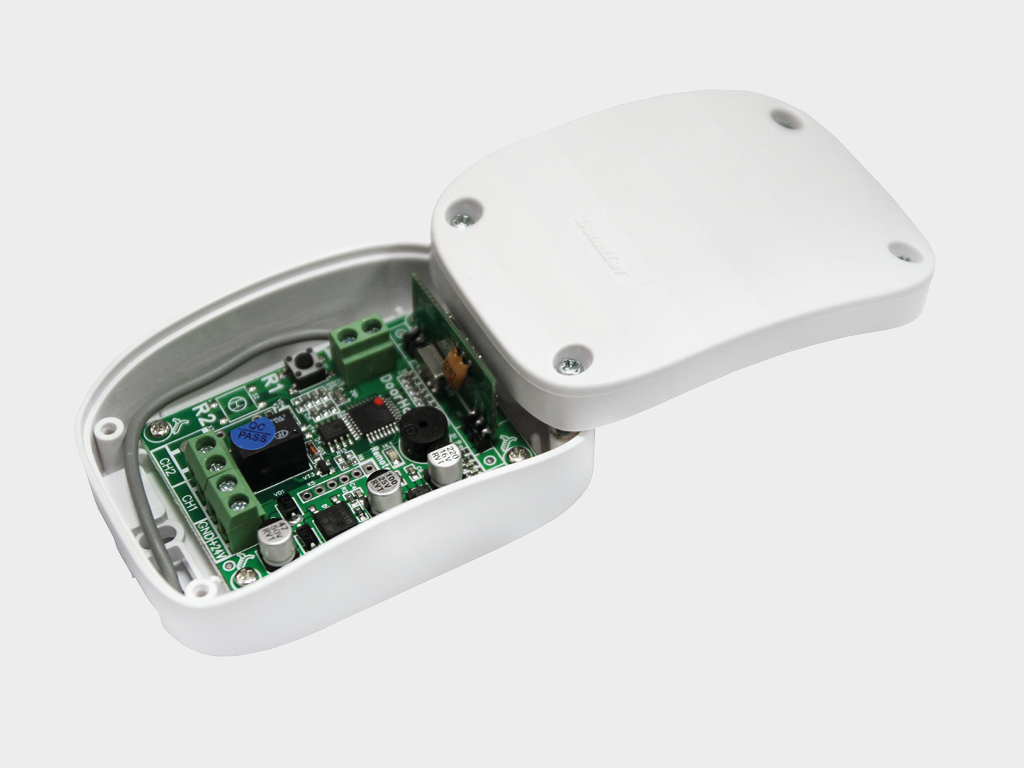

External DHRE-1 receiver can control other manufactures’ automatic devices with DoorHan remote control
ANTENNA-433 to amplify the signal. Used when there are obstacles between the receiver and transmitter

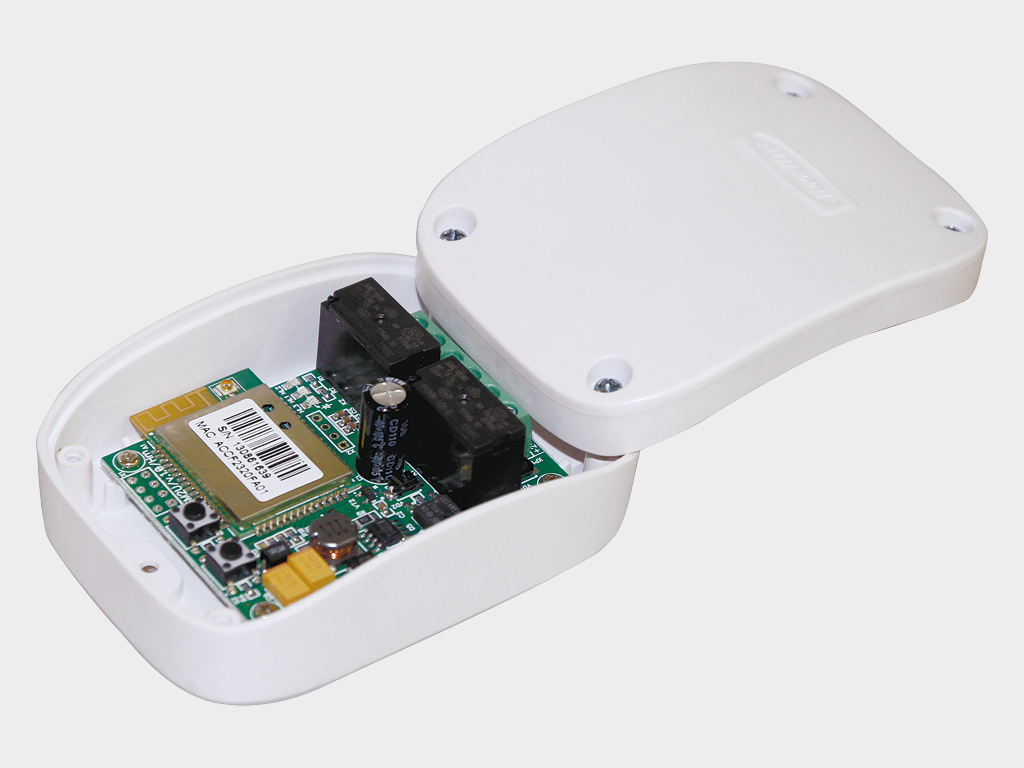

Wi-Fi-module for wireless control of the door opener (control signal, NO)

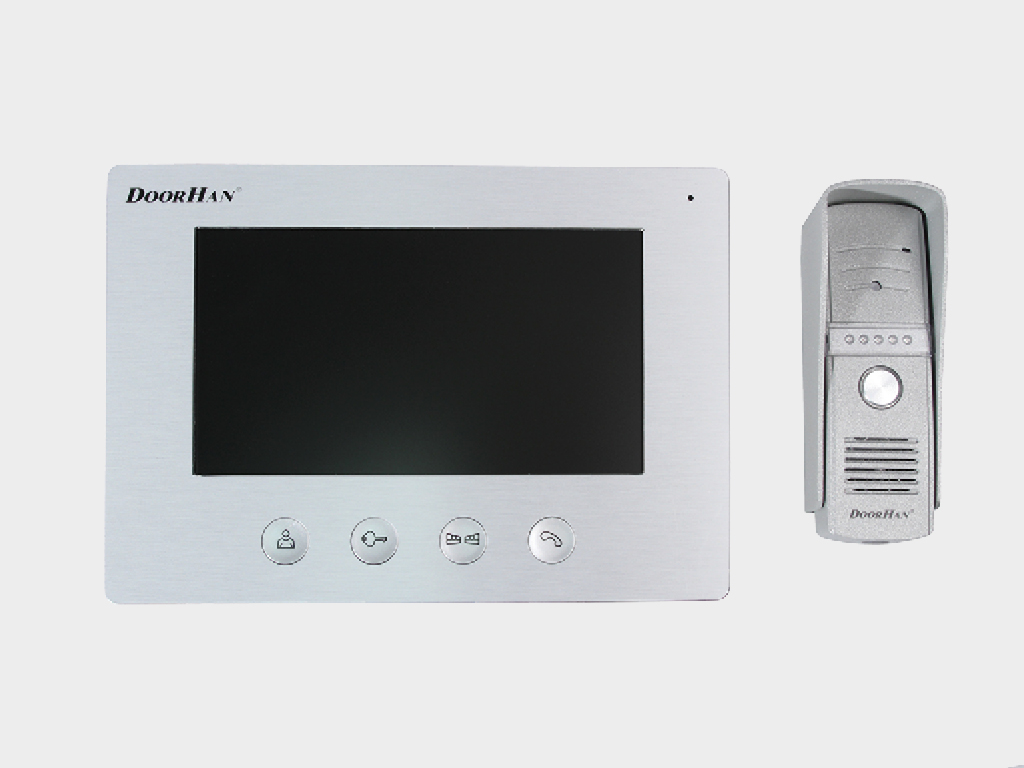

DOMO-7 intercom with video call function to control gate and wicket

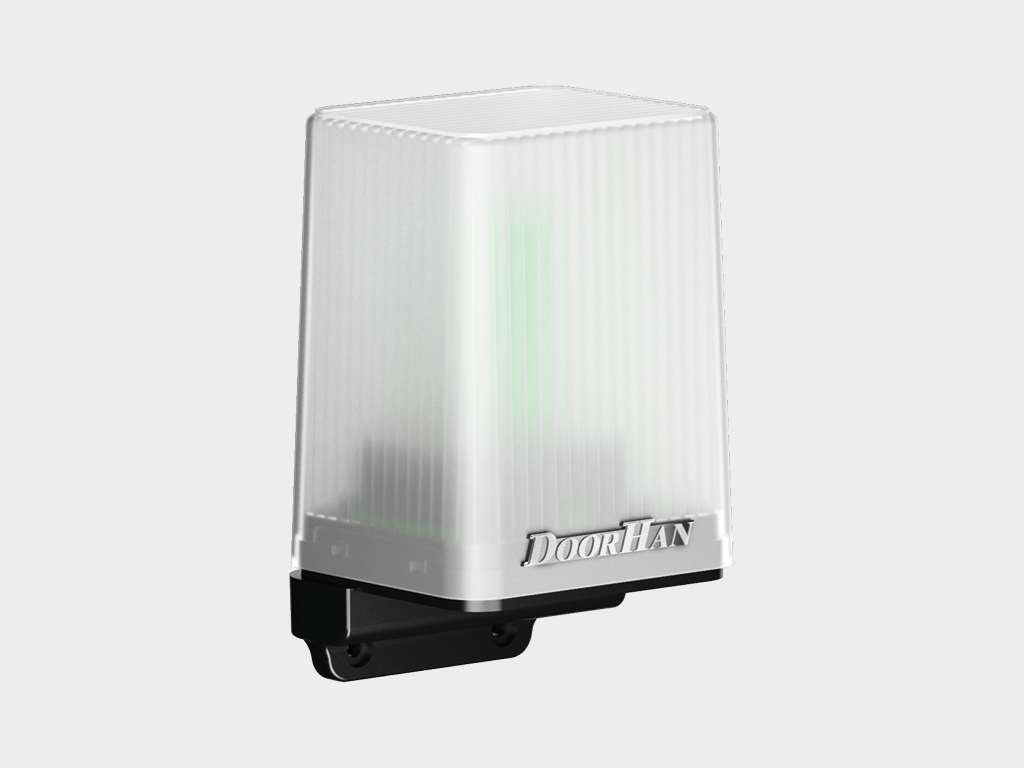

LAMP-PRO-series LED lamp with antenna to signal the door movement

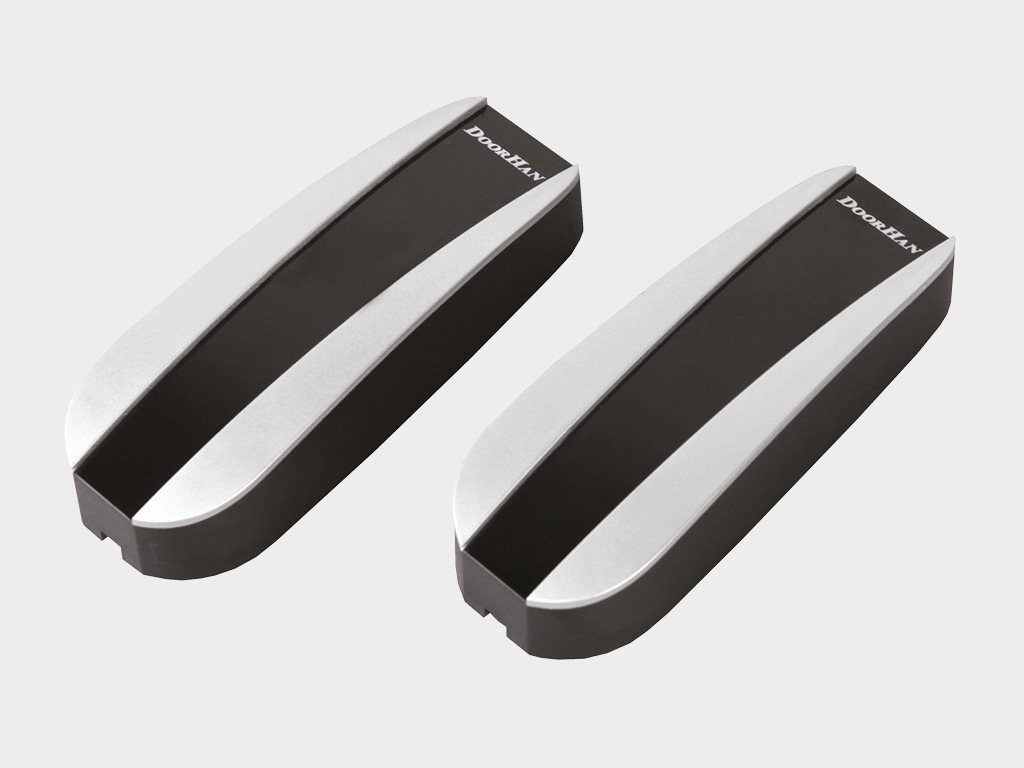

PHOTOCELL-N safety photocells consisting of infrared transmitter and receiver
Wireless PHOTOCELL-W safety photocells consisting of infrared transmitter and receiver

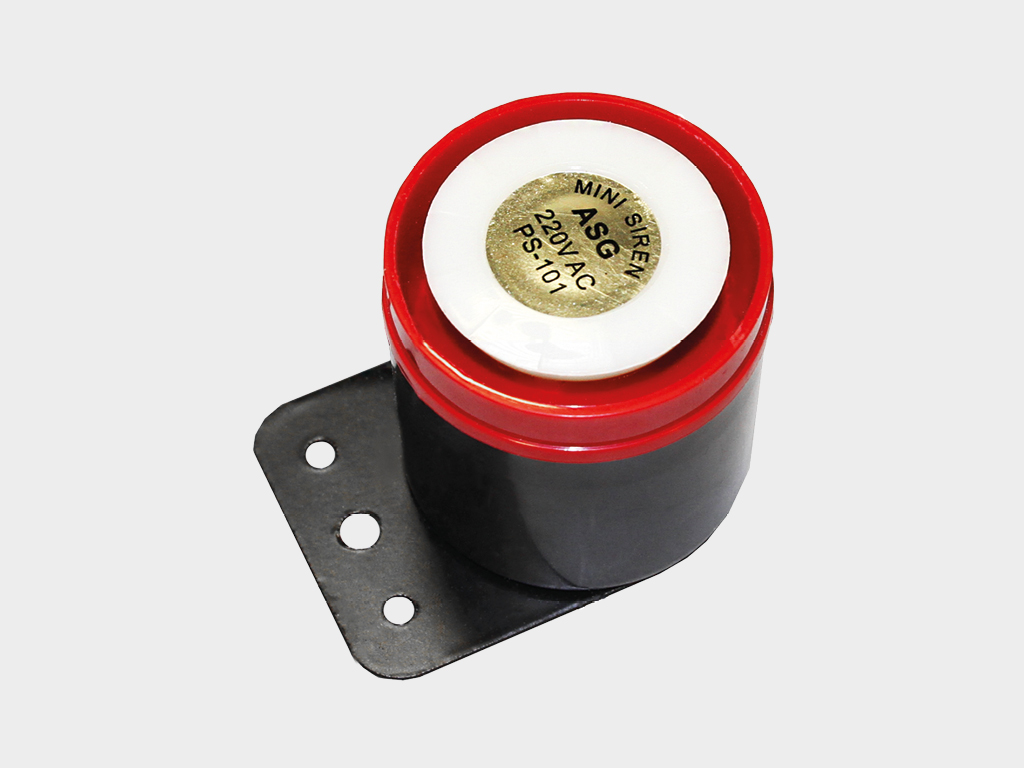

Sirena giving an audio warning about the gate movement
Parameter | Value | Notes |
---|---|---|
Maximum gate leaf length, m | 5 | |
Supply voltage, V | 220 | |
Maximum door leaf weight, kg | 500 | |
Power, W | 150 | |
Operating temperature range, °С | -40...+55 | |
Door opening speed, m/min | 0,9 | |
IP protection class | IP54 | |
Intensity of use | 50 % |
Install the gate operator only on a properly balanced and lubricated gate.
Make sure the gate operator specifications correspond to local climatic conditions.
Never install this operator in hazardous locations.
Make sure no objects will get jammed between movable and stationary parts of the operator.
Use only DoorHan accessories to prevent gate operator damage.
Never leave the gate operator disengaged.
Never use the gate operator if any repair or adjustment needs to be done.
Activate gate only when there are no obstructions to gate movement.
Walk or drive through only when the gate is fully opened and the operator is on stop.
Never permit children to operate or play with gate control push buttons or remote control transmitters.
Do not make any changes to the automatics of the operator. Always seek professional advise.
Packing in cardboard box | Packaging features |
---|---|
Contents | Stretch film, polystyrene, cardboard box |
Length, mm | 1 300 |
Width, mm | 135 |
Height, mm | 105 |
DoorHan warrants the gate operator to work properly for a period of 3 years from purchase date. Dealer may change the warranty period.
Two operators, control unit integrated into the operator body, hardware, release key.
TRANSMITTER-2PRO-Black remote control operates two devices
TRANSMITTER-4PRO-Black remote control operates four devices
TRANSMITTER-4 remote control operates four devices
TRANSMITTER-4 (Color) remote controls of different colours which can operate four devices
TRANSMITTER-PREMIUM having steel housing can operate up to four devices
Car-TRANSMITTER remote control working on chargeable via cigarette lighter can operate two devices
COMMAND-433 wireless button to control two automatic devices
KEYPAD series code keypad controls door operators equipped with internal or external DoorHan receiver
Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device
Anti-vandal code keypad Ref.: KEYCODE controls automatic devices. It can be used as an outdoor keypad or a proximity-card reader
GSM-module receives a mobile phone signal and transmits a control signal to actuate the opener or barrier
External DHRE-1 receiver can control other manufactures’ automatic devices with DoorHan remote control
ANTENNA-433 to amplify the signal. Used when there are obstacles between the receiver and transmitter
Wi-Fi-module for wireless control of the door opener (control signal, NO)
DOMO-7 intercom with video call function to control gate and wicket
LAMP-PRO-series LED lamp with antenna to signal the door movement
PHOTOCELL-N safety photocells consisting of infrared transmitter and receiver
Wireless PHOTOCELL-W safety photocells consisting of infrared transmitter and receiver
Sirena giving an audio warning about the gate movement
Parameter | Value | Notes |
---|---|---|
Maximum gate leaf length, m | 5 | |
Supply voltage, V | 220 | |
Maximum door leaf weight, kg | 500 | |
Power, W | 150 | |
Operating temperature range, °С | -40...+55 | |
Door opening speed, m/min | 0,9 | |
IP protection class | IP54 | |
Intensity of use | 50 % |
Install the gate operator only on a properly balanced and lubricated gate.
Make sure the gate operator specifications correspond to local climatic conditions.
Never install this operator in hazardous locations.
Make sure no objects will get jammed between movable and stationary parts of the operator.
Use only DoorHan accessories to prevent gate operator damage.
Never leave the gate operator disengaged.
Never use the gate operator if any repair or adjustment needs to be done.
Activate gate only when there are no obstructions to gate movement.
Walk or drive through only when the gate is fully opened and the operator is on stop.
Never permit children to operate or play with gate control push buttons or remote control transmitters.
Do not make any changes to the automatics of the operator. Always seek professional advise.
Packing in cardboard box | Packaging features |
---|---|
Contents | Stretch film, polystyrene, cardboard box |
Length, mm | 1 300 |
Width, mm | 135 |
Height, mm | 105 |
DoorHan warrants the gate operator to work properly for a period of 3 years from purchase date. Dealer may change the warranty period.
