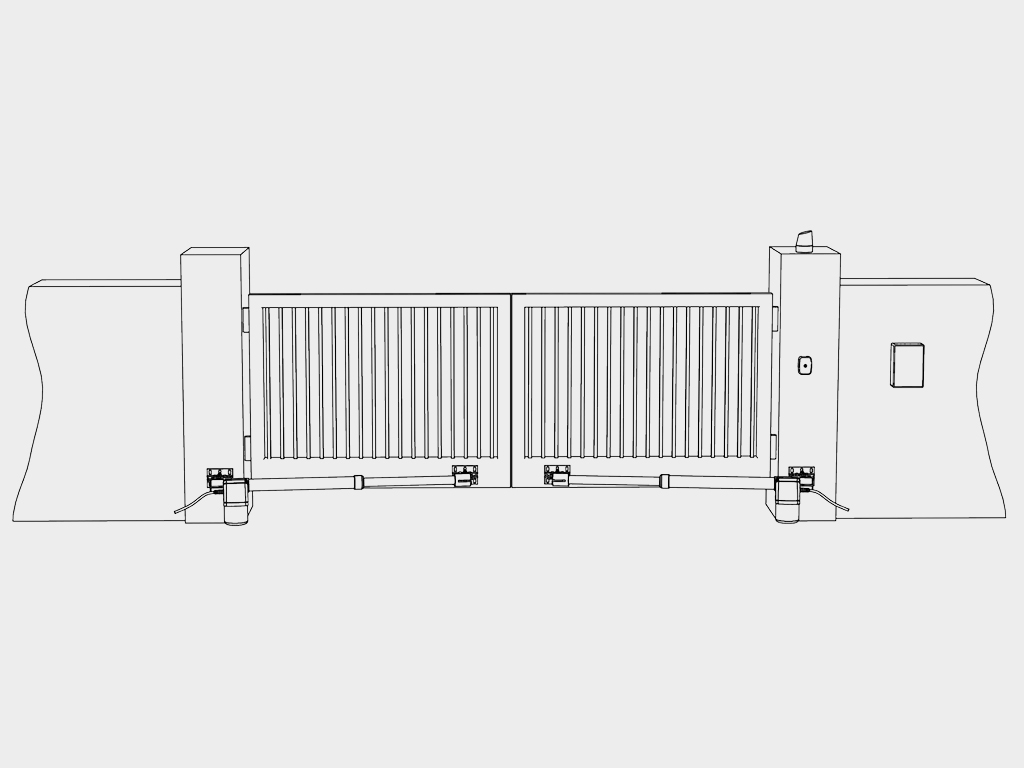

- Swing gates of any type
- Swing gates and wickets

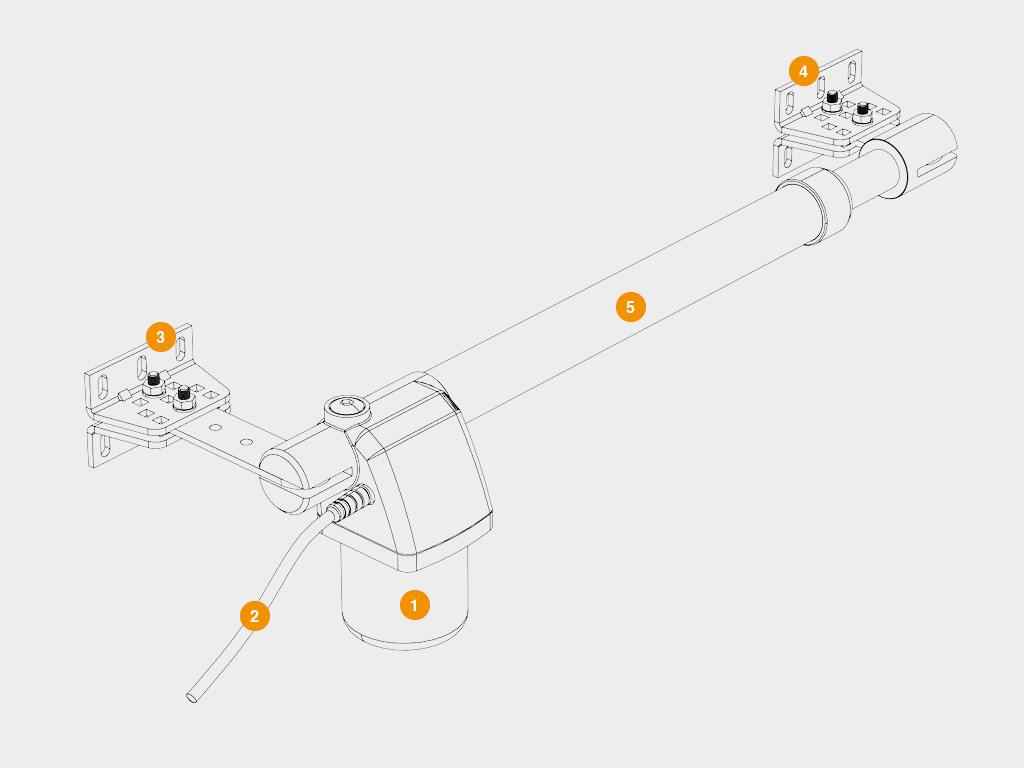

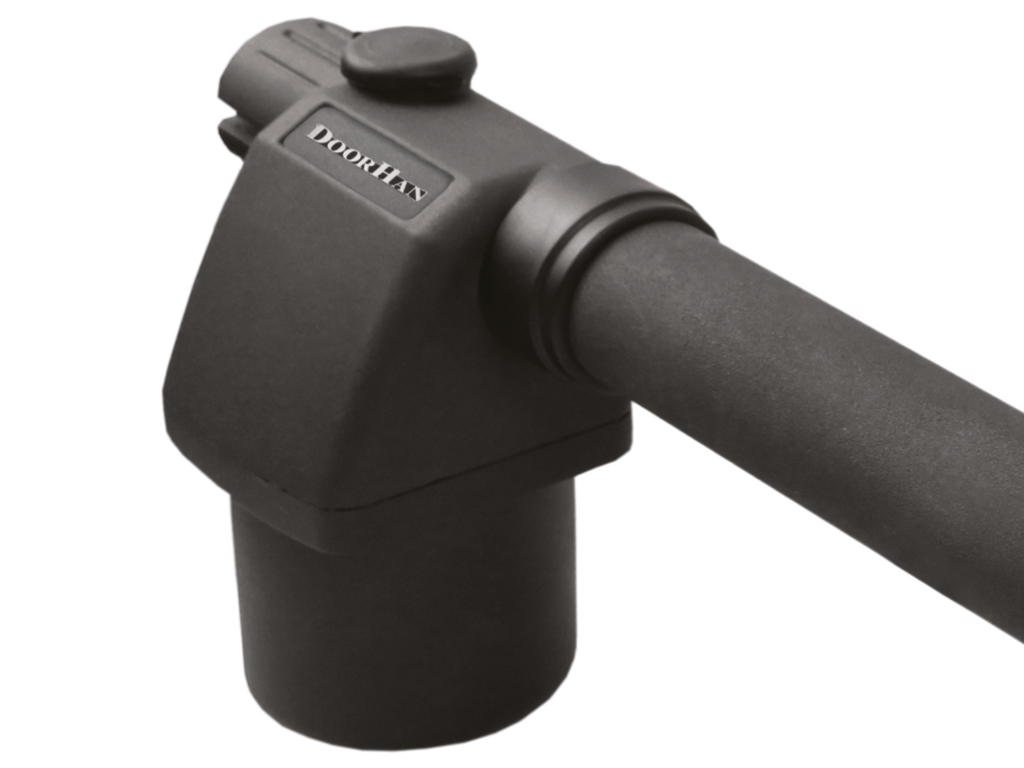

Two operators, control unit integrated into the operator body, hardware, release key.
PHOTOCELL-N safety photocells consisting of infrared transmitter and receiver
Wireless PHOTOCELL-W safety photocells consisting of infrared transmitter and receiver
Wi-Fi-module for wireless control of the door operator (control signal, NO)
GSM-module receives a mobile phone signal and transmits a control signal to actuate the operator or barrier
TRANSMITTER-2PRO-Black remote control operates two devices
TRANSMITTER-4PRO-Black remote control operates four devices
TRANSMITTER-4 remote control operates four devices
TRANSMITTER-PREMIUM having steel housing can operate up to four devices
Car-TRANSMITTER remote control working on cigarette lighter can operate two devices
KEYPAD series code keypad controls door operator equipped with internal or external DoorHan receiver
COMMAND-433 wireless button to control two devices
Turning off KEYSWITCH-N transmits a controlling signal to the control block of an automatic device
Anti-vandal code keypad Ref: KEYCODE series controls automatic devices. It can be used as an outdoor keypad or a proximity-card reader
External DHRE-1 receiver controls other manufactures’ automatic devices with DoorHan remote control

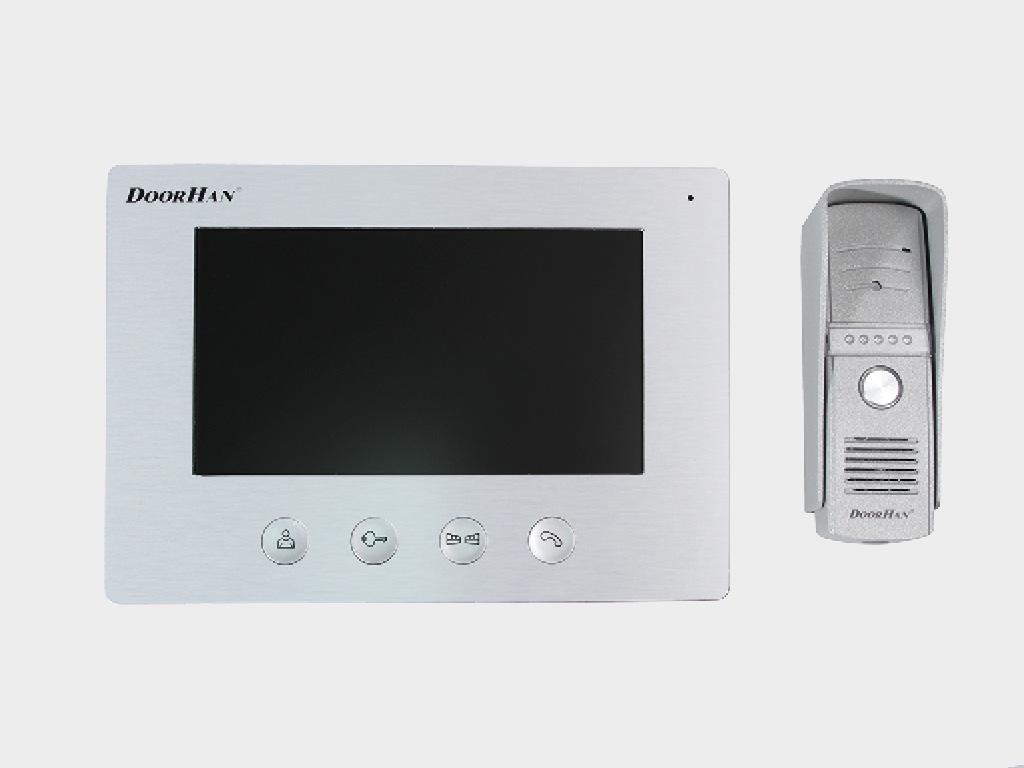

DOMO-7 intercom with video call function to control gate and wicket
LAMP-PRO-series LED lamp with antenna to signal the door movement
ANTENNA-433 to amplify the signal. Used when there are obstacles between the receiver and transmitter

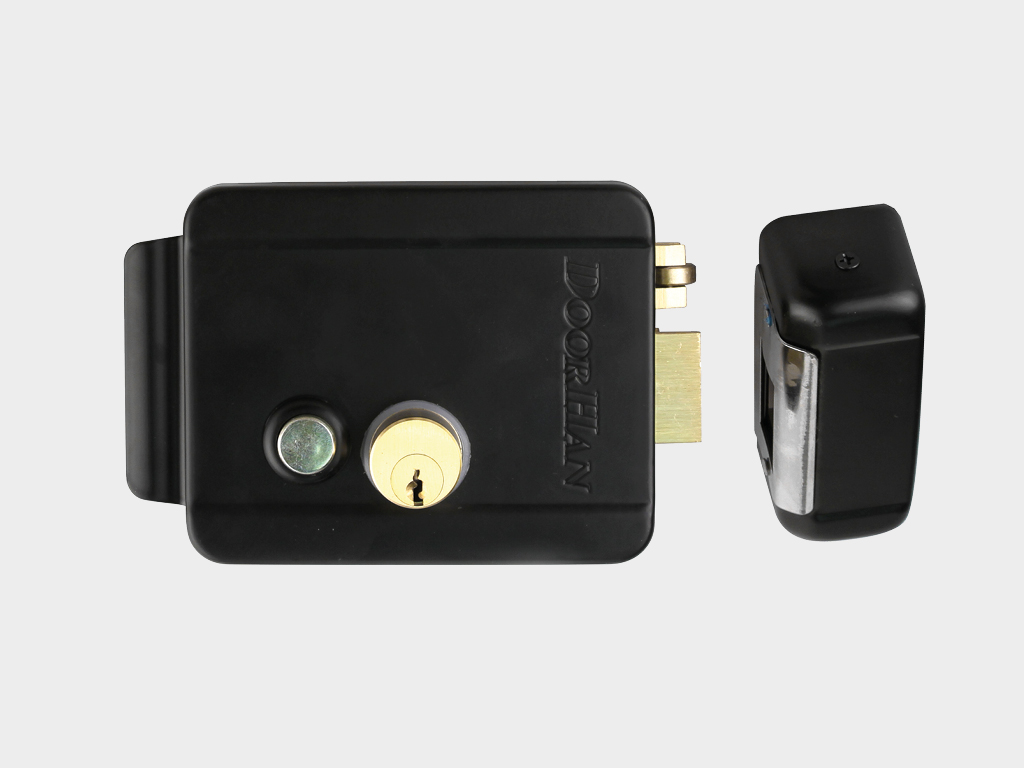

Electromechanical overhead lock of DH-LOCK series for wickets
Sirena giving an audio warning about the gate movement
Parameter | Value | Notes |
---|---|---|
Maximum gate leaf length, m | 4 | |
Supply voltage, V | 220-240 | |
Maximum door leaf weight, kg | 400 | |
Power, W | 140 | |
Operating temperature range, °С | -20...+55 | |
Door opening speed, m/min | 1,08 | |
IP protection class | 44 | |
Intensity of use | 50 |
Install the gate operator only on a properly balanced and lubricated gate.
Make sure the gate operator specifications correspond to local climatic conditions.
Never install this operator in hazardous locations.
Make sure no objects will get jammed between movable and stationary parts of the operator.
Use only DoorHan accessories to prevent gate operator damage.
Never leave the gate operator disengaged.
Never use the gate operator if any repair or adjustment needs to be done.
Activate gate only when there are no obstructions to gate travel.
Walk or drive through the opening only when the door is fully opened and stopped. The operator must be on stop.
Never permit children to operate or play with gate control push buttons or remote control transmitters.
Do not make any changes to automatics of the operator.
Packing in cardboard box | Packaging features |
---|---|
Contents | stretch film, polystyrene, cardboard box |
Length, mm | 710 |
Width, mm | 275 |
Height, mm | 225 |
DoorHan warrants the gate operator to work properly for a period of 3 years from purchase date. Dealer may change the warranty period.
